Project 1 : CFD Meshing for Tesla Cyber Truck

AIM: CFD MESHING FOR TESLA CYBER TRUCK.

Check and solve all geometrical errors for the given model and Assign appropriate PIDs. Perform meshing with the suitable Target length and element Quality criteria.

PROCEDURE:

• OPEN THE GIVEN TESLA FILE.
•

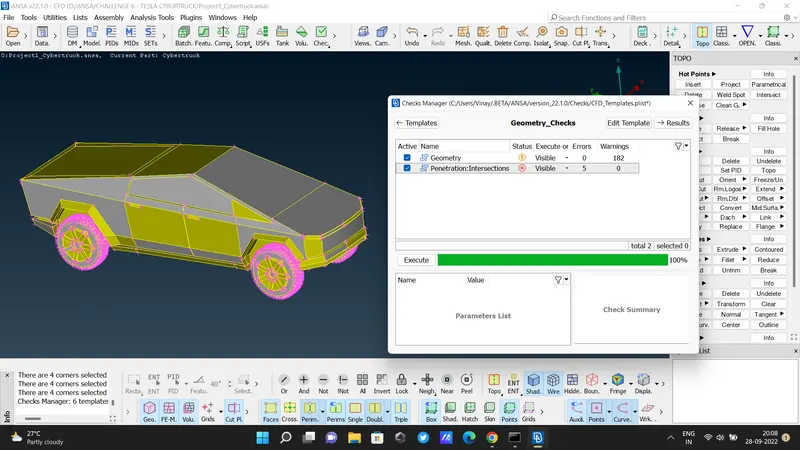

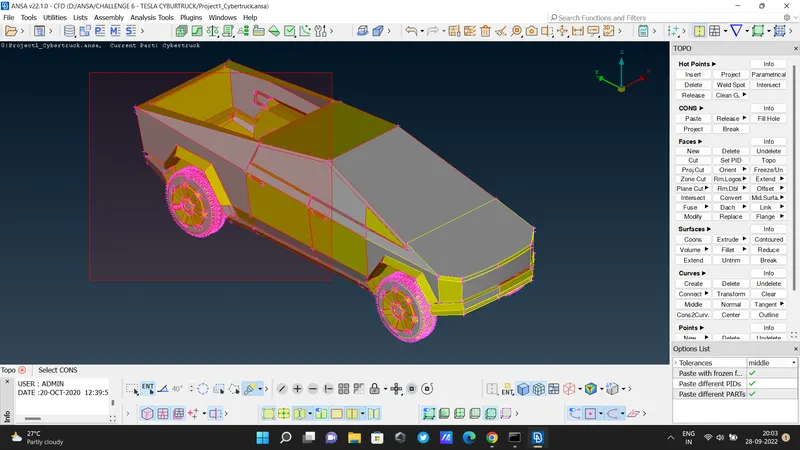

• THERE ARE A LOT OF RED CONS, SO UESD TOPO COMMAND.
•

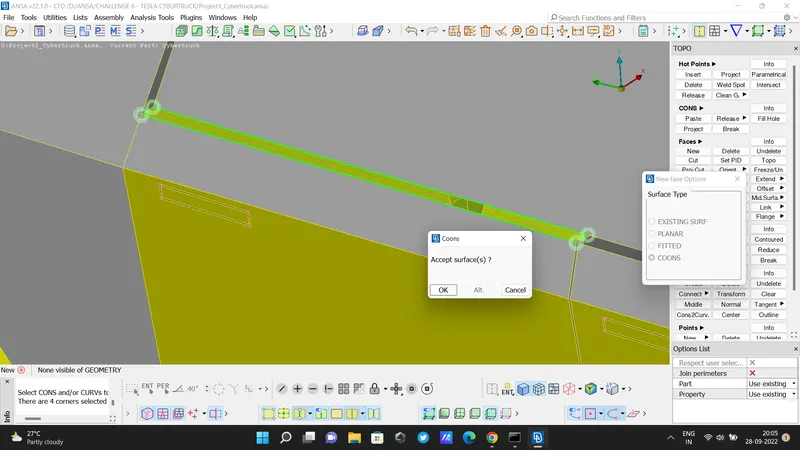

• IF THERE IS A GAP IN BETWEEN THE BODY THEN CREATE A NEW SURFACE THERE USING THE FILL HOLE OR COONS OPTION.
•
•
•

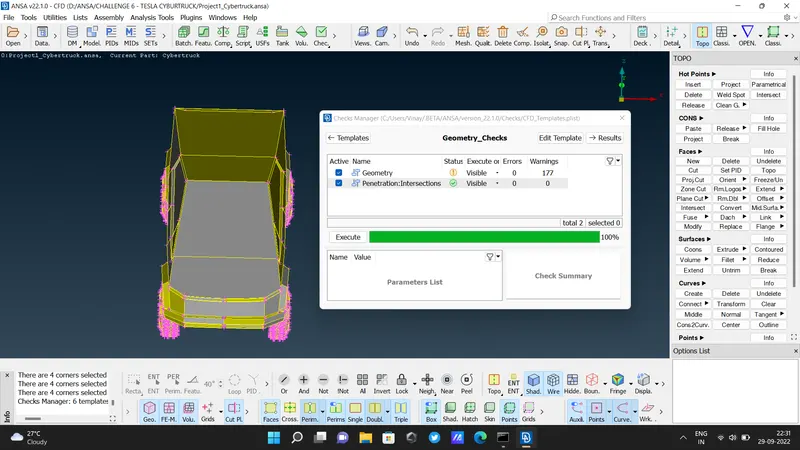

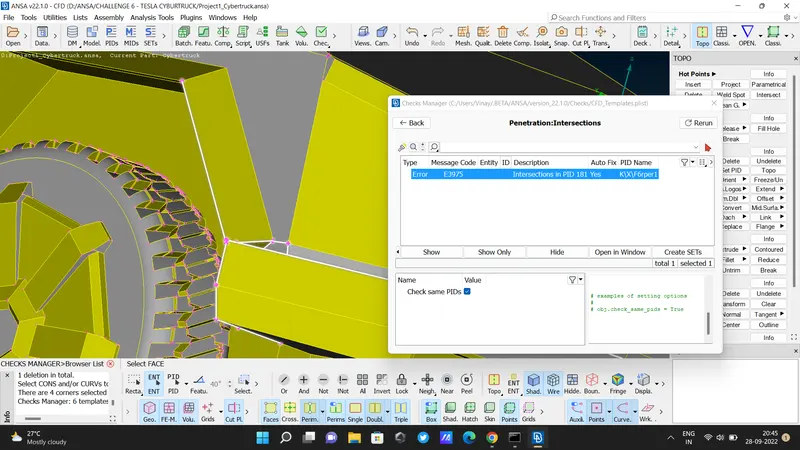

• AFTER COMPLETING ALL GEOMETRICAL AND INTERSECTION ERRORS.
•

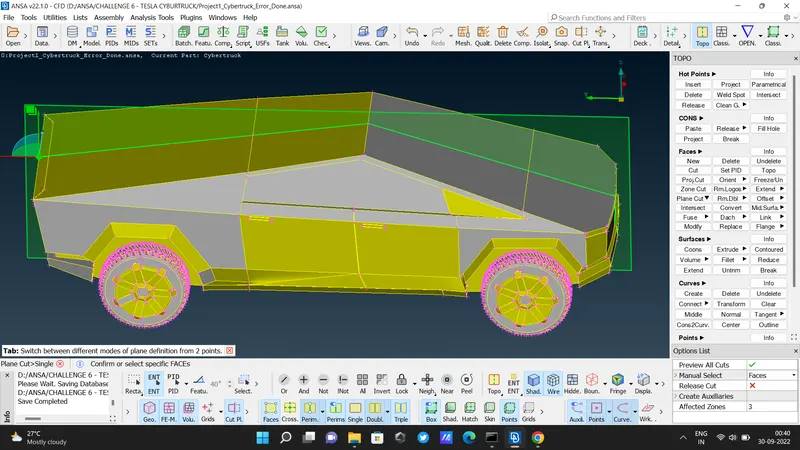

• HERE WE CUT HALF SECTION OF THE CAR USING THE PLANE CUT OPTION.
•

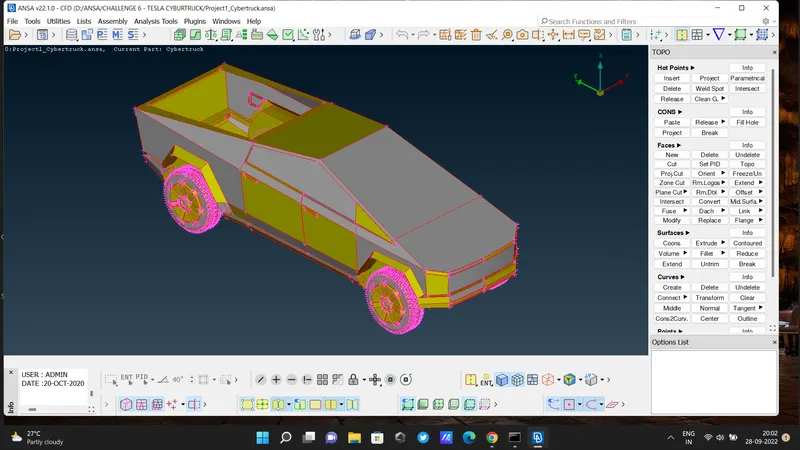

• BEFORE MESHING
•

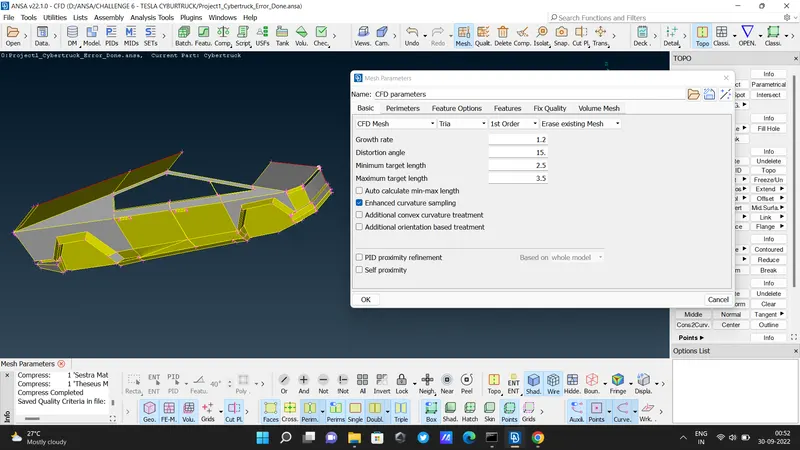

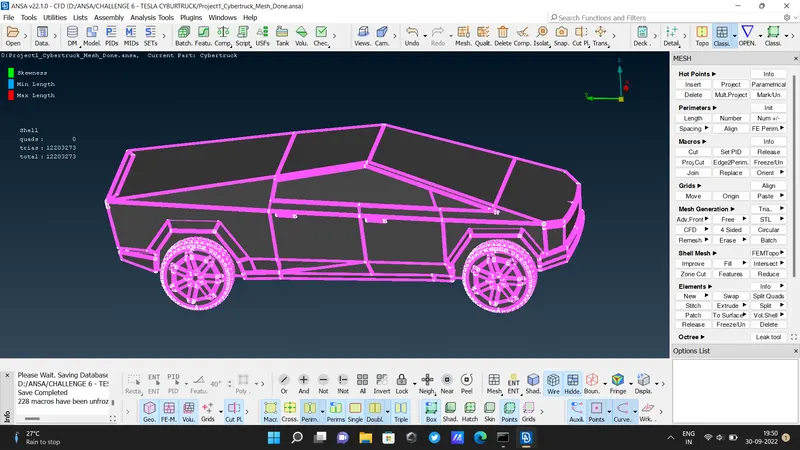

• AFTER MESHING
•

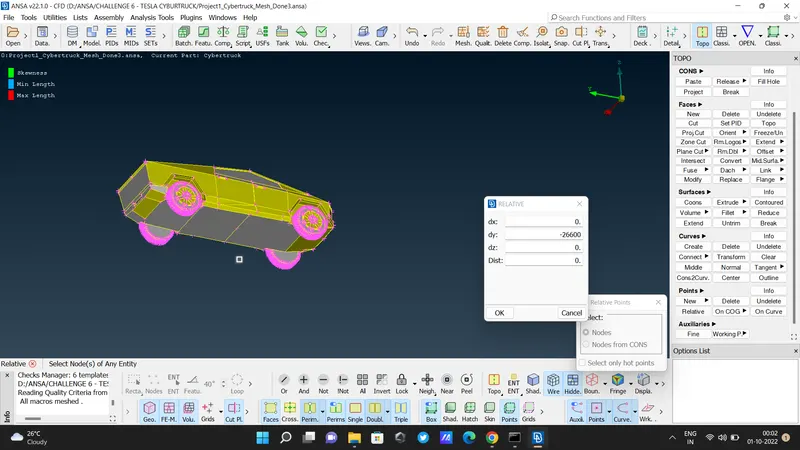

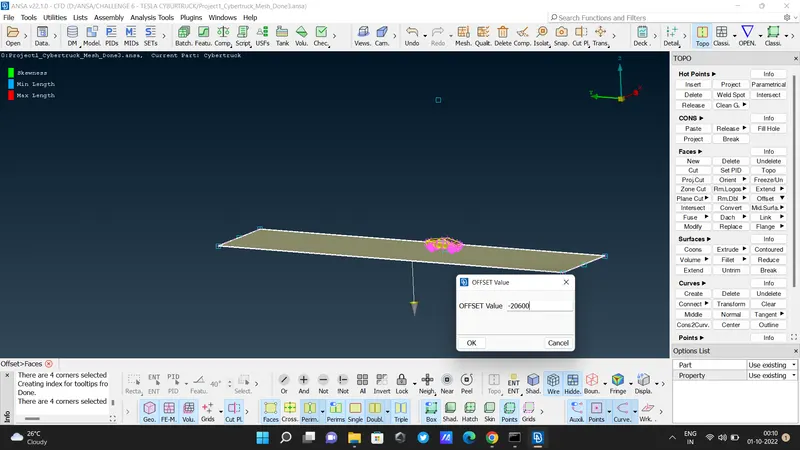

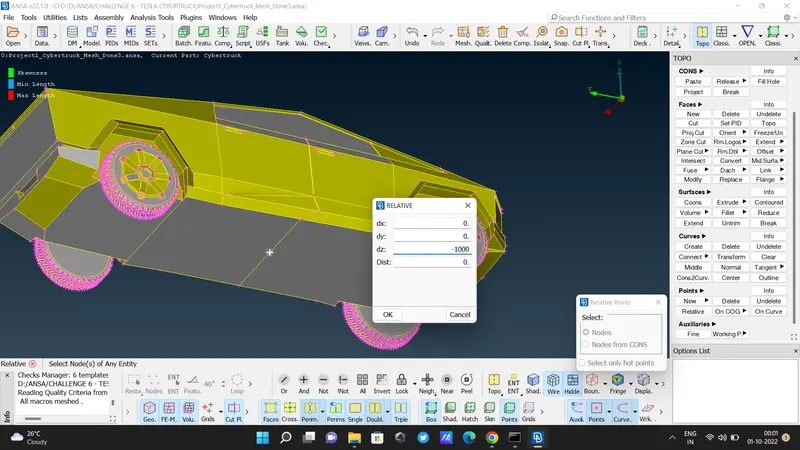

• CREATING WIND TUNNEL USING RELATIVE OPTION FROM POINTS.
•
•
•

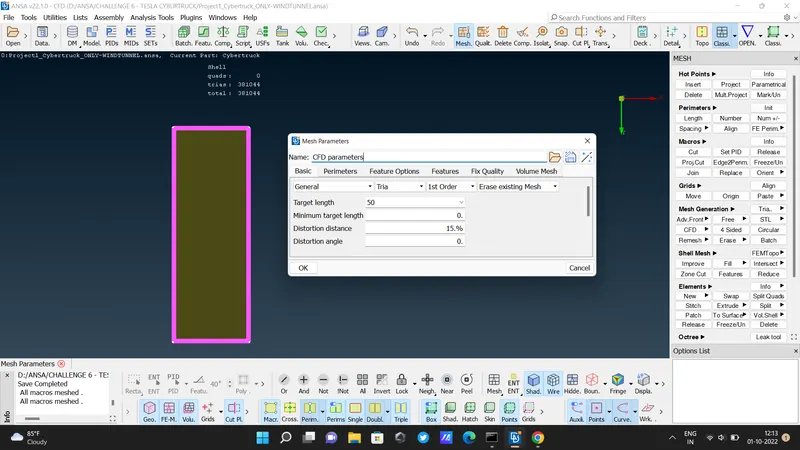

• MESHING ALL WIND TUNNELL SIDES.
•

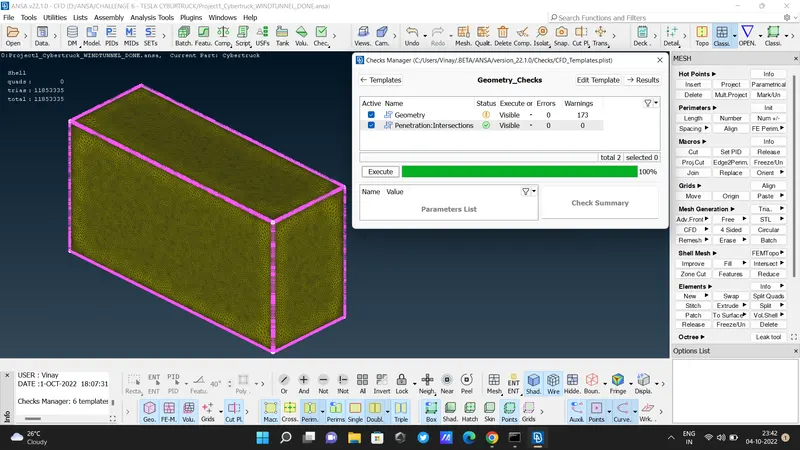

• AFTER MESHING ALL PARTS.
•
• DONE!
