Project 1_Analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER.

Q1:)Analyze and design a steel building to 10T CRANE as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. Provide bracings and moment connection for lateral stability.

Consider dead, live, equipment and wind loading. Consider the brick wall loading for 150mm thick and 1.5 KN per sq m for wall and roof cladding.

Assume wind loading basic speed as 39m/s

Aim: To model & analyze steel building with 10T crane load

Procedure:

Step:1)

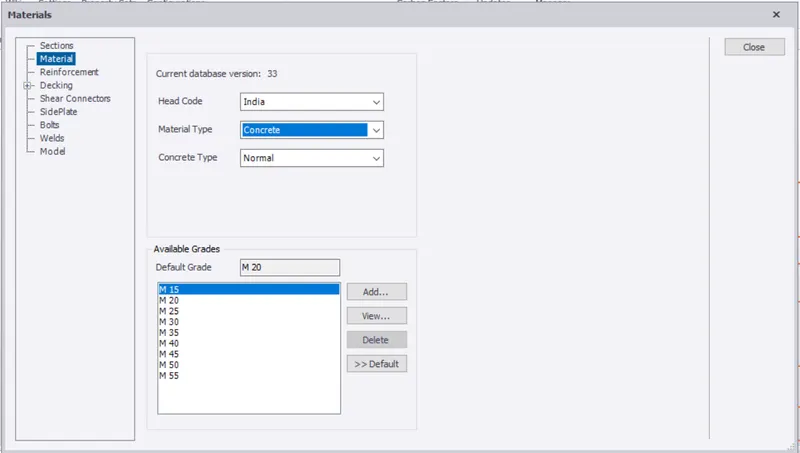

Select the materials for Concrete & Steel to be used in the structure

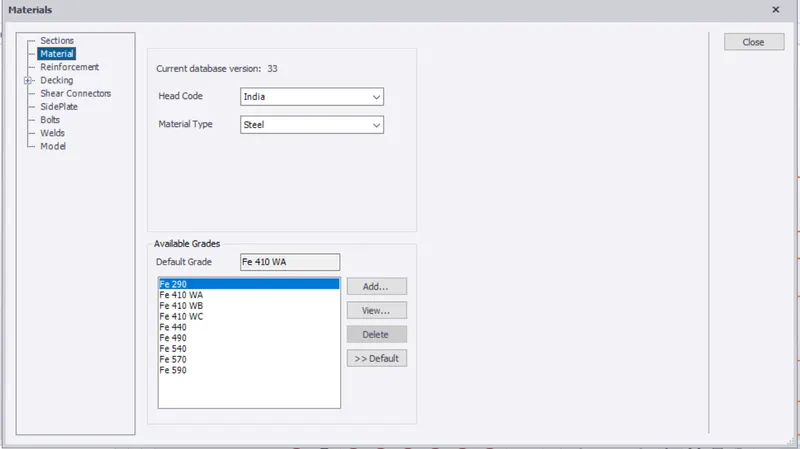

Model > Materials

Step:2)

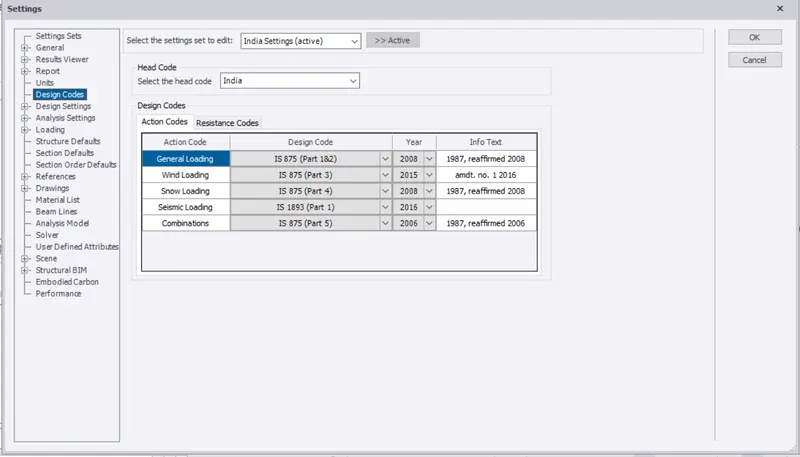

Set the design code

Model > Settings

Step:3)

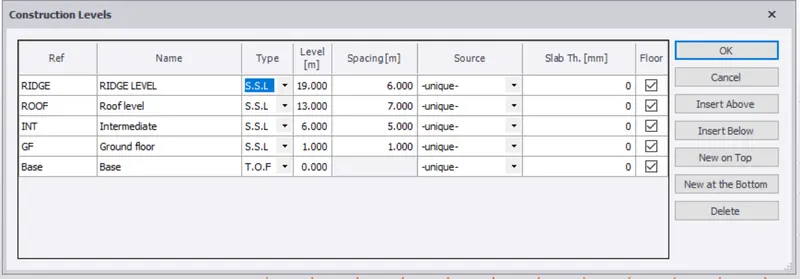

Create the levels for the structure

Model > Construction levels

Step:4)

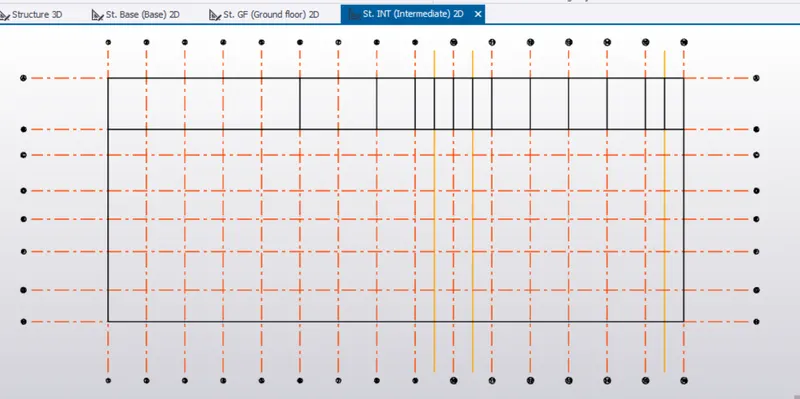

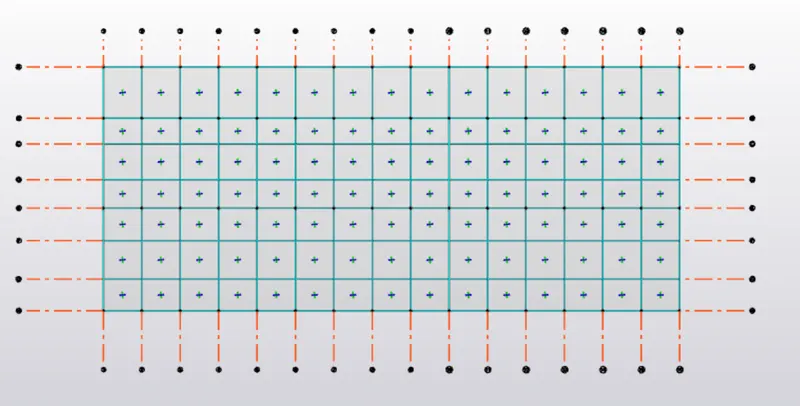

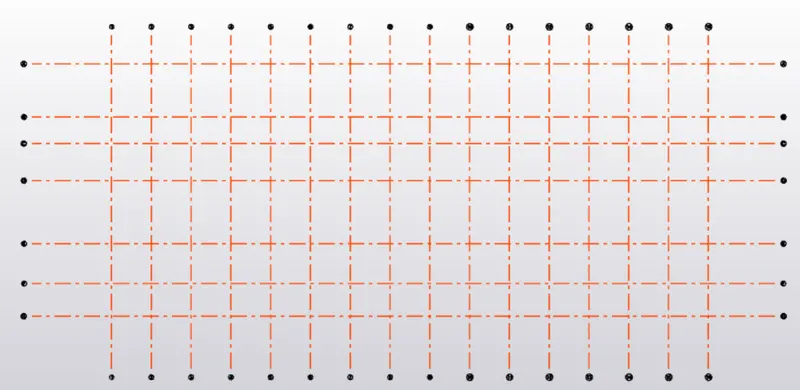

Create the grids

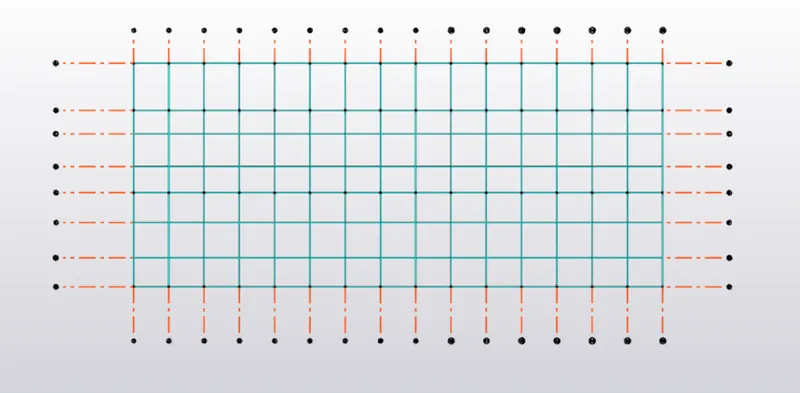

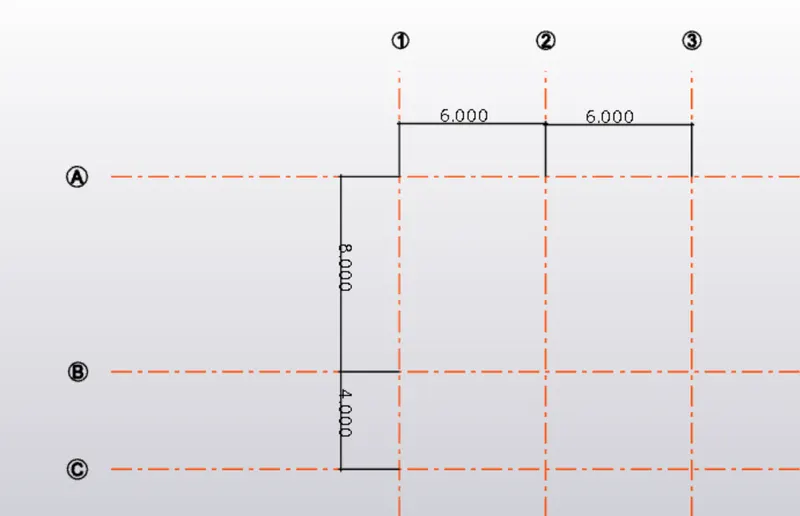

Model > Grid lines

Step:5)

Create the RCC Pedestal

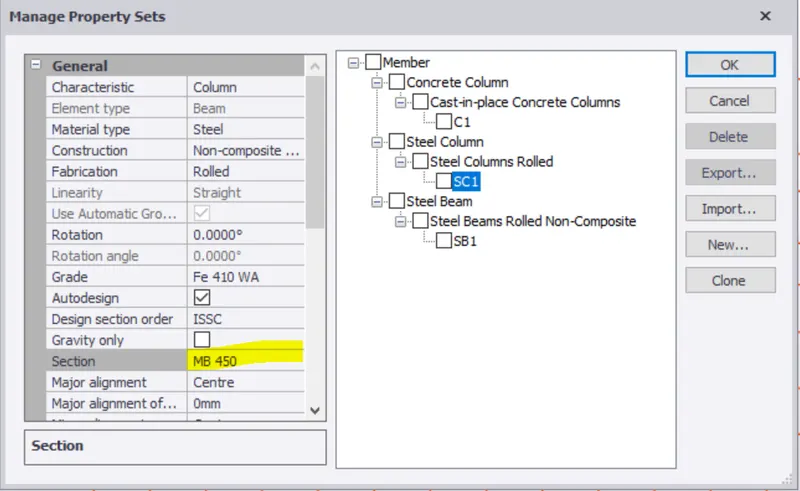

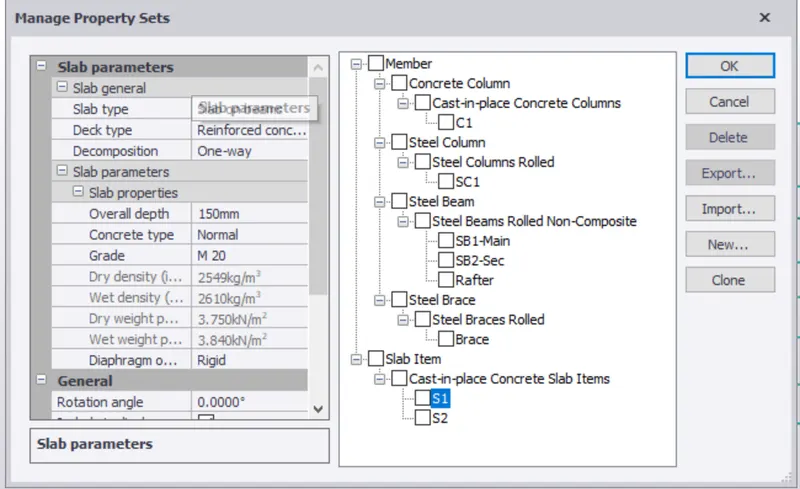

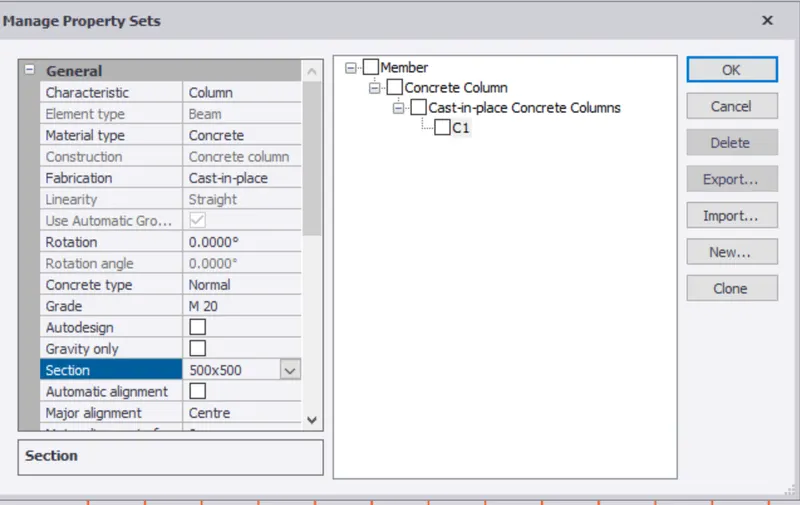

Home > Manage property set

Step:6)

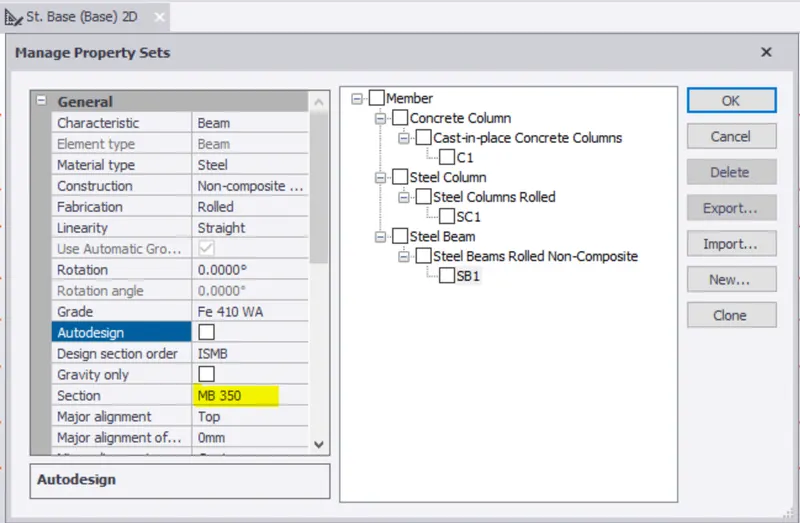

Create the Steel Column & Beam

Home > Manage property set

Step:7)

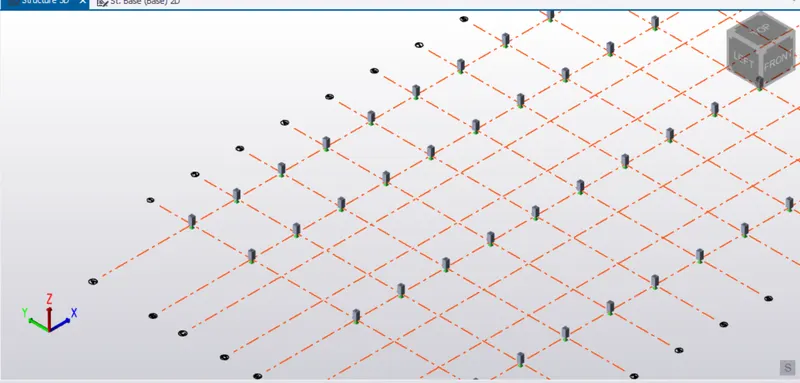

Model RCC pedestal

Step:8)

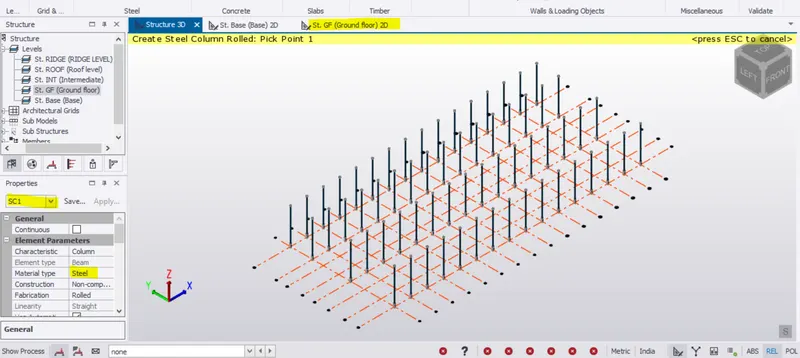

Model steel column

Step:8)

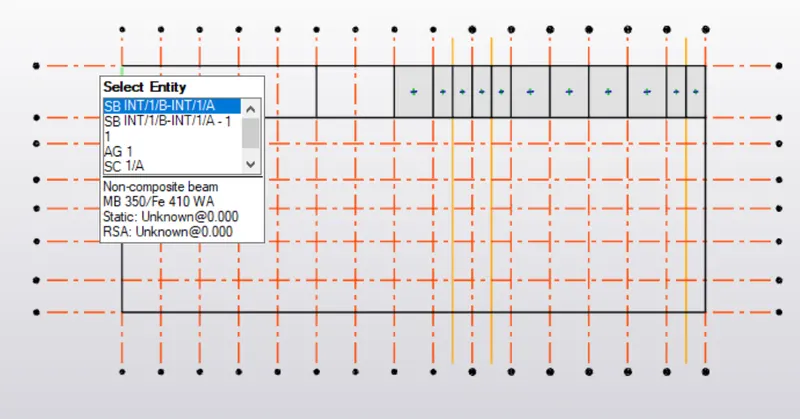

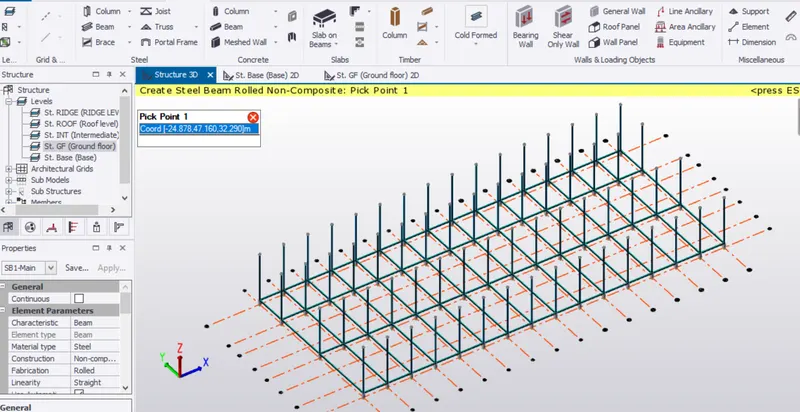

Model steel beam for ground floor

Model steel beam for Intermediate floor

Step:9)

Model 1 way & 2 way slab for GF & Intermediate

GF slab

Intermediate slab

Step:10)

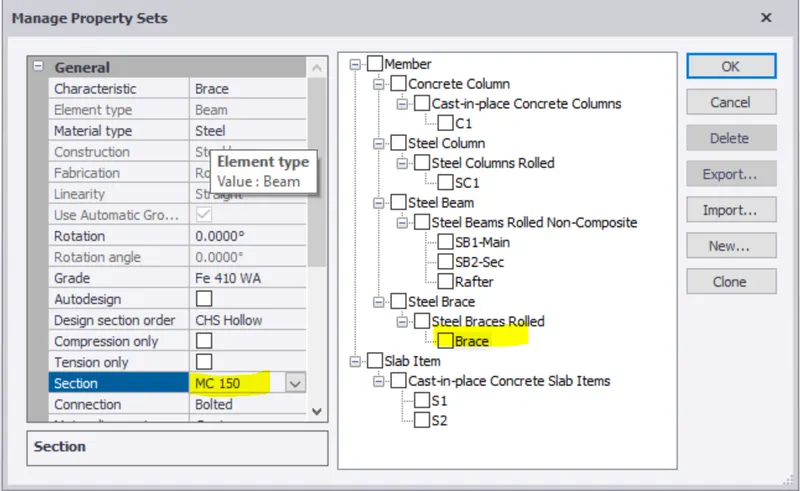

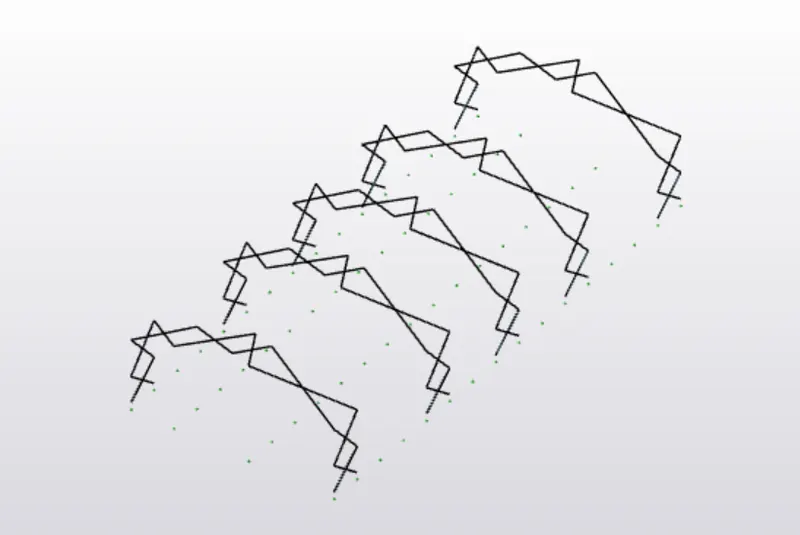

Wall & roof brace

Step:11)

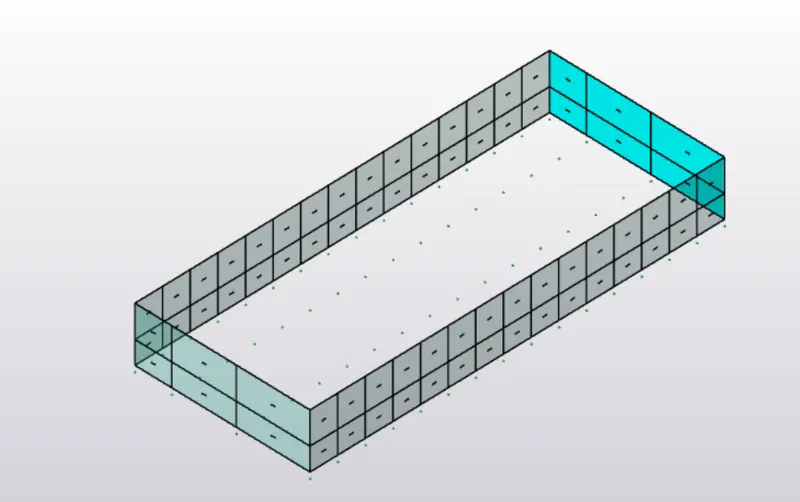

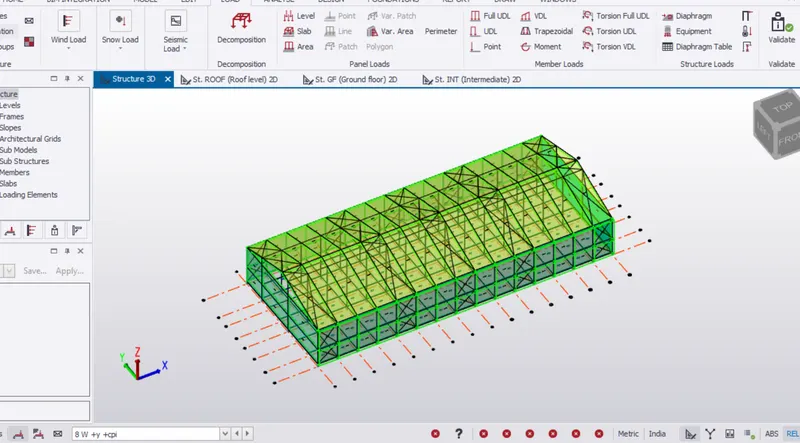

Wall panel

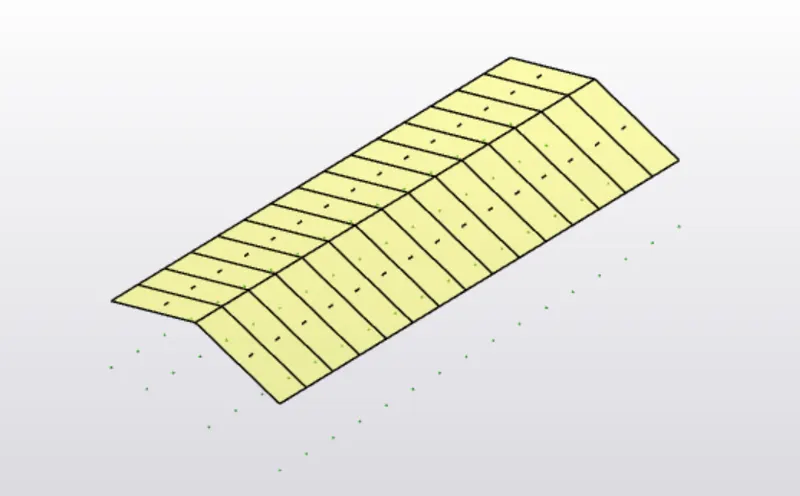

Roof panel

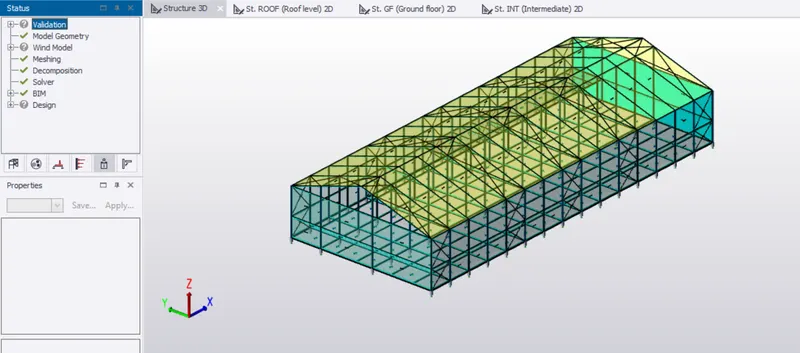

Validate the model before loading

Step:12)

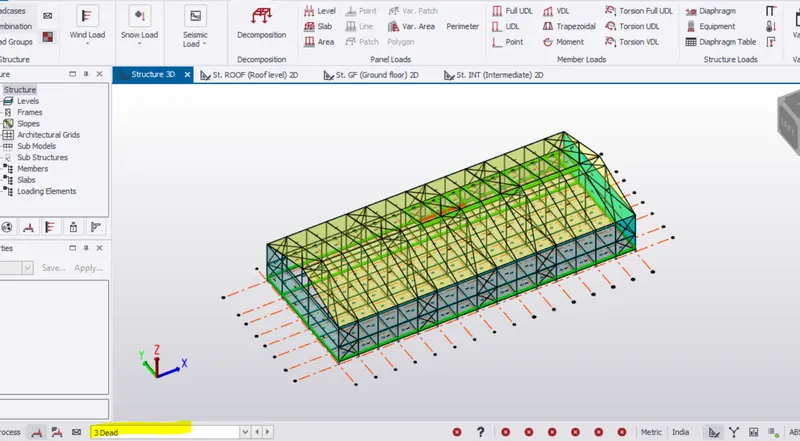

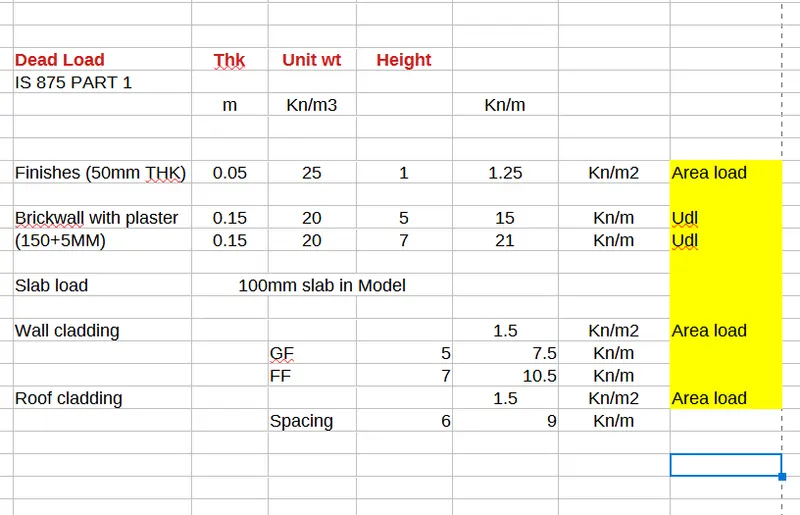

Dead Load for building as per IS 875 part 1

Step:13)

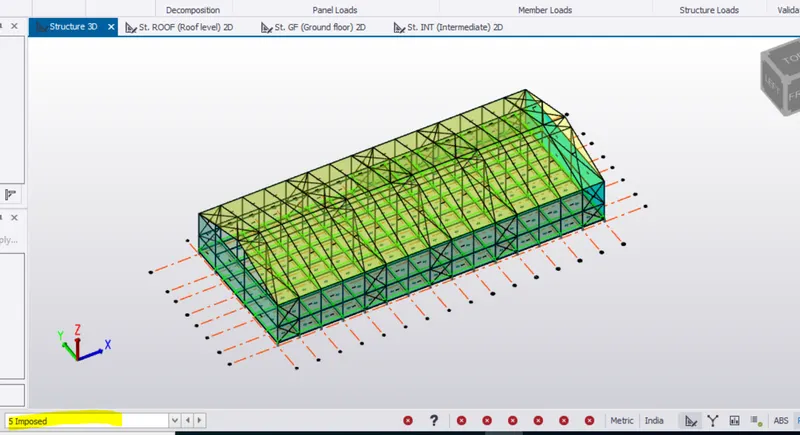

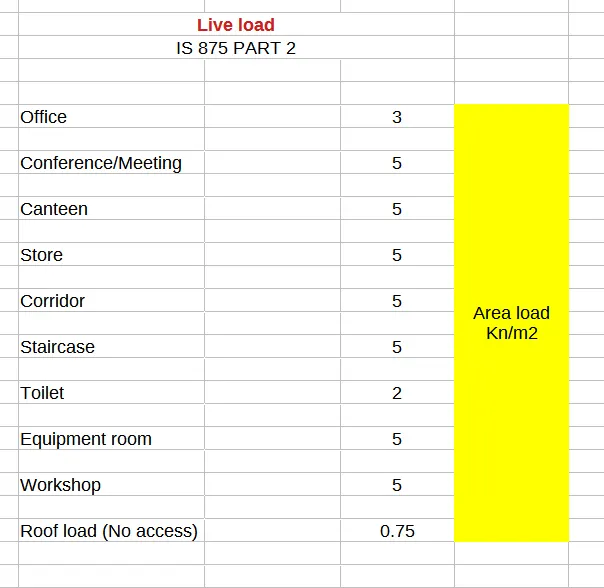

Live load for building as per IS 875 part 2

Step:14)

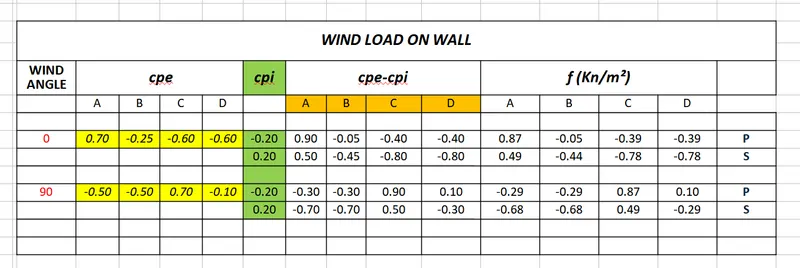

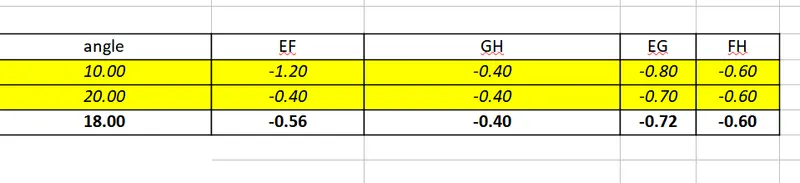

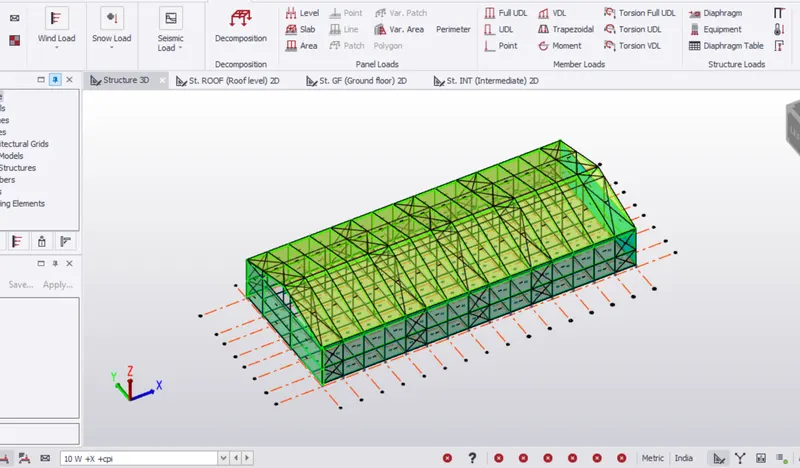

Wind load for building as per IS 875 part 3

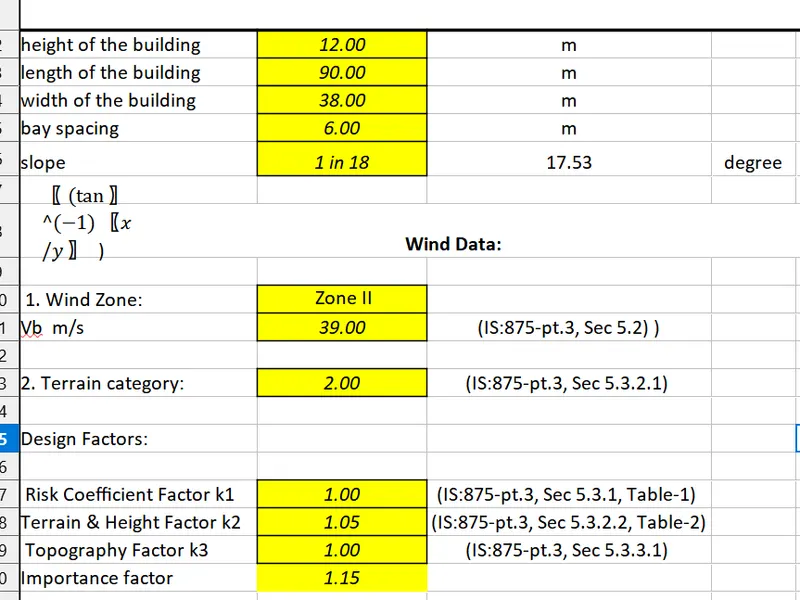

Building details

Wind pressure

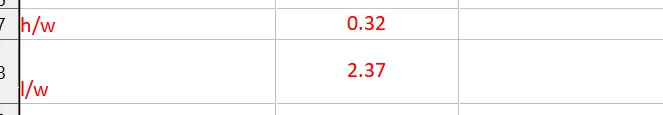

For 0 & 90 values with cpi

For wall load

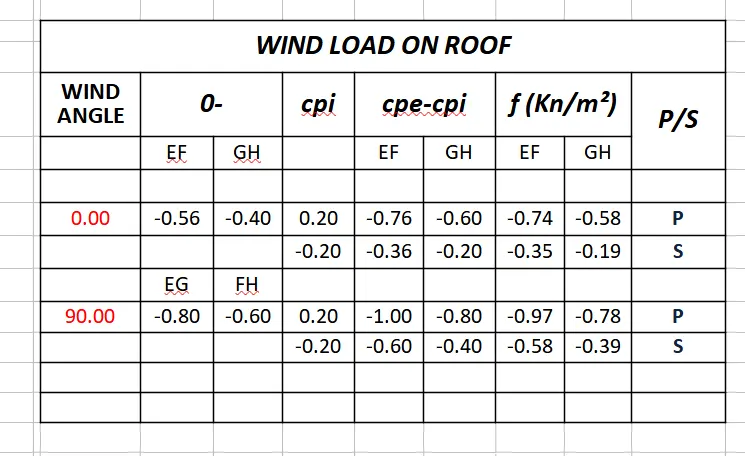

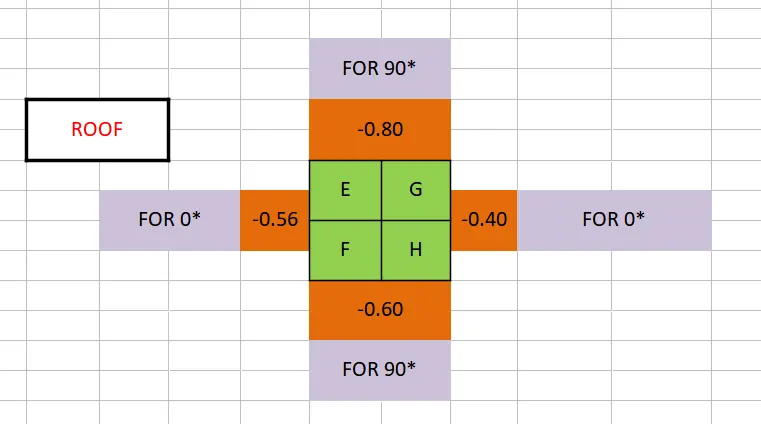

For roof load

Step:15)

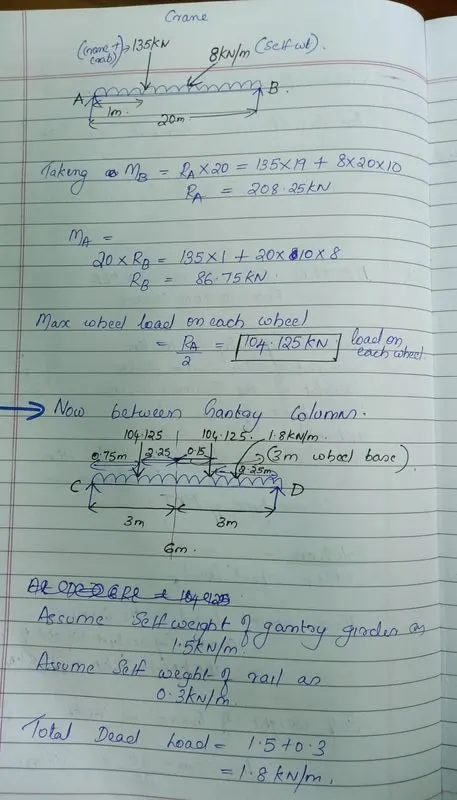

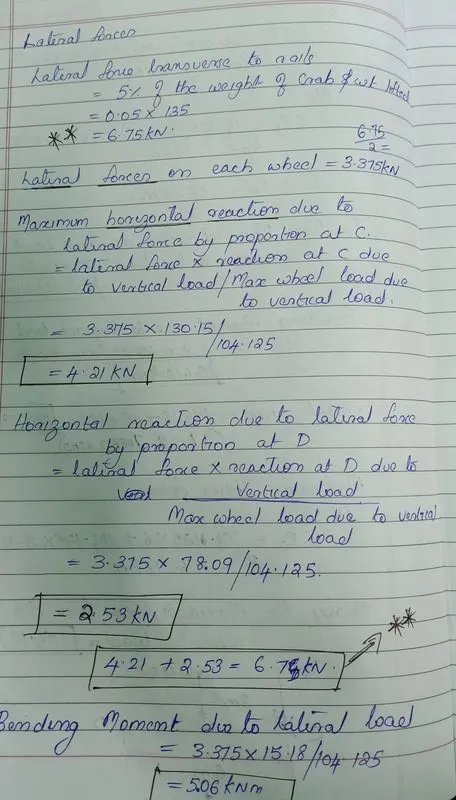

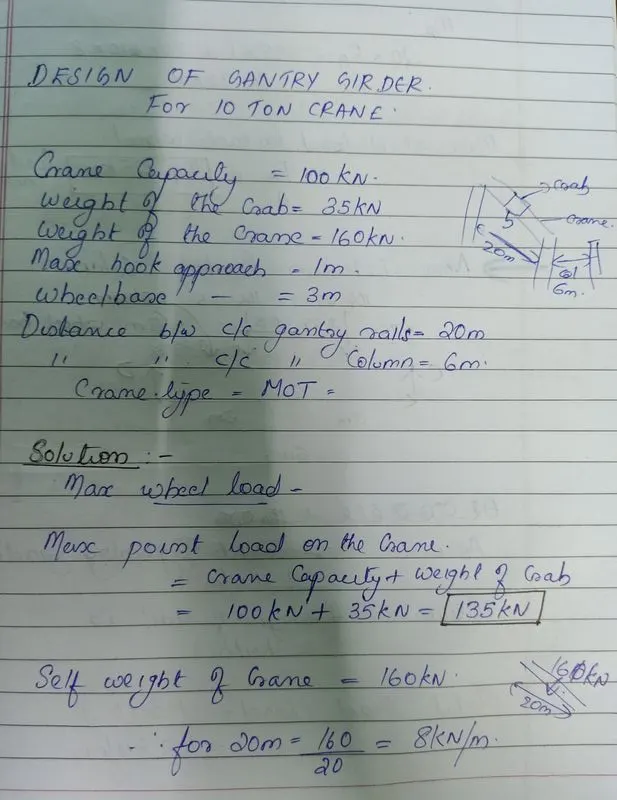

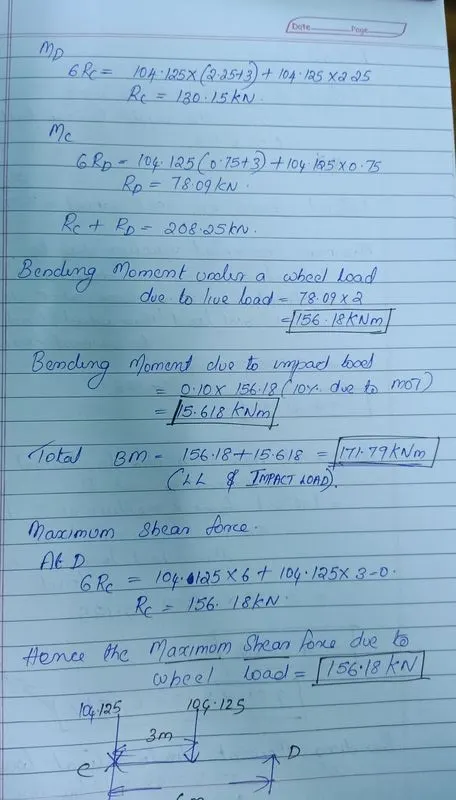

Crane load

The crane load is provided in X & Y and shear in Z

Step:16)

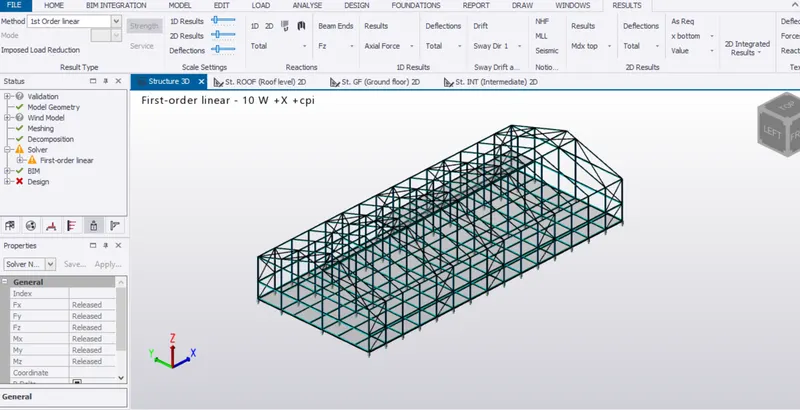

Analyze the structure

First order analysis

Result:The structure is anlayzed for 10T crane load
