Project 1_Analyze and design a steel building to 10T CRANE as per IS standard code using TEKLA STRUCTURAL DESIGNER.

Aim:

To design and analyze the steel building using Tekla structural designer.

Procedure:

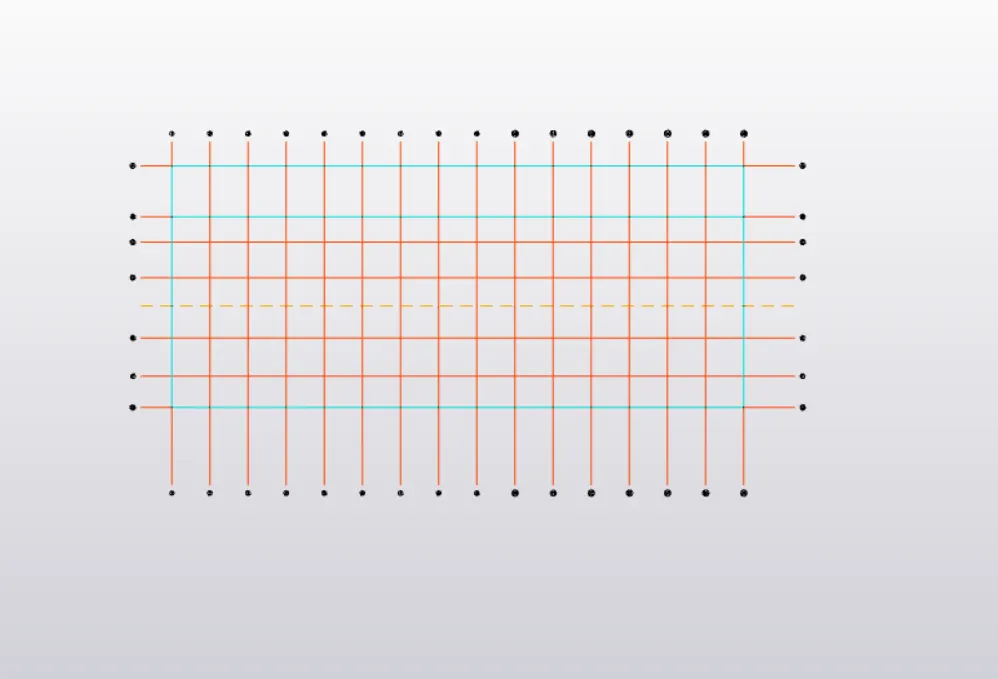

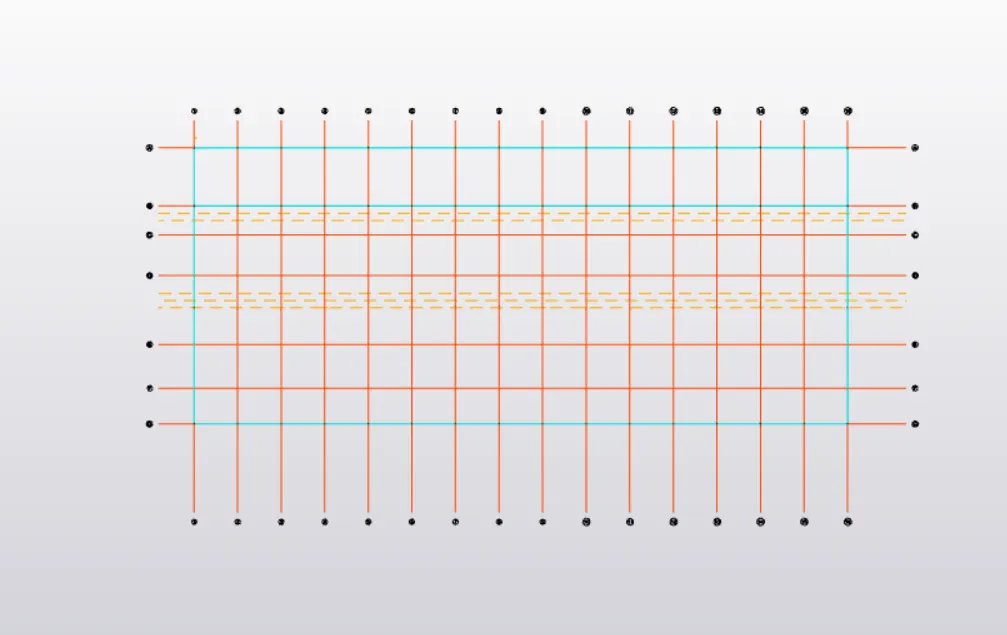

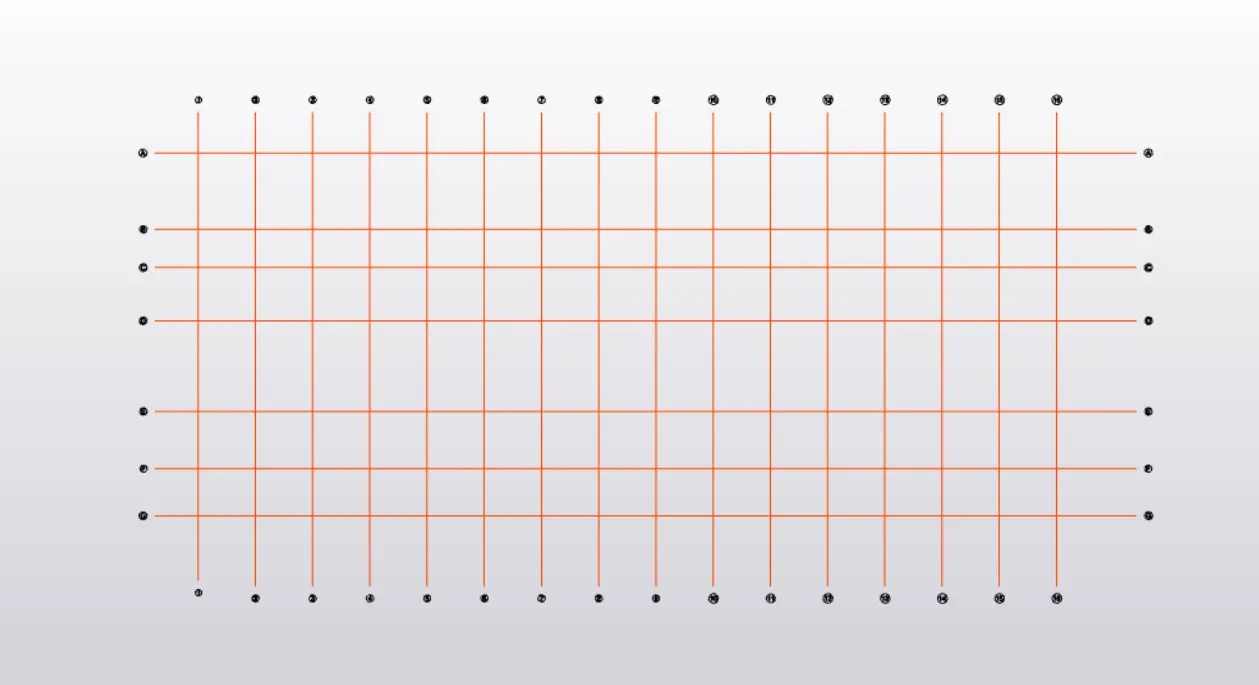

Open software and check the setting and draw a grid line.

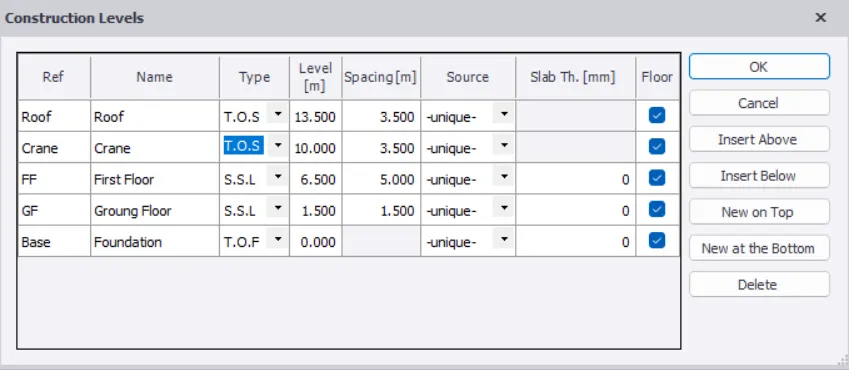

And then create a construction levels.

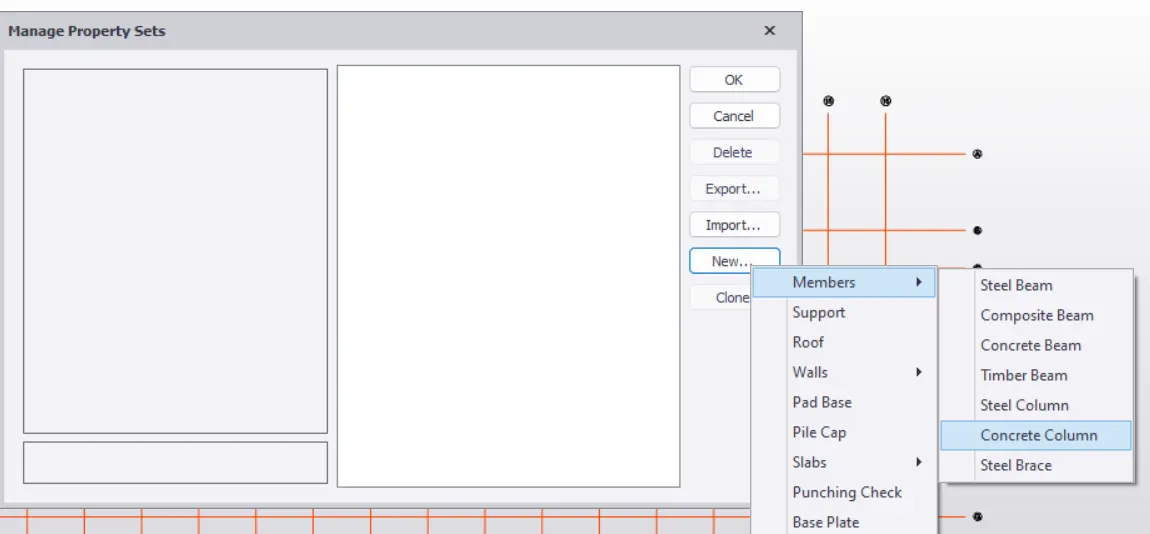

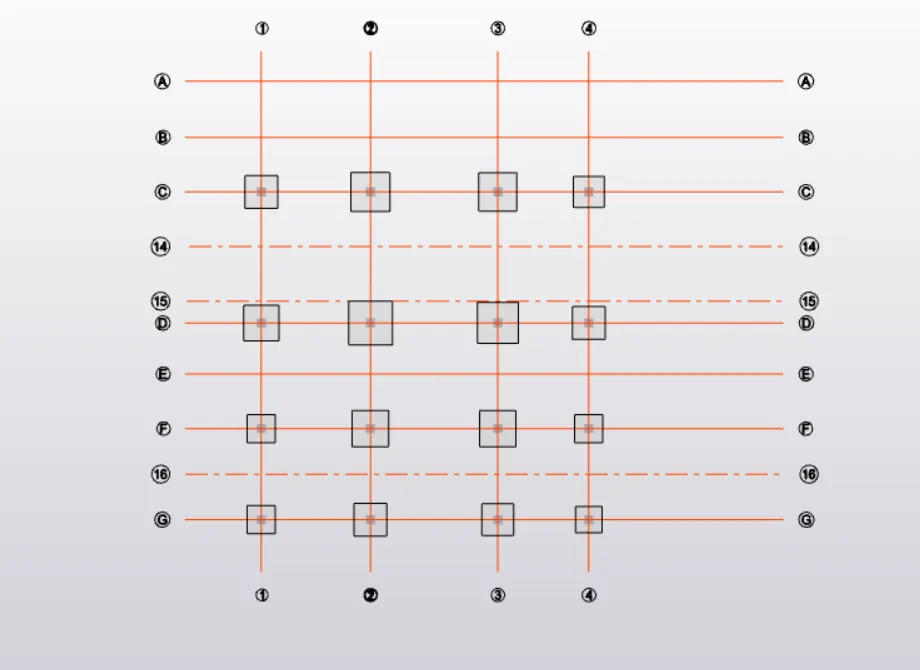

Now from base level construct a pedestral i.e.,concrete column from manage property set

Then create a column from base to ground floor

Now define steel column and steel beam and draw a steel beam and column from ground floor to roof.

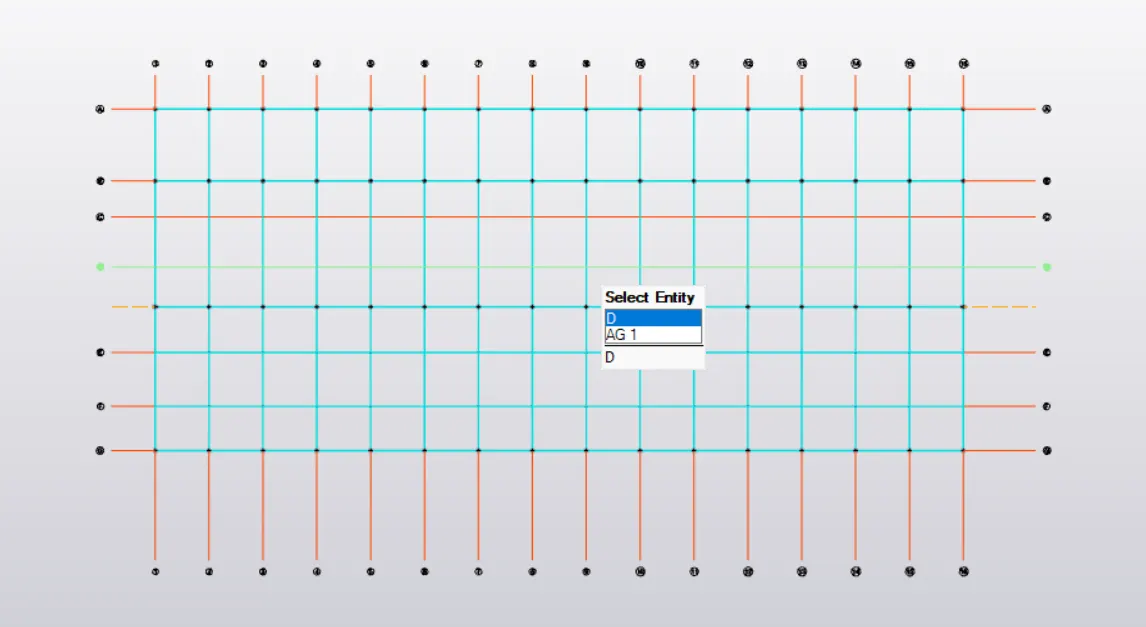

Ground floor:

First floor:

Roof:

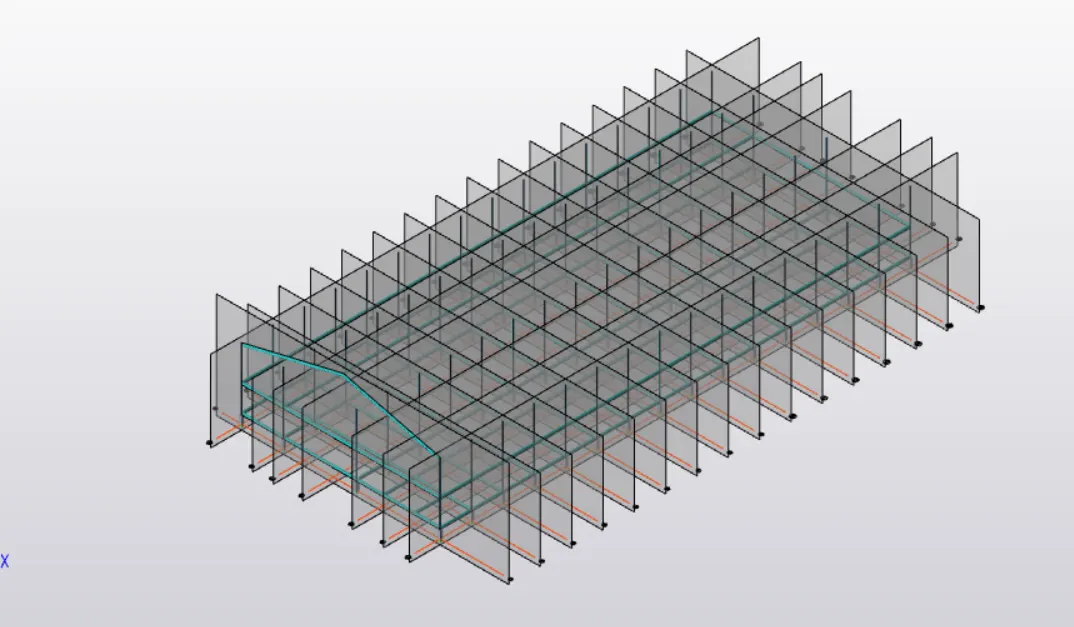

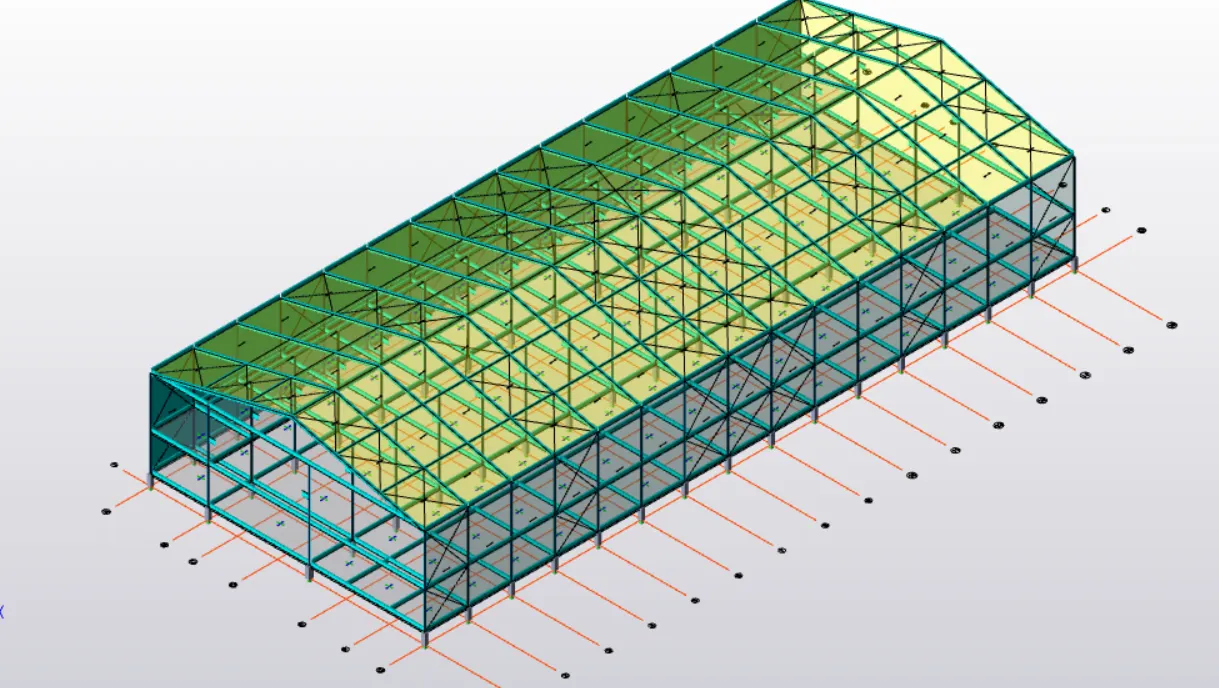

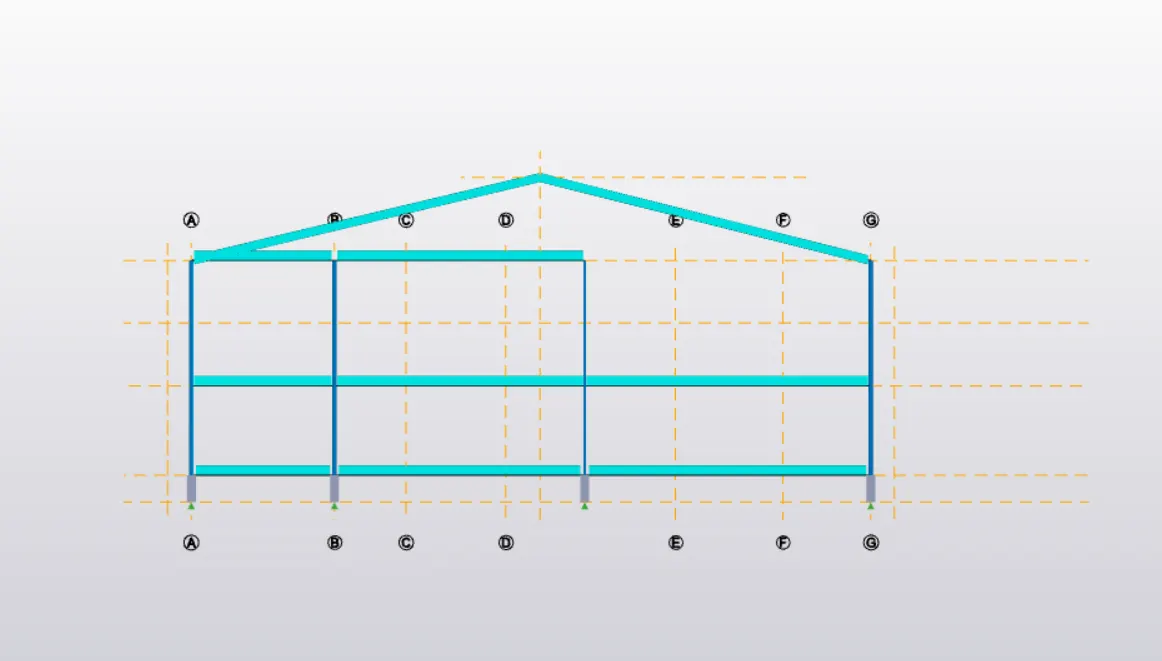

Create frames

From a frame view model a Rafter and create purlins.

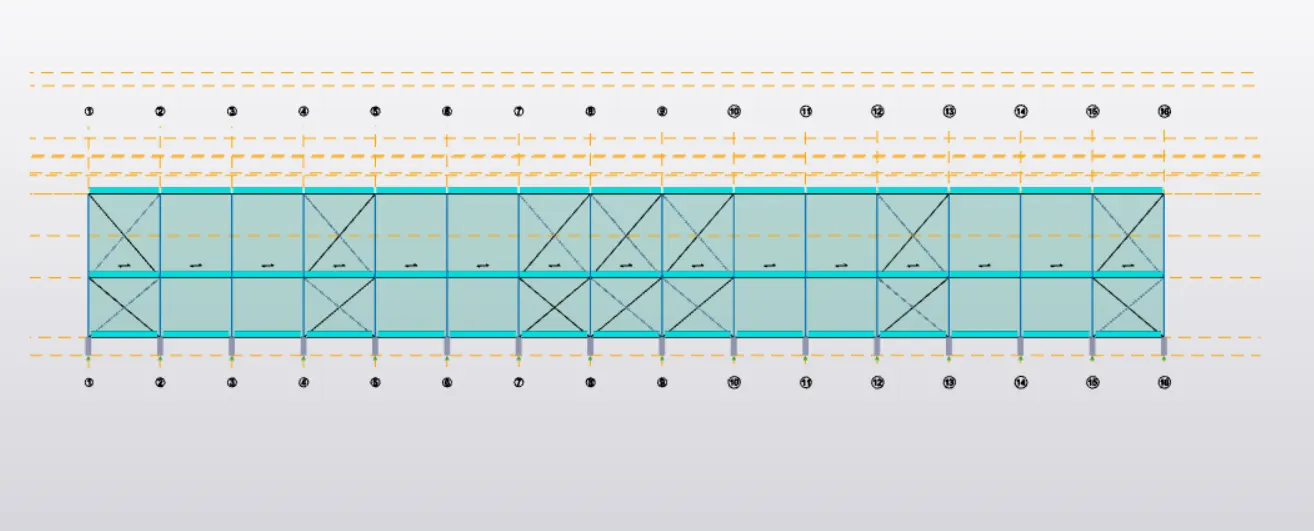

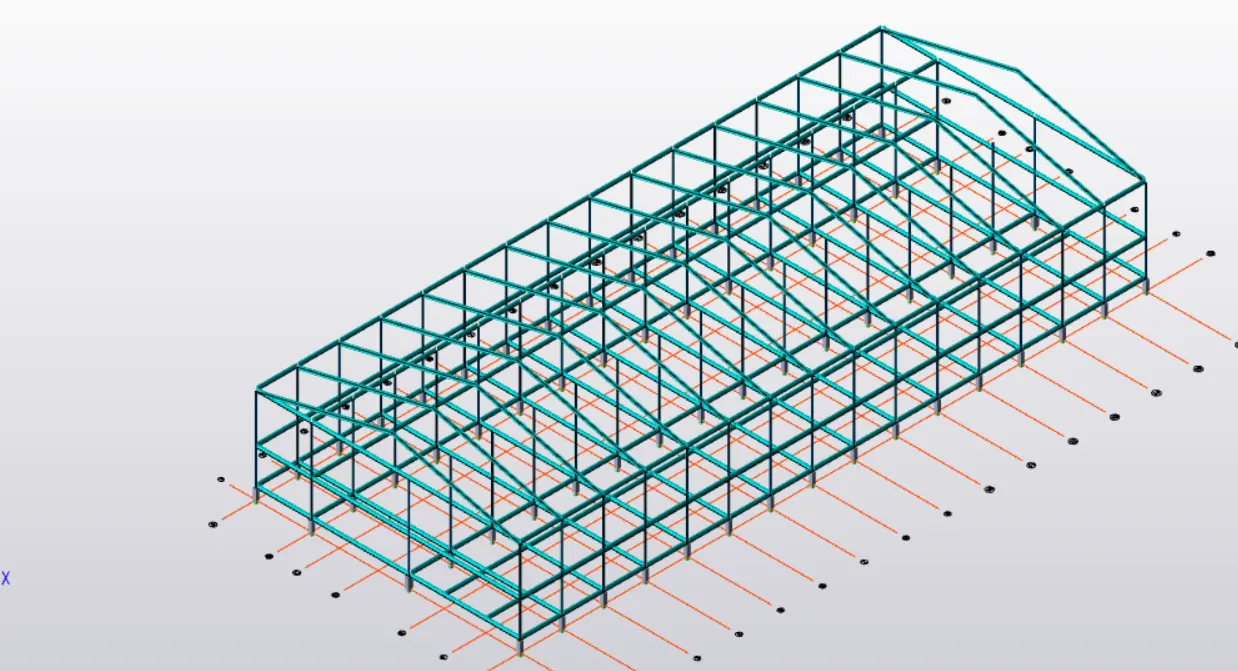

Now provide bracings,

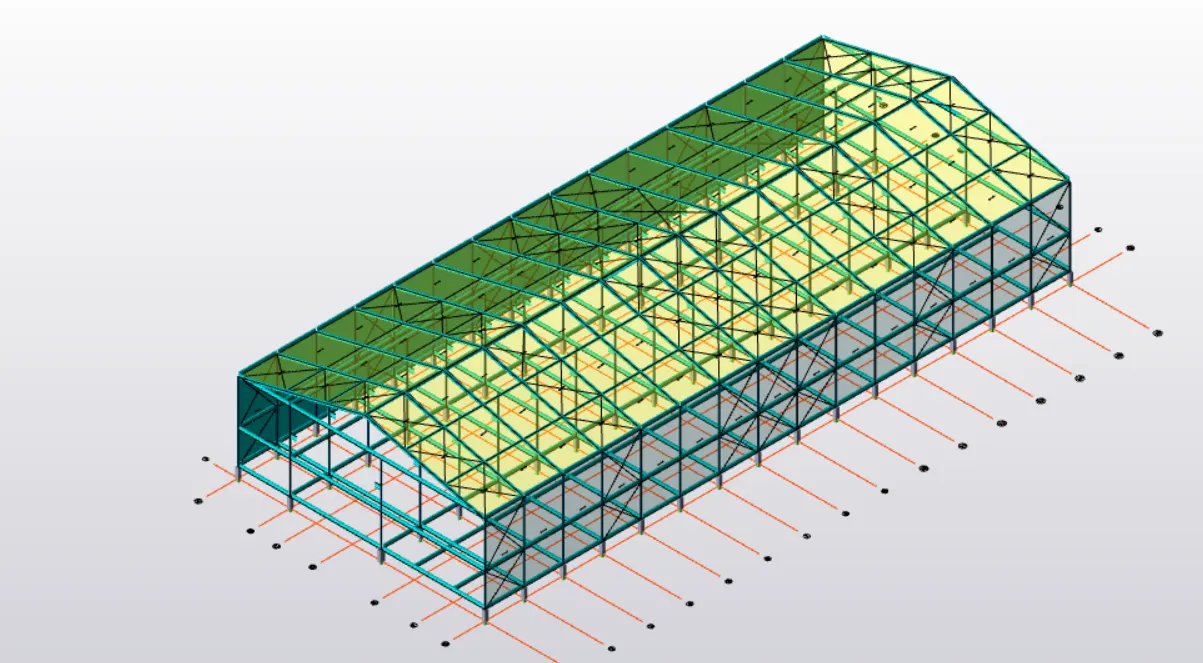

Create wind and roof panels

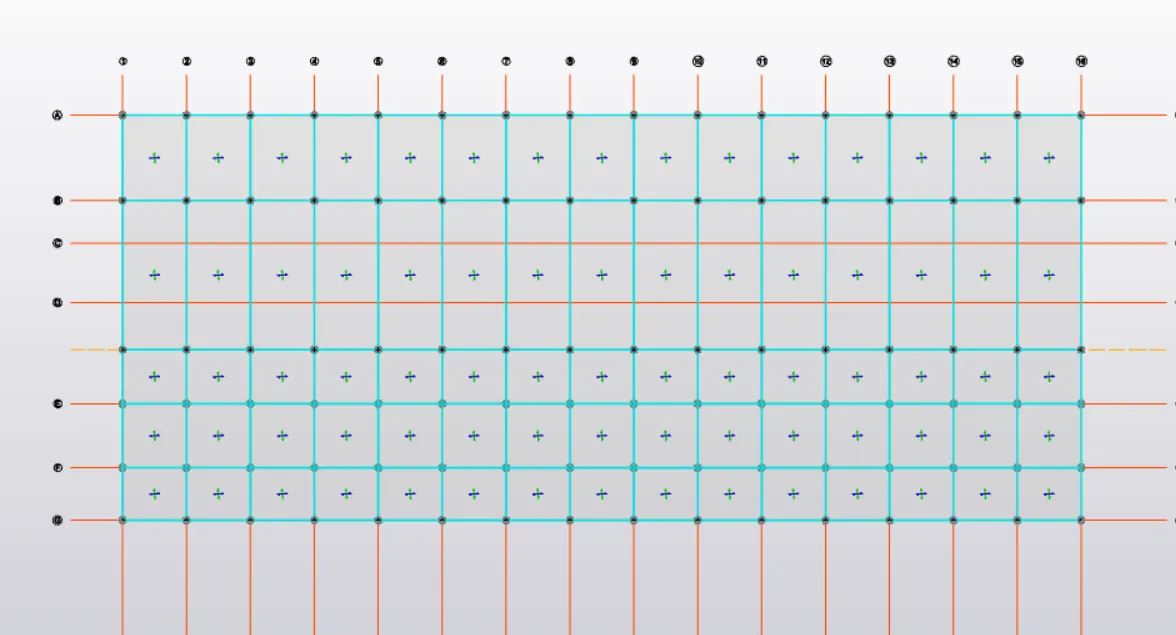

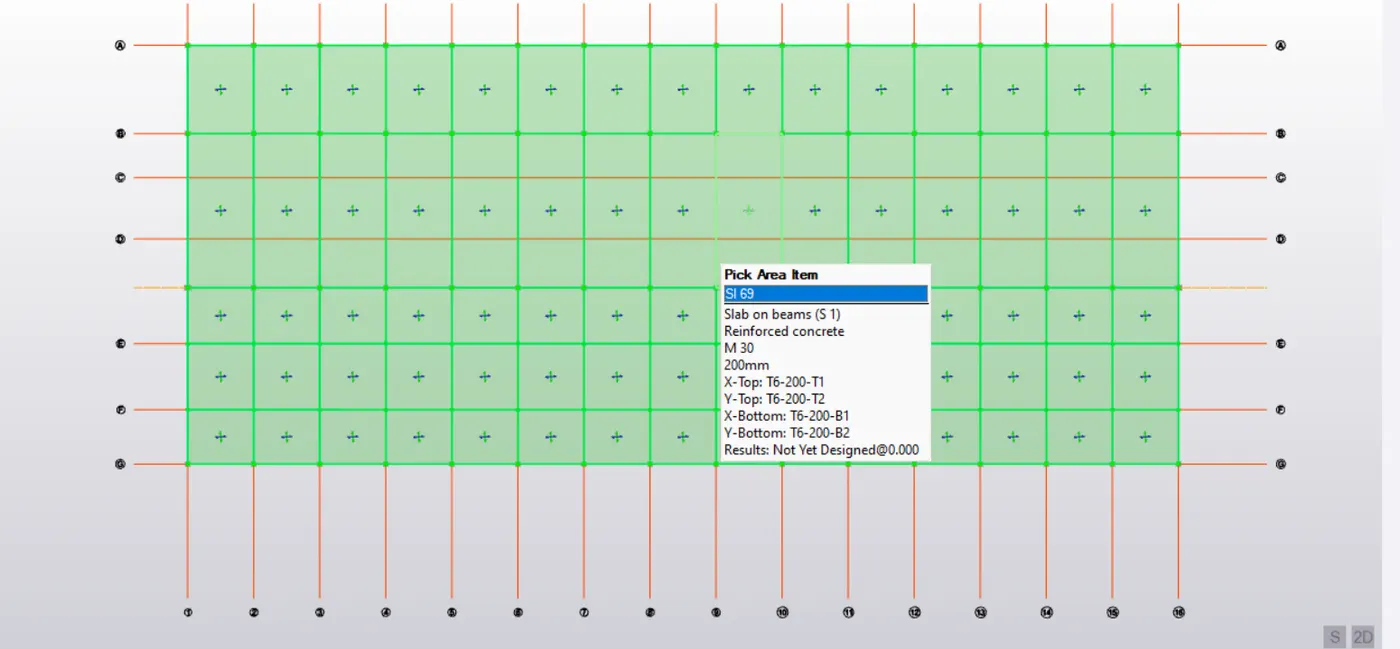

Create slab items and select slab on beams,for each floors.

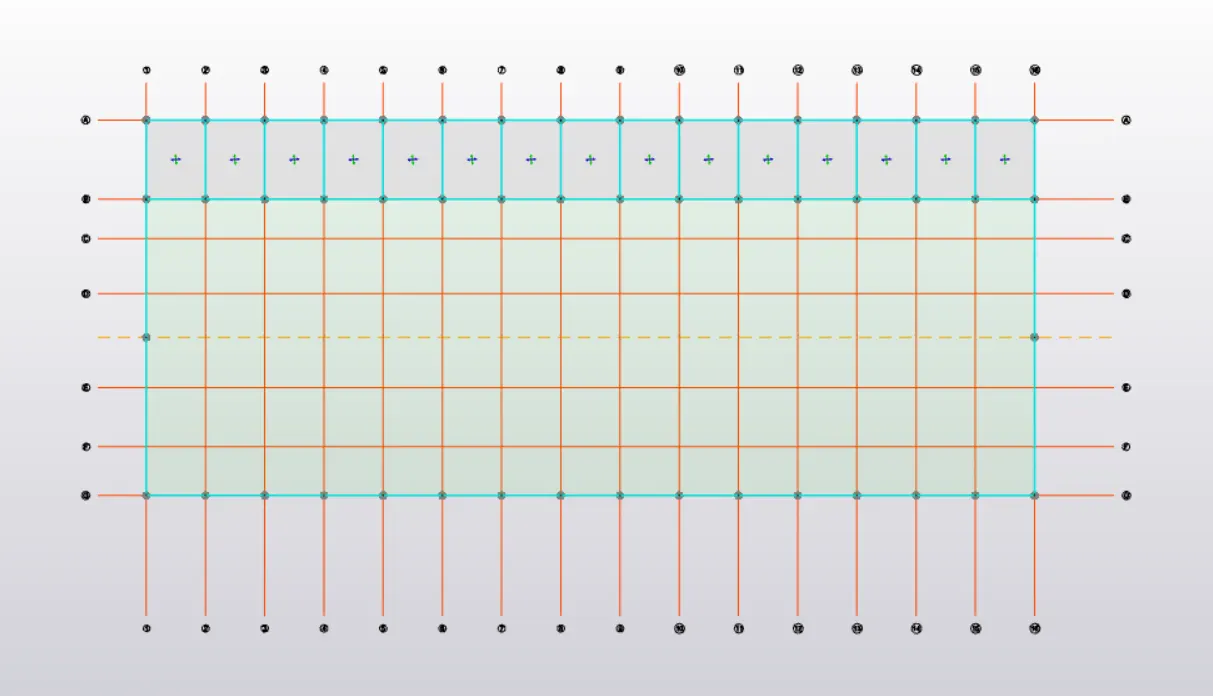

Ground floor:

First floor:

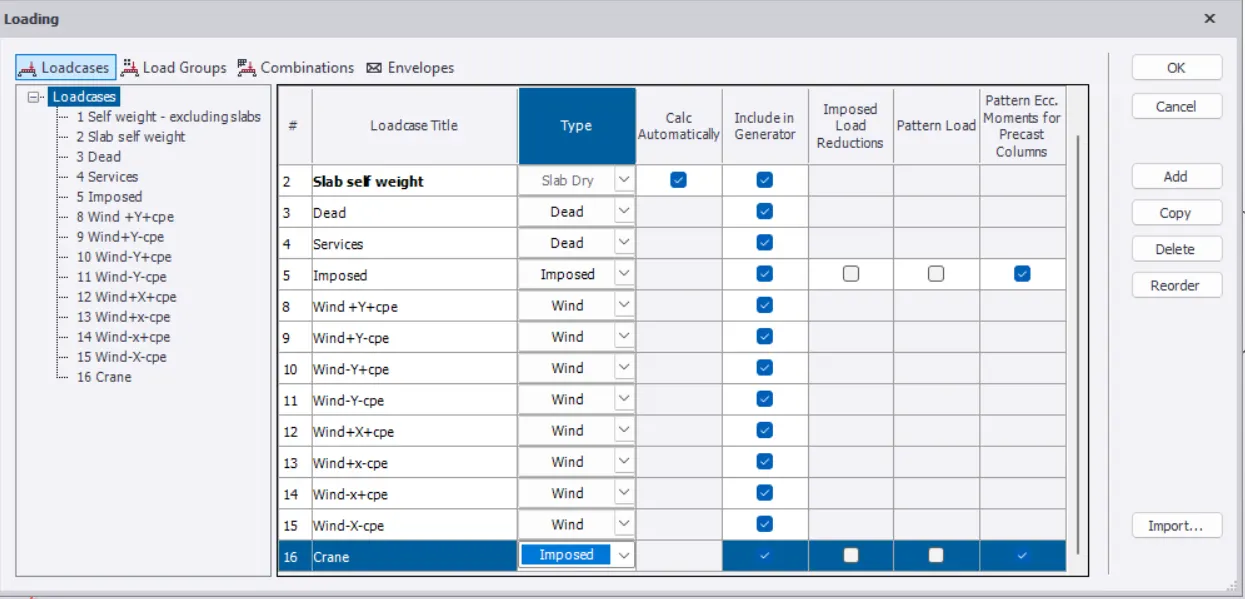

To apply loadings first add load cases,

Load calculation:

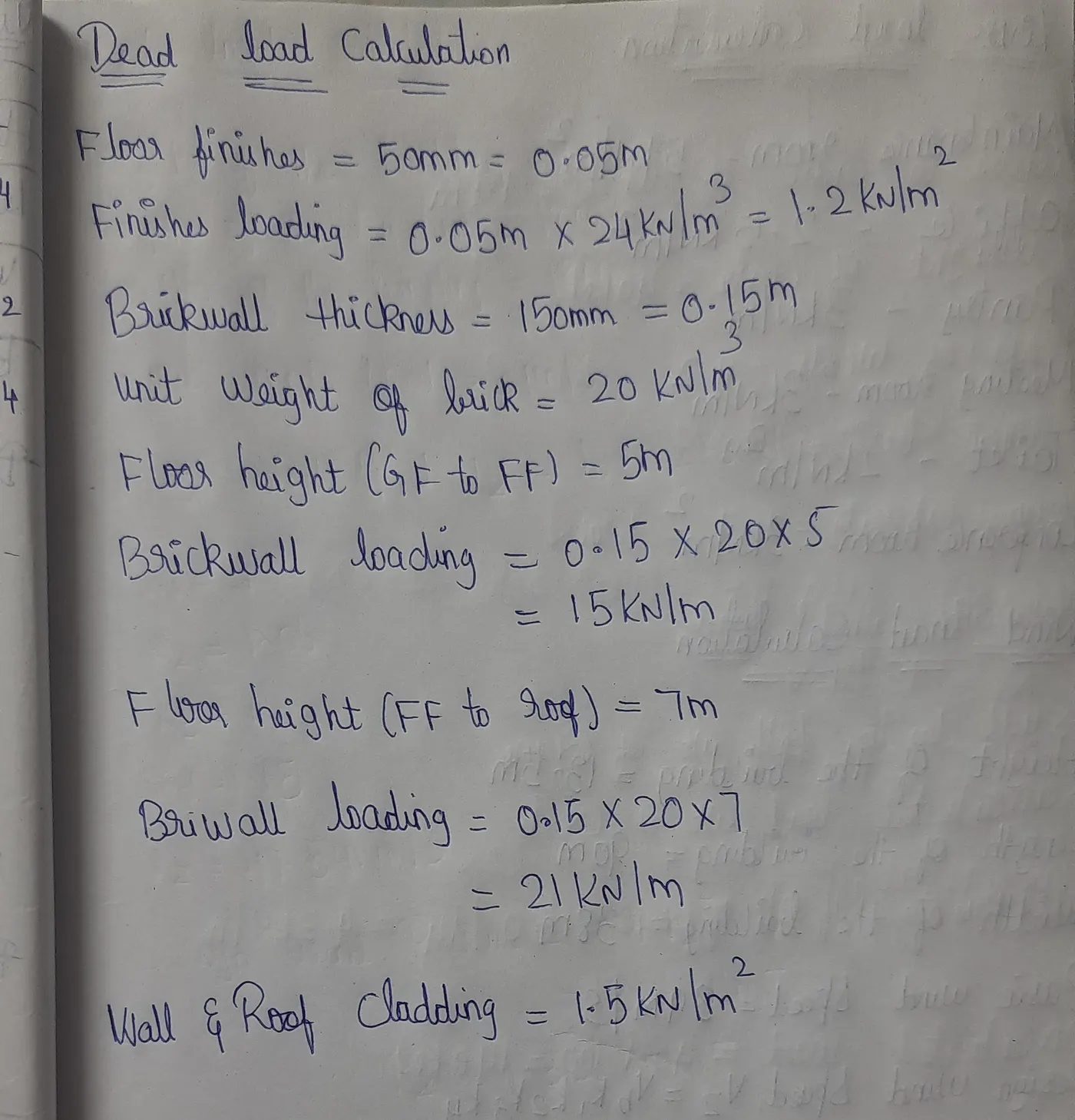

Dead load calculation:

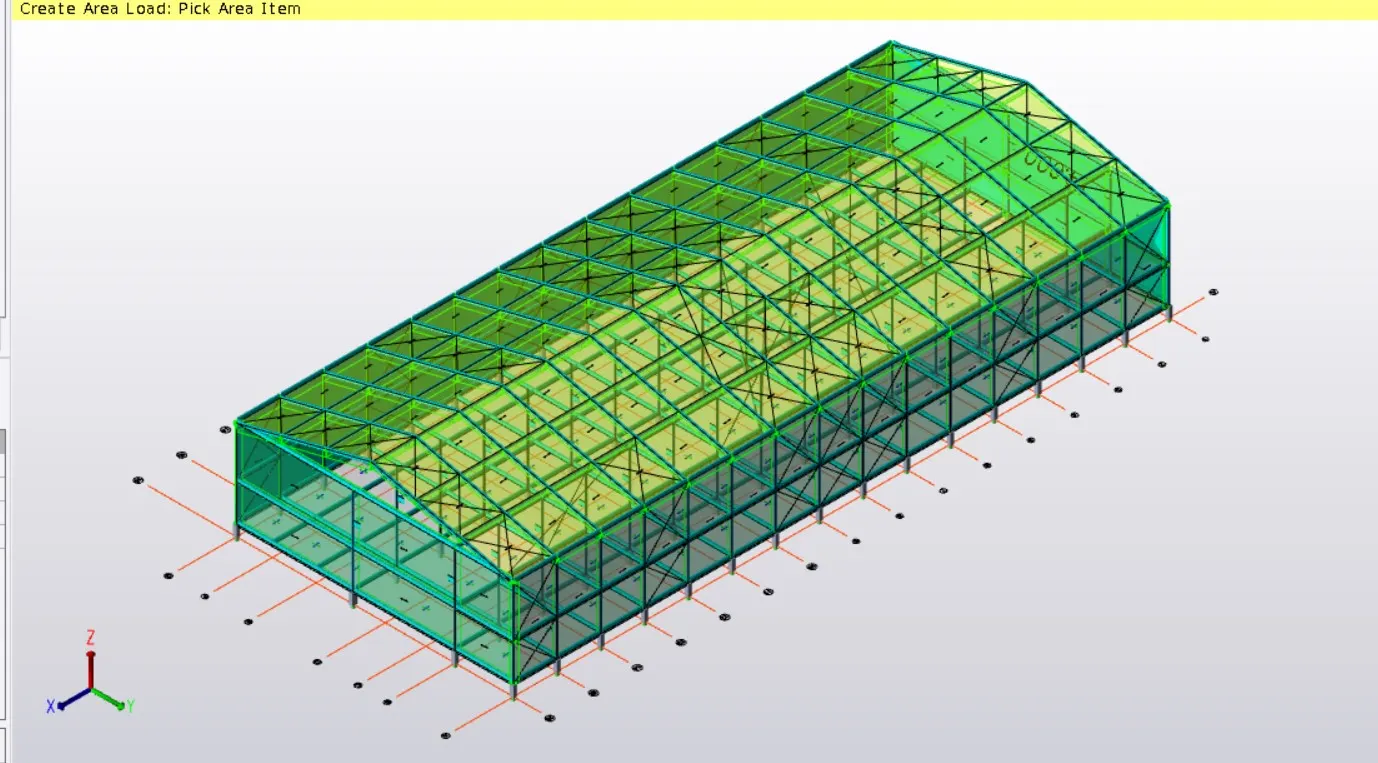

After calculating load apply it on the model by choosing dead and it as a area load.

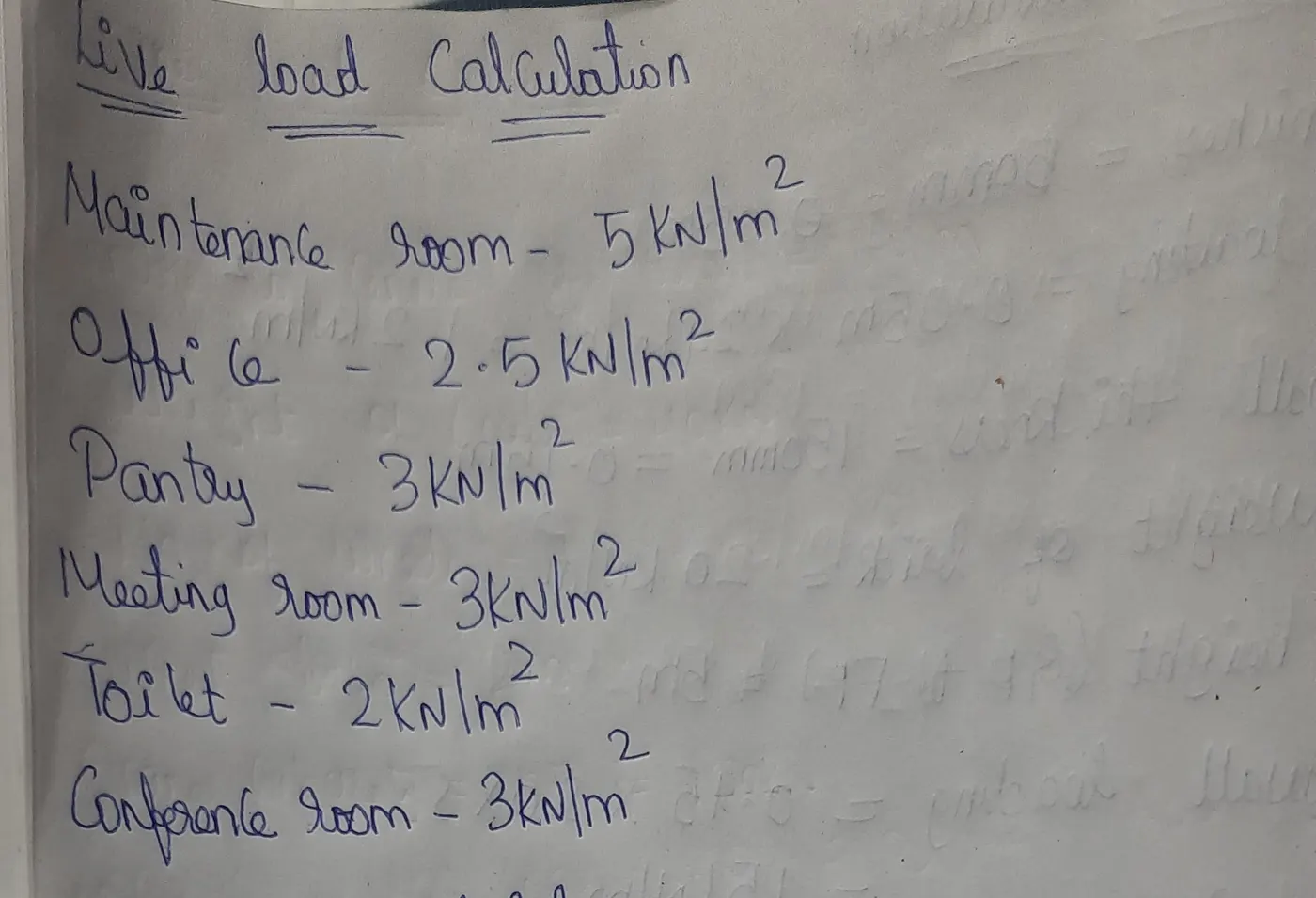

Live load calculation:

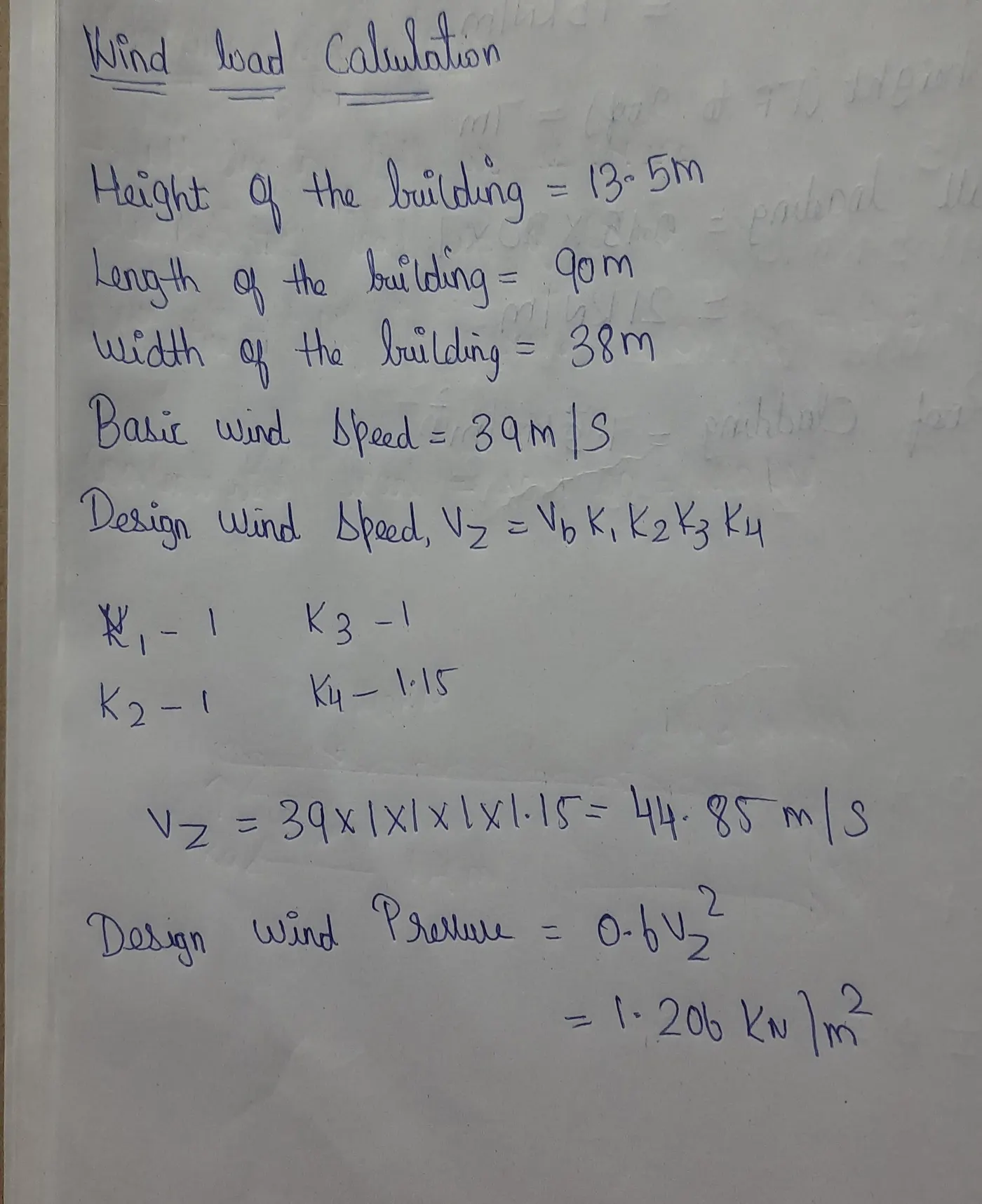

Wind load calculation:

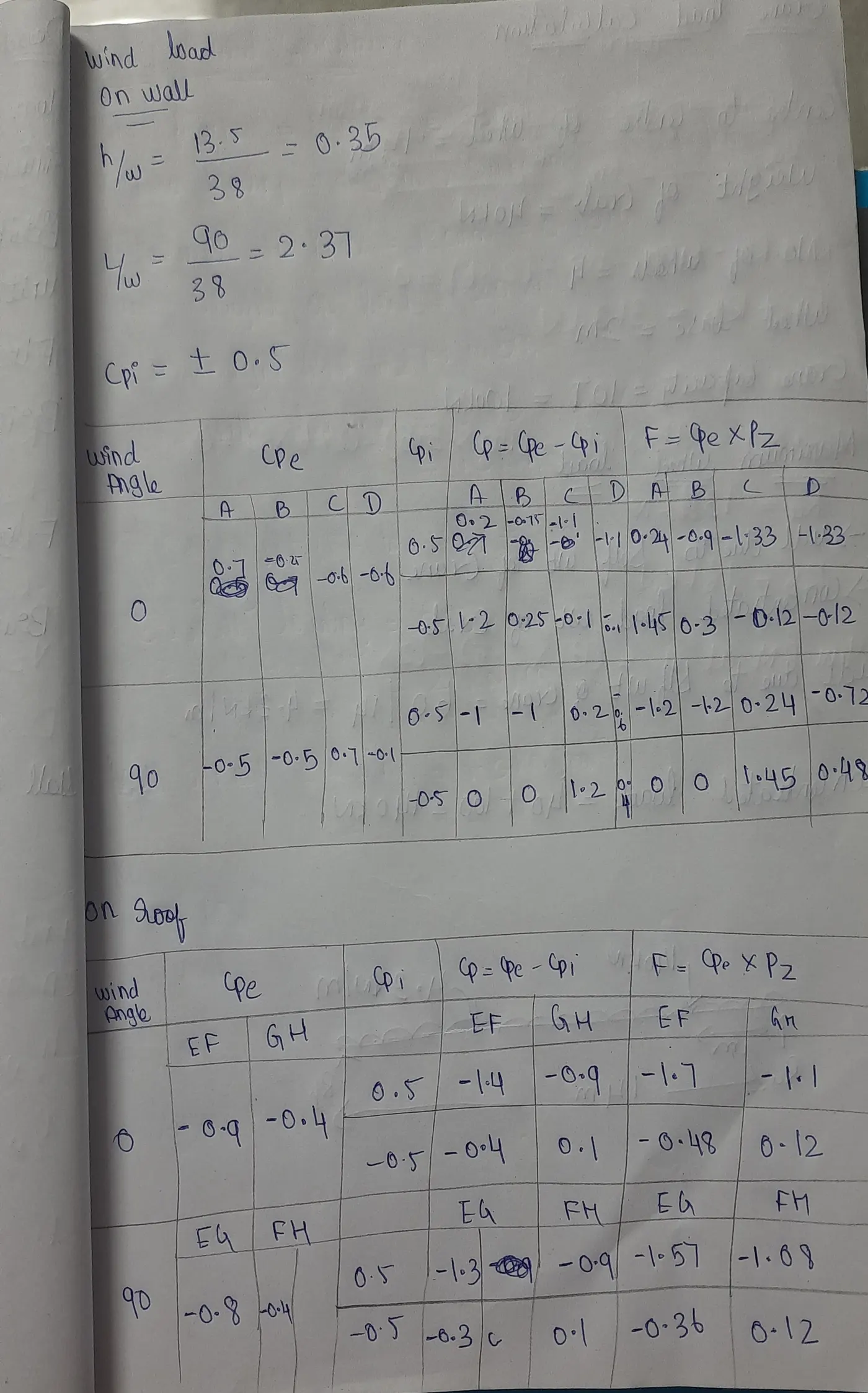

Apply wind load on wall and roof for all load cases.

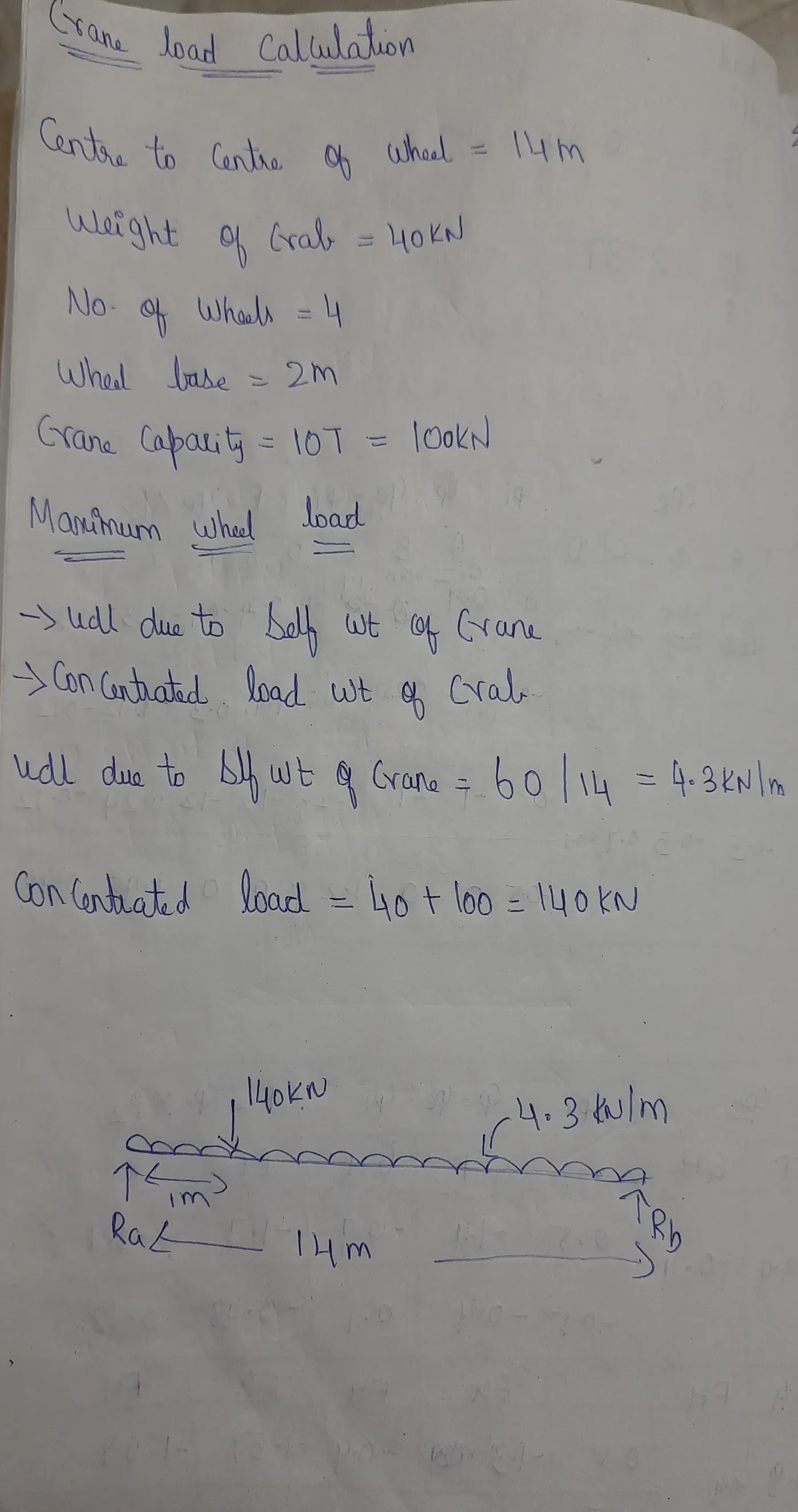

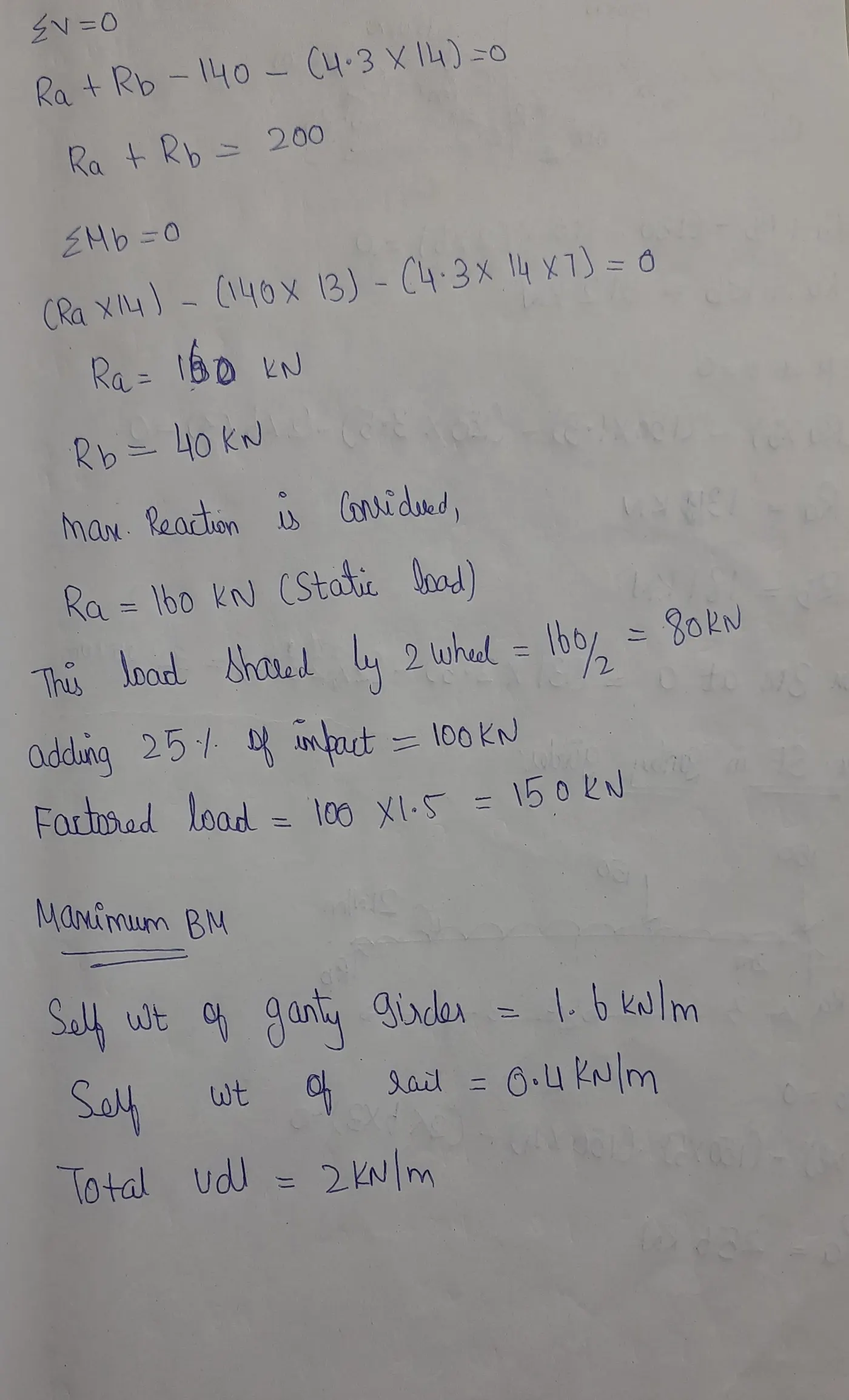

Crane load calculation:

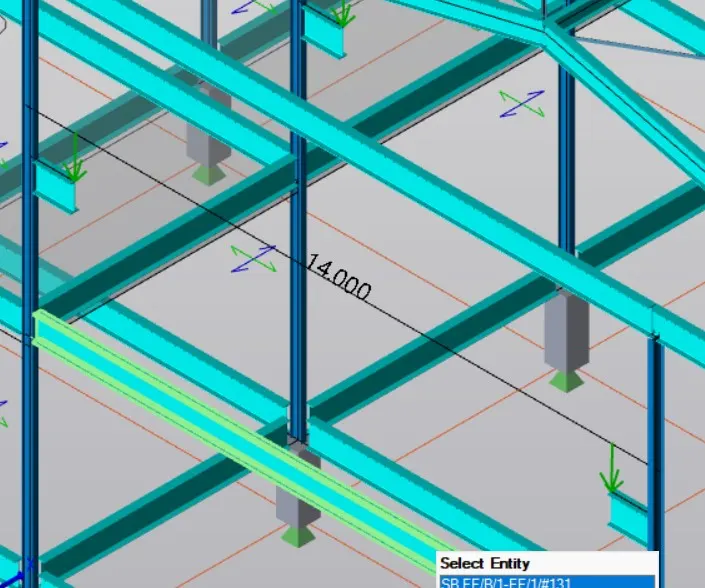

Loading at bracket:

Add sesismic load:

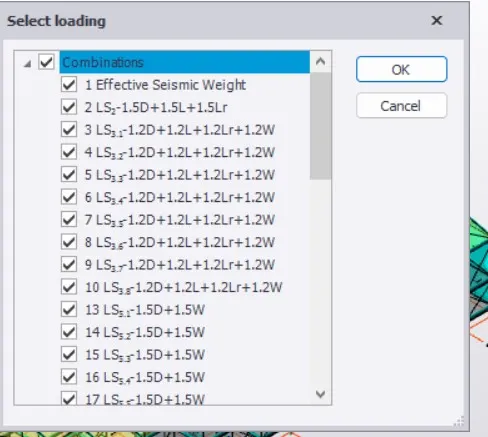

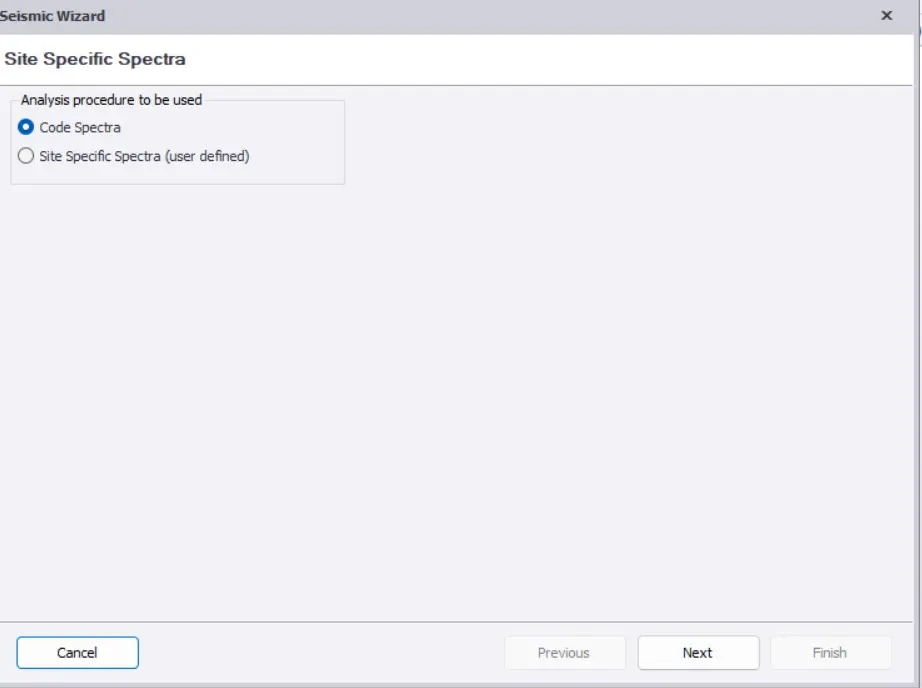

Addd seismic wizard and generate the load combinations

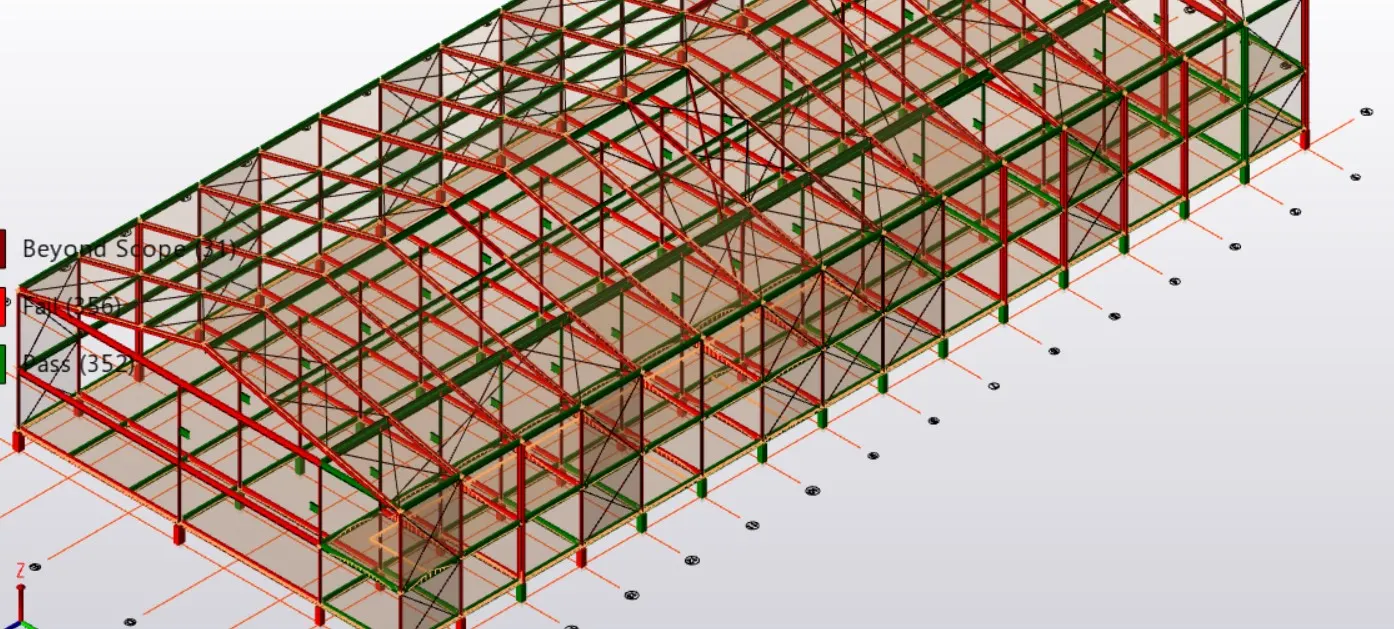

Now analyze 1st order analysis
