AUTOMOTIVE WIRING HARNESS BACKDOOR Statement of assignment: Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector…

AUTOMOTIVE WIRING HARNESS BACKDOOR Statement of assignment: Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector…

AIM  Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. ENGINE WIRING HARNESS ROUTING                                           …

AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY. GIVEN: HARNESS ASSEMBLY: HARNESS FLATTENING: WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS. WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE. CHOOSING A SUITABLE PLANE WE FLATTEN…

modelling Week 5 & 6 Challenge Aim: Route two electrical harnesses per the given layout and interconnect them as a single harness assembly check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly. Objective: The objective of this project is to first route the two…

Aim:  1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors:  DT06-4S DT06-6S DT06-2S DT06-08SA Connectors Layout Design: Steps to be followed: 1. Download…

  Q1 The given clip was downloaded and opened as a part file. I have to define two points that will be used as entry and exit points. Then a plane has to be defined at the points. A base plane has to be defined at a distance of 2 to 3 mm from the clip. again we define the exit point at the first definition as the entry…

INTRODUCTION TO WIRE HARNESS: CONNECTOR DEFINATIONS IN CATIA V5 1. Deutsch DT06 – 08SA Connector connection point  Create midpoint on the contact face which will be normal to wire bunddle insertion. Craete Axis System with respect to the point which we have created and defining the axis direction as shown…

AIM: Develop a model for forwarding Energy based fuel consumption model of a P1 type Hybrid Vehicle. Objectives: Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycles. Compare these numbers with the baseline numbers for the conventional vehicle model from Project 1. Plot the time trace for engine, transmission…

Here we are discussing about the drive cycles using in conventional vehicle   There are many drive cycles: 1.UDDS 2.HWFT 3.FTP 4.US06 5.NEDC 5.WLTP But here we only consider two cycles i.e. UDDS and HWFT UDDS: Urban Dynamometer Driving Schedule  The US FTP-72 (Federal Test Procedure) cycle is also called Urban…

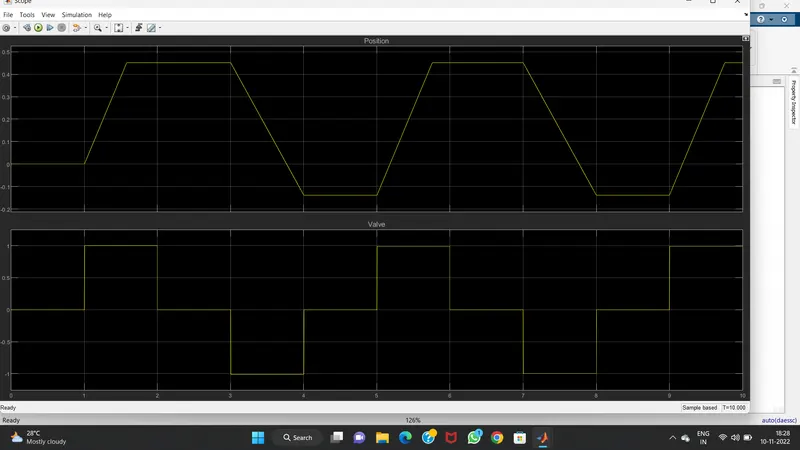

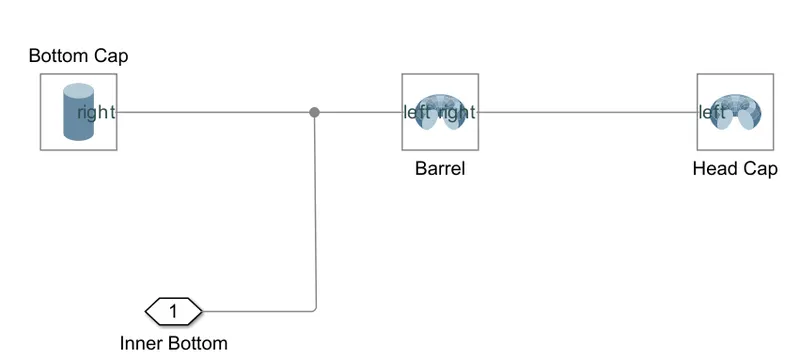

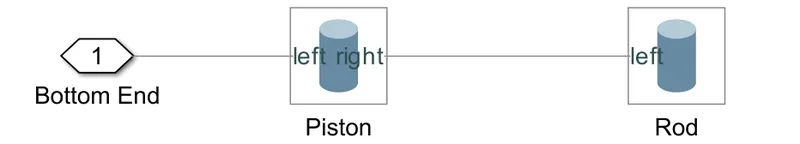

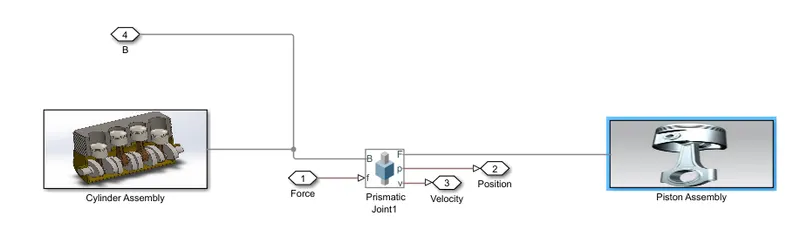

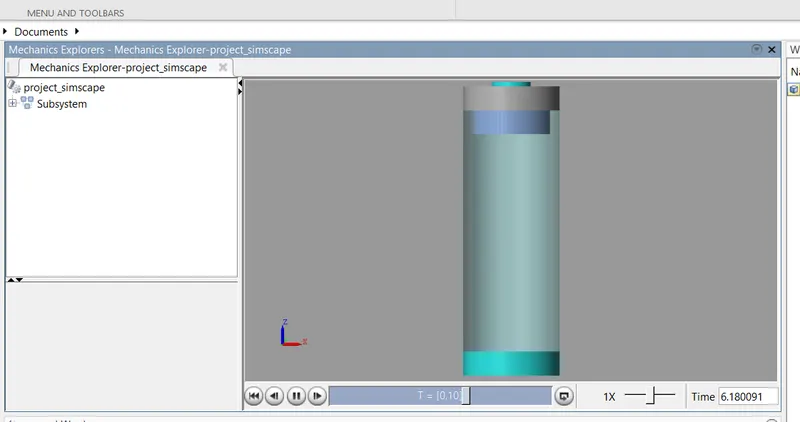

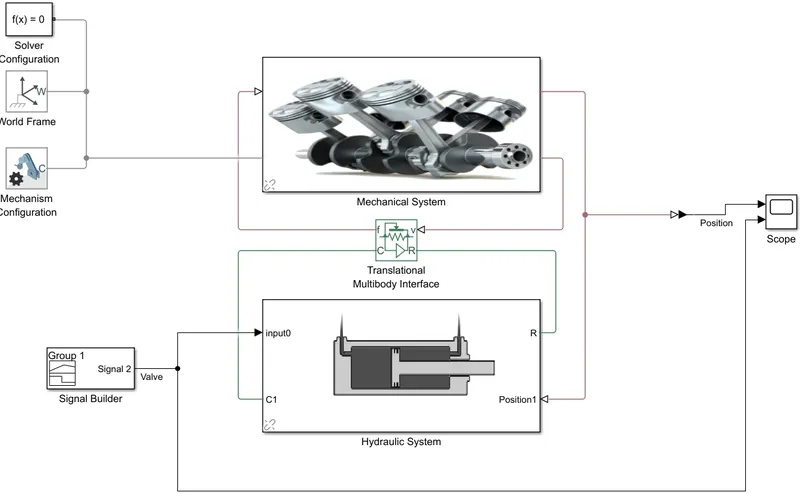

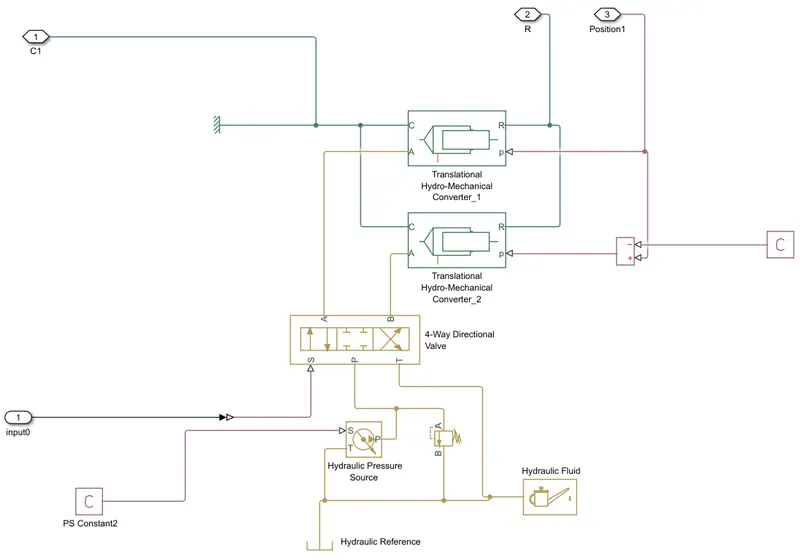

Aim : Develop a double-acting actuator model using Simscape Multibody and Simscape components. Objective : The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components. Theory : The…

Project: Use the Proportional, Integral, and Derivative (PID) control design knowledge gained in the training to design, develop and test a controller to maintain a desired speed for the motor. Ans: 1.using a step block speed of 50 is taken as reference 2.first a model similar to the one shown in lecture is developed 3.a…

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and…

1.Identify each of the major elements in the above automotive wiring diagram? Ans:The major elements in the above automotive wiring diagram. 1.Battery 2.Generator. 3.Distributor. 4.Current voltage regulator 5.Ignition coil. 6.Breaker. 7.Starter   2.Explain the purpose and working of any three elements briefly? Ans:Battery:…
