Project 1

AUTOMOTIVE ENGINE WIRING HARNESS DESIGN:

Step 1:

Defining component as an electrical component and adding electrical properties to them intended for used in wiring harness

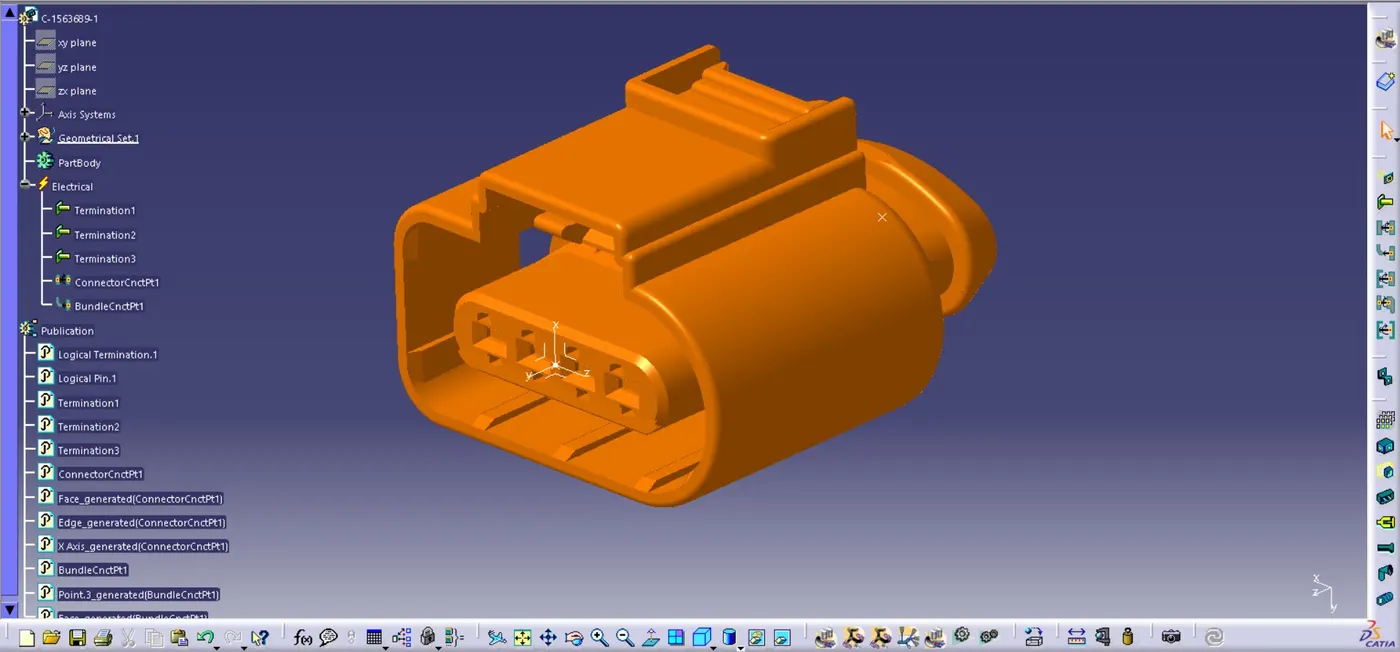

C-1563689:

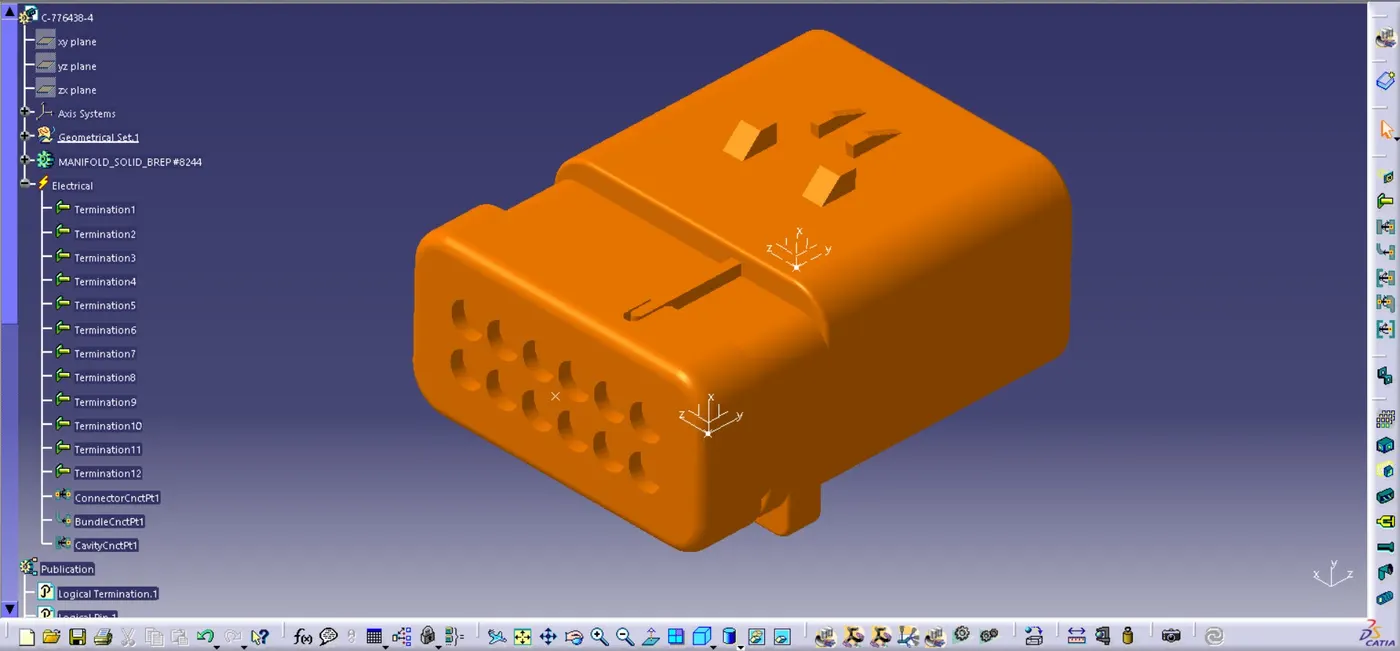

C-776438:

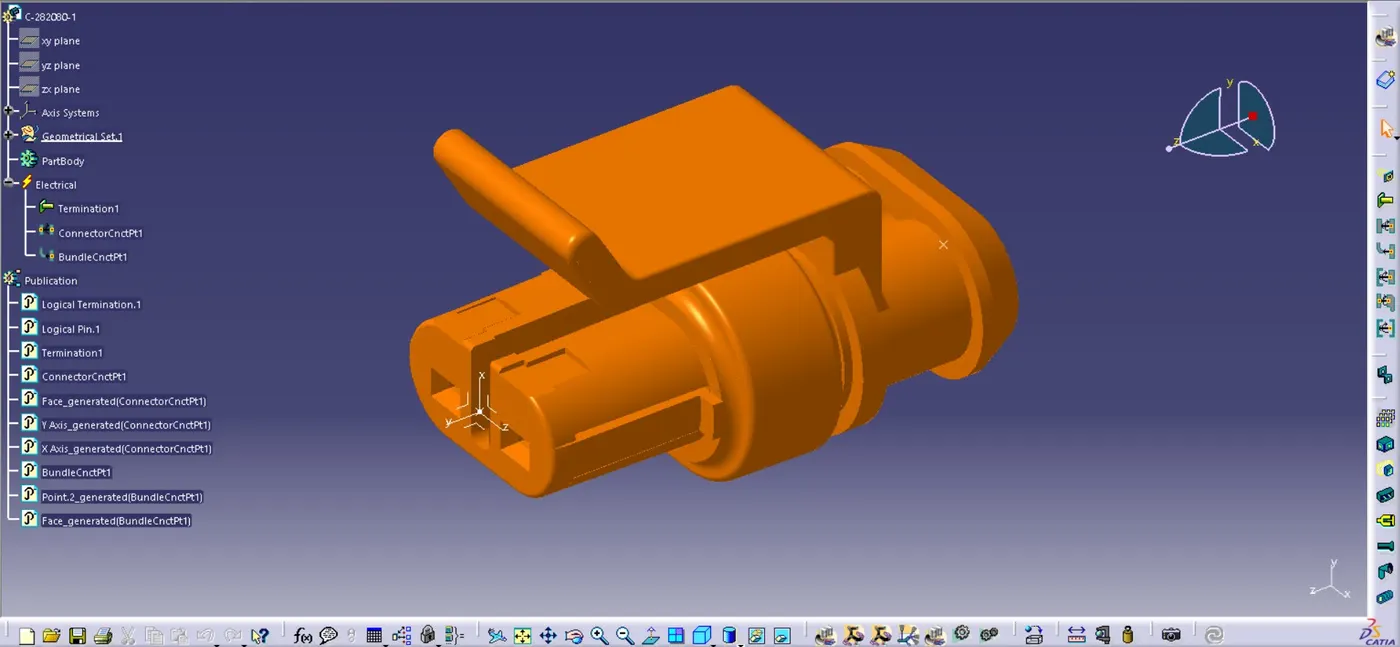

C-282080:

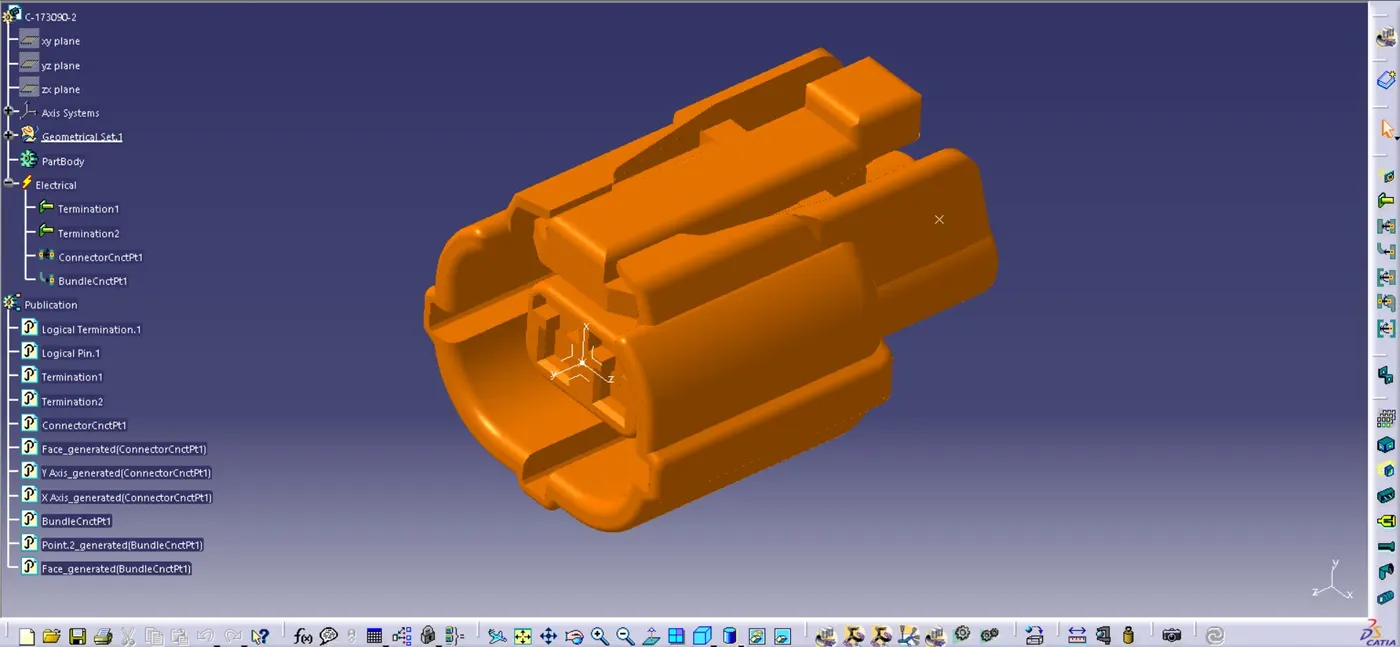

C-173090:

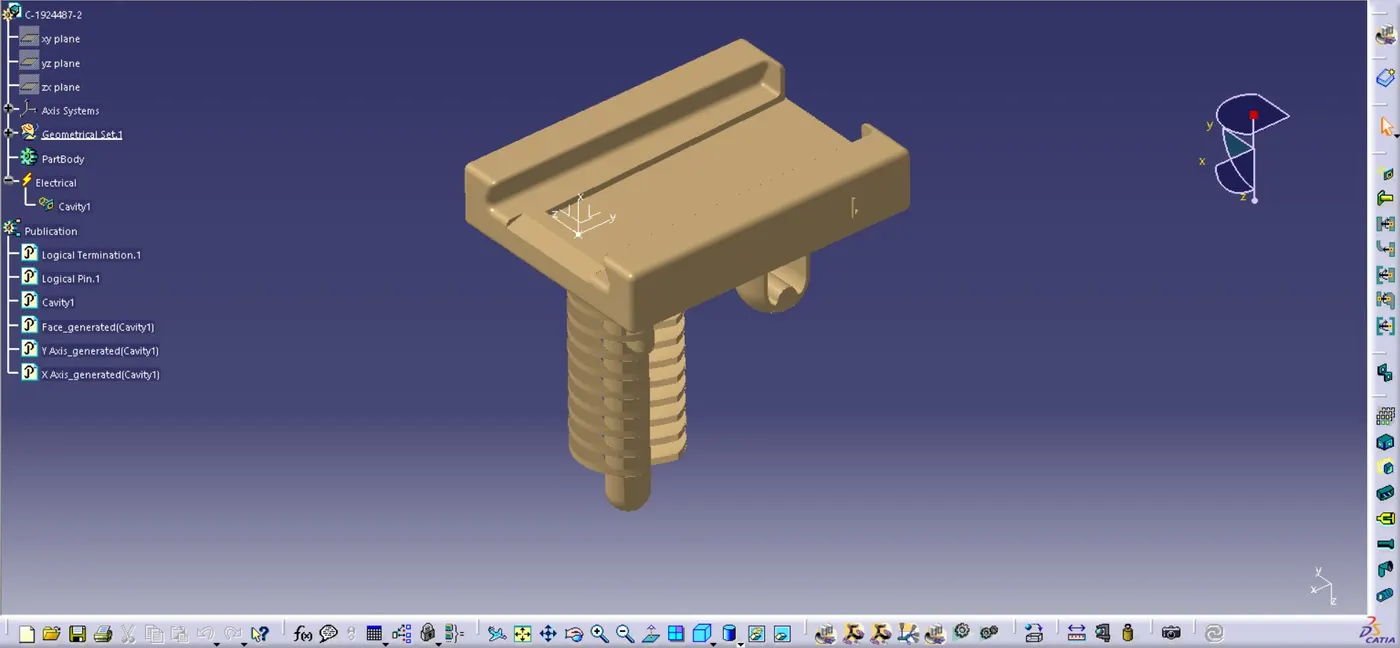

C-1924487

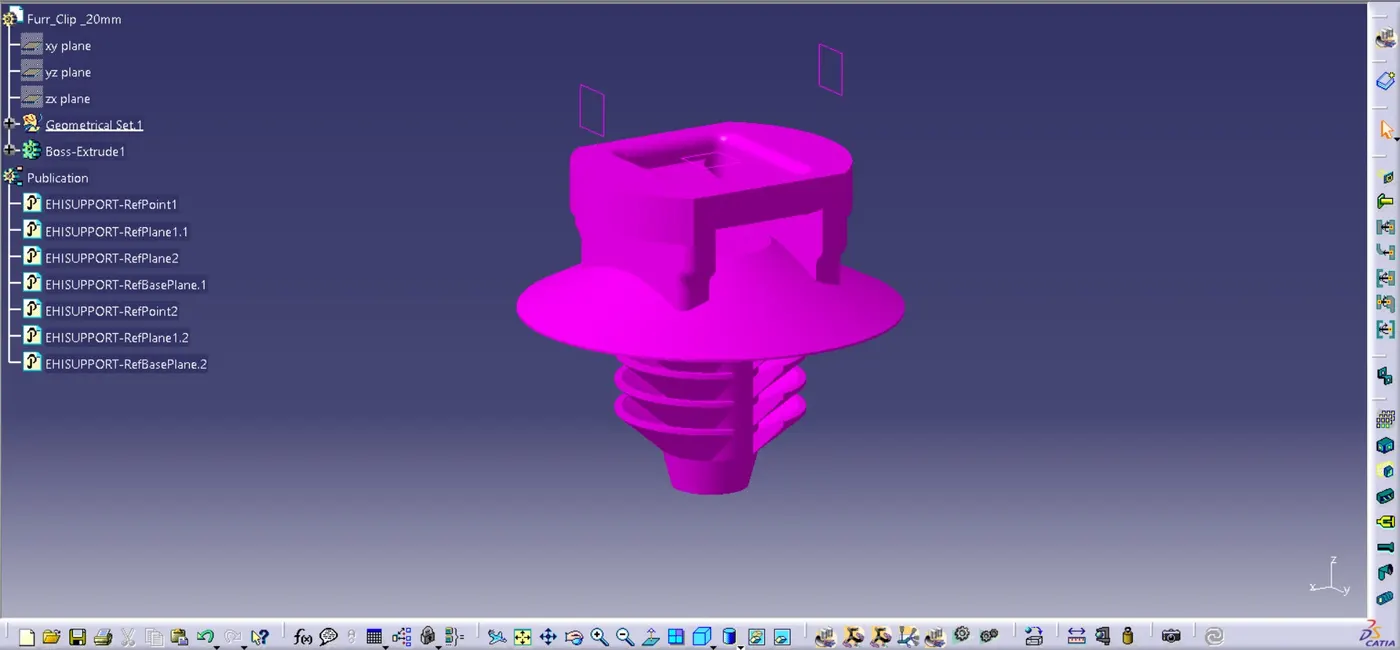

Furr Tree Clip_20mm:

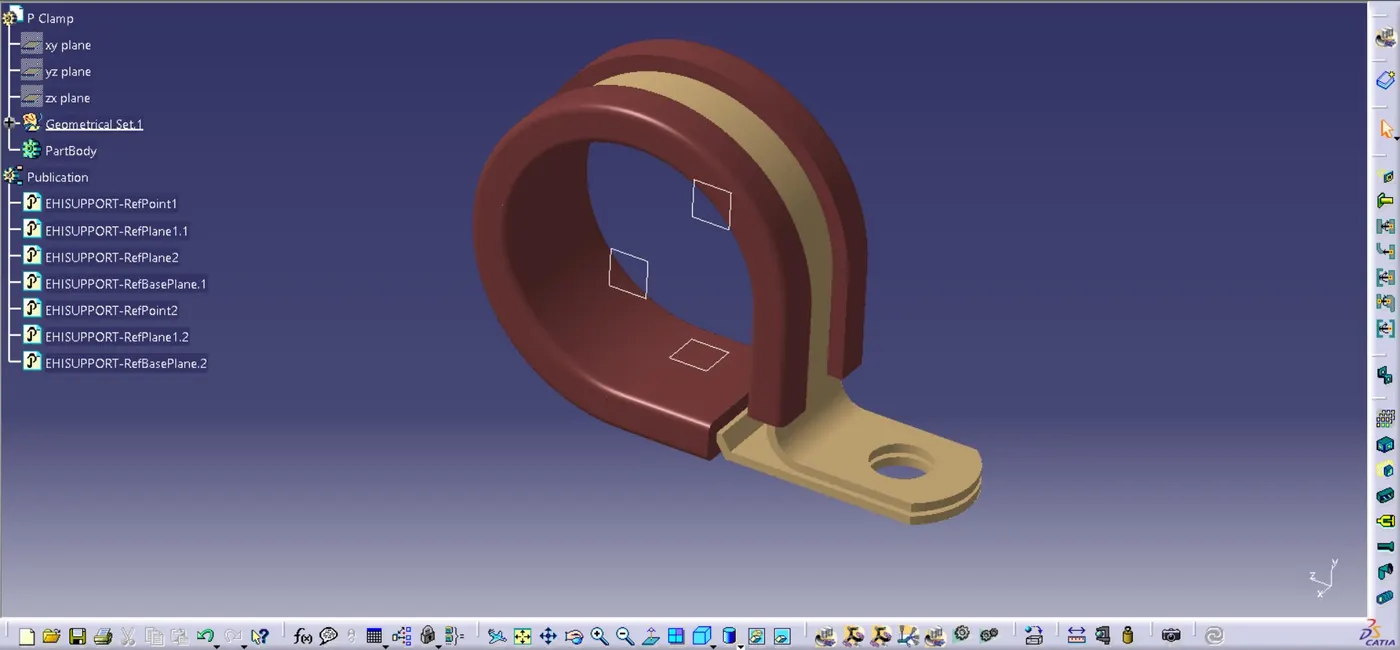

P-Clamp:

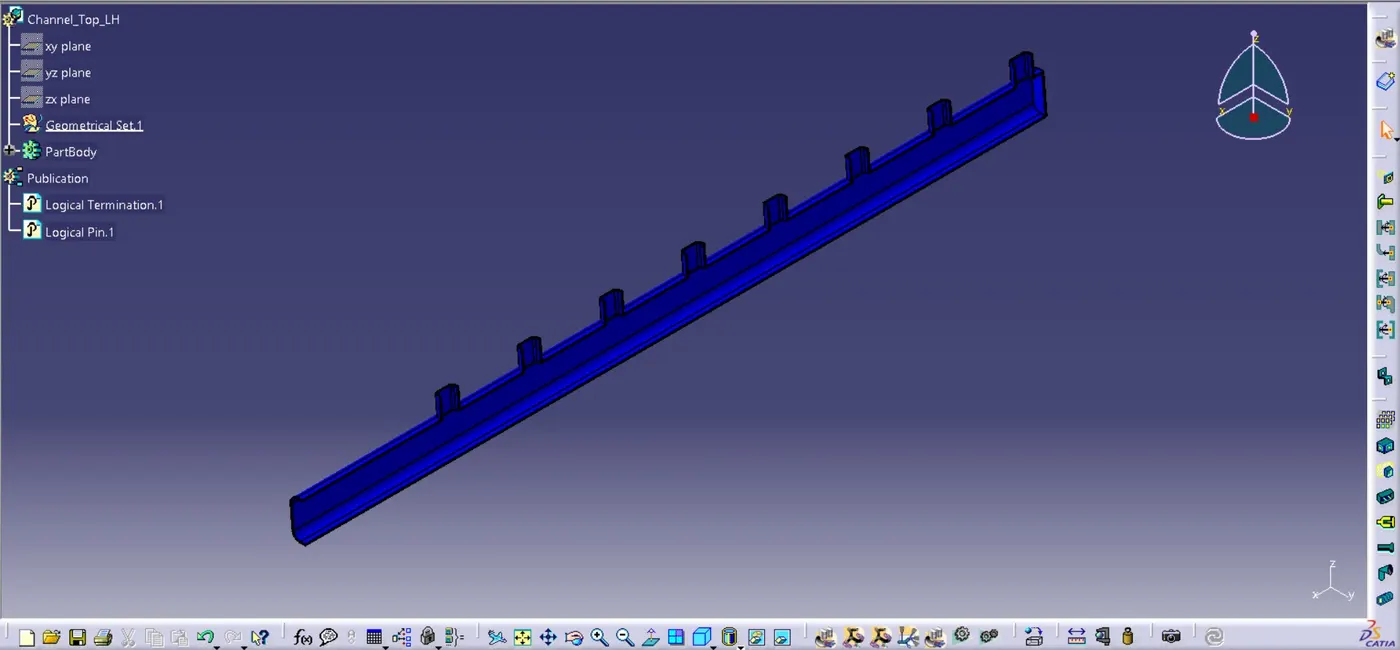

Guiding Channel Top:

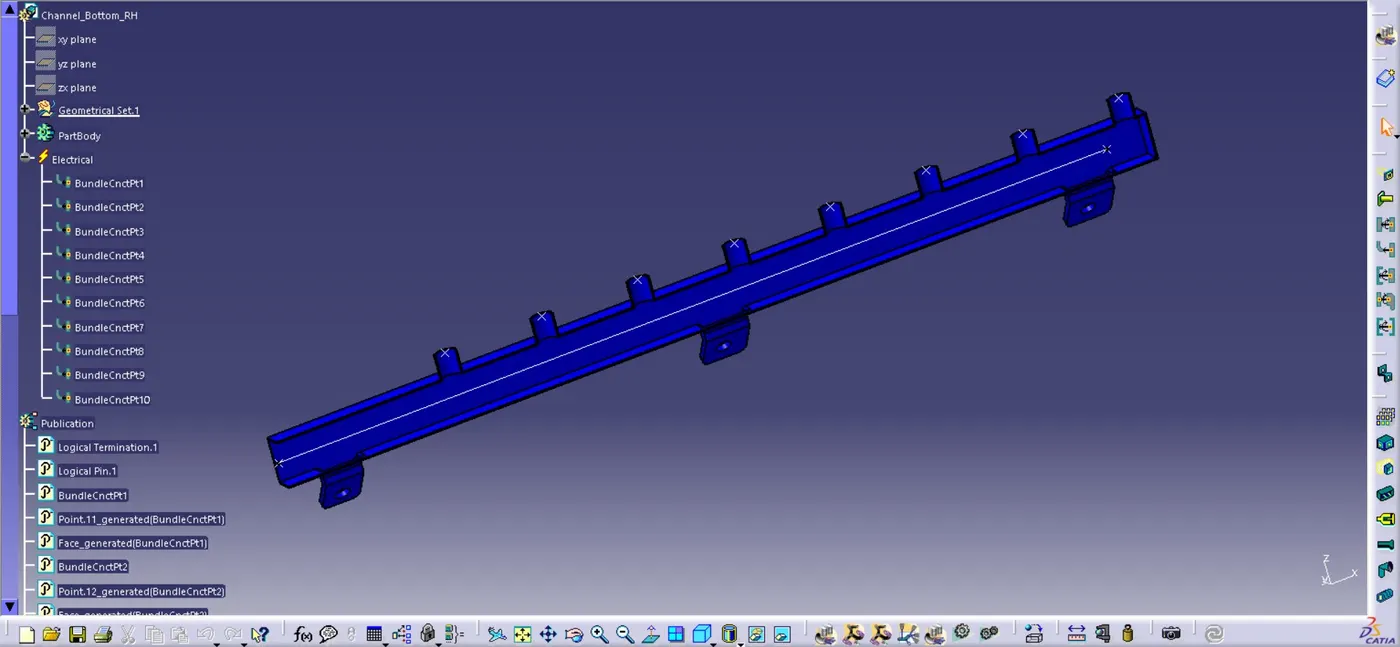

Guiding Channal Bottom:

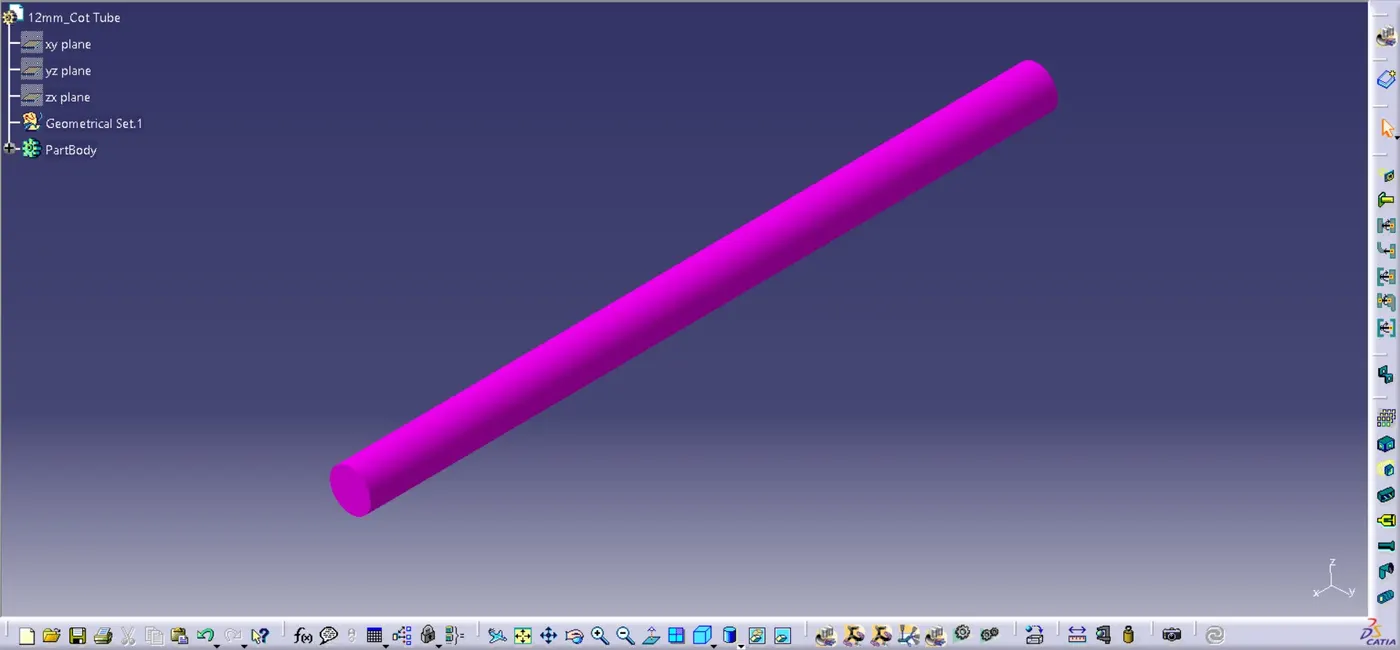

Cot Tube: (size 7 mm, 12 mm)

Step 2:

Catalog creation and all the previously created components into respective family for future use.

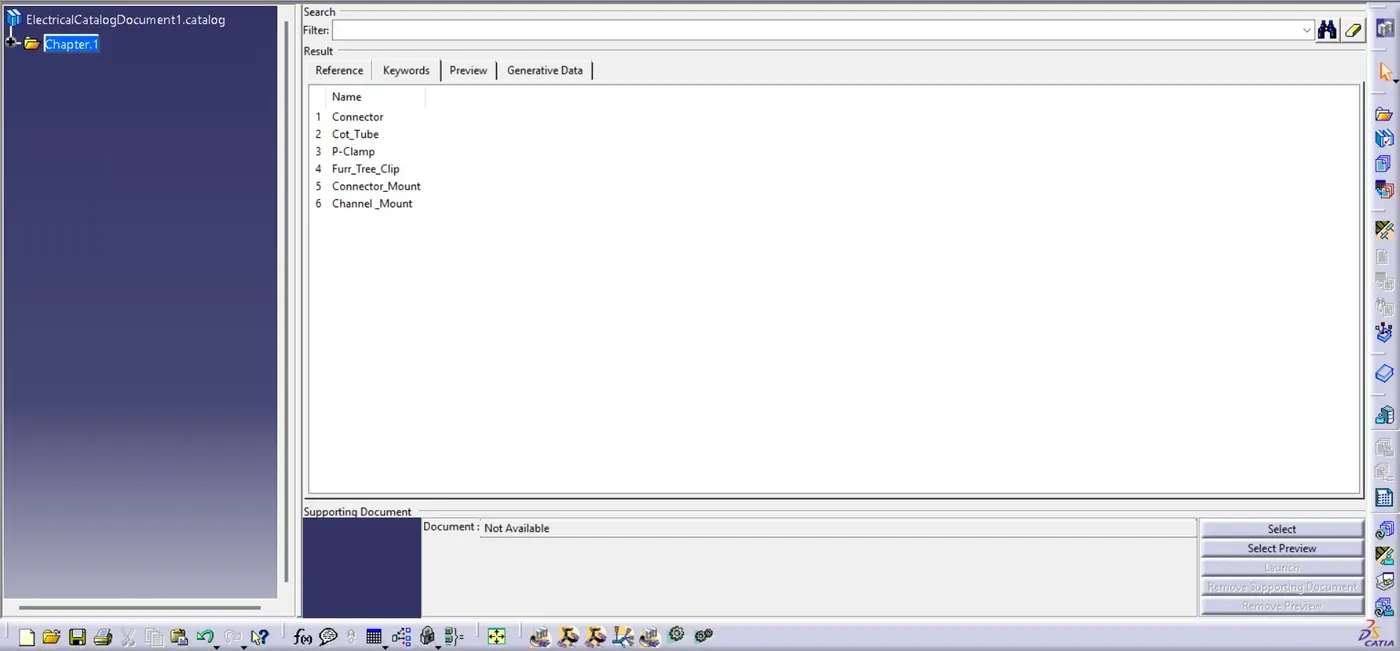

Catalog Creation:

Step 3:

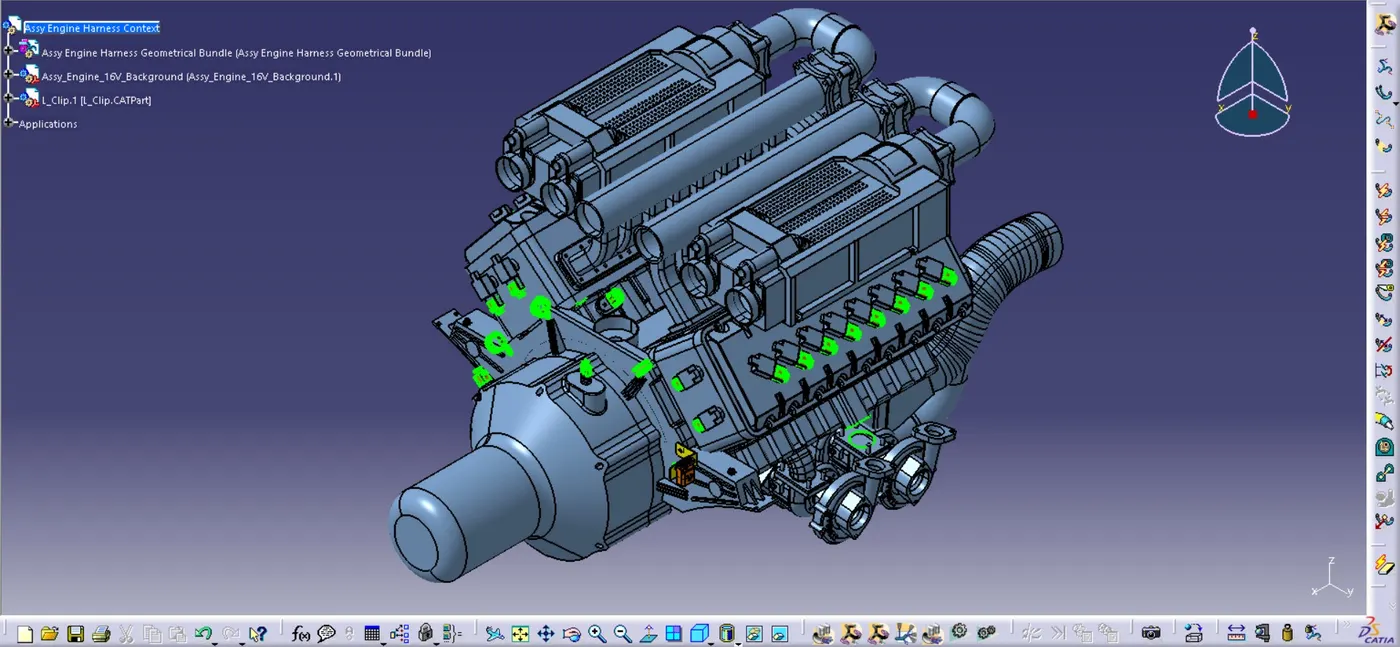

Creating a new product file and rename it as ''Assy Engine Harness Context'' then Placing the connectors and mounting features with respect to the engine assembly without applying any geometrical constraints with context assembly.

Note: This will be used as a context assembly which will not be part of actual wiring harness.

Step 4:

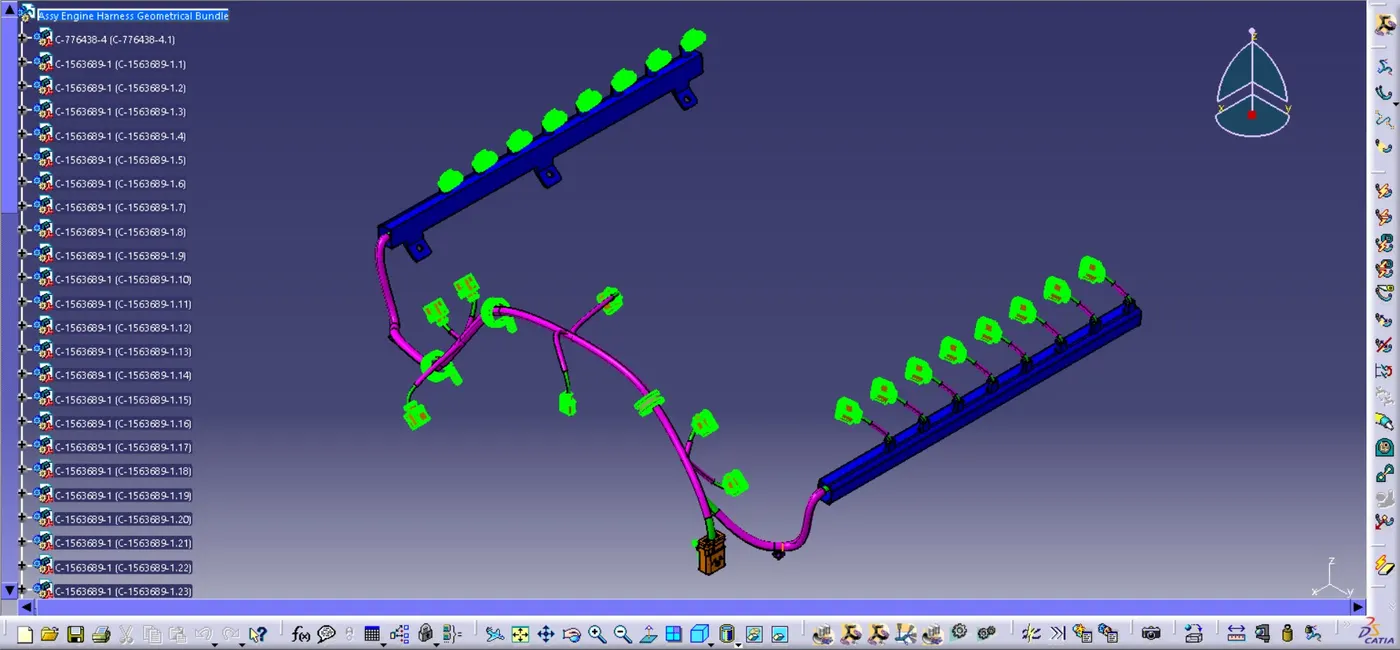

Routing & packaging of wiring Harness in 3d workplace maintaining necessary parameters & engineering aspects.

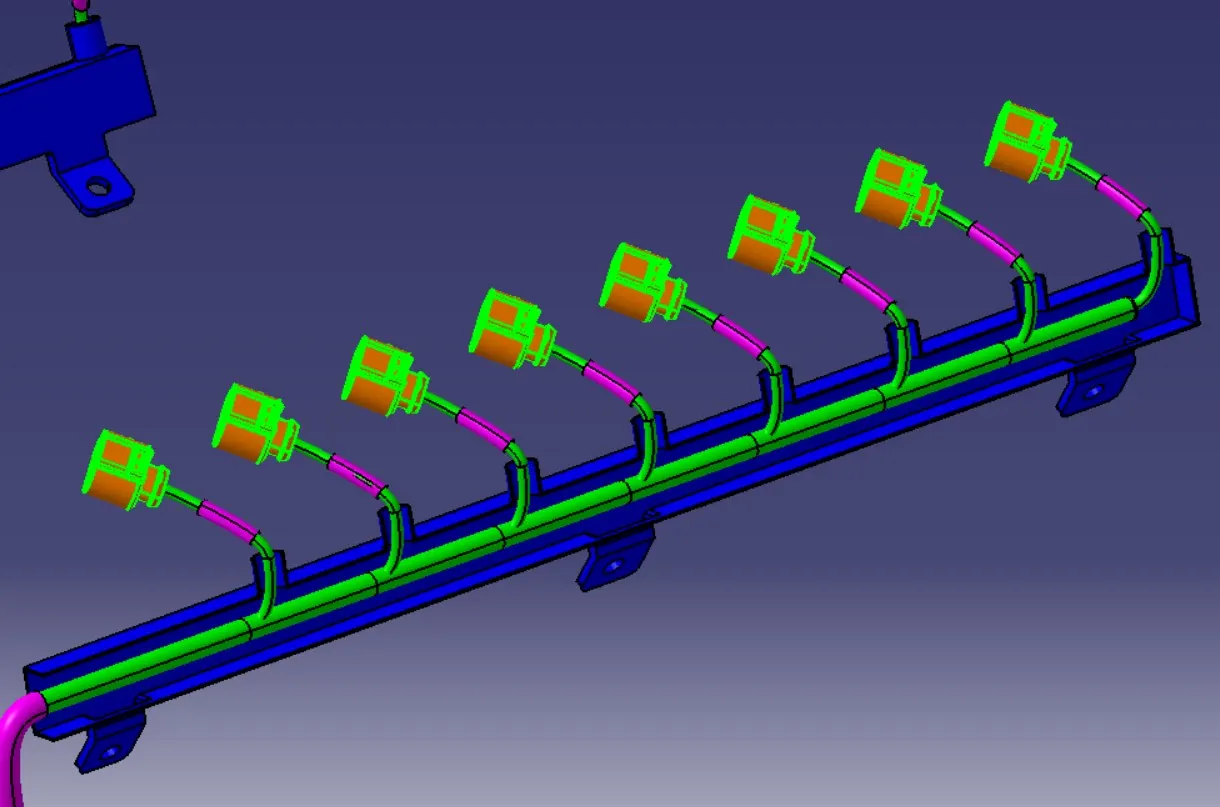

modeling using channel:

Step 5:

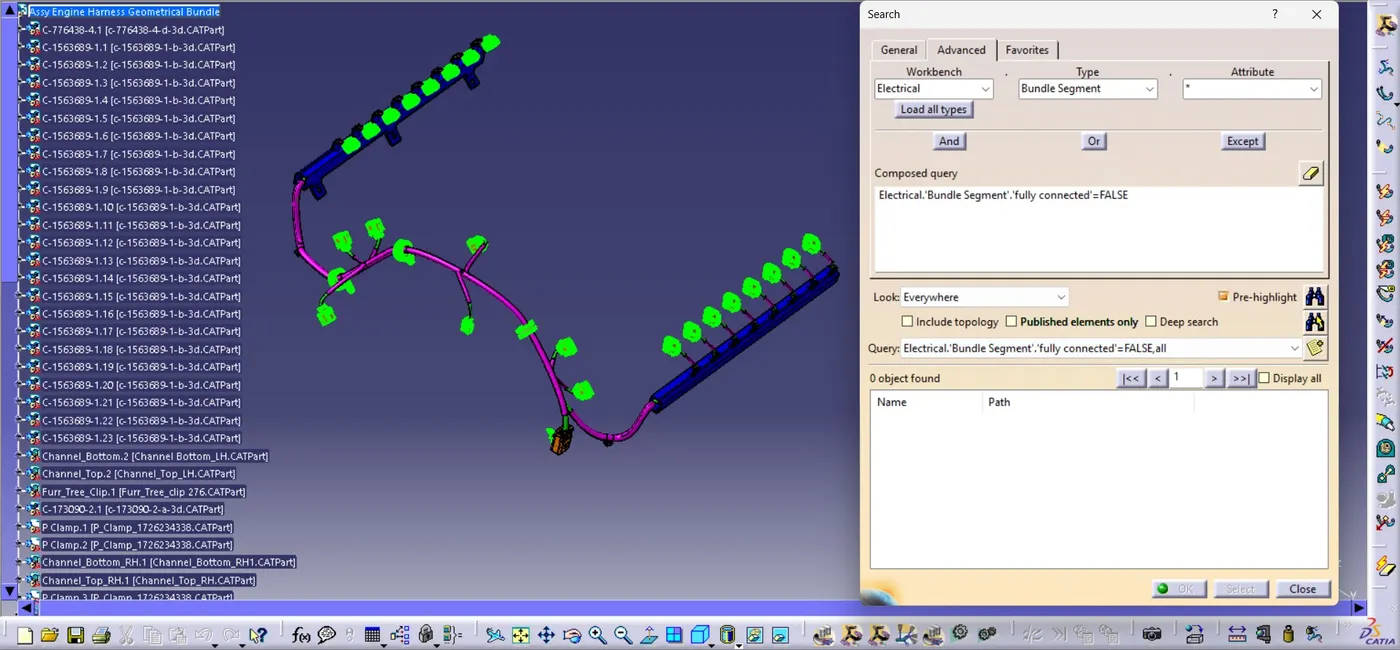

Checking electrical connectivity of bundle segments, it should be fully defined.

Step 6:

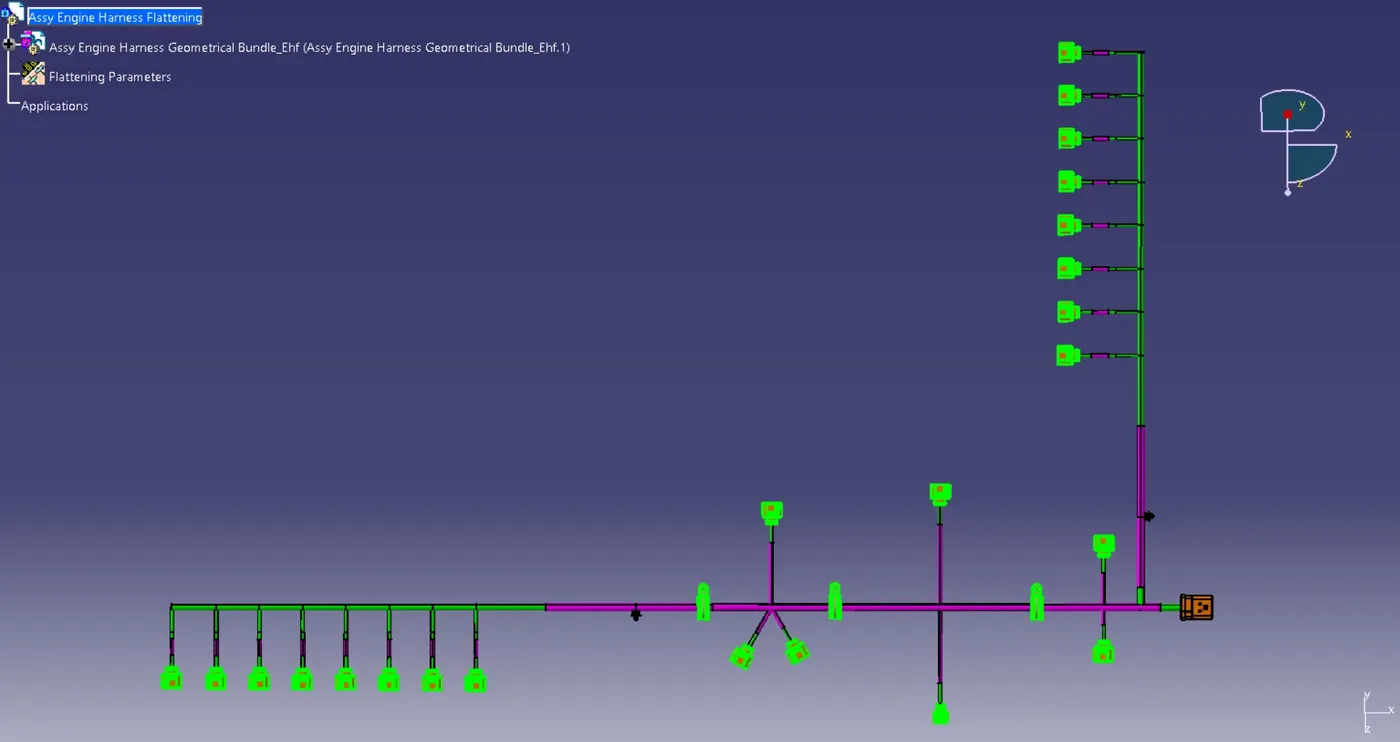

Wiring Harness Flattening:

Step 7:

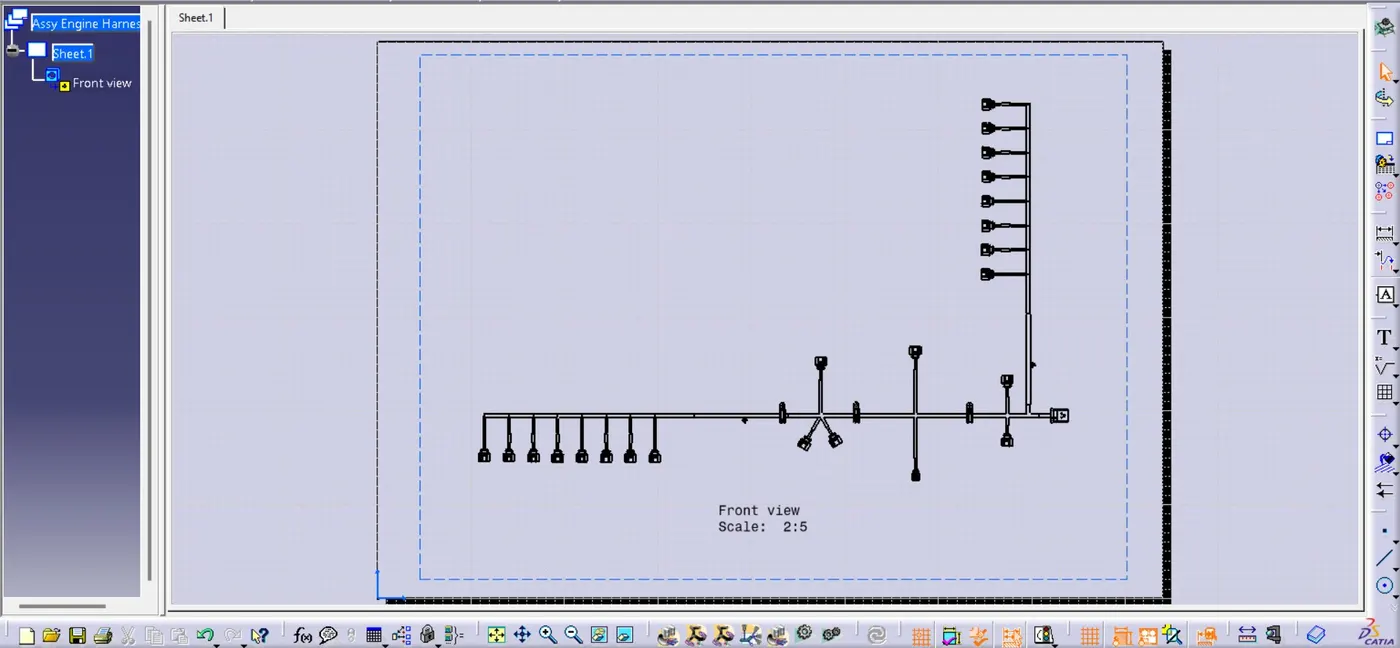

Wiring Harness 2D Drawing:

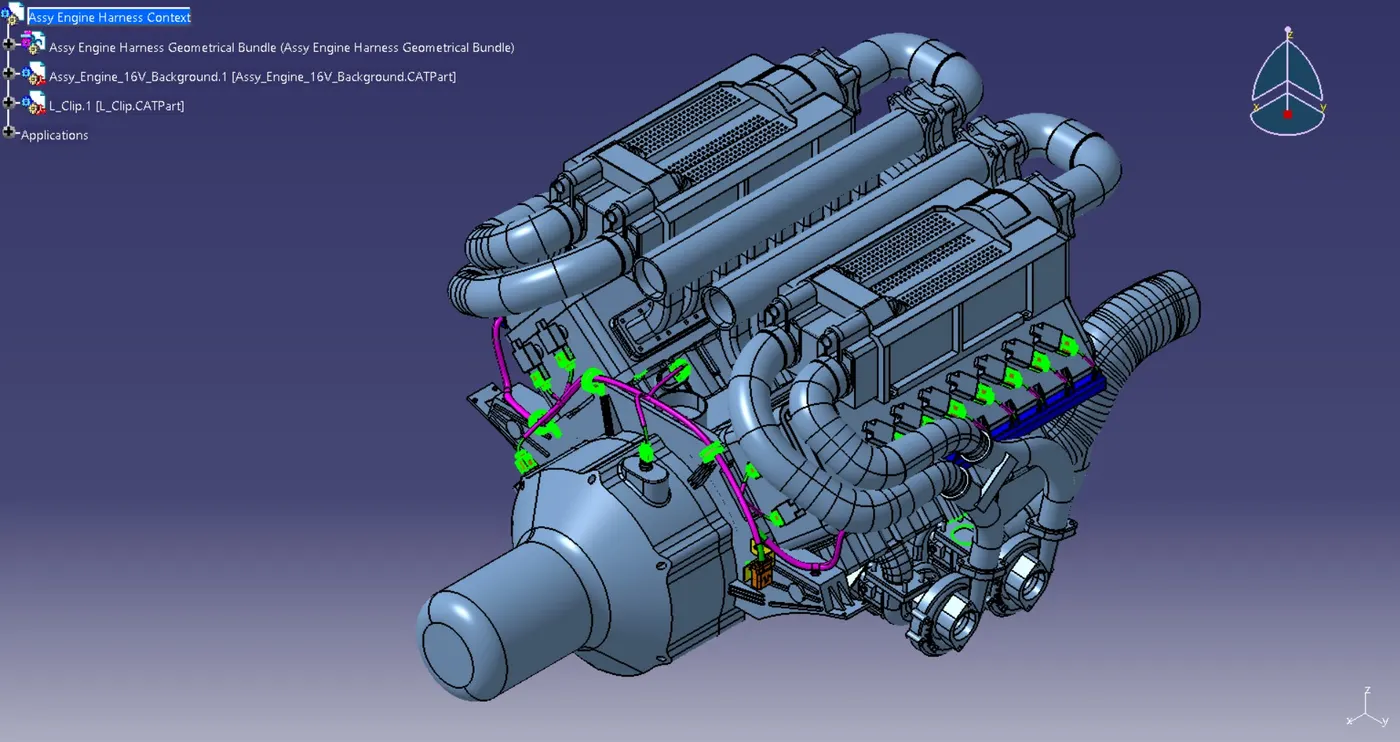

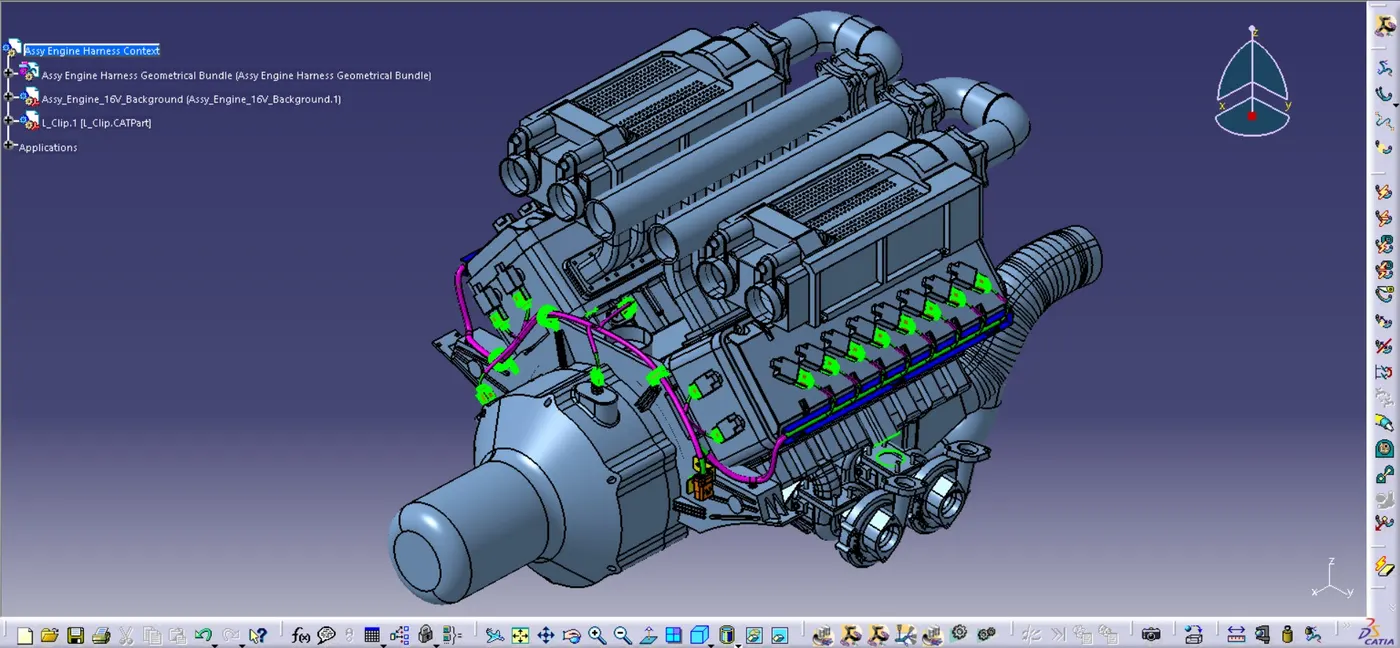

Final Wiring Harness Context Assembly:

Summery:

This project involves the design of an automotive engine wiring harness using Catia V5. The process includes the 3D modeling of a harness layout in a virtual engine environment, followed by flattening & final preparing of 2D drawing for documentation purpose.

The project aims to demonstrate the basic understanding of wiring harness design principles, including proper routing, connector placement and adherence to safety considerations, it highlights the use of Catia for developing design workflow commonly used in automotive industry.
