Challenge

Project 1

1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:

Assume suitable sections for structural elements. Follow IS456, IS1893 and IS 875

Prepare a Design Basis Report for the project

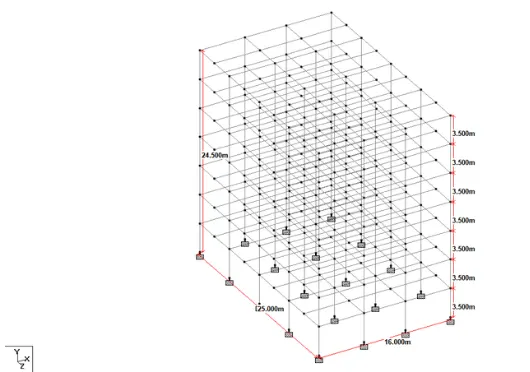

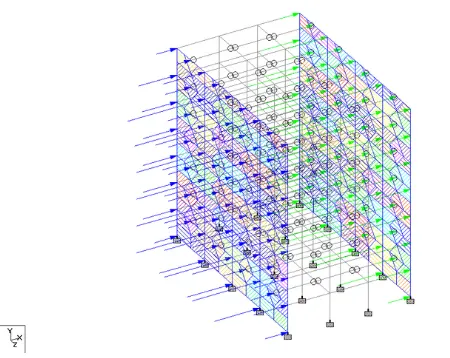

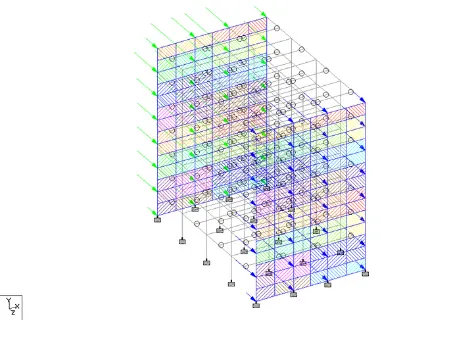

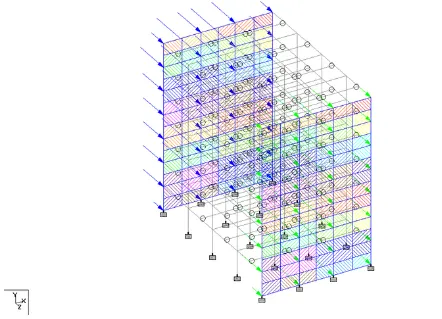

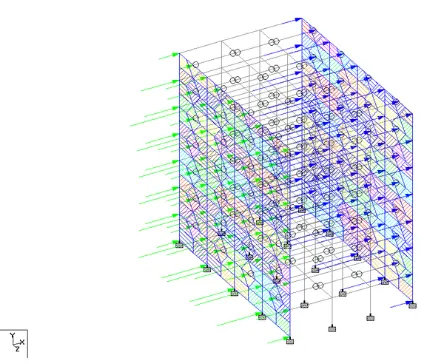

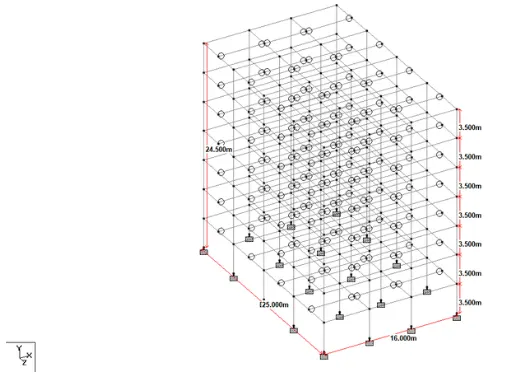

Create structural model using STAAD Pro Connect Edition

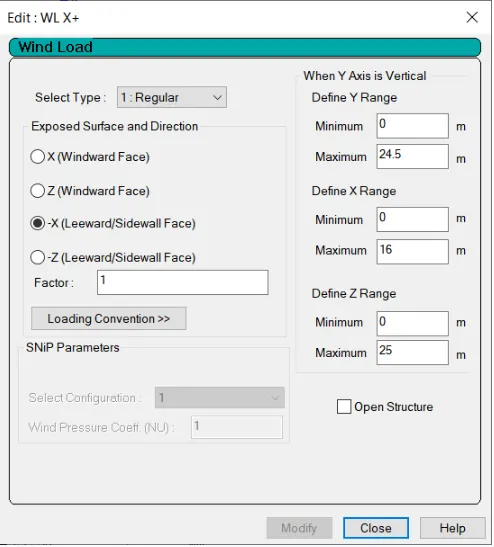

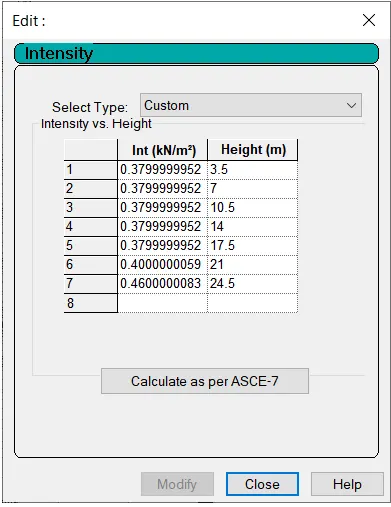

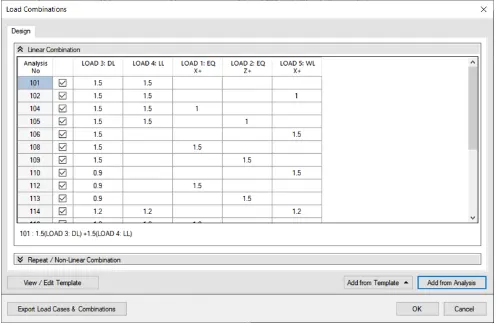

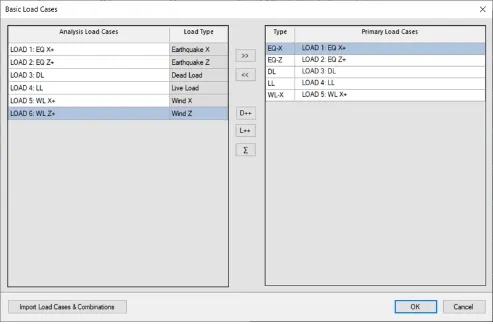

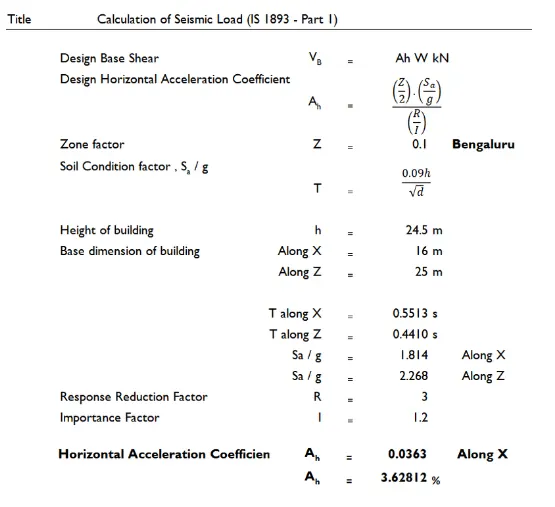

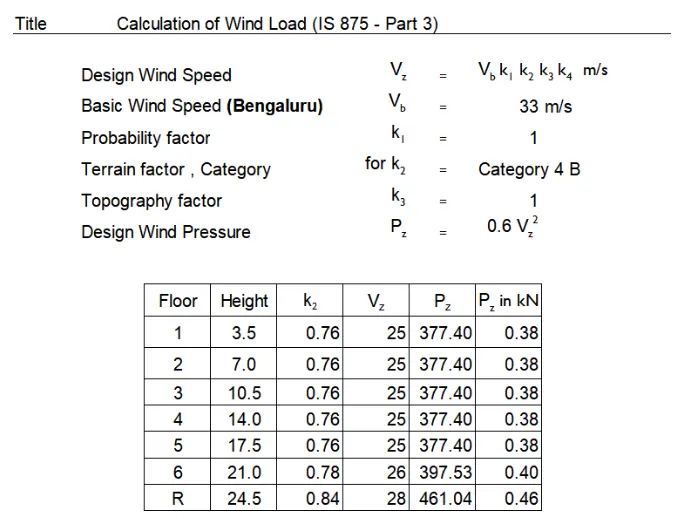

Prepare DL, LL, WL and EQL load calculations as per IS 875 standards

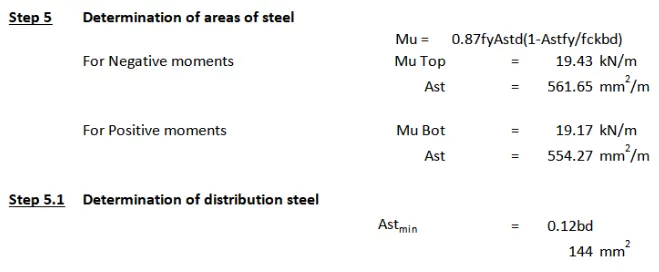

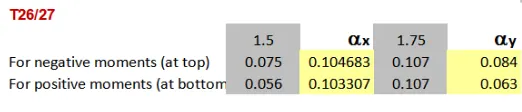

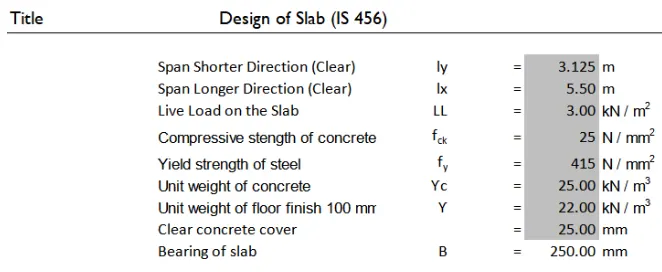

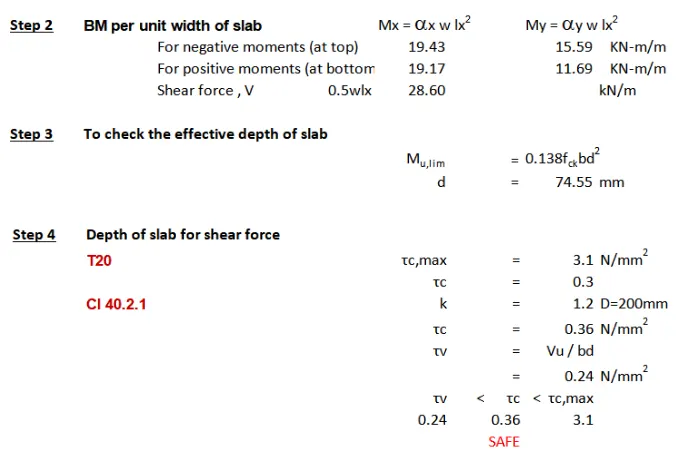

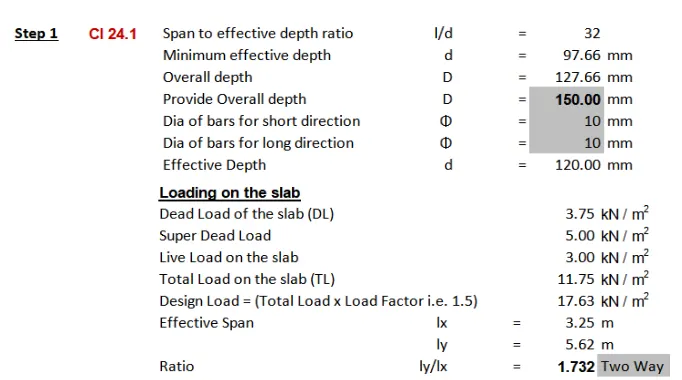

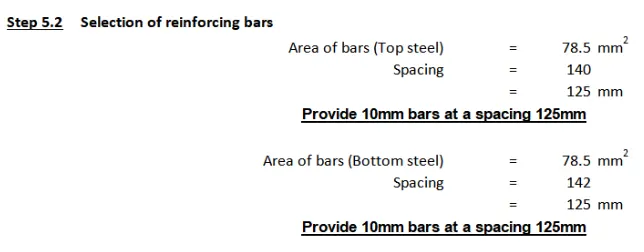

Design slab element using MS – Excel

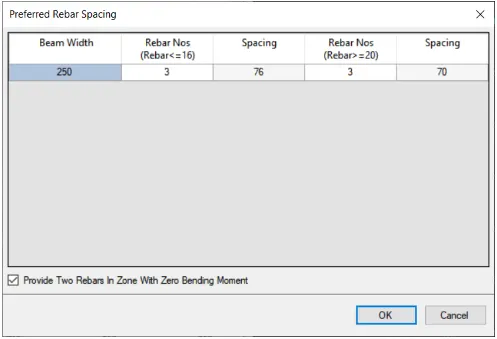

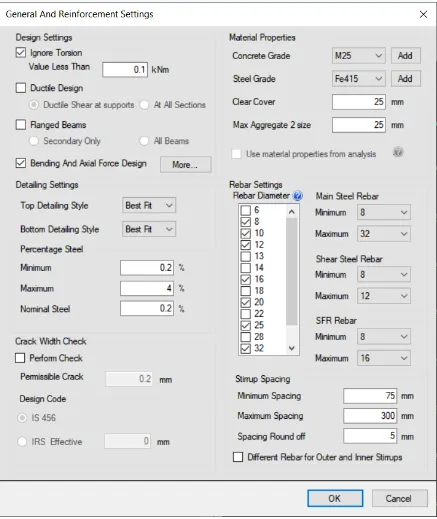

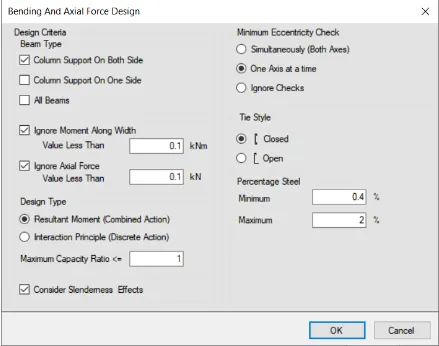

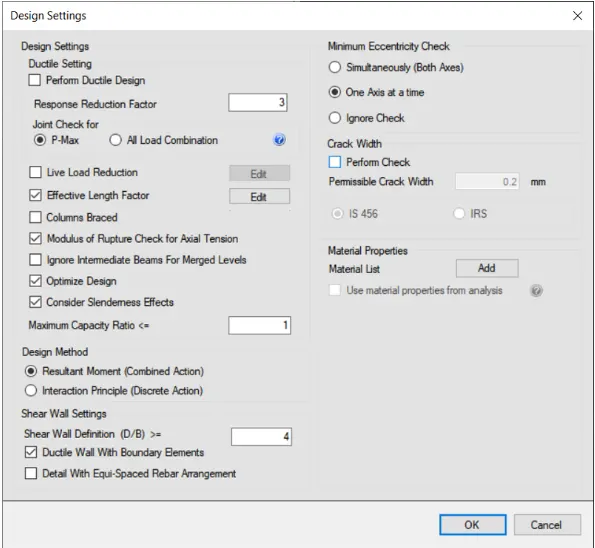

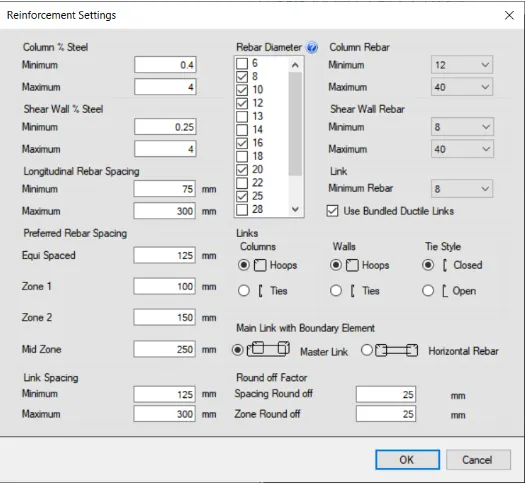

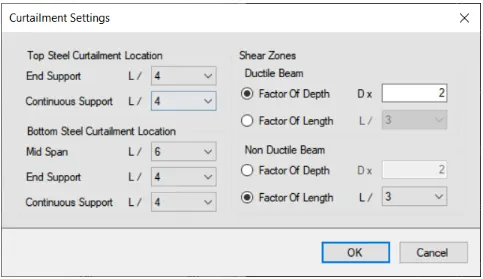

Design beam and column element using STAAD RCDC. Attach the design calculation report.

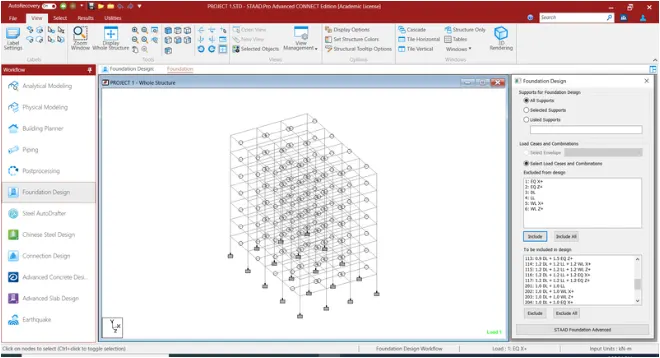

Design Foundations using STAAD Foundation.

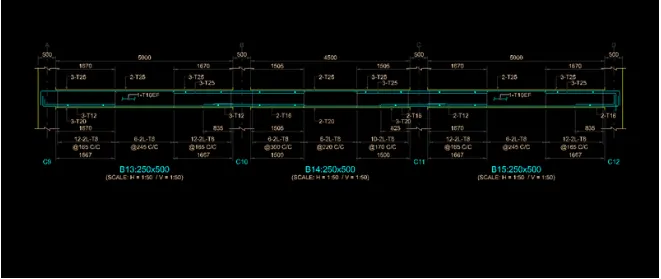

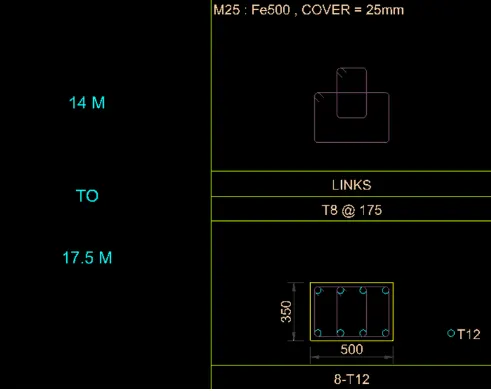

Prepare bar bending schedule for beam and column using STAAD RCDC
Attach necessary sketches and drawings wherever required.
All stipulations, assumptions and design parameter must adhere to Indian Standards.

Ans.

Aim:- To design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition

Procedure:-

Unit weight of the materials

Reinforced Cement Concrete = 2525 kN/m3kN/m3

Plain Cement Concrete = 2424 kN/m3kN/m3

Cement Concrete Screed = 2020 kN/m3kN/m3

Cement Masonry Units = 2222 kN/m3kN/m3

Structural Steel = 78.578.5 kN/m3kN/m3

Soil = 1818 kN/m3kN/m3

Dead Load

Floor slab

Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)

Partitions = 1.51.5 kN/m2kN/m2

Floor Finish = 2.52.5 kN/m2kN/m2

Miscellaneous = 11 kN/m2kN/m2

Total Floor Load = 8.75 kN/m2

Roof slab

Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)

Insulaions and Water Proofing = 0.50.5 kN/m2kN/m2

MEP Services = 0.50.5 kN/m2kN/m2

Miscellaneous = 0.50.5 kN/m2kN/m2

Total Roof Load = 5.25 kN/m2kN/m2

Live Load

Floor slab

Common Corridor = 33 kN/m2kN/m2

Total Floor Load = 3 kN/m2kN/m2

Roof slab

Accessible Roof = 1.51.5 kN/m2kN/m2

Total Roof Load = 1.5 kN/m2

Result:-

Thus, multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition is been designed.
