Project 1

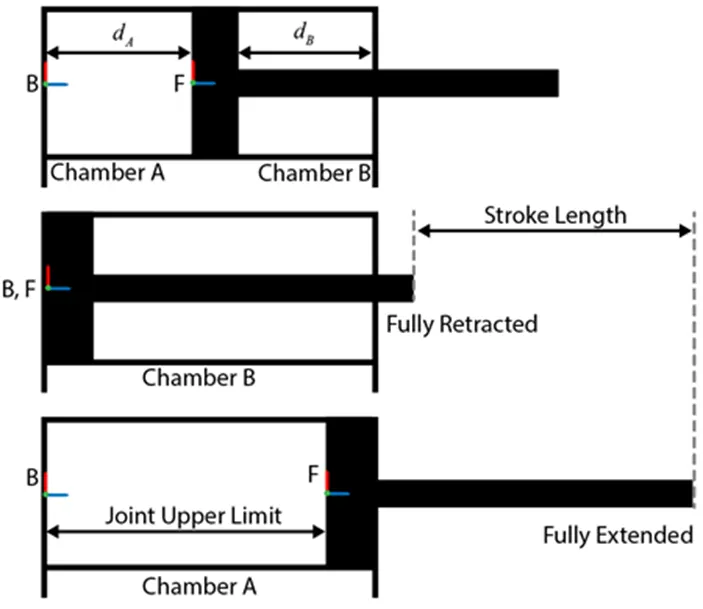

The schematics show the cylinder in three configurations: half-retracted, fully retracted, and fully extended.

Modeling a Double-Acting Actuator

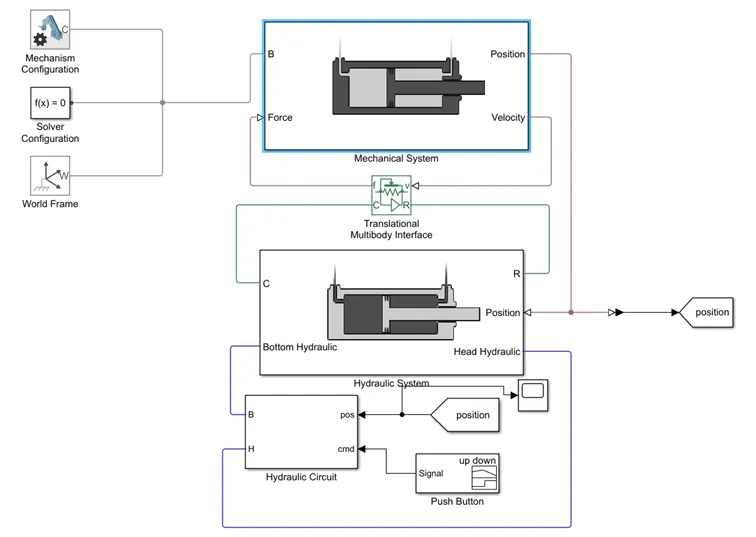

Double Acting Hydraulic Actuator System:

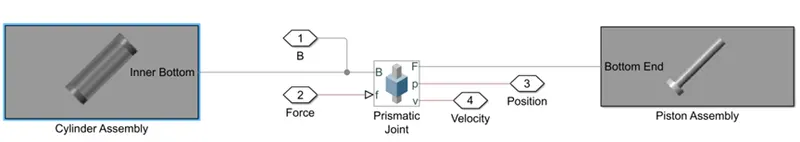

Mechanical system:

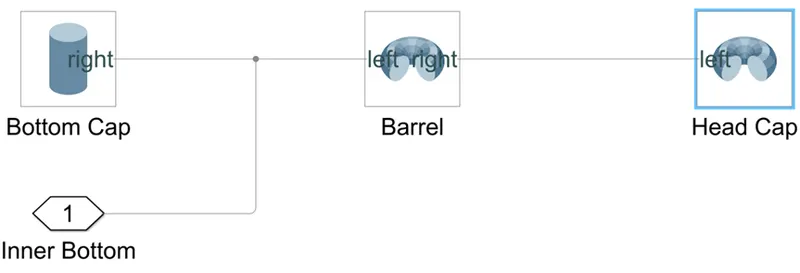

1.Cylinder Assembly:

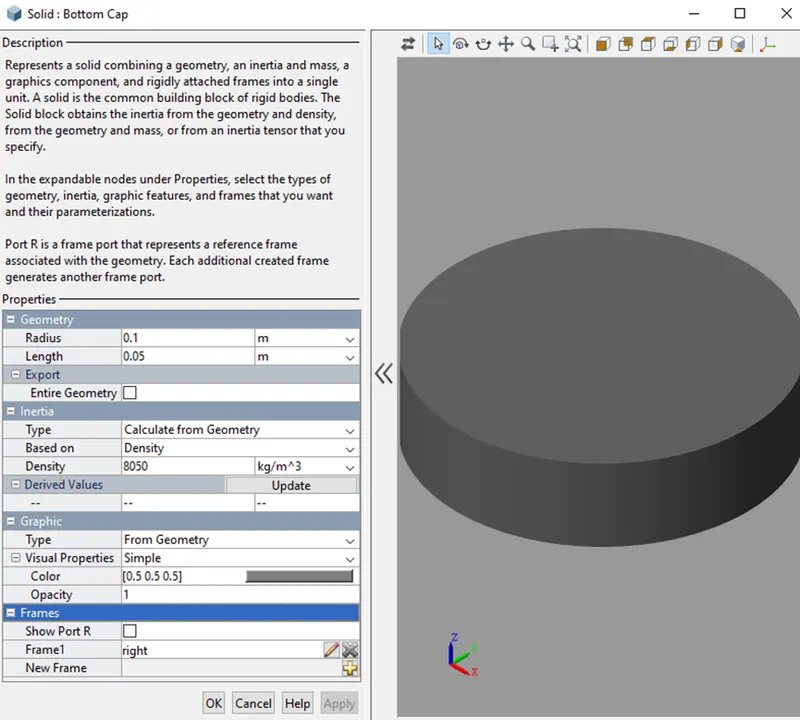

Bottom Cap:

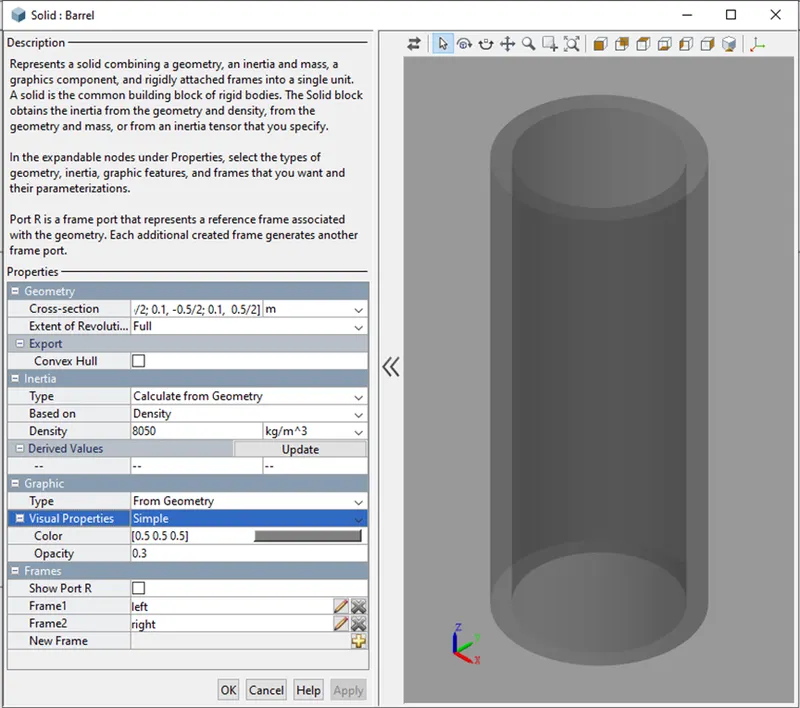

arrel Cap:

Cross section values:[0.08, 0.5/2; 0.08, -0.5/2; 0.1, -0.5/2; 0.1, 0.5/2]

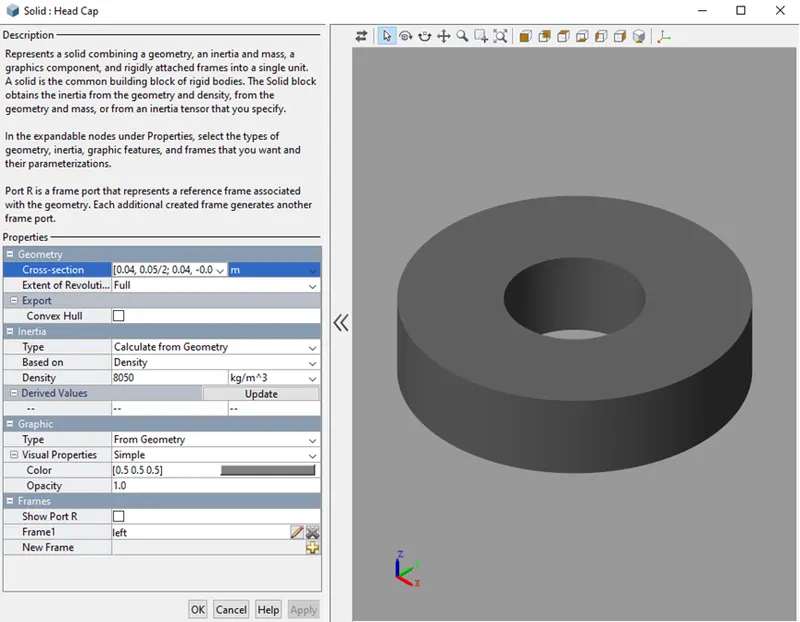

Head Cap:

Cross section values:[0.04, 0.05/2; 0.04, -0.05/2; 0.1, -0.05/2; 0.1, 0.05/2]

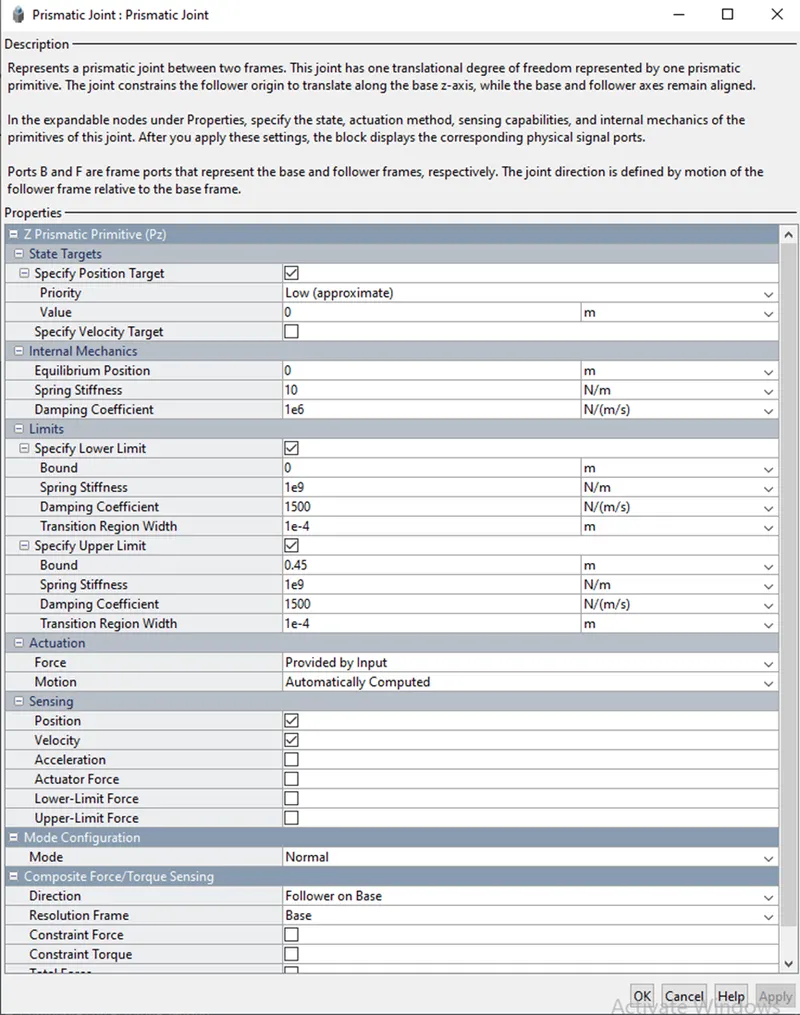

2. Prismatic Joint:

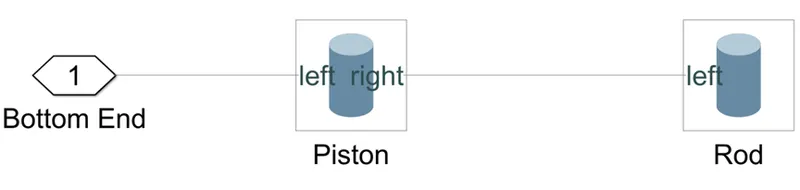

3.Piston Assembly:

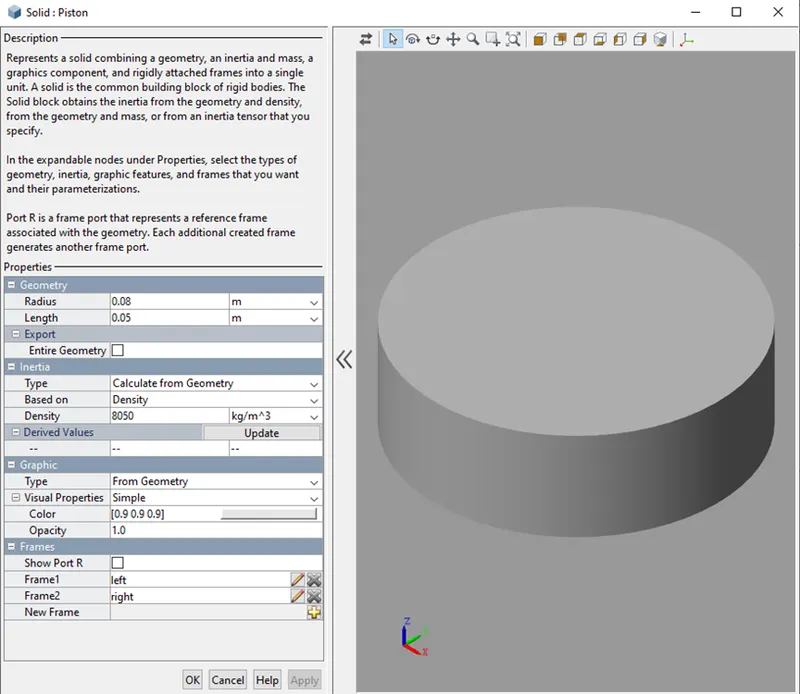

Piston:

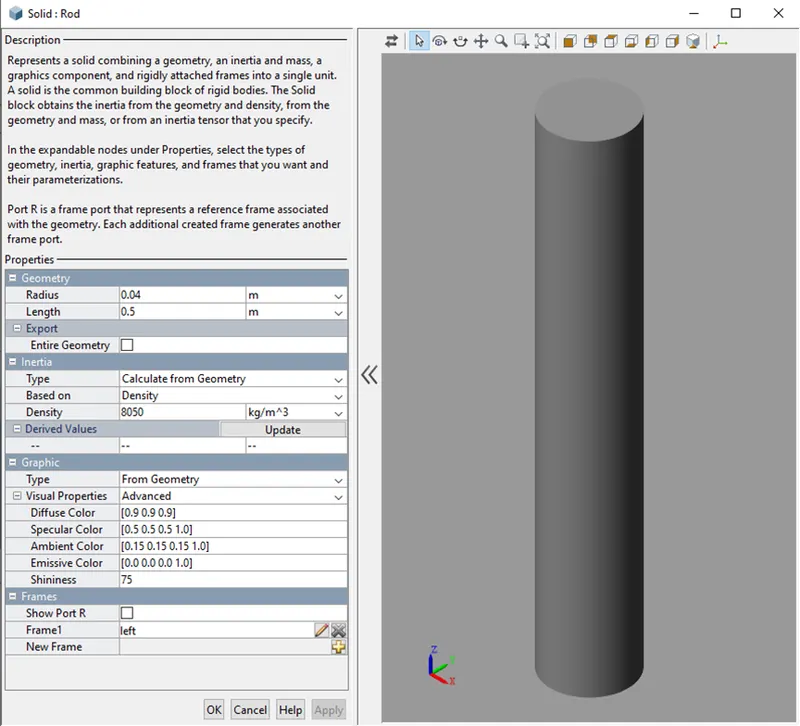

Rod:

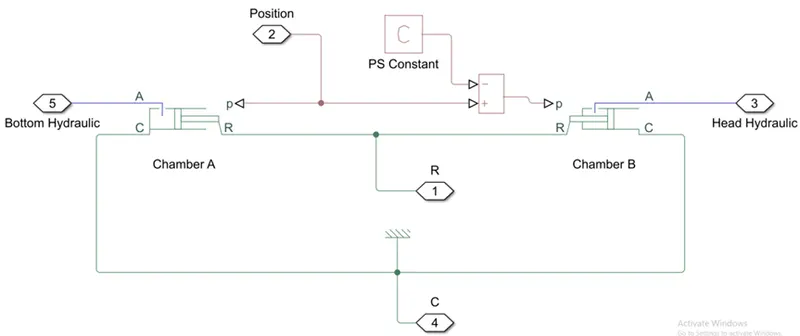

Hydraulic system:

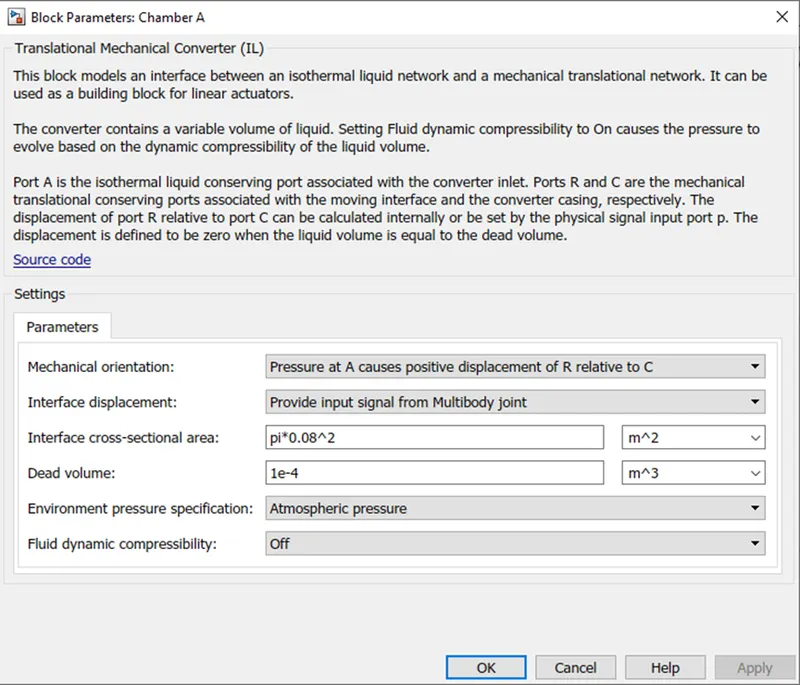

Chamber A:

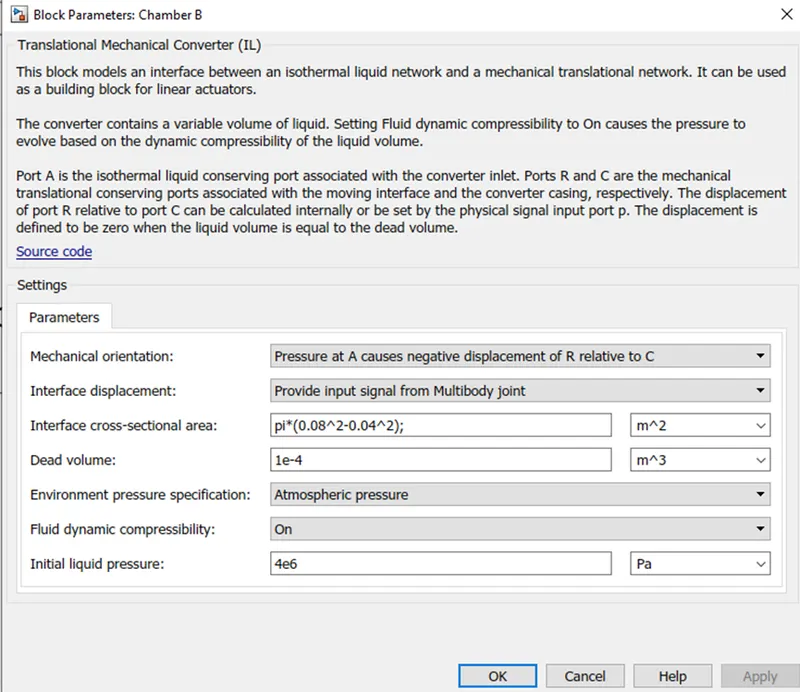

Chamber B:

C:

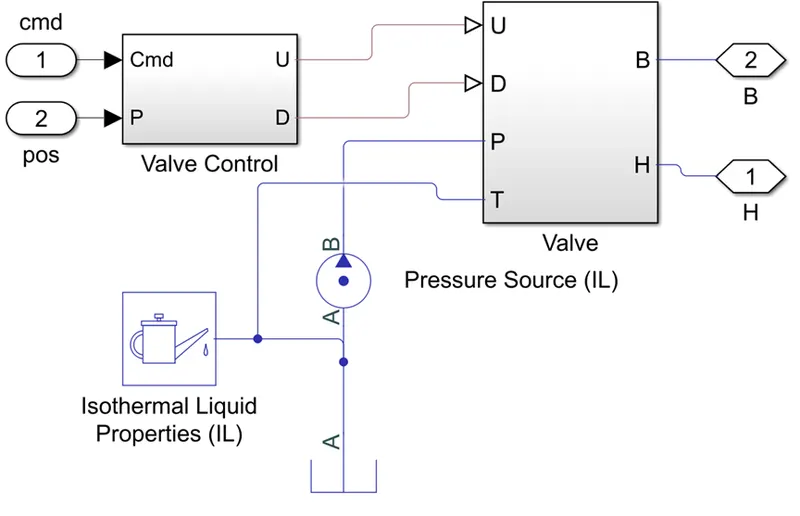

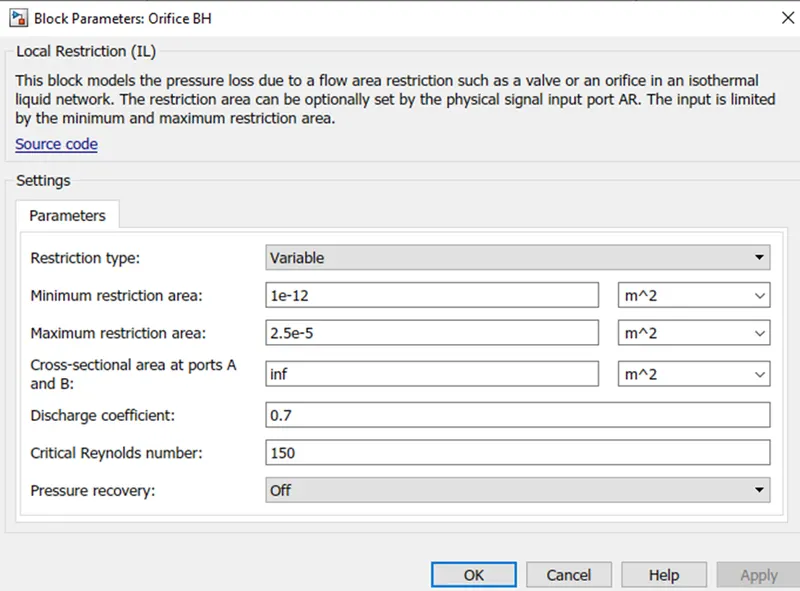

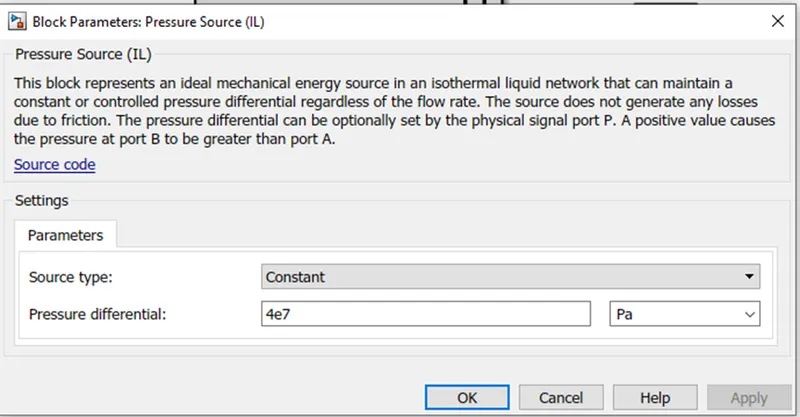

Hydraulics:

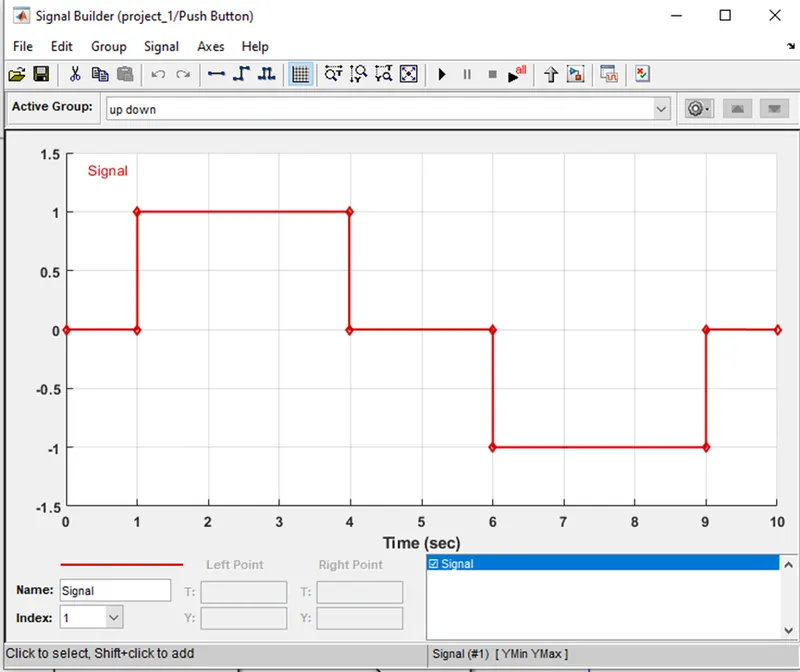

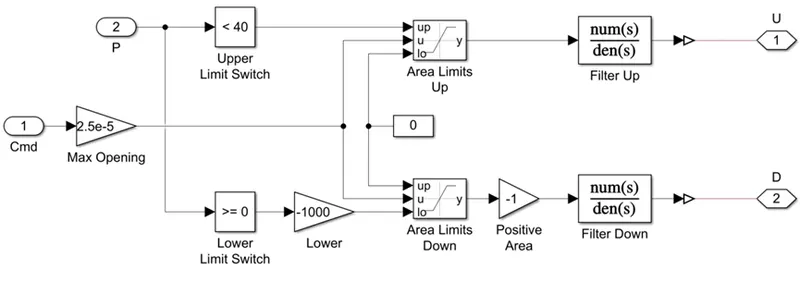

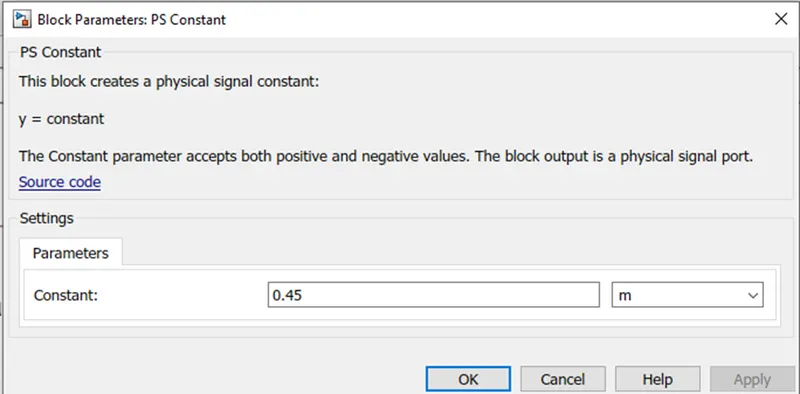

Valve Control:

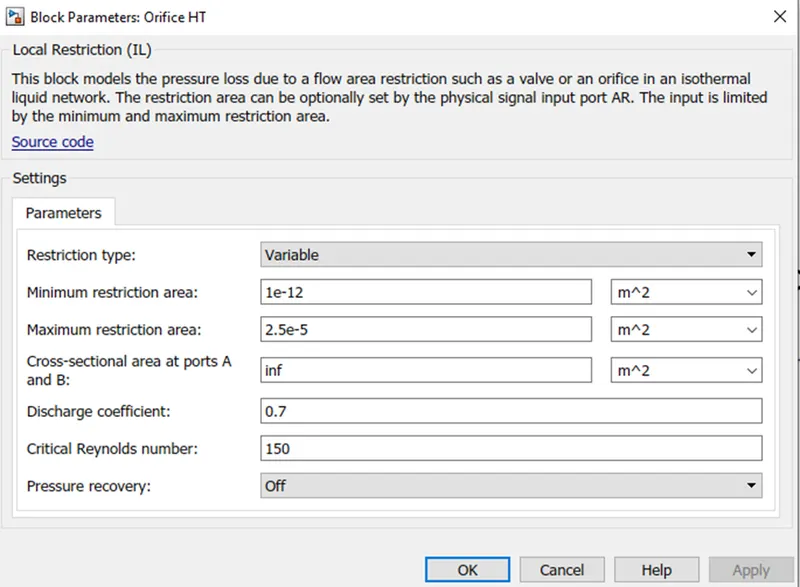

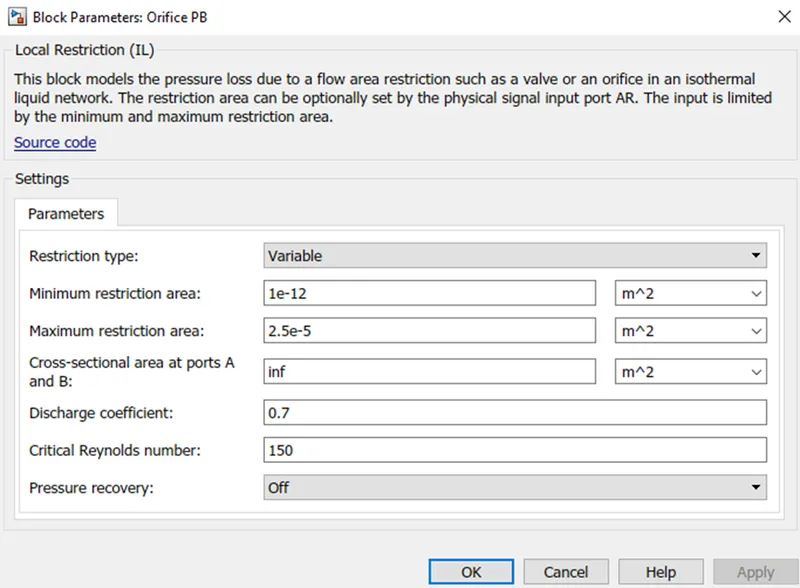

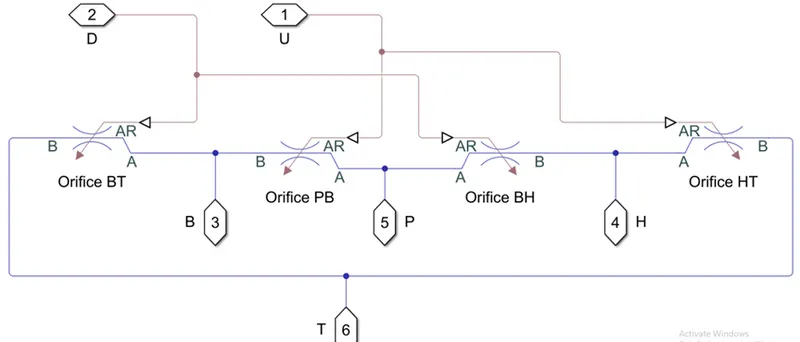

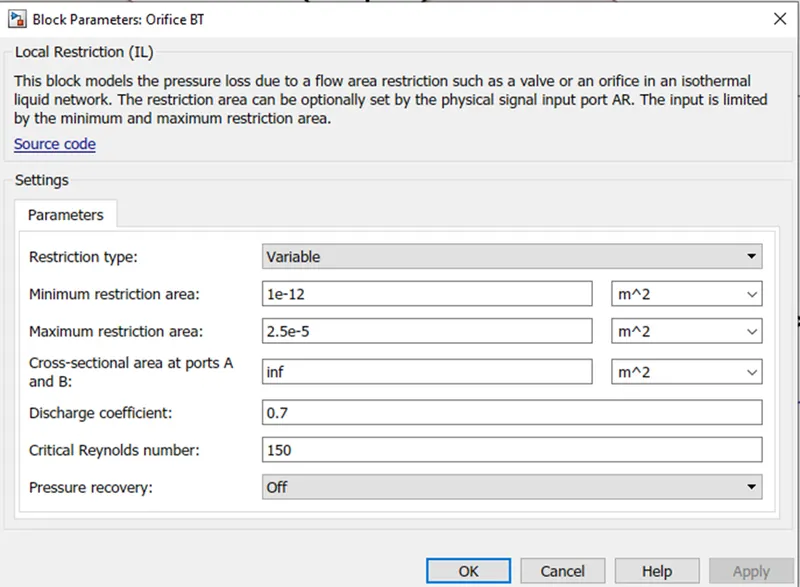

Valve:

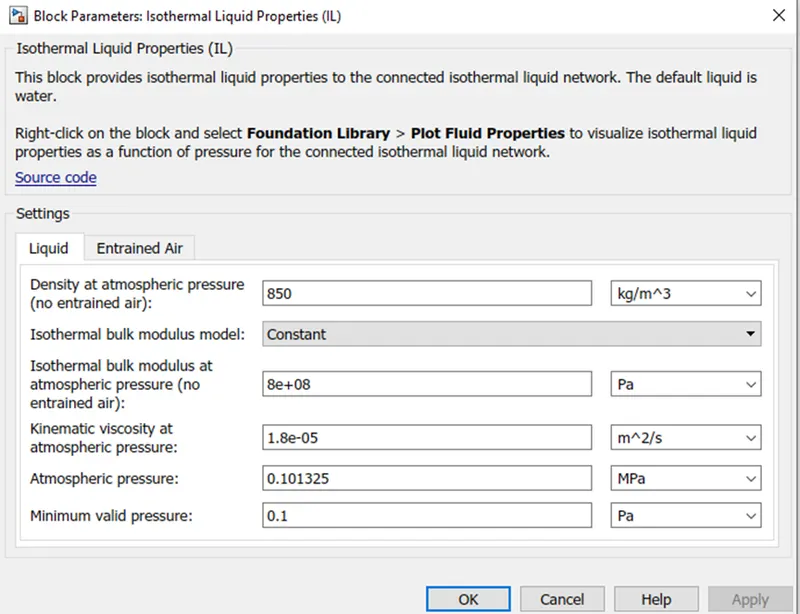

Iso thermal liquid properties:

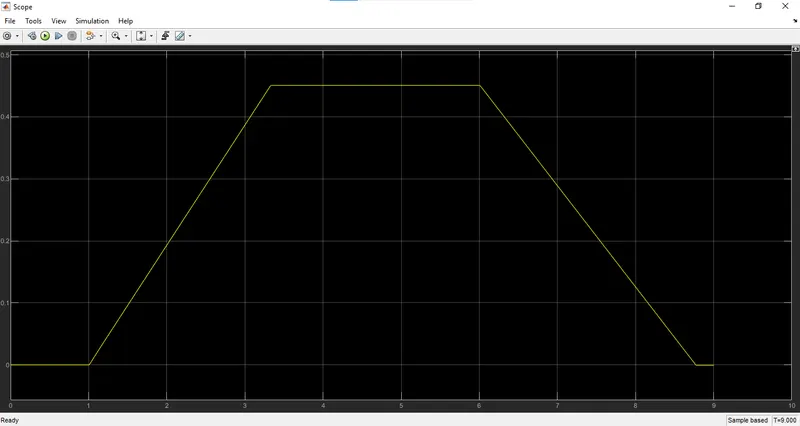

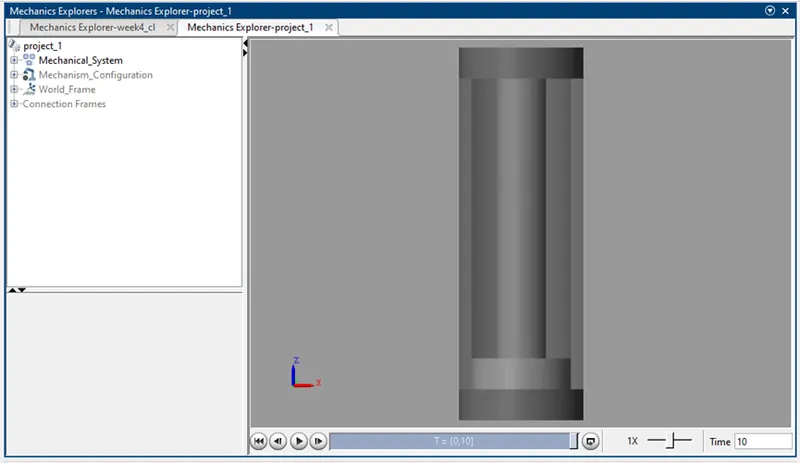

Result:
