Project 1 - 2D meshing on the instrumental Panel

AIM:

• To check for the geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned for the given component.
• To use the automatic casting Align Manager option.

PROCEDURE:

• Import the geometry and without topo cleanup, as shown in below.

.

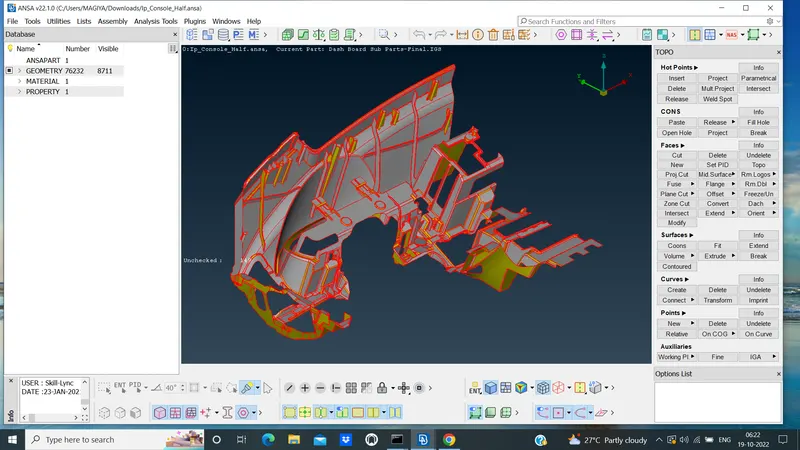

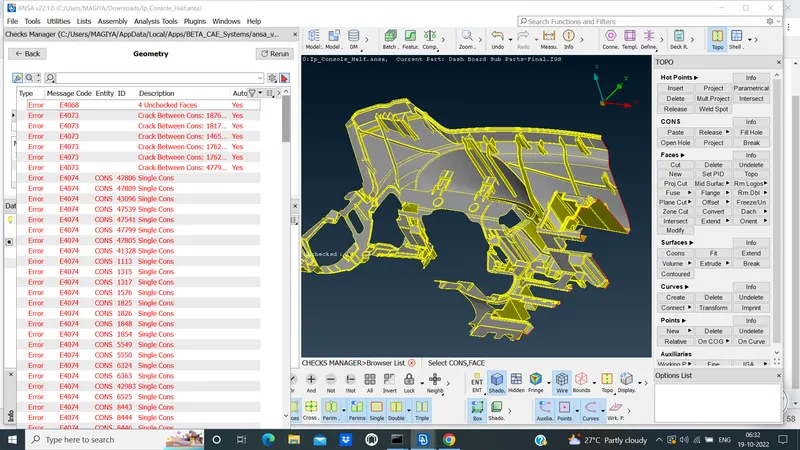

• The component with topo cleanup and with geometrical errors,as shown in below.

.

• The component should have more number of geometrical errors and I can work it.

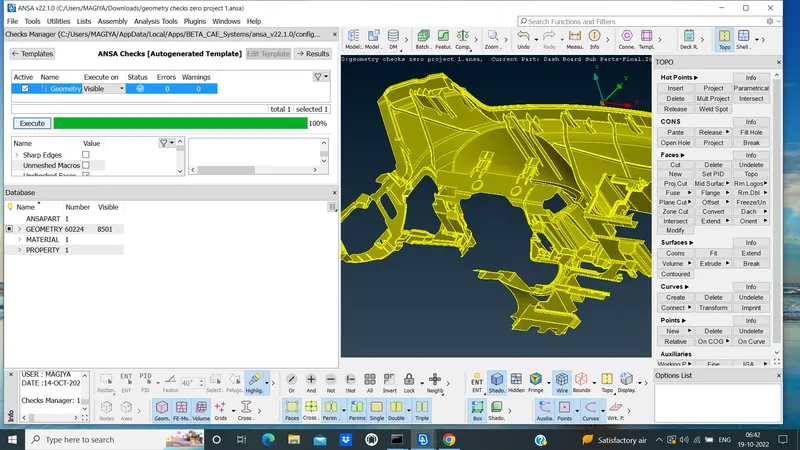

• The component with zero geometrical errors,as shown in below.

.

• I can work with Automatic Casting method,it hardly takes 5-10 mintues.

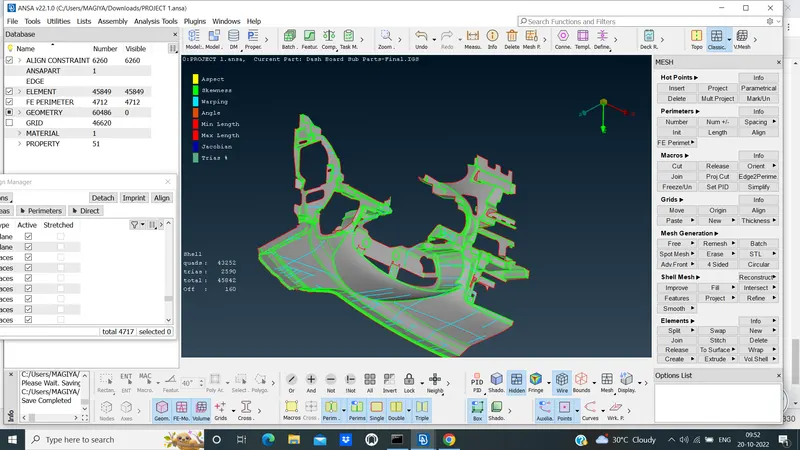

• After the casting method,as shown in below.

.

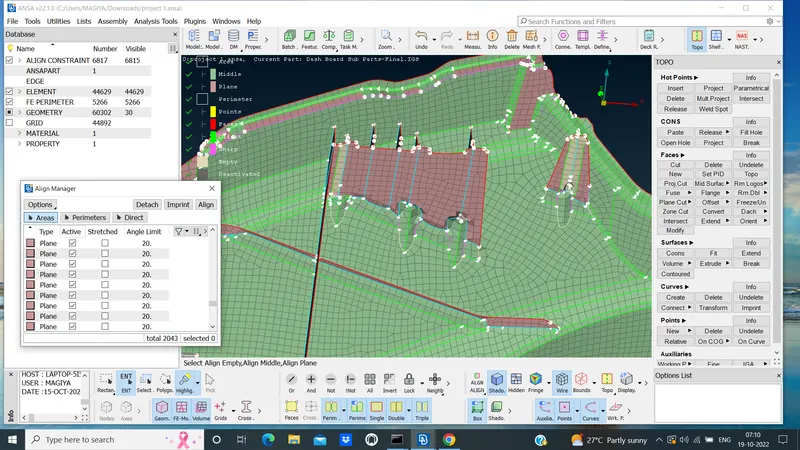

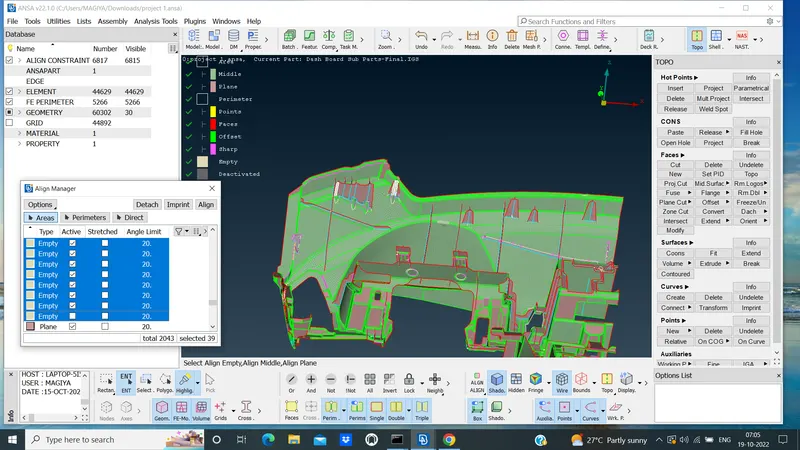

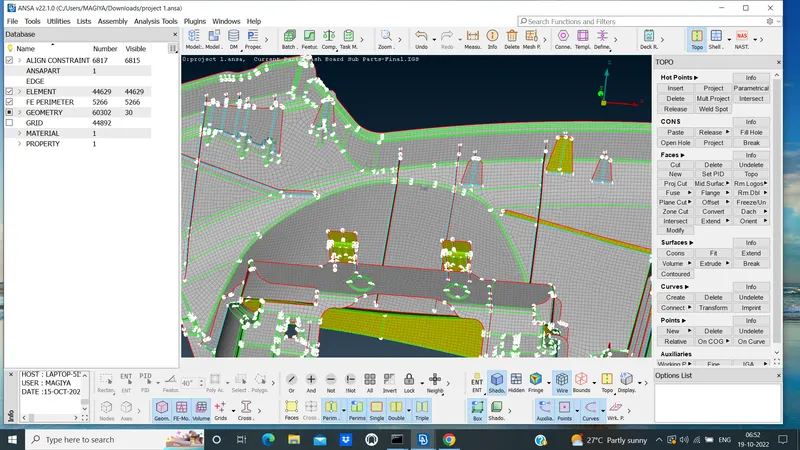

• Using the align manager and there having the more emptys as shown in below.

.

• The Dog house and the ribs not connected properly by the casting method,as shown in below.

.

• I can work in the dog house and ribs and emptys region,where ever it capture not properly.

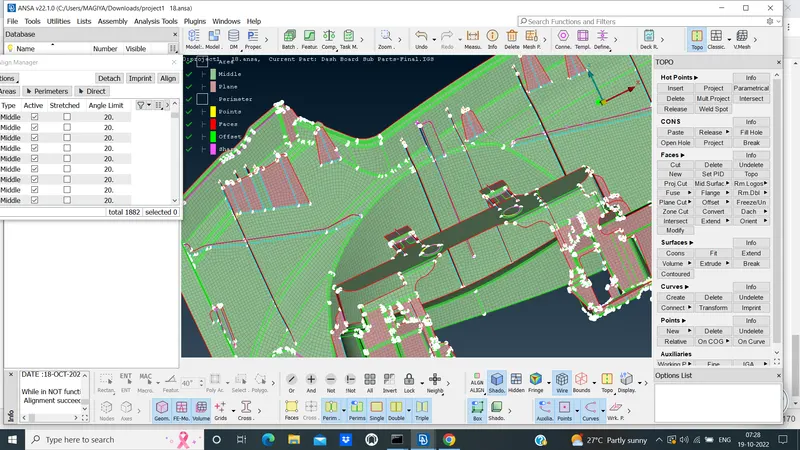

• Using the Join option and cut option for to recapture properly the dog house and ribs,as shown below.

.

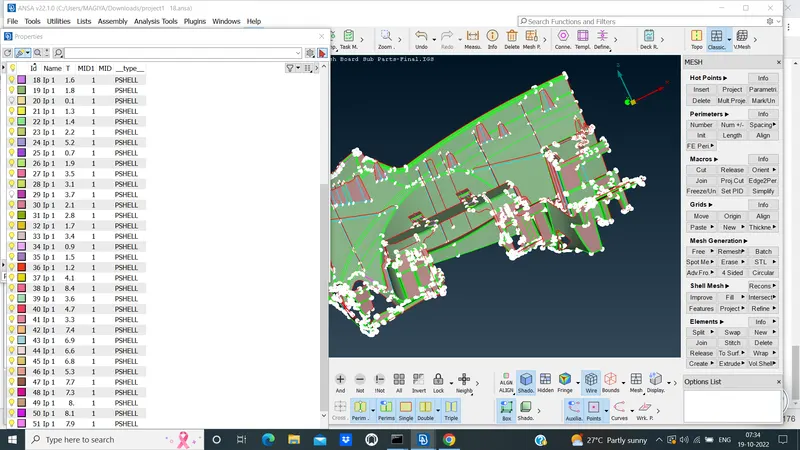

• Assigned the automatic Thickness(convert) option under the classic deck mode,as shown in below.

.

• The given target element Quality criteria is applied and more no OFF Elements is having,as shown in below.

.

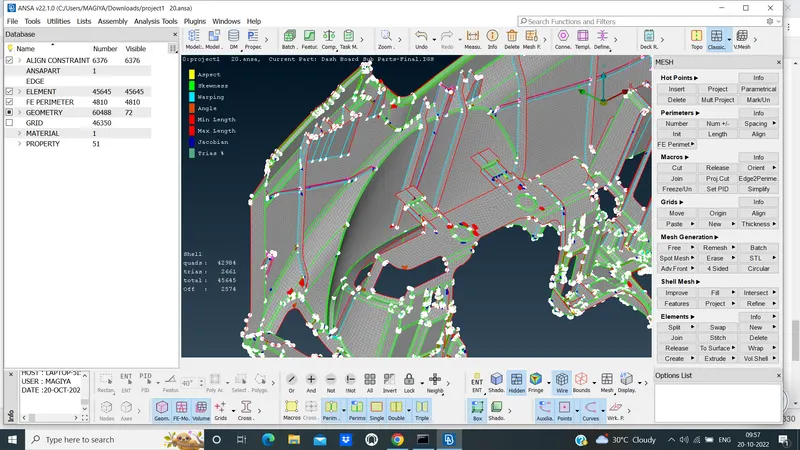

• Reduced the OFF Elements by using the Reconstruct,smooth,move and improve option in the classic deck mode,as shown in below.

.

LEARNING OUTCOMES:

• Learned properly the Align manager uses and its work.
• Casting Align manager methods saves more time than the Mannual method.
• Learned why industries needs,casting aling manager method.
• Learned,Middle shell deck the connect option under the modify option.
• How to assign the Automatic thickness for the given component .
• In Aling manager,there is no Emptys in Areas and Perimeter.

CONCLUSION:

• I conclude that the zero geometrical errors and with good mesh flow as per given target element quality criteria can be achieved.
• some OFF elements is having near to the triple cons and is not to solve.
