Project 1 - 2D meshing on the instrumental Panel

2D meshing on the instrumental Panel

AIM:

For the given component, check for the geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned.

Write a detailed report on your meshing process and also mention which method you used to extract the mid-surface along with the reason.

PROCESS:

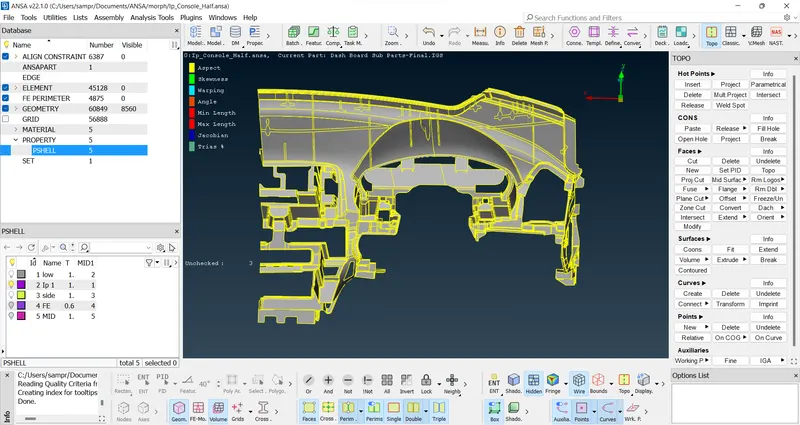

• Inetially the part is downloaded and opened in ANSA

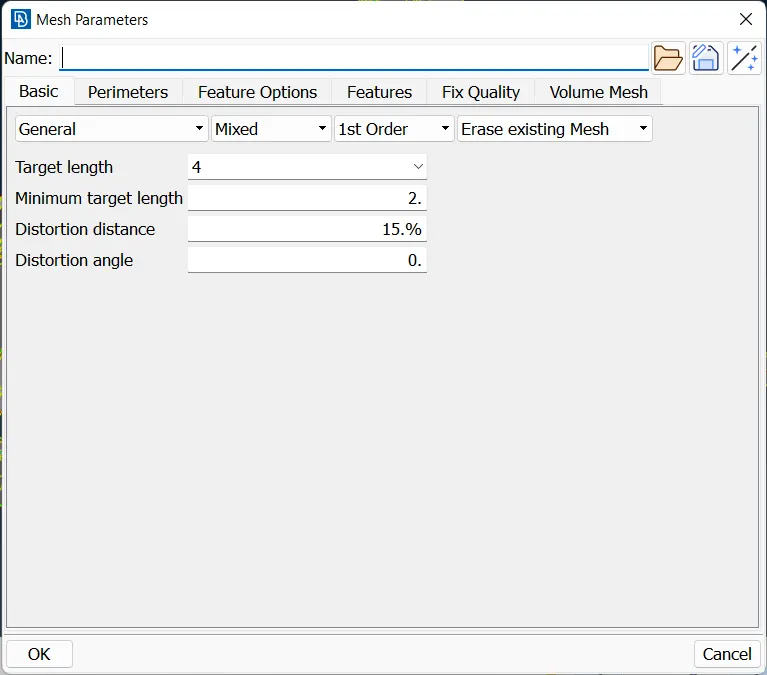

• The length perimeter is set as per given,and the mesh criteria is set later

• As the given part is half which is filled by new

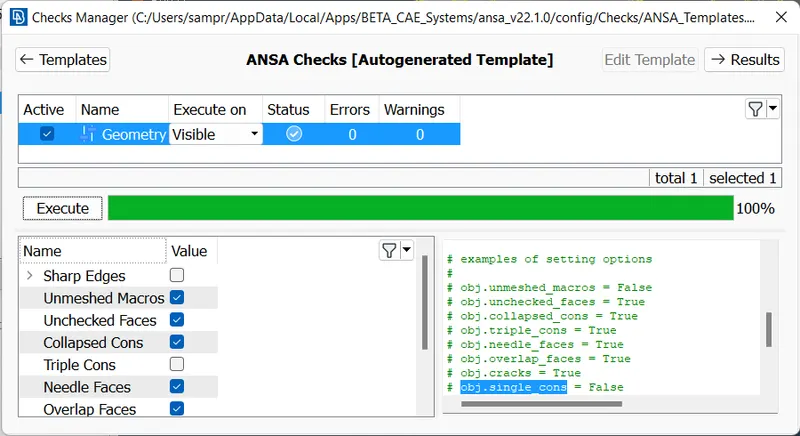

• The geometry check is done with also checking of the unmeshed and is validated
• The errors are fixed by auto using ansa and some unfixed by ansa is fixed by us.

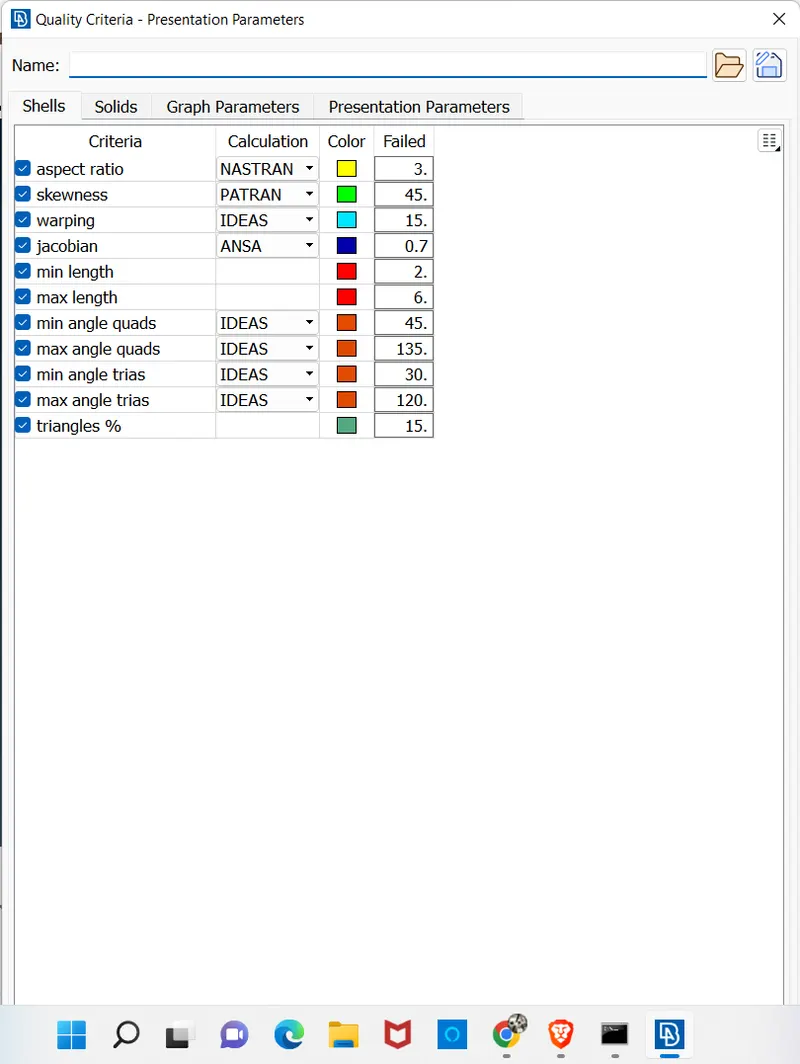

• Finally the quality criteria is added

• Thus after the parental is validated with no errors it is divided to 3 parts using plane cut
• This is done to load less on the ansa and system and not to shutdown while casting
• Now each part is put for casting and rest is hidden during that
• It takes time around 1-2 hrs to complete all the parts
• Now the FE is seperated from parental PID into a single PID
• All the parts FE are joined using fill and join commands

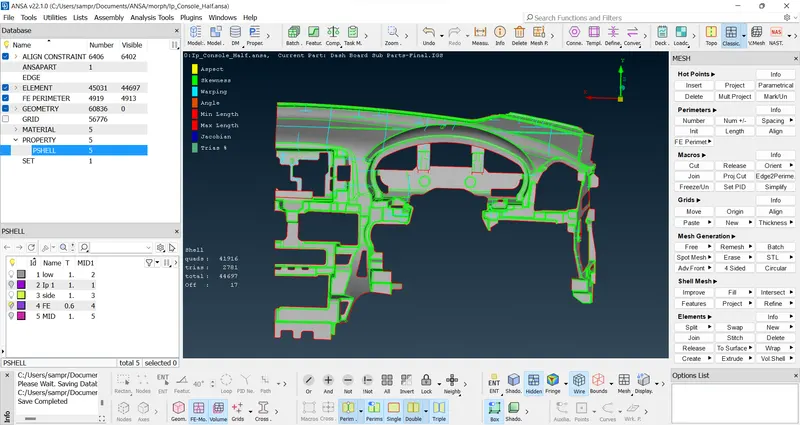

• Now the whole FE of the parental is ready

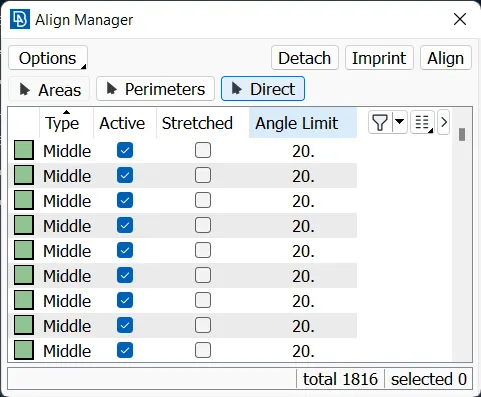

• Using aligne manager the areas and perimeters are checked for Empty and is alligned with respective parental geometry

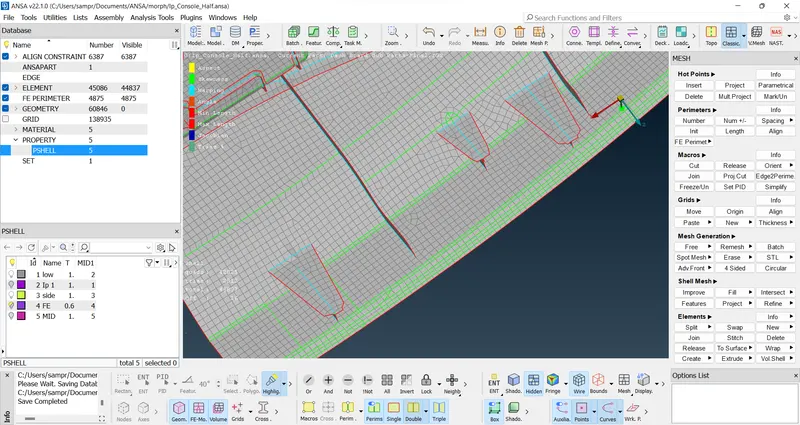

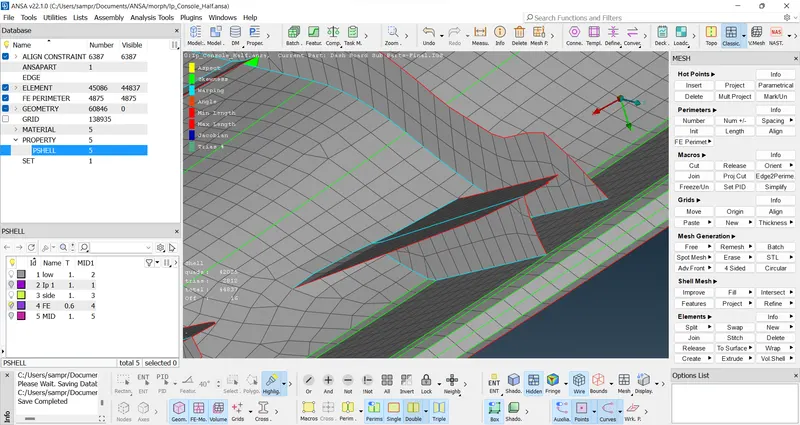

• Some parts of FE output like mentioned are not properly formed so they are made using manual interpretation

• Later it is checked for the quality and is improved as per requirement
• Thus the final output FE is ready.

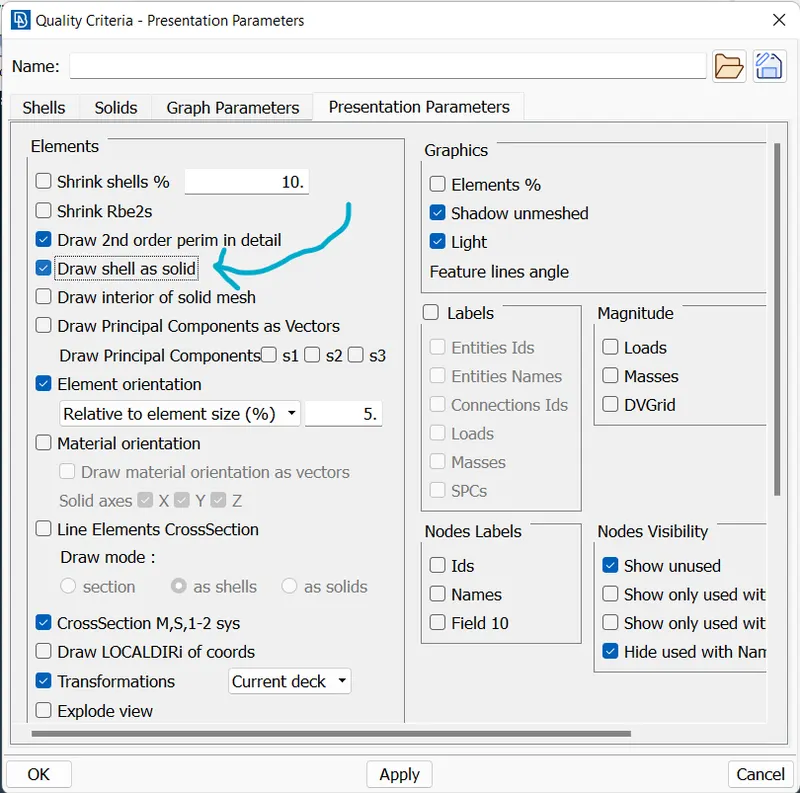

THE THICKNESS IS SET FINALLY BY MEASURING PARENTAL THICKNESS
