Project 1 - 2D meshing on the instrumental Panel

https://www.dropbox.com/sh/wfxs7xwwo32n1ht/AAD7-wqPBg-M7aKbXDVI1Hgpa?dl=0

KINDLY FIND THE MESHED MODEL IN THE LINK GIVEN ABOVE.I HAVE TRIED TO COMPRESS IT AND UPLOAD BUT IT FAILED.

REPORT

AIM:

1.TO CLEANUP THE GEOMETRY.

2.FIND THE MID SURFACE AND GIVE THICKNESS.,SET PID.

3.MAINTAIN QUALITY CRITERIA.

4.MESH THE MODEL.

PROCEDURE:

1.UPLOAD THE CAD FILE.

2.GIVE TOPO.

3.DELETE THE UNWANTED CURVES AND POINTS.

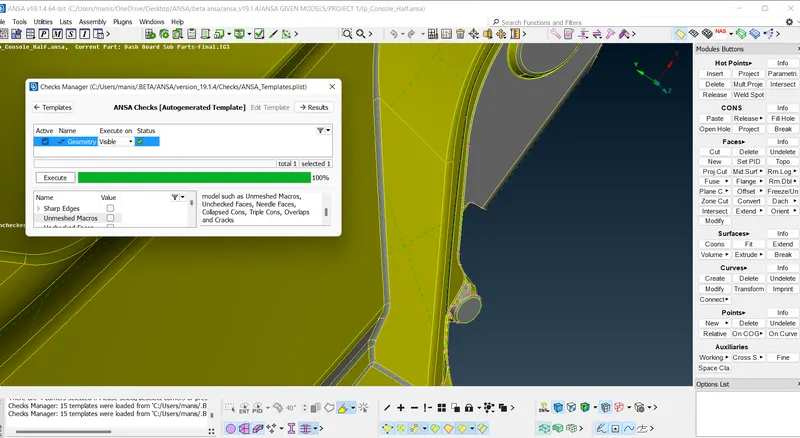

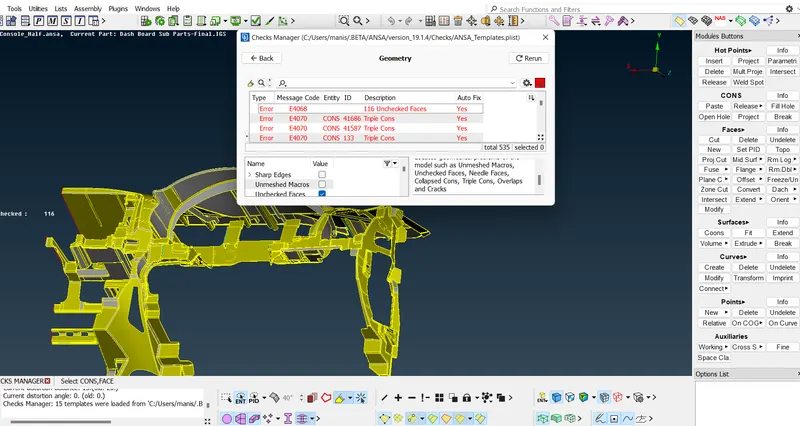

4.CHECK FOR GEOMETRICAL ERRORS.IF THERE CLEANUP,ESPECIALLY THE TRIPLE CONS AND THE UNCHECKED SURFACE.

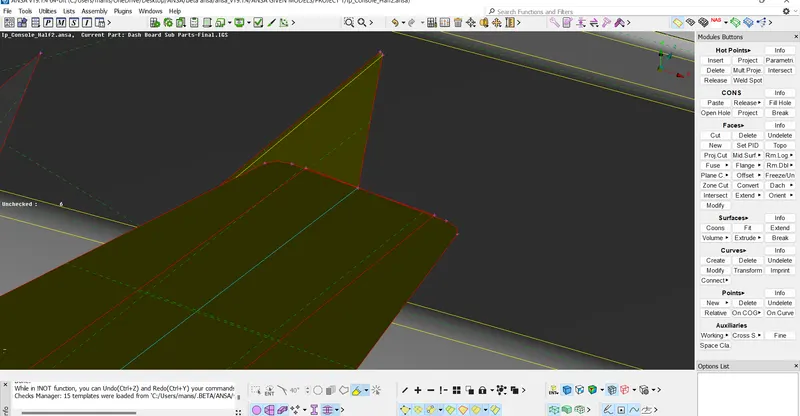

5.FOR UNCHECKED SURFACES AND TRIPLE CONS,RELEASE THE CON THEN PASTE IT OR GIVE THE PERIMETER AND MACROS AS 1.

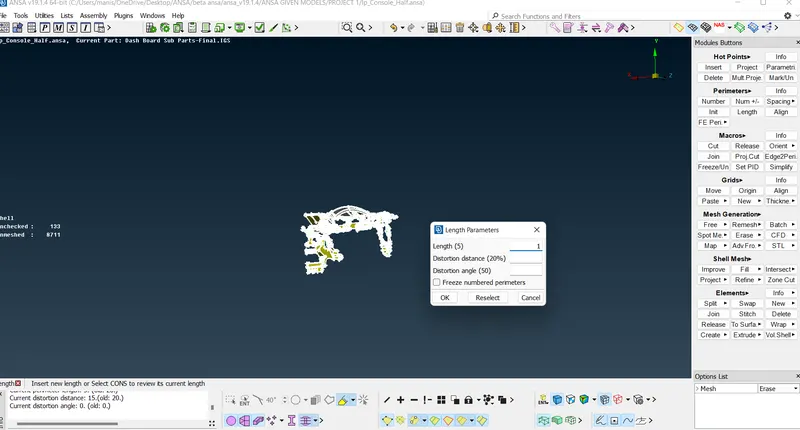

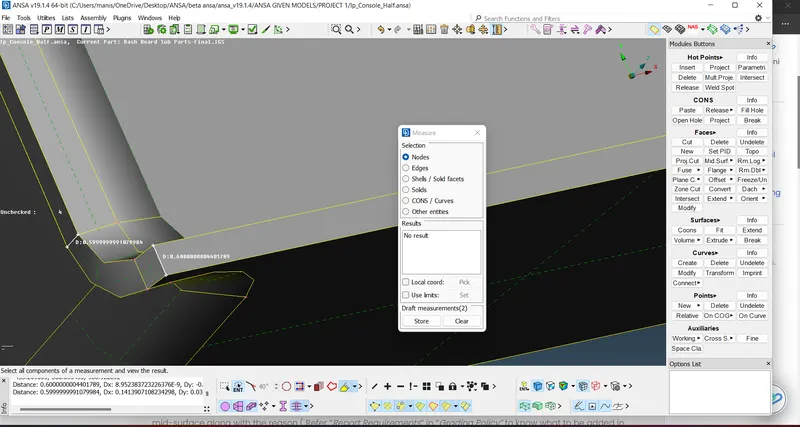

6.AFTER CLEANUP, GIVE THE MEASUREMENTS OF THE CAD MODEL.

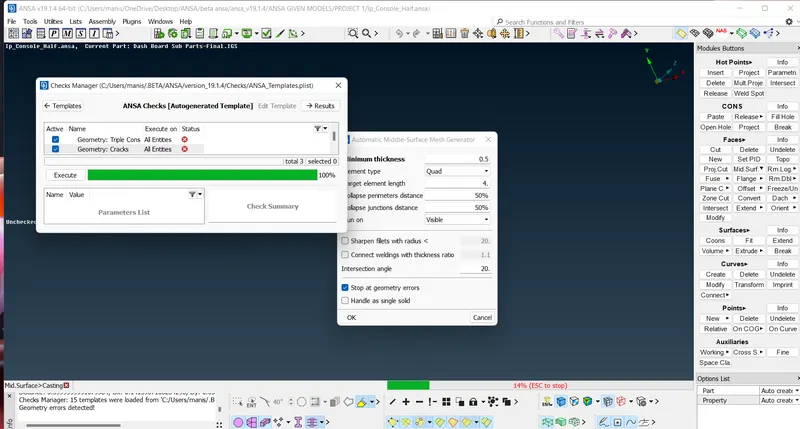

7.AFTER A LOT OF TRIAL FOR MIDSURFACE THROUGH CASTING AND SKIN,WE HAVE TO DO IT MANUALLY AS IT HAS A LOT OF OPEN ENDS WHICH CAN'T BE CLOSE AS PER NOW.

8.MANUALLY CREATE A MID SURFACE,DO IT SURFACE BY SURFACE.

9.AFTER CREATION OF MID SURFACE CHECK FOR ANY DISCREPENCIES,CLEAN THE PROBLEM.

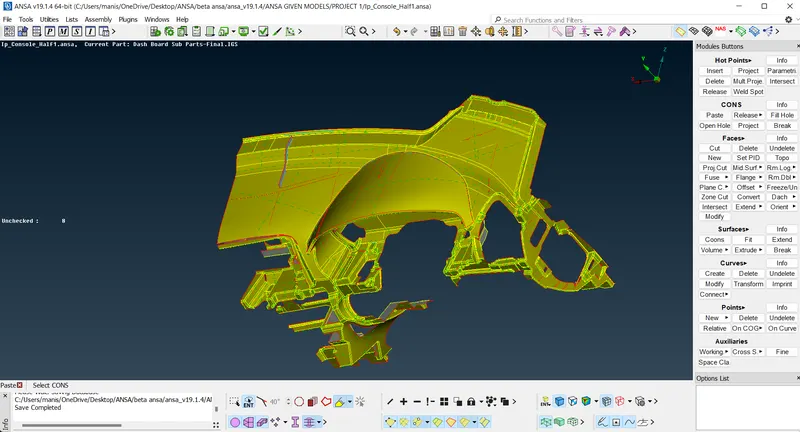

10.THEN, CHECK FOR THE GEOMETRIC CLEANUP,CLEAN THE GEOMETRY.

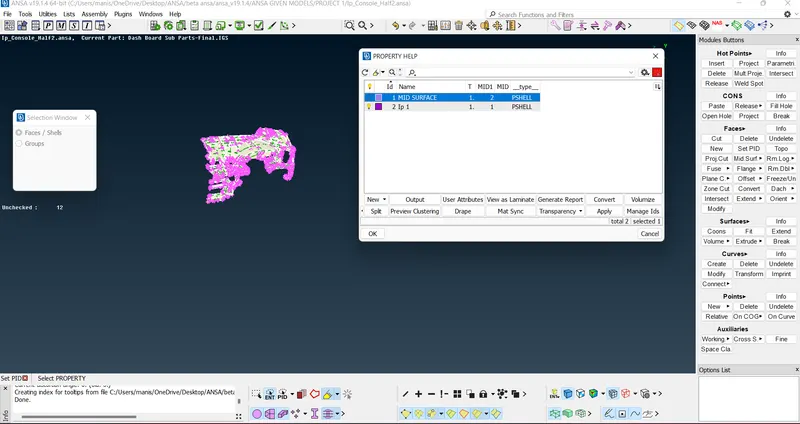

11.SET A PID FOR THE MIDSURFACE.

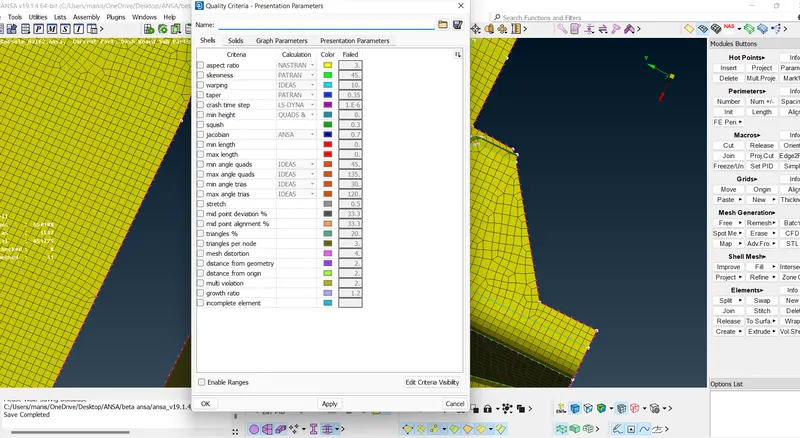

12.SET THE QUALITY CRITERIA FOR MESHING,

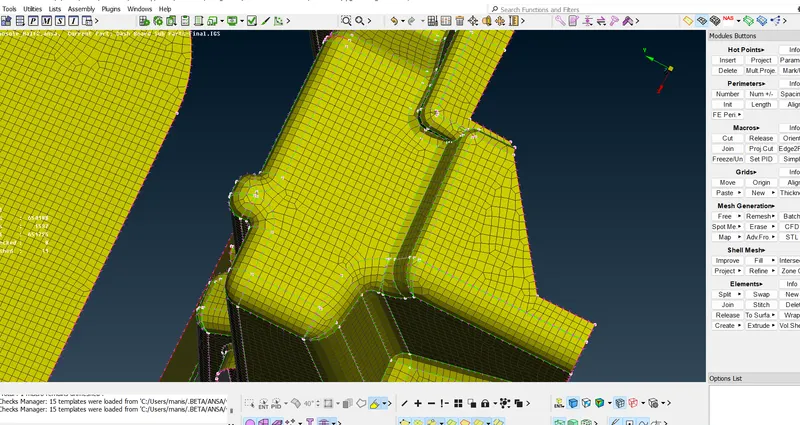

13.THEN MESH THE MIDSURFACE USING QUAD ELEMENTS AND SPOT MESH.

14.RECONSTRUCT THE MESH FLOW AND CLEAN THE MESH IF THERE IS ANY PROBLEM.

15.CHECK FOR ANY FAILURE,MODIFY THE MESH.

LEARNING OUTCOME:

1.MID SURFACE CREATION FOR COMPLICATED MODEL

2.MESHING FOR COMPLECATED MODEL.

CONCLUSION:

THE MODEL IS MESHED AND THE MID SURFACE IS CREATED PROPERLY.
