Project 1 - 2D meshing on the instrumental Panel

AIM: Pre-processing of the car instrument panel using ANSA

KEYWORDS: Mid-surface Extraction, Shell Meshing.

OBJECTIVE:

• Introduction to shell meshing i.e. 2D meshing
• Geometry check & Topological error clean up
• Mid surface generation
• Meshing the geometry

The quality criterion to be followed:

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
12	Tria Percentage	15

ABSTRACT: In this project, the instrument panel of the car dashboard is taken for the pre-processing stage of CAE. The pre-processing of this model is done using BETA-CAE-ANSA software. The mid-surface extraction and shell meshing are mainly demonstrated here in this project. Also, the good practices to be followed during shell meshing are discussed here.

METHODOLOGY:

1. Import geometry
2. Topological error cleanup
3. Mid-surface extraction
4. Quality criterion setup
5. Meshing and Mesh improvement

Introduction:

The instrument panel, as the largest inner trim part which is directly shown to the passenger, have not only beauty and function requirements but also NVH and safety request. The vibration and the noise on the dashboard can be directly felt by the passenger. Thus FEA analysis of the instrument panel plays a very important role in the NVH character of the whole vehicle.

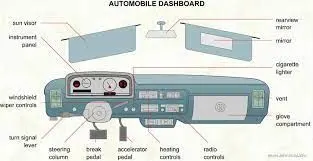

Figure. 1 Labeled automobile Dashboard

The above figure.1 shows the labeled car dashboard with the location of the instrument panel. The instrument panel assembly is installed on CCB (Crossed car beam). CCB is a structural member located under the instrument panel fixed at both ends.

The following are some of the various types of components that are intricately arranged behind the IP surface to provide the requisite functionality:

• Substrate (usually plastic): This conceals the underlying structure, ducts, modules, etc., and is sometimes covered with foam and skin (for a "soft" look and feel).
• Structural beam and supports (usually steel or magnesium): For robustness in durability, Noise/Vibration/Harshness (NVH), and crash performance.
• Ducts, nozzles, and other air handling components: For climate control of the vehicle interior.
• Miscellaneous brackets: to support wiring, components and electronic modules, and safety devices such as airbags.
• Steering column supports: The IP system is also responsible for supporting, partially or completely, the steering column. Owing to the tactile nature of the steering column response, this requirement of the IP cannot be taken too lightly.
• Other components: such as wire bundles, glove box bins, bumpers to reduce squeak and rattle, etc

Mid surface extraction:

Before we discuss mid-surface extraction we should know about 2D elements.

2D Element:

when two of the dimensions are very large in comparison to the third one. 2 dimensions out of 3 are known by creating a 2D element and 3 dimension data is provided by the user as additional input data

why should we carry out on mid-surface?

Element thickness specified by the user is assigned half on the top and half on the bottom side. Hence in order to represent the geometry, it is necessary to extract the mid surface and then mesh.

All sheet metal parts, plastic components like instruments panel, etc. In general 2-d mesh is used for a part having a width/thickness ratio>20.

PROCEDURE:

Import model

Firstly, we need to import the model and study geometry.

Figure. 2 Imported IP CAD model

Geometry cleanup:

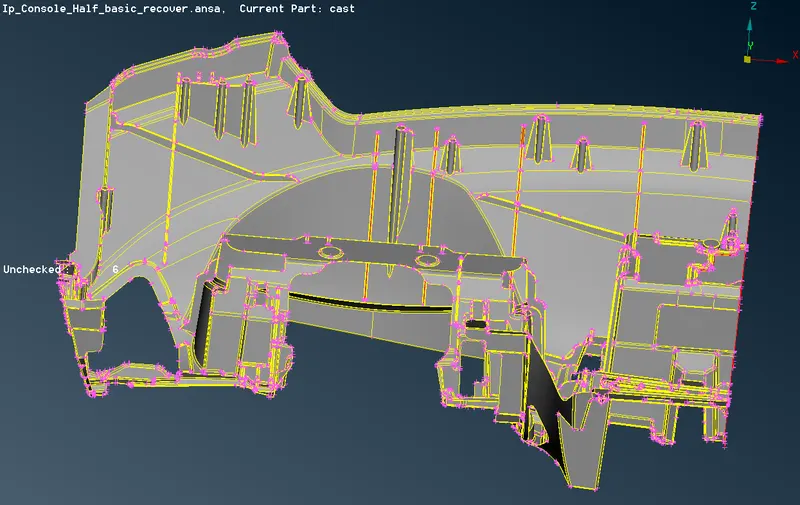

After importing geometry into the ANSA environment we observe many topological errors while doing the geometry checkup as shown below.

Keeping the feature as a single con, triple con, crack, needle face checked, etc. click the execute button, you will see many errors. For proceeding further we need to get rid of these errors. There are two options you can follow i.e. 1) manual fixing of these errors one by one or by just telling ANSA to fix by itself. If you want to fix the errors by the manual method you need one by one to approach the error area and fix it by either deleting the small redundant surface, releasing the triple cons, deleting hot points, repairing surfaces, etc.

otherwise, you can use the hybrid option to minimize your time consumption by auto-fixing most of the areas and rest manual fixing. The reason since mesh needs to be generated is not enough that the CAD model just looks correct but instead involves cleanup aspects as well as topological aspects.

Next, we have to measure the thickness throughout the part & assure uniform thickness across the entire part. If thickness changes are observed then all alike thickness has to be kept under a separated property ID.

So by measuring and storing data for thickness for sub-parts such as main panel substrate, ribs, pillars, etc. can be done so that we can extract the mid surface.

Orientation:

Orientation must be checked thoroughly by the user every time working on a model. All models should have the correct orientation because the orientation issue will cause the final time issue when you merge the model with a complete vehicle. It is always preferred to maintain continuity over the surface either grey or yellow throughout the face.

There are two ways to extract mid-surface :

1) The manual mid surface method

2) The Auto mid surface method

Manual mid surface generation:

This can be done by manually selecting the surface and giving an offset option in the direction opposite to the grey surface

Note:

1) While giving the offset make sure you do not press YES or else you can delete the parent geometry

2) use the Fine option under the auxiliary section in TOPO mode to get a better resolution. (select fine and click on the curved and circular areas)

Auto mid surface generation:

If the geometry is closed then we can go for the auto mid-surface generation option but it will auto-delete the parent geometry.

steps 1) press the mid surface tab under face 2) select the full geometry 3) confirm the mid location

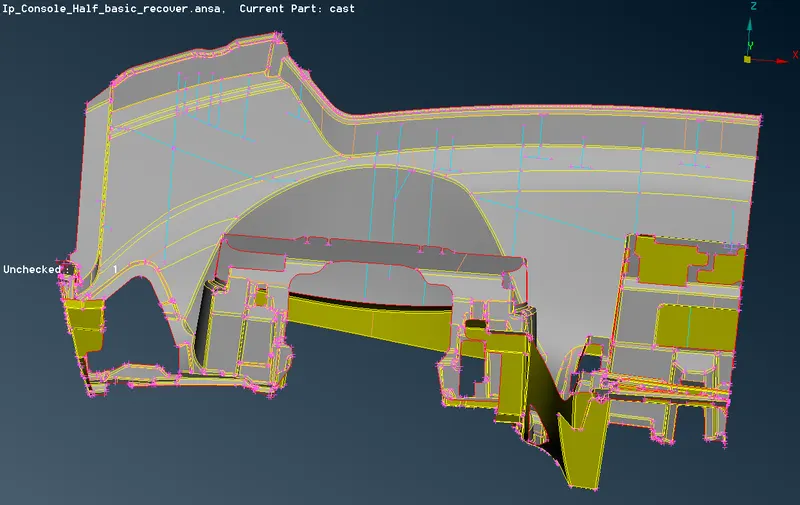

Here I have used the manual offset method extract mid surface as the surface thickness varies and ANSA is unable to segregate separated surfaces for auto mid surface generation.

Note:

• your parent geometry will be deleted but can be recovered back by using an undelete option. (you have to select the geometry again and do topo )
• Also, check for geometry after the completion of mid-surface generation as there may be faulty surfaces created.

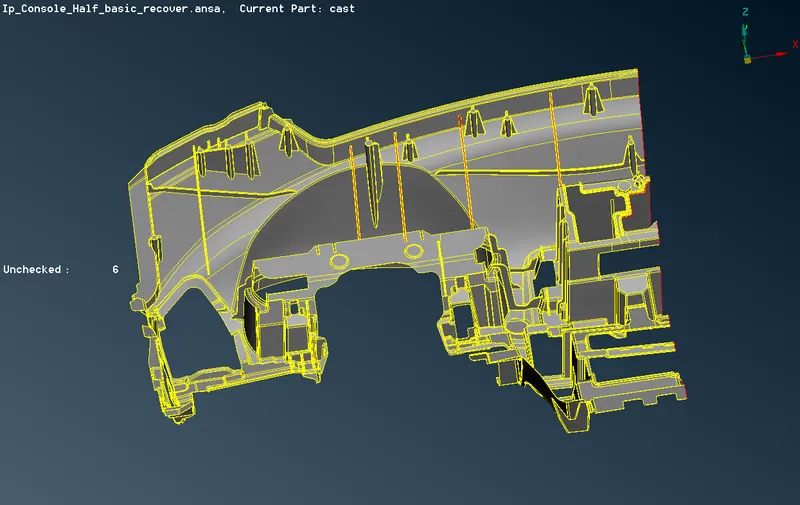

Figure. 4 Mid surface extraction of the Instrument panel

Quality Criterion Setup

We can say that result quality is directly proportional to the element quality. The parameters like skew, included angle, Jacobian, warpage, etc. are the measure of how far a given element deviates from the ideal shape. If we talk about a square which means 90 degrees and equal side similarly equilateral triangle 60 degrees and each side equal. so we will discuss the quality criterion and try to understand them before assigning them to the ANSA environment.

1) Warp Angle: it is defined as the angle between the normal of the two planes by splitting the quad element along the diagonal. so the maximum angle allowed between the two possibilities is called wrap angle. wrap angle is not applicable in the triangular element. the ideal value is 0 degrees but less than 10 degrees is acceptable as good practice.

2) Aspect Ratio: It is defined as the ratio of max element edge length to the minimum element edge length. the ideal value is 1 but less than 5 is acceptable.

3) Skewness: If the quad element is not square and has deformation then the skewness is defined for as the 90 minus the minimum angle between the two lines joining the opposite mid sides of the element and similarly for the triangular element it is 90 minus the between the line from each node to the opposing mid-side. The ideal value is 0 but less than 45 degrees is acceptable.

4) Jacobian: it is the scale factor used in the transformation of the coordinated system.(global to a local coordinate system). This is used for a faster analysis point of view. The ideal value is 1 but greater than 0.6 is acceptable.

5)Minimum element length: It is very important to check for crash analysis(time step calculation). it is also done to avoid the presence of any zero-length element.

6) Target element length: It is the size of the element by which we can get the most nearer approximate value of the result compared to the experimental result.

To set up the quality criteria press the F11 key and check the boxes of the parameters of the required quality with required values and apply

Meshing and Mesh improvement:

Change the mode from 'Topo' to 'Mesh' mode

Before starting the mesh we need to set the element length. To do so we have to click the 'length' button under the 'parameters section'. After clicking the select in the pop-up window parameter and select the whole geometry and confirm enter the value 5 and confirm do the same for macros option. This alters the element length in the geometry by altering the no of hot points at the periphery as well as at your macro areas.

Also, set the meshing parameters before proceeding to mesh

so now we can start meshing the component individually but before we start meshing we will know about the 2D meshing and its good practices to follow to get a good mesh flow.

2D Meshing/shell meshing

The type of elements allowed in 2D meshing are

1. Quad Elements
2. Tria Elements
3. parabolic Tria
4. parabolic Quad

As we know that the quads elements are better than triangular elements and parabolic elements are better than linear elements

But if the quads are better than tria then what is the need for using tria elements?

1. For better mesh transition
2. Avoid poor quality elements in a complex geometry
3. better mesh flow
4. Tetra meshing (trias to tetra length)
5. Mold flow analysis

Best practices to follow to get better mesh-flow:

1) Back to back tria elements are avoided

2) on a planer surface tria should be avoided by merging them using split

3) no mesh transition on radius fillets/Curvatures (carried to planer surface )

4) Hole feature should be even-numbered equally spaced

5) Avoid Trias at edges and on the features

6) Avoid zig -zag distribution preferred smooth mesh(straight aligned nodes)

7) Rotating Quads are not preferred

8)constant mesh size (by using tries) Is preferred due to min. element length and time step criteria

9) Remove the redundant and excess construction lines to get uniform mesh flow.

10) Divide the surface near the feature to get a better mesh flow pattern

11) Defeature the areas which are going to fail the quality criteria.

12) Mesh density near the critical areas ( features) is preferred.

so as we are now aware of what are the good practices for getting a better mesh flow. Now we can start our meshing process on ANSA

We should remove all redundant and unnecessary construction lines in order to get a better mesh flow.

Now we can finally start meshing the component and can get a better mesh flow by keeping in mind the best practices followed in meshing

We have multiple options to mesh (shell mesh)

1. Best mesh
2. Spot mesh
3. Free mesh

All three works on different algorithms but here in this model, we will use the best mesh algorithm. Also after creating the best mesh we can reconstruct and smooth the mesh to get better mesh flow.

Note:

1. It is always advised to select the elements for reconstructing in a square pattern rather than an irregular pattern (algorithm works best in square selection )
2. It is also advised to macro area select the patch for smoothening the mesh.

Meshed Parts Results

All the parts have meshed as per quality requirement and had good mesh flow (Smooth)

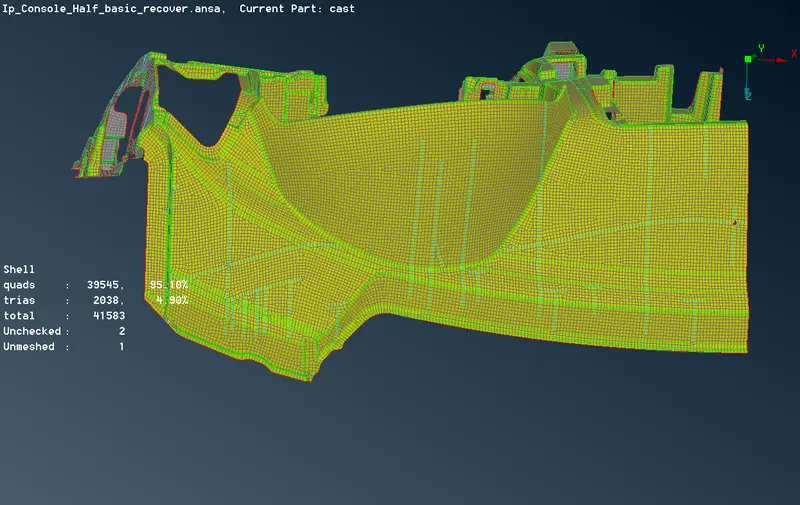

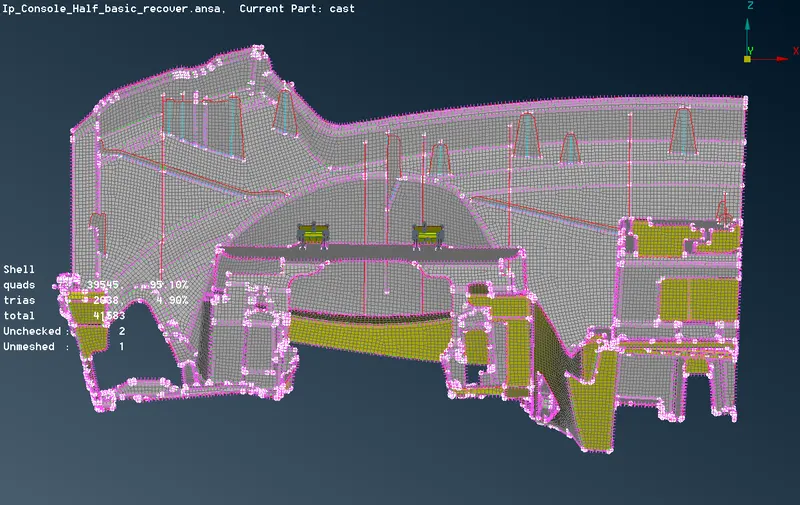

figure.6 Front view of the meshed Instrument panel

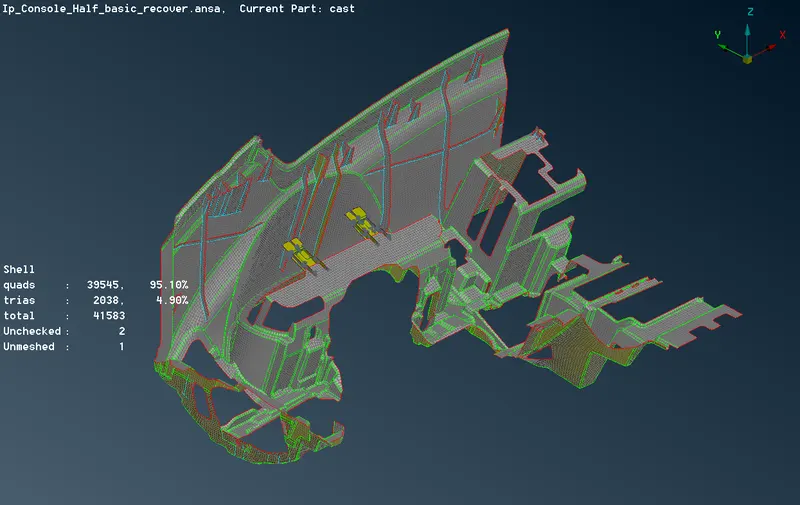

Figure. 7 Isometric view for the meshed Instrument panel

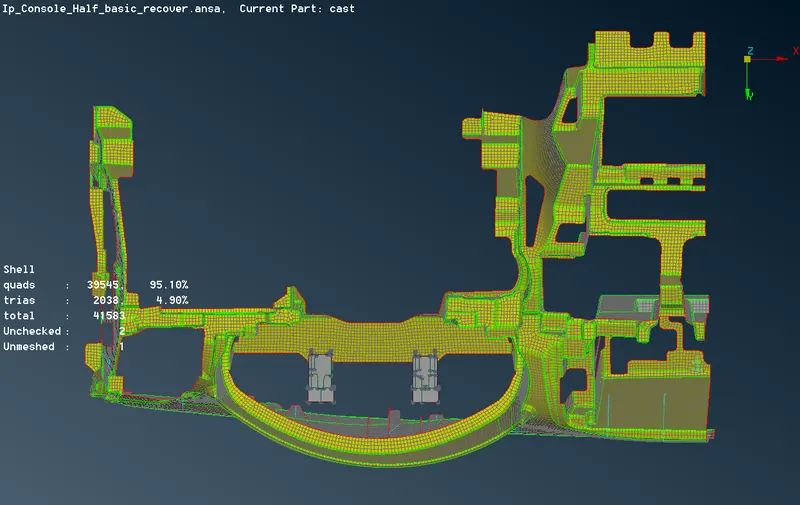

Figure. 8 Top view for the meshed Instrument panel

Difficult to capture feature and failing elements

1)Feature capturing

2)Failing Rib areas

3)min length failure near ribs

4)Element failure near the rib region

5)Element failure near the extended rib region

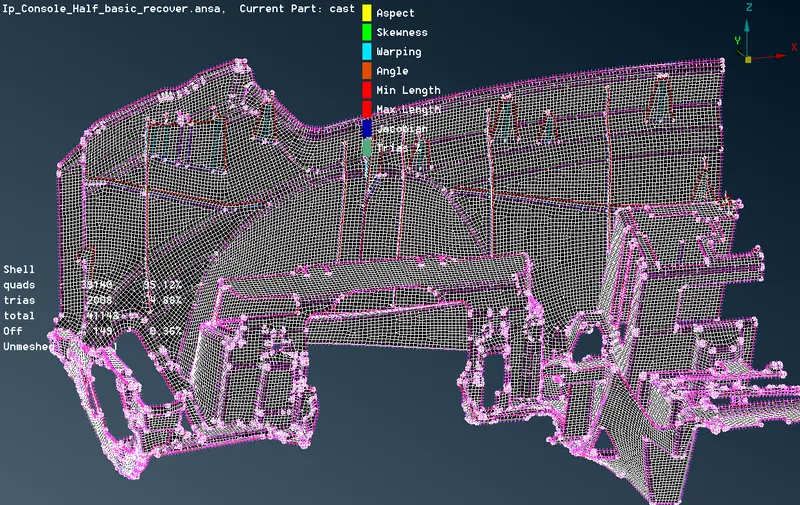

Figure.9 Hidden mode view

CONCLUSION:

The panel had been captured quite a well-using shell mesh. The total element is 41583 out of which 2002 are Tria elements and 39545 are Quads which makes 4.86% which is a decent percentage of Tria elements. Most of the areas of fillets are captured using dach options and defeaturing is done in areas where construction lines are too close. The mesh flow is smooth nearer to the target length of 4 mm and within the quality parameter.

LEARNING OUTCOME:

1. Able to fix topological errors
2. Able to generate mid surface for any complex geometry
3. Aware of the 2D elements and shelling meshing( Quads and Tria importance)
4. Aware of the quality parameters
5. Able to understand and implement good practices of meshing any complex geometry
6. Competent in 2D meshing/ shell meshing even for complex geometry by achieving better mesh flow.
