Project 1

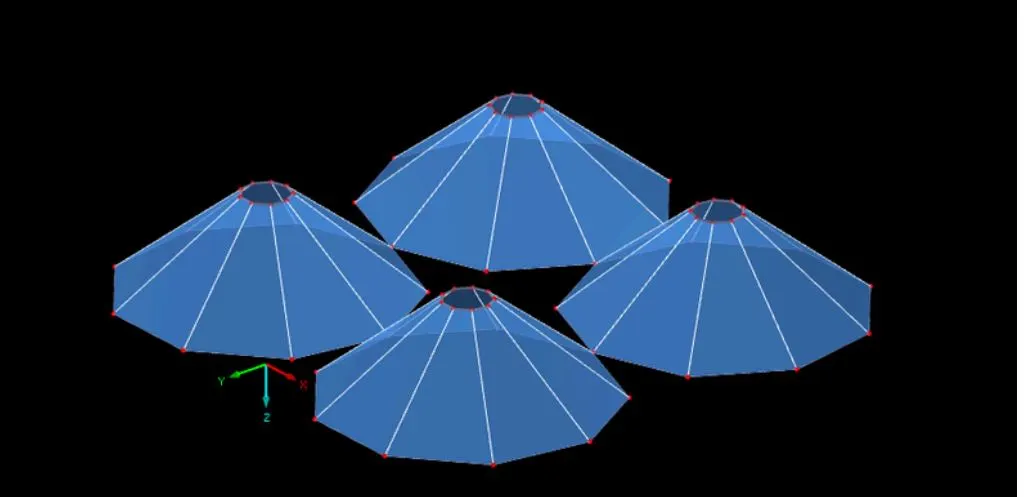

Perform Form-finding and structural analysis structure of multiple masts.

• Given is a two-span beam of spans 5m each.
• A uniform load of magnitude 5kN/m of variable length to be applied on a beam such that it renders max.
• possible vertical reactions at A, B & C, and
• maximum bending moment at midspan of AB.
• Use the concept of Influence Line Diagram to identify spans which would result in maximum indicated quantities.
• The analysis of the structure to obtain those quantities could be any method of choice
