Project 1

1. Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.

       a. Design the battery pack configuration.

       b. Draw the BMS topology for this battery pack.

Answer:

<!-- [if !supportLists]-->a

<!-- [if !supportLists]-->a.      <!--[endif]-->Battery pack configuration:

Data given:  power= 150Kw  ; voltage = 120  V.     cells : 3500mAh  = 3.5 Ah  , 3.6 V

Number cells in serial =  voltage pack / individual cell voltage

                                             = 120/3.6

                                              =33.33

Number of cells in series =33.33

= 34 cells.

------------------  -----------------------------

calculating the current ratings :

power P = V voltage * current I

I = power / voltage V

I= 150*1000/120

I= 1250A

The number of cells to be in parallel to full fill the needed amps:

Total I = 1250

Per cell I = 3.5Ah

Number of cells = 1250/3.5   =357.14

We may round off to 358  = 358.

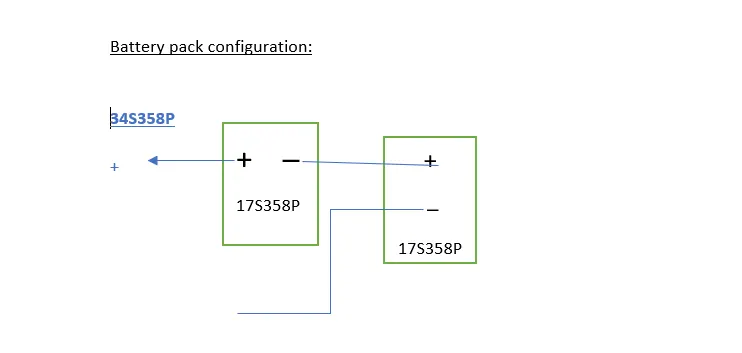

Battery pack configuration:

<!-- [if gte vml 1]> <![if !mso]>

<![endif]> +    ─ 17S358P <![if !mso]>

<![endif]> <![endif]--><!-- [if !vml]-->
<!--[endif]-->34S358P

b Draw the BMS topology for this battery pack

 We have to consider the serially connected cells ,

above 18 – we cannot choose the centralized.

The correct option is ,master & slave method

TOPOLOGY:

Number of cells in series = 34

-------------------**-------------------------------------**------------------------------------------

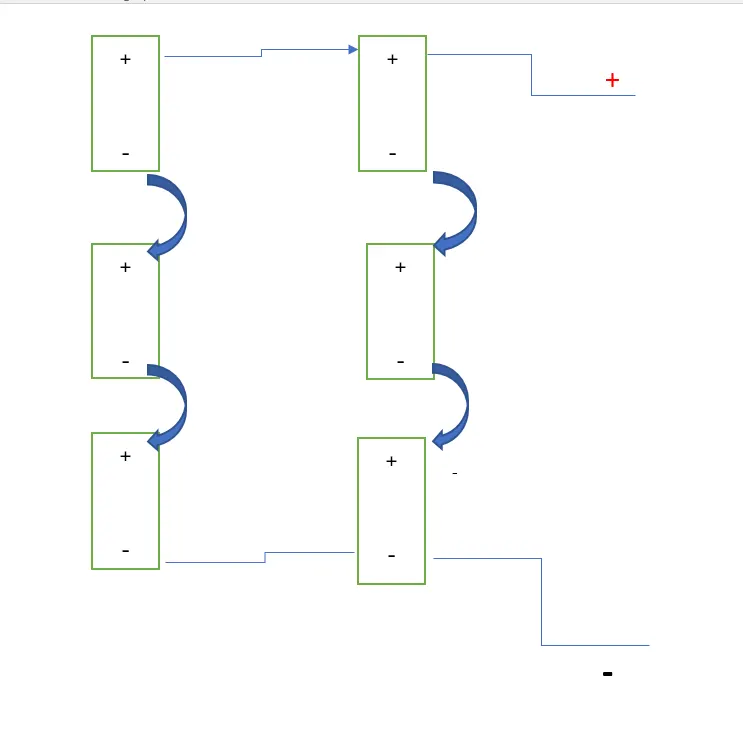

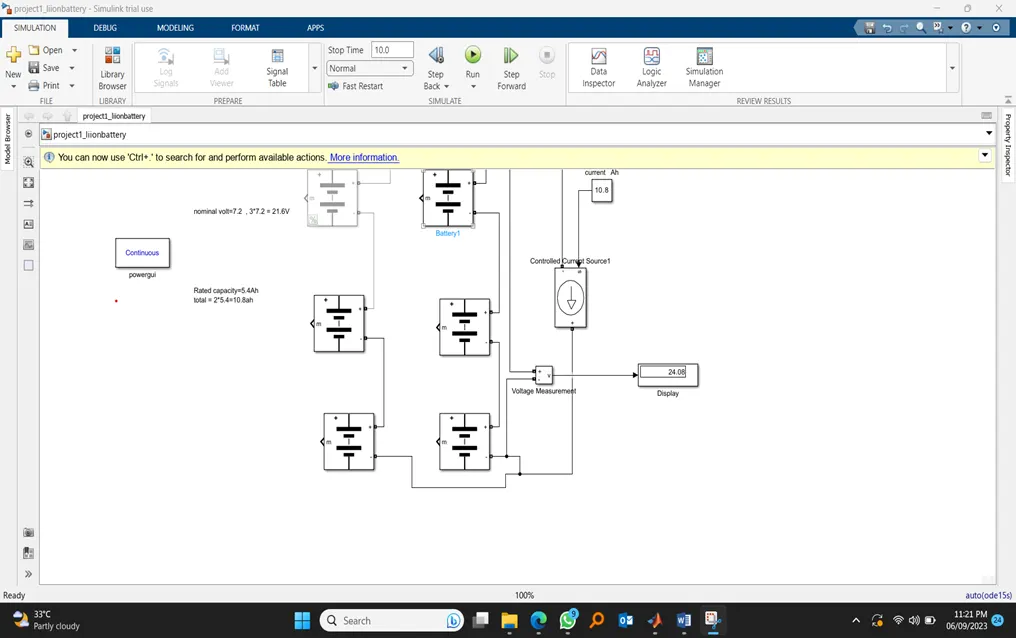

2. Build a 3S2P battery pack configuration with generic battery block using Matlab/Simulink. :

number of cells on series= 3

number of cells on parallel= 2

blocks used : battery, controlled current source, constant block

<!-- [if gte vml 1]> <![if !mso]>

<![endif]> +  ─   17S358P   <![if !mso]>

<![endif]> <![endif]--><!-- [if !vml]-->
