Project 1

ENGINE AND HARNESS ASSEMBLY :

Harness assembly with geometrical bundle and connectors:

• Types of connectors and supports:

1. FOUR POLL INJECTOR CONNECTORS
2. FOUR POLL CAM SENSOR CONNECTORS
3. THREE POLL COOLANT SENSOR CONNECTOR
4. THREE POLL TEMP. SENSOR CONNECTOR
5. TWO POLL NEUTRAL SENSOR CONNECTOR
6. INTERMEDIATE CONNECTOR
7. P CLAMPS
8. GUIDE CHANNELS

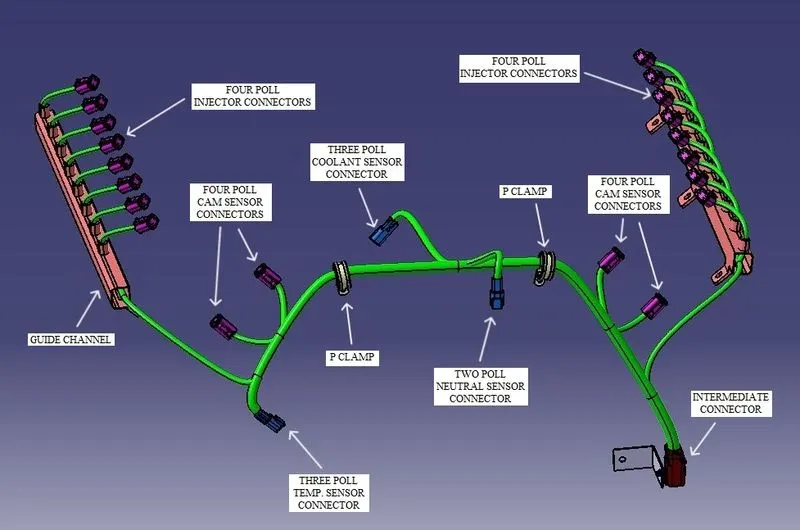

• In upper picture we can understand how geometrical bundle/ Harness branches look like with connectors and all connectors have used as per their applications.

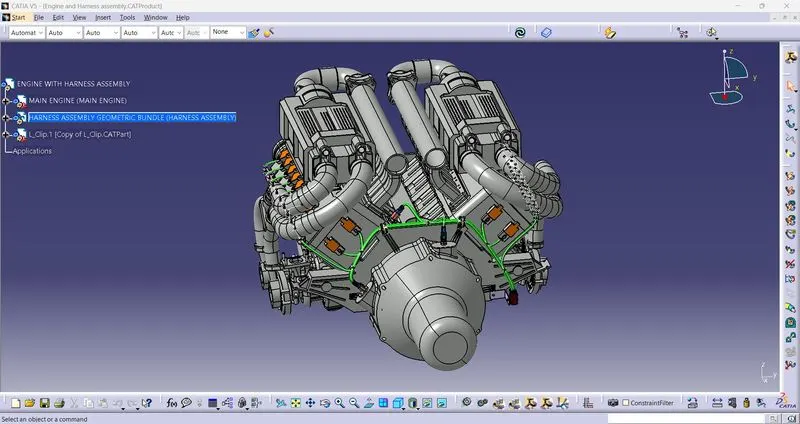

• Also in upper side first picture of engine assembly we also can understand how branches and connector got attached on engine.

Harness Flattening assembly:

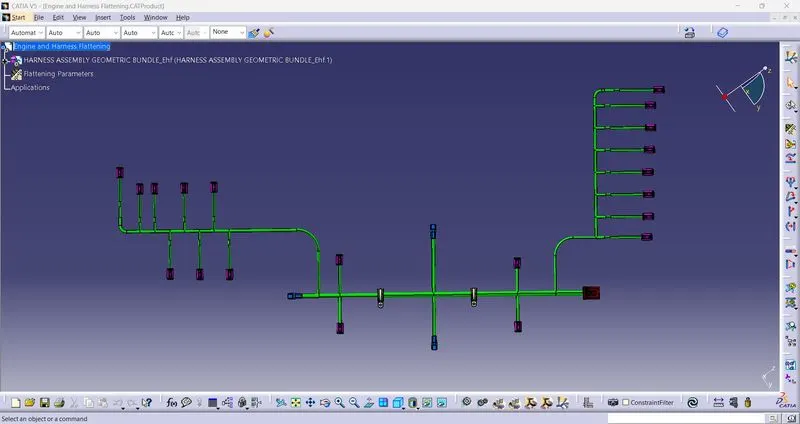

• In upper picture we can understand that geometrical bundle assembly has converted into flattening assembly and in flattening assembly have arranged in good flow for better visual in drawing.
• For this converting have used flattening parameters and extract commands. and for arrange this in good flow flattern,  rotate, bend etc. commands have used.

Harness assembly flattening drawing:

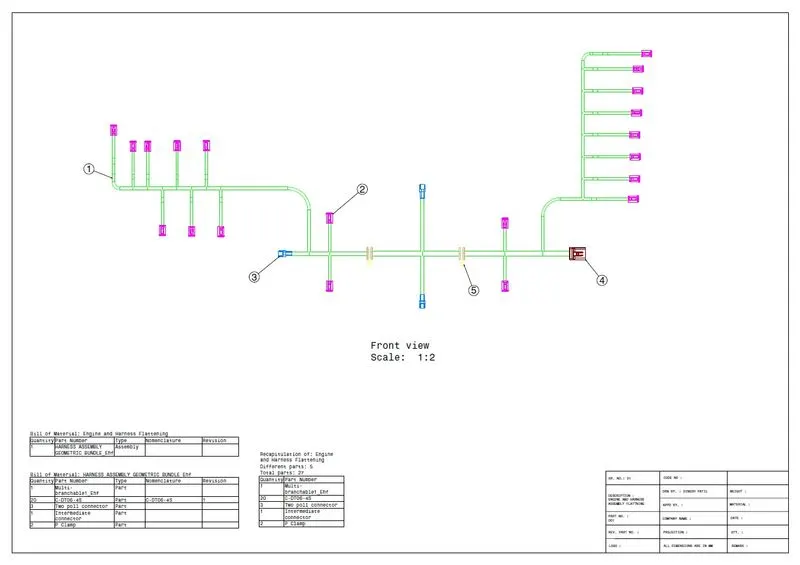

• In upper we can see how drawing look like of harness assembly.
• Also in drawing BOM and balloons have shown for better understanding.
• And also visual of flattening view in color mode for understanding that different types of connectors and supports have.

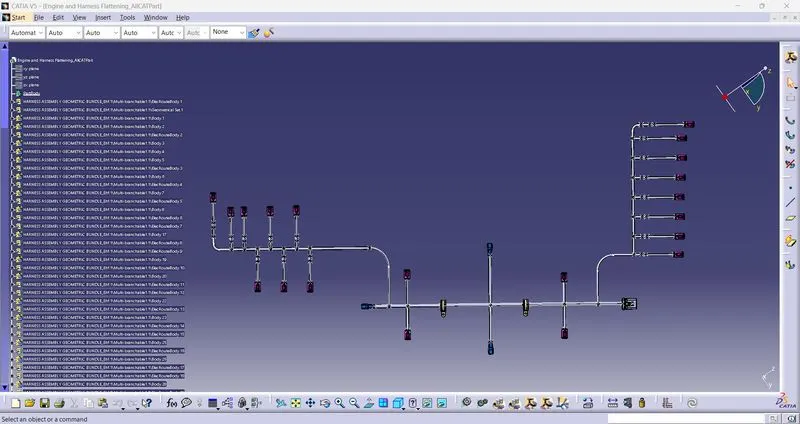

Harness assembly flattening CAT part:

• Note: (All product files, CAT part files and drawing file are in zip which is attached below side)

Conclusion: In this project i have learned all method where how to create geometrical bundle assembly, how to make harness flattening, how to use connectors and support and how to create drawing for production.
