Project 1

WIRING HARNESS ON ENGINE MODEL

The objective of this project isto route the wiring harness to route the wiring harness on given Engine model and make a flatten view drawing in CATIA V5.

• The above engine is a 16 cylinder engine. that is 8 on right and 8 on left.also there are 4 cam shaft sensors and coolant sensors.

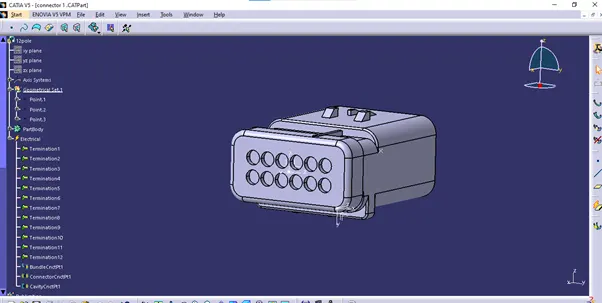

• We use a 12 pole interconnection connector to connect the engine to other parts of vehicle.

STEP 1

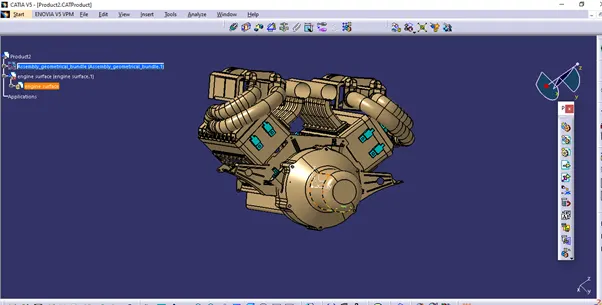

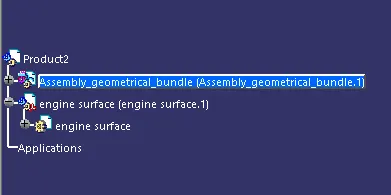

Creating a context assembly containg 2 product files.

One contains engine file and other for electrically defined components and wiring harness routing.

STEP 2

Define all the components needed electrically.

STEP 3

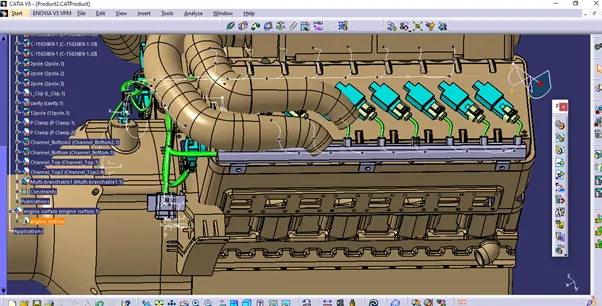

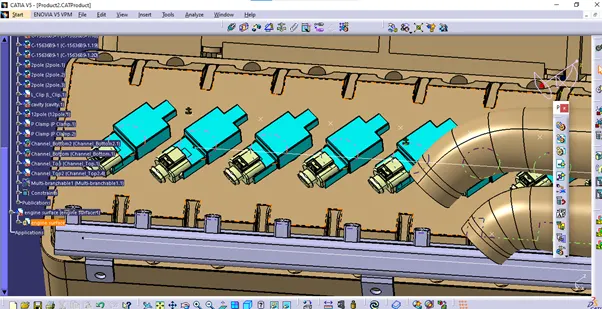

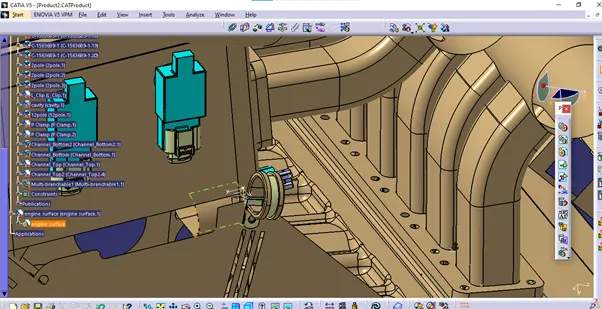

Place all the connectors and necessary clamps and mounting equipment in relevant places.

STEP 4

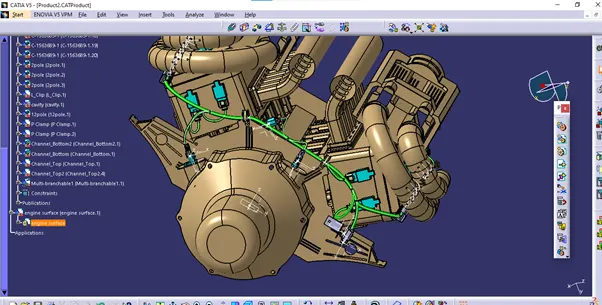

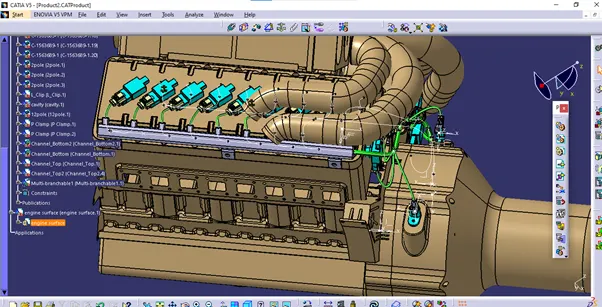

Then using wiring harness workbench route the wires accordingly considering all routing & packaging rules.

STEP 5

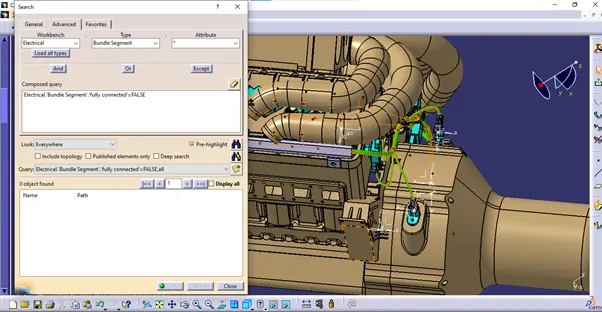

Check for continuity of the wiring routing using toolbar search in edit toolbar section.

STEP 6

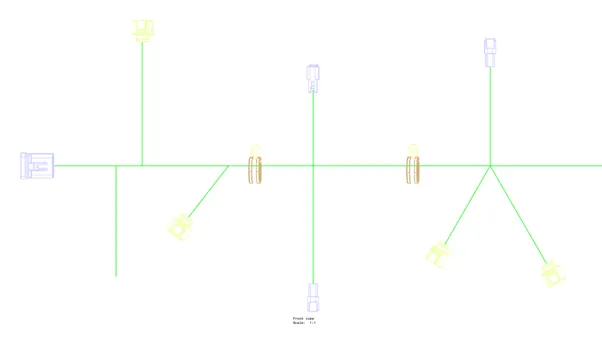

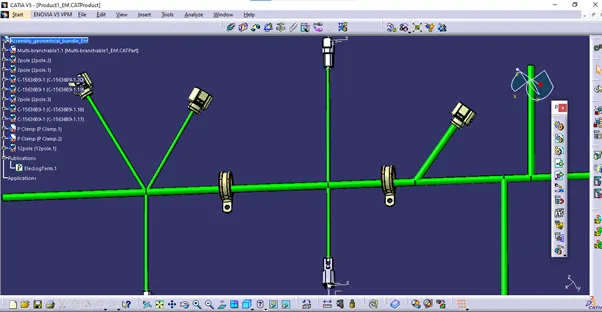

Flatten the wiring harness using electrical harness flattening workbench.and then make drawing of it.
