Project 1
ANS )
AIM : To analyze a building to 10T crane load. Create a structure as per the given plan in the attachments provided.
TOOLS USED :
- Grids.
- Levels.
- File.
- Model.
- Manage property sets.
- Column.
- Beams.
- Frames.
- Loads.
- Loadcases.
- Wall panels.
- Roof panels.
- Analyze.
PROCEDURE :
- First open a new file to start the structure as per the plan given in the attachments.

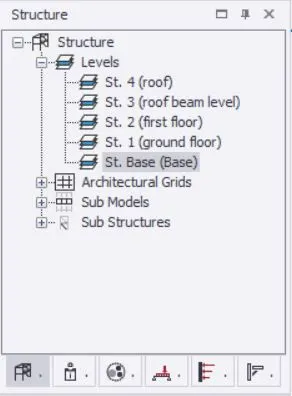

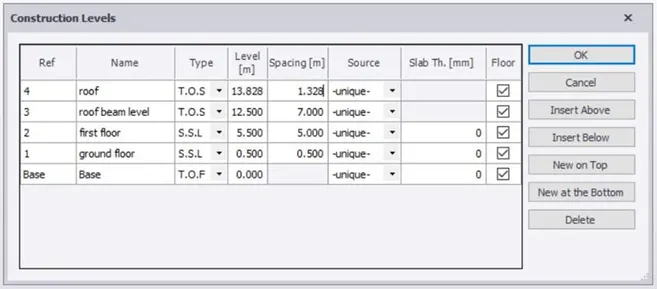

- Click on construction levels and add all the levels as per the cross section plan given.

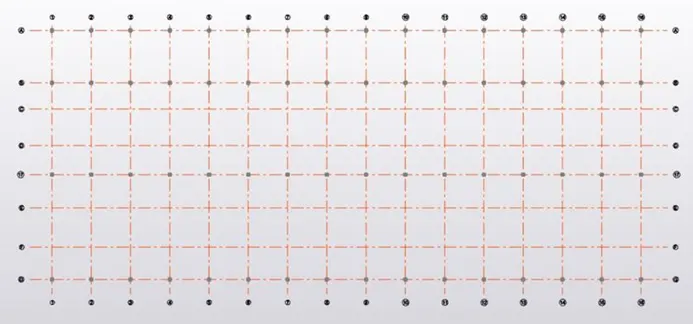

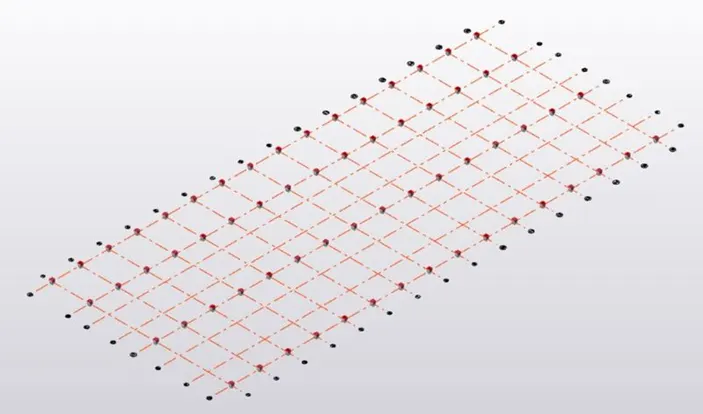

- Select grids tool and draw a horizontal grid line.
- With the option parallel quick draw the remaning grid lines.
- Repeat the same procedure for the velricle grid lines also.

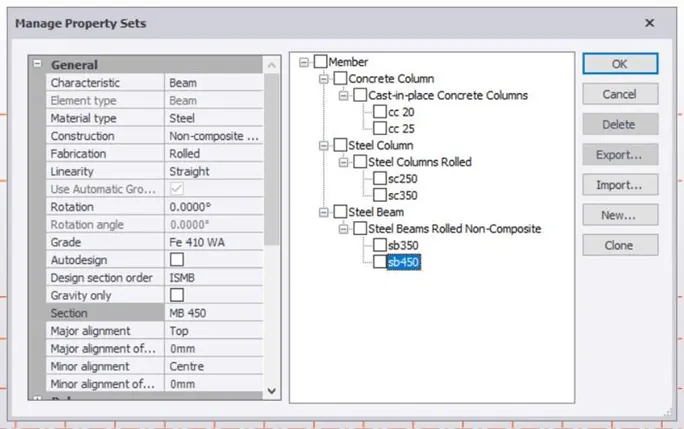

- Now click on manage property sets tool and create members like concrete column, steel column and steel beams of different grades.

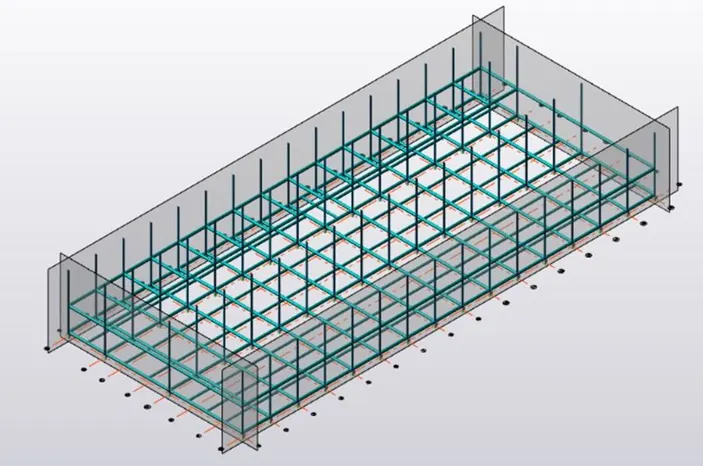

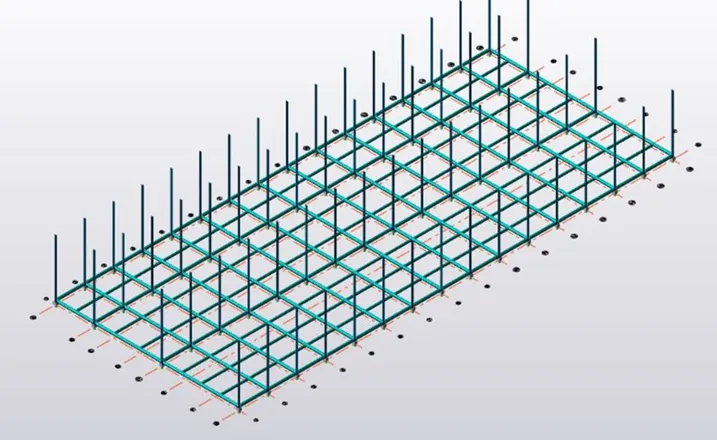

- Now construct concrete column where ever necessary.

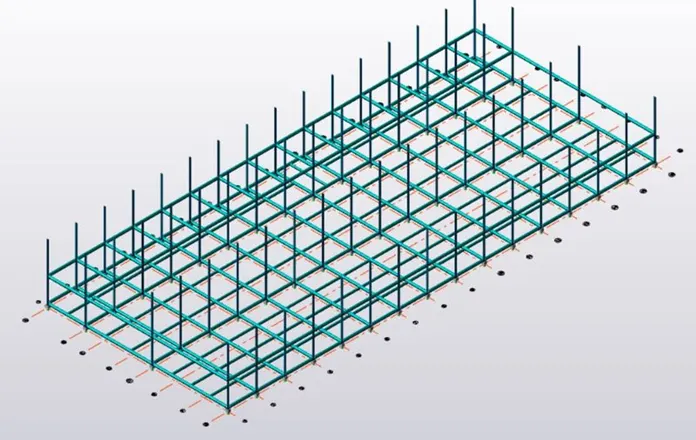

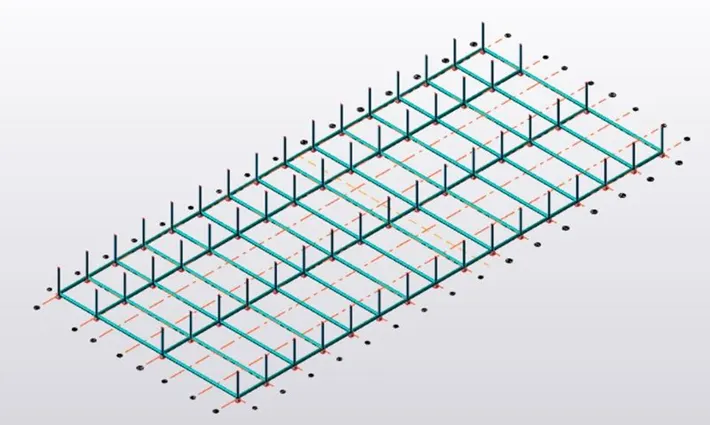

- Next on the concrete column construct steel columns and join the using primary beams.
- To give extra strength and support to the structure provide secondary beams .
- Next select the frames tool and create frams which will be helpful to do the remaning work.
- Validate the model to check weather there are any errors.

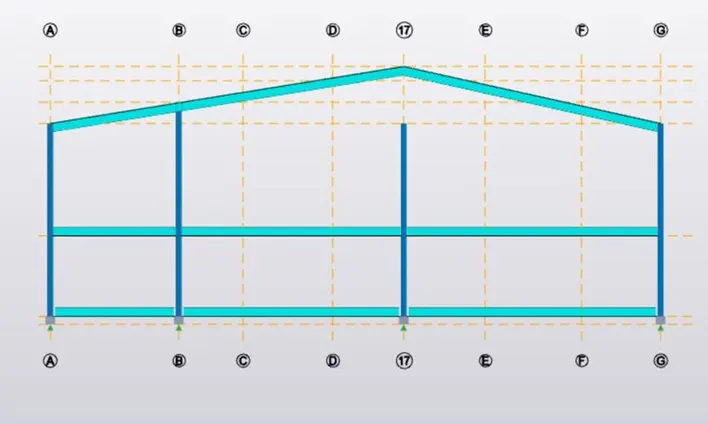

- Now on selecting the particular frame construct the rafter and the roof using high grade steel bars.

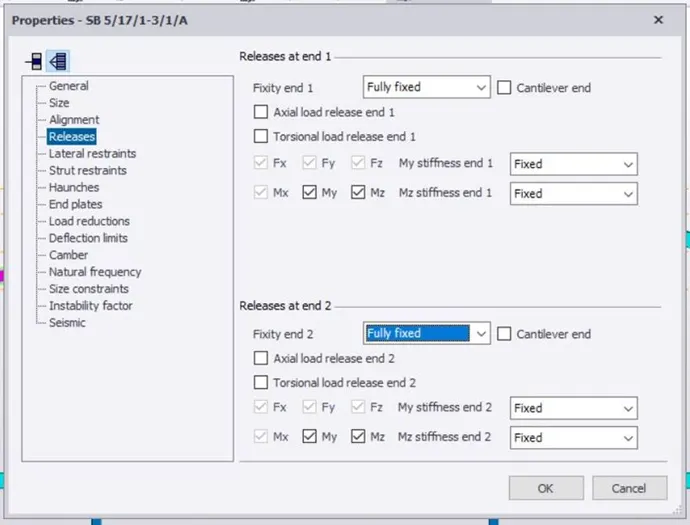

- After construction of the roof convert the beams to fully fixed support.

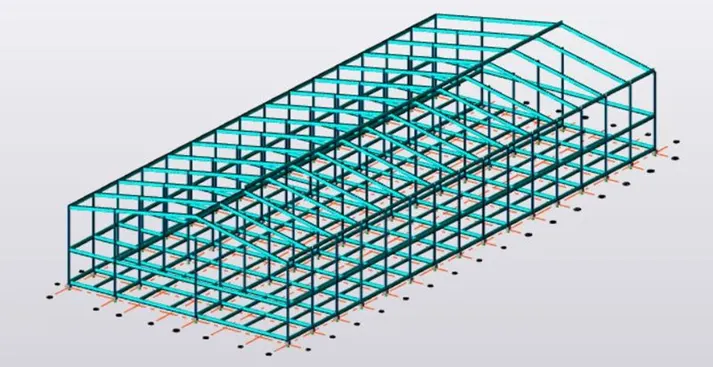

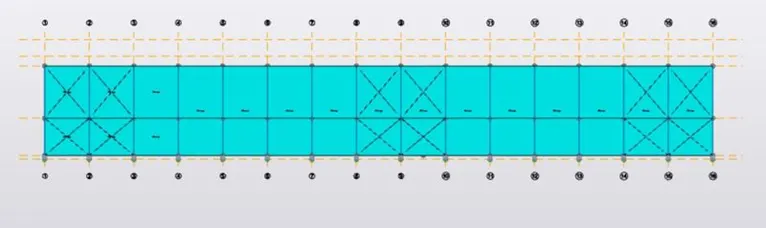

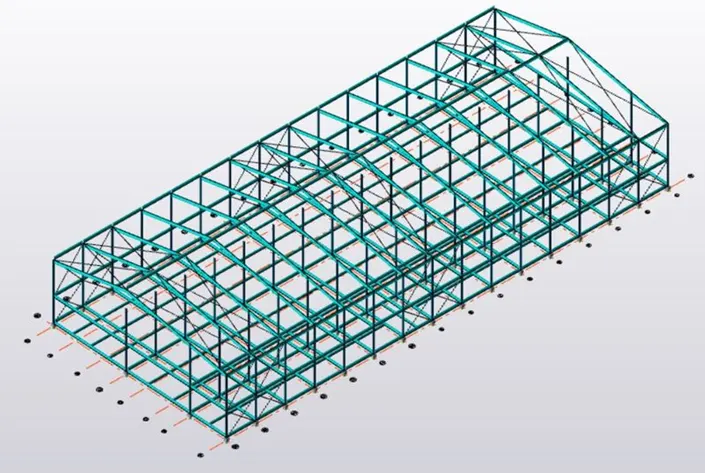

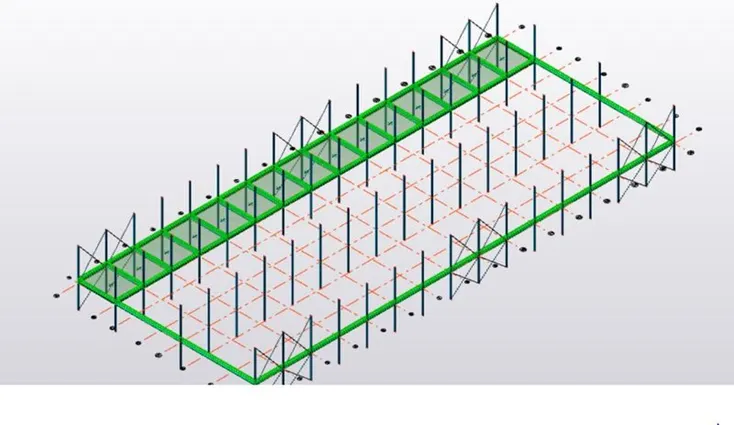

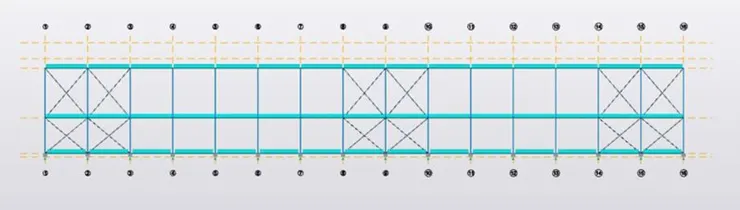

- Now with the help of x braces tool construct x braces on both sides of the structure and as well as on the roof.

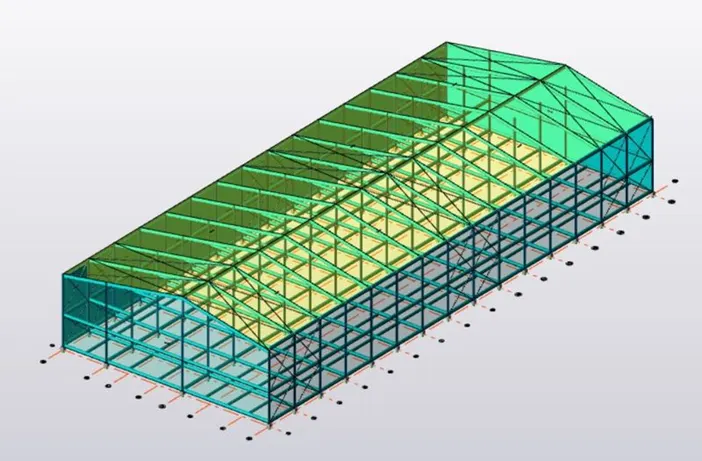

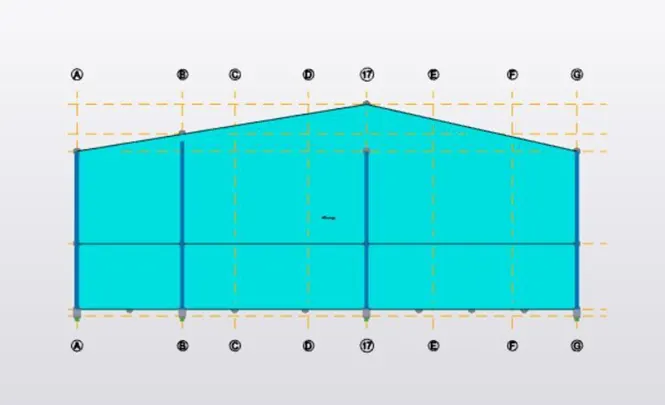

15. Now create wall and roof panels to the structure on all sides

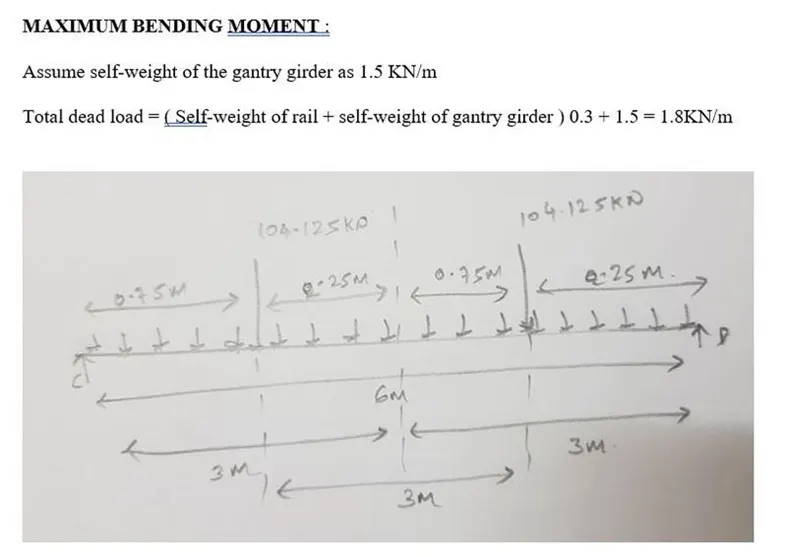

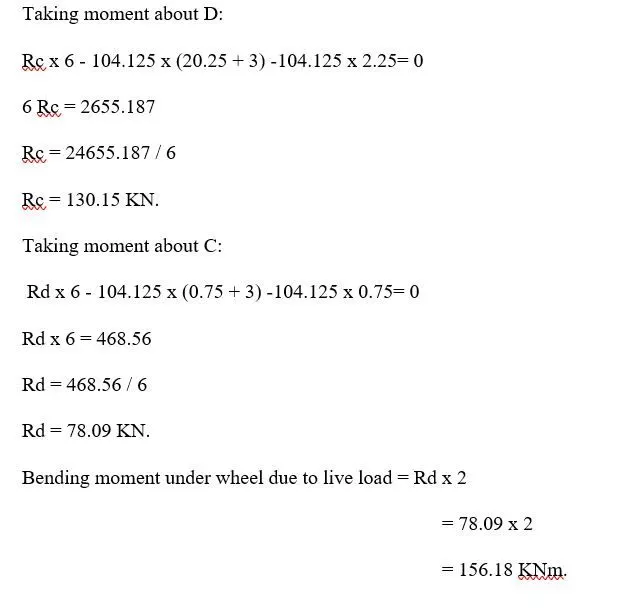

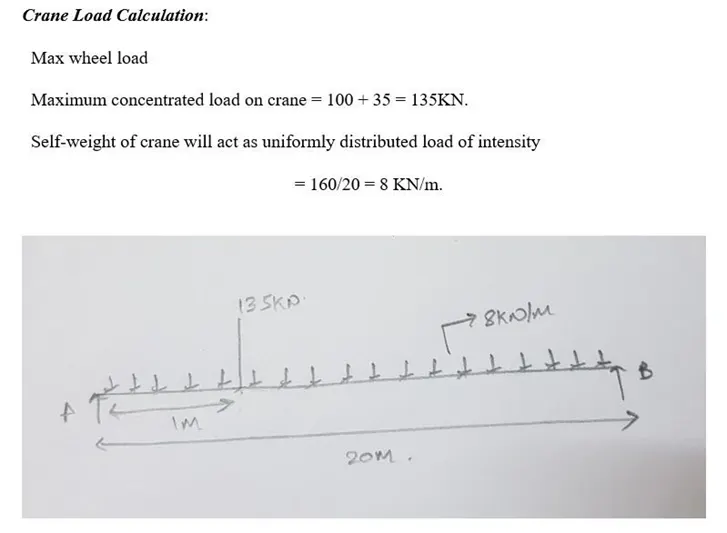

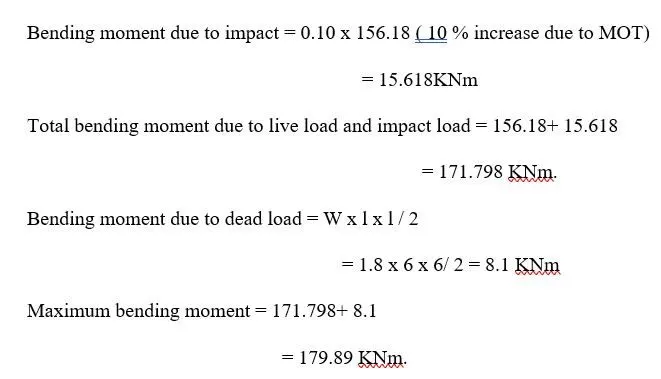

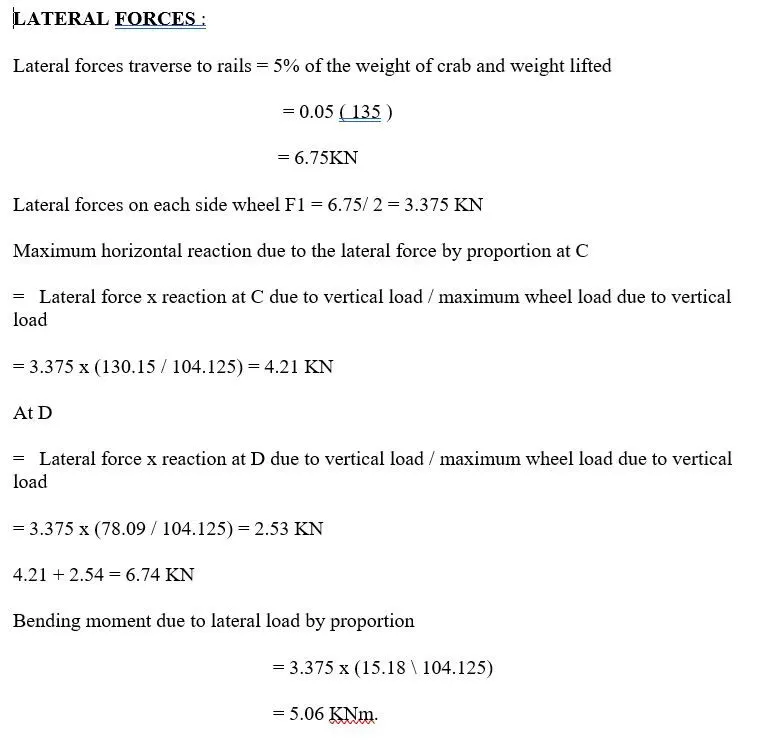

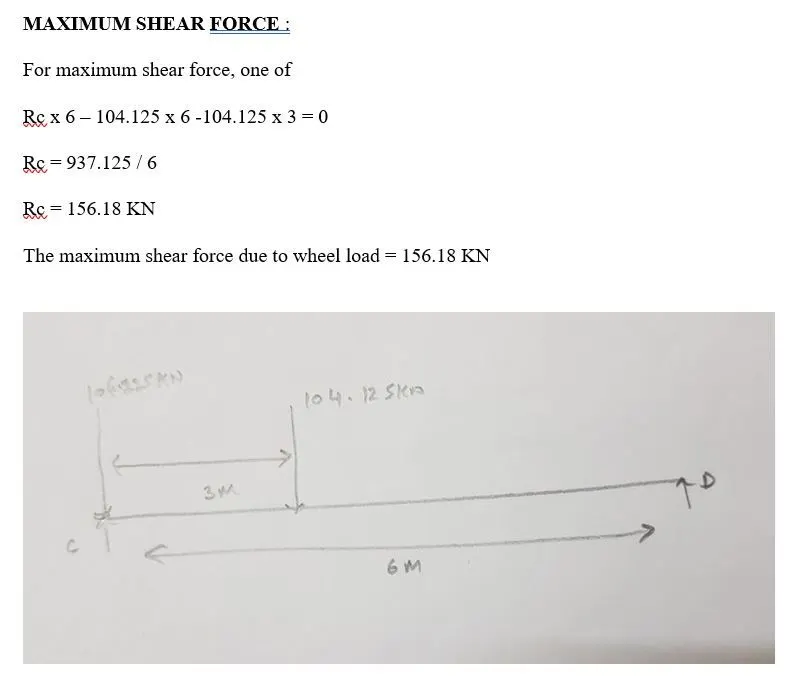

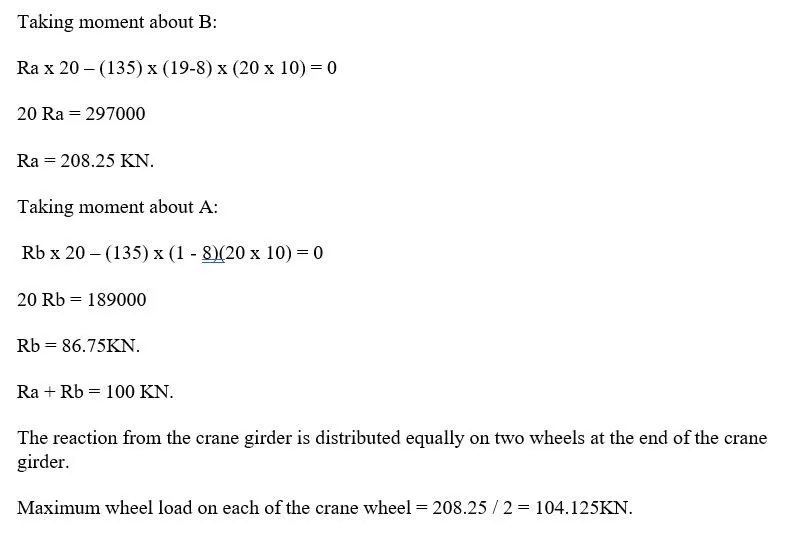

- Perform the clane loading calculations.

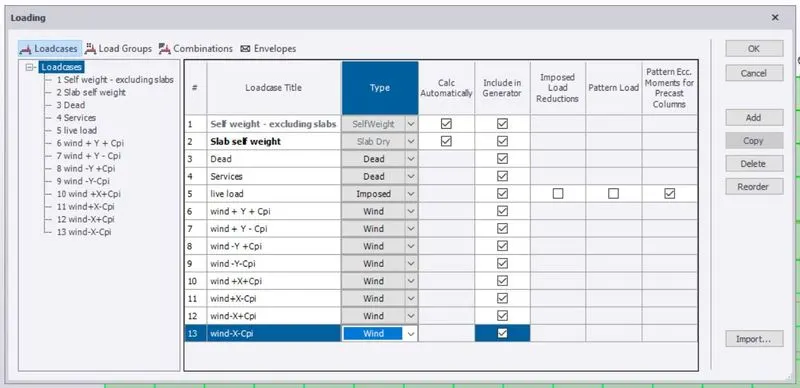

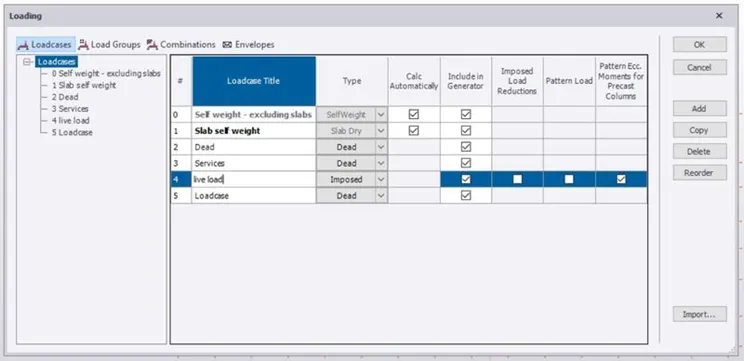

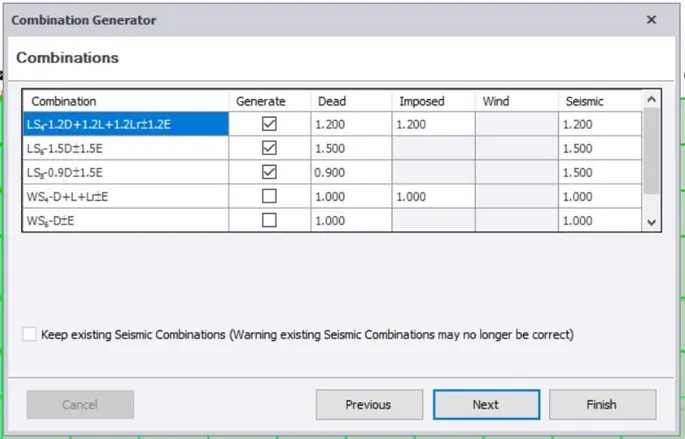

- Now click on loads and create new loads like dead and live loads.

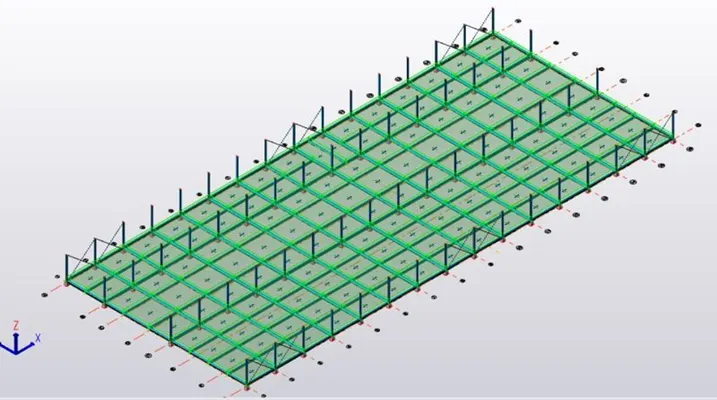

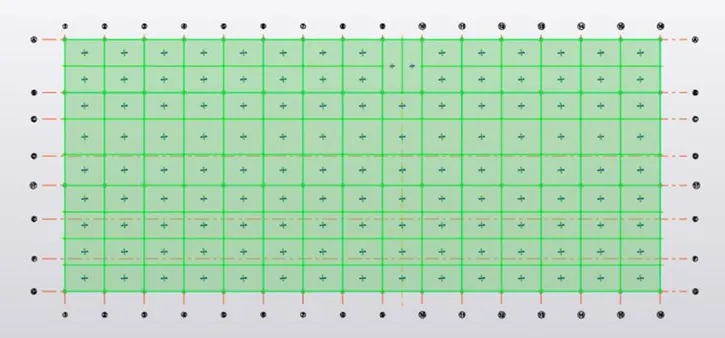

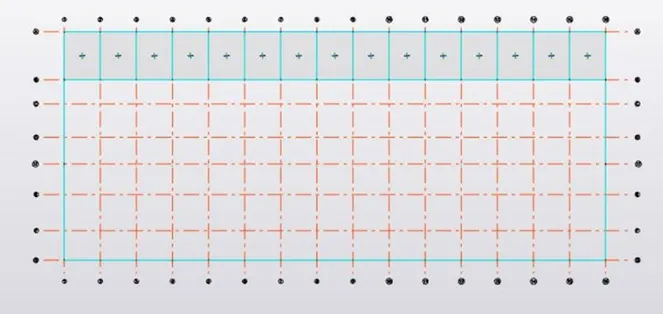

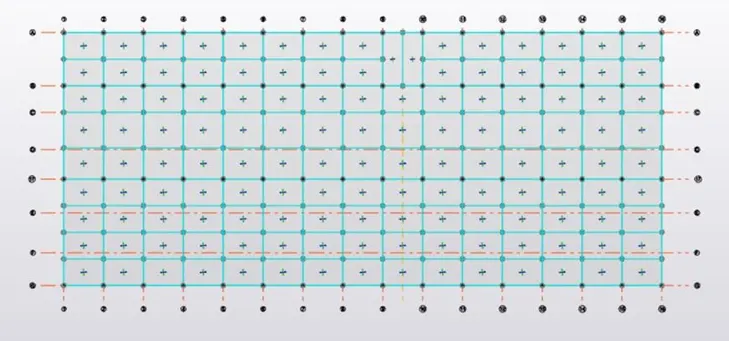

- Create slabs to the structure by clicking on slabs on beam option.

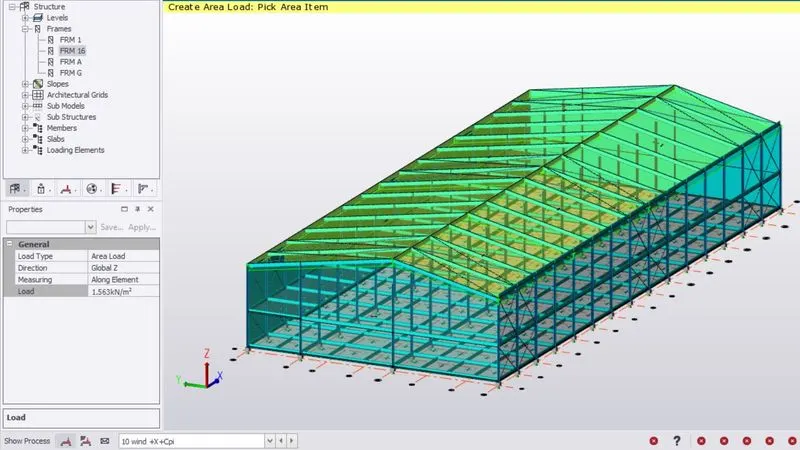

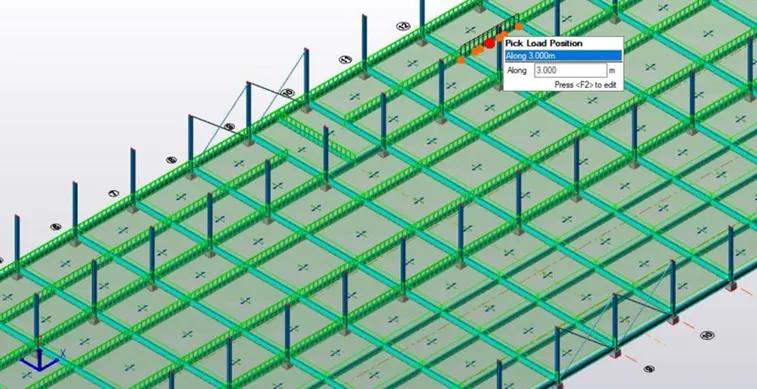

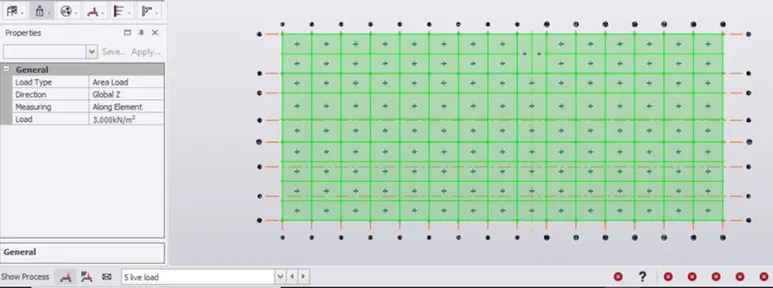

- Now place live and dead load on the structure as per IS standard codes.

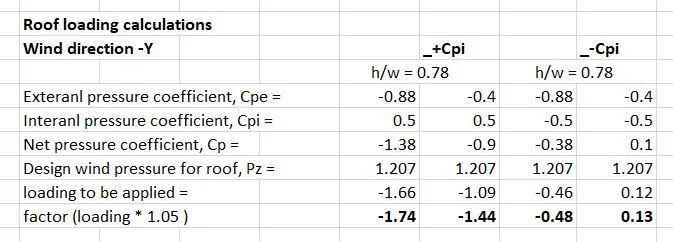

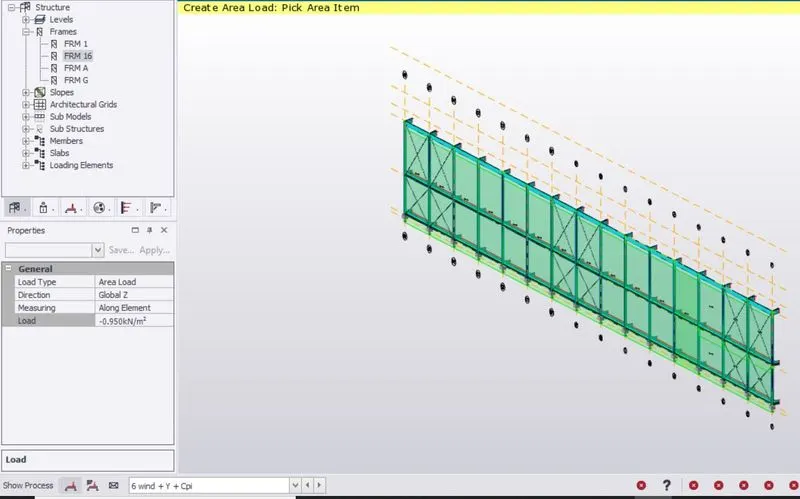

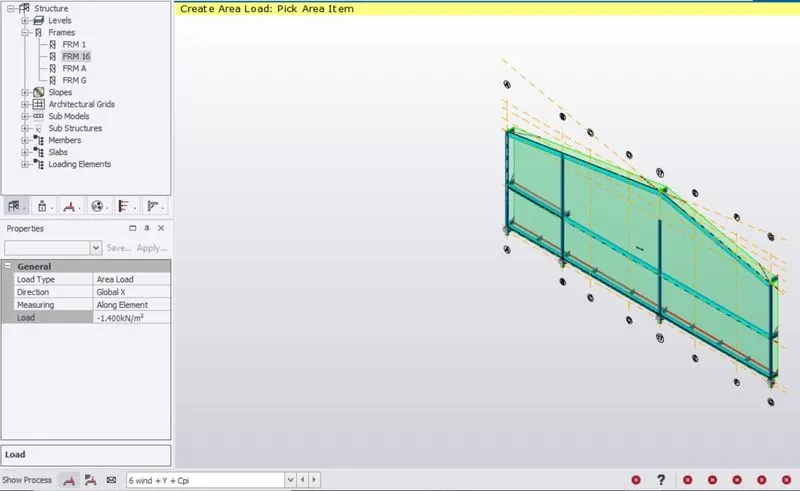

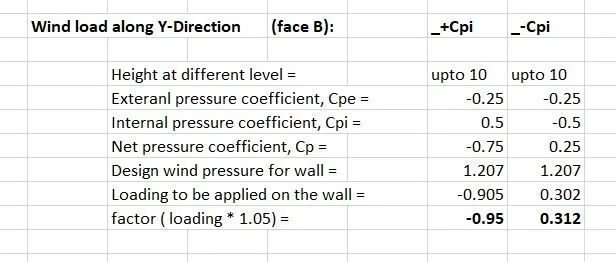

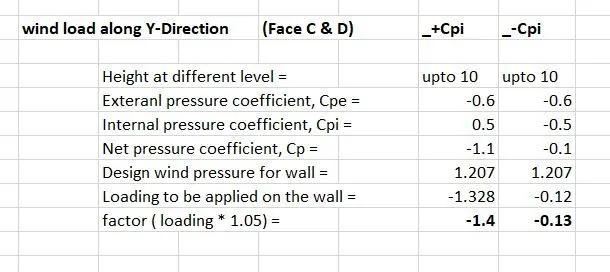

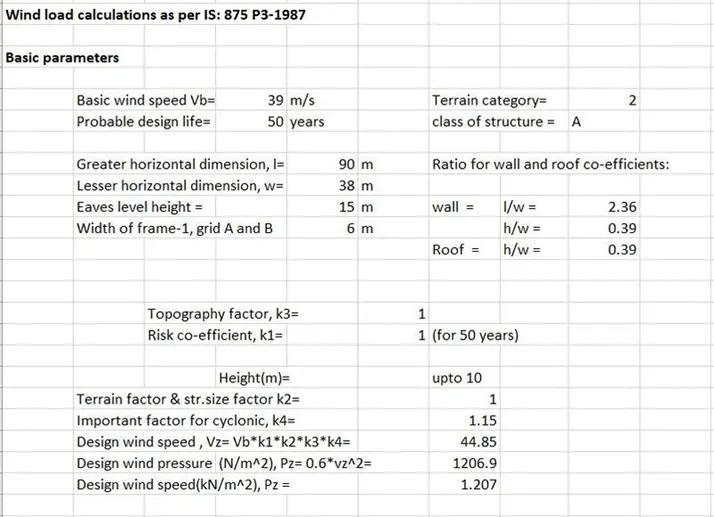

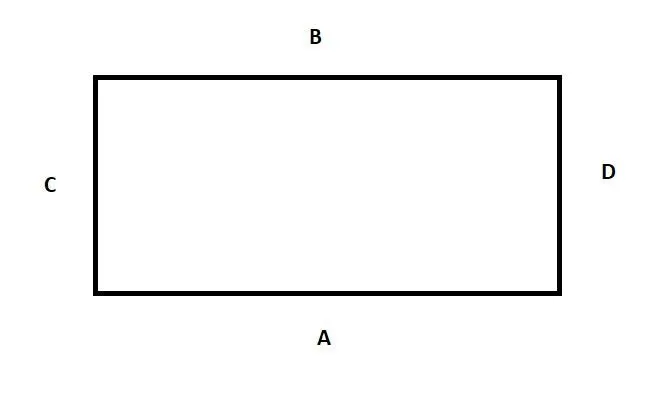

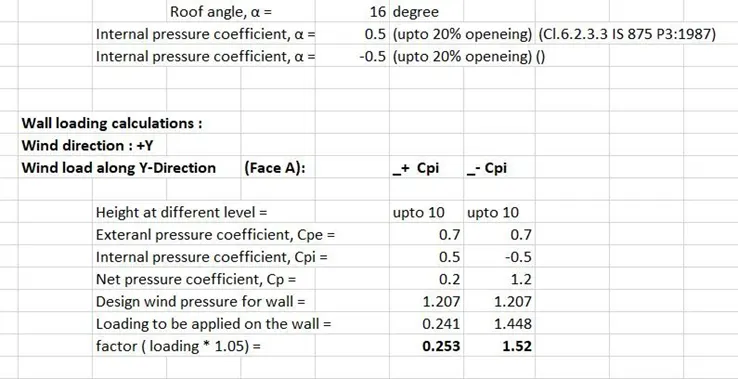

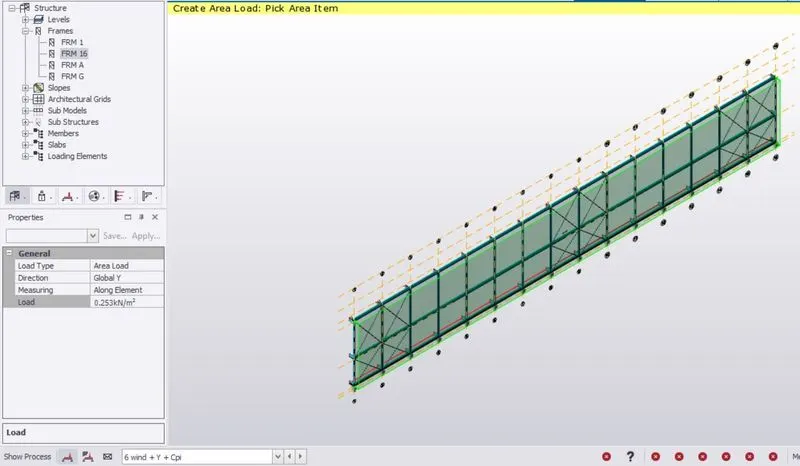

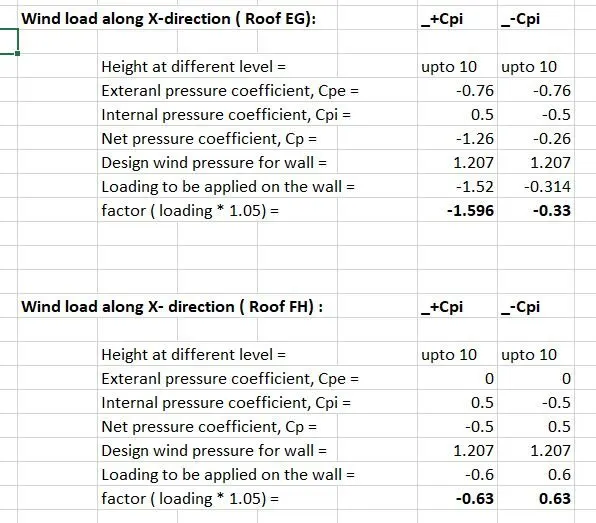

- Now create new wind loads with both + Cpi and -Cpi values.

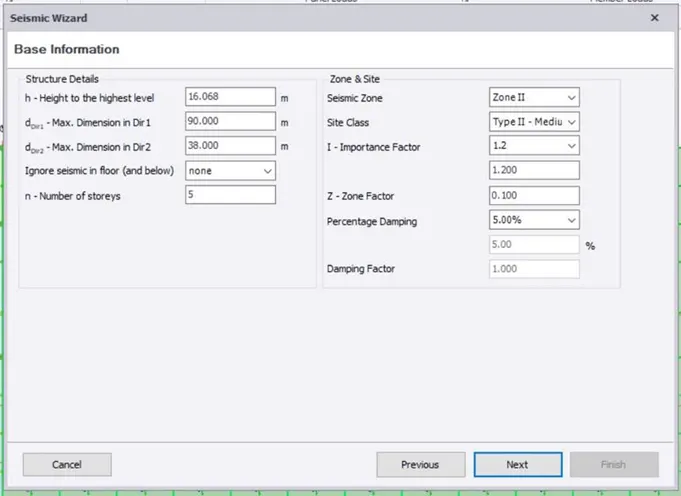

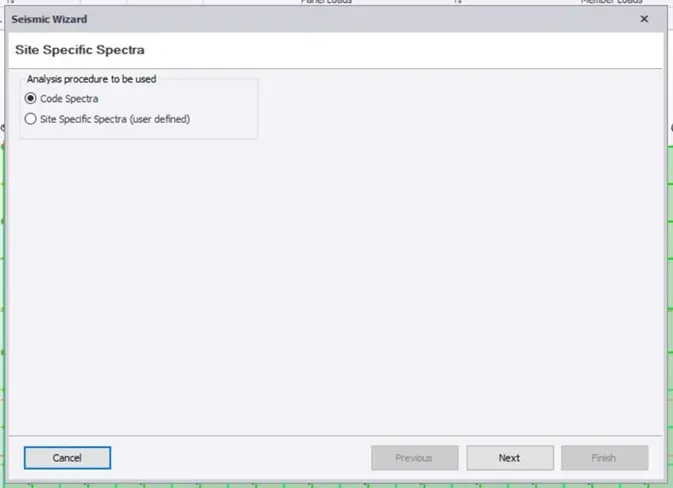

- At last add seismic load to the structure.

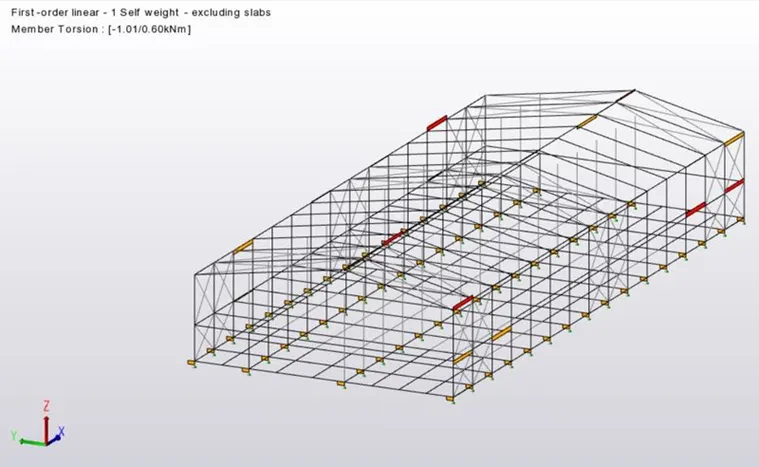

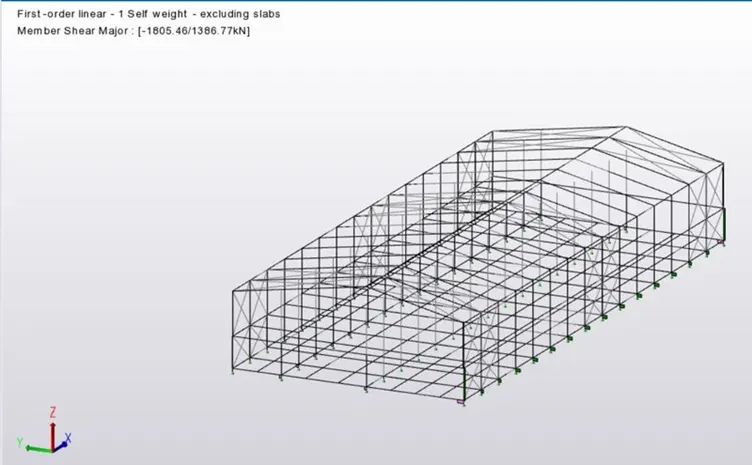

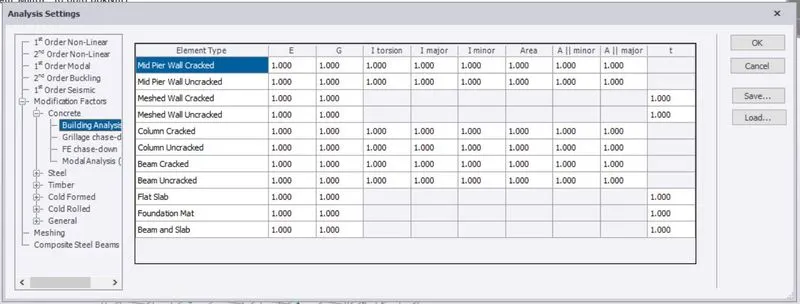

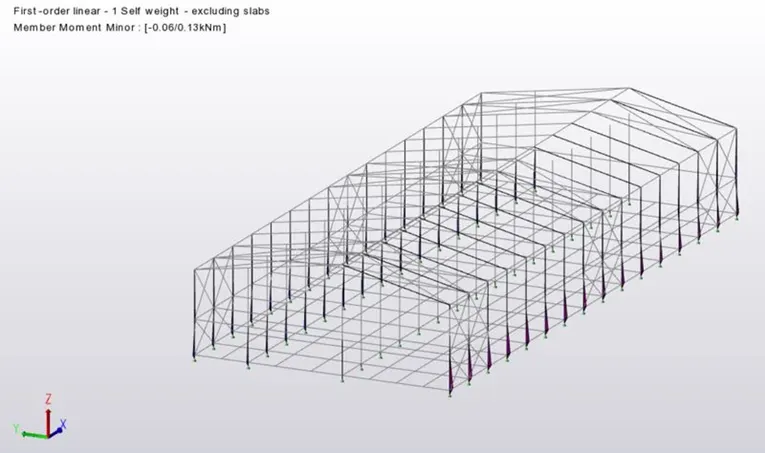

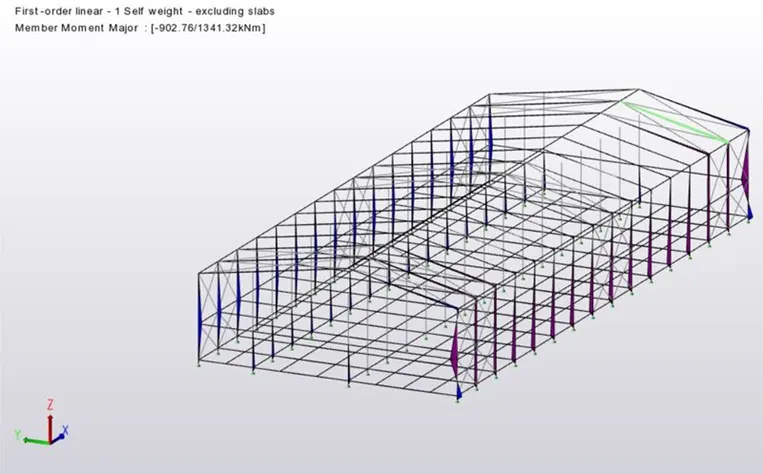

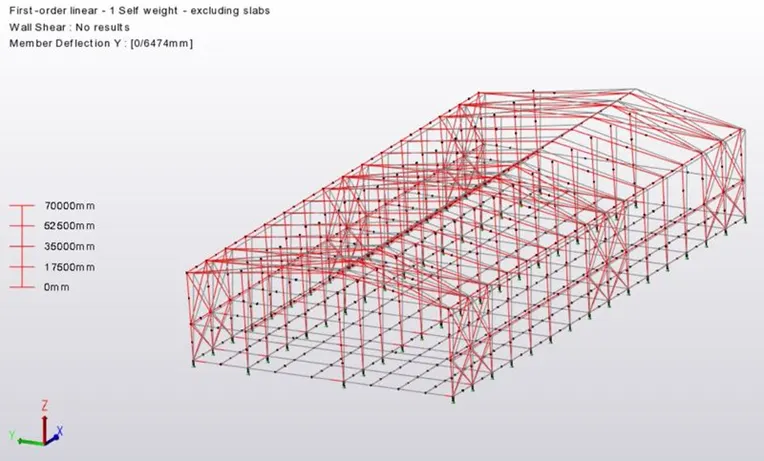

- Analyze the structure and do necessary changes to correct the errors.
RESULT :
With the above steps we can construct a steel structure and add different kinds of loads and analyze the structure.
