Challenge

Project 1

HHemant Sagar24 Jan 2023

Description:
Project 1 deals with the development of a forward energy-based fuel consumption model of a conventional vehicle.

The main goal of this project is to get familiar with the modeling process, writing scripts in Matlab, modeling in Simulink, analyzing data and generating plots.

In this project, a typical midsize car with a 1.9L engine and a 4-speed automatic transmission is considered. Data is taken from ADVISOR data base developed by NREL, USA. Transmission shift map and controller is taken from Matlab/Simulink example database.

The model developed has the capability to simulate the vehicle on different drive cycles like UDDS, HWFET, FTP, NEDC, etc.

“Project1_InitFile.m” is a Matlab script used to load all the variables required for running the Simulink model and for post-processing. The drive cycle selection is also done here. Before running the Simulink
vehicle model, run this initialization script.

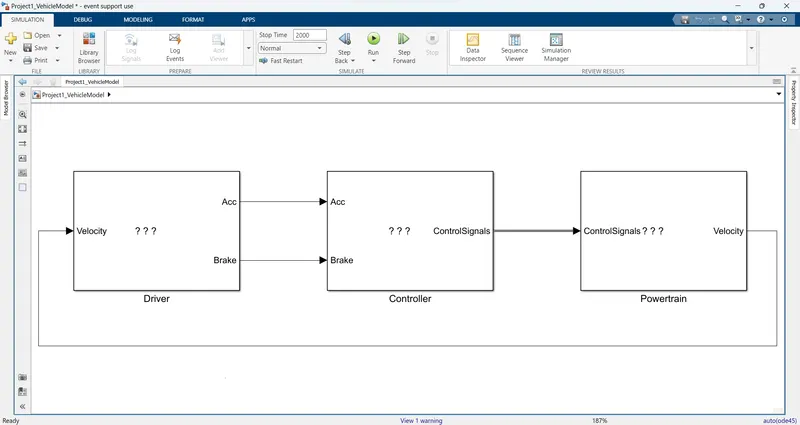

“Project1_VehicleModel.slx” is the Simulink model of the vehicle. It is modeled using a ‘Driver’ block, which is a basic PI controller that generates accelerator and brake pedal outputs to match the desired
and actual vehicle speeds. The ‘Controller’ block is the brains of the vehicle, representing the electronic controls units. Based on the driver inputs, it generates desired engine torque, desired transmission gear
and desired brake torque. These inputs are fed to the ‘Powertrain’ block which represents the drivetrain of the vehicle. It consists of an ‘Engine’ connected to the ‘Automatic Transmission’ through a ‘Torque
Converter’. The output of the transmission is connected to the ’Differential’, which powers the ‘Wheels’, that provides the tractive force for vehicle acceleration. The longitudinal dynamics of the vehicle along with the road load is represented in the ‘Vehicle Dynamics’ block. The solver selected is ode3 with a fixed step size of 0.01 sec.

After running this Simulink model, data from the model will be loaded in the Matlab workspace.

“Project1_ProcessingFile.m” is the Matlab script used to analyze this data and to generate plots. This script needs to be executed after the Simulink model data has been loaded into the workspace. Here we
rename the variables loaded from the model (if desired), do some basic post-process calculations and generate results and plots.

Task:
The task of this project is to compute the fuel economy numbers for the given vehicle (kmpl) on the urban cycle (UDDS) and highway cycle (HWFET). Also, to analyze and understand the vehicle operating
points in terms of engine speed, torque, transmission speeds, pedal positions, gear, distance traveled, etc.

To do that, the following steps need to be followed:

1) Load the Project1 folder as the Current Folder in Matlab.
2) Run the “Project1_InitFile.m” Matlab script.
3) The provided vehicle Simulink model “Project1_VehicleModel.slx” is incomplete. The engine and vehicle dynamics block contents have been deleted. Build the Simulink blocks by referring to the course lecture and example block images provided. You can run the model and analyze the results using a ‘Scope’ for debugging.
4) Add additional ‘To Workspace’ blocks for transferring the desired Simulink vehicle data into the Matlab workspace.
5) Modify the “Project1_ProcessingFile.m” as per the desired plots and required calculations.
6) Write a project report that contains the following:

a. Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle. This forms the baseline numbers for comparing with the future hybrid version.

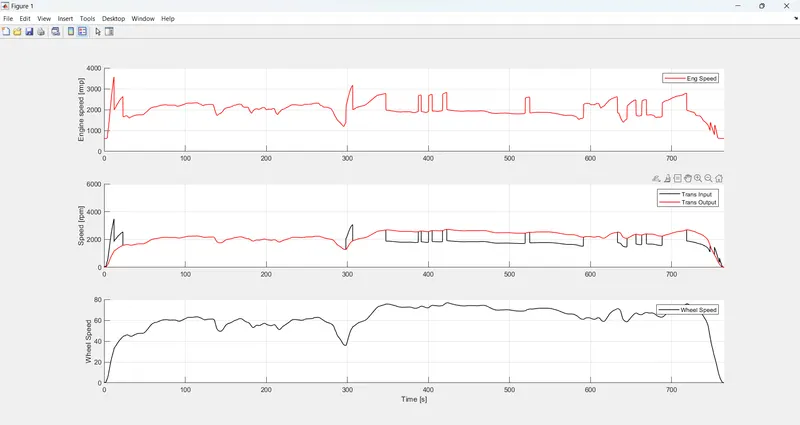

b. Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.

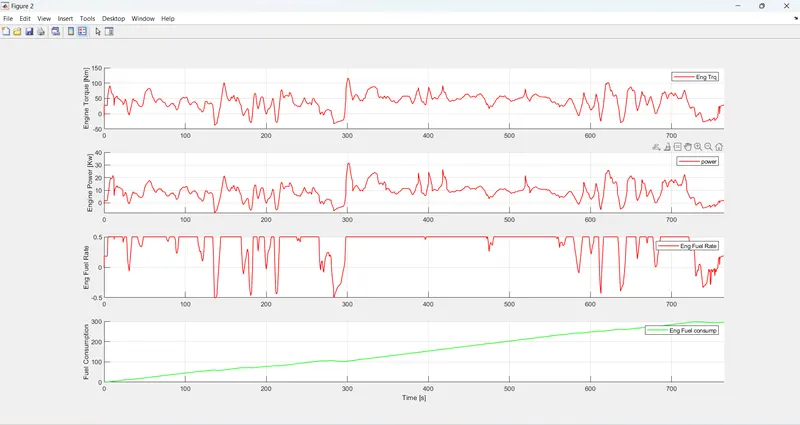

c. Plot engine torque, engine power, fuel rate and fuel consumption using subplots.
d. Plot accelerator and brake pedal, gear command, vehicle desired and actual speed, vehicle distance using subplots.
e. Plot the engine operating points on the engine fuel map.
f. Write down appropriate brief comments on each of these plots, describing the vehicle behavior throughout the drive cycle.
g. Generate the plots for both drive cycles

UDDS Cycle:

The EPA Urban Dynamometer Driving Schedule (UDDS) is commonly called the "LA4" or "the city test" and represents city driving conditions. It is used for light duty vehicle testing. The UN/ECE Regulation 53 refers to the EPA UDDS as the "Test Equivalent to the Type 1 Test (verifying emissions after a cold start)."

Fuel economy is 28.7792 [kmpl]

HWFET Cycle:

The Federal Test Procedure (FTP) is composed of the UDDS followed by the first 505 seconds of the UDDS. It is often called the EPA75. The dynamometer portion of the test procedure has a very complex timeline of events.

Fuel economy is 40.2714 [kmpl]

% Project 1 - Conventional Vehicle Model

% By - Ullekh Gambhira

% Description:

%% Initialization File

% Initialization file for loading the variables for the Conventional vehicle simulation model

%% Vehicle Parameters

M = 1500; % Vehicle weight [kg]

Cr = 0.015; % Rolling resistance coefficient

Rw = 0.35; % Rolling radius [m]

Cd = 0.33; %% Skill-Lync -> Hybrid Drives Development

% Drag coefficient

Af = 2; % Frontal area [m2]

rhoa = 1.225; % Air density [kg/m3]

Vwind = 0; % Wind velocity [kmph]

g = 9.81; % Gravitational acceleration [m/s2]

theta = 0; % Slope [deg]

myu_road_tire = 1; % Coefficient of friction between tire - road interface

%% Powertrain Parameters

FDR = 3.73; % Final Drive Ratio / Diff Ratio

DiffEff = 0.99; % Differential efficiency (assumed independent of operating conditions)

NumGear = 4; % Number of gears in transmission

TransGear = [1:NumGear]; % Transmission Gears

TransRatio = [3.06, 1.62, 1, 0.7]; % Corresponding Transmission ratios

TransEff = 0.90; % Transmission efficiency (assumed independent of operating conditions)

TC_SR = [0, .5, .6, .7, .8, .87, .92, .94, .96, .97, 1]; % Torque Converter Speed Ratio (Matlab default) -> TurbSpd/PumpSpd

TC_TR = [2.232, 1.5462, 1.4058, 1.2746, 1.1528, 1.0732, 1.0192, 1, 1, 1, 1]; % Torque Converter Torque Ratio (Matlab default) -> TurbTrq/PumpTrq

TC_Cf = 1e-4 * [.72558, .66322, .63463, .59042, .51331, .4144, .29287, .22444, .12186, .04386, 0]; % Torque Converter Capacity Factor (Matlab default) -> PumpTrq/PumpSpd^2 [Nm/rpm^2]

load Vehicle_Data/Engine_data_1_9L_Saturn_95kW

load Vehicle_Data/Trans_Shift_map

%% Driver Parameters

Kp = 10; % P gain for driver PI model

Ki = 1; % I gain for driver PI model

Drive_Cycle_Select = 1; % Drive cycle selection

% Drive cycle values in m/s

if Drive_Cycle_Select == 1

load DriveCycles/UDDS;

elseif Drive_Cycle_Select == 2

load DriveCycles/HWFET;

elseif Drive_Cycle_Select == 3

load DriveCycles/FTP;

elseif Drive_Cycle_Select == 4

load DriveCycles/US06;

elseif Drive_Cycle_Select == 5

load DriveCycles/NEDC;

elseif Drive_Cycle_Select == 6

load DriveCycles/WLTP;

end

time_end = cyc_time(end);

vel_end = cyc_vel(end);

i.e., for UDDS cycle : Drive_Cycle_Select =1

for HWFET cycle : Drive_Cycle_Select = 2

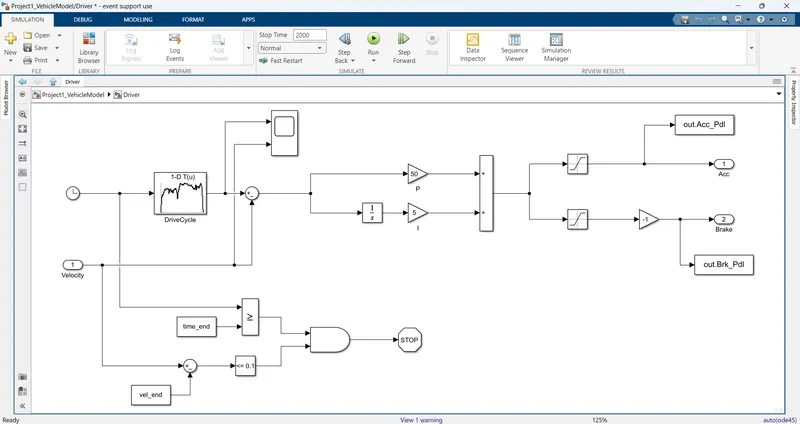

DRIVER BLOCK

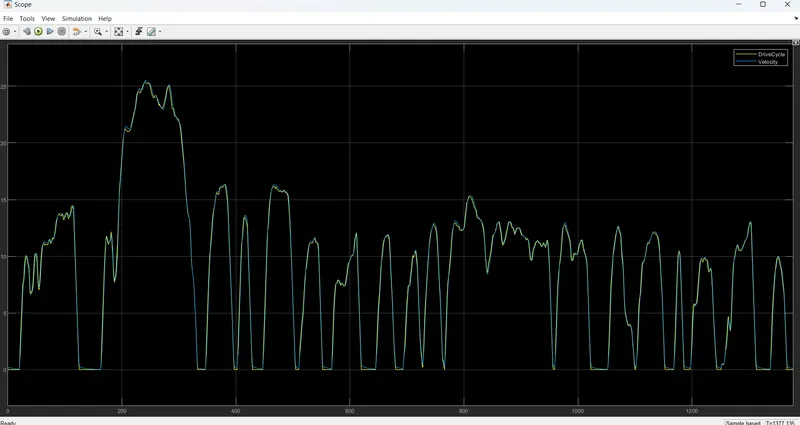

Drive Cycle and Velocity (Scope): For UDDS cycle

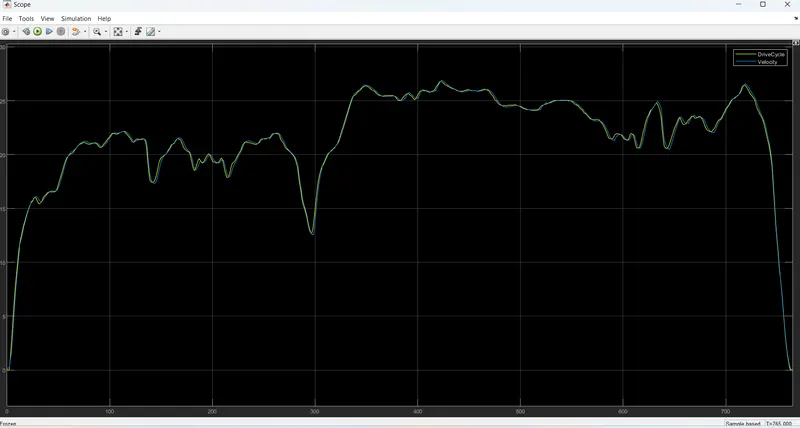

Drive Cycle and Velocity (Scope): For HWFET cycle

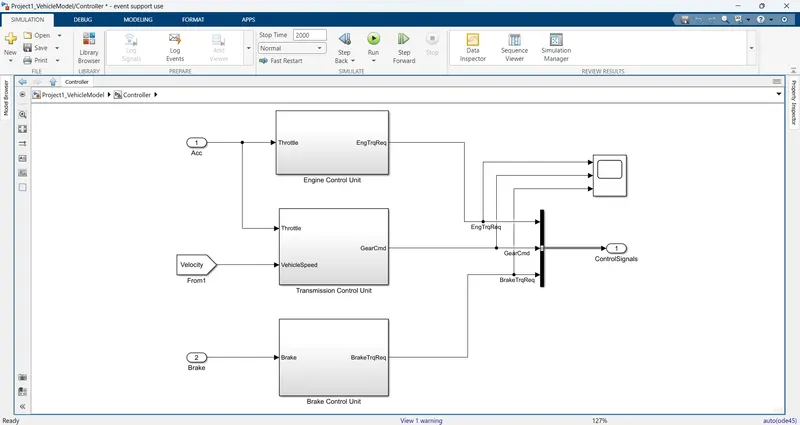

CONTROLLER BLOCK

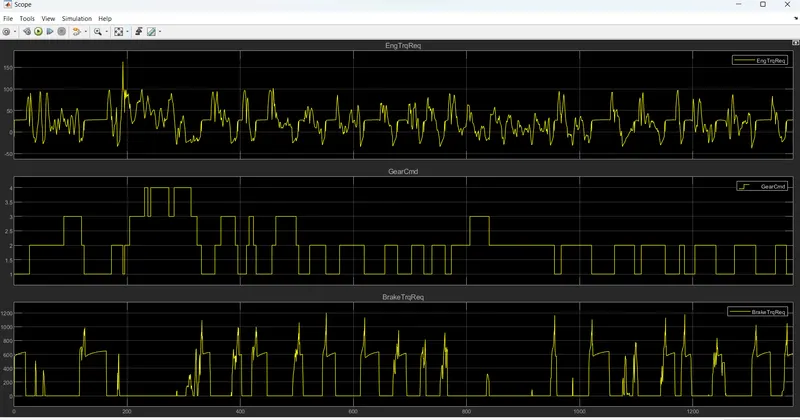

Engine Torque Required, Gear command, Brake Torque Required (Scope): UDDS cycle

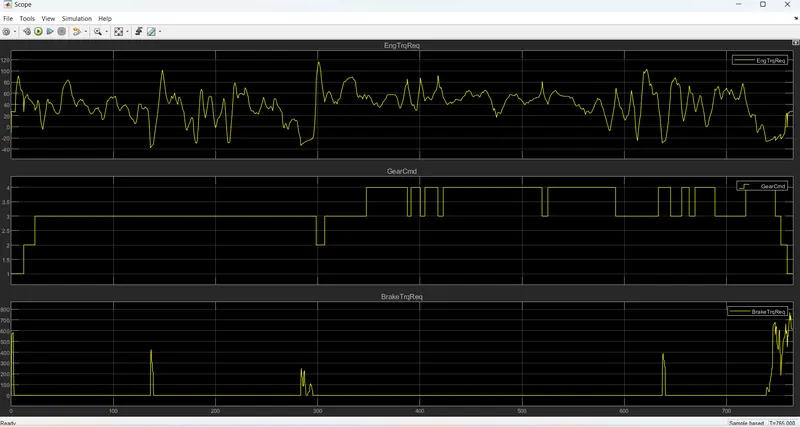

Engine Torque Required, Gear command, Brake Torque Required (Scope): HWFET cycle

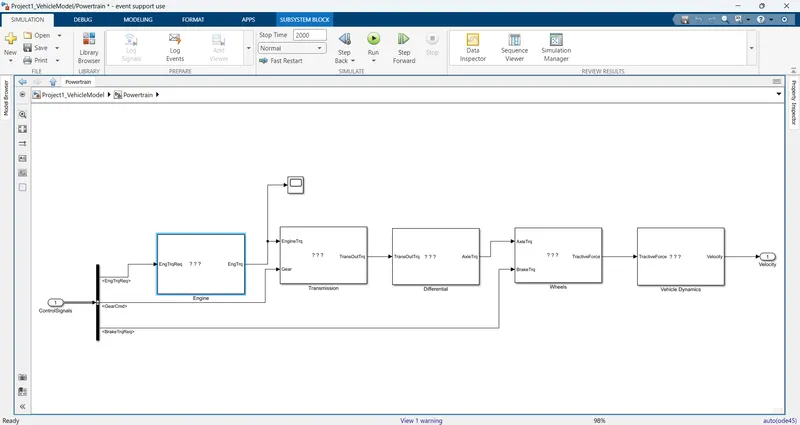

POWERTRAIN BLOCK

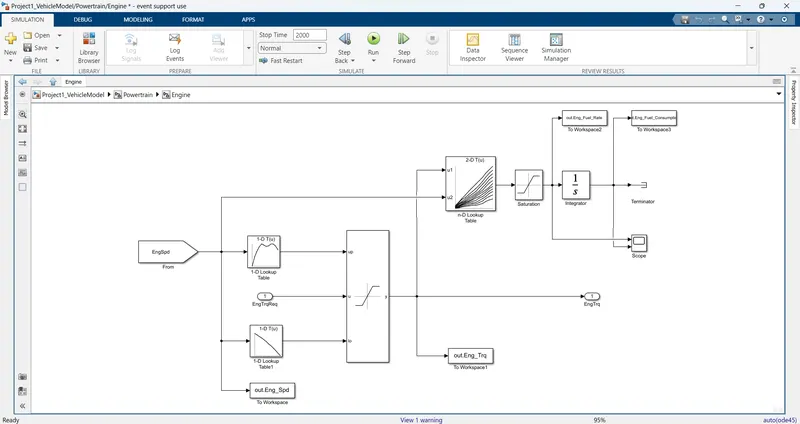

ENGINE BLOCK

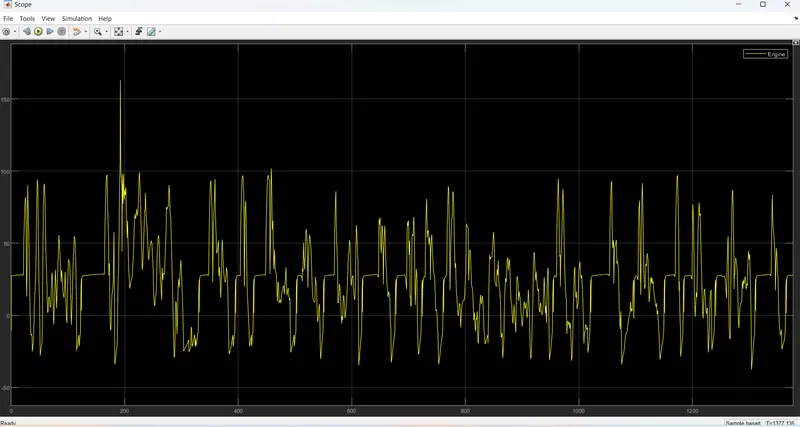

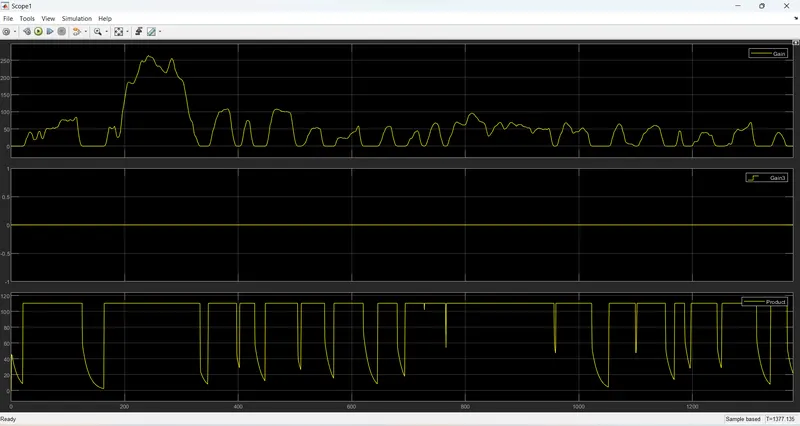

Engine Torque: For UDDS cycle

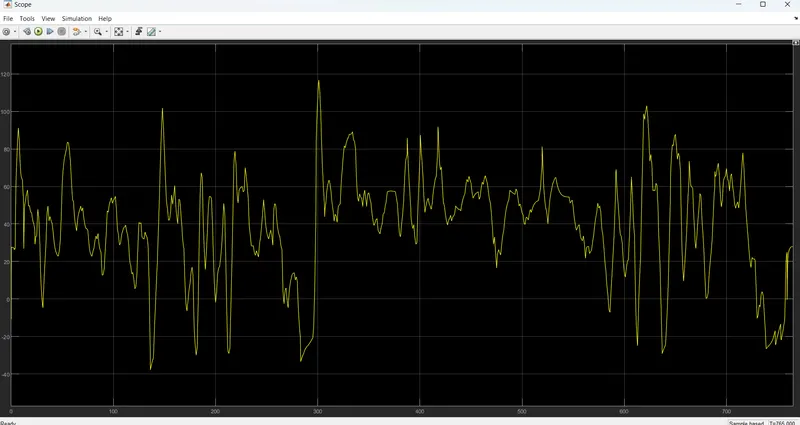

Engine Torque: For HWFET cycle

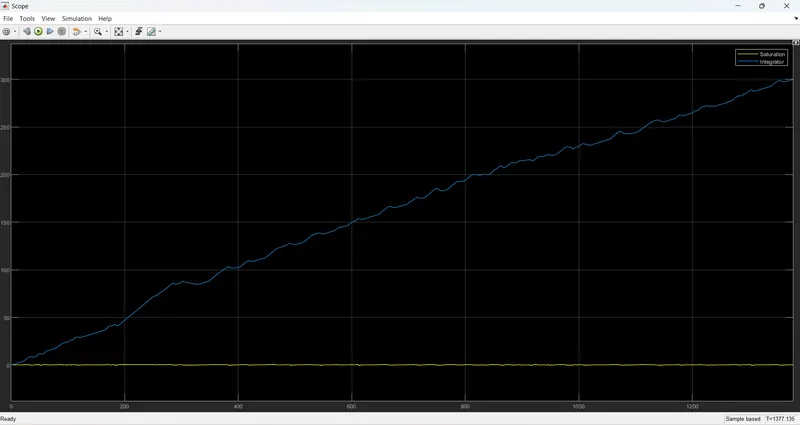

Engine Fuel Rate and Engine Fuel Consumption: For UDDS cycle

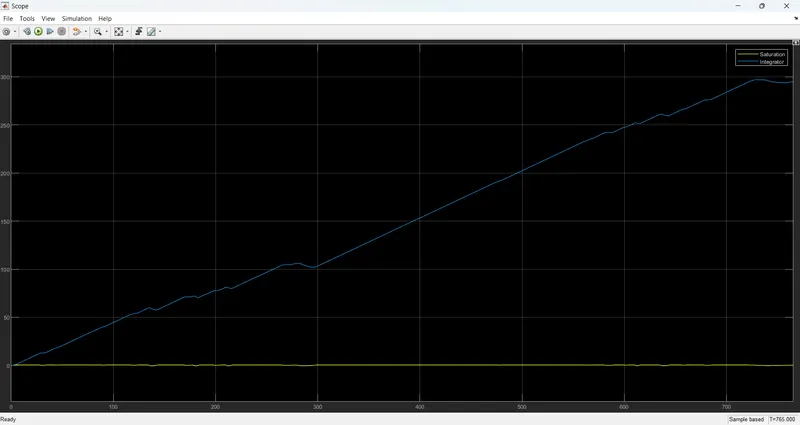

Engine Fuel Rate and Engine Fuel Consumption: For HWFET cycle

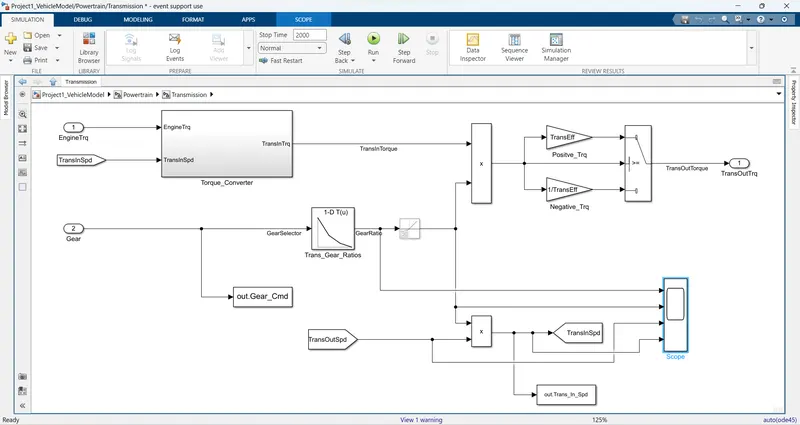

TRANSMISSION BLOCK

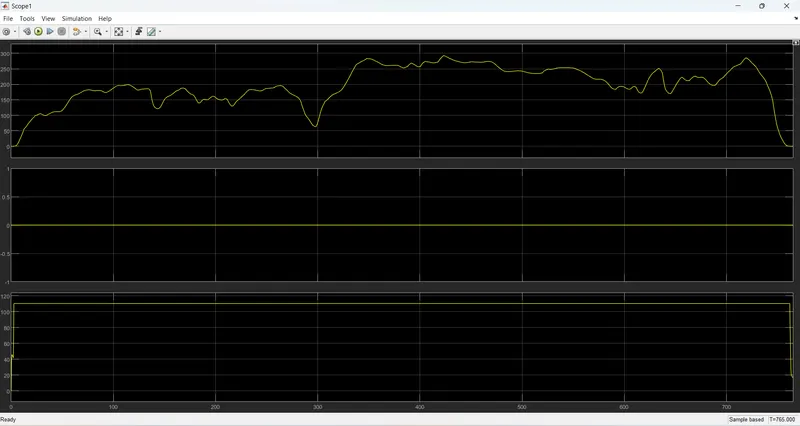

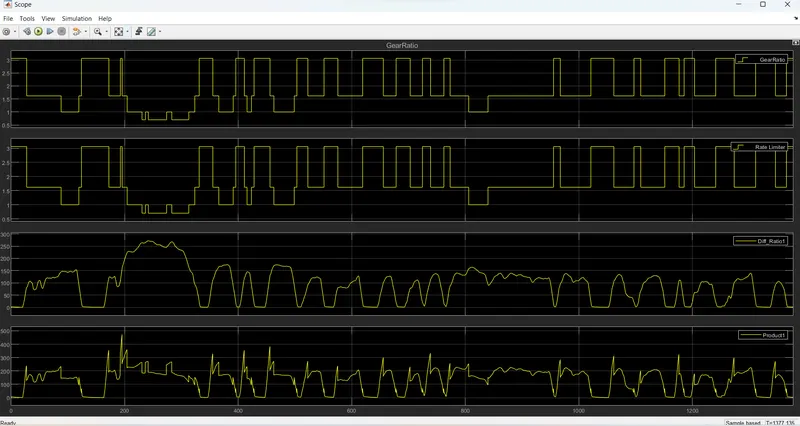

Gear ratio, Ratio limiter, Transmission input speed and transmission output speed: For UDDS cycle

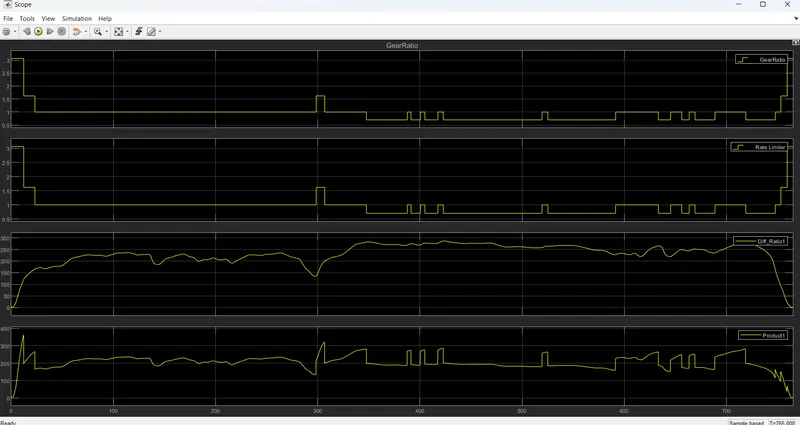

Gear ratio, Ratio limiter, Transmission input speed and transmission output speed: For HWFET cycle

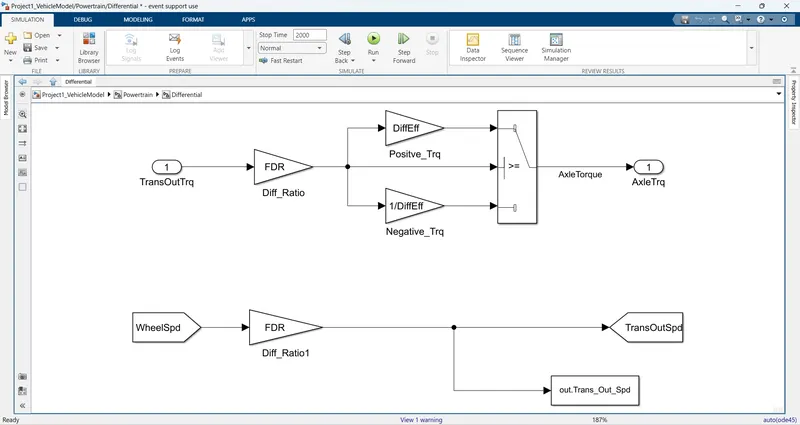

DIFFERENTIAL BLOCK

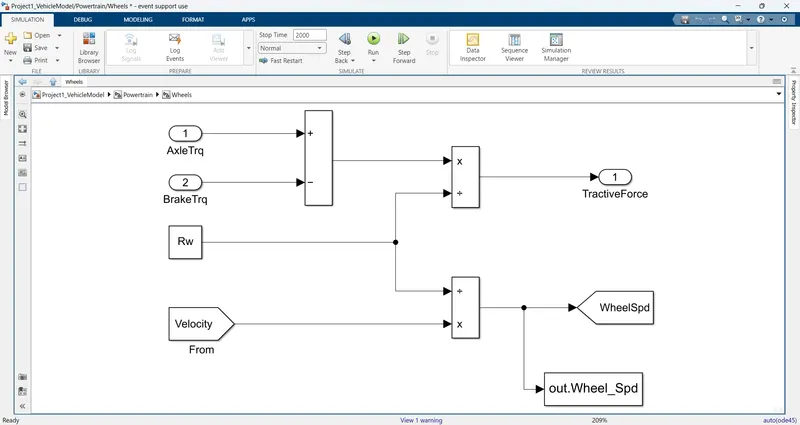

WHEEL BLOCK

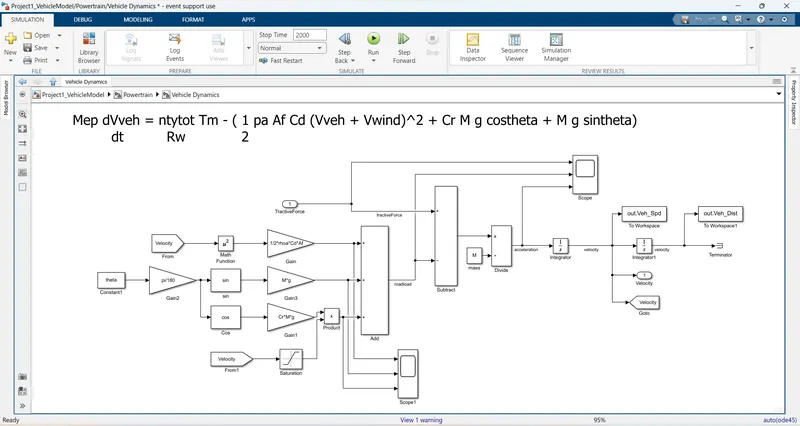

VEHICLE DYNAMICS BLOCK

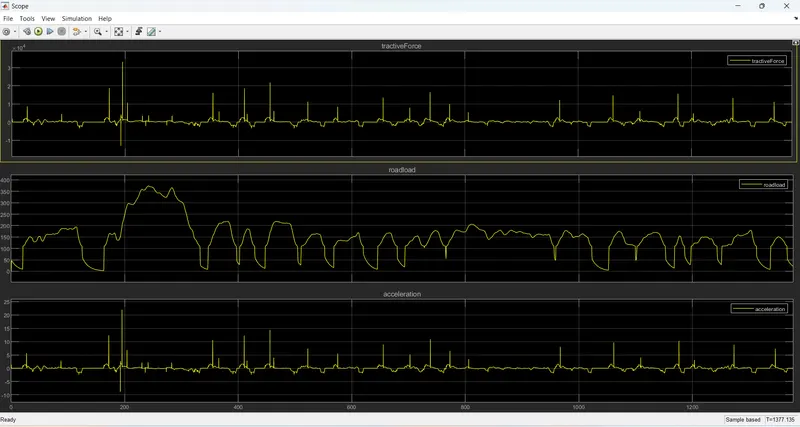

Tractive Force, Road Load and Acceleration : For UDDS cycle

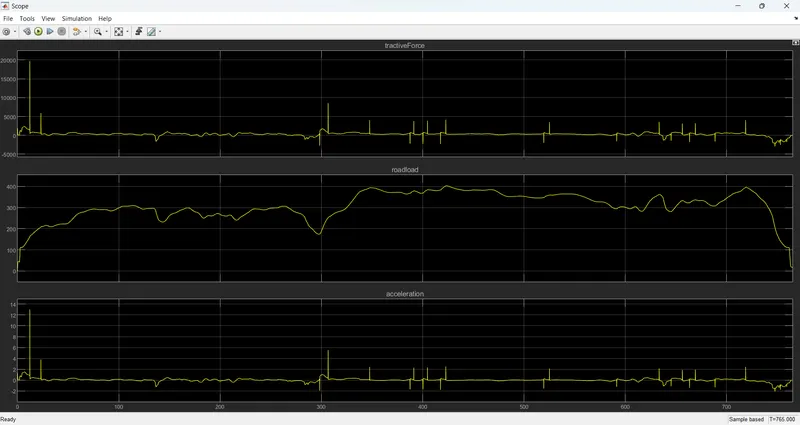

Tractive Force, Road Load and Acceleration : For HWFET cycle

Aerodynamci Force, Acceleration force, Rolling ressistance force: For UDDS cycle

Aerodynamci Force, Acceleration force, Rolling ressistance force: For HWFET cycle

%% Skill-Lync -> Hybrid Drives Development

% Project 1 - Conventional Vehicle Model

% By - Ullekh Gambhira

% Description:

% The following file is to used with the Initialization file and Simulink

% results for post-processing of the data.

% The file is incomplete, has some examples of how the data is imported

% into a readable format, data analysis and plotting examples.

% Based on the project task, use commands in a similar format as given

% below, to analyse the data and generate required plots.

% You can change variable names if desired

%% Post-Processing File

% File for post-processing the Conventional vehicle simulation model data

%% Renaming variables

Time = out.tout;

Acc_Pdl = out.Acc_Pdl; % Accelerator pedal [%]

Brk_Pdl = out.Brk_Pdl; % Brake pedal [%]

Gear_Cmd = out.Gear_Cmd; % Transmission gear

Trans_In_Spd = out.Trans_In_Spd*30/pi; % Transmission input speed [rpm]

Trans_Out_Spd = out.Trans_Out_Spd*30/pi;% Transmission output speed [rpm]

Eng_Trq = out.Eng_Trq; % Engine brake torque [Nm]

Eng_Spd = out.Eng_Spd*30/pi; % Engine speed [rpm]

Eng_Fuel_Consump = out.Eng_Fuel_Consumption; % Engine fuel consumption [g]

Veh_Dist = out.Veh_Dist/1000; % Distance traveled by vehicle [km]

Veh_Spd = out.Veh_Spd*18/5; % Vehicle speed [kmph]

Wheel_Spd = out.Wheel_Spd; % Wheel speed [kmph]

Eng_Fuel_Rate = out.Eng_Fuel_Rate; % Engine Fuel Rate [%]

Veh_Desired_Spd = out.Veh_Desired_Spd; % Vehicle Desired Speed [kmph]

%% Data Analysis

Eng_Pwr = Eng_Spd.*pi./30.*Eng_Trq./1000; % Engine brake power [kW]

rho_petrol = 0.7197; % Density of petrol [kg/L]

kmpl = Veh_Dist(end)/(Eng_Fuel_Consump(end)/1000/rho_petrol); % Fuel economy [kmpl]

%% Plotting vehicle characteristics time trace

figure(1)

subplot(3,1,1)

hold on

grid on

plot(Time, Eng_Spd, 'linewidth', 1, 'Color', 'red');

xlim([0, Time(end)]);

ylabel('Engine speed [rmp]');

legend('Eng Speed');

subplot(3,1,2)

hold on

grid on

plot(Time, Trans_In_Spd, 'linewidth', 1, 'Color', 'black');

plot(Time, Trans_Out_Spd, 'linewidth', 1, 'Color', 'red');

ylabel('Speed [rpm]')

xlim([0, Time(end)]);

ylim([0, 6000]);

legend('Trans Input','Trans Output');

subplot(3,1,3)

hold on

grid on

plot(Time, Wheel_Spd, 'linewidth', 1, 'Color', 'black');

xlim([0, Time(end)]);

xlabel('Time [s]');

ylabel('Wheel Speed');

legend('Wheel Speed');

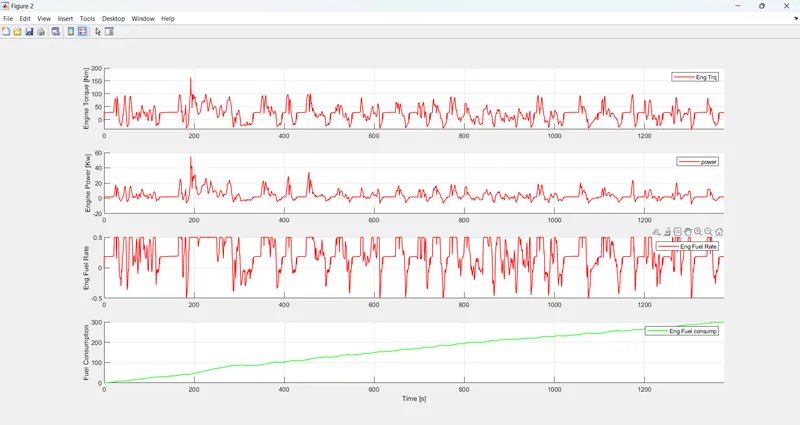

figure(2)

subplot(4,1,1)

hold on

grid on

plot(Time, Eng_Trq, 'linewidth', 1, 'Color', 'red');

xlim([0, Time(end)]);

ylabel('Engine Torque [Nm]');

legend('Eng Trq');

subplot(4,1,2)

hold on

grid on

plot(Time, Eng_Pwr, 'linewidth', 1, 'Color', 'red');

xlim([0, Time(end)]);

ylabel('Engine Power [Kw]');

legend('power');

subplot(4,1,3)

hold on

grid on

plot(Time, Eng_Fuel_Rate, 'linewidth', 1, 'Color', 'red');

xlim([0, Time(end)]);

ylabel('Eng Fuel Rate');

legend('Eng Fuel Rate');

subplot(4,1,4)

hold on

grid on

plot(Time, Eng_Fuel_Consump, 'linewidth', 1, 'Color', 'green');

xlim([0, Time(end)]);

xlabel('Time [s]');

ylabel('Fuel Consumption');

legend('Eng Fuel consump');

figure(3)

subplot(4,1,1)

hold on

grid on

plot(Time, Acc_Pdl, 'linewidth', 1, 'Color', 'black');

plot(Time, Brk_Pdl, 'linewidth', 1, 'Color', 'red');

ylabel('Pedal [%]')

xlim([0, Time(end)]);

legend('Accel','Brake');

subplot(4,1,2)

hold on

grid on

plot(Time(1:137714), Gear_Cmd, 'linewidth', 1, 'Color', 'black');

xlim([0, Time(end)]);

xlabel('Time [s]');

ylabel('Gear');

legend('gear command');

subplot(4,1,3)

hold on

grid on

plot(Time, Veh_Dist, 'linewidth', 1, 'Color', 'green');

xlim([0, Time(end)]);

xlabel('Time [s]');

ylabel('Vehicle Distance [km]');

legend('Vehicle Distance');

subplot(4,1,4)

hold on

grid on

plot(Time, Veh_Spd, 'linewidth', 1, 'Color', 'green');

xlim([0, Time(end)]);

xlabel('Time [s]');

ylabel('Vehicle Speed [kmph]');

legend('Vehicle Speed');

%% Plotting engine operating points on engine fuel map

figure('Name','Engine Operating Points');

hold on

grid on

title('Engine Operating Points','fontsize',12);

p1=plot(Eng_map_spd*30/pi,Eng_max_trq,'linewidth',2,'color','r');

p2=line([Eng_map_spd(end)*30/pi Eng_map_spd(end)*30/pi],[0 Eng_max_trq(end)]);

set(p2,'linewidth',1,'linestyle','--','color','k');

p3=line([Eng_map_spd(1)*30/pi Eng_map_spd(1)*30/pi],[0 Eng_max_trq(1)]);

set(p3,'linewidth',1,'linestyle','--','color','k');

[c,h] = contour(Eng_map_spd'*30/pi,Eng_map_trq,Eng_fuel_map');

clabel(c,h);

xlabel('Engine Speed [rpm]');

ylabel('Engine Torque [Nm]');

title('Engine Fuel Consumption Map [g/s]');

p4 = plot(Eng_Spd,Eng_Trq,'.','color','k');

legend([p1 p4],{'Max Curve','Operating Points'});

axis([Eng_map_spd(1)*30/pi Eng_map_spd(end)*30/pi 0 Eng_map_trq(end)]);

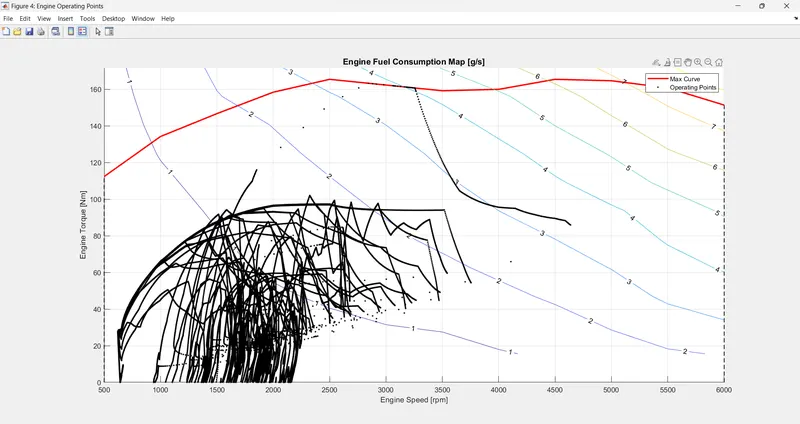

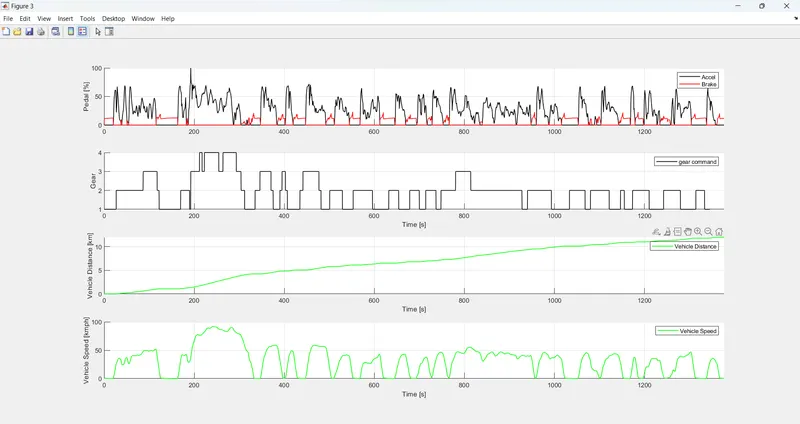

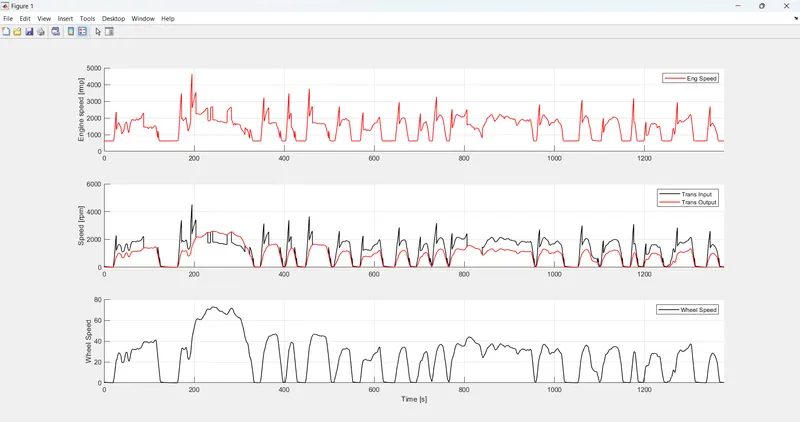

FOR UDDS CYCLE

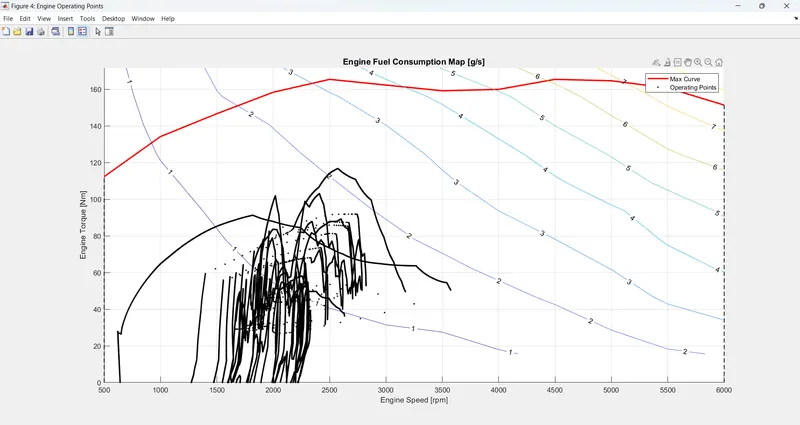

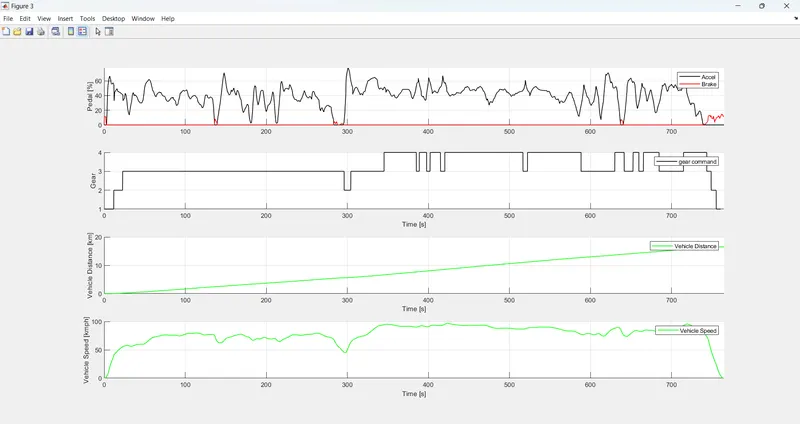

FOR HWFET CYCLE

As per the fuel economy value for both cycles, the HWFET drive cycle has a higher economy than the UDDS drive cycle.
