Preparing Schedule & Cost Estimation for a building using REVIT
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
A)
a. Using 3D model create a section box - BX
b. To create similar doors and windows in a floor plan layout - CS
c. To reduce the thickness of lines visible in plan views - TL
d. To apply override settings to a floor in the model section view - EOD
e. To increase the range of visibility in a plan view - VR
f. To select the previously selected items - Ctrl+<
g. To add annotations to the model views - Dl
h. To bring the model elements in line- Al
i. To rotate the model elements - RO
j. To move an object to another location - MV
k. To copy a model element - CO/CC
1. To mirror an element about an axis - MM
To create an array of model eleme S-AR
2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
A)
Aim: To create schedule using REVIT
Procedure:

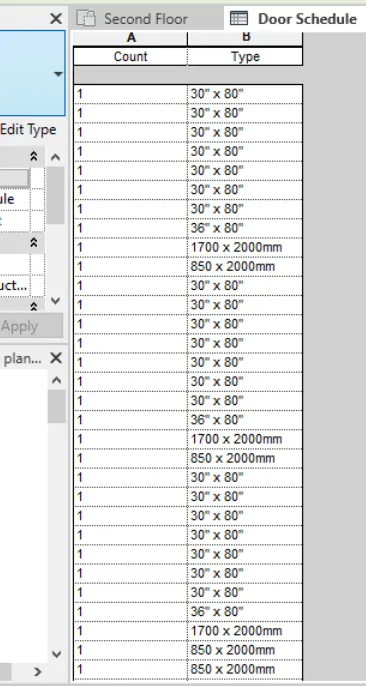

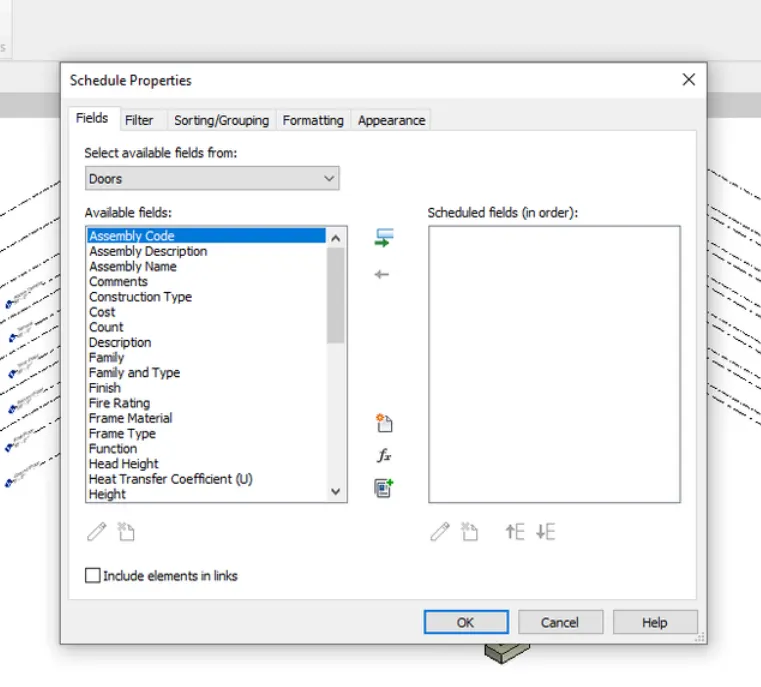

Step 1: From the view tab, Select the schedule option and select the quantities to view the properties of walls, doors and windows as shown
3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
A)
Aim: To calculate area and volume of each room
Procedure:
Step 1: From the same quantities tab, rooms are selected

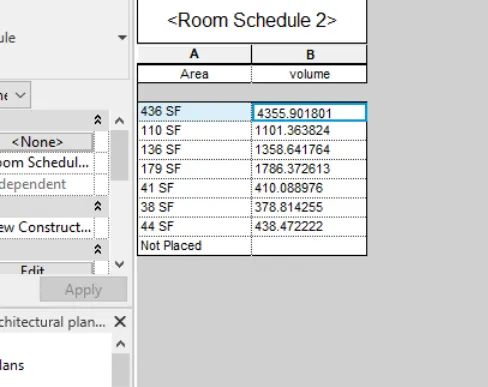

Step 2: Area and volume of the rooms are calculated and are shown below.
4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
A)
Aim: To create schedule sheet to calculate the total cost.
Procedure:

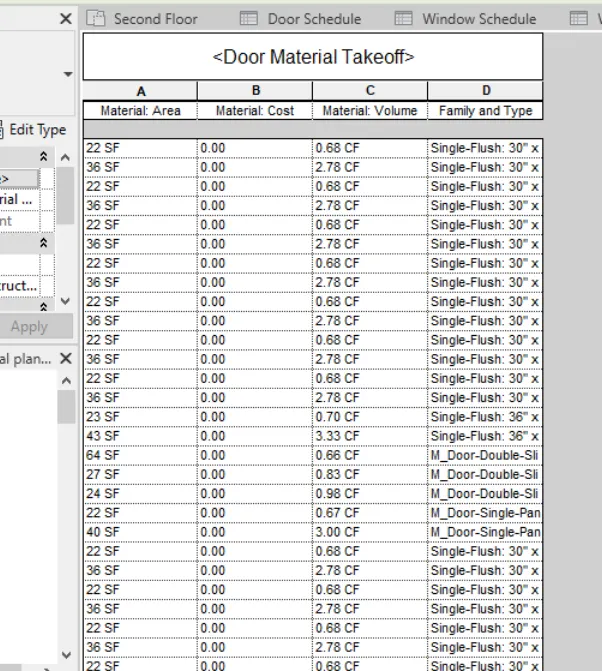

Step 1: Under the View tab, the material takeoff option is selected to obtain the material cost and material take off as shown below.
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project
A)
[3:44 PM, 10/23/2021] Sai Gopal: Framing Structure Building
Residential/Commercial
Number of floors
a.
Foundation type
Beam-Slab framing
Cost of
construction
Water not coming from pipes
Check pipes
Water not coming from pipes
Check pipes
Pipe not ok
Pipe ok
Check pipes and
replace
6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
A)
a. Wall:
Type, Lenght, Width, Cost estimate, Thickness, Material Used.
b. Floor:
Type, Lenght, Width, Area, Volume, Cost estimate, Thickness.
c. Door.
Height, Lenght, Width, Thickness, Material Used.
d. Window:
Height, Lenght, Width, Thickness, Material Used.
e. Table:
Height, Lenght, Width, Type of table, Material Used, Purpose of use.
f. Building:
Height, Lenght, Width, No. of floors, Area of building, Set back area.
