Preparing Schedule & Cost Estimation for a building using REVIT
1) a) Using 3D model create a section box= BX
b) To create similar doors and windows in a floor plan layout= CS
c) To reduce the thickness of lines visible in plan views= TL
d) To apply override settings to a floor in the model section view= EOD
e) To increase the range of visibility in a plan view= VR
f) To select the previously selected items= CTRL+<--(Control plus left arrow)
g) To add annotations to the model views= DI
h) To bring the model elements in line= AL
i) To rotate the model elements= RO
j) To move an object to another location= MV
k) To copy a model element= CO
l) To mirror an element about an axis= MM
m) To create an array of model elements= AR
2) Aim: To prepare a schedule to the given components
Procedure:
Step1:
Click on windows start
In search bar type> Revit
Click on the revit software

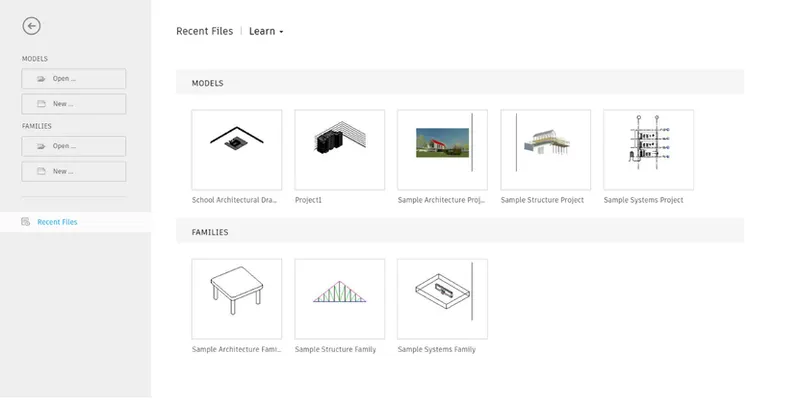

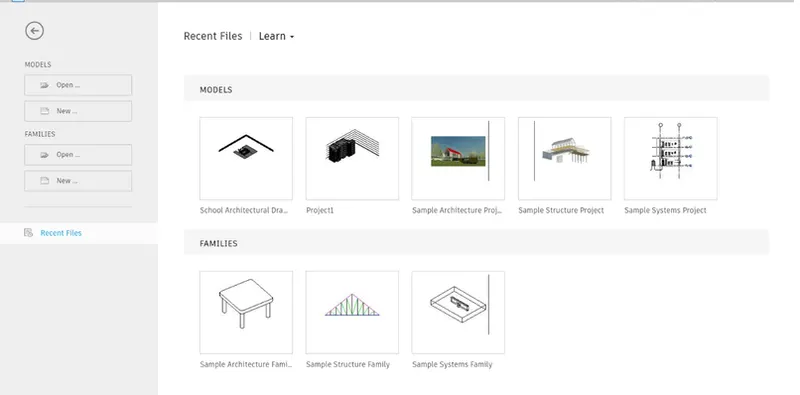

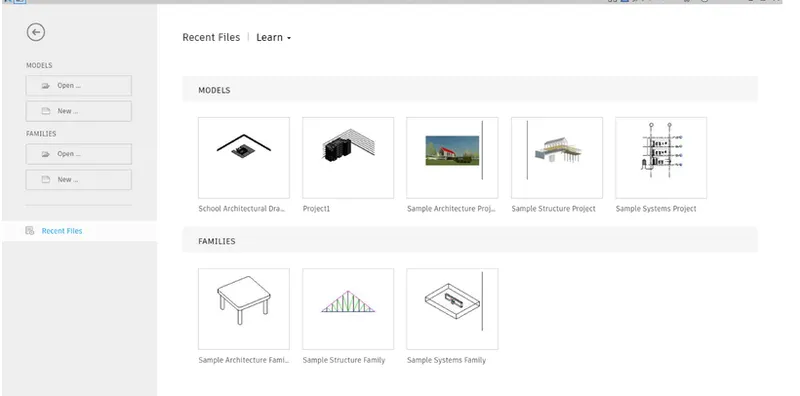

Once the revit is open, it will shows the following page
Step2:
Click on >open
Open file> school architectural drawing
Click>open
The file is opened
Step3:
To prepare schedule for the walls
Go to view tab
Select> Schedules
Click > schedules /quantities

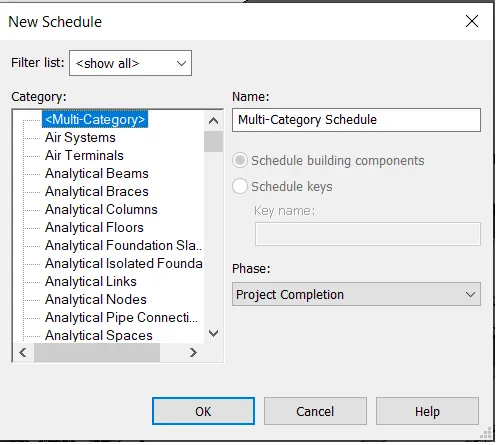

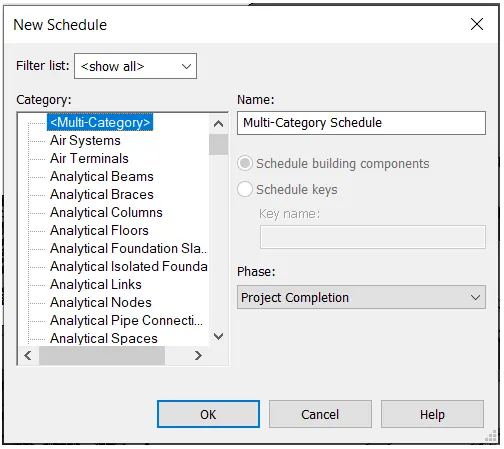

Following dialogue box will open
Select the walls
Select the parameters such as> wall type, area, volume etc

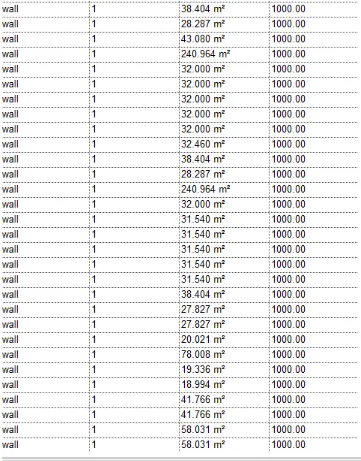

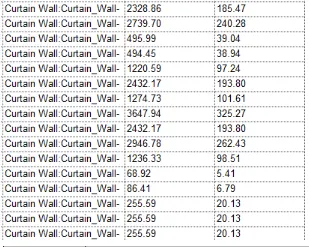

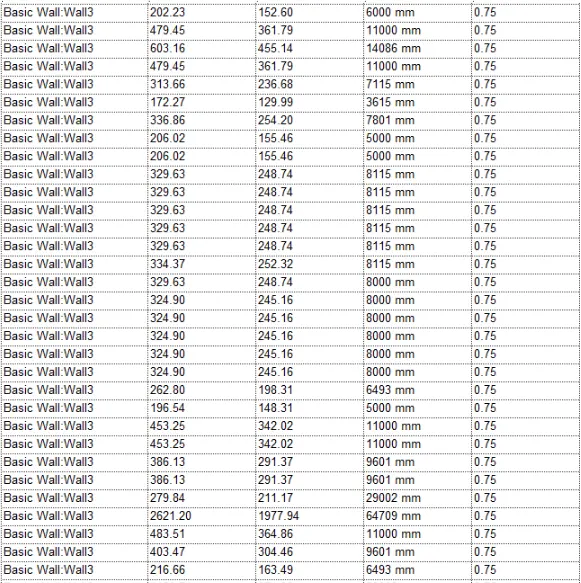

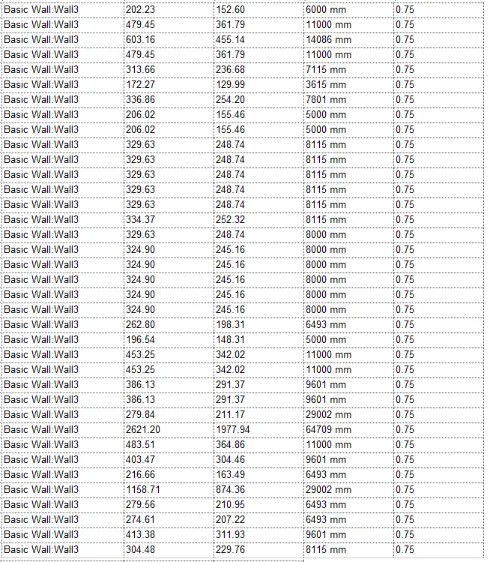

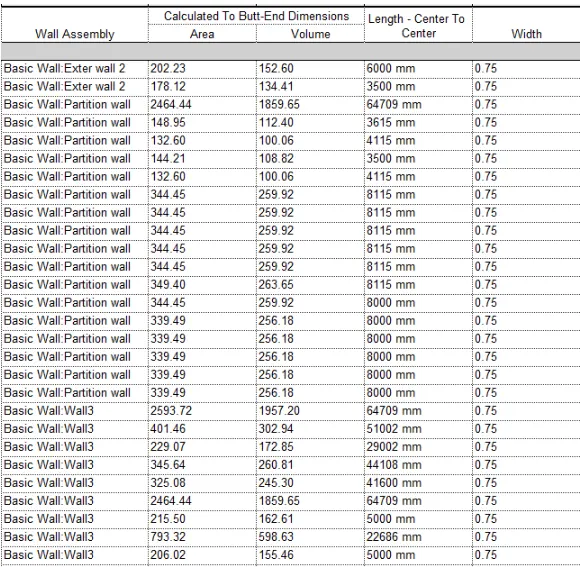

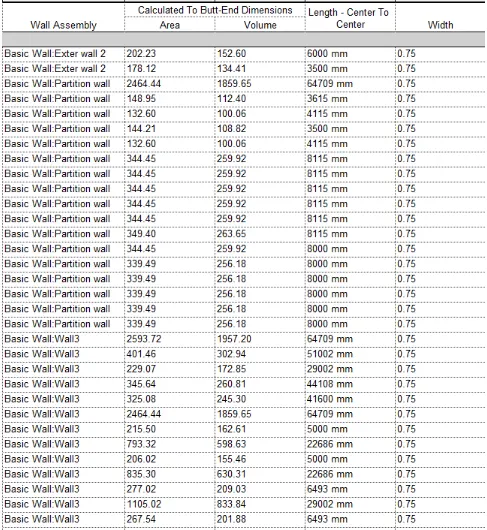

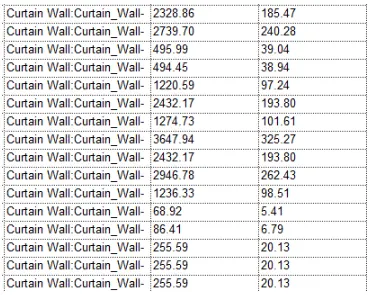

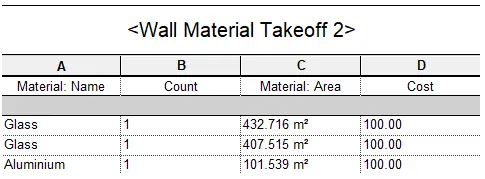

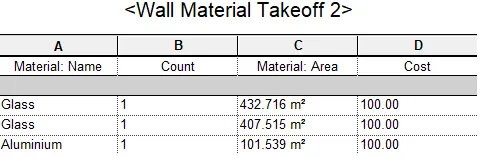

It will shows the following results

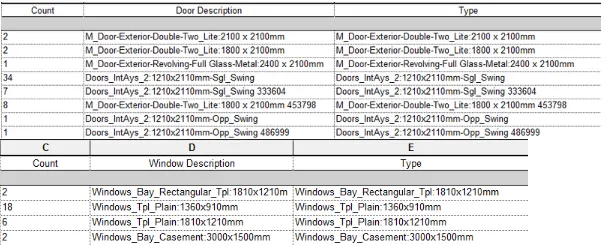

Similarly do the same procedure for doors, windows, and other material

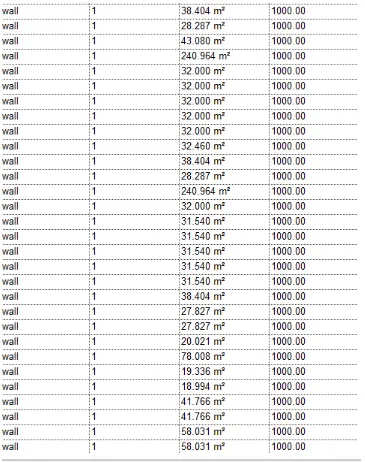

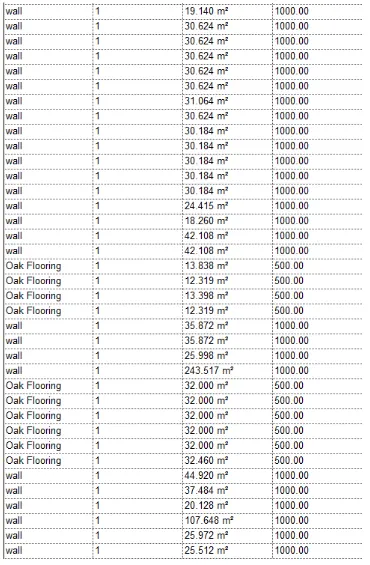

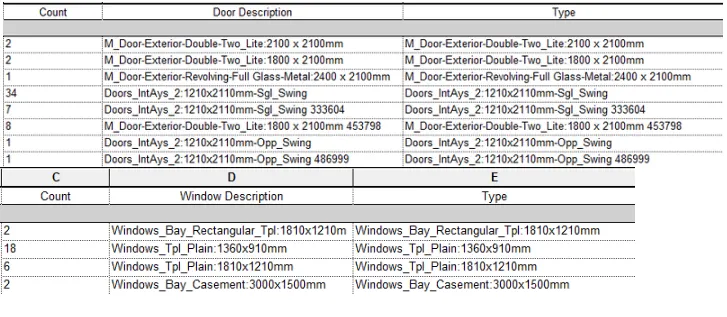

It will shows the following results
Result:
3) Aim: To prepare a schedule report for area and volume of each room
Procedure:
Step1
Click on windows start
In search bar type> Revit
Click> Revit 2021
Once the revit is open, it will shows the following page
Step2:
Click on> open
Open file> school architectural drawing
Click> open
The file is opened
Step3:
To prepare schedule for the walls
Go to view tab
Select > schedules
Click >schedule /quantities
Following dialogue box will open
Select the> room

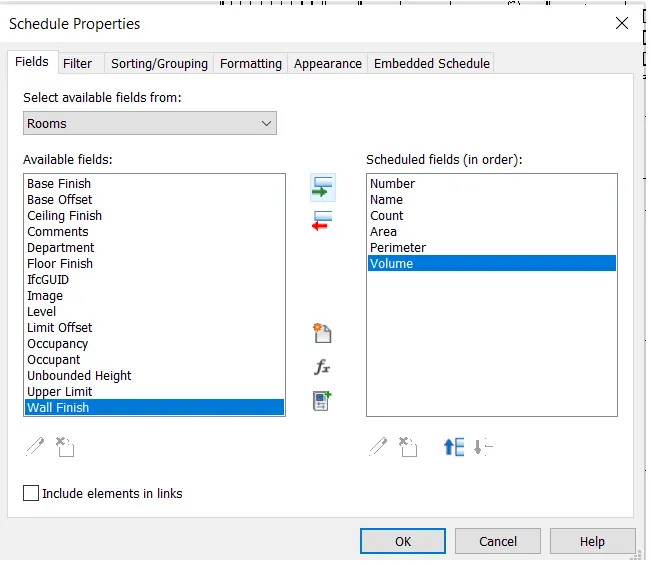

Select the parameters such as> name, area, volume etc

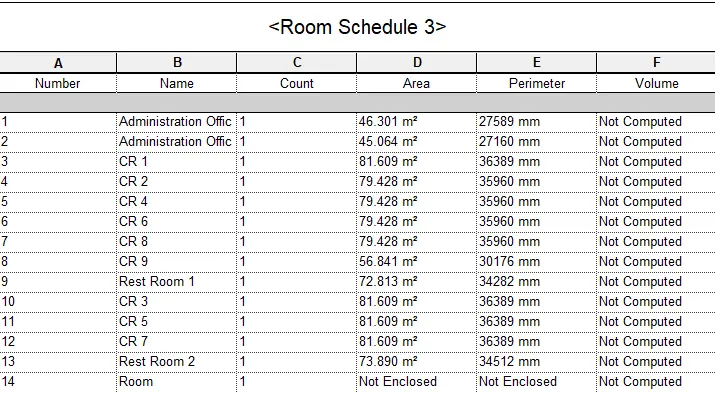

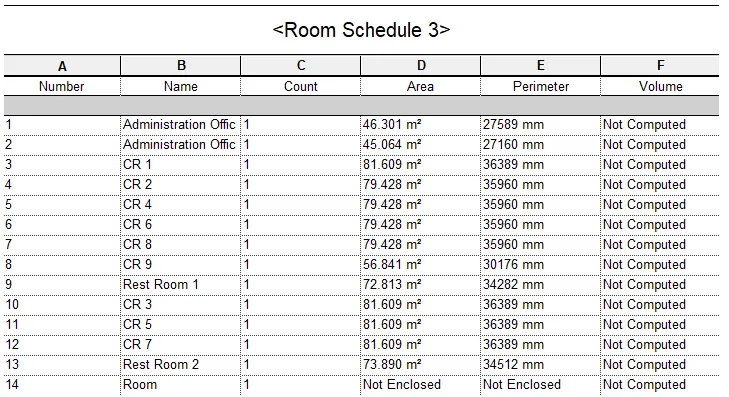

It will shows the following results
Result:
4) Aim: To prepare a schedule report and to include total cost of project used in the project
Procedure:
Step1
Click on windows start
In search bar type> Revit
Click on the revit software
Once the revit is open, it will shows the following page
Step2:
Click on> Open
Open file> office architectural drawing
Click> open
The file is opened
Step3:
To prepare schedule for the door
Go to view tab
Select > Schedules

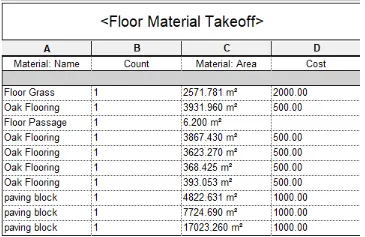

Click> material takeoff

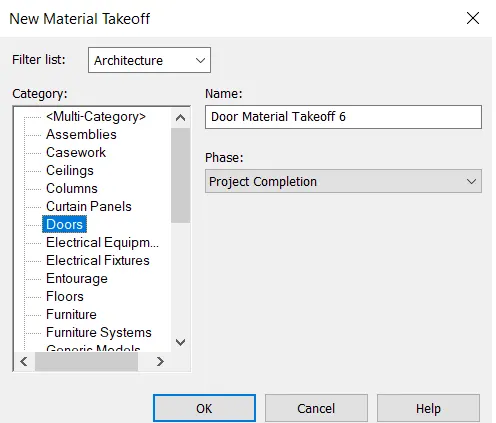

Following dialogue box will open
Select the >door

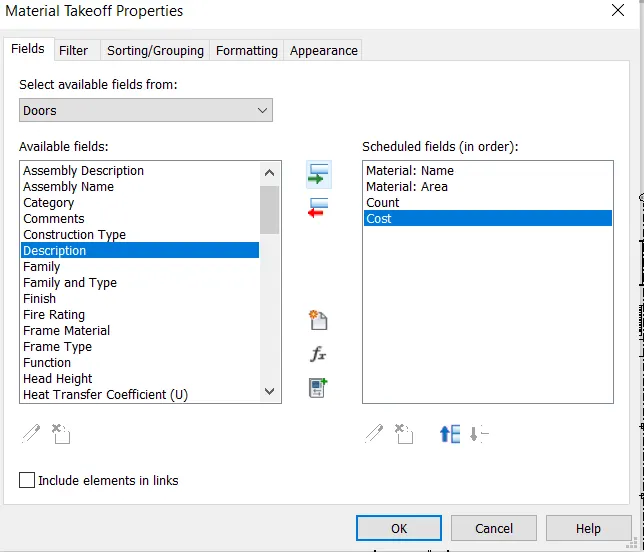

Select the parameters such as> name, area, cost etc

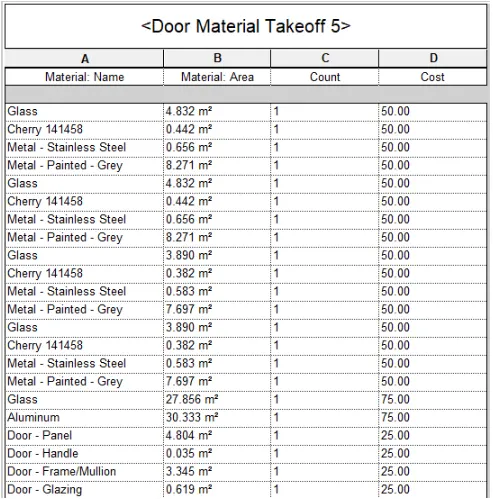

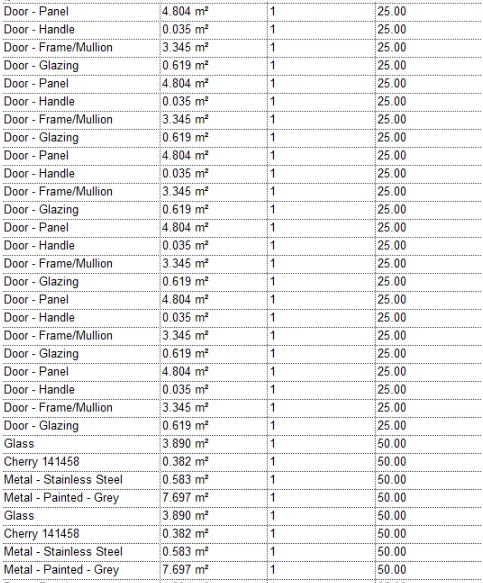

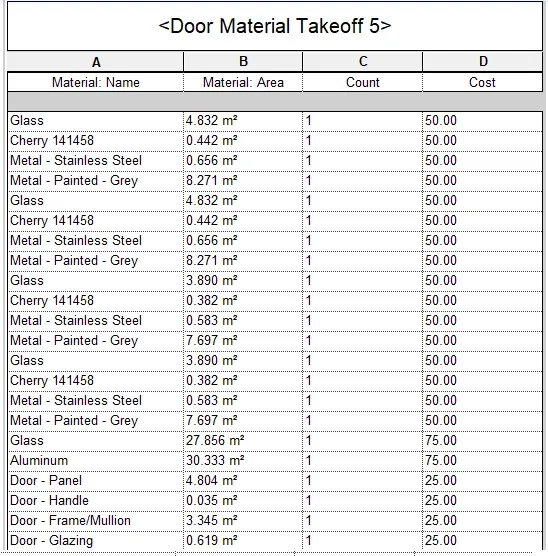

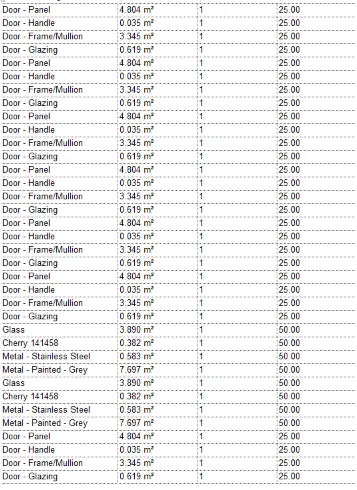

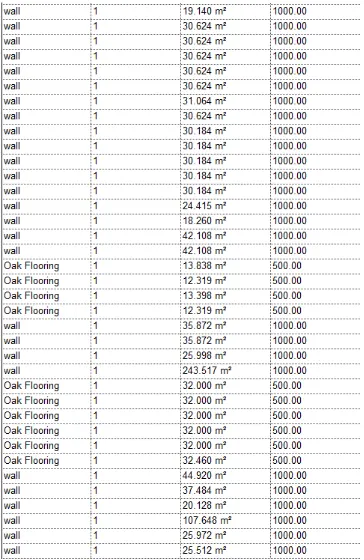

It will shows the following results:

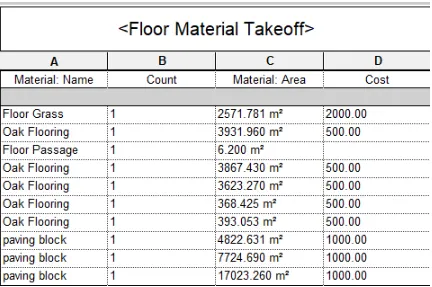

Similarly do the same procedure for other materials
Result:

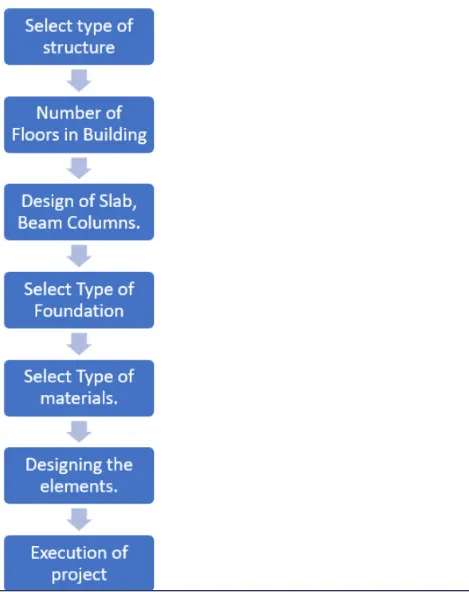

5) a) How to decide framings for a structure using Dynamo?

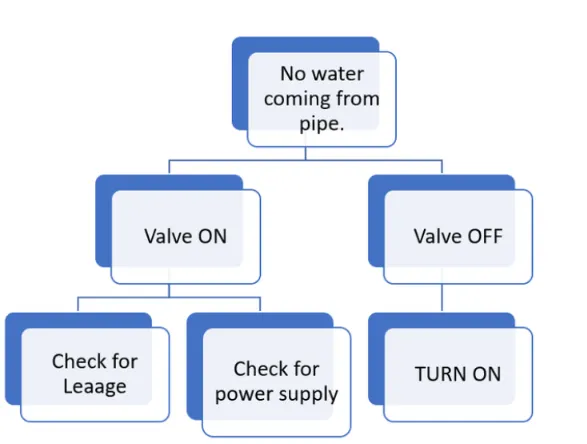

b) If there is no water coming from the pipes

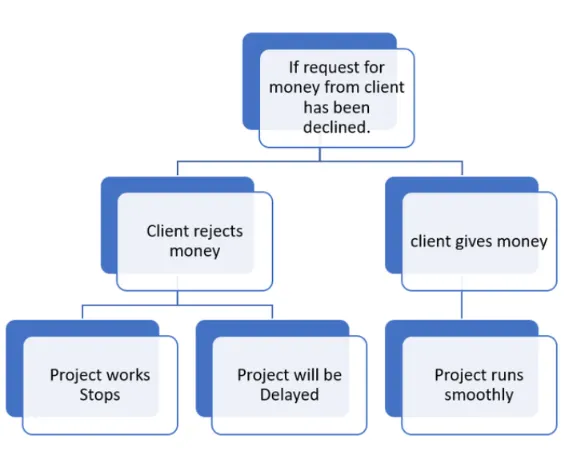

c) If request for money from client has been declined for the project
6) Parameters associated with each model elements are as follows:
Walls:
Wall type
Wall description
Wall material
Wall position
Wall length
Wall width
Wall height
Wall area
Wall volume
Wall cost
Floors:
Floor type
Floor material
Floor description
Floor length
Floor width
Floor thickness.
Floor area
Floor volume
Floor cost
Door:
Door type
Door material
Door description
Door length
Door width
Door height
Door area
Door volume
Door cost
Window:
Window type
Window material
Window description
Window length
Window width
Window height
Window area
Window volume
Window cost
Table:
Table type
Table material
Table description
Table length
Table width
Table height
Table area
Table volume
Table cost
Building:
Building type
Building location
Building perimeter
Building height
Building area
Possible loads on a building
Building materials
