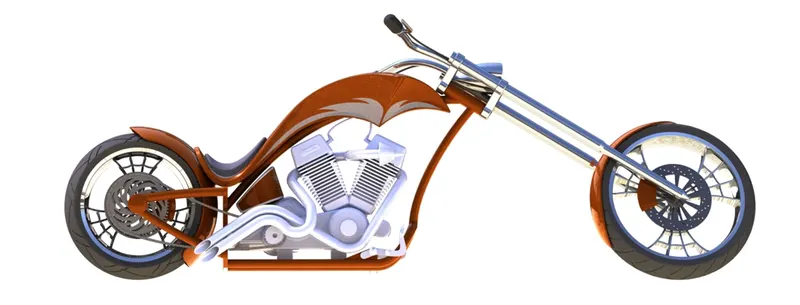

Photo Realistic Rendering

Design And Assembly Chopper:

Objective:

• To design and model the American Chopper using solid.
• Modelling each part of American Chopper.
• Assembling all modelled parts to get the chopper.
• Rendering the American Chopper by applying the required decals as well as appearance
• Build the assembled chopper as photorealistic render in environment by applying accurate scenes.

Introduction:

• Solidworks is a mechanical 3D CAD (Computer Aided Design) Software.
• It is used in designing and modelling wide range of components and parts in realistic appearances and scenes.
• It makes easier for the user to model complicated shapes parts and components through different commands and tools.
• It also provides variety of environments as well colour pallets to make the final model more realistic.
• It also has its own render tool that provide us the final render image of the constructed model.

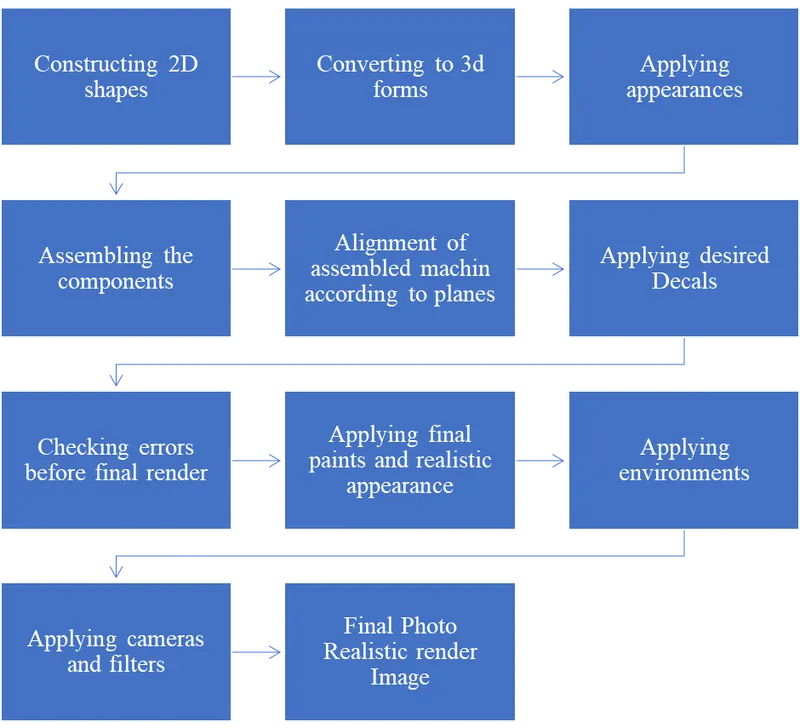

Design methodology:

Major components of American Chopper:

• Transmission Belt
• Kickstand
• Chain
• Oil tank
• Front Fender
• Rear Fender
• Front Wheel
• Rear Wheel
• Chassis
• Engine
• Gas Tank
• Pedal
• Front Fork

Explanation of features:

1. Plane:

• To draw the section view of the parts.
• To draw the particular portion of a part.

2. Sketch:

• To draw the part by applying the commands and smart dimensions at a particular plane.

3. Fillet: Create a round internal or external face along one or more edges on a solid or surface feature.

4. Champer: To create tapper surface on the edges of the components.

5. Convert Entities: Converts selected edges and sketch entities into identical entities by projecting them onto the sketch plane or face.

6. Offset Entities: Offset one or more entities by a specified distance.

7. Mirror Entities: Produce mirror entity of the given entity along a mirror line.

8. Shell: Produce cavity volume inside of any solid body with specified wall thickness.

9. Extrude Bose/Base: Extrude or extend a surface in one or two directions to create a solid shape.

10. Revolve Boss/Base: To produce a solid feature by revolving a sketch entity in a direction.

11. Extrude Cut: Removes material either in one or two directions. Revolve Cut: It is used to remove the material from a revolved solid body either in one or two directions.

12. Swept Boss/Base: It creates the solid body around the sketch profile along an open or closed path.

13. Loft: It is used to create a complex shape between the multiple profiles and guide curves.

14. Dome: It creates a hemispherical shape on the face or surface of a body of specified radius.

15. Trim: It is used to delete the undesired entity without distorting the other parts.

16. Pattern: It is used to produce copies of an entity along a certain path.

17. Projected Curve: It project a curve on the model or surface and combination of 2D curves to get a 3D curve.

18. Split: It is used to cut two intersection surfaces or bodies along a given intersection point.

19. Appearance: Appling different materials, paints and colours to make the component look realistic.

20. Decals: Applying stickers or arts to the components.

DESCRPTION:

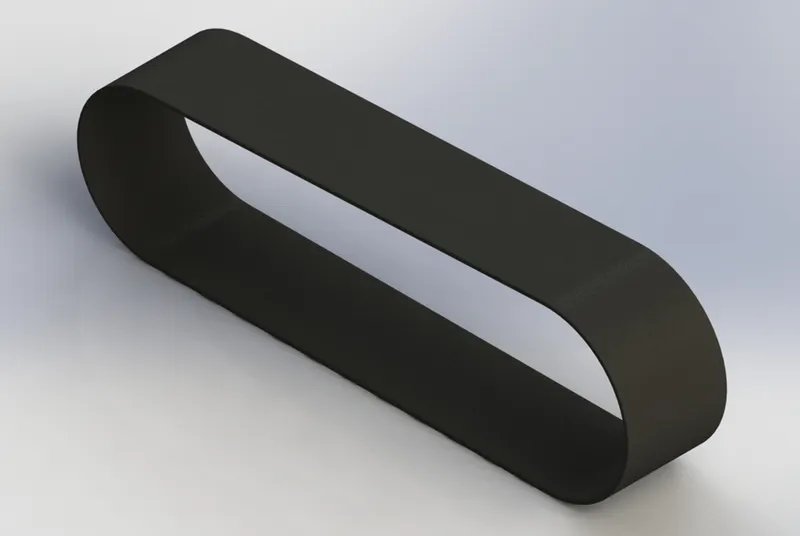

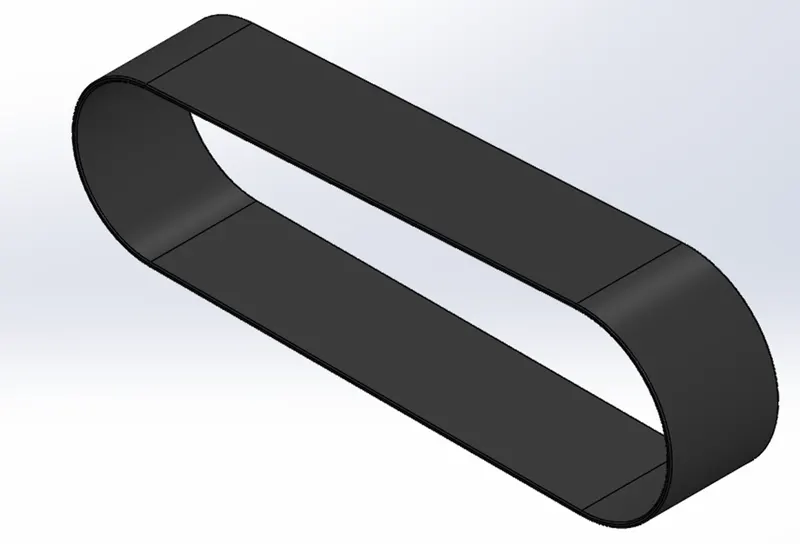

1. Transmission belt:

• It is used to transmit power from engine to the wheels.
• Usually made of rubber material of high elastic property.
• Forces the pulleys to rotate and helps in power transfer.

Tools used:

• Sketch tools: 3-point arc, line, circle, trim and offset entities
• Features: Extrude, fillet, Appearance.

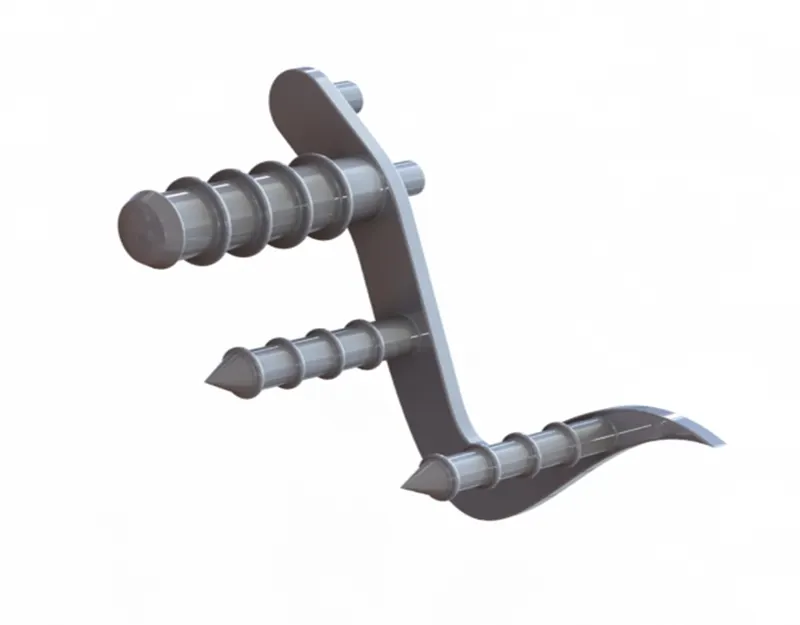

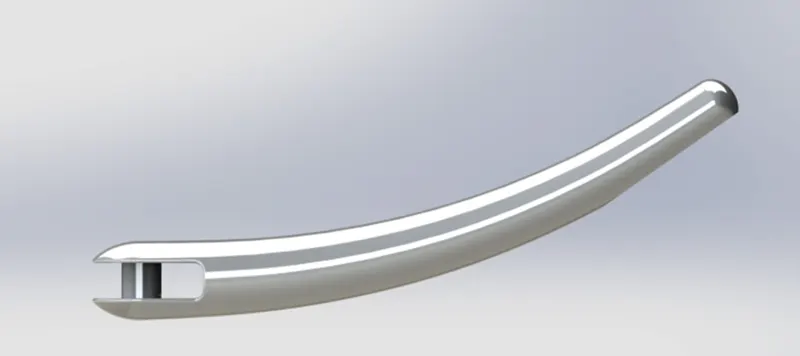

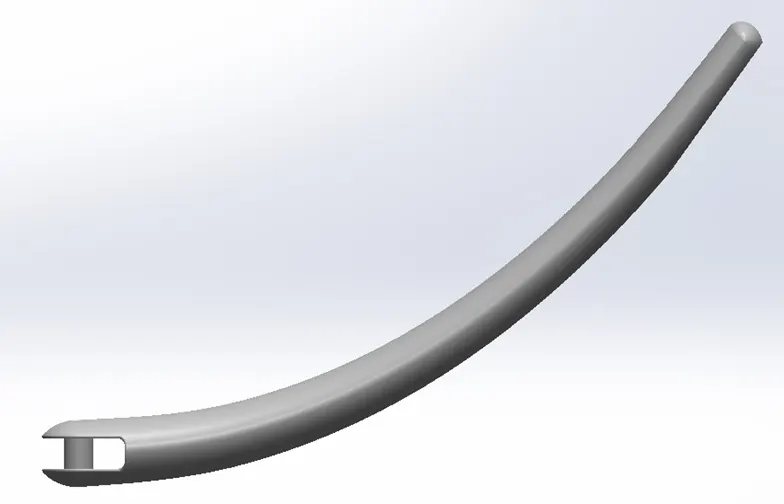

2. Kickstand:
3. It is a component used to support the vehicle in rest position.
4. It is attached to the chassis of the chopper.
5. It has high strength as bear the load of the bike.

Tools used:

• Sketch Tools: Ellipse, spline, pierce.
• Features: Loft, split, dome, extrude boss, extrude cut, fillet, appearance.

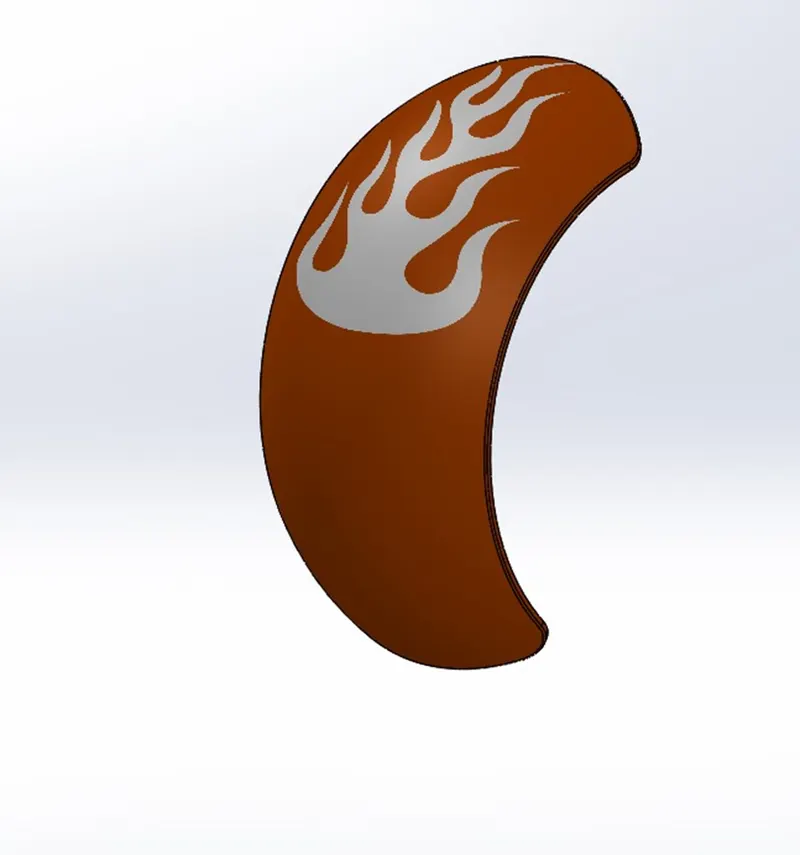

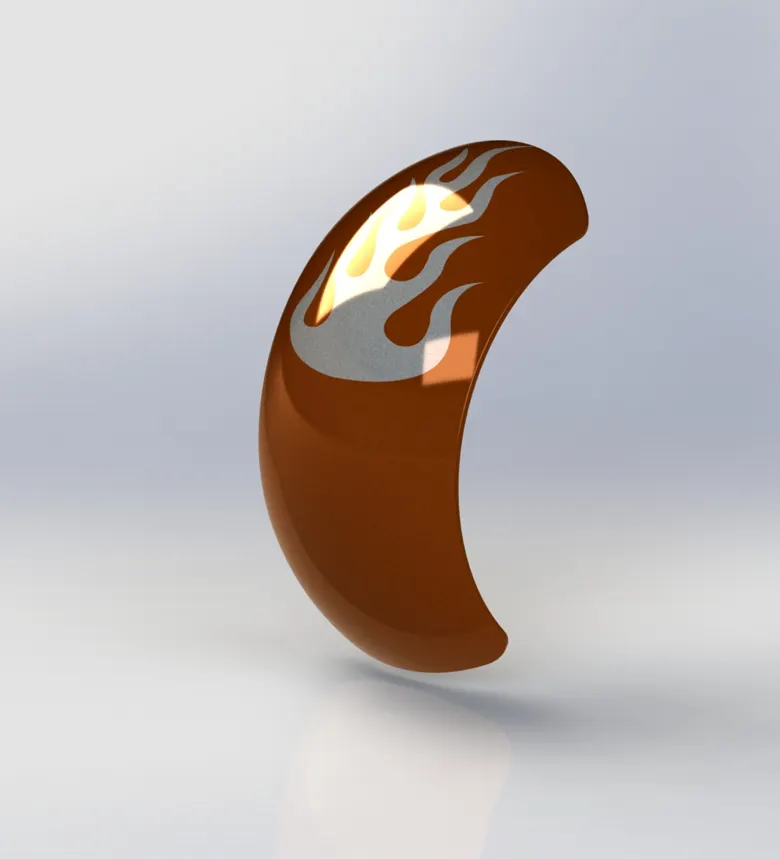

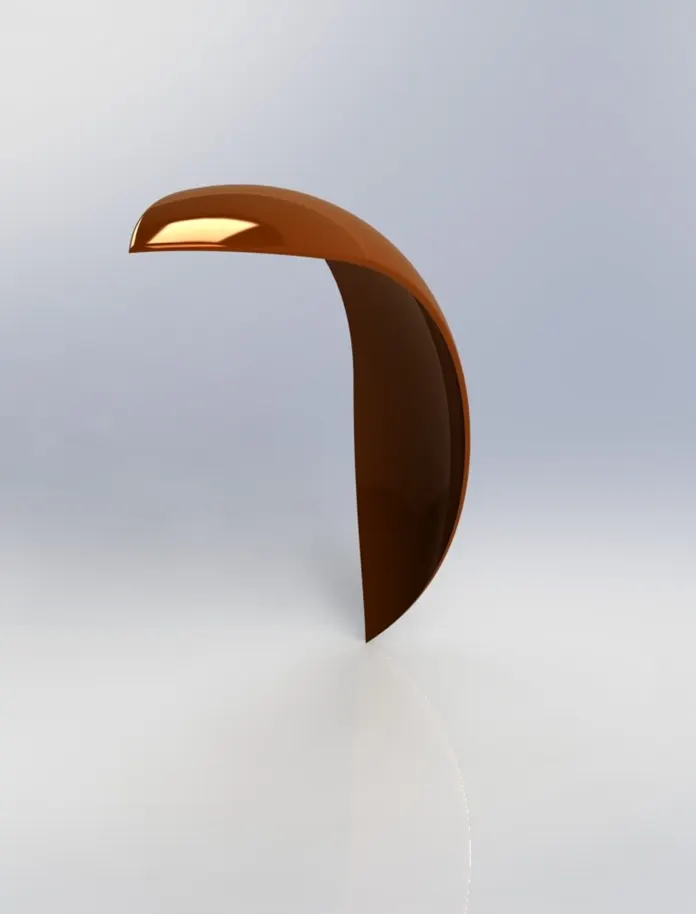

3. Front Fender:

• It is an automobile part that is used to cover the front wheel of the bike.
• Made of steel material of anti-rust coat paint.
• It is mounted over the wheel.
• Protects the rider from mud and dusts from rear sides.

Tools Used:

• Sketch Tools: 3-point arc, offset, line, spline.
• Features: Revolve, split, mirror entities, fillet, appearance.

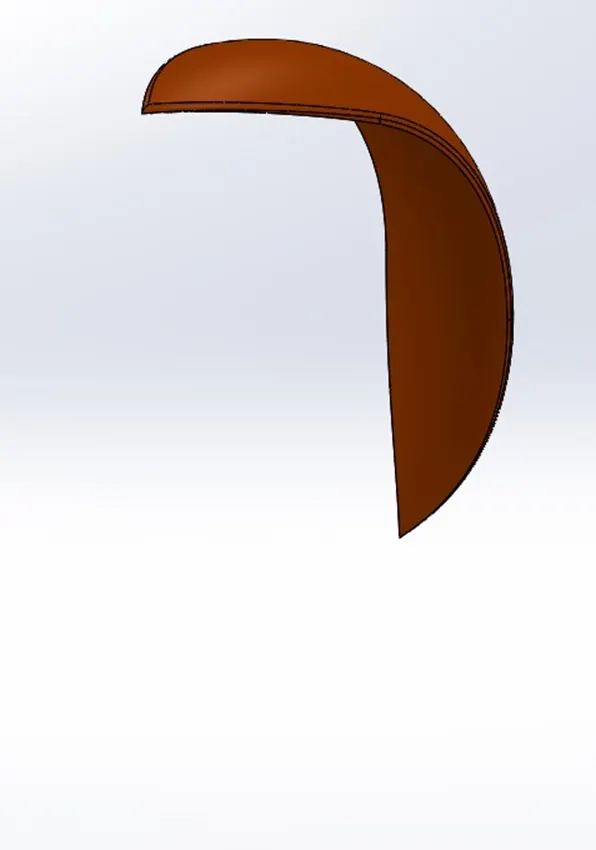

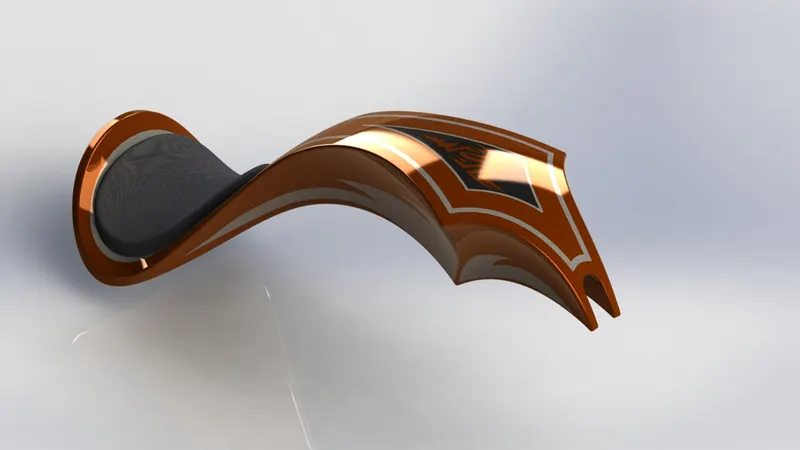

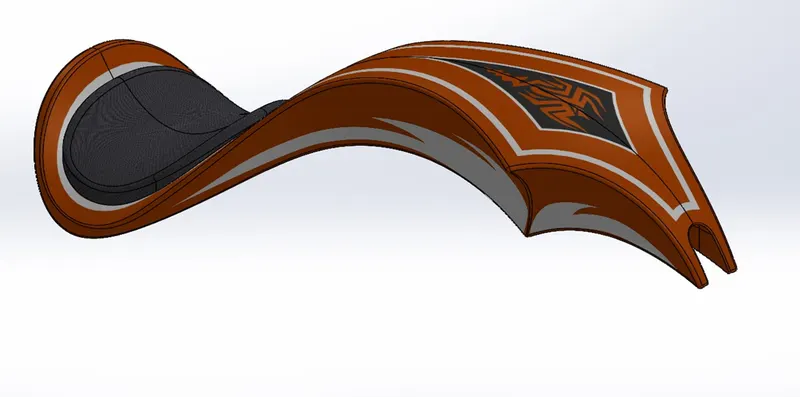

4. Rear Fender:

• It is an automotive component used to cover the rear wheel.
• It is mounted over rear wheel.
• It is used to protect rider by the stones, dusts, mud and gravel that is raised by the tire.

Tools Used:

• Sketch Tools: 3-point arc, offset entities, line, spline.
• Features: Revolve, split, extrude, fillet, appearance.

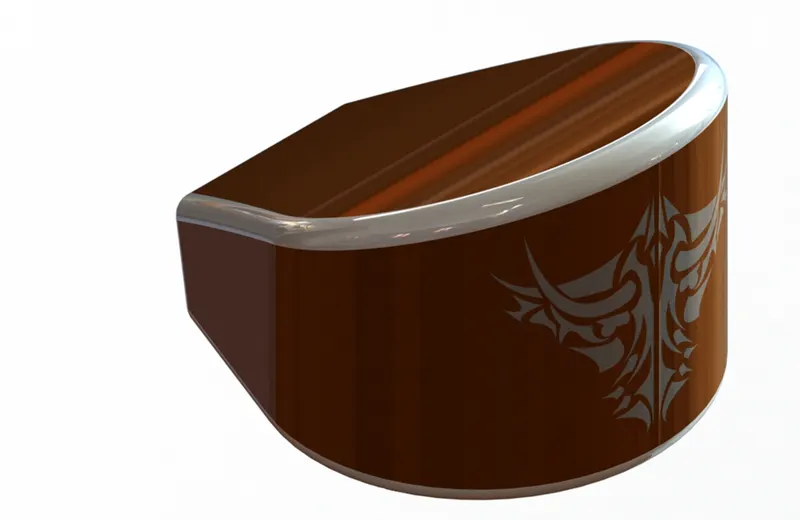

5. Oil Tank:

• It is used to carry the lubricating oil for the cooling of the bike.
• It is located below the seat and on the top of gearbox.

Tools Used:

• Sketch Tools: 3-poinr arc, line.
• Features: extrude boss, fillet, combine, shell, appearance.

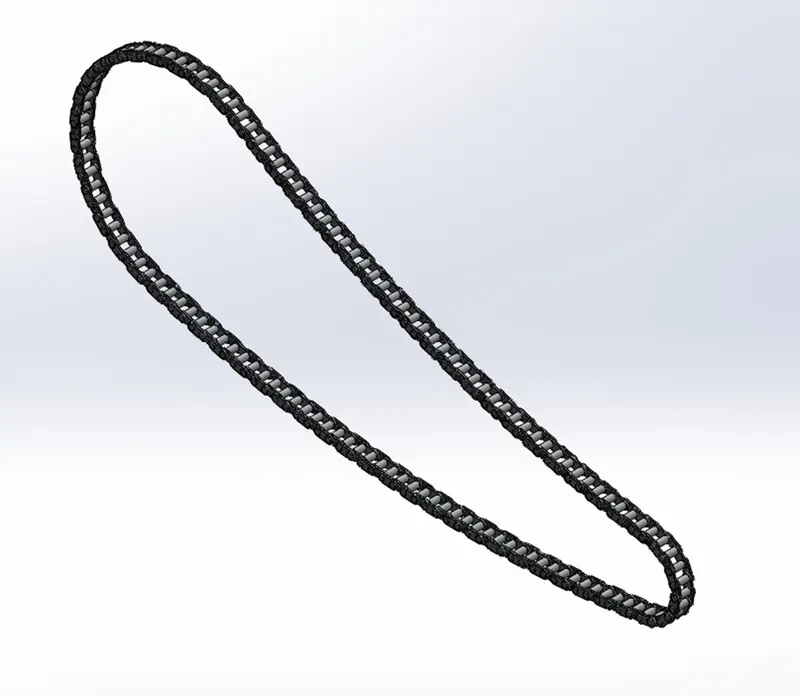

6. Chain:

• It is a way of transmitting mechanical power from one place to another.
• It is often used to convey power to the wheels of the bike.
• Chain pins are properly mating with sprocket without slip while run.

Tools Used:

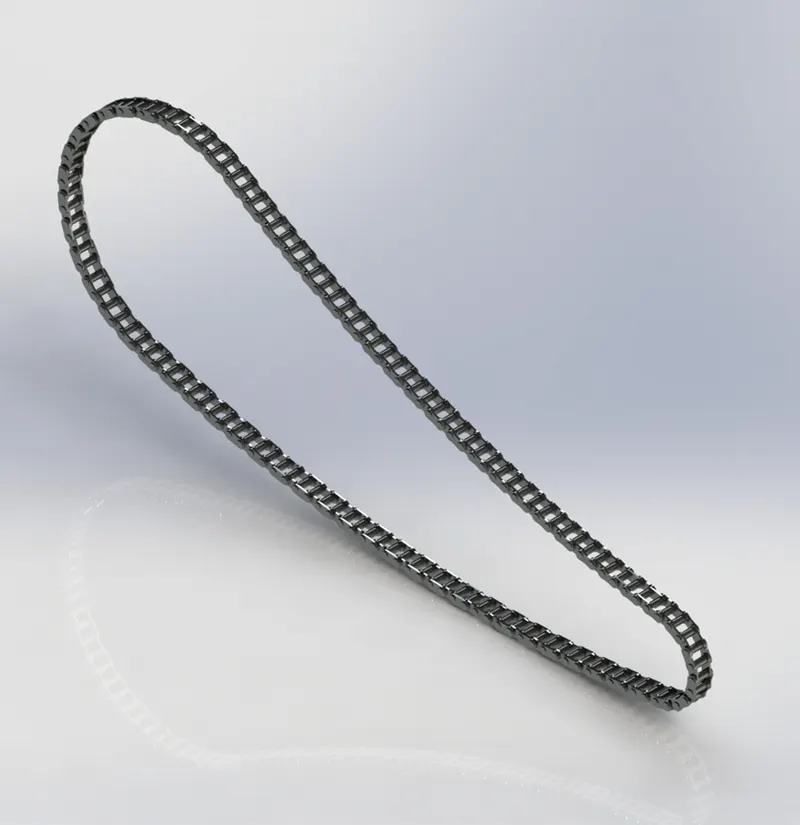

• Sketch Tools: 3-point arc, Centrepoint slots, circle.
• Features: Extrude boss, make and save blocks, fillet, curve driven pattern, mirror, appearance.

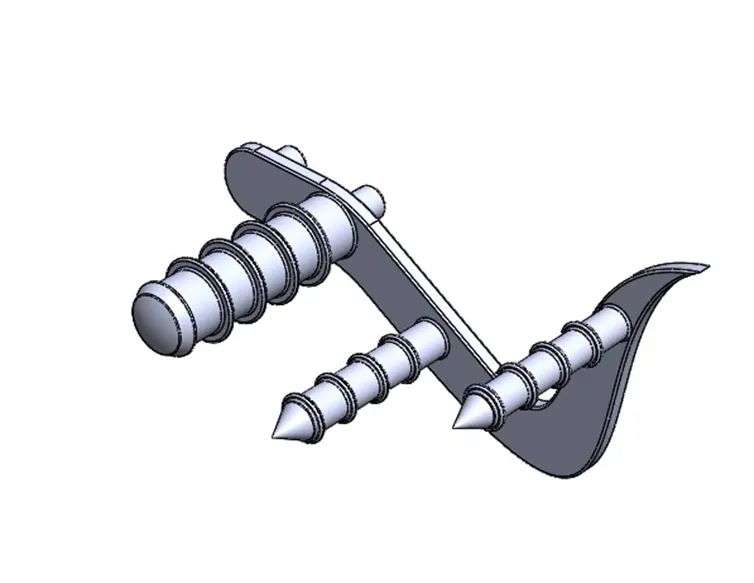

7. Pedal:

• It is an automobile machine component.
• It is used for keep the rider’s foot on it while riding the brake.
• The pedals are placed on the forward position of chopper.

Tools Used:

• Sketch Tools: 3-point arc, circle, spline, line, sketch fillet.
• Features: Extrude boss, revolve, fillet, dome, champer, linear pattern, appearance.

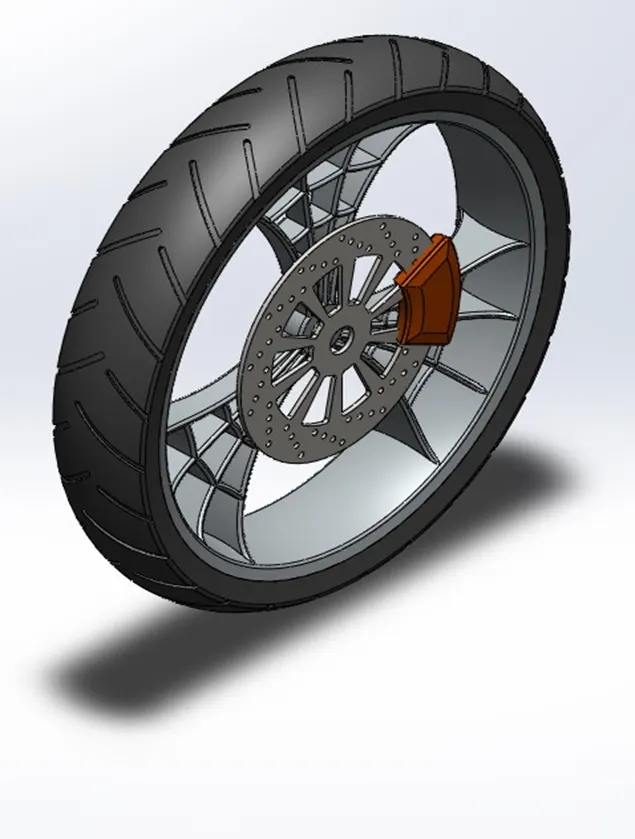

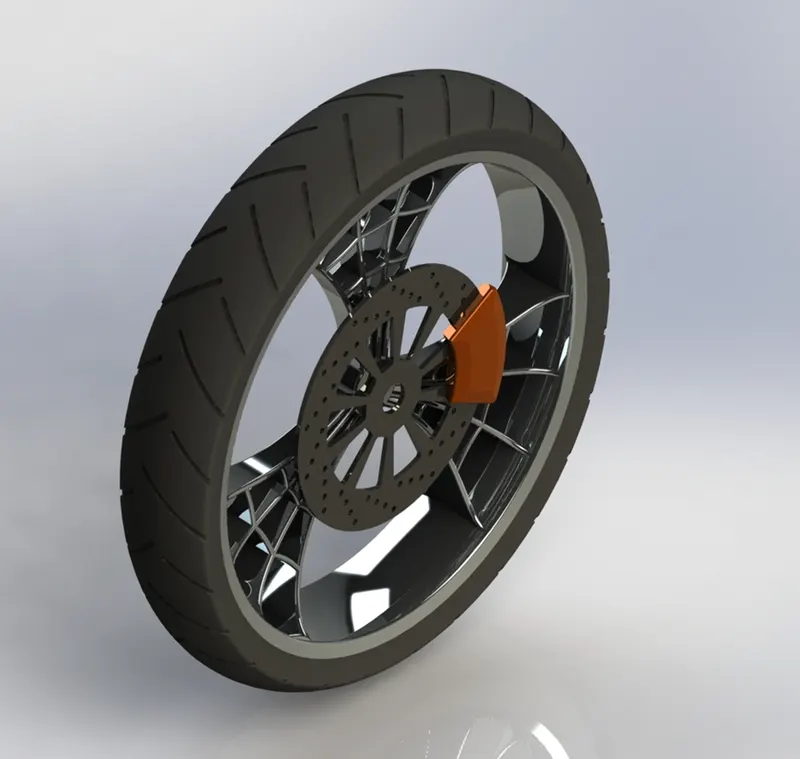

8. Front Wheel:

• The front wheel consists of rim, tire, disc, brake, rotor and calliper.
• Tires are the main contact surface to the ground.
• It is responsible for turning the chopper sideways.
• Front Wheel of the chopper is always larger in diameter then rear wheel.

Tools Used:

• Sketch Tools: 3-point arc, line, mid-point line, circle, sketch fillet, trim, extend entity, 3-point centre rectangle.
• Features: Revolve, extrude boss, extrude cut, revolve cut, circular pattern, combine, fillet, champer, appearance.

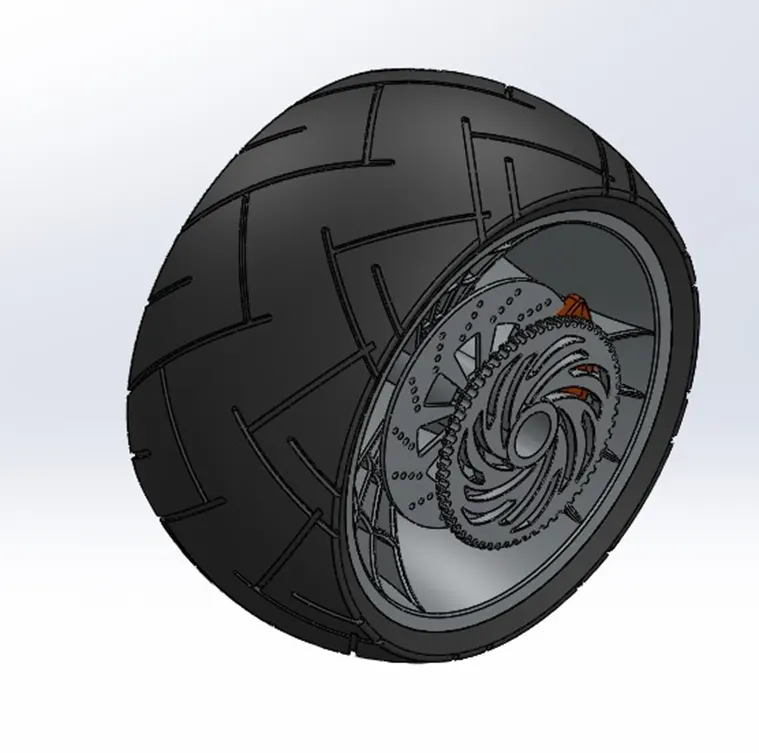

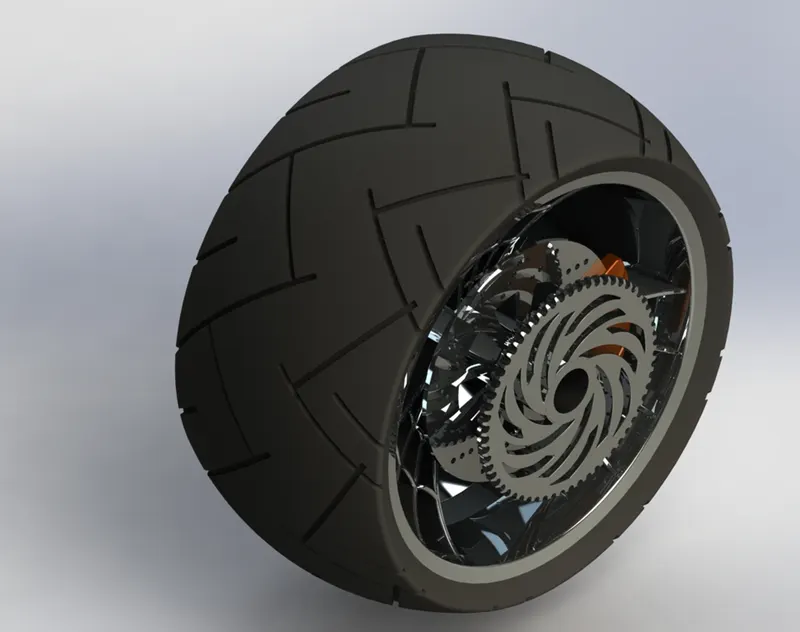

9. Rear Wheel:

• The rear wheel consists of rim, tire, rotor, calliper and sprocket.
• Rear wheel of the chopper is generally smaller as compared to the front wheel in diameter.
• The wheel is connected to the chain sprocket to drive the wheel by using transmission of engine.

Tools Used:

• Sketch Tools:3-point arc, line, spline, mid-point line, circle, sketch fillet, trim, extend.
• Features: Revolve, extrude boss, extrude cut, revolve cut, circular pattern, combine, fillet, champer, appearance.

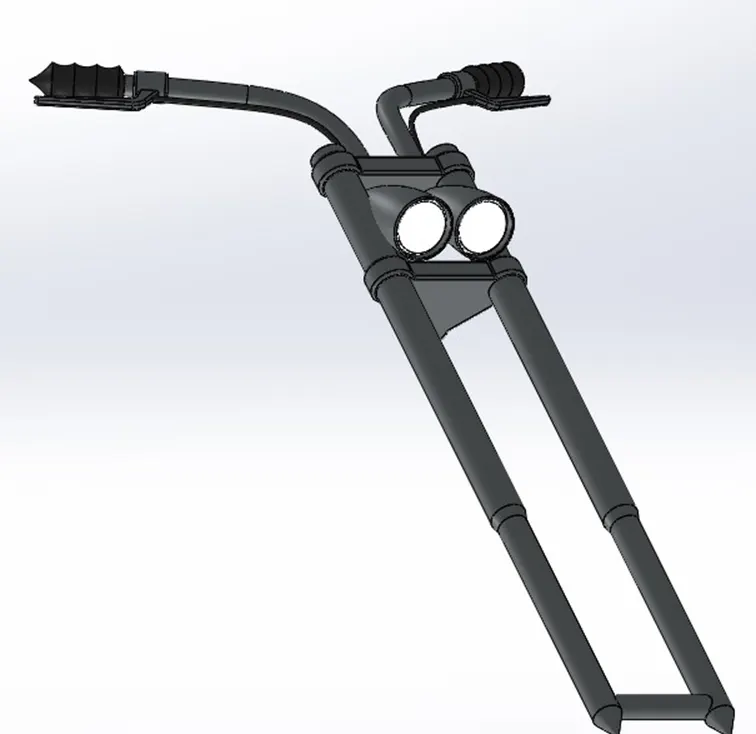

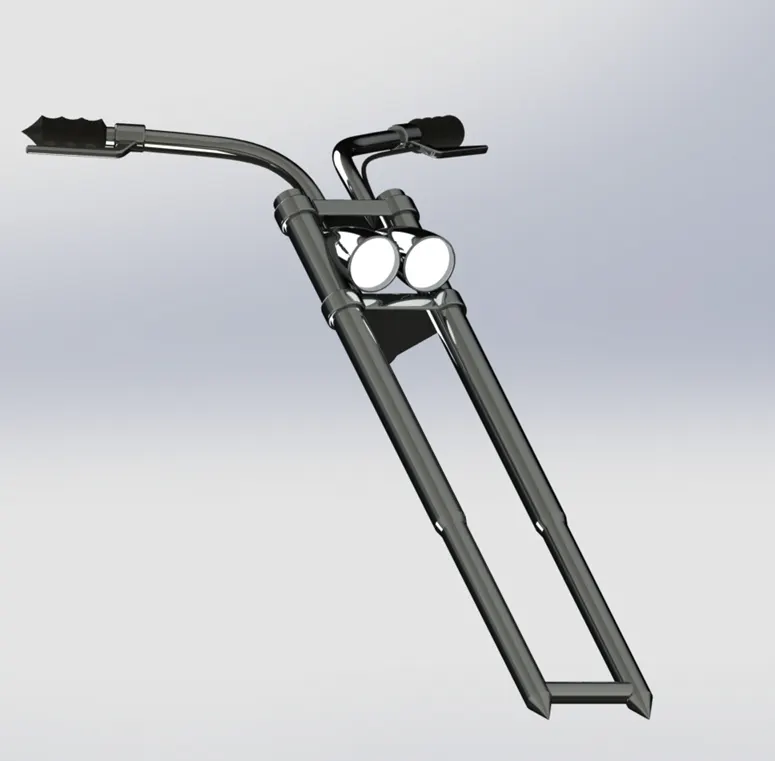

10. Front Fork:

• It consists of handle bar, handle grip, triple clamp, brake lever, clutch lever, cables and axes.
• It is a component connects with the front wheel of the chopper and axle to its frame which is called telescopic forks.
• It has two prongs that go around each side of the wheel.
• The front wheel is held by an axle and connected to fork.

Tools Used:

• Sketch Tools: 3-point, lines, spline, circle, trim.
• Features: Revolve, extrude boss, linear pattern, extrude cut, revolve cut, dome, Body move, curves-projected, sweep, reference-geometry-plane, mirror, combine, fillet, appearance.

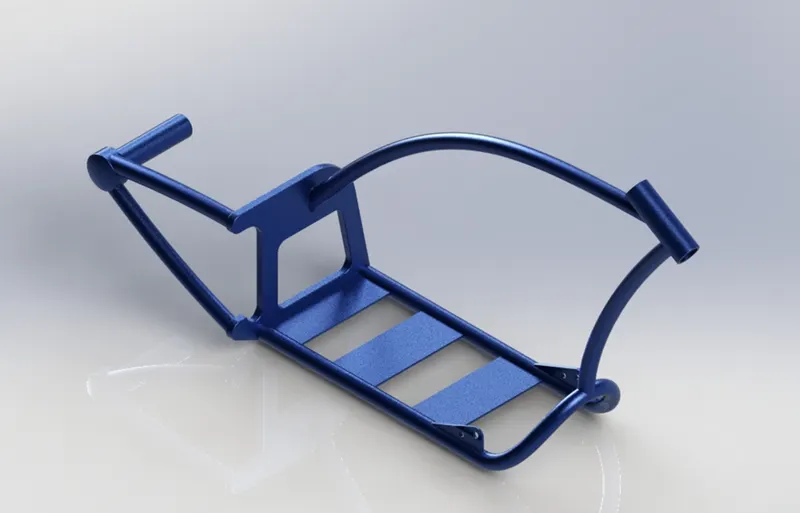

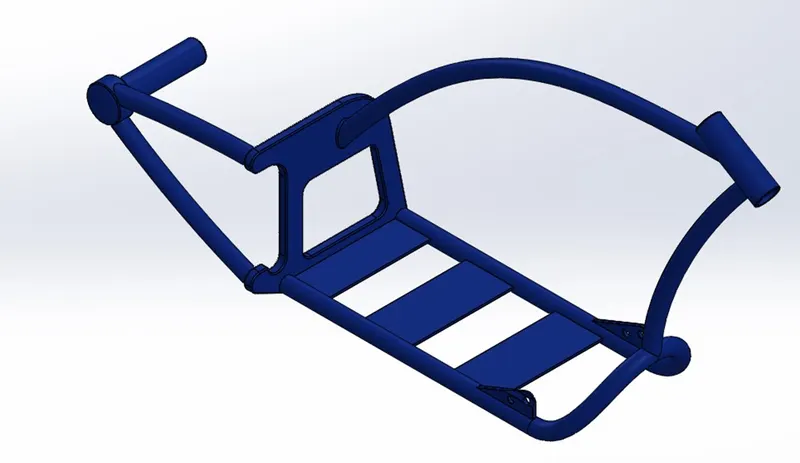

11. Chassis:

• Chassis is the backbone of the American chopper bike.
• Chassis component should be made up of high strength materials.
• It held the all parts of the American Chopper.

Tools Used:

• Sketch Tools: Sketch picture, lines, spline, circle, trim.
• Features: Extrude boss, extrude cut, revolve, dome, curves-projected, sweep, split, reference geometry-plane, mirror, combine, fillet, champer, appearance.

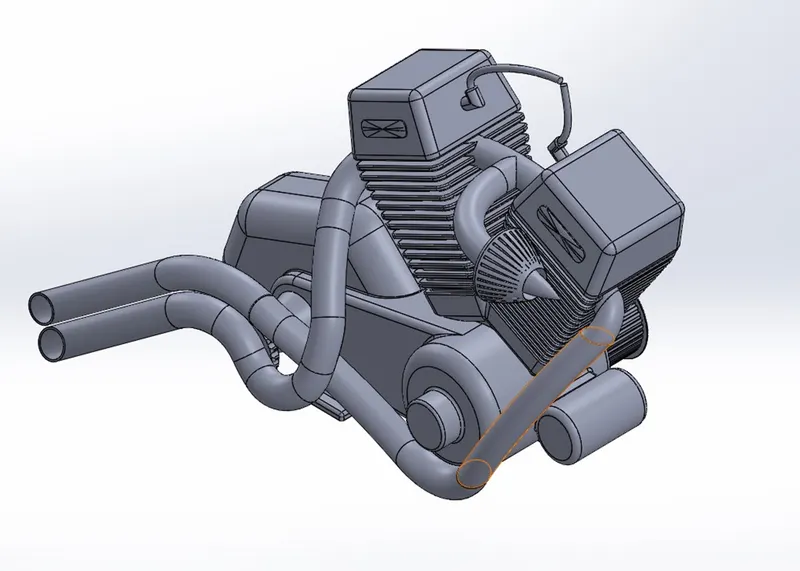

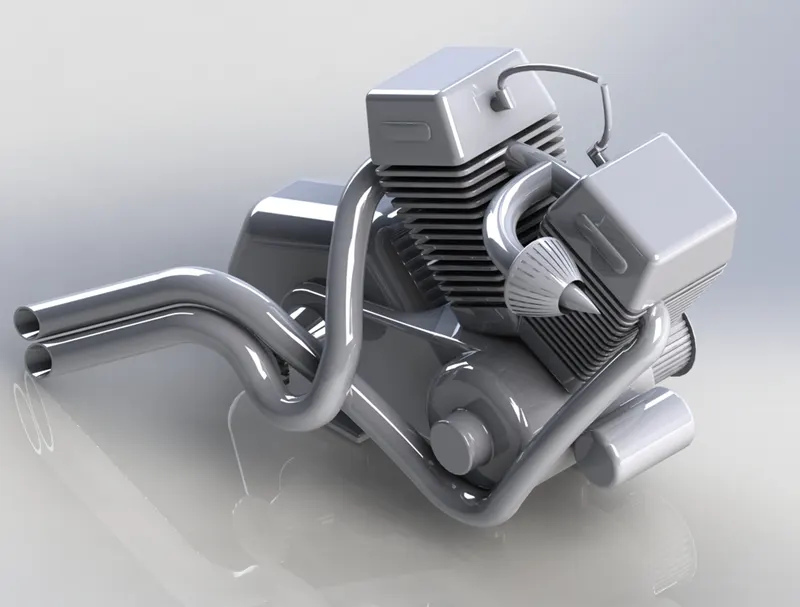

12. Engine:

• Engine is the power source of the bike.
• Bike engine are typically two strokes or four stroke internal combustion engine.
• The consists of cylinder, pistons, connecting rod, crankshaft, sparkplug and each cylinder, transmission pulleys, air cooling fin, starter motor, starter motor, front sprocket for chain drive. exhaust pipe and casing for sump gear box.

Tools Used:

• Sketch Tools: Sketch picture, lines splines, circle, circular sketch pattern, construction line, centre point rectangle, trim.
• Feature: Extrude boss, extrude cut, revolve, dome, curves-projected, composite-curves, sweep, split, reference geometry-planes, circular pattern, linear pattern, mirror, champer, appearance.

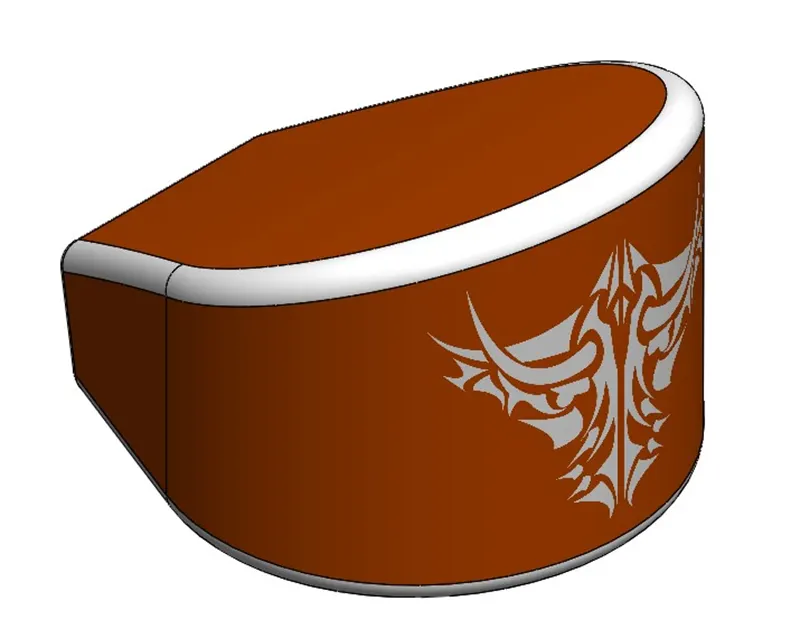

13. Gas Tank:

• A fuel tank is the safe storage component.
• Safety of the fuel is the main criteria in designing the fuel tank.
• The term is typically applied to the part of the engine system in which the fuel is stored and propelled or released into an engine.
• The fuel tank of American Chopper is made to house with seat and attached centrally to the chassis.

Tools used:

• Sketch Tools: Sketch picture, lines, construction line, trim.
• Features: Surface sweep, surface loft, surface trim, boundary surface, surface knit, surface extrude, curves, projected curves, split line, sweep cut, reference geometry-planes, mirror, shell, fillet, appearance.

ASSEMBLY OF AMERICAN CHOPPER:

• Select the assembly option on the Solidworks software.
• Open all the part files on the assembly files.
• Assemble all the parts in the assembly.
• Apply the mates to all parts with planes as well between the parts.
• Standard mates are: Coincident, parallel, concentric.
• Advance mate: width mate.

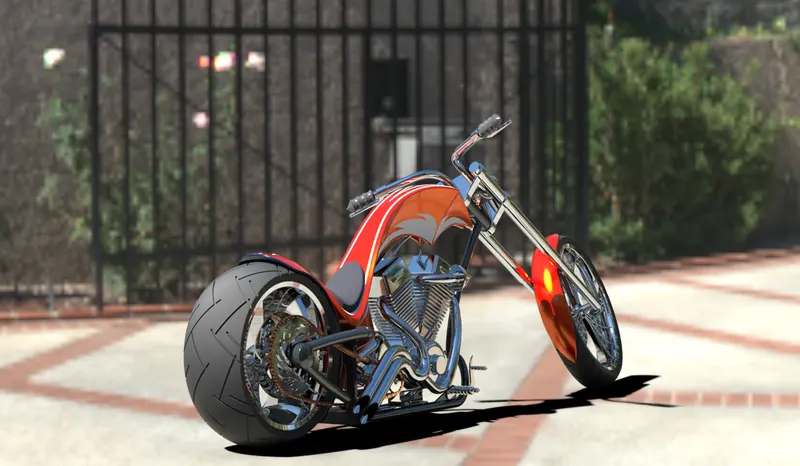

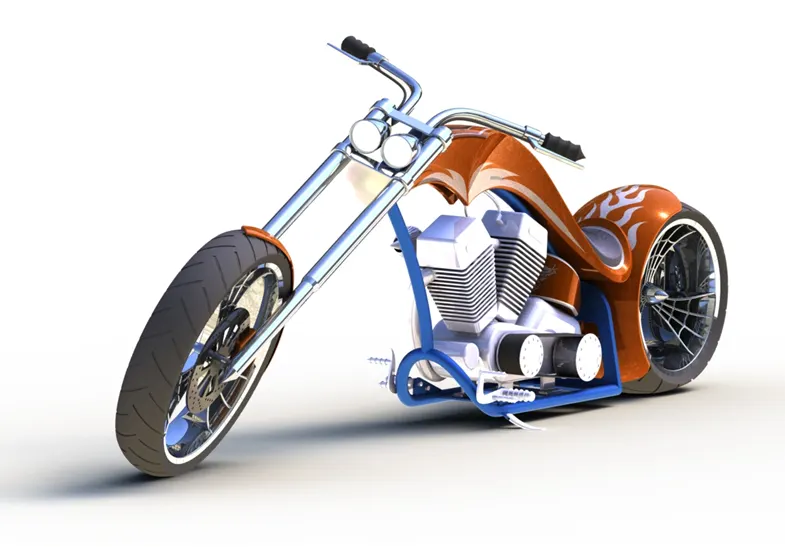

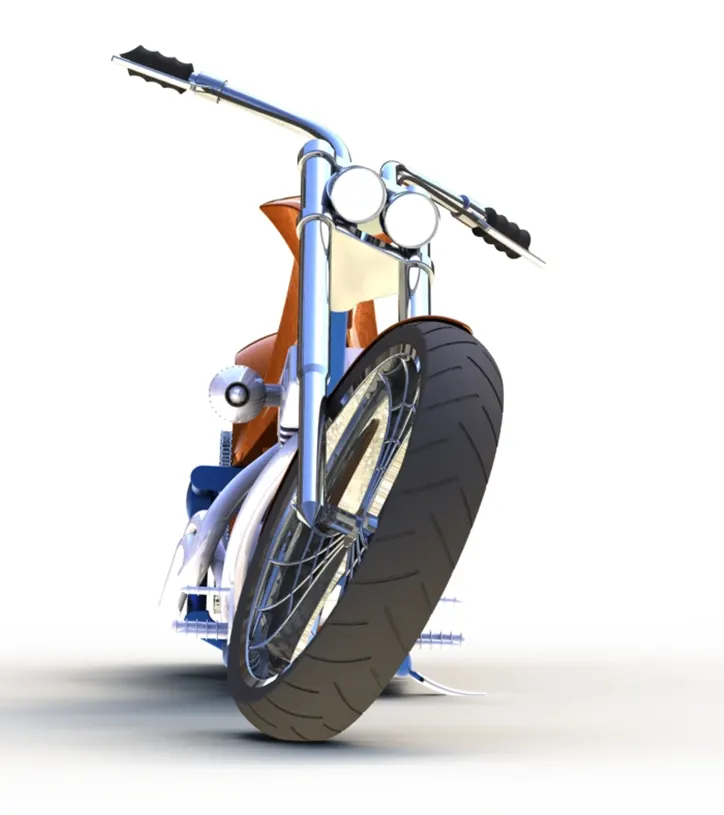

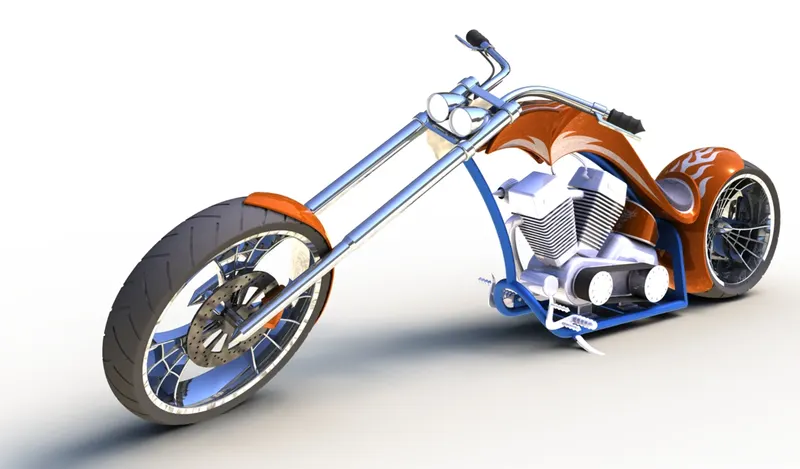

PHOTOREALISTIC RENDER:

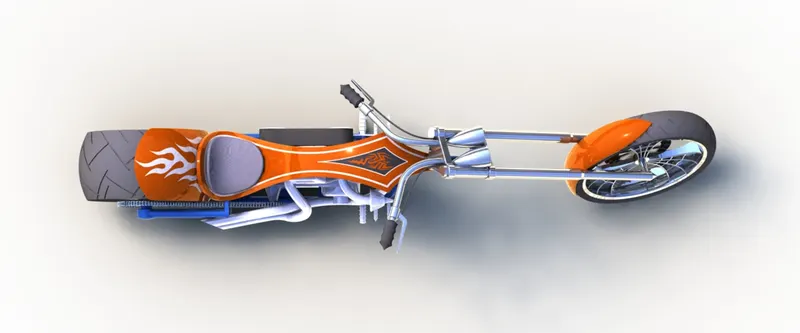

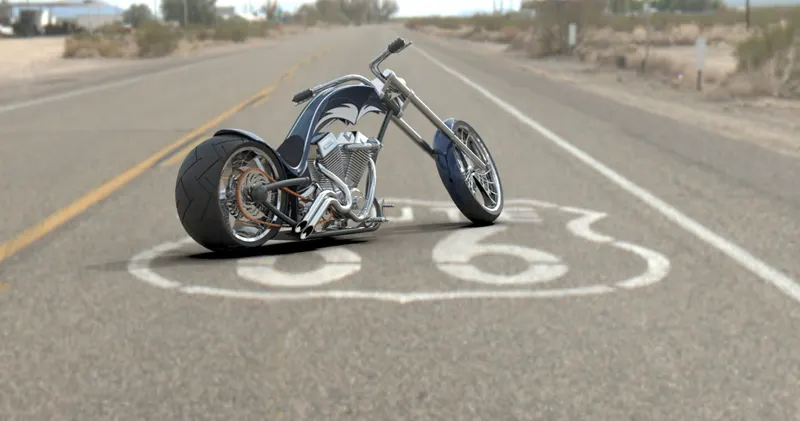

It is the image of the model produced after applying decals, appearances, cameras and scenes. Overall, it is defined as the final outcome of all the commands and tools used to design the chopper in a desired surrounding with proper lightings and looks.

CONCLUSION:

Designing, assembling and preparing the photorealistic rendering using Solidworks is successfully completed.
