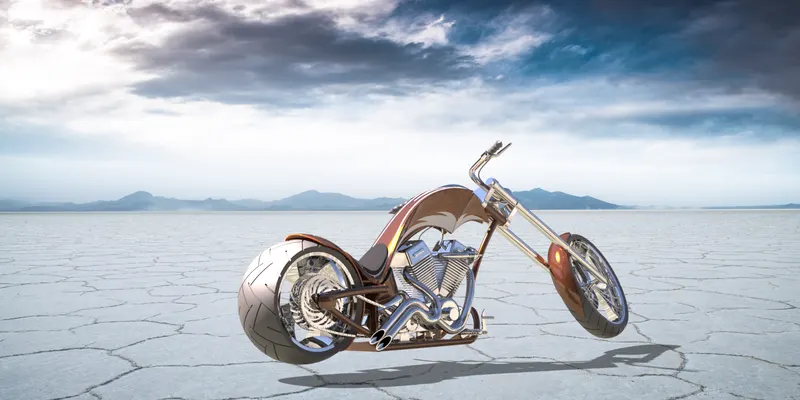

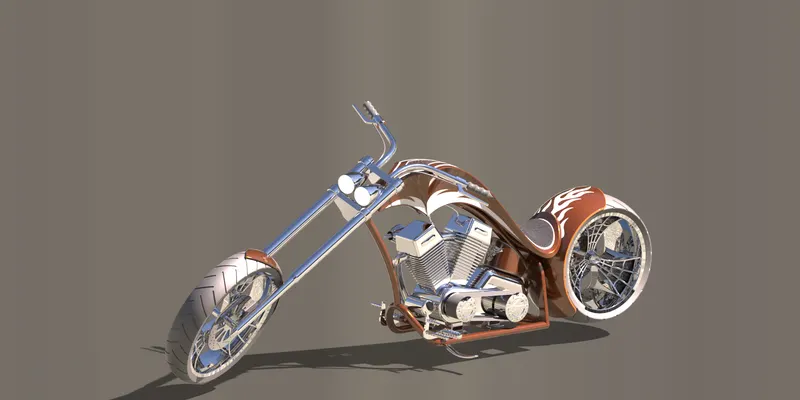

Photo Realistic Rendering

AMERICAN CHOPPER

Objective : To design individual parts and assemble to make an American Chopper along with photo realistic Renderings

Introduction : The American Chopper is one of the iconic designs. The parts went into making the desing are

- Front Fork with Head Lights

- Chain

- Chassis

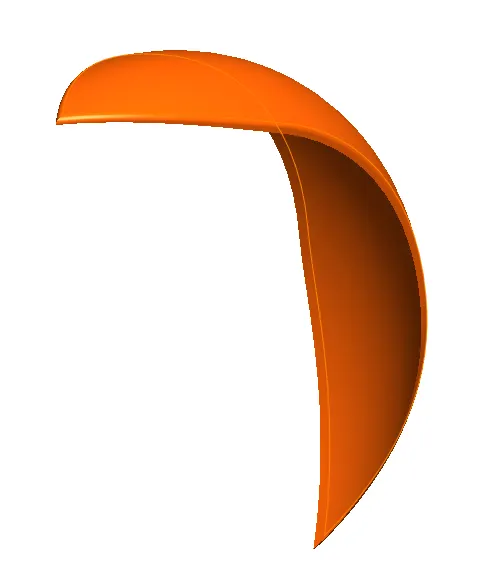

- Front Fender

- Front Tyre

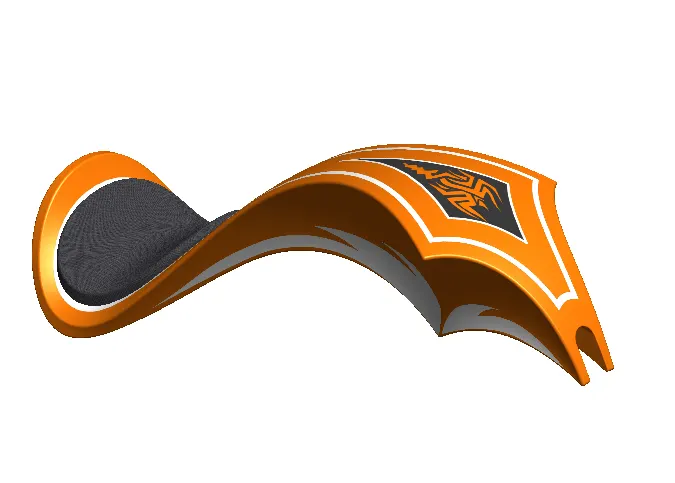

- Rear Fender

- Rear Tyre

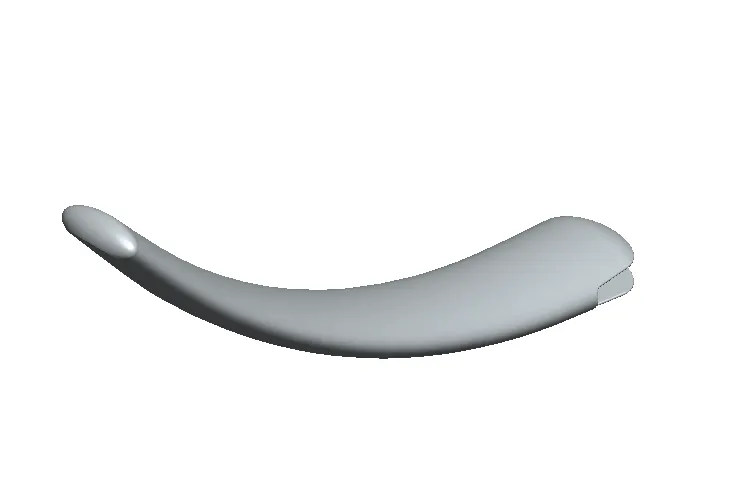

- Oil Tank

- Pedal

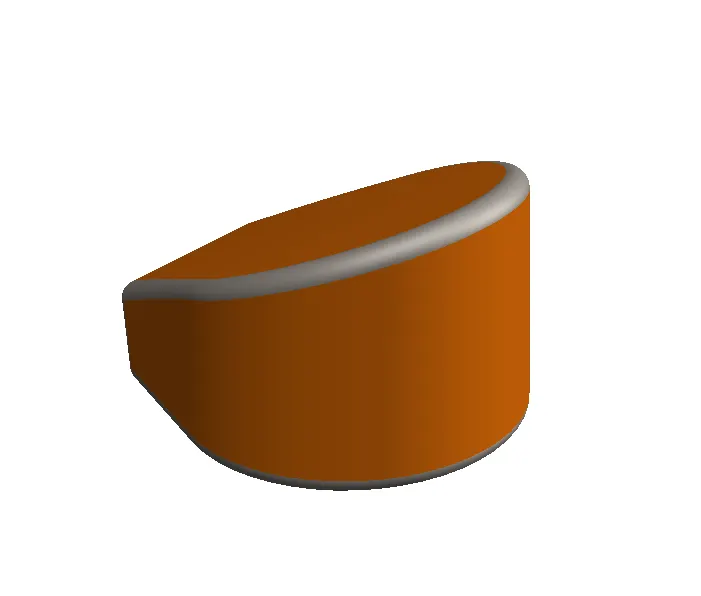

- Gas Tank

- Transmission Belt

- Kickstand

- Engine

Design Methodology

PART DESIGN (Sketch and 3D) -------> ASSEMBLY (Bottom Up Assembly of Parts) -------> RENDERING (Photoview 360 and Solidworks Visualize)

DESCRIPTION

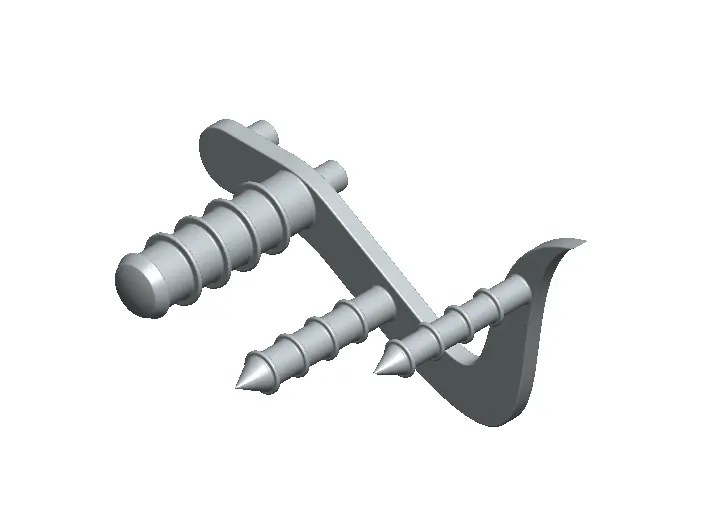

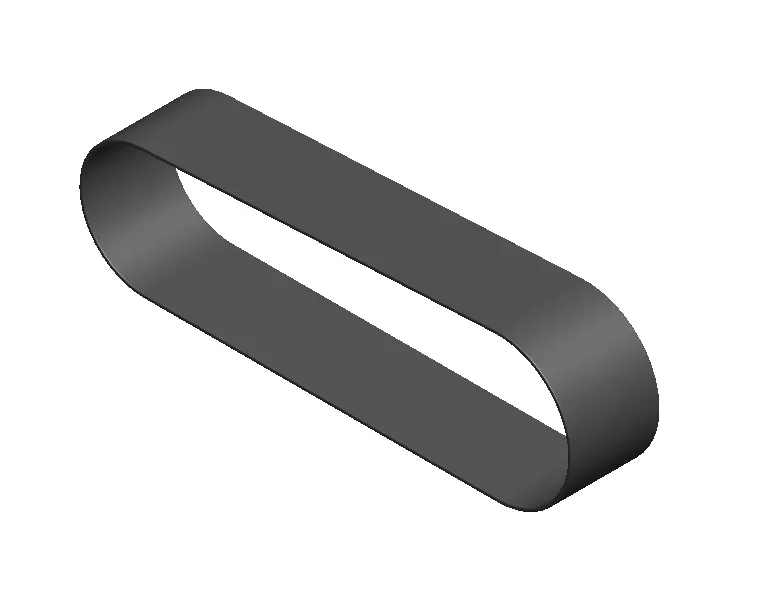

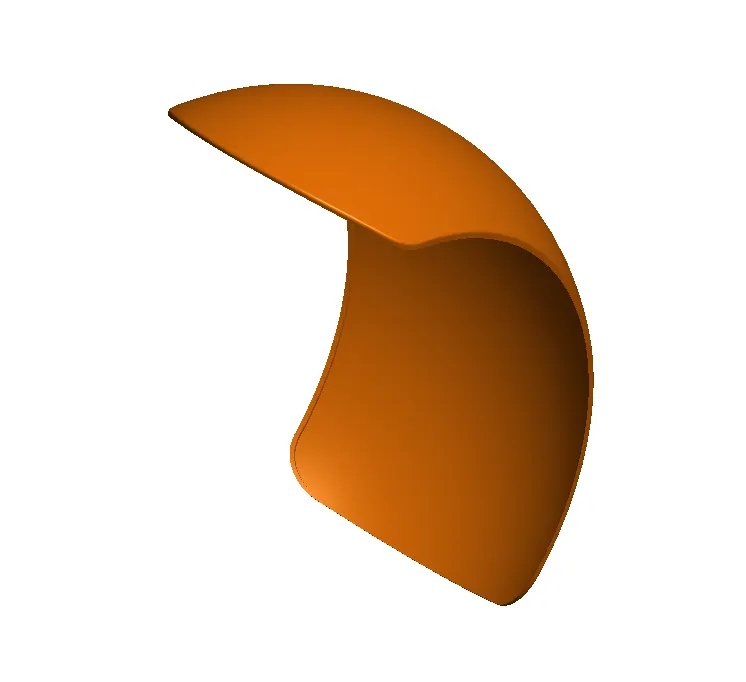

1. Designing of Transmission Belt, Kick Stand, Rear Fender and Front Fender

Features used

- Lines

- Circles

- Extrude

- Revolve

- Dome

- Fillet

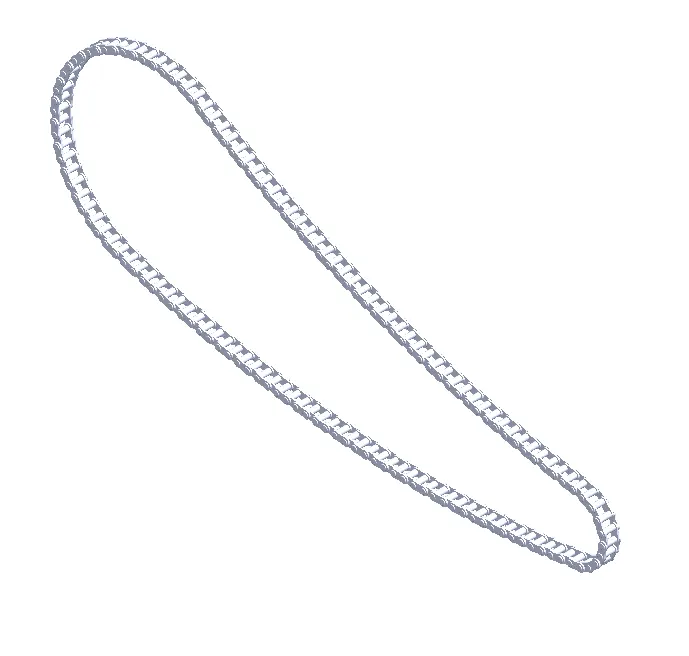

2. Designing of Oil Tank, Chain, Pedal

- Sweep

- Revolve

- Spline

- Trim

- Extrude Cut

- Curve Driven Pattern

- Solid Combine

- Sketch Block (used in chain)

3. Designing of Front Wheel, Rear Wheel, Front Fork

- Sweep

- Revolved Cut

- Circular Pattern

- Combine

- 3D Sketch

- Mirror Pattern

- Projected Curve

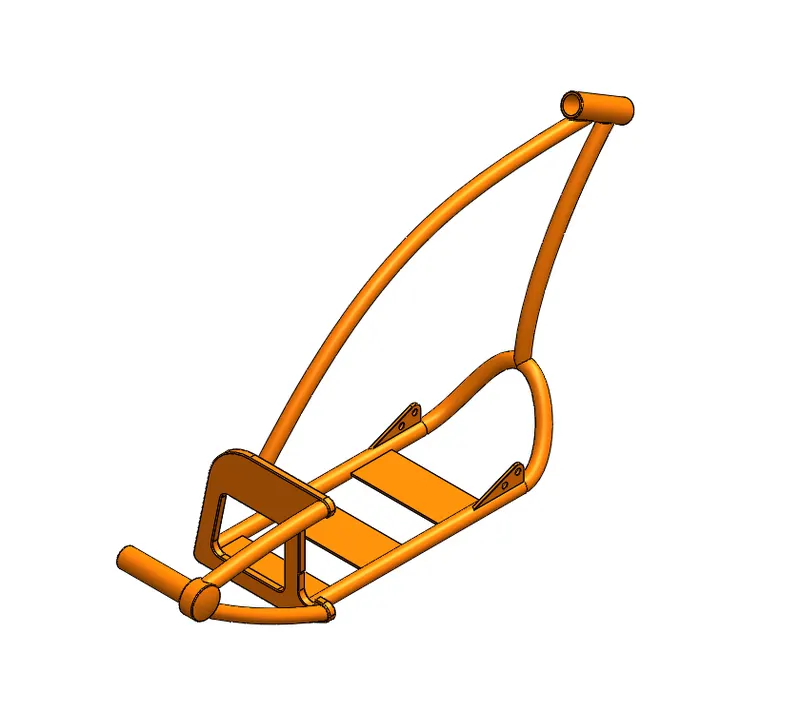

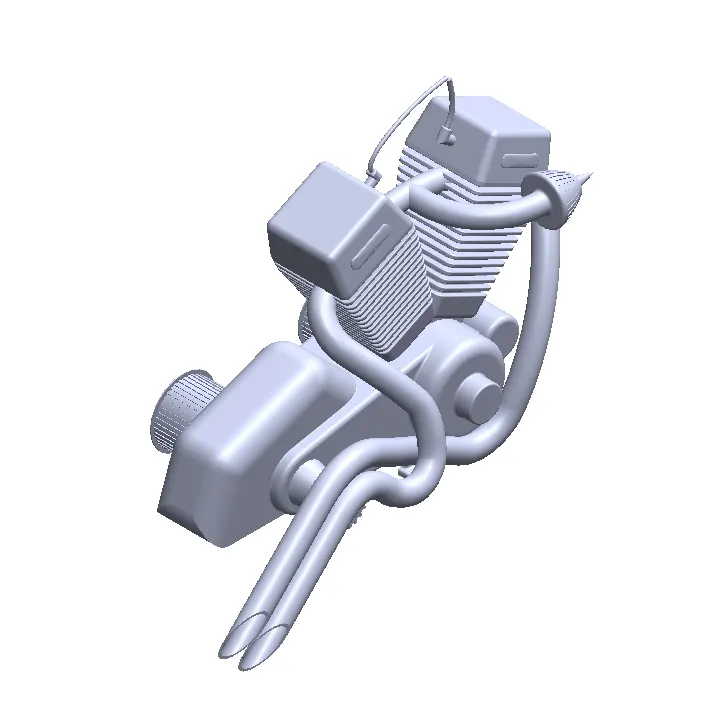

4. Designing of Chassis, Engine, Gas Tank

- Sweep

- Revolve

- Dome

- Projected Curve

- Split

- Mirror

- Surface Loft

- Surface Sweep

- Knit Surface



The individual parts are assigned with different Aesthatic and Materialistic appearance

 Assembly

The above Parts are assembled using

- Coincident Mate

- Concentric Mate

- Parallel Mate

- Distance Mate

- Advance Mate

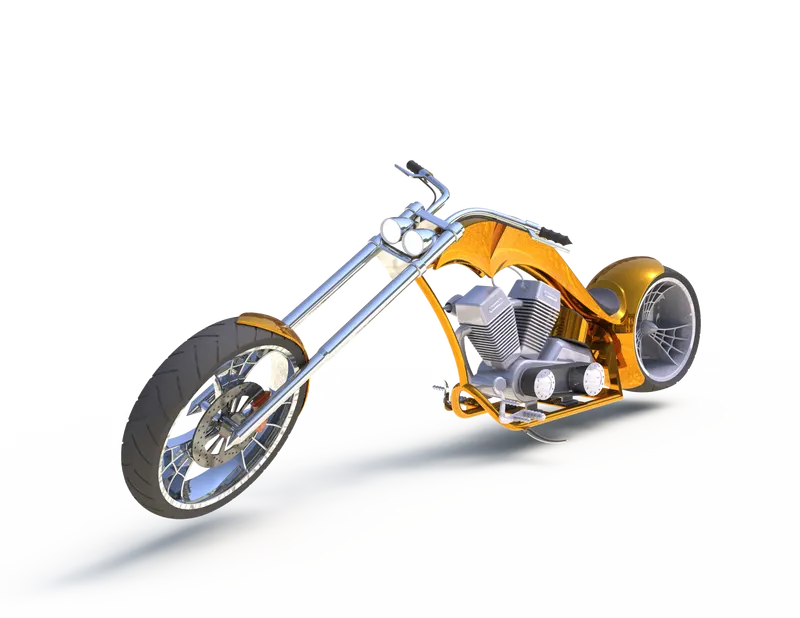

PHOTOVIEW 360

1. Camera View

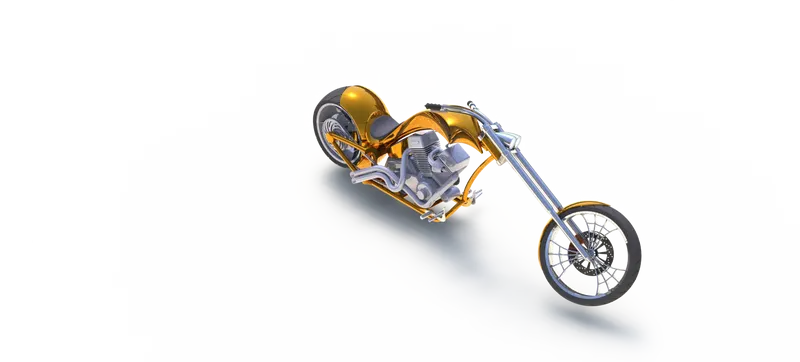

2. Isometric View

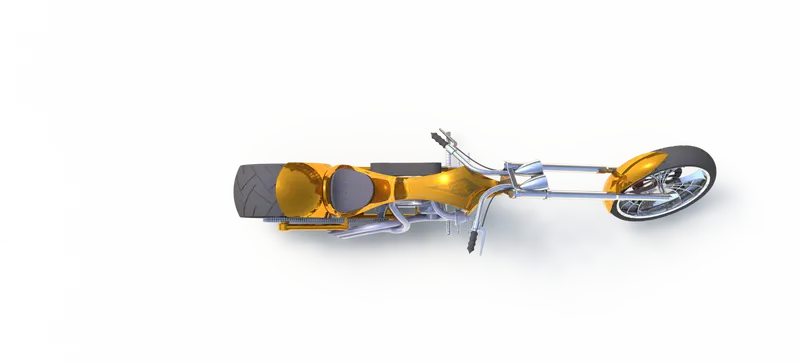

3. Top View

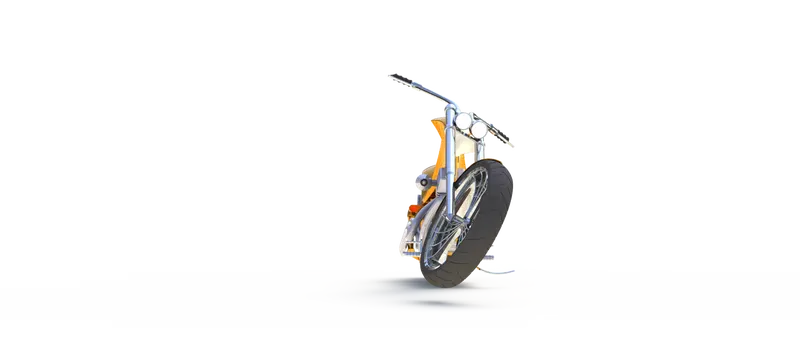

4. Front View

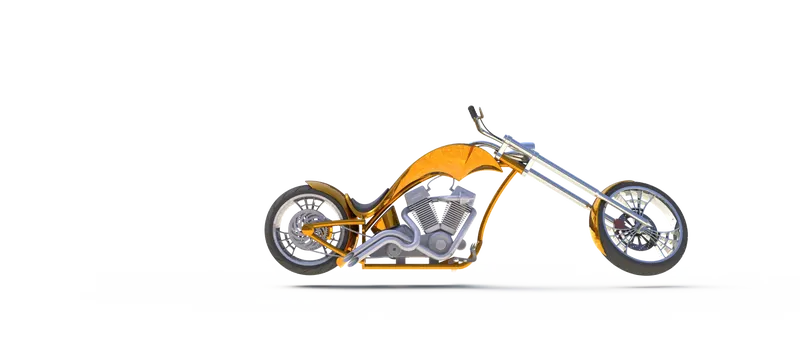

5. Side View

SOLIDWORKS VISUALIZE

Conclusion

The Part Designing, Assembly and Rendering using two different platforms is successfully accomplisjed using Solidworks
