Introduction to REVIT concepts
INTRODUCTION TO REVIT CONCEPTS:-
1)From the file menu, create a new project (Structural/Architectural/Constriction template)& name the project appropriately.
AIM:-
.To create a project, select a template from the projects list or the new project dialog box.
.To configure the project, choose to manage project information & enter information in the project information dialog box.
.Revit then update the title block for every sheet.
PROCEDURE:-
STEP1:-

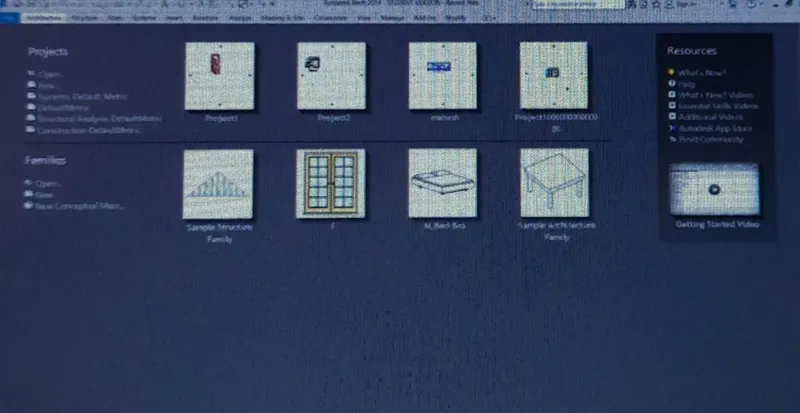

.First, open the Revit software as shown below.
STEP2:-

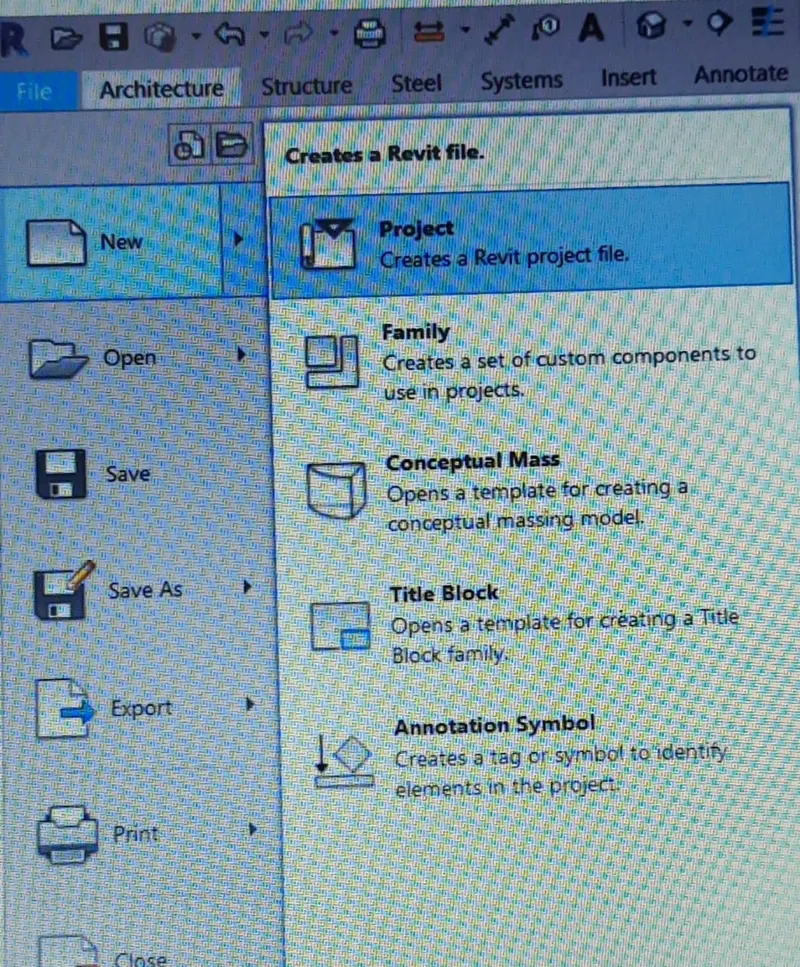

.Next select the file toolbar, the new tab is visible.Then select the new option.
.From the new option select the project to create new project as shown below.
STEP3:-

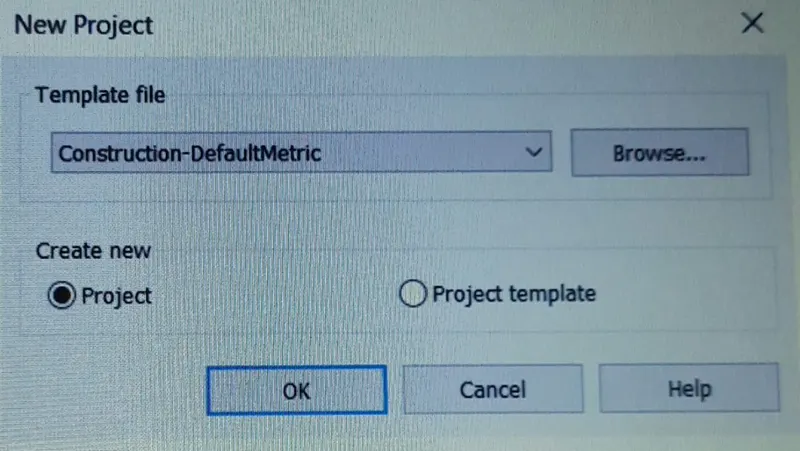

.Next the template file tab will be visible on the screen.
.Select the construct template in the template in the template file as shown below.
STEP4:-
.Next, we need to name the project.

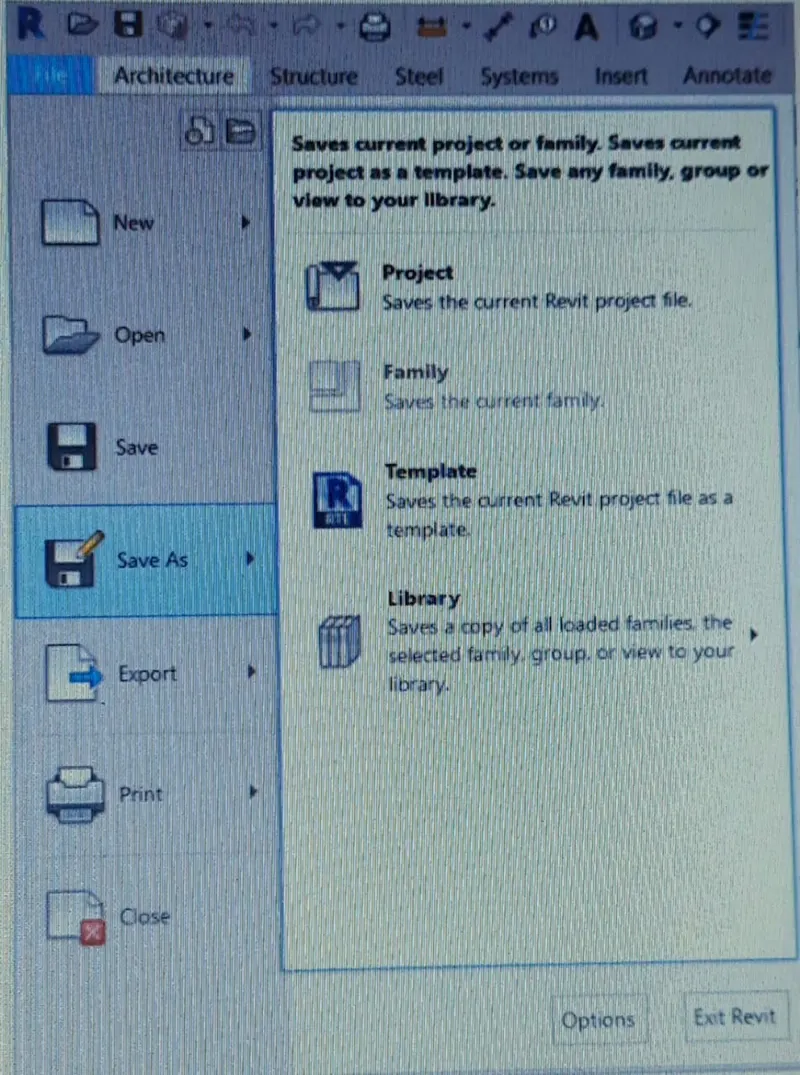

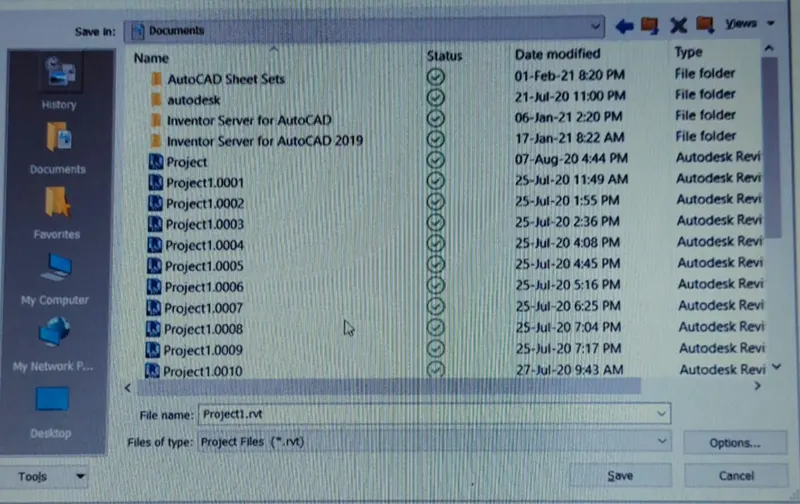

.Open the File toolbar, click on the save as option, then the new tab will be visible.

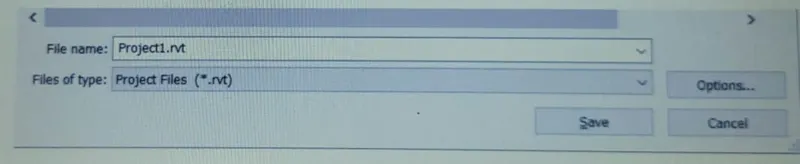

.Then name the project as project1.rvt as shown below.
RESULT:-
.Created a new project from the file menu & saved the project with the name of project1.rvt.
2)Save the new project file close & open using icons from file toolbar.
AIM:-
To save the new project file & need to close & open using icons from the file toolbar.
INTRODUCTION:-
.For creating a project, select a template from the project list or the new project dialog box.
.To configure the project, choose the manage project information dialog box.
.Revit then updates the titles block for every sheet.
.By opening the file the previous files tab will be open & then we need to select any file from the previously created files.
. By clicking the close option the project will be closed.
PROCEDURE:-
STEP1:-

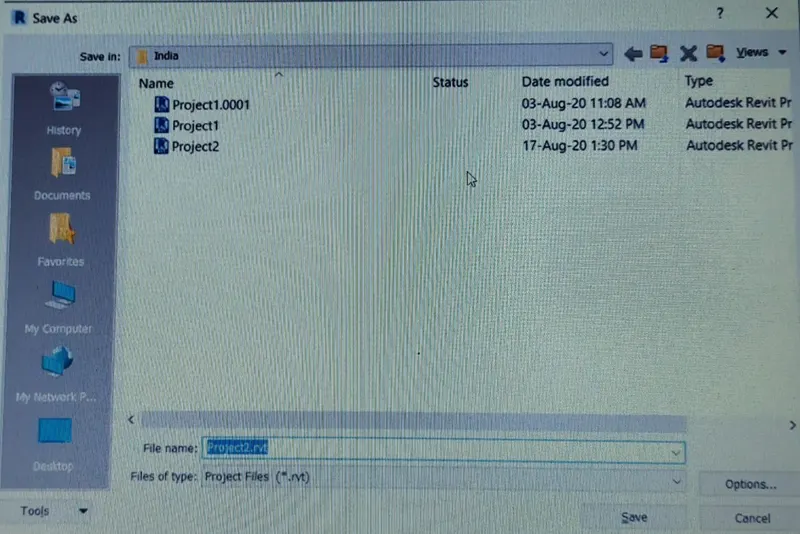

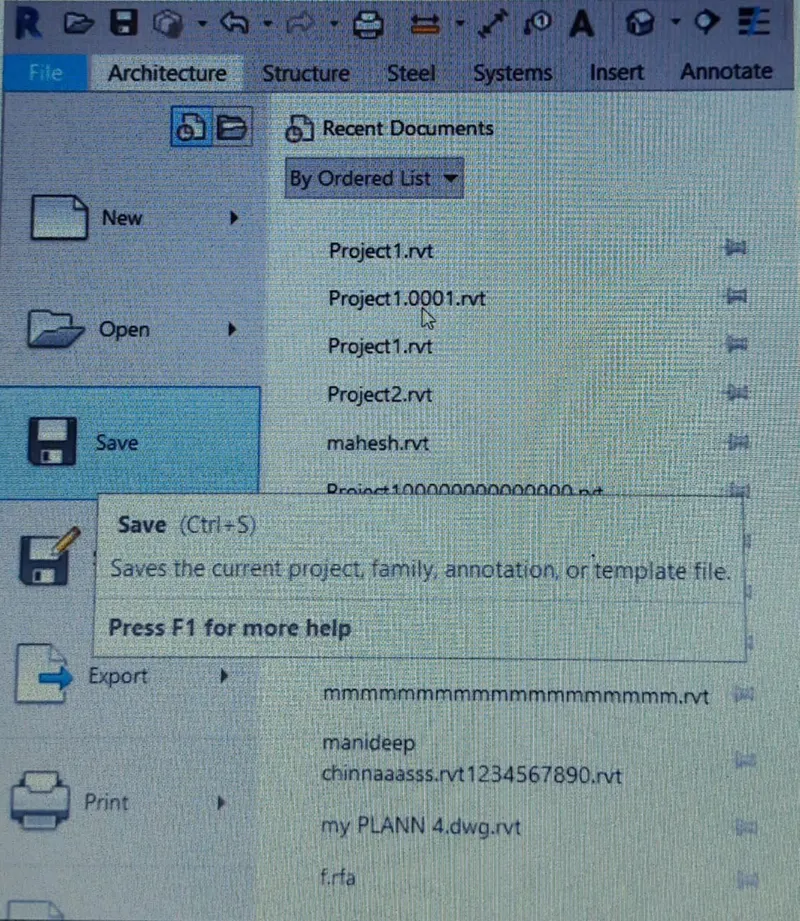

.Open the File toolbar, click on the save option, then the new tab will be visible.
STEP2:-
.Then name the project as project2.rvt as shown below.
STEP3:-

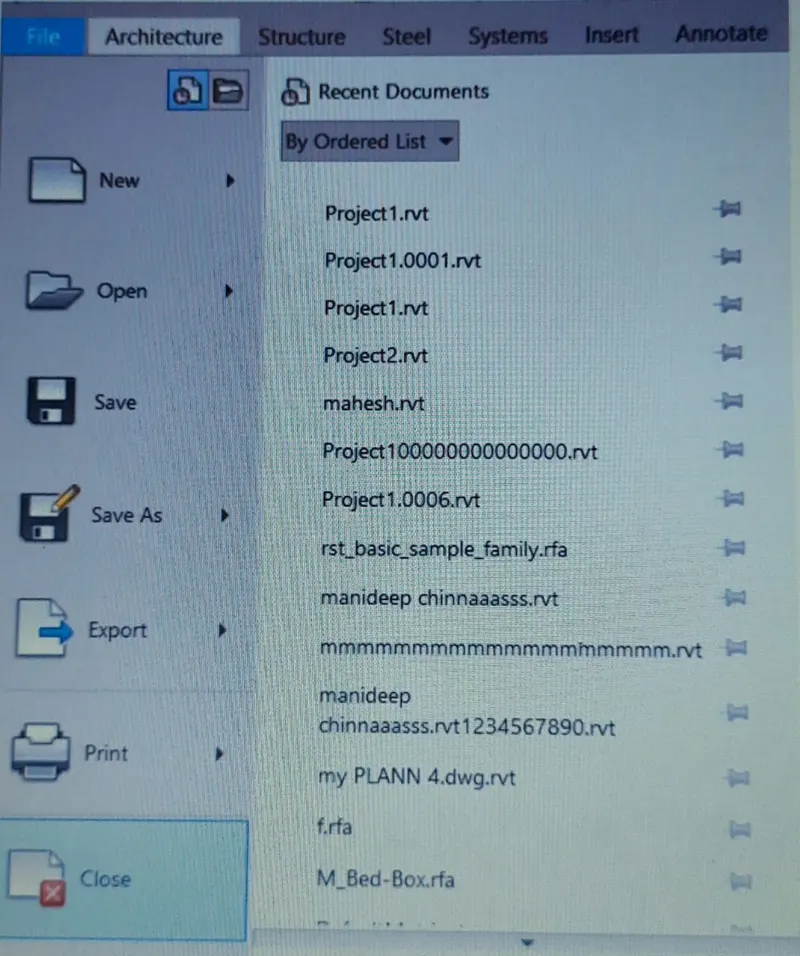

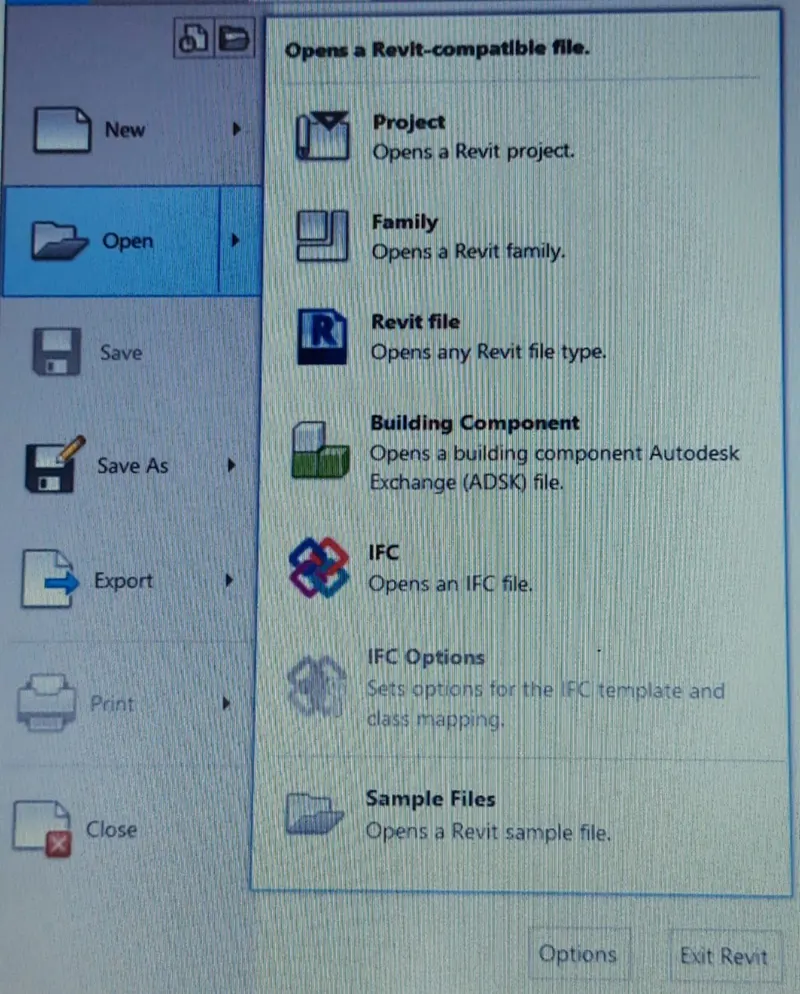

.Open the File toolbar, click on the open option, then the new tab will be visible.
.The previous files tab will be open & then we need to select any file from the previously created files.
STEP4:-
.Next click the close option the project will be closed.
RESULT:-
.The new project file has been saved & we opened & closed the new project using the icons from the toolbar.
3)From the architecture/structure toolbar familiarize with option to draw a wall.create a rectangular layout of walls of about 40'x35'
AIM:-
.To draw a rectangular layout of walls of about 40'x35' from the architecture/structural toolbar.
INTRODUCTION:-
.For creating a project, select a template from the project list or new project dialog box.
.To configure the project, choose to manage project information & enter information in the project information dialog box.
.Revit then update the title block for every sheet.
.There are different types of wall sizes & wall types in the architecture toolbar.
.We can select different types of walls to the projects.
PROCEDURE:-
STEP1:-

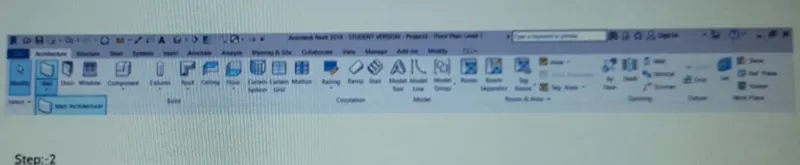

.First we click on the architecture toolbar to create different types of walls as shown below.
STEP2:-
.Next we select the 8" wall from the architecture toolbar, as shown below.
STEP3:-

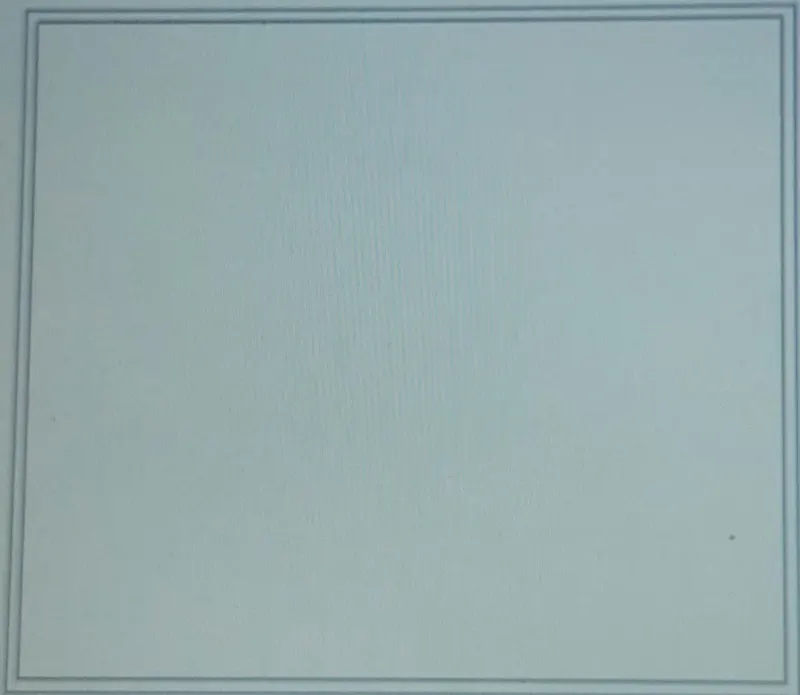

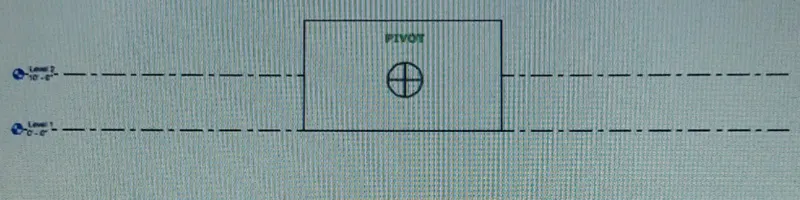

.Using the 8" wall we draw rectangular layout with the size of 40'x35',as shown in below.
RESULT:-
.Creted a rectangular layout of walls using the architecture toolbar.
4)From the annotate toolbar use the aligned option to add dimensions to the layout.
AIM:-
Use the aligned option to add dimensions to the layout from the annotate toolbar.
INTRODUCTION:-
.In the annotate toolbar aligned option is used to dimension the objects & any other & any other 3D models or any other drawings.
.In the we used the annotate toolbar to dimension the rectangular layout using the aligned option in the annotate toolbar.
PROCEDURE:-
STEP1:-

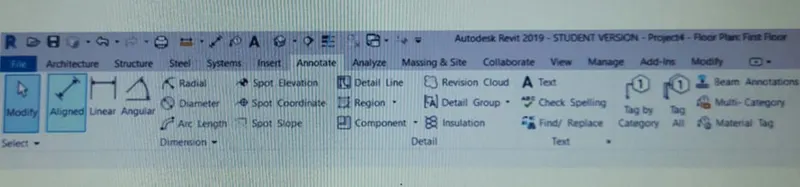

.First we click on the annotate toolbar & select the aligned option to dimensions the rectangular layout,as shown below.
STEP2:-

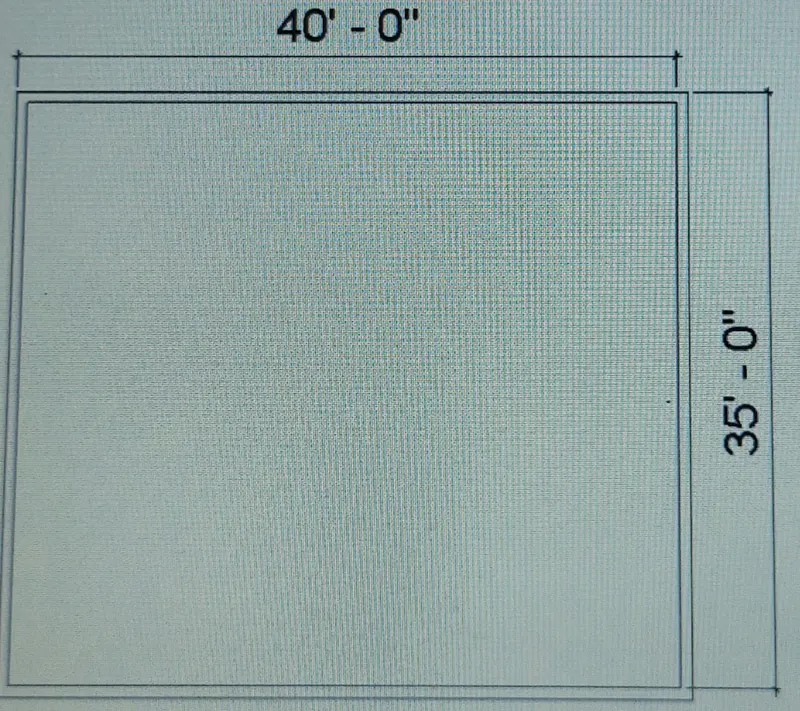

.Next, we dimension the rectangular layout using the aligned option in the annotate toolbar,as shown below.
RESULT:-
.The dimensions for the rectangular layout is added successfully using the annotate toolbar.
5)Use the properties browser to switch to different wall types.
AIM:-
To switch to the different wall types using the properties browser.
INTRODUCTION:-

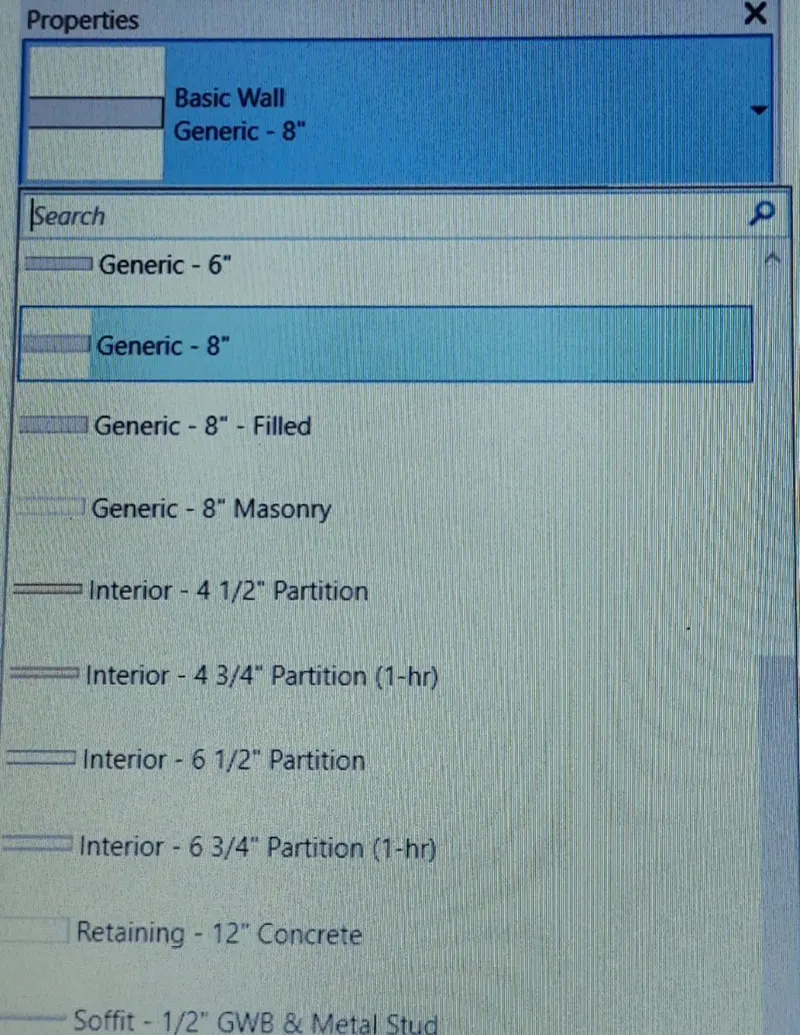

.From the rectangular layout we can change wall type type by selecting the particular wall.
.In the properties browser there will be different wall sizes.
PROCEDURE:-
STEP1:-

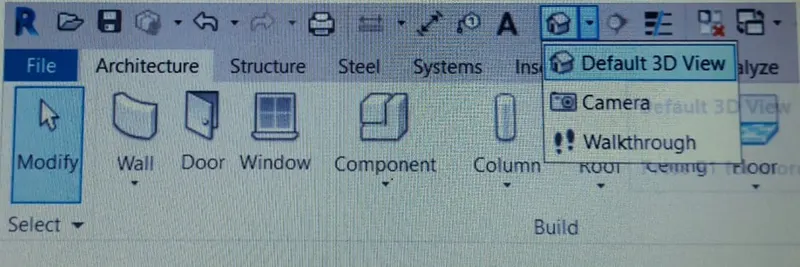

.We select the default 3D view option to review the rectangular layout to the 3D view, as shown below.
STEP2:-

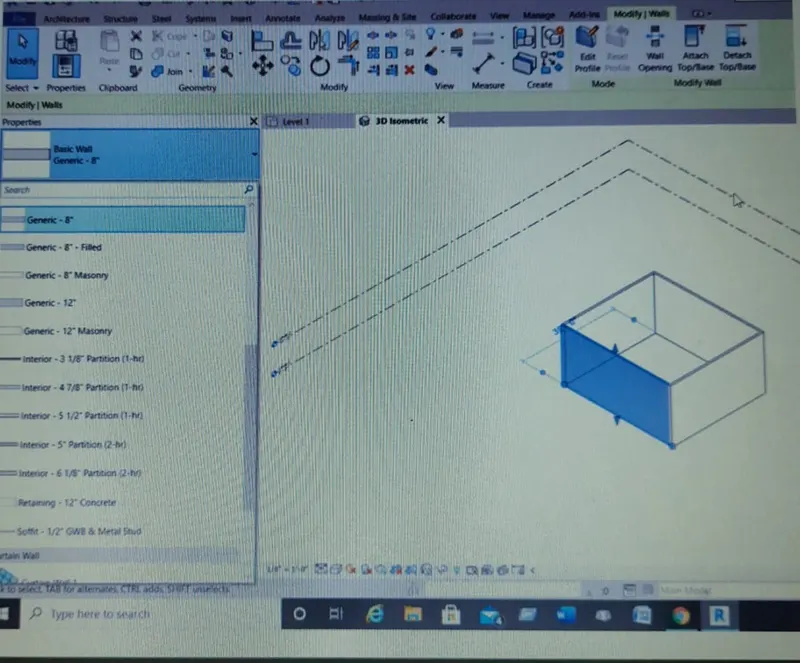

.From the rectangular layout we select wall from the rectangular layout & change the different wall types,as shown below.
RESULT:-
.From the properties browser the walls are switched to different types of wall size & types.
6)To create a 3D view from the view toolbar & save the view with the appropriate name.
AIM:-
To create a 3D view from the view toolbar & save the view with the appropriate name.
INTRODUCTION:-
.In the view toolbar we can see different options,they are shown below.
*View template
*Visibility /graphics
*Filters
*Thin lines
*Show hidden lines
*Remove hidden lines
*Cut profile
*Render
*Render in cloud
*Render gallery
*3D view
*Section
*Callout
*Plan view
*Elevation
*Drafting view
*Legends
*Scope box
PROCEDURE:-
STEP1:-

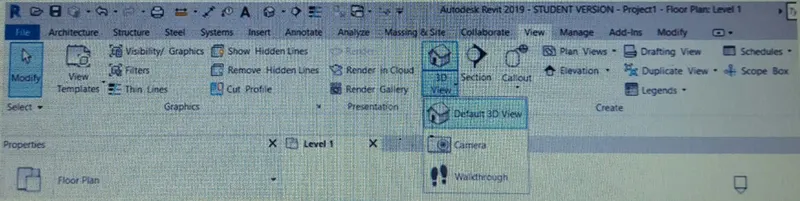

.Select the view toolbar & select the 3D view option
STEP2:-

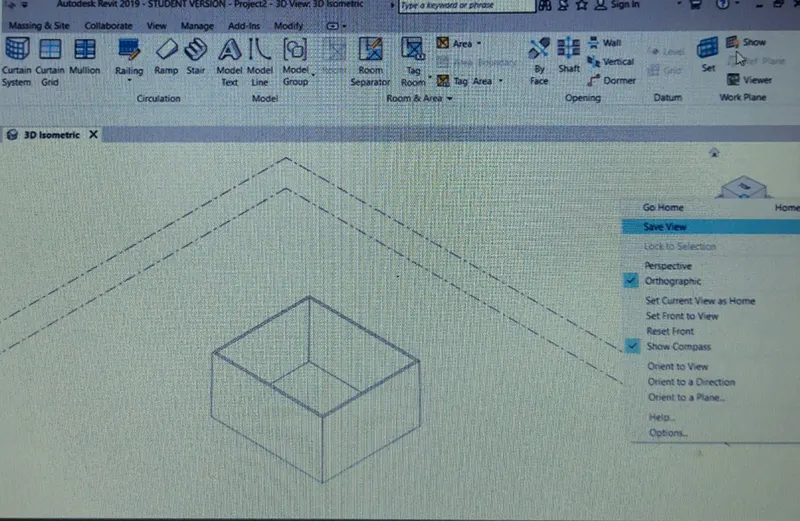

.Next put the cursor on the view cub & then right-click, the new tab appears & click the save view option.
STEP3:-

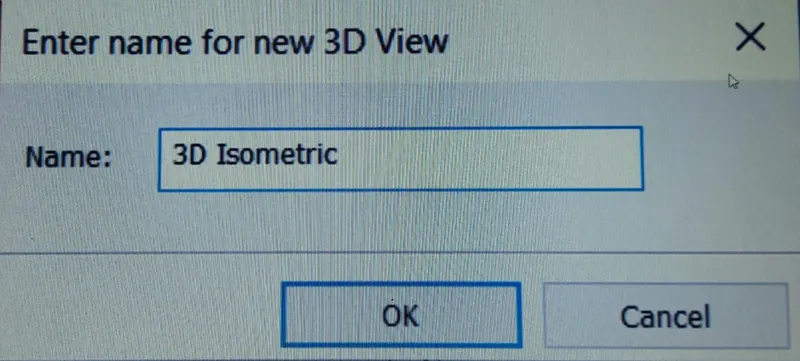

.After selecting the save view the small tab will visible, then enter the name of the 3D view as shown below.
RESULT:-
.Created a 3D view from the toolbar & saved the view with the appropriate name.
7)Navigation through the model using the view cube. Orbit/Pan through the model layout created.
AIM:-
.using the view cube. Orbit/Pan through the model layout.
INTRODUCTION:-
.View cube is used to navigate the 3D model in any direction.
.Orbit is also used to navigate the 3D model to any direction.
.Pan is used to navigating the 3D model to the positions.
PROCEDURE:-
STEP1:-

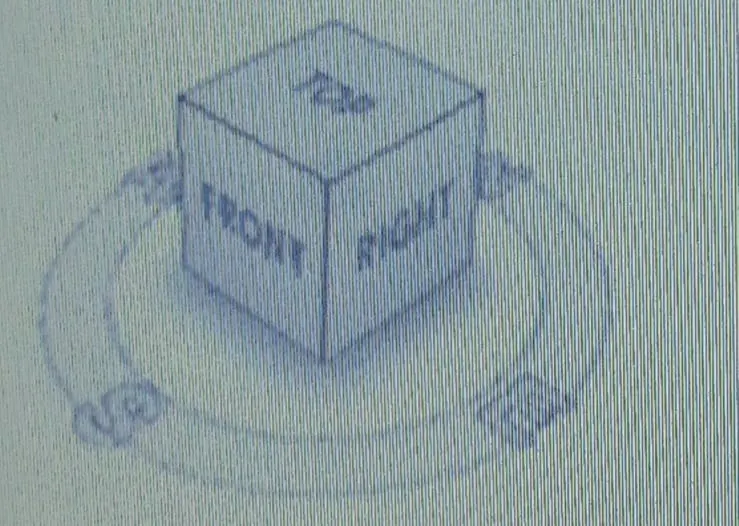

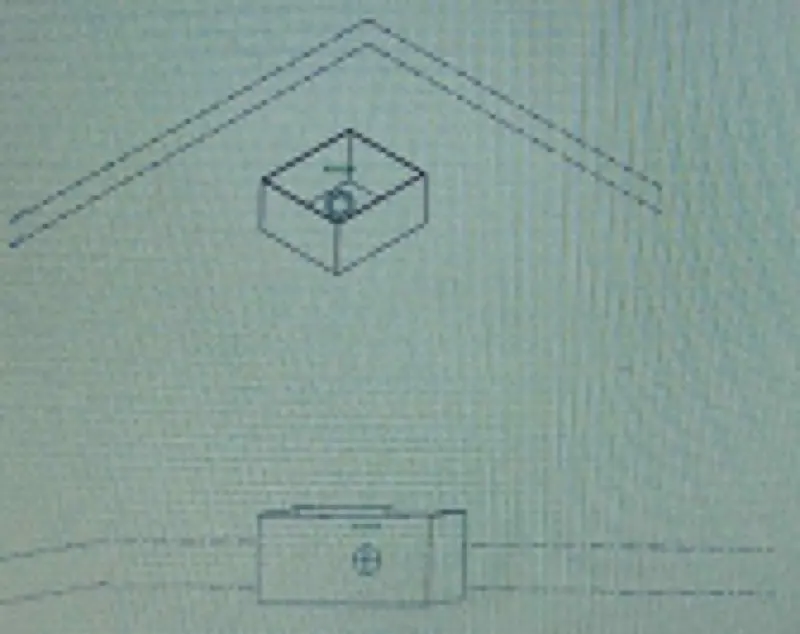

.First, we move the cursor to the view cube, then hold the view cube with the cursor, then rotate the view in different directions.
STEP2:-
.Use the view cube to rotate the 3D model by holding the view cube with with the cursor,as shown in the below figures.
STEP3:-

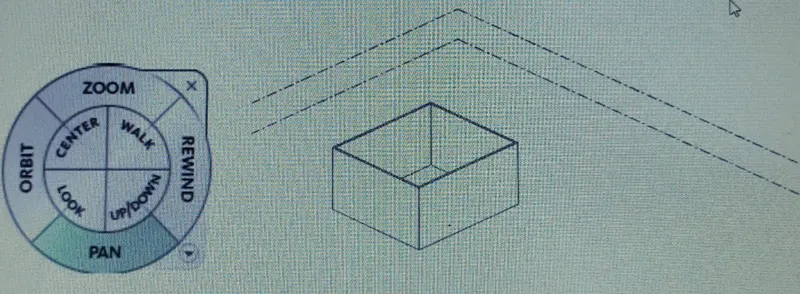

.Open the steering wheel on the right side of the screen, as shown below.
.After opening the steering wheel we need to select the pan option , then hold & move the 3D model view to the different positions, as shown below.
STEP4:-
.Open the steering wheel on the right side of the screen, as shown below.
.After opening the steering wheel we need to select the orbit option, then hold & rotate the 3D model view to the different directions, ads shown below.
RESULT:-
.The three-dimensional view model is navigated using the view cube, orbit & pan by holding them with the cursor, as shown in the above procedure.
8)Use the visibility setting option to switch the model to the shaded, realistic, hidden lines option.
AIM:-
Use the visibility setting option to switch the model to the shaded, realistic, hidden lines options.
INTRODUTION:-
Using the visibility setting we can change the visibility of the model, such as:-
*Wireframe
*Hidden line
*Shaded
*Consistent colors
*Realistic
*Ray trace
.Here we need to change the visibility of the 3D model to three types, they are:-
*Shaded
*Hidden line
*Realistic
PROCEDURE:-
STEP1:-

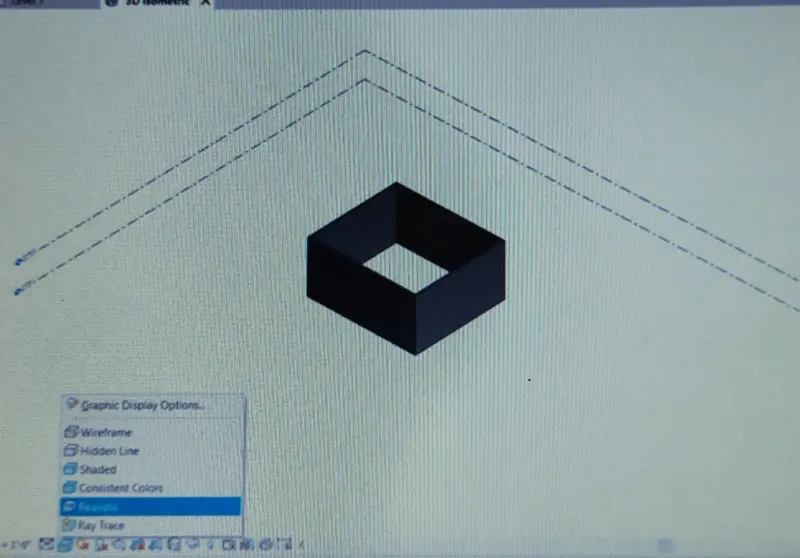

.At the bottom click the graphics display setting option then select the realistic option.
.The visibility of the 3D model is changed to the realistic as shown below.
STEP2:-

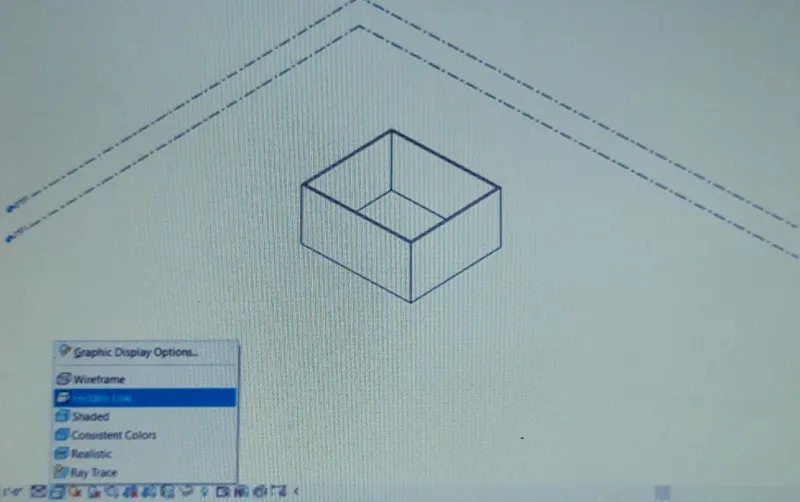

.At the bottom click the graphic display setting option, then select the hidden line option.
.The visibility of the 3D model is changed to the hidden line, as shown below.
STEP3:-

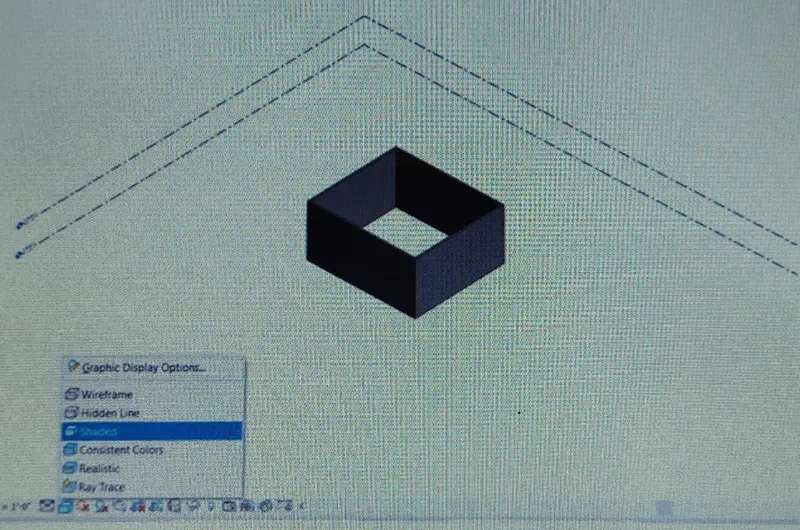

.At the bottom click the graphic display setting option, then select the shaded line option.
.The visibility of the 3D model is successfully switched to a shaded, as shown below.
RESULT:-
.The visibility of the 3D model is successfully switched to a shaded, realistic hidden line.
9)Turn the sun path on & off to view shadings in the \layout created.
AIM:-
.To Turn the sun path on & off to view shadings in the \layout created.
INTRODUCTION:-
.The sun's movement is an important consideration when designing high-performance buildings.
.To understand the impact of the solar position on your building you can use the sun & shadows settings in Revit to visualize the position of the sun at your location at any time of the day or of the year.
.You can also see the shadows that your project will be cast upon the surroundings as well as seeing the shadows cast upon your building surfaces.
PROCEDURE:-
STEP1:-

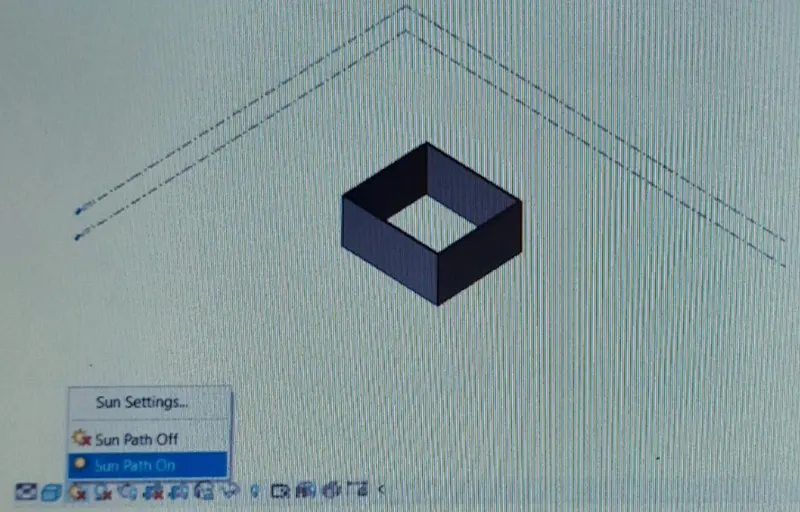

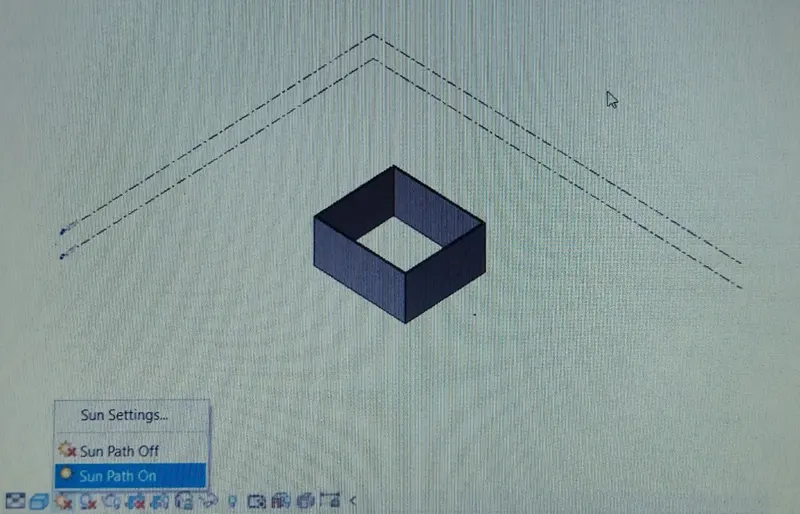

.Click the sun path icon at the bottom of the revit display area to open the sun path menu,select the sun path ON.
.If a window2 pops up asking you to select the option use the specified project location date,& time instead to display the sun path select it.
STEP2:-

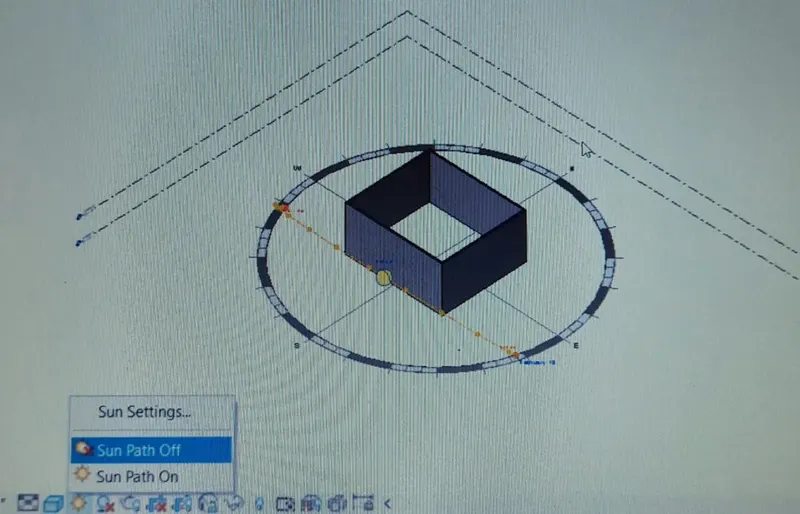

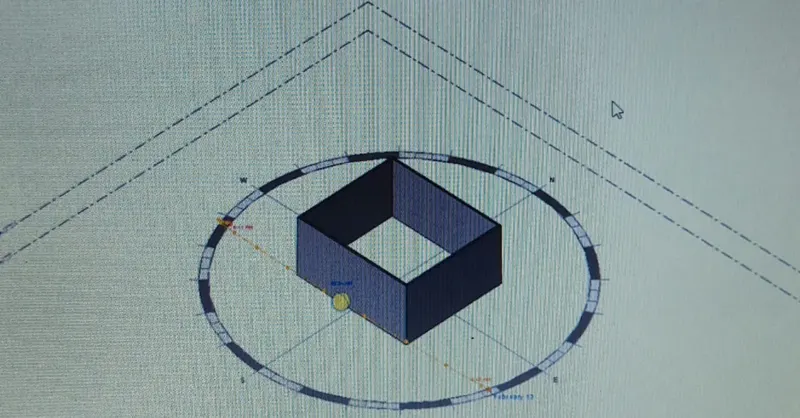

.Then the sun path interface displays the ground compass, the position of the sun, time of the day,& time of the year.
Step3:-
.Click the sun path icon at the bottom of the Revit display are to open the sun path menu, select the sun path OFF.
RESULT:-
.The sun path is turned on & off, that displays the ground compass the position of the sun, time of day,& time of day,o& time of year.
10)Use the manage toolbar to enter project setting, project name,& project issue date(choose according to your convenience)
AIM:-
Use the manage toolbar to enter project setting,project name,& project issue date(choose according to your convenience)
INTRODUCTION:-
In the manage toolbar we can see different options they are shown below.
*Materials
*Object style
*Snaps
*Project information
*Project parameters
*Shared parameters
*Global parameters
*Transfor project standard
*Purge unused
*Project units
*Additional settings
*Design option
*Location
*Coordinates
*Position
*Structural setting
*MEP setting
*Manage link
*Manage images
*Phases
*Starting view
*Edit selection
*Decal types
*Select by ID
*Macro security
*Macro manager
*Dynamo
*Dynamo player
.In this we need to select project information option & give the details of the project.
PROCEDURE:-
STEP1:-

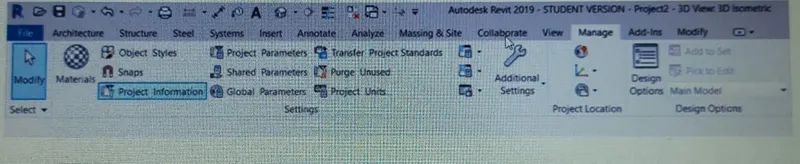

.In the manage toolbar we need to select the project information & enter the project details in the project settings
.
STEP2:-

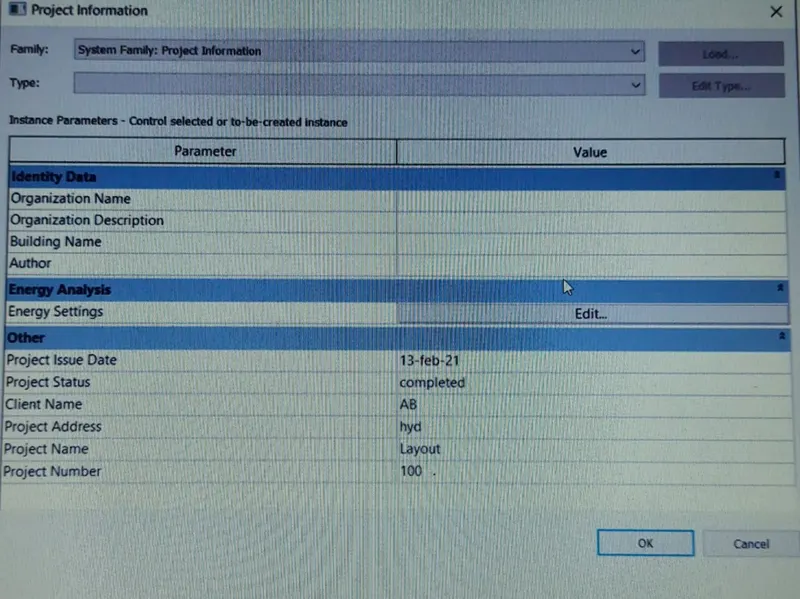

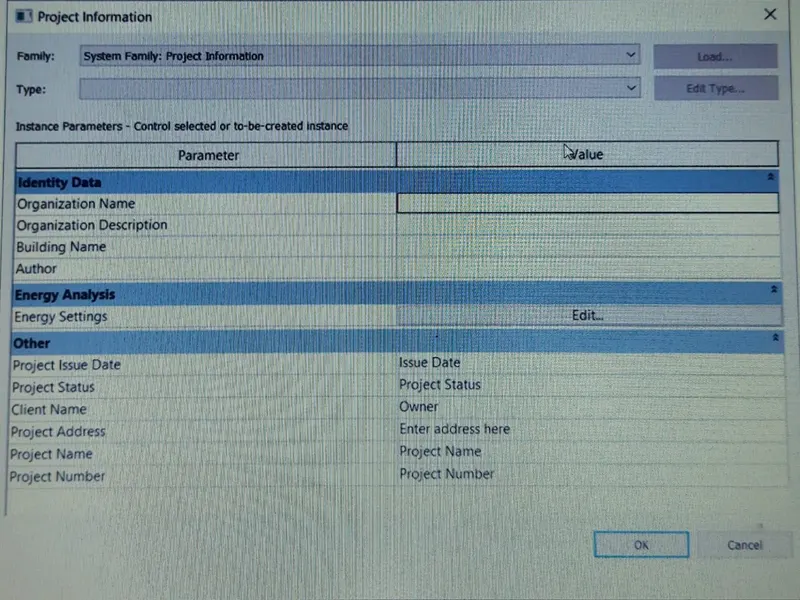

.After selecting the [project information option, the new tab will be visible on the screen as shown below.
STEP3:-
Next we need to enter the details of the project in the information tab as shown below.
RESULT:-
The details of the project will be entered in the project information tab.
11)What is the Analyze toolbar used in Revit? How it is beneficial for design & modeling?
A)Analyze toolbar used in Revit & beneficial for design & modeling:
.Analyse toolbar helps you to perform analysis on our structural building. The boundary conditions enable you to define point line & area boundary conditions in an analytical model. it will verify the boundary condition family types are loaded & assigned in your parametric features of the structural model, Similarly, we can apply point load to a model to evaluate the performance of the building.Similarly, we can add & edit load cases to define the design standard suggested load case to a model. We can combine different load cases using the load combination icon, Which will enable us to add & edit load combinations for the analytical model. The main purpose of using the Revit is to evaluate the sustainability of the building that we modeling. So, we will be interested in evaluating the energy or energy optimization of the building that we are going to model. So, Revit offers features we have modeled in our project & then the energy analytical model will be based on the conceptual masses. The building elements & the material that we can use to construct the building & the quantity & the amount of material that is used in our project.

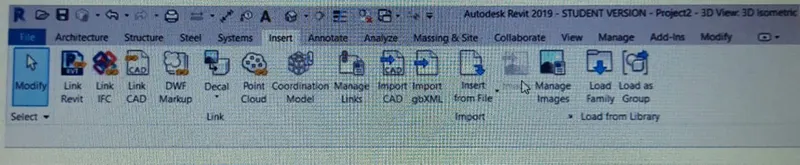

12)What are links that Revit supports to be linked to the model?
A)The links that Revit supports to be model are:-
.LINK REVIT:-
.This allows linking another Revit model to the current model. Eg.we can link models together to specify the relative individual building on a campus or to coordinate efforts across disciplines(Architectural/structural/mechanical)
.LINK IFC:-
.To link IFC file current model to reference its information for additional design work.
LINK CAD:-
.To link the 2nd cad file to the current Revit file to create 3D by Revit tools.
.MANAGE LINKS:-
.Provides features to manage the links to the building models, eg.If we are linking the electrical & structural model to remove electrical from structural, go to the link manager & unload the model we don't want.

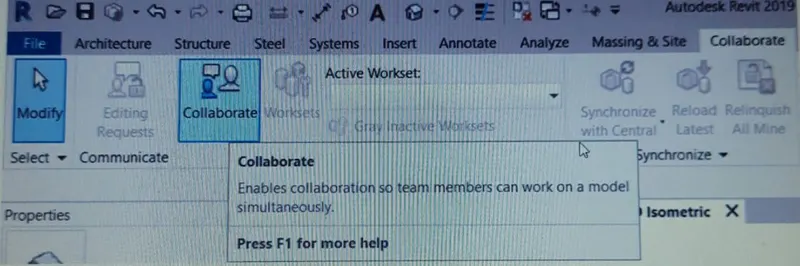

13)Why do you need the collaborate tab in Revit? How it supports modeling & its efficiency?
A)Collaborate tab in Revit which supports modeling & its efficiency:-
Revit provides several different ways to collaborate with team members who are also using the software.
.You can link multiple Revit models together, allowing team members to work in context.
.Through workshopping users on the same local area network (LAN) can work together in the same Revit model.
.When collaboration needs to occur among users who are not in the same geographic location, use Revit server or Revit server or Revit cloud workshopping.
.Revit server connects offices that share a network to collaborate on a Revit model.
