Introduction to REVIT concepts

1):

Aim: To create a new project (Structural / Architectural / Construction template) and name the project appropriately.

Introduction: To create a new project (Structural / Architectural / Construction template) and name the project appropriately. By using Revit.

Procedure:

Step1:

• Open the revit software

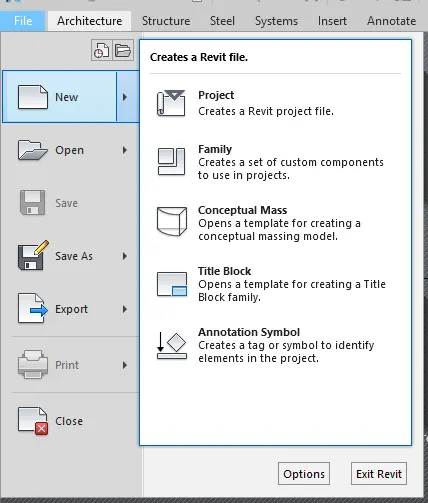

• From the file menu, click on New.>> project

Step2:

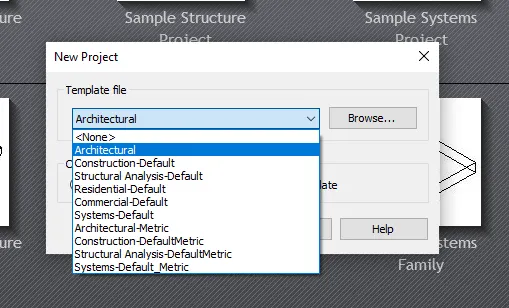

• From the template file select as architectural then click on ok.

• Similarly we can create all the required templated files

Result:

• Revit work space will appears as architectural imperial format

2):

Aim: To Save the new project file. Close and open using icons from file toolbar

Introduction: To Save the new project file. Close and open using icons from file toolbar

Procedure:

Step1:

• After opining the revit new project workspace.

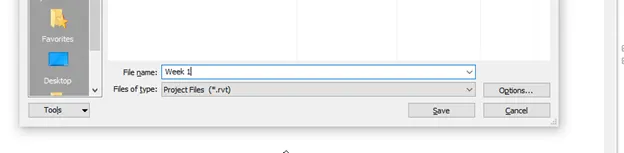

• Press ctrl+s for saving the file first select the location to save then click on the file name and we can give name to the file as shown.

• New file with the name week 1 is created at given location.

Step2:

• To open the save file in revit by using icon from the tool bar

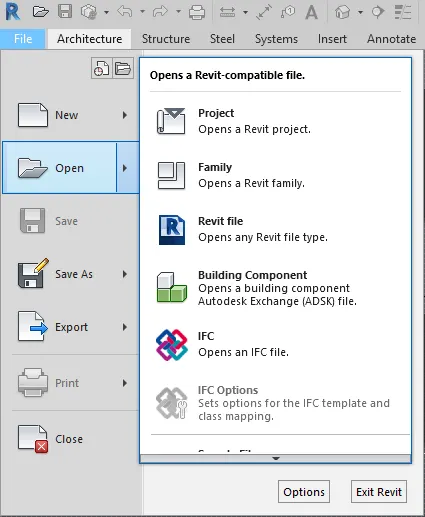

• In the file menu, click on open>>project>>select the location you save the file.

Step3:

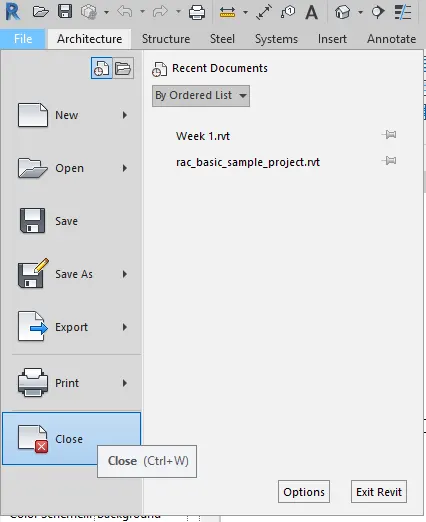

• To close the file in revit by using icon from the tool bar
• In the file menu, click on close icon to close file.

Result:

• The project file can be save, open, and close by using file menu.

3):

Aim: To create a rectangular layout of walls of about 40’-0” X 35’-0”.

Introduction: To create a rectangular layout of walls of about 40’-0” X 35’-0”. By using revit

Procedure:

Step1:

• From the toolbar select the architectural >wall.
• Take the basic wall of 8”
• Click on workspace move the mouse on the direction and give value

Result:

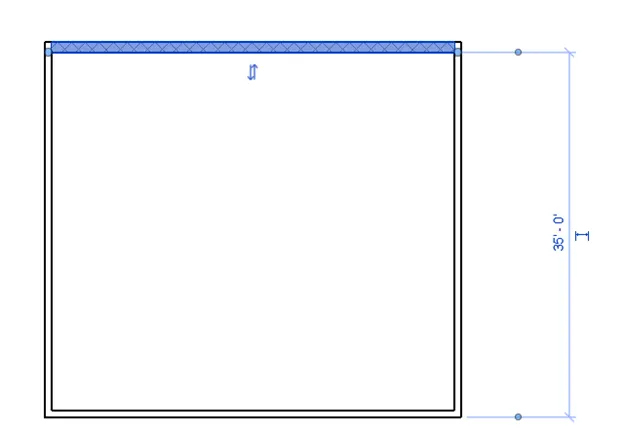

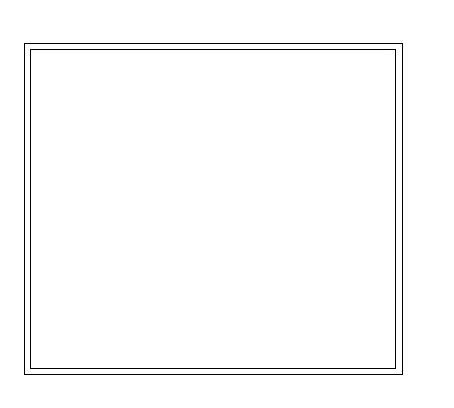

• Wall of 40’x35’ is created as shown.

4):

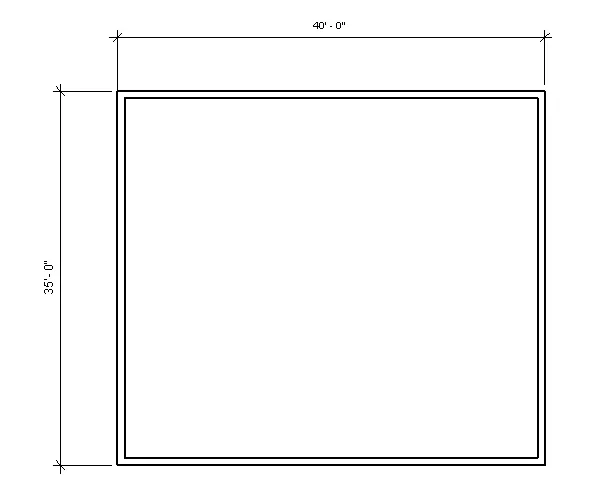

Aim: From the Annotate toolbar use the aligned option to add dimensions to the layout.

Introduction: From the Annotate toolbar use the aligned option to add dimensions to the layout. By using revit.

Procedure:

Step1:

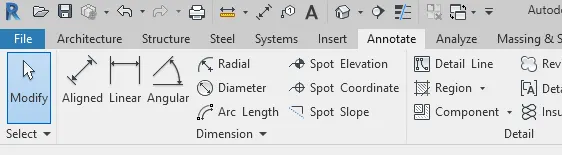

• From the toolbar select the annotate bar click on aligned tab

Step2:

• from the toolbar select the aligned dimension
• click on the first point and second point for the dimension

Result:

5):

Aim: To use the properties browser to switch to different wall types.

Introduction: To use the properties browser to switch to different wall types. By using Revit.

Procedure:

Step1:

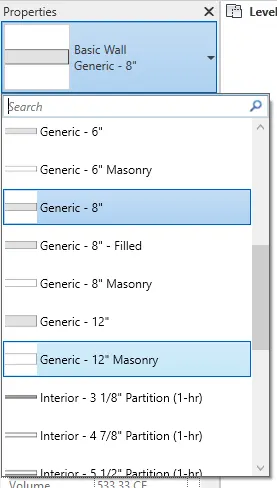

• select the wall then, at the left side property browser will be display
• from the browser we choose the different type of wall as per the requirement.

• To switch the wall type select the wall and select the different wall from the property browser

Result:

6)

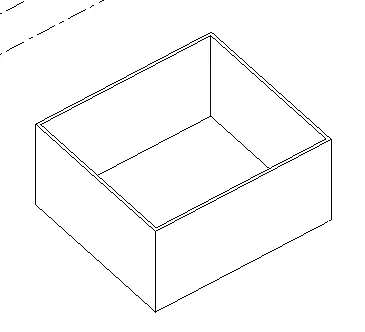

Aim: To create a 3D view from the view toolbar and save the view with the appropriate name.

Introduction: To create a 3D view from the view toolbar and save the view with the appropriate name.

Procedure:

Step1:

• From the toolbar click on the view tab

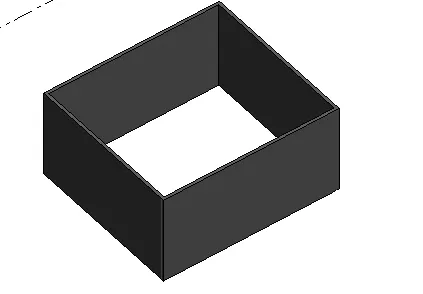

• Select the 3D view

Step2:

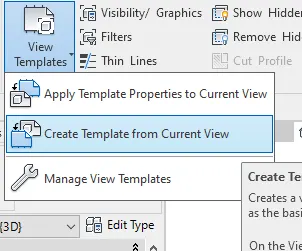

• From the view templates select the create new template from the current view
• Then name the view as view 1.
• The view can be created and can be taken form the apply template property to current view.

Result:

7):

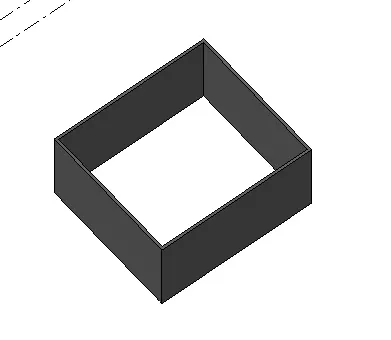

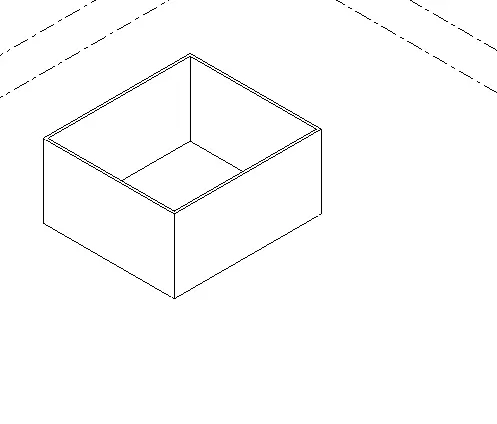

Aim: To navigate through the 3D model using the view cube.

Introduction: To navigate through the 3D model using the view cube. By using revit.

Procedure:

Step1:

• To view click on the view cube at right top of the workspace

Step2:

• To change the view click on the different view

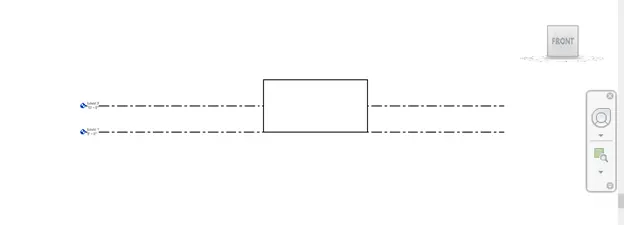

• Select the front view from the view cube

Step3:

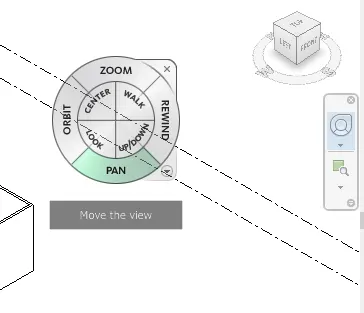

• To navigate the view click on full navigation wheel
• From the navigation wheel we can use the pan, orbit, zoom the 3D model

Step4:

• From the wheel click on the orbit to orbit the 3D model
• Similarly click on the pan, zoom and other option from the navigation wheel

Result:

Use of navigation wheel and view cube is shown

8):

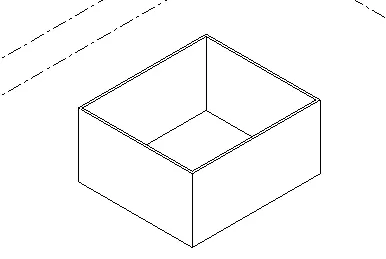

Aim: To use the visibility settings option below to switch model to shaded, realistic, hidden lines options.

Introduction: To use the visibility settings option below to switch model to shaded, realistic, hidden lines options. By using revit.

Procedure:

Step1:

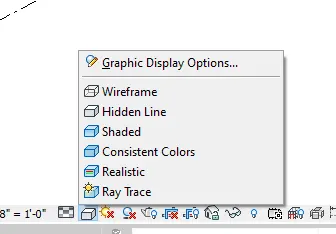

• From the bottom toolbar of the work space click on visual style.

Step2:

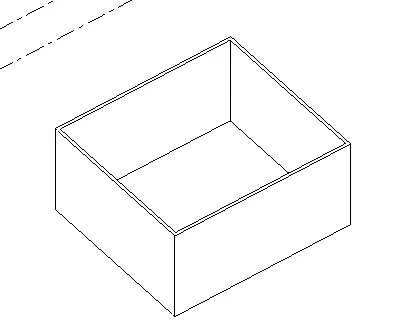

• For the hidden line view select the hidden line

Step3:

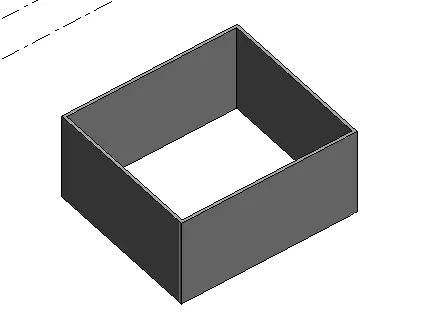

• For the shaded view select the shaded

Step4:

• For the realistic view select the realistic

Result:

• visibility settings option are done by using to switch model to shaded, realistic, hidden lines options

9):

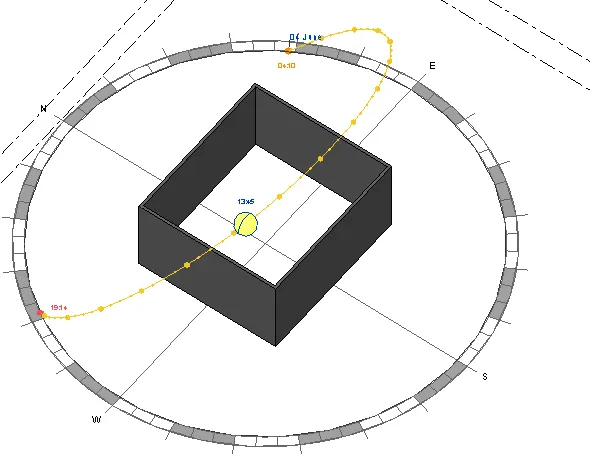

Aim: To use sun path on and off to view shadings in the layout created.

Introduction: To use sun path on and off to view shadings in the layout created. By using revit

Procedure:

Step1:

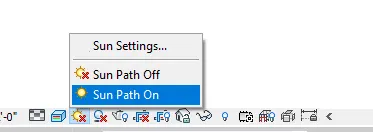

• from the bottom toolbar of the workspace click on the sun icon

Step2:

• select the sun path on and set the time setting

Step3:

• similarly select the sun path off

Result:

• use of sun path on/off is done.

10):

Aim: Using the Manage toolbar to enter project settings, project name, and issue date.

Introduction: Using the Manage toolbar to enter project settings, project name, and issue date. By using revit

Procedure:

Step1:

• From the toolbar click on the manage

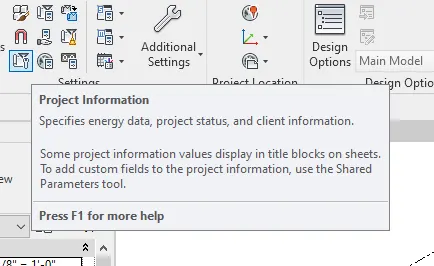

• Then select the project information icon bar as shown.

Step2:

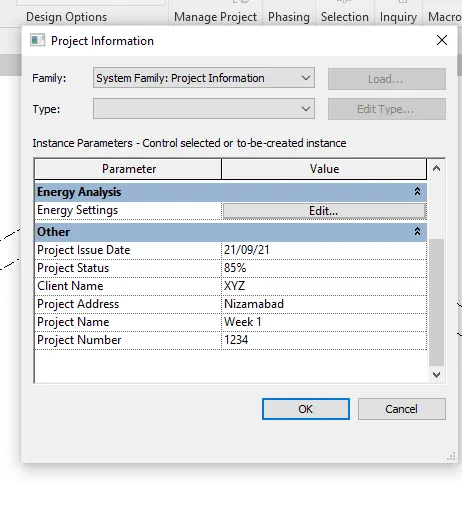

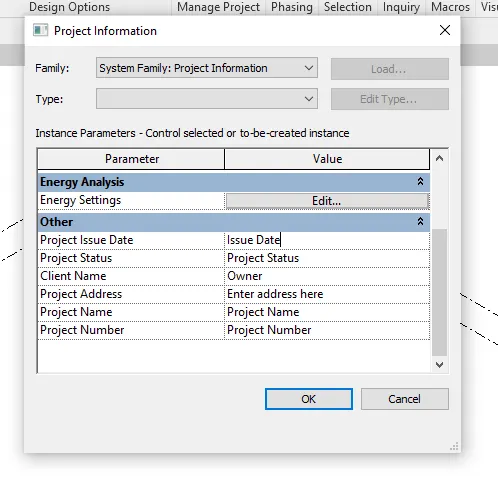

• The project information box will display
• We change or fill the required information such as project issue date, project status, clint name, project number as shown

Result:

11):

Aim: To Analyze toolbar used in Revit and beneficial for design and modeling.

Introduction: To Analyze toolbar used in Revit and beneficial for design and modeling. By using revit

Procedure:

Step1:

• From the toolbar click on the analyze bar
• List of analysing tools icons will appears

Step2:

• Analytical model
• Boundary condition: define point, line and area of boundary to model
• Loads: apply point, line area load to a model
• Load case: add and edit load case for analytical model
• Load combination: add and load combination for analytical model

Step3:

• Analytical model tools
• Adject: some adjustment of analytical model may require before structure model is transfer to analysis location
• Rest: reset the analytical model alignment method to auto- defect

Result:

• Analyze toolbar used to calculate the load and load combination and can find the result for pass and fail of the model in analysing the project

12):

Aim: To use of link that support in revit.

Introduction: To use of link that support in revit.

Procedure:

Step1:

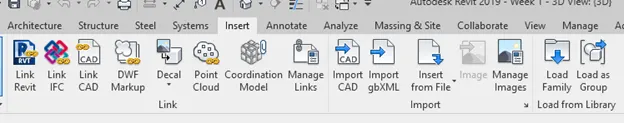

• From the insert toolbar we can insert the different links to revit

Step2:

• Link revit: it allows other revit model to current revit model
• Link IFC: it allows the current project to reference to additional design work
• Link cad: it allows to link a cad file to current revit file

Result:

• From the toolbar insert can insert any other file to current revit project

13):

Aim: Use of collaborate tab in Revit and its supports modeling and its efficiency

Introduction: Use of collaborate tab in Revit and its supports modeling and its efficiency. In revit

Procedure:

Step1:

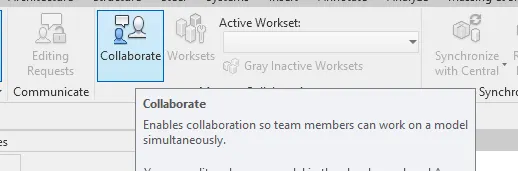

• It enables the collaboration so team members can work on a model simultaneously

Result:

• By using the collaborate efficiency of modeling is heigh as work can be done in short time
• It help the team members of different discipline to work the same project.
