Introduction to REVIT concepts

1.From the file menu,create a new project (structural/architectural) and name the project appropriately.\

AIM:-create a new project (structural/architectural) and name the project appropriately.

INTRODUCTION:- revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

PROCEDURE:-

STEP-1:- open revit

click the windows button and type revit and press enter

Once the revit is open ,the home page is as follows

STEp-2

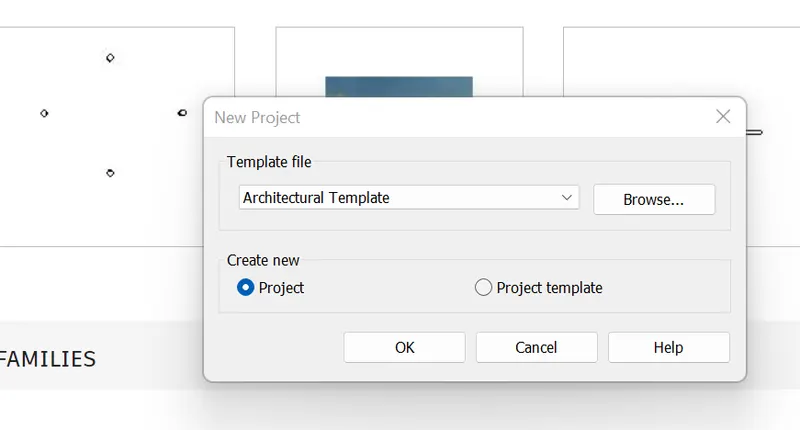

creating architectural template

Step-3

go to file menu and save it.

RESULT:-

2. SAve the new project file.close and open using icons from the file toolbar

AIm:- to create new project ,close and open using icons from the file tolbar

introduction:-revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

PROCEDURE:-

Step-1 :- open revit

Step-2 draw any drawing

• draw a wall and give required dimensions into it

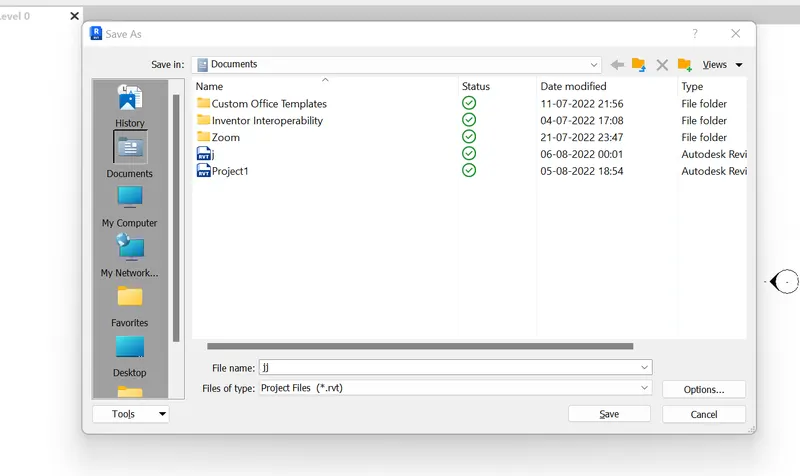

Step-3 save the file and give the name jj

Result:-

3. From the architectural /structural toolbar familarise yourself with options to draw a wall. create a rectangluar layout of walls of about 40'*35'

AIM:- to create an architectural structural toolbar familarise yourself with options to draw a wall. create a rectangluar layout of walls of about 40'*35'

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

Procedure:-

STEP-1 open revit and create a new file

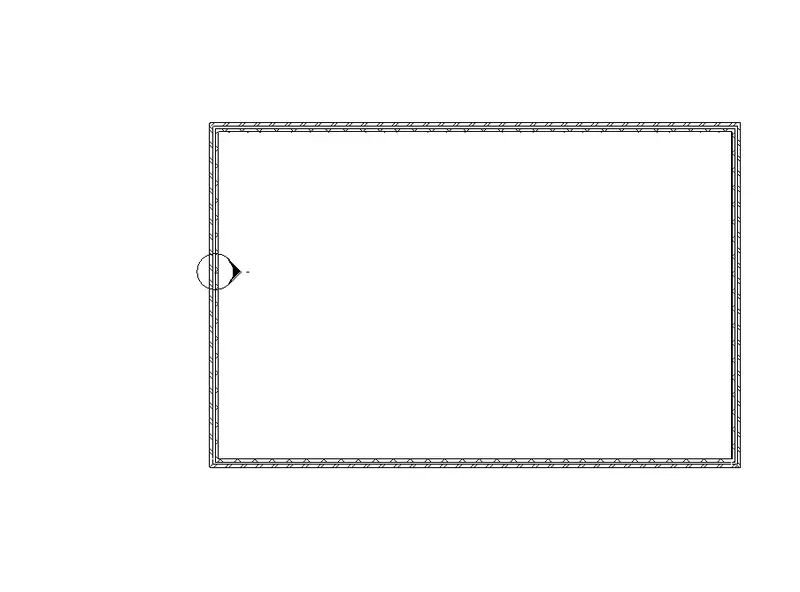

Step-2 create architectutral wall

Step -3 give dimensions to it by going into annotate tab

result:-

4. from the annotate toolbar use the aligned option to add dimensions to the layout

Aim;-use annotate toolbar use the aligned option to add dimensions to the layout

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

STEp-3 go tto annotate and select aligned option

REsult:-

5. Use the properties browser to switch to different wall types.

Aim;-to change the wall type using properties browser

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

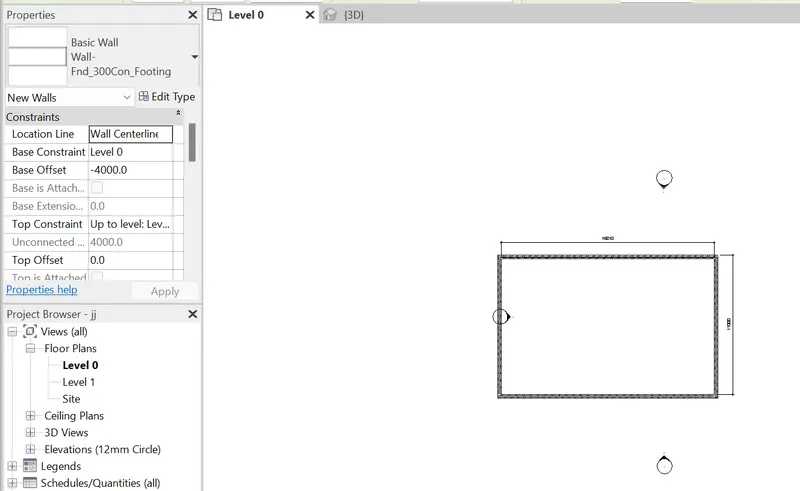

STEP-3 go to properties browser to switch to different wall types

RESULT:-

6. create a 3d view from the view toolbar and save the view with appropriate name.

AIM:- to create 3d view from view toolbar and save the view with appropriate name

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

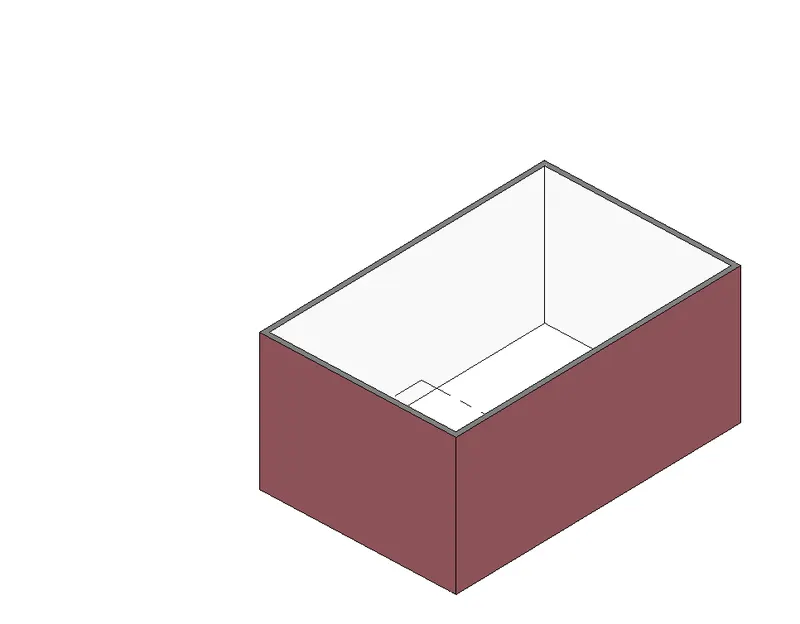

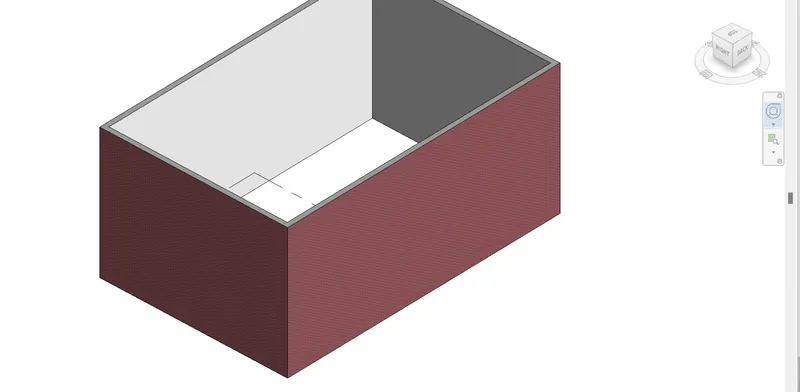

Step-3 go to 3d menu and give 3d shape

RESULT:-

7.AIM:- to navigate throught 3d model using view cube .orbit/pan through the model layout created.

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

Step-3 go to 3d menu and give 3d shape

STEp-4 orbit/pan through the model layout created

RESULT:-

8.TO USE visibility setting option below to switch model to shaded ,realistic ,hidden lines options

AIM:- to switch model view to shaded ,realistic,and hidden lines options using visibility options.

9. AIM:- turn the sun path on and off to view shading in layout created

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

Step-3 go to 3d menu and give 3d shape

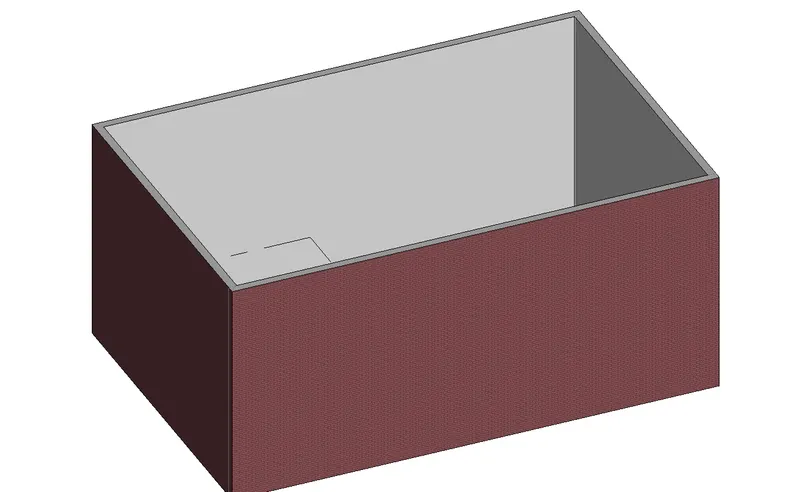

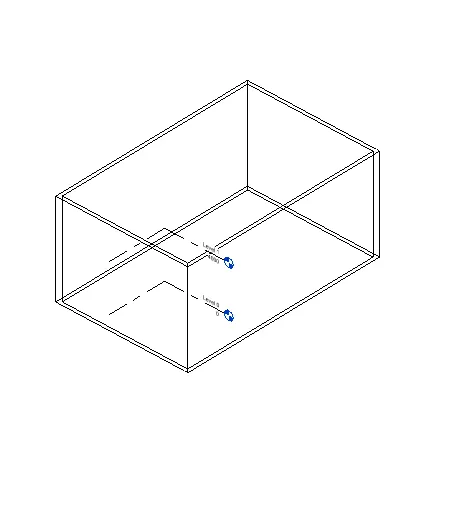

STEP-4 go to visibillity options and give diferent shades ,realistic etc

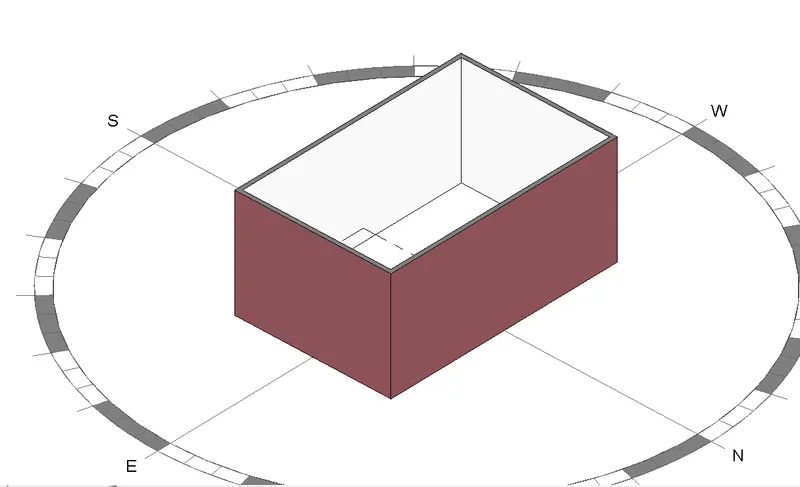

STEp-5 turn the sun path on

10.AIM :- use the manage toolbar to enter project setting ,project name ,an project isue date

Introduction:--revit is an autodesk product and is a building information modelling software for architects,landscape architects,structural enginears,electrical etc.

procedure:-

STEP-1 open revit and create a new file

Step-2 create architectutral wall

Step-3 go to 3d menu and give 3d shape

STEP-4 go to visibillity options and give diferent shades ,realistic etc

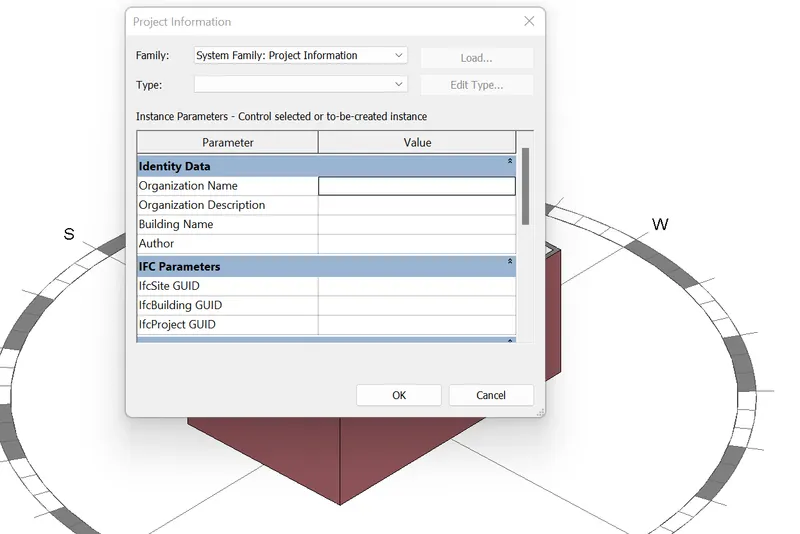

Step-5 go to manage toolbar and go to project information

11 aim:- what is the analyse toolbar used in revit ? how it is beneficial for design and modelling?

ans:-Analyse tab is revit consist of tools for detailed analaysis of structure / layout created.

1. Analytical model:- Adding boundary conditions,types of load such as point,and load combinations and area conditions

2.Analaytical model tools:- It contains tools to adjust the analaytical model,check for consistency reset the model and check the member supports.

3. Spaces and jones:- the toolbar is used to create space separators. space separators are drawn to separate different rooms of plan to differentiate the rooms

• 4. reports and schedules:-
• Heating and cooling loads report
• duct pressure loss report
• Pipe pressure loss report
• panel schedules

4.REports and schedules

5.Check systems

6.colour fill

7Energy optimisation

12.What are links that revit supports to be linked to model?

Ans:- LInk revit

• Link IFC
• LINK CAD
• LINK topography
• LINK DWF markups
• LINK decals
• LInk point clouds

13. WHy do you need the collabarate tab in revit? how it supports modelling and its efficiency?

ANS:- helps link multiple revit models together ,simuntaneously allowing other team members to work in the background

• Users on the same local area netwok can work together in the same revit model using revit work sharing
• wHEN Collabaration needs to occur among users who are not in the same geographic loacation ,use Revit server or revit cloud work -sharing
• revit server conncets offices that share a network but not in the same geographic location
• revit cloud work-sharing in the cloud -based service that allows any revit users inside or outside a network to collabarate on a revit model
• As the revit cloud work -sharing service helps to author revit models in the cloud concurrently with othe team members.
