Hood design-Week 2

HOOD DESIGN- CHALLANGE
Introduction:-
Hood is main component of a car at the front portion. It is used to decorate the car & add luxurious look. The shape of the bonnet is
made aerodynamic in order to minimize the air effect.

The hood or bonnet is the hinged cover over the engine of motor vehicles. Hoods can open to allow access to the engine compartment, or trunk on rear-engine and some mid-engine vehicles) for maintenance and repair.

Hood design consideration:-
The hood of a car is considered as the frontal BIW enclosure component. Bonnets are designed to reduce air resistance as the air flows around the car. Apart from this, bonnets are also designed to meet several other requirements. They serve a great deal of purpose in protecting the passengers inside the car & the pedestrians in the event of an accident. It also acts as the cover for the engine.

Following parts are using in hood assembly for this report,
1. Hood outer panel
2. Hood inner panel
3. Hinge assembly
4. Striker assembly

Hood thickness-
Outer panel thickness= 0.75 mm
Inner panel thickness= 0.75 mm
Reinforcement thickness= 1.5 mm

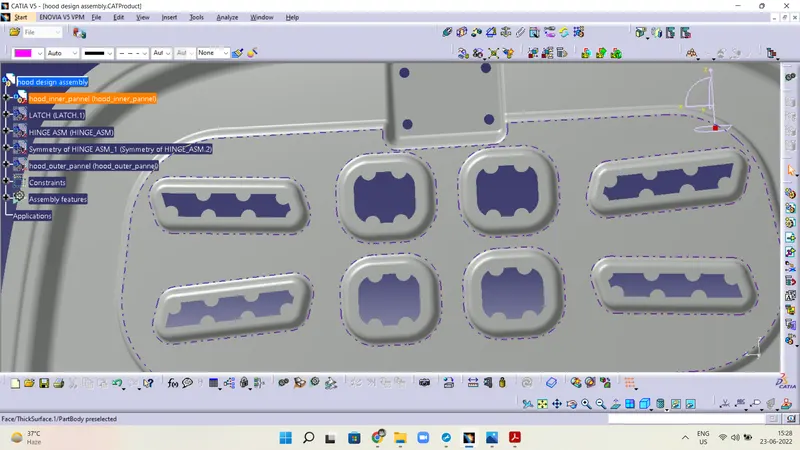

Inner Panel-

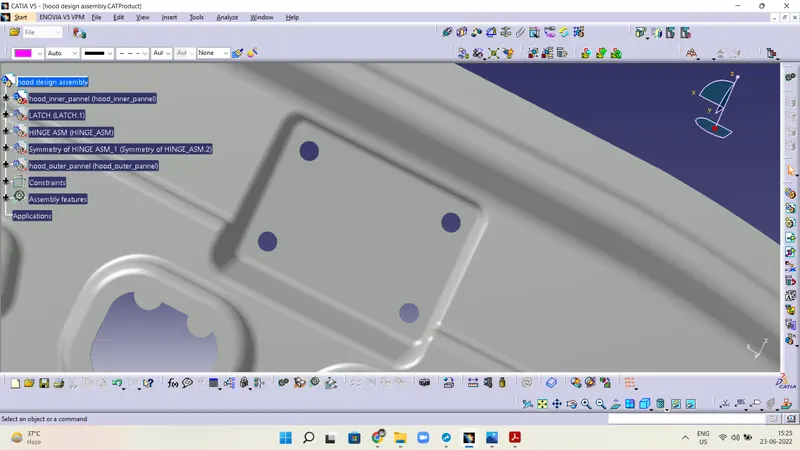

In the inner panel only we can research & implement the safety of pedestrians & as well as the driver. In this panel only we can attach the reinforcement, embossed, mastic points etc.
It is an object of the present invention to provide a hood inner panel capable of reduction of a reaction force of the hood inner panel even if a level of deformation of a hood of a vehicle increases, & ensuring a sufficient energy absorption capacity.

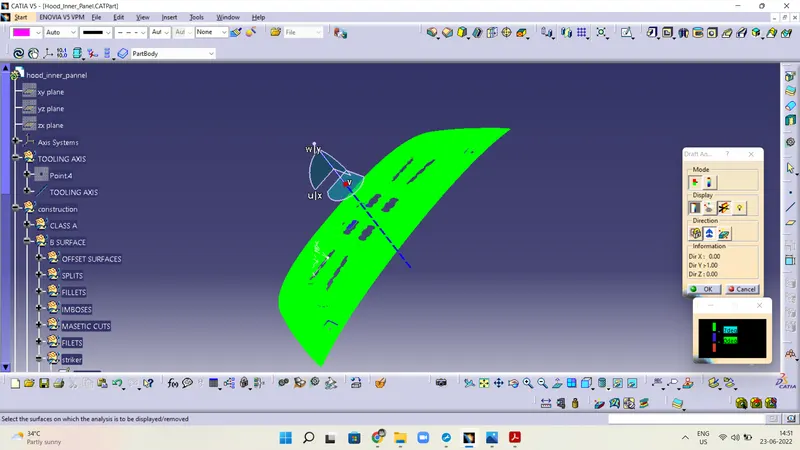

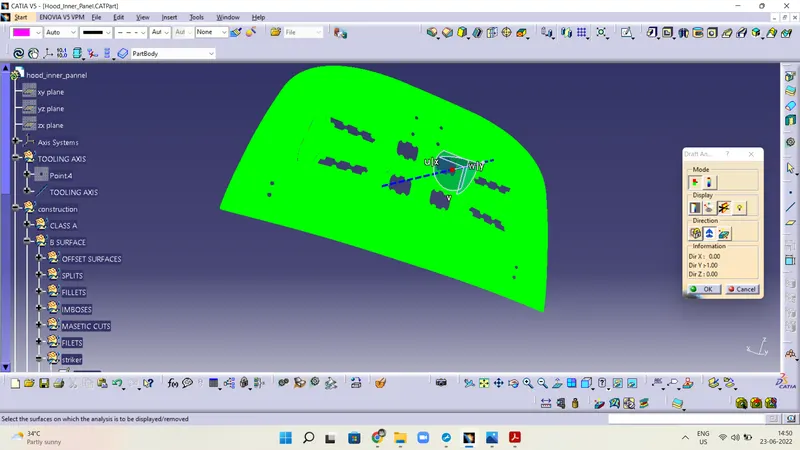

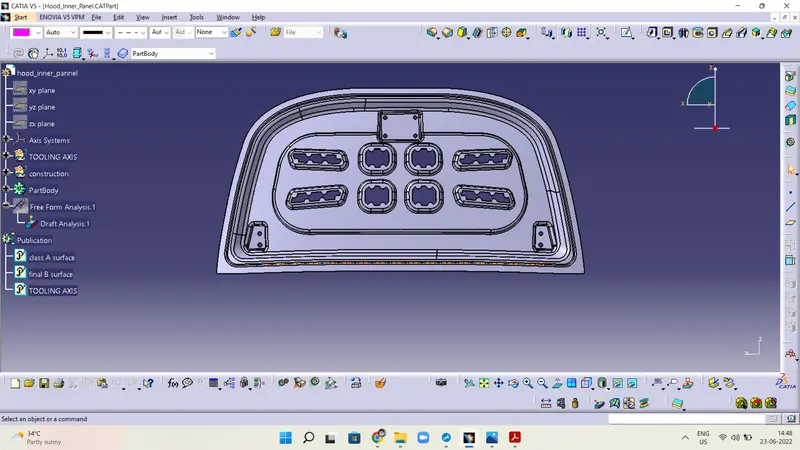

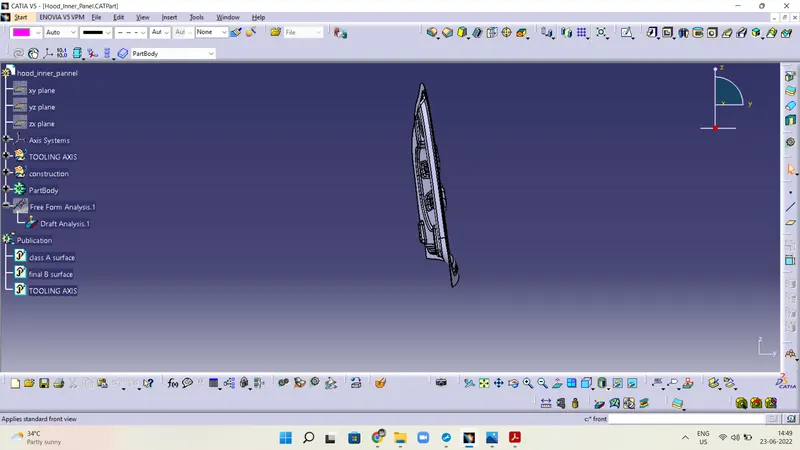

Draft Analysis

Outer Panel-
We can also call it as cover of inner panel. It is the part, which gives luxurious look to the hood or bonnet. Outer & inner panel can not join by any welding process like spot welding or rivet, which spoil the outer look of a car. The outer panel is generally extracted model from the prototype design.

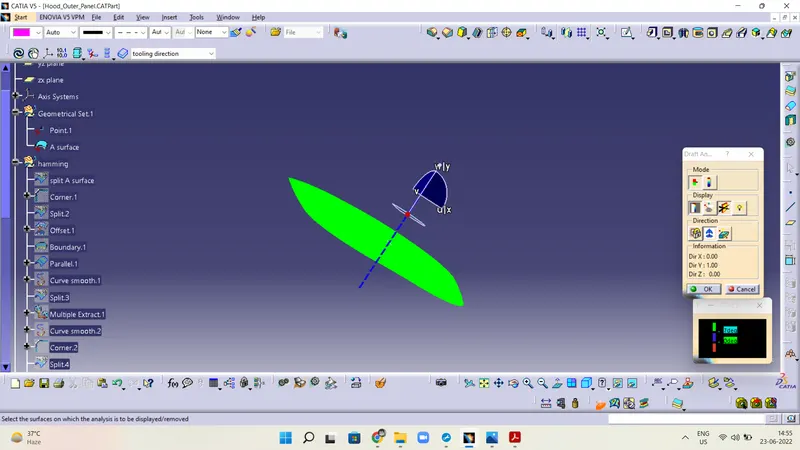

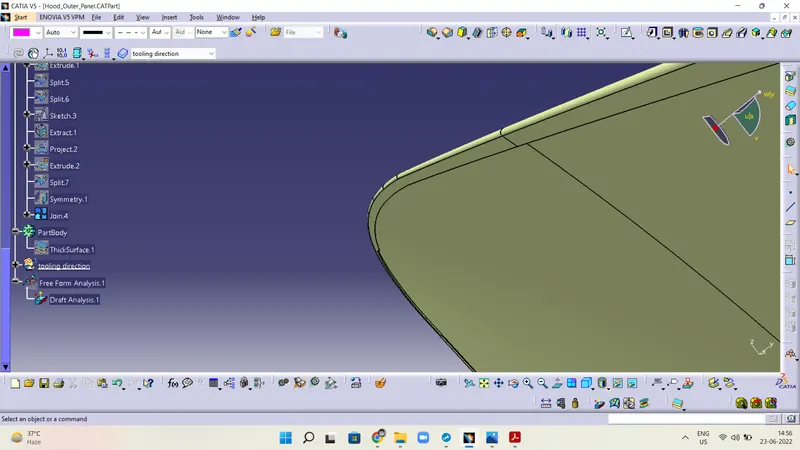

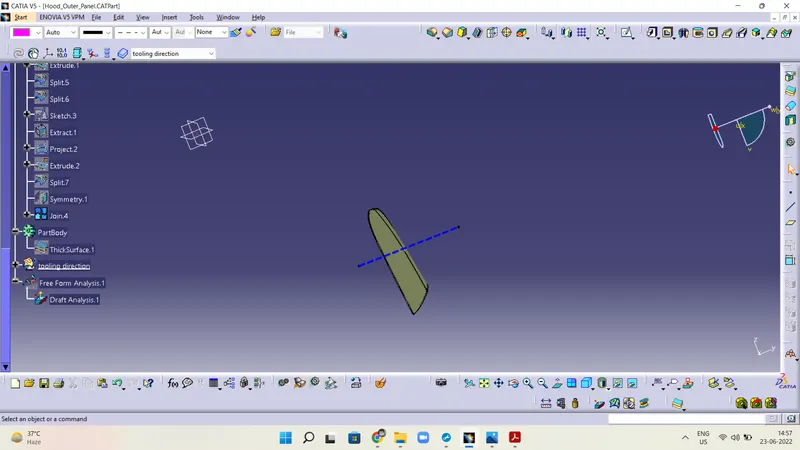

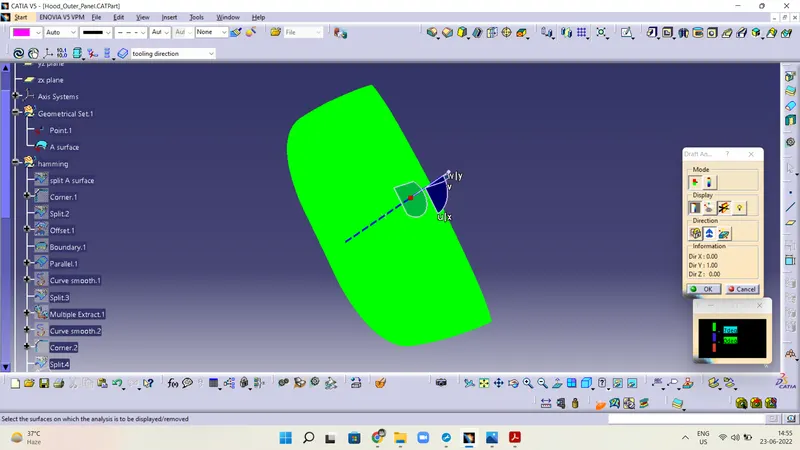

Draft Analysis

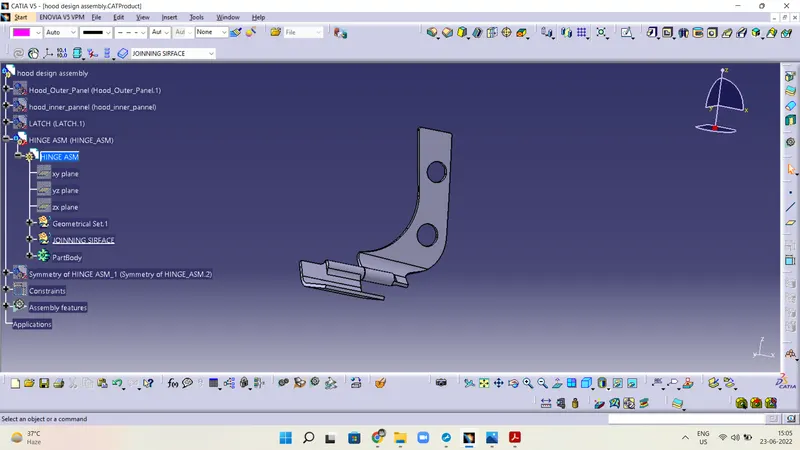

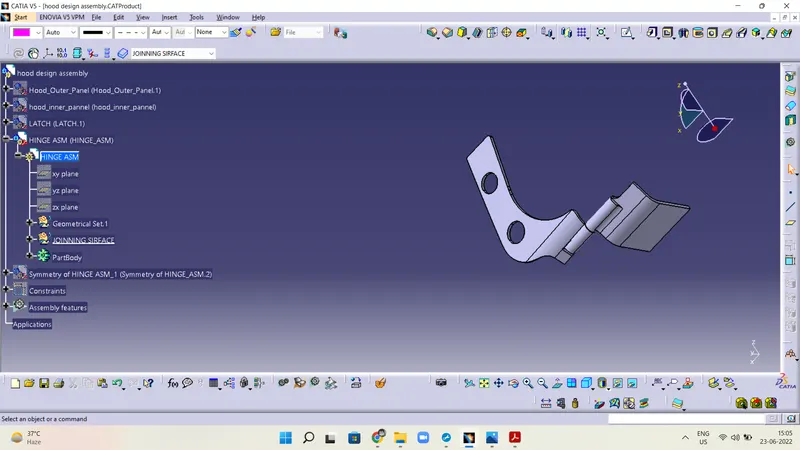

Hinge Assembly-
Hinge is a component that fixes the hood to the fenders of the car. The latch must be fixed perpendicular to the hinge axis so that the hood opens or closes properly.

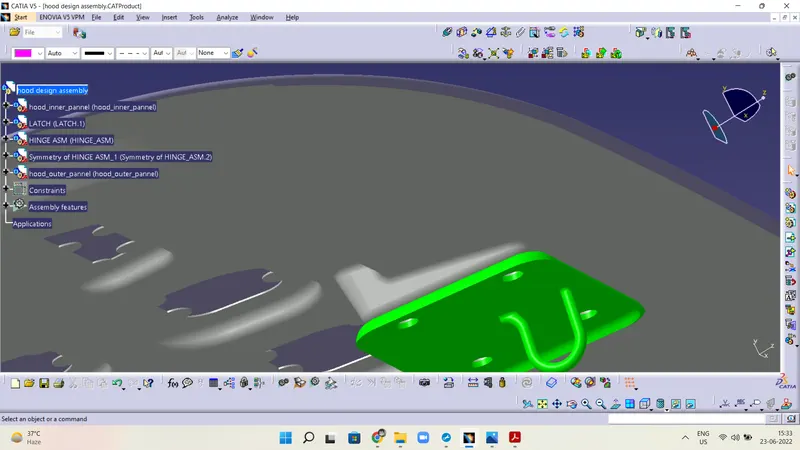

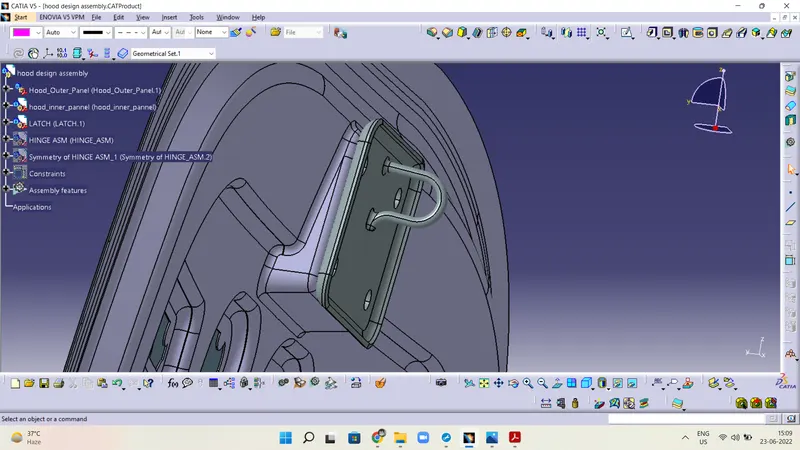

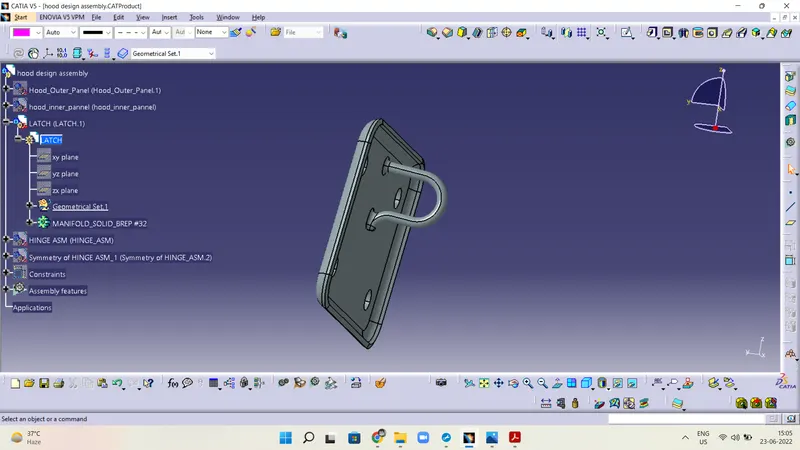

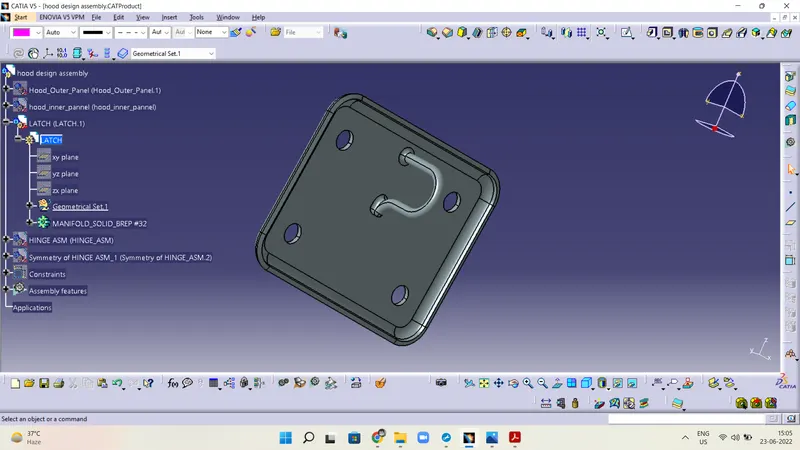

Striker Assembly-
Latch & striker is used for locking the hood with the car. It is usually placed on the space provided on the inner panel.

The process involved in designing hood as a sheet metal operations is
Blanking
Hemming
Punch cutting or piercing
Deep drawing
Embossing

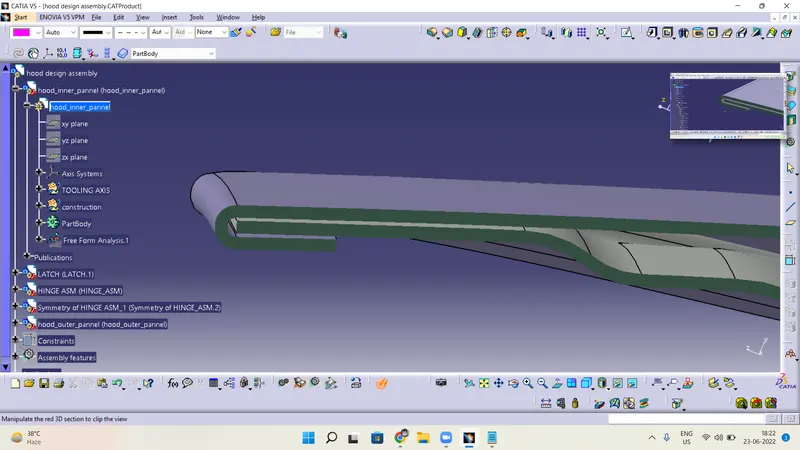

Hemming-

• Hemming is a sheet metal forming process in which sheets are joined by bending it usually to 180 degree. Automotive body panels & parts such as deck-lids, trunk-lids, doors, hoods & tailgates are formed by hemming processes.
• Roll hemming is carried out incrementally with a hemming roller. An industrial robot guides the hemming roller & forms the flange. Roll hemming operation can also be divided into several pre-hemming & final hemming process steps.
• Coventional die hemming is suitable for mass production. In die hemming, the flange is folded over the entire length with a hemming tool. Normally the actual hemming is a result of a forming operation in which the flange is formed with a hemming tool after the drawing & trimming operations have been completed.

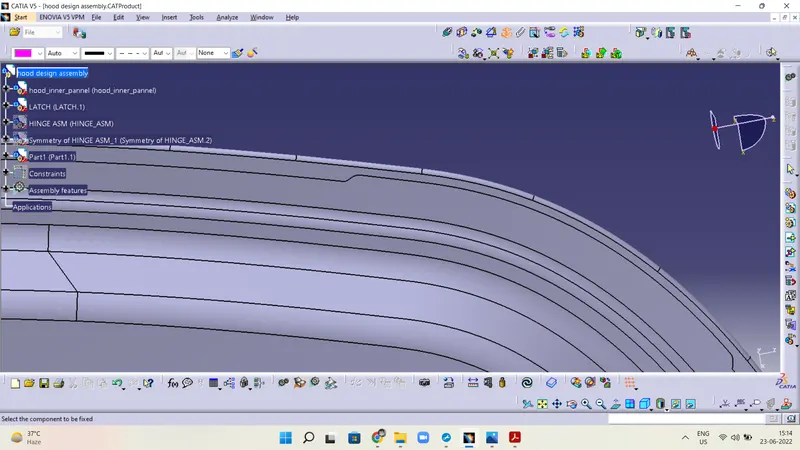

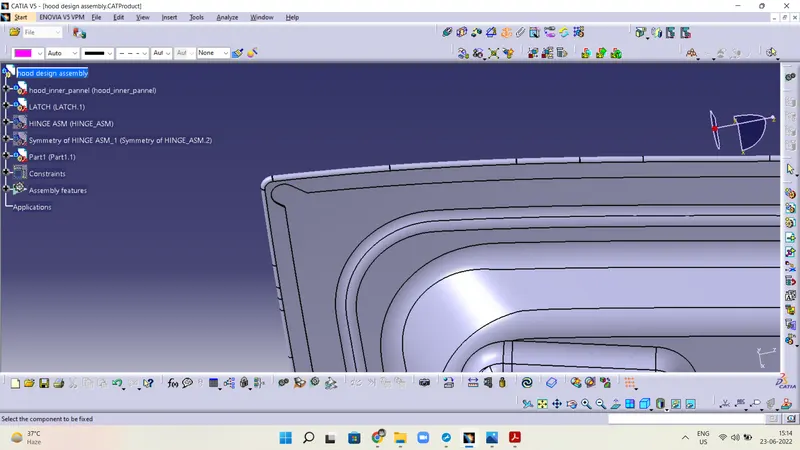

hemming data

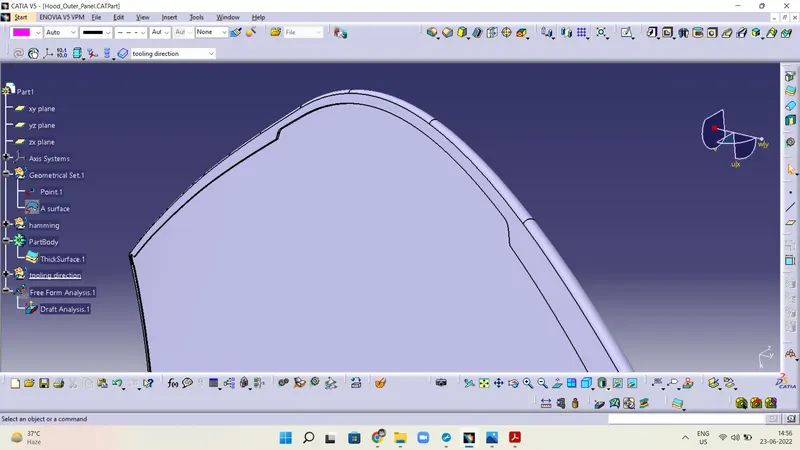

Rear relief data

front relief data

Deep Drawing-

• Deep drawing is a manufacturing process that is used extensively in the forming of sheet metal into a cup or box-like structures. Pots & pans for cooking, containers, sinks, automobile parts, such as panel & gas tanks, are among a few of the items manufactured by sheet metal deep drawing.
• A deep drawing of sheet metal is performed with a punch and die. The punch is the desired shape of the base of the part, once rawn. The die cavity matches the punch and is a little wider to allow for its passage, as well as clearance. For many calculations, the sheet metal thickness is assumed to remain constant. There are changes in thickness in certain areas, due to force involved

Embossing-

• The sheet metal embossing operation is commonly accomplished with a combination of heat & pressure on the sheet metal, depending on what type of embossing is required.
• A sheet metal is drawn through the male & female roller dies, producing a pattern or design on the sheet metal. Depending on
  the roller dies used, different patterns can be produced on the sheet metal.

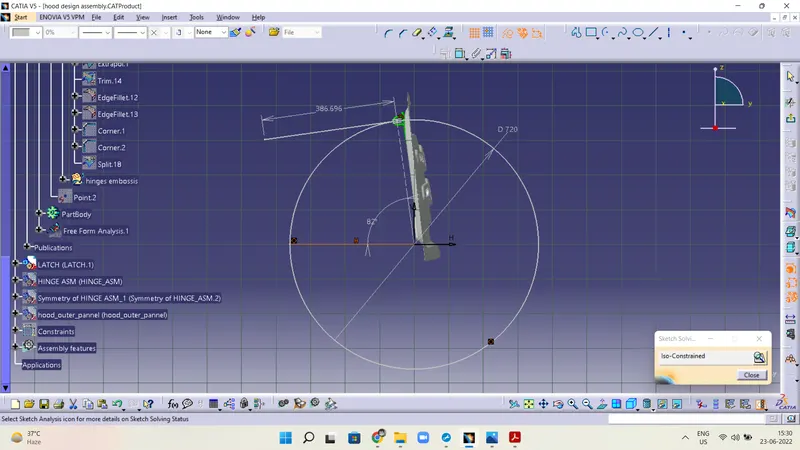

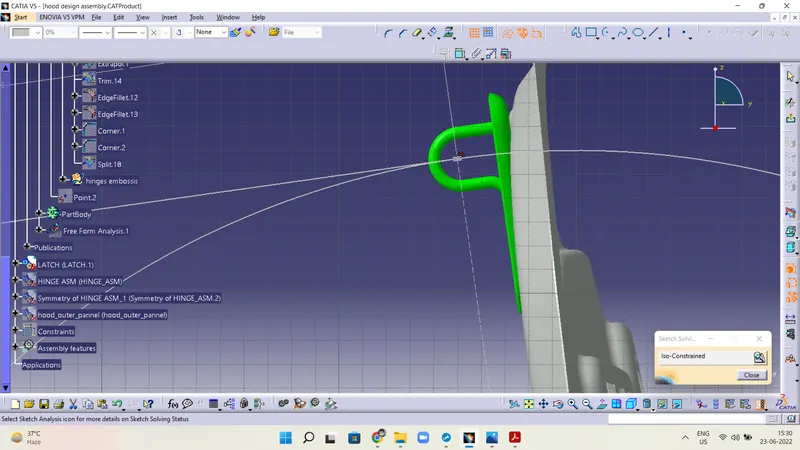

Latch trajectory-
While opening or closing the hood, the latch must be perfectly aligned to the fixing or striker point. For that, the latches trajectory must
be perpendicular to the hinge axis

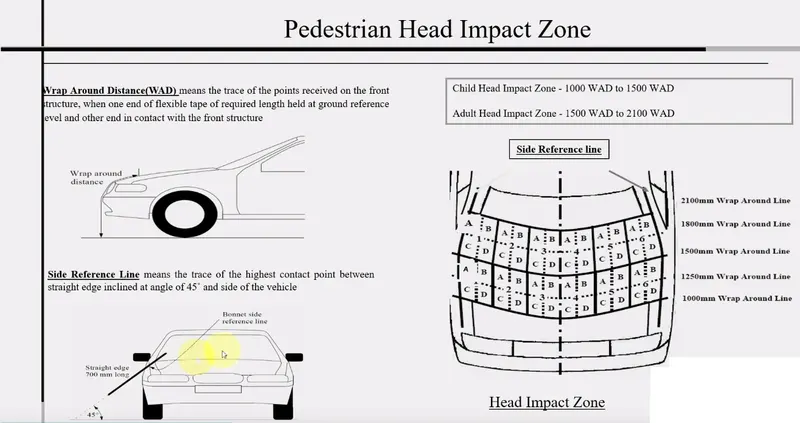

NCAP

A New Car Assessment Program (or Programme) is a government car safety program tasked with evaluating new automobile designs for performance against various safety threats.

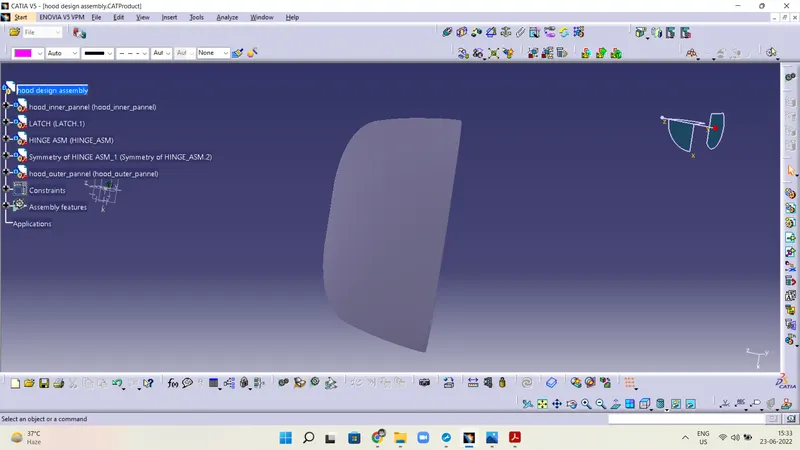

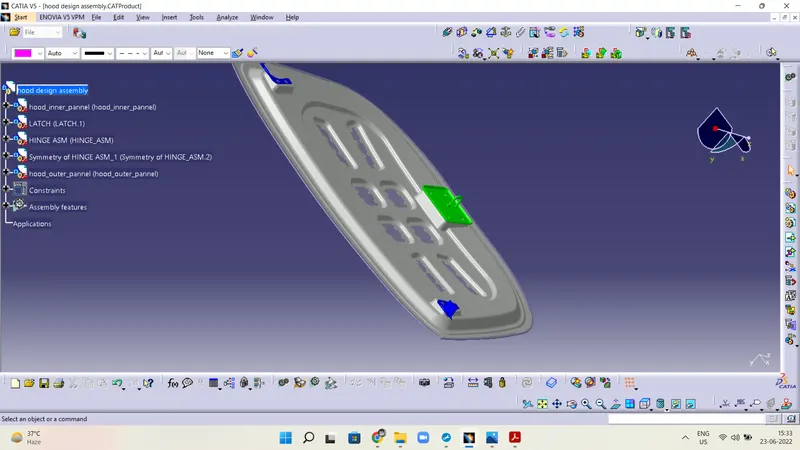

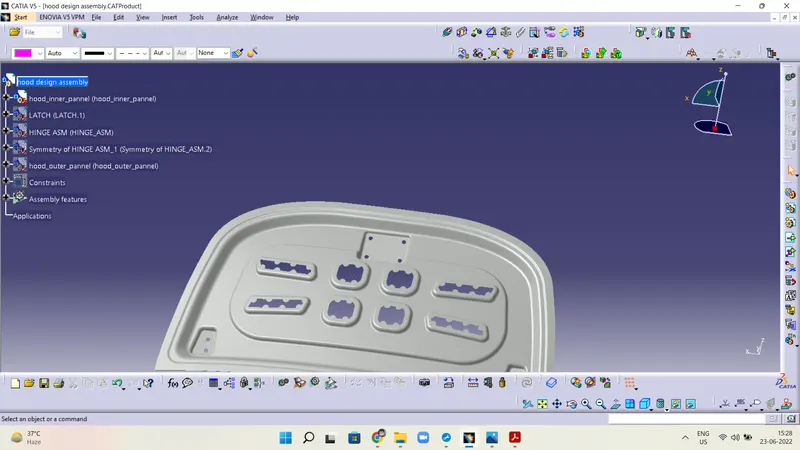

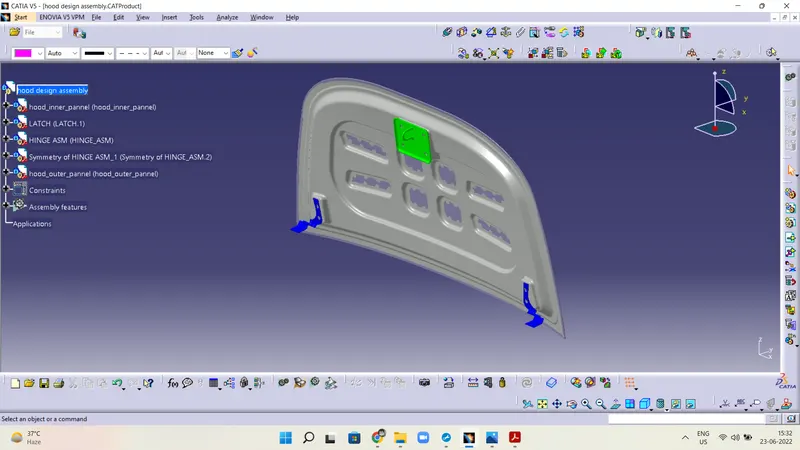

Assembly

Conclusion-
We have designed a hood that falls under the rules & regulations of the manufacturer's standards
