Hood design-Week 2

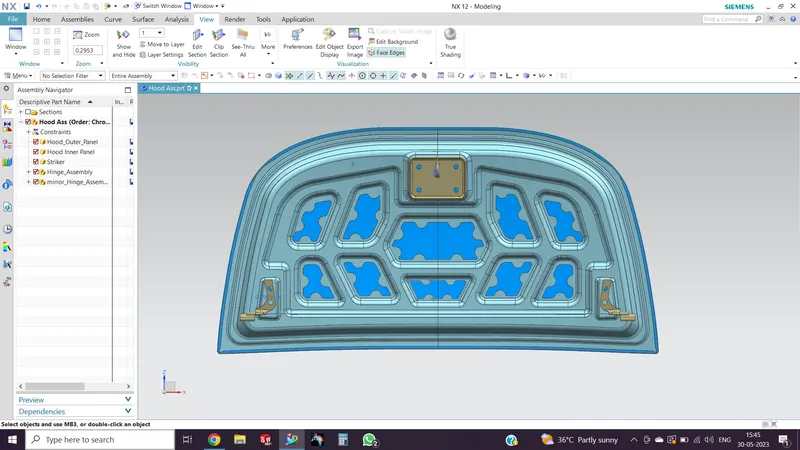

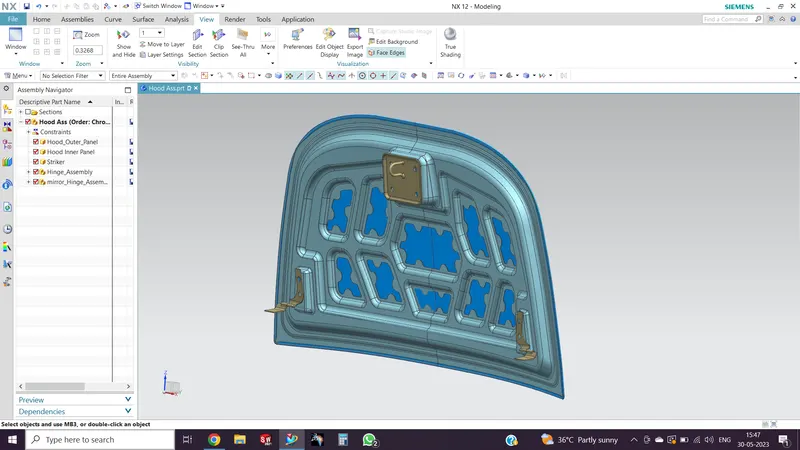

Hood Design with outer and inner panels, along with striker and hinges.

This model is created with inputs and using the master section.

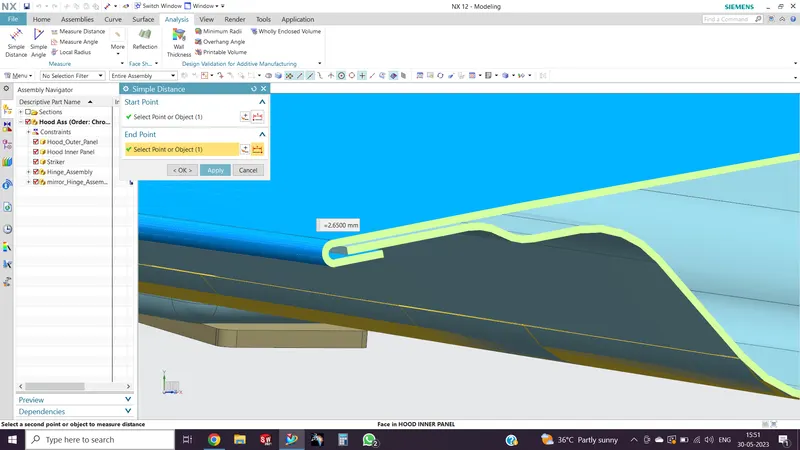

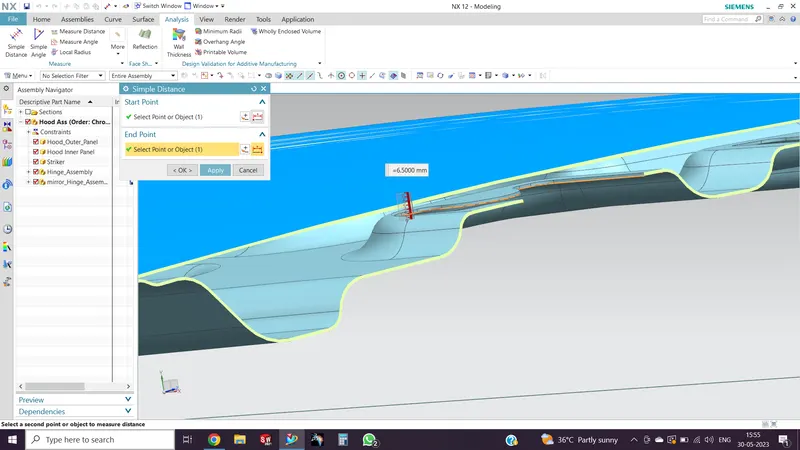

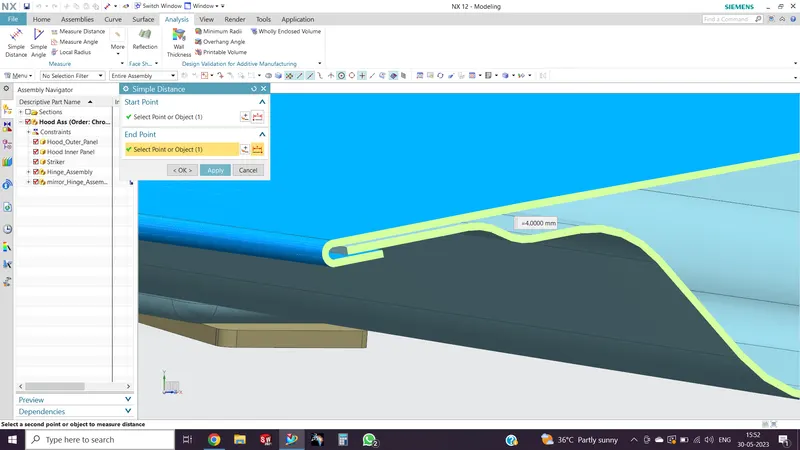

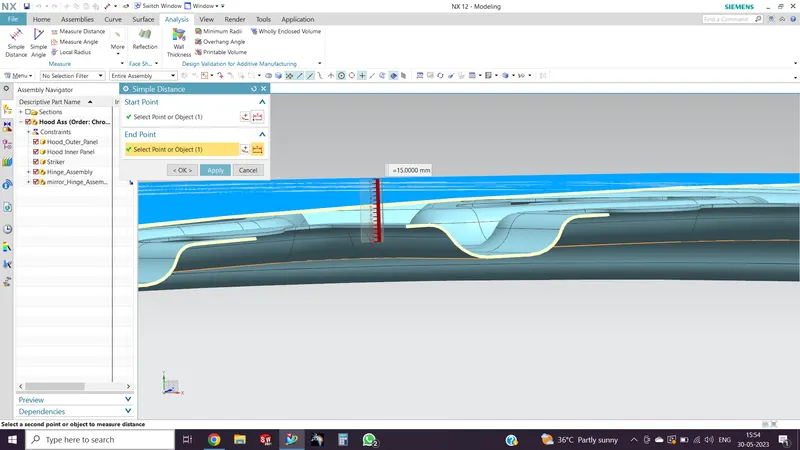

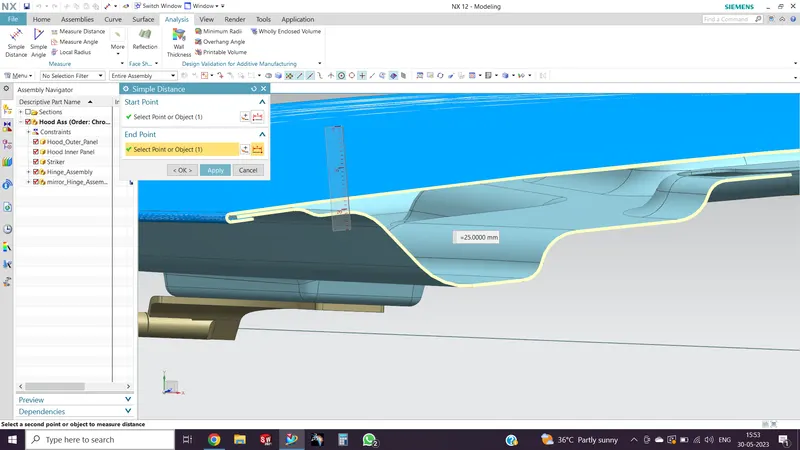

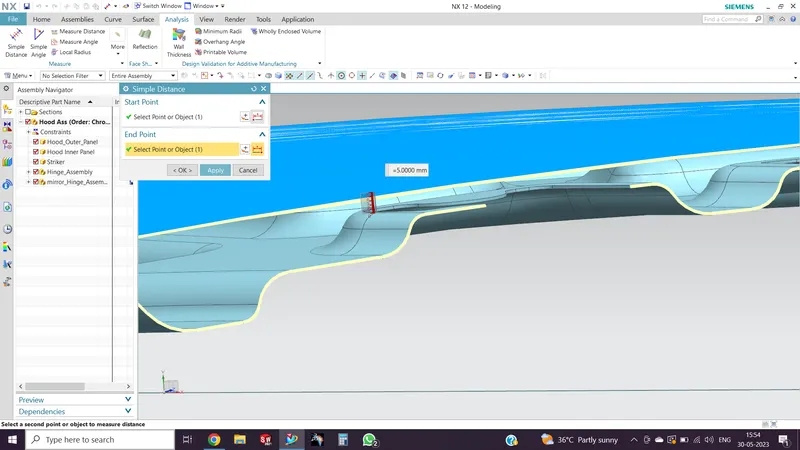

• The above image shows the mastic clearance.

• As per the given master section, the model was designed.

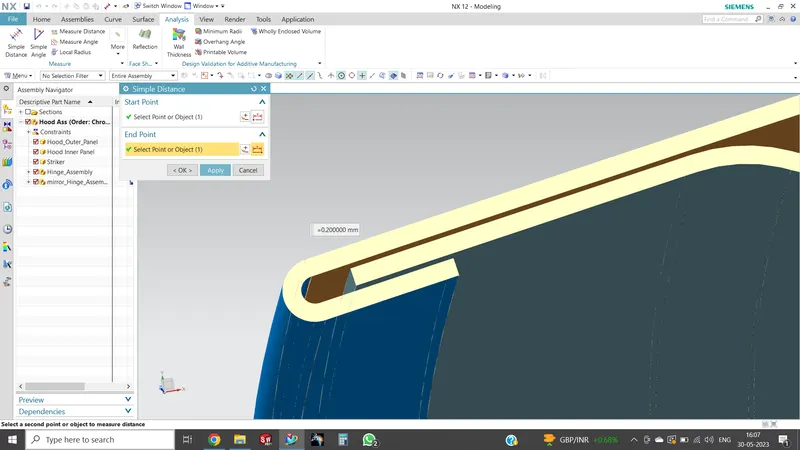

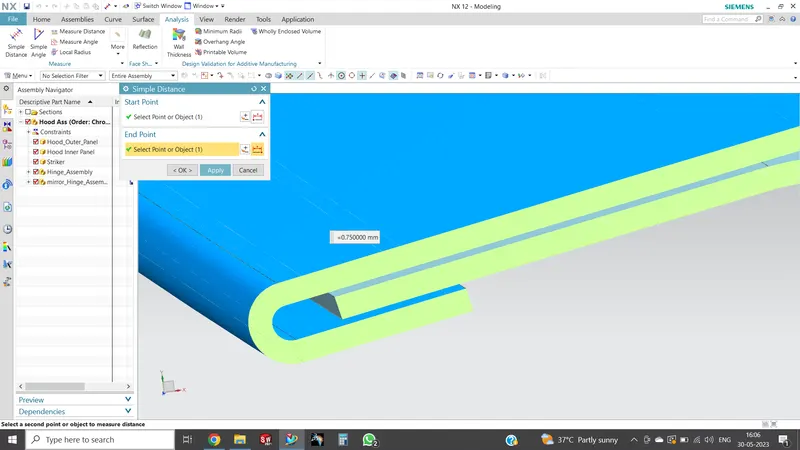

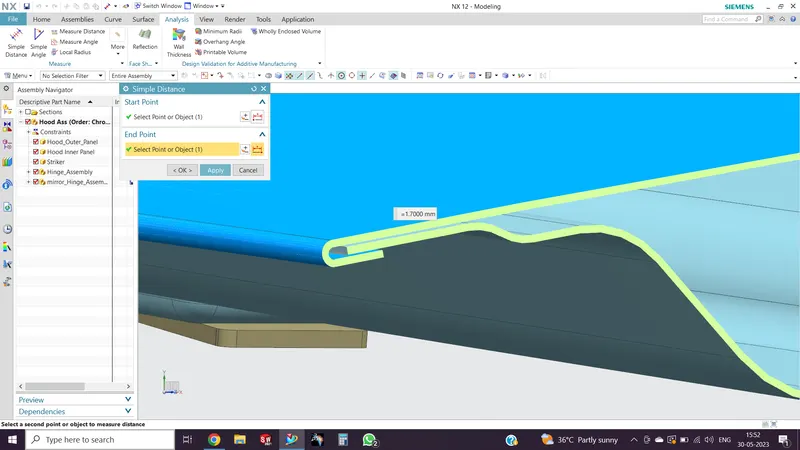

• Hood outer and inner panels are designed with 0.75mm thickness and 0.2mm for hem glue.
