HOOD DESIGN

The hood or bonnet is a hinged cover over the engine of motor vehicles that allows access to the engine compartment, or trunk for maintenance and repair. The inner panel provides strength while the outer panel functions as the metal cover. Hood comes from the Old English word hod which means a hood, a soft covering for the head. Interestingly, hood is used by British English speakers to refer to the waterproof cloth top covering the passenger-compartment of a car.

Concerns regarding the severity of a potential pedestrian head injury during a collision with a motor vehicle have led to advanced hood designs on many models. Such designs may include a multi-cone inner hood panel design. An active structure capable of pushing the surface of the hood away from the vehicle's hard motor components in the event of a pedestrian crash is also in use. Pyrotechnic or spring force designs are often used in active-hood design.

The Hood assembly consists of inner and outer panels, latch and Hinge Reinforcement. Here the Outer and inner panels are joined with the help of hemming process and application of Mastic sealant.

Hemming and Edge Relief

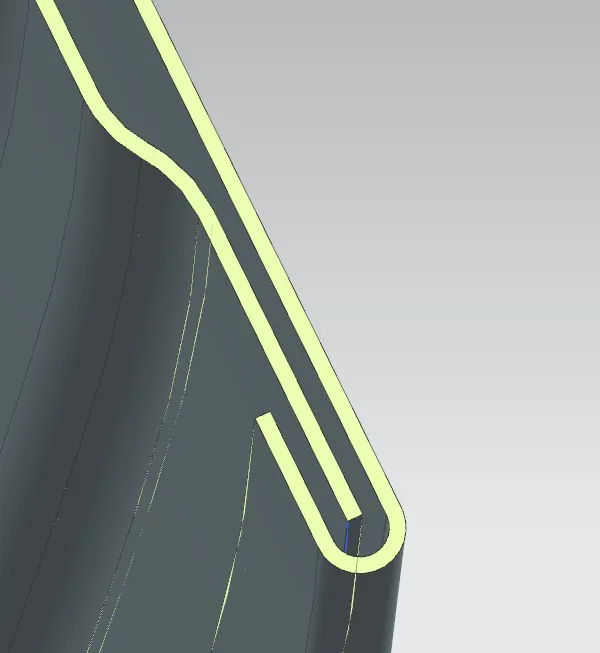

Hemming is a forming operation in which the edges of the sheet are folded or folded over another part in order to achieve a tight fit. Normally hemming operations are used to connect parts together to improve the appearance of a part and to reinforce part edges. The accuracy of the hemming operation is very important since it affects the appearance of the surface and surface quality. Material deformations, which occur during the hemming process, can lead to dimensional variations and other defects in parts. Typical hemming defects are split or wrinkles in the flange, material overlaps in the corner areas or material roll-in.

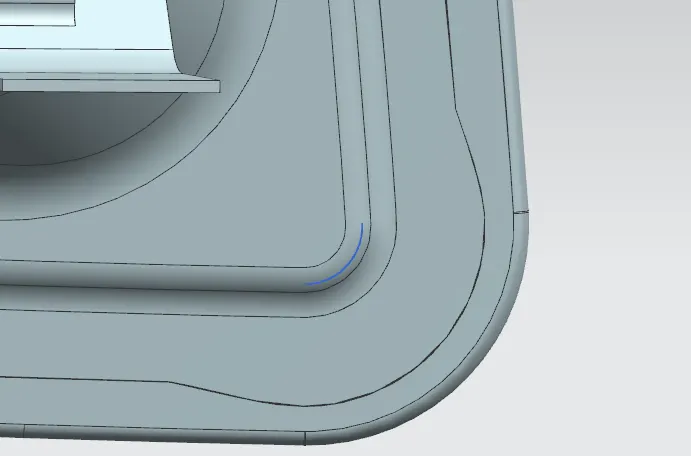

some materials are removed from the corners of outer panel to give relief.

Embossing

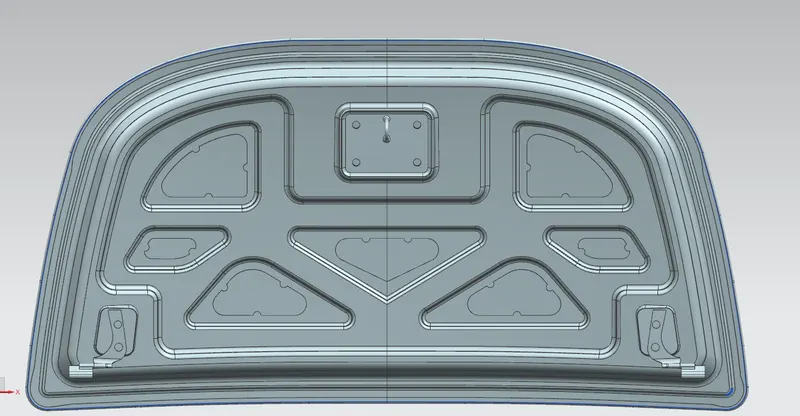

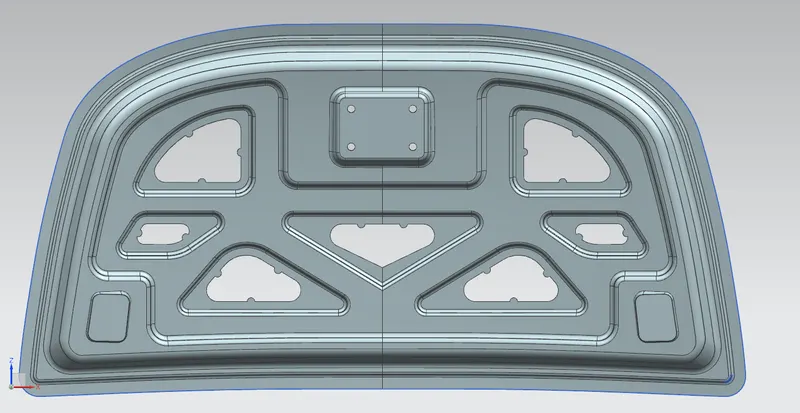

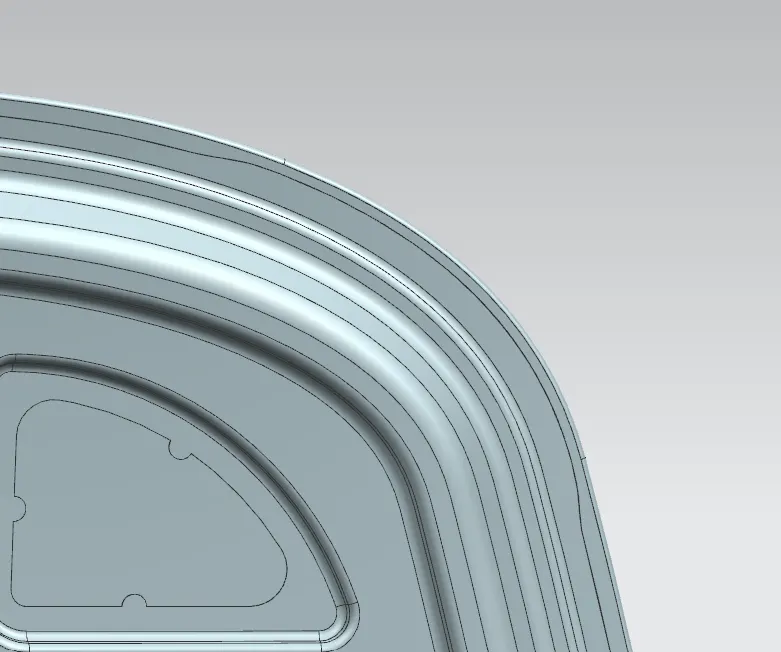

To reduce the weight of Hood, some materials are removed and embosses are created to give stiffness to the panel. Sheet metal embossing is a stamping process for producing raised or sunken designs or relief in sheet metal. In this project the Embosses are created to divide the force towards the hinge joints during collision.

Mastic Seal

In hood, Mastic are used in between inner and outer panels. It is a type of liquid sealant that occurs in an elastic state, thus making it flexible yet still keeps the bond of the surface that is attached together.
