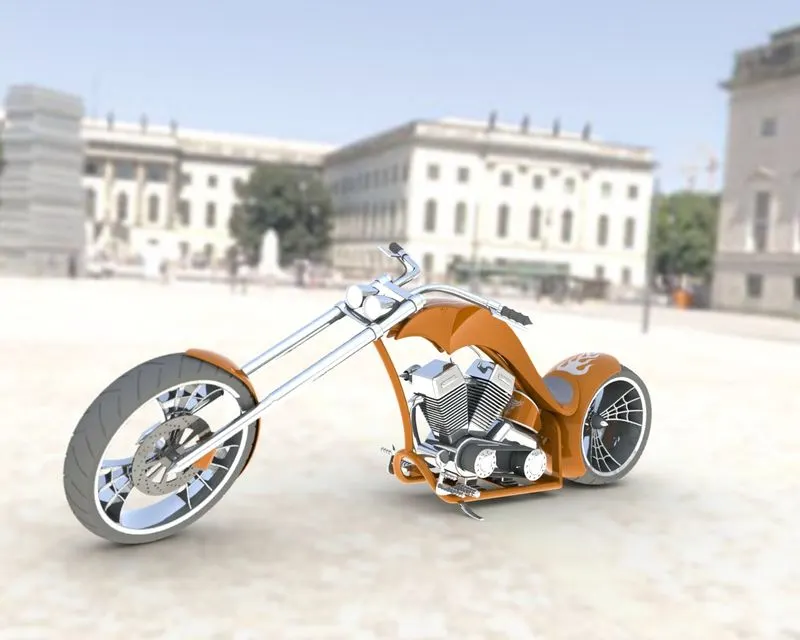

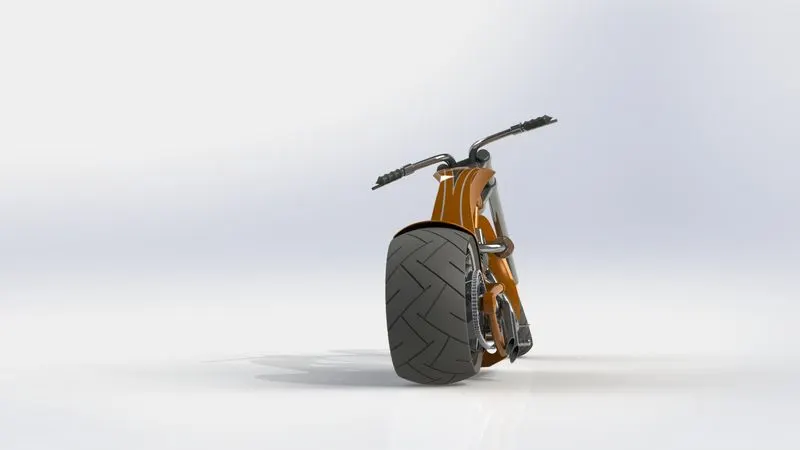

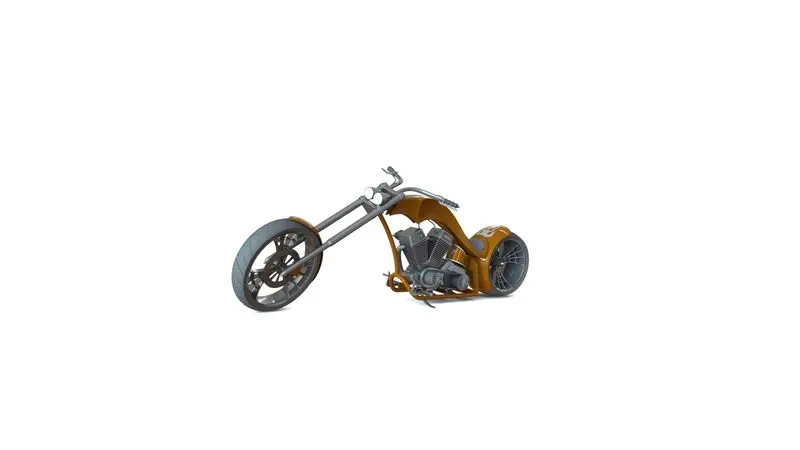

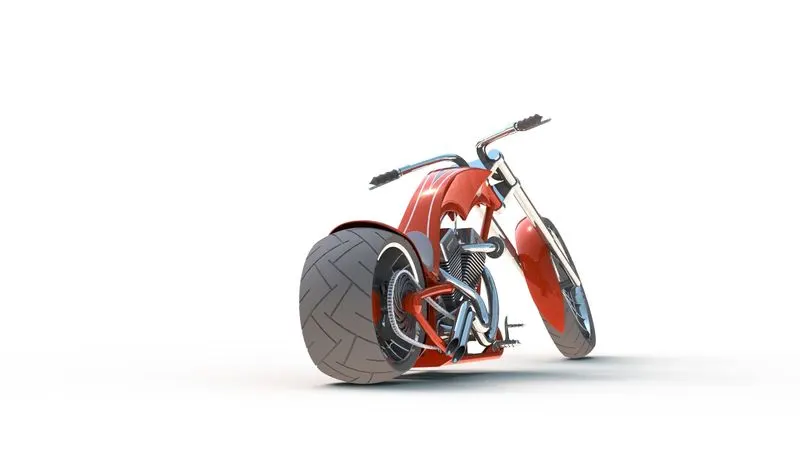

Photo Realistic Rendering

DESIGNING OF AMERICAN CHOPPER

AIM & OB JECTIVE

• To sketch and design american chopper different parts and assemble to form complete chopper in suitable environment the in solidworks.
• To create a photorealistic rendering of the chopper using photoview360 and solidwork work visualize.

INTRODUCTIOIN

• Exterior parts of chopper modelled separately and then to create aseemble full chopper.

Following Exterior parts of chopper:-

• Transmission belt
• Kickstand
• Chain
• Front fender
• Rear fender
• Pedal
• Oil tank
• Front wheel
• Rear wheel
• Front fork
• Chassis
• engine
• Gas tank

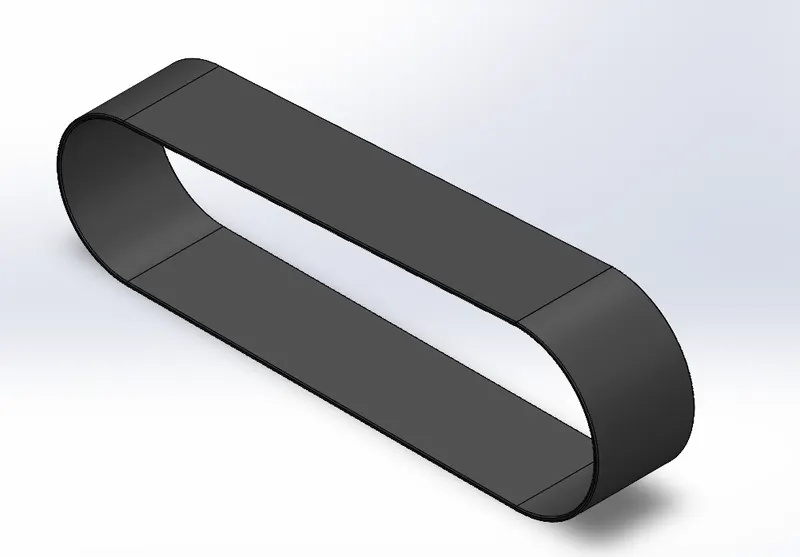

TRANSMISSION BELT

Transmission belt used to link two or more rotating shfts mechanically,i.e source of motion and transmit power efficiently.Belt are lopped over pulley and may have atwist between the pulley and shaft need not be parallel

Commands used for this sketch:

• Sketch
• Smart dimensions
• offset
• Extruded boss/base
• Fillet
• Appearance
•

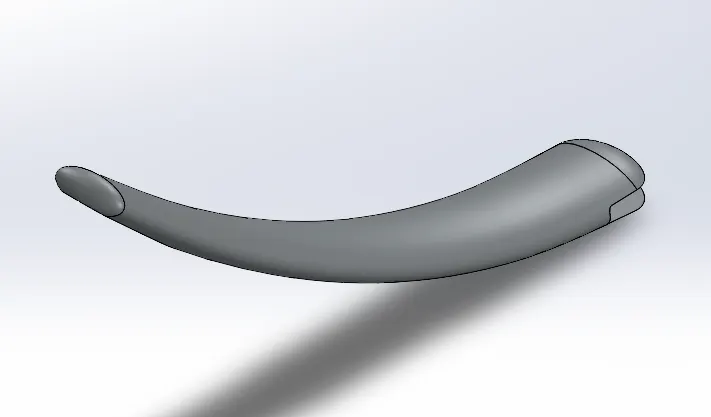

KICKSTAND

Its a metal rod to support ideal condition safety of bicylce and motorcycle .it is pivoted to the axle in such a way that it can be kicked down below the frame.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Loft
• Extruded boss/base
• Extruded cut
• Dome
• Split
• Fillet
• Appearance

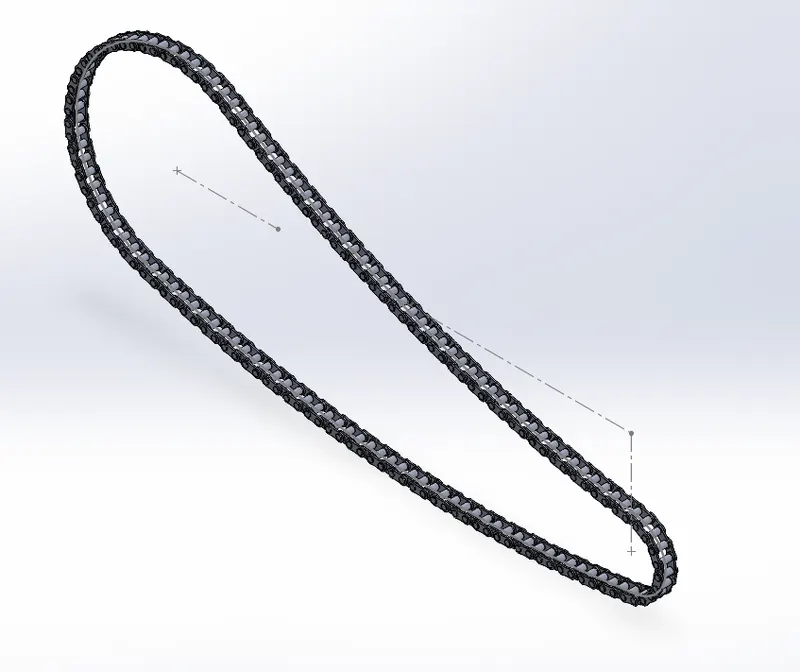

CHAIN

Motorcycle chain are part od drive to transmit power engine to back wheel.Properly lubricated chain can reach an efficiency .unlubricated chain wil besignificantly decrease performance and easily wear before life time over.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extruded boss/bass
• Fillet
• Circular pattern
• Appearance

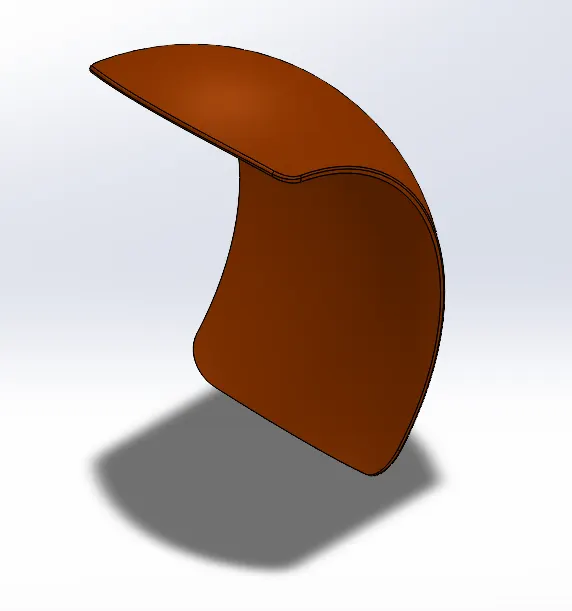

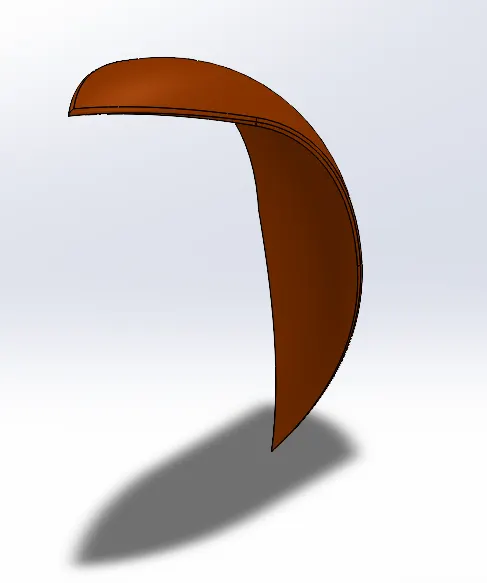

FRONT FENDER & REAR FENDER

Fender is one of part of vehicle is main purpose of using to keep protects the frame in mud splashing wheels (Both front & Rear wheels).

Commands used for this sketch:

• Sketch
• Smart dimensions
• Revolve boss/bass
• Split
• Fillet
• Appearance

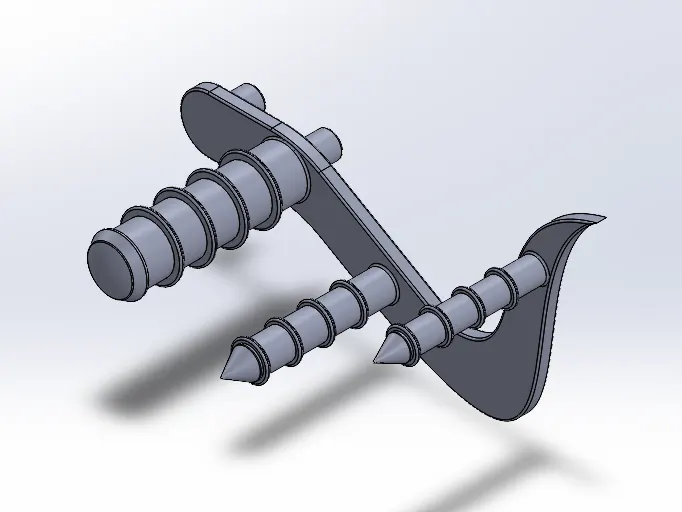

PEDAL

It is rest feet while driving the vechicle. it is an extended piece from the chassis ehich is used for resting to maintain balance and comfort to ride the motocycle.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Extrude cut
• Revolve boss/bass
• Linear pattern
• Dome
• Chamfer
• Fillet
• Appearance

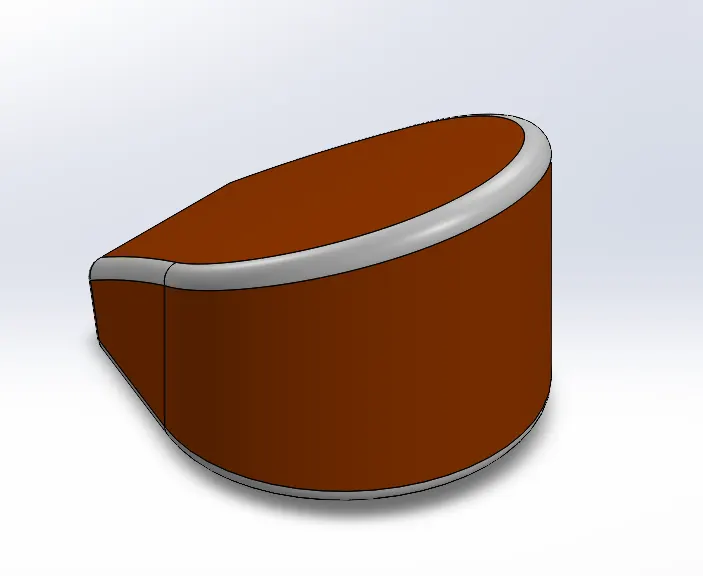

OIL TANK

Oil tank is used to to store engine oil which from there is pumped to the engine and other parts of an automobile for lubrication and maintenance.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Combine
• Shell
• Fillet
• Appearance

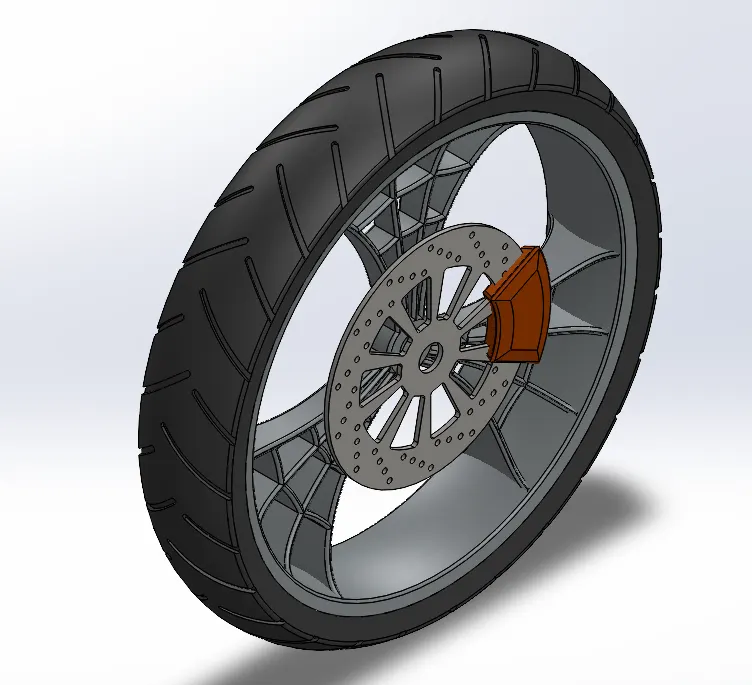

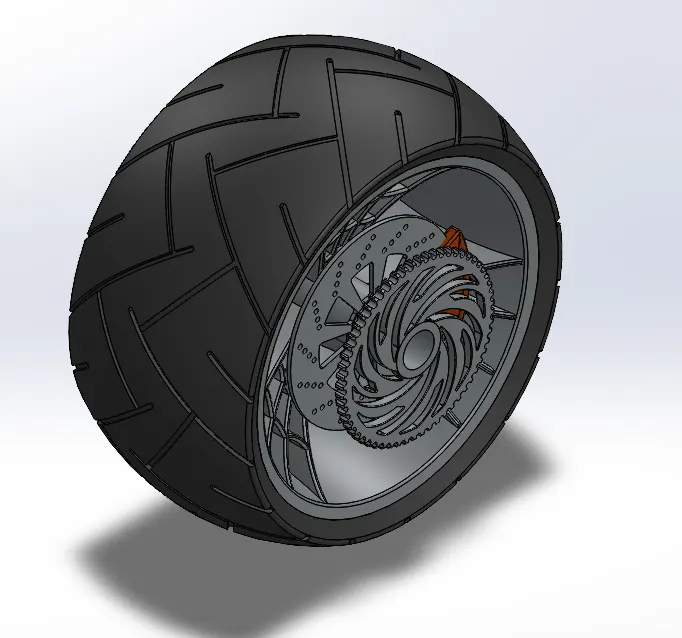

FRONT & REAR WHEEL

A wheel is a circular block of a hard and durable material at whose center has been boreda circular hole through which is placed a front axle bearing about which the wheel rotates when moment is applied by gravity or torque to the wheel.

wheel consists of

• Rim
• Brake caliper
• rotor
• sprocket

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Revolve boss/bass
• Linear pattern
• Circular pattern
• Chamfer
• Trim
• Extended trim
• convert entites
• Fillet
• Appearance

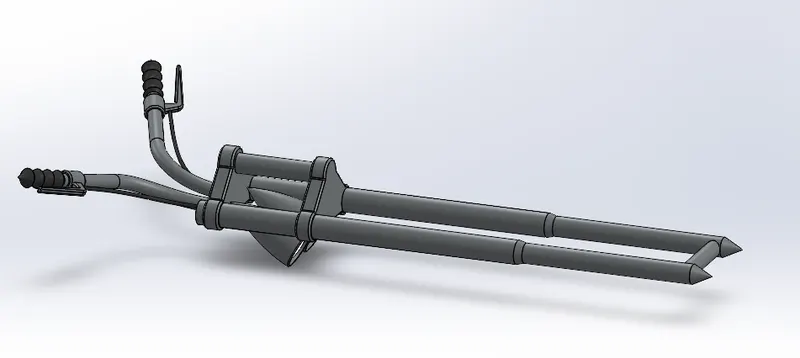

FRONT FORK

Motorcycle wheels are made to cope with radial and axial forces.They also provide a way of mounting other critical components such as the brakes,final drive and suspension.

The front fork prevents excessive weight on the front wheel during drastic sudden application the break soften bumping when driving on rough road surface the front fork maintains proper damping through traction with road surfaces.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Revolve boss/bass
• sweep
• dome
• project curve
• Mirror
• move/copy body
• Chamfer
• Trim
• Extended trim
• convert entites
• Fillet
• Appearance

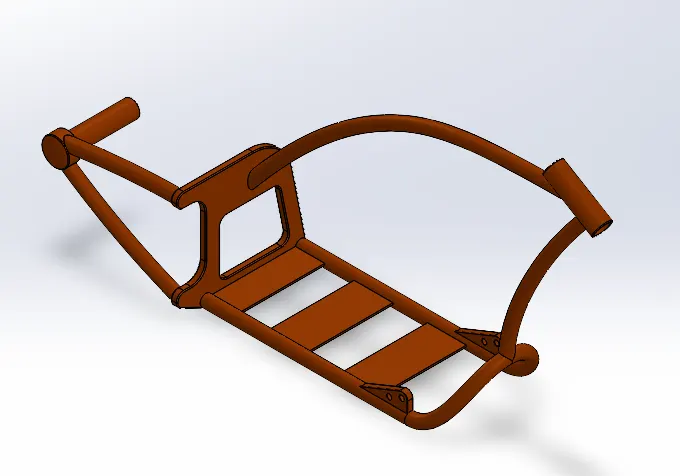

CHASSIS

It is vehicle frame,the underpart of motor vehicle ,on which the body is mounted ifthe running gear such as wheels and transmission and sometimes even the driver seat are included then the assembly is described rolling chassis.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Revolve boss/bass
• sweep
• dome
• projected curve
• Mirror
• combine
• split
• move/copy body
• Chamfer
• Extruded cut
• Trim
• Swept boss/bass
• Extended trim
• convert entites
• Fillet
• Appearance

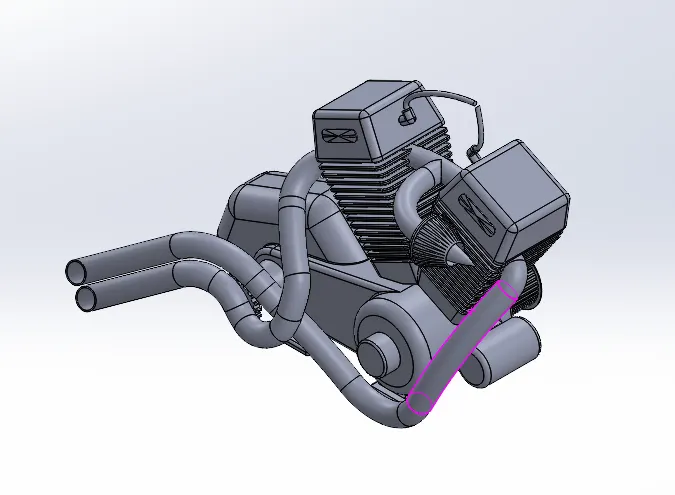

ENGINE

A motorcycle engine is an engine that powers a motorcycle.Motorcylce engines are typically two stroke or four stroke internal combustion engines,but other engine types such as wankels and electric motors have been used.

Commands used for this sketch:

• Sketch
• Smart dimensions
• Extrude boss/bass
• Revolve boss/bass
• sweep
• dome
• projected curve
• Mirror
• combine
• split
• move/copy body
• Chamfer
• Extruded cut
• Trim
• Swept boss/bass
• Extended trim
• convert entites
• Fillet
• Appearance

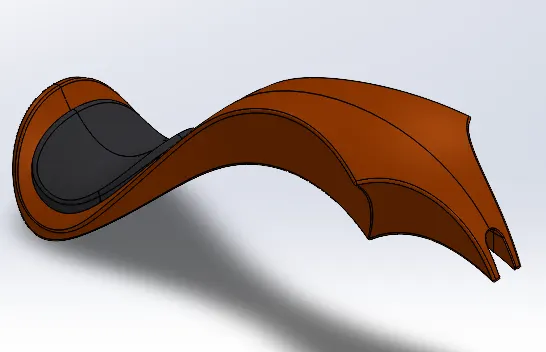

FUEL TANK

A fuel tank is a safe containers for flameable fluid storage.Though any storage tank for fuel may be so called,the term is typically applied to part of an engine system in which the fuel is stored and propelled or released inton engine.Fuel tank rangein size and complexity from the small plastic tank of butane lighters to multi chambered cryogenic spaces shuttle external tank .

Commands used for this sketch:

• Sketch
• Smart dimensions
• projected curve
• Mirror
• combine
• split
• move/copy body
• Chamfer
• Extruded cut
• surface Trim
• Boundary surface
• Swept surface
• extruded surface
• knit surface
• Extended trim
• Fillet
• Appearance

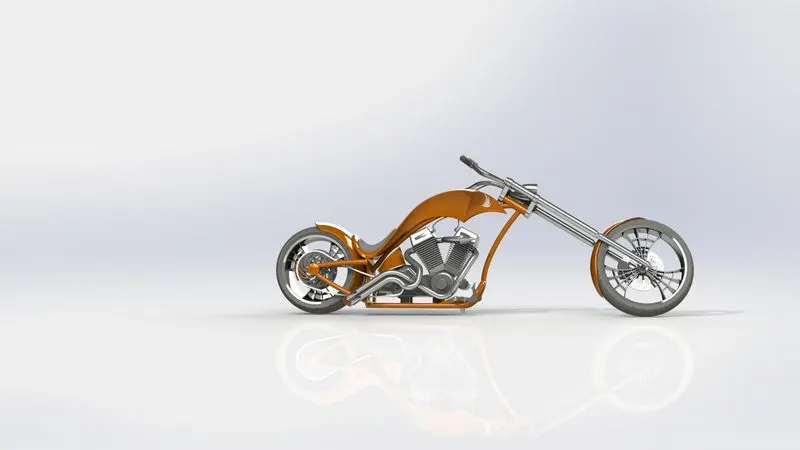

CONCLUSION

• ALL parts of the chopper are modelled and assembled and rendered together successfuly using solidworks.
