Foundation Design using SAFE

AIM:

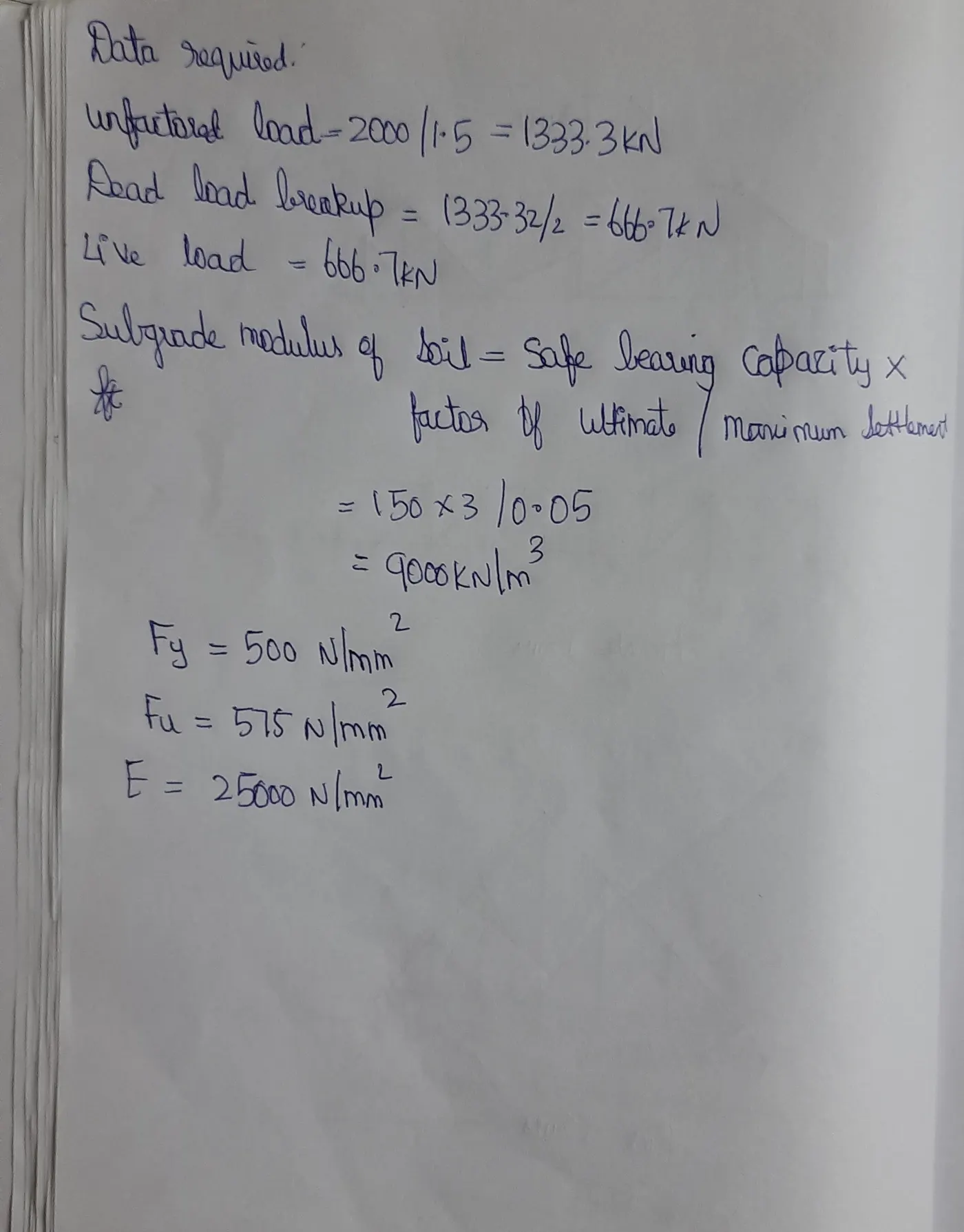

To design an isolated footing.

PROCEDURE:

Define new properties like M20,Fe500

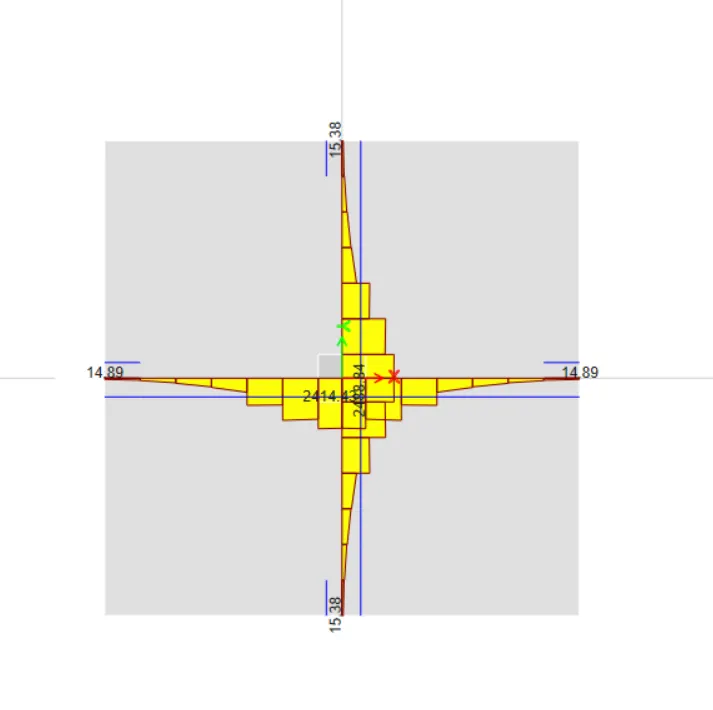

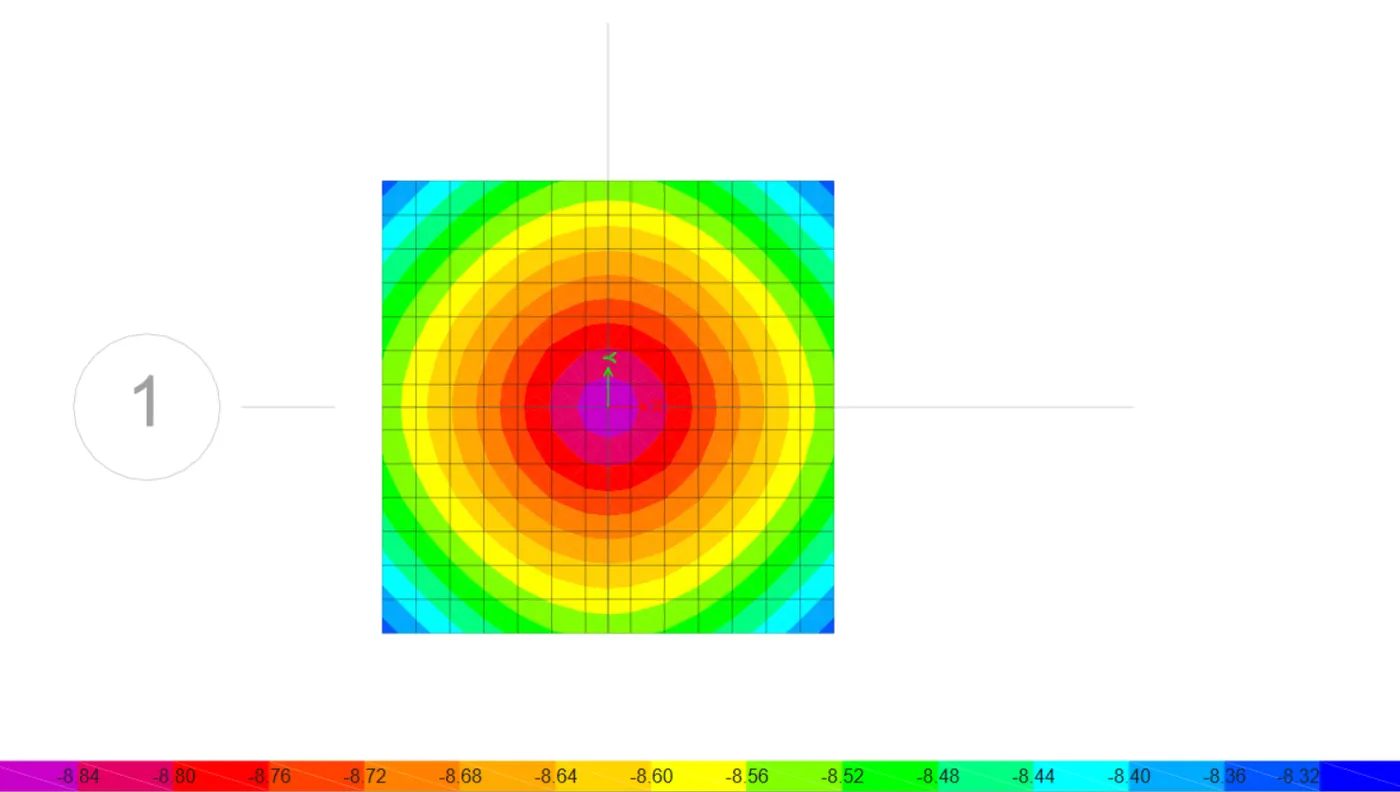

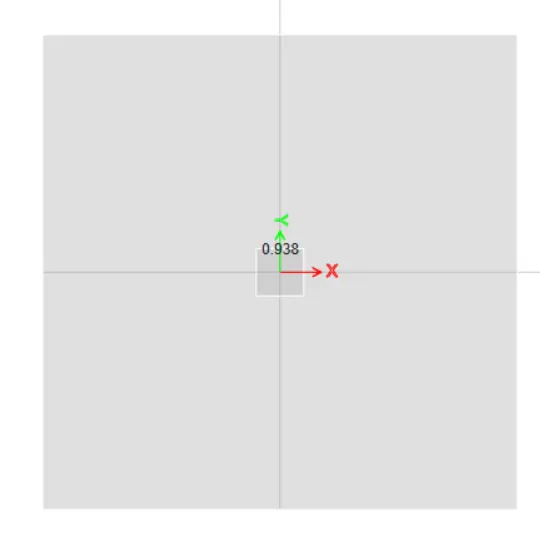

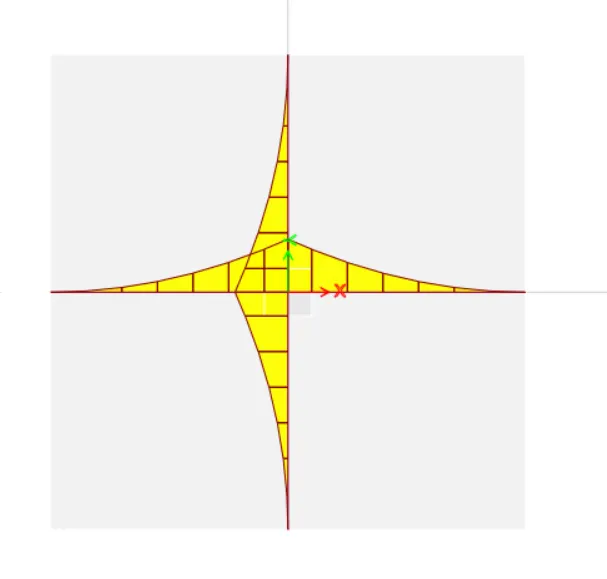

Define slab properties and draw the area and column and footing.Run the analysis.

`

AIM:

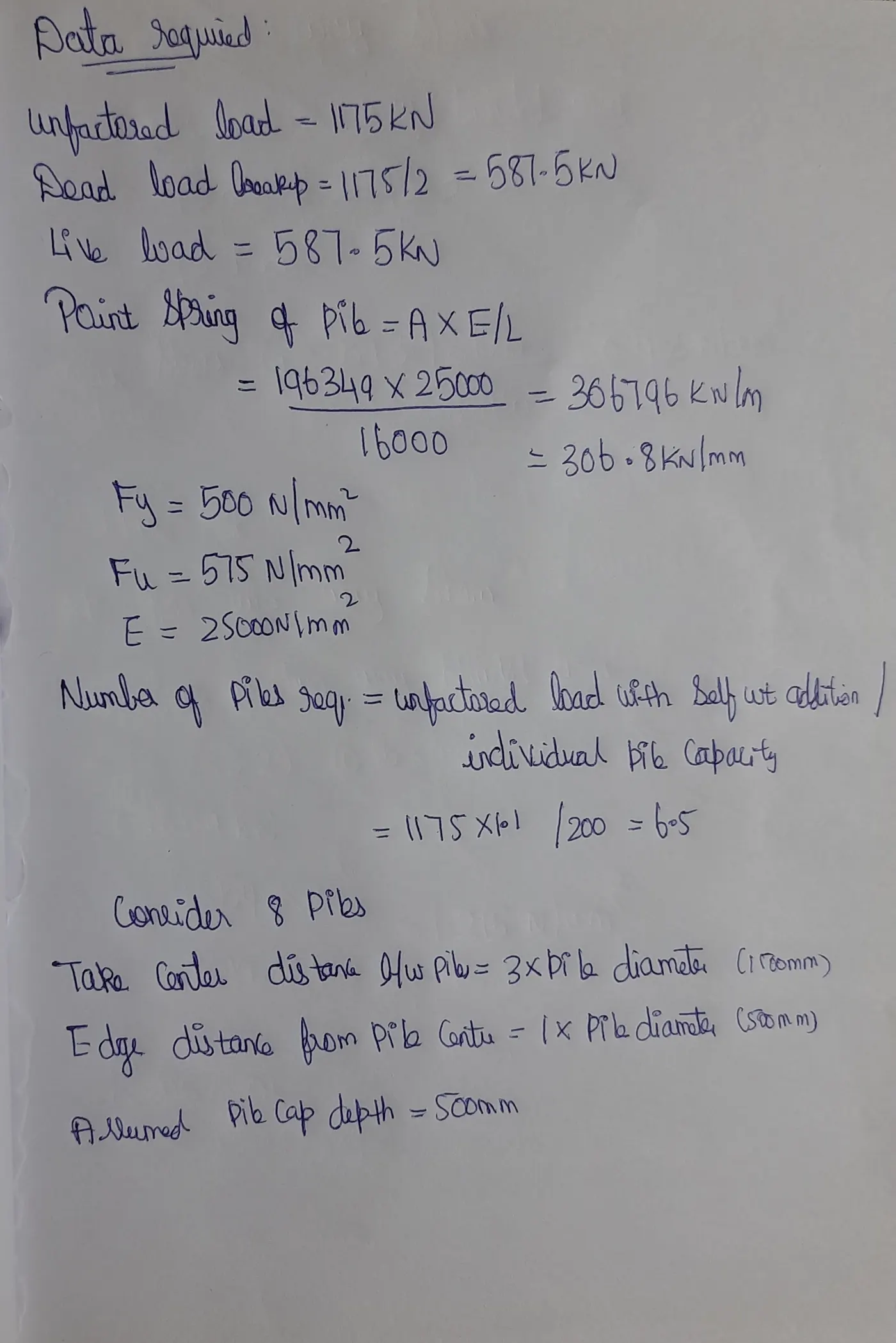

To design a pile.

PROCEDURE:

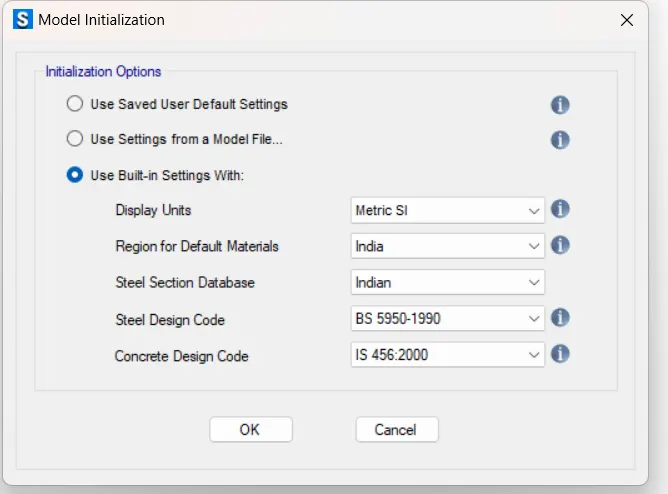

Open a safe software and initialize the setup settings.

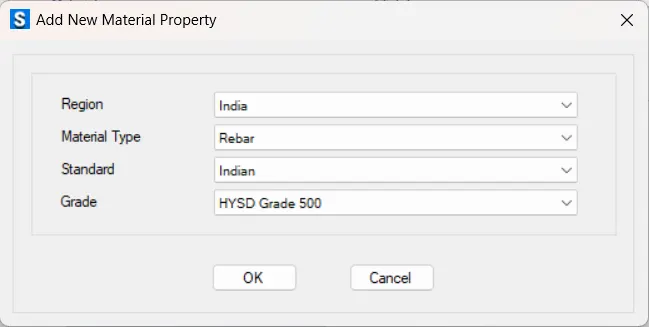

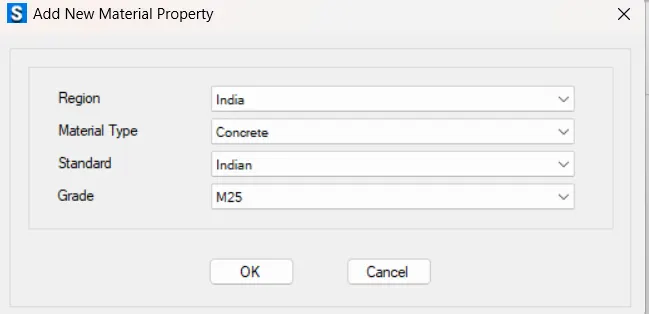

Define new material properties.

Define slab properties for pile cap ,column and gor pile design.

Draw a pile and assign point spring properties in it.

Assign load to column

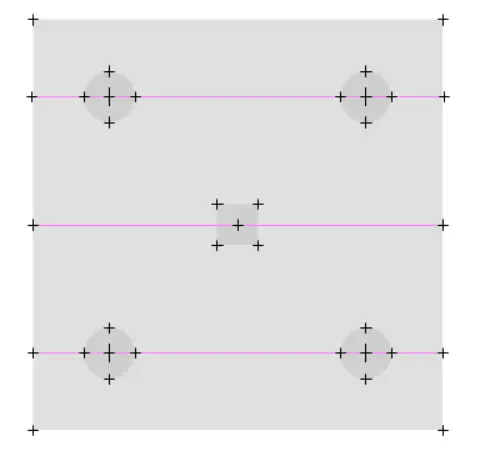

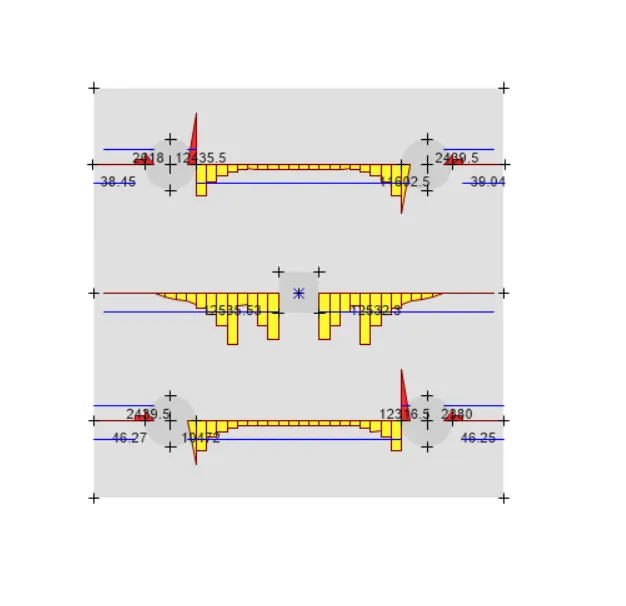

Add strips and assign the strips in it.

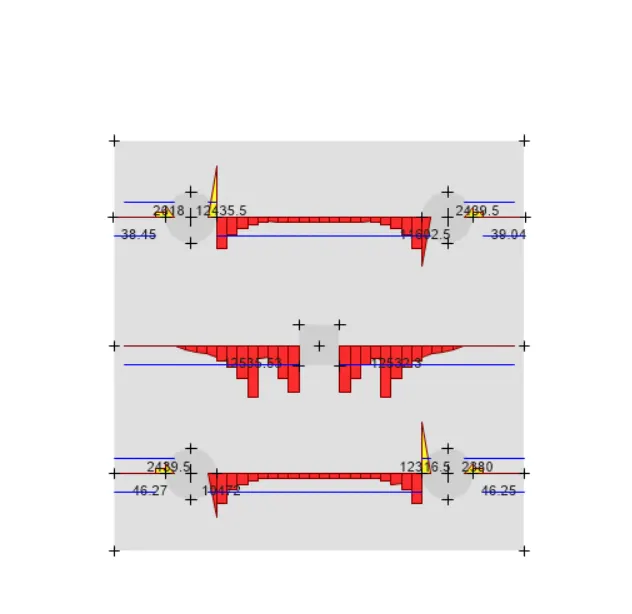

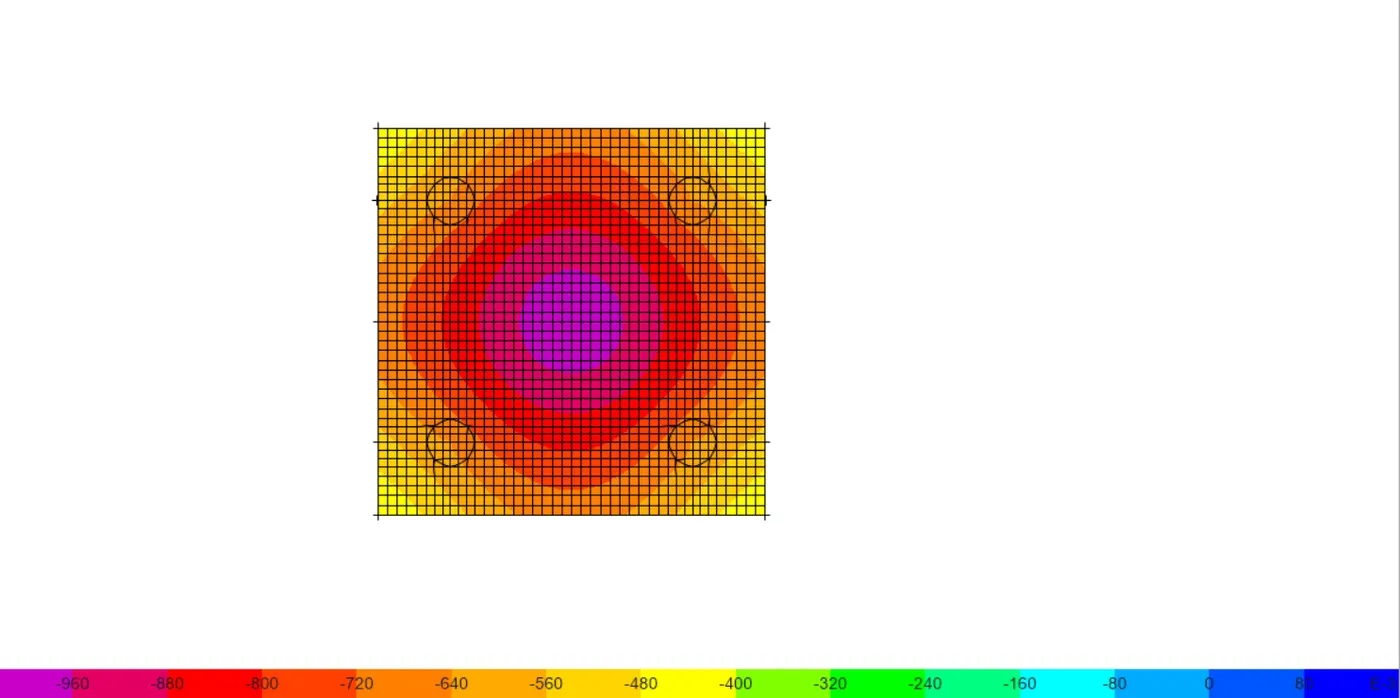

Run analysis.
