Foundation Design using SAFE
Aim
- o Analyze and designthe isolated footing from week 11 challenge on SAFE
- To verify the size, depth and steel provided as per calculations.
- introduction
-
- CSI SAFE (Slab Analysis by the Finite Element Method) is the best tool for designing concrete slabs and foundations.
- SAFE provide easiness to engineer towards the safe design of structures with powerful tools like draw, analyze, design and detailing etc.
- Laying out models is quick and efficient way with the user-friendly drawing tools, or user can import model from AutoCAD or loading conditions from other software's like CSI ETABS and CSI SAP2000.
- CSI SAFE (Slab Analysis by the Finite Element Method) is the best tool for designing concrete slabs and foundations.
procedure
step1

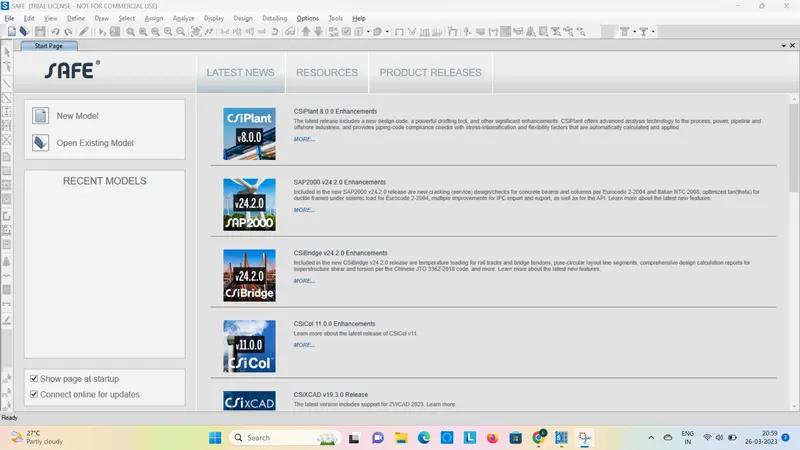

open the safe application

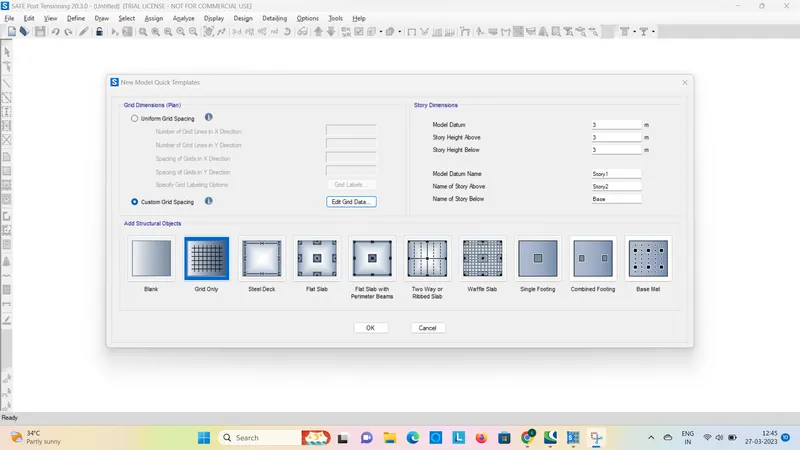

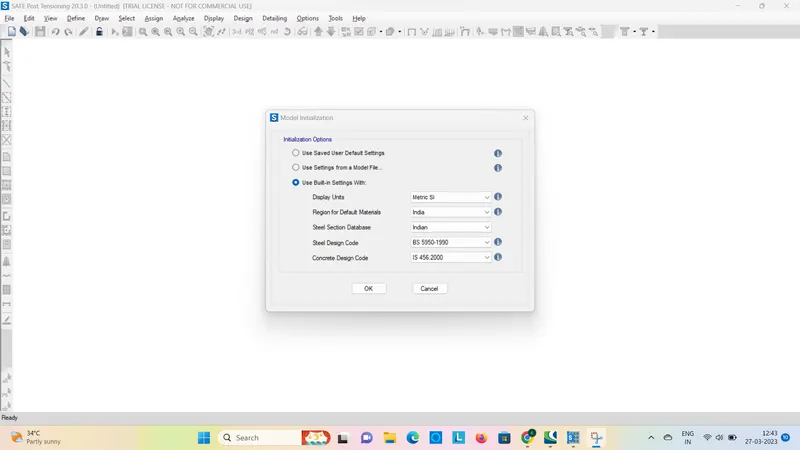

select new model

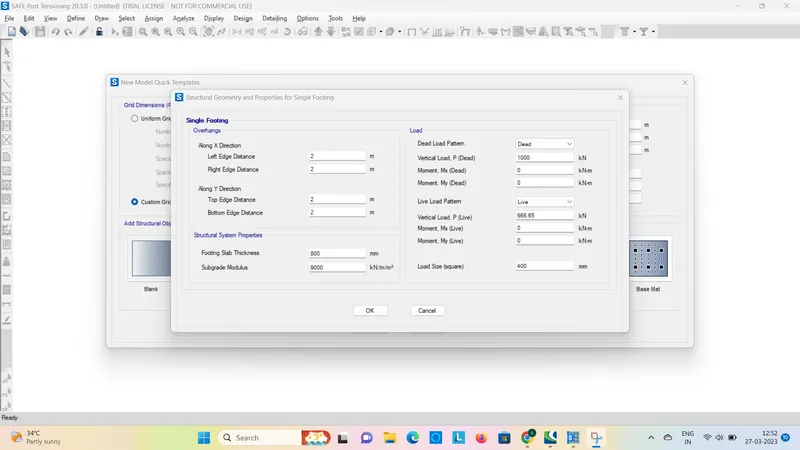

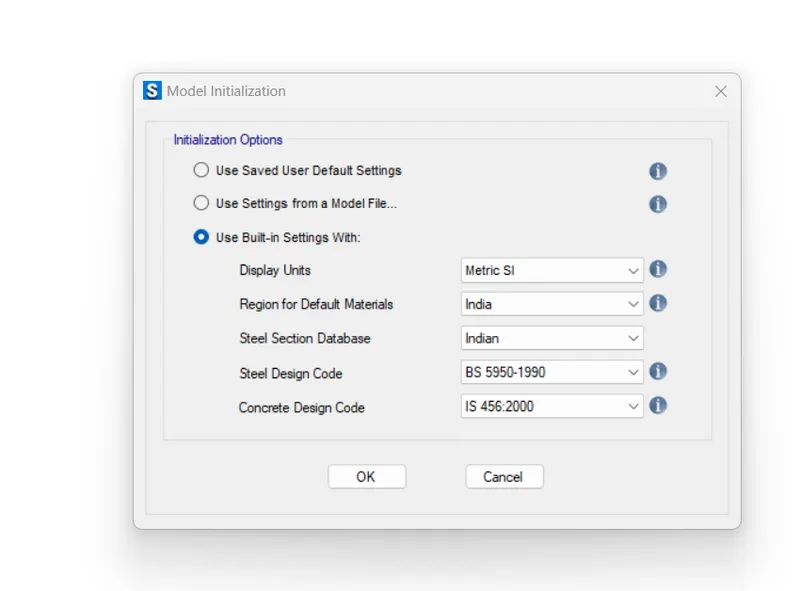

followed by Input Settings,
Units was selected as Metric and Code IS 456-2000.

single footing wass select
sub grade modulus for soil =safe bearing capacityx facctor to ultimate/max settlement
150x3/0.005
k=9000kn/m3
the compression axial load for the load combination (1.5D.L+1.5LL)
=2000KN
UNFACCTORED LOAD=2000/1.5=1333.3kn
1333.3/2=666.7kn
footing thickness=800

step2 define materials

add m25 concrete

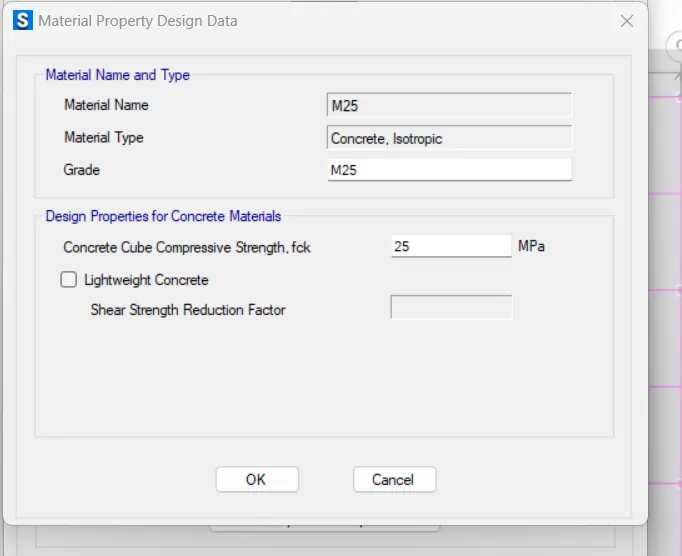

MATERIAL PROPERTY DESIGN data

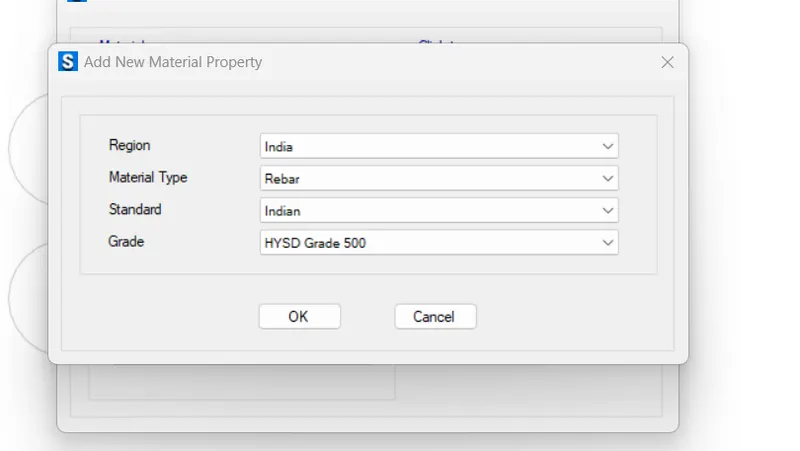

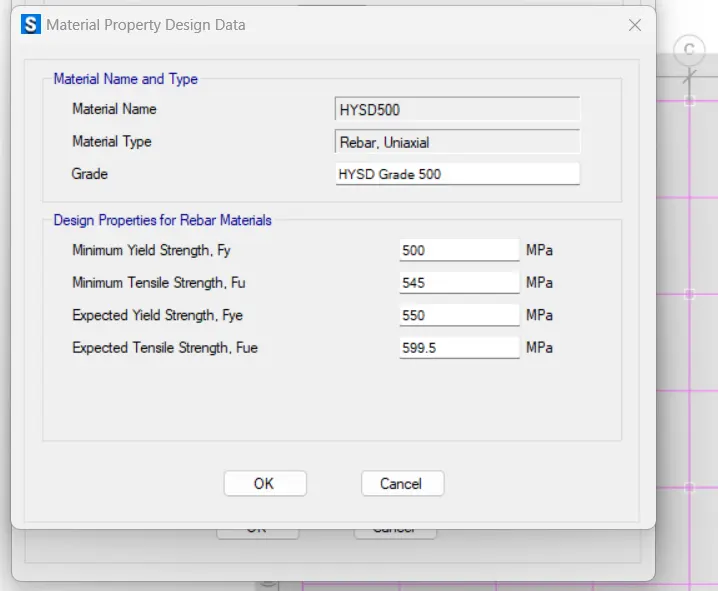

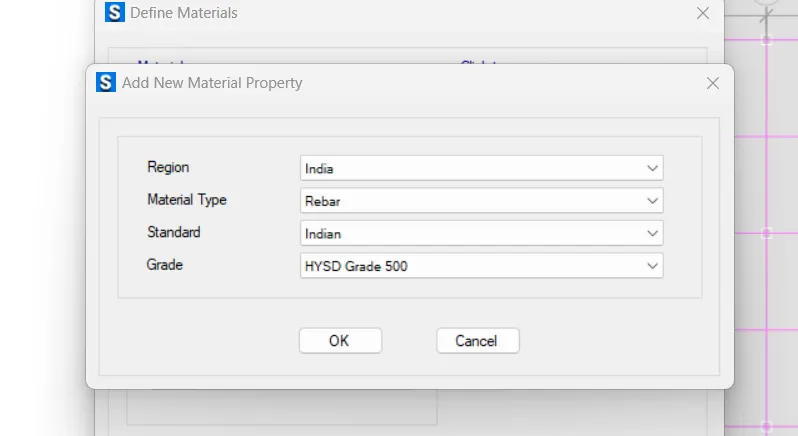

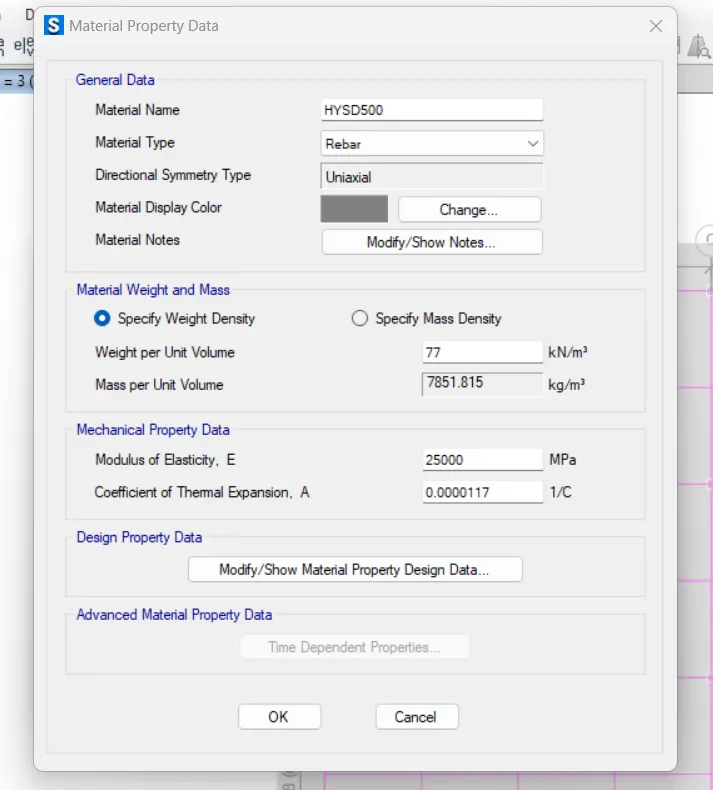

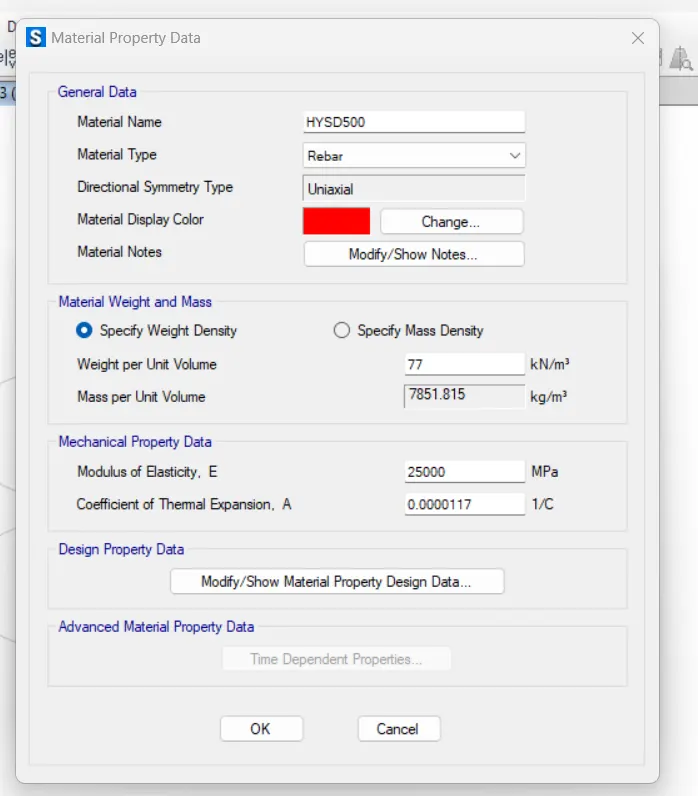

add rebar fe 500

add material property data

material property design data

Material Property data:

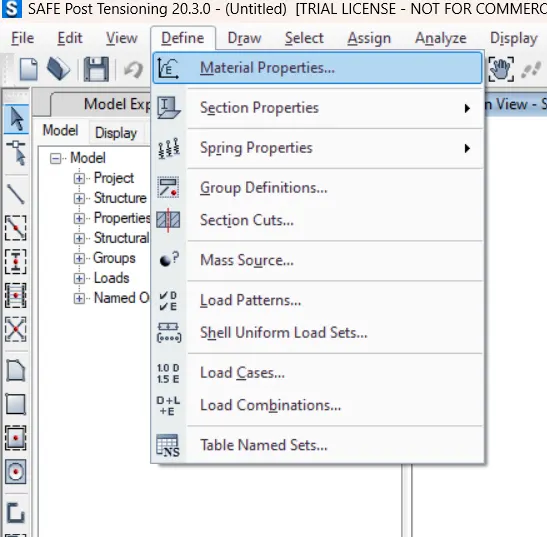

Click define followed by Material properties
M25 grade of concrete
Modulus of elasticity,
E = √25 X 5000
= 25000N/mm²

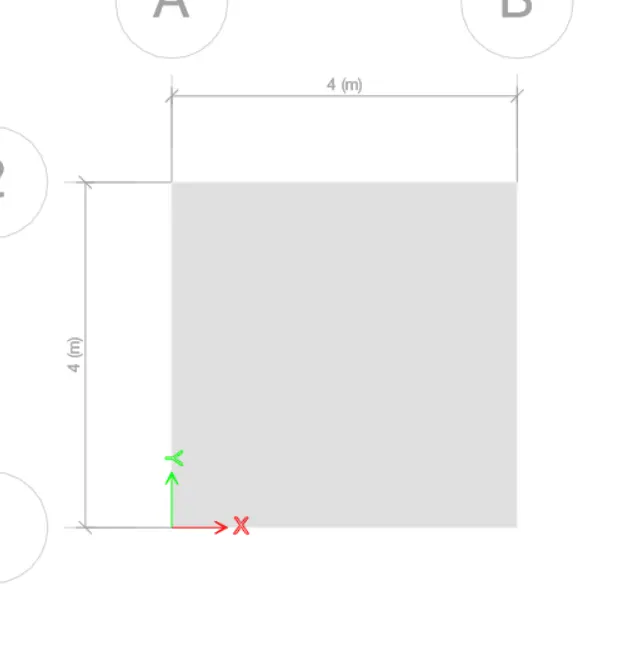

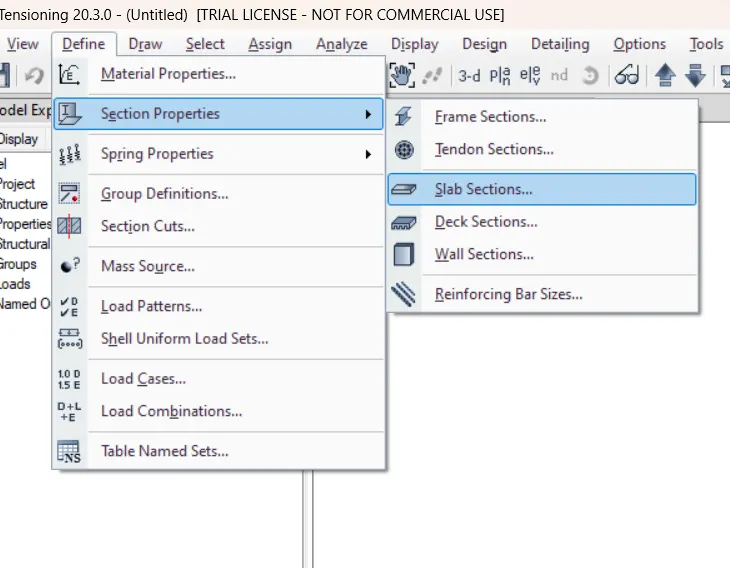

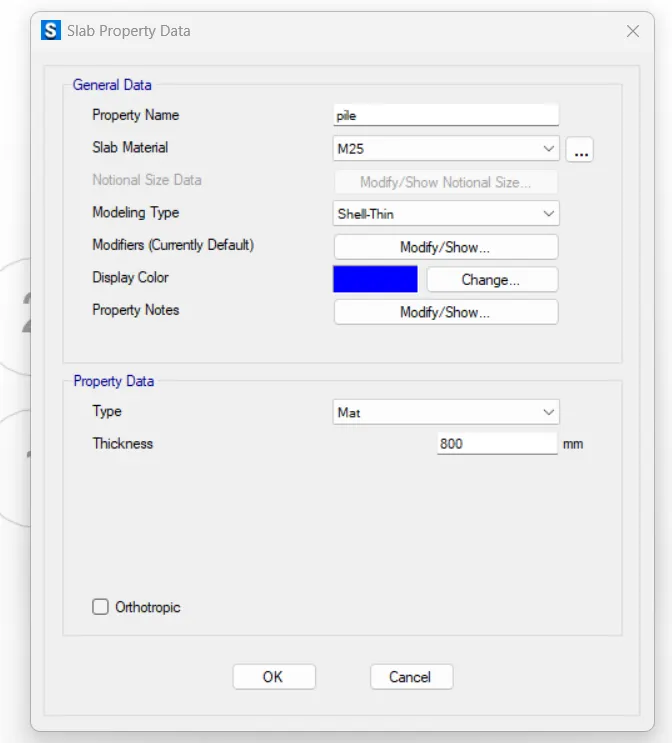

define slab property

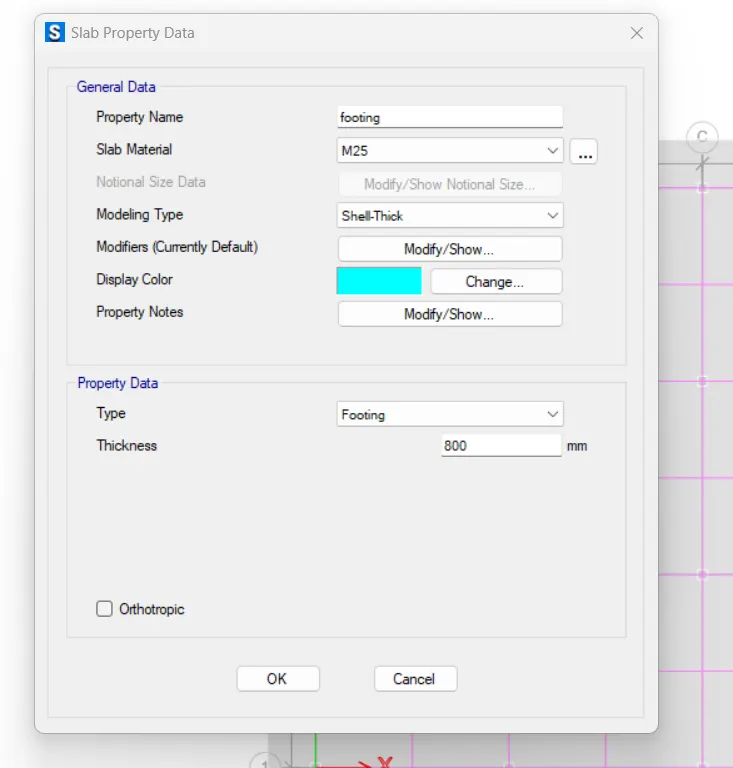

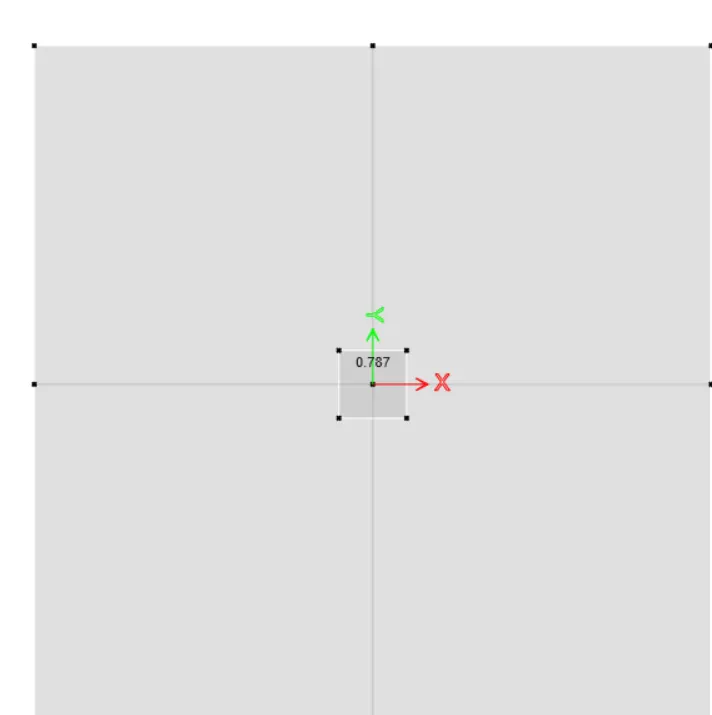

define properrty of footing

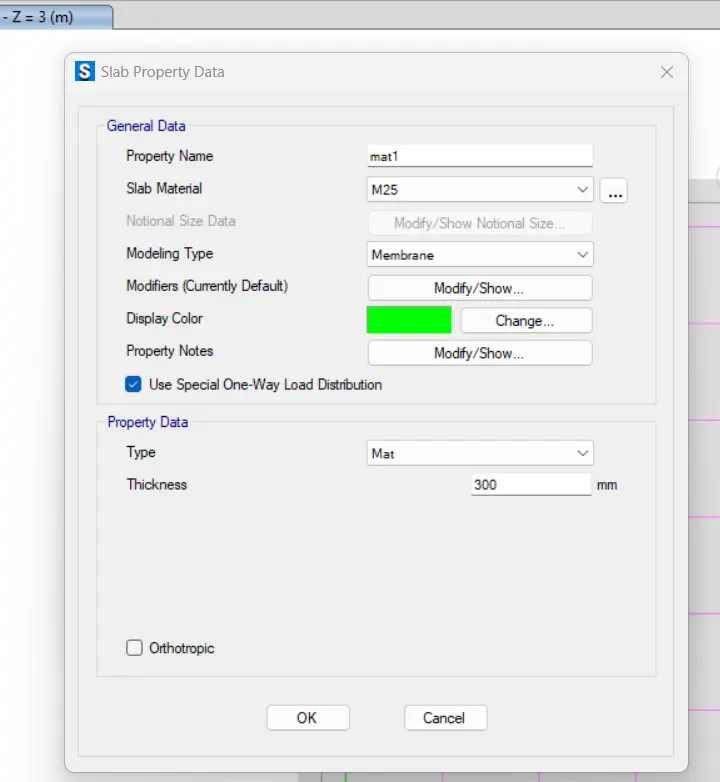

deffine property of mat1

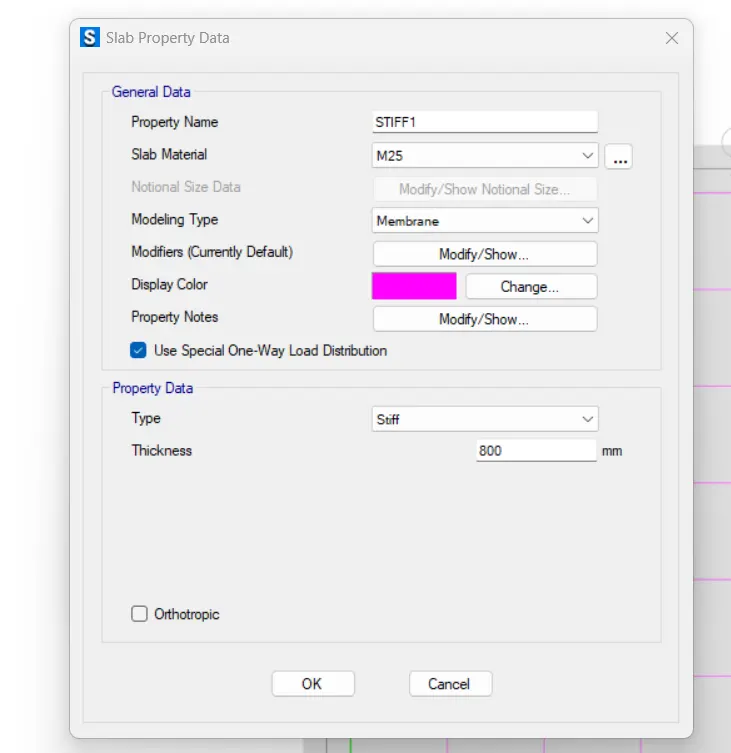

define properrty of stiff1

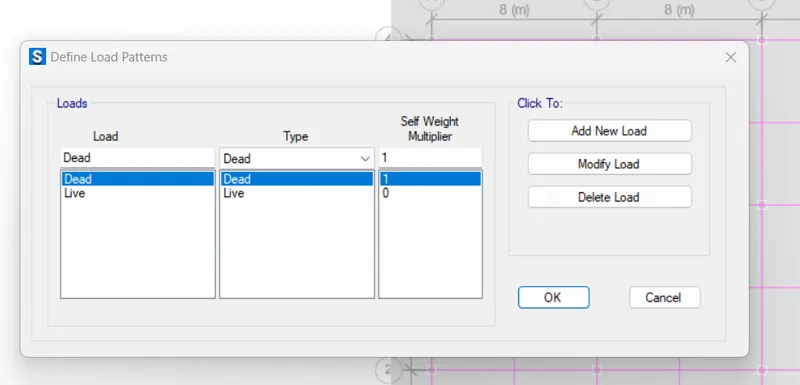

DEFINE LOAD PATTERN

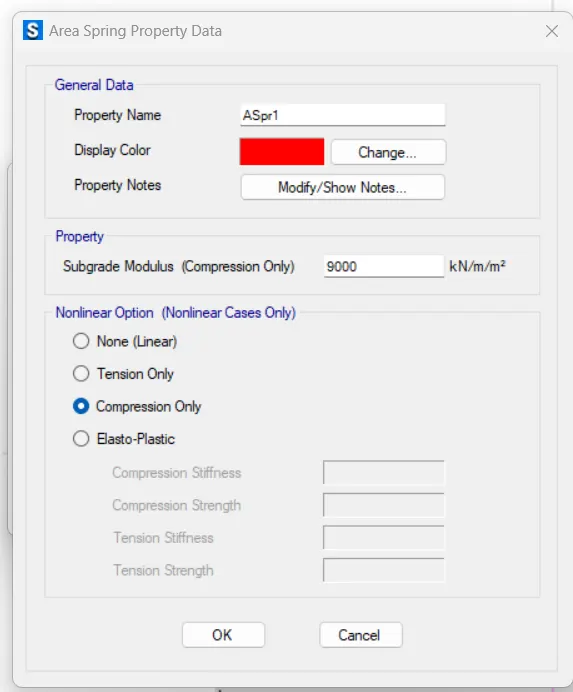

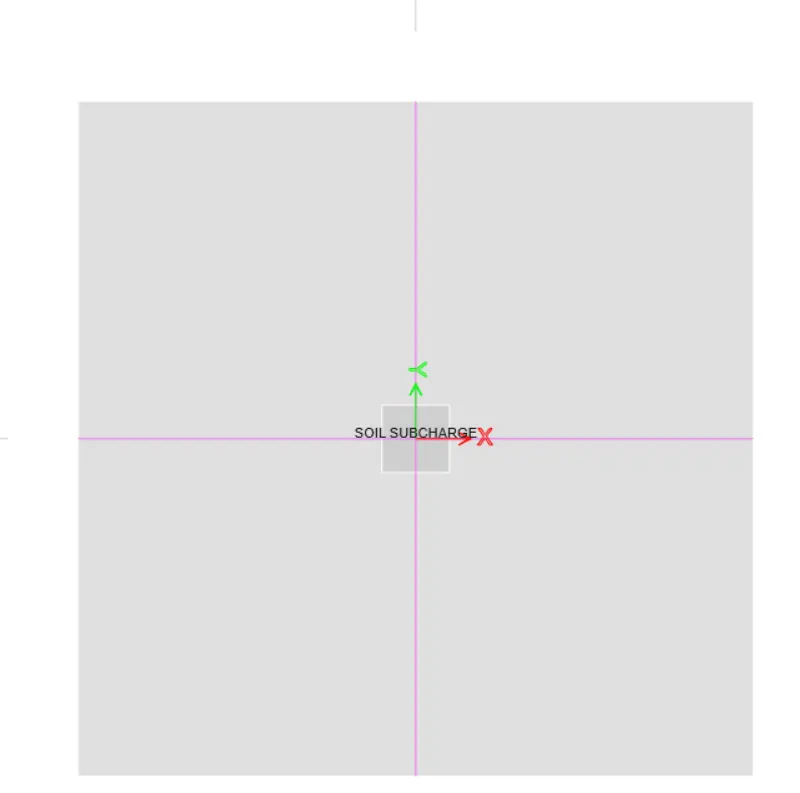

define sub grade soil

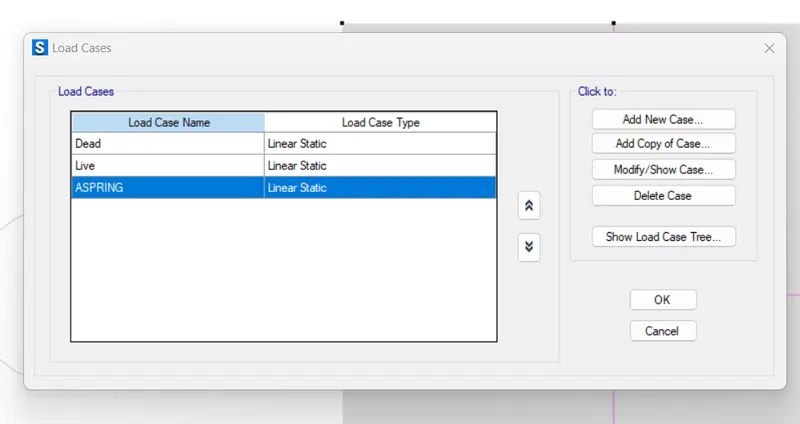

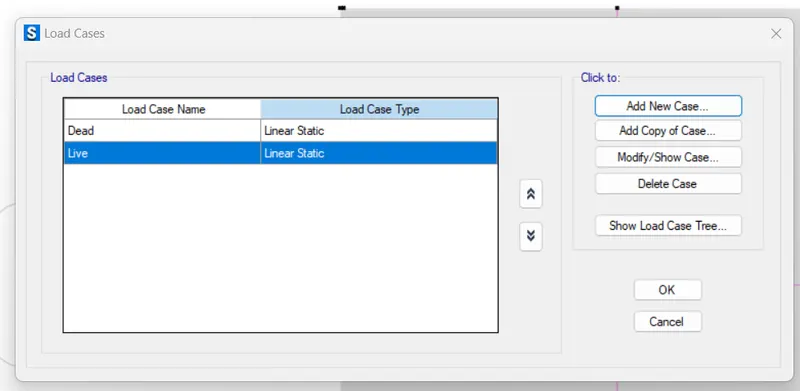

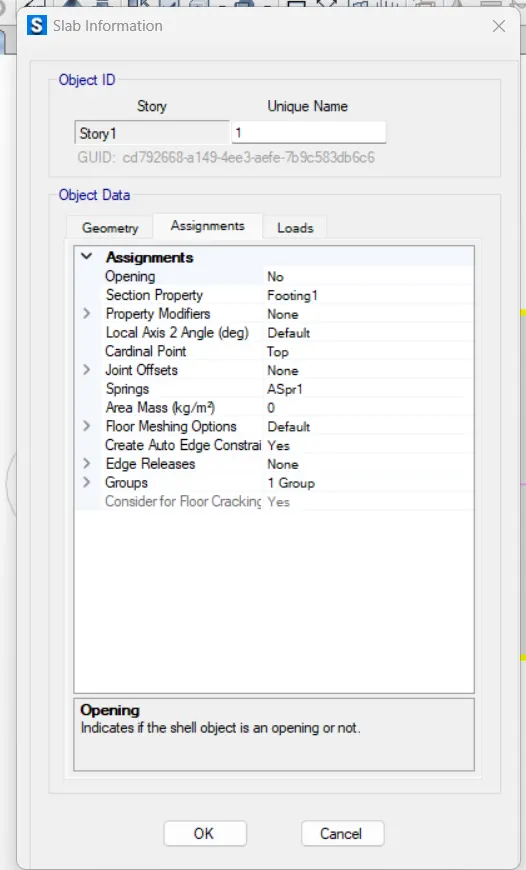

assign load cases

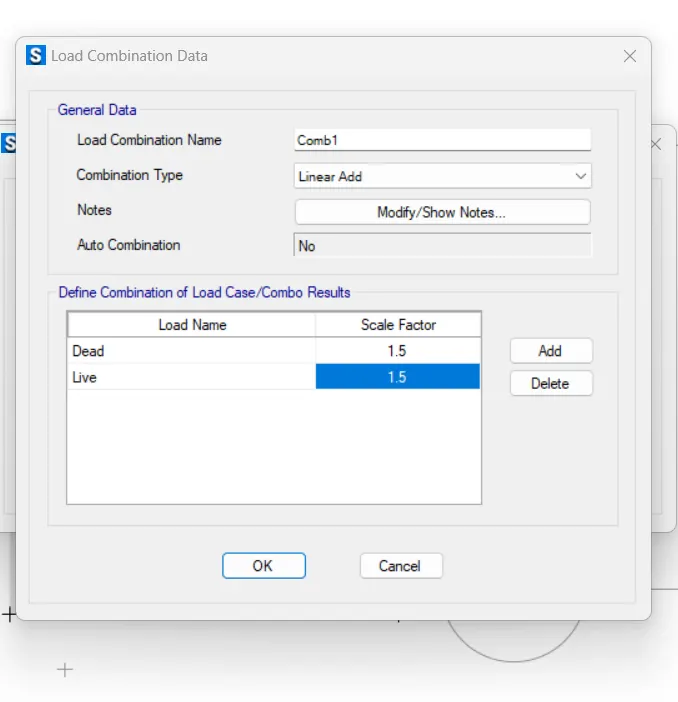

step 6) load combination
go to define
and click on the load combination

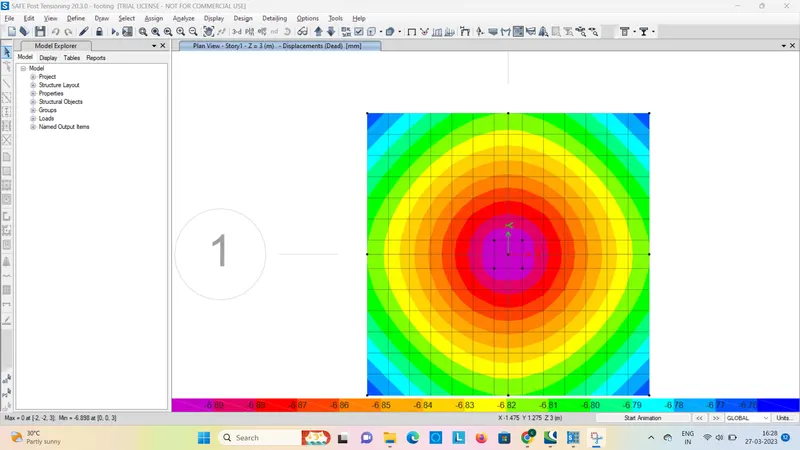

run analysis

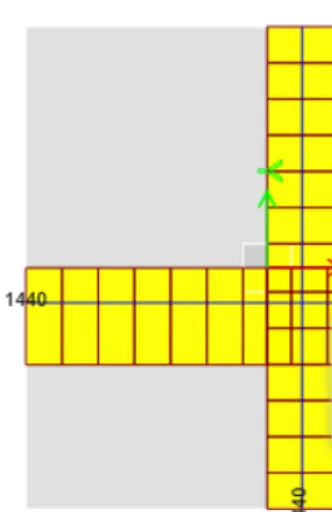

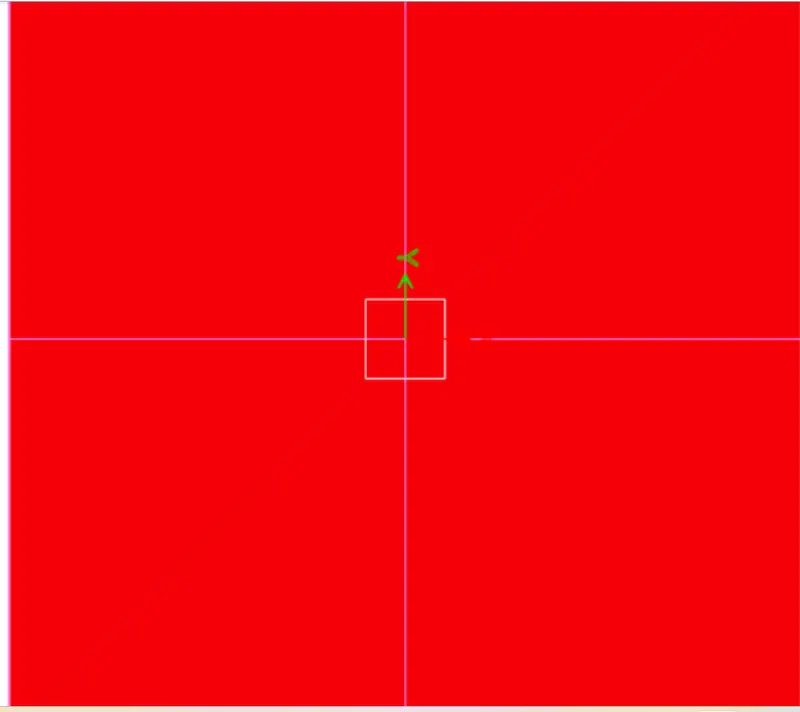

draw design strip


step 9)
check
safe bearing capacity
from reaction

punching shear design

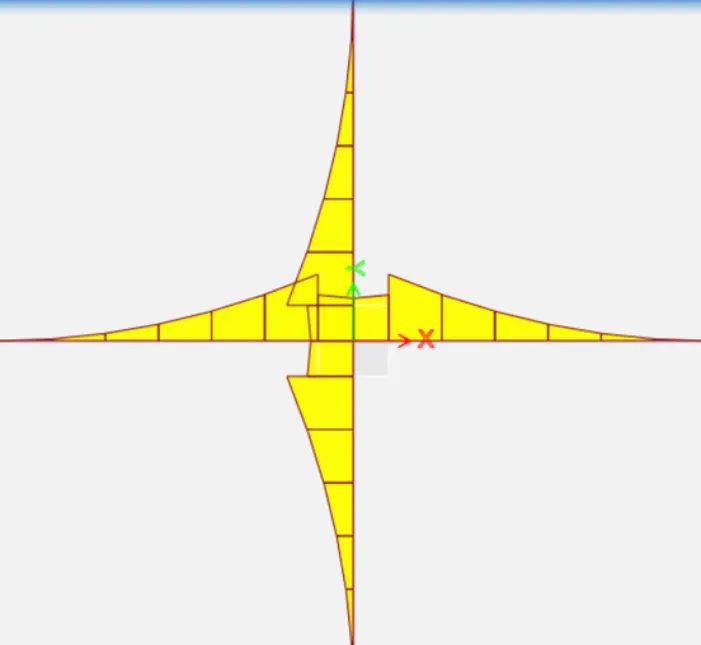

strip forces

flexural reinforcement

A column of size 600x600 carrying an unfactored gravity load (DL+LL) of 1175 KN is to
be supported on pile cap, which ultimately transfers load to the piles underneath. Piles o
16 metres length and 500 mm diameter are to be used. Each pile has a load carrying
capacity of 200 KN. Model, analyse and design the pile cap on SAFE to evaluate the
following:
Pile group to be used
Depth of pile cap
Longitudinal steel on top and bottom face in both direction
aim to deisgn a pile foundation usig safe software
ata required
unfactored load = 1175KN
dead load breakup = 1175/2 = 587.5 KN
Live load breakup = 1175/2 = 587.2
hence it is ok for safe analysis 306.8kn/m
Rebar yeild strength (FY) = 500N/mm^2
rebar ultimate strength = 575 N/mm^2
Elastic modulus of M25 concrete = 25000N/mm^2
number of piles required = unfactored load with self weight addition / indivisual pile
capacity
= 1175 X 1.1/200 = 6.5
consider 8 piles
take center to center distance between piles = 3 X piles diameter = (1500 mm)
Edge distance from pile center = 1 X pile dimeter = (500mm)
Assume pile cap depth = 500mm
tep 2)
safe design
open new model
and put all required information

3
material properties

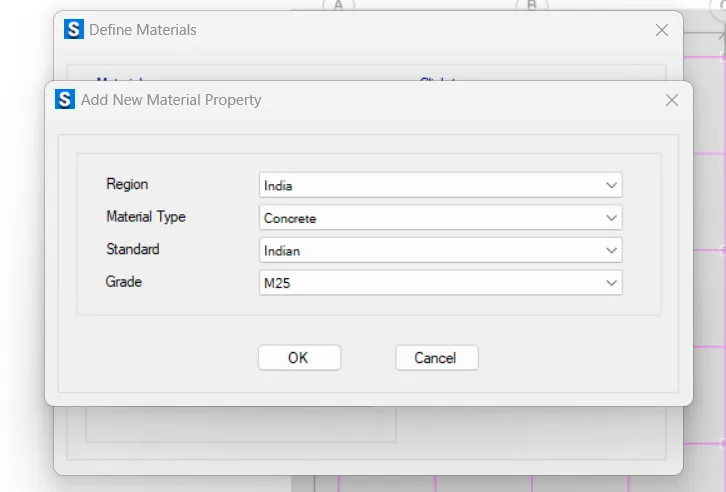

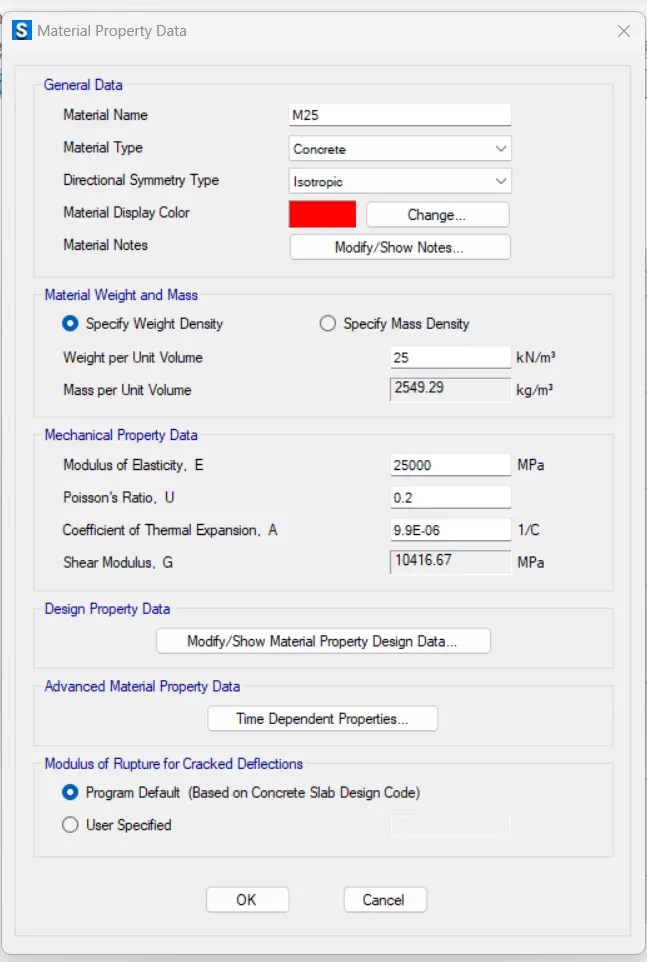

click on material property from define

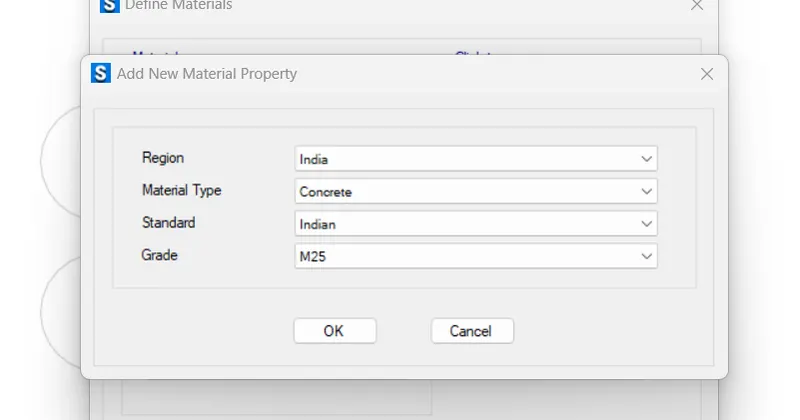

add m25 grade concrete from material

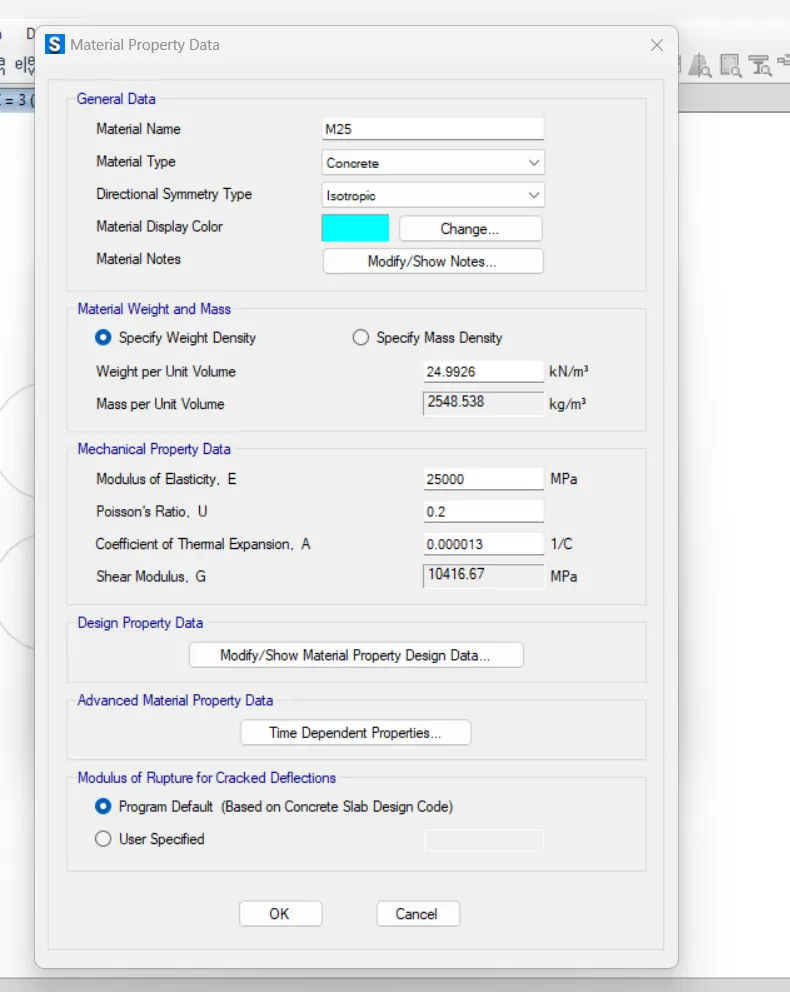

material property data

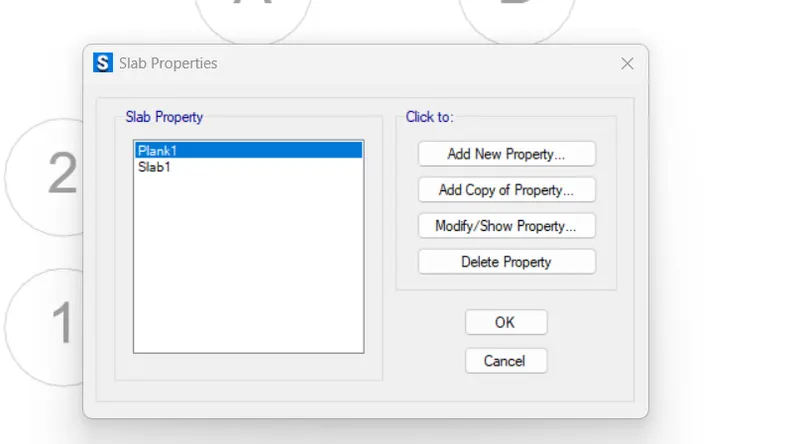

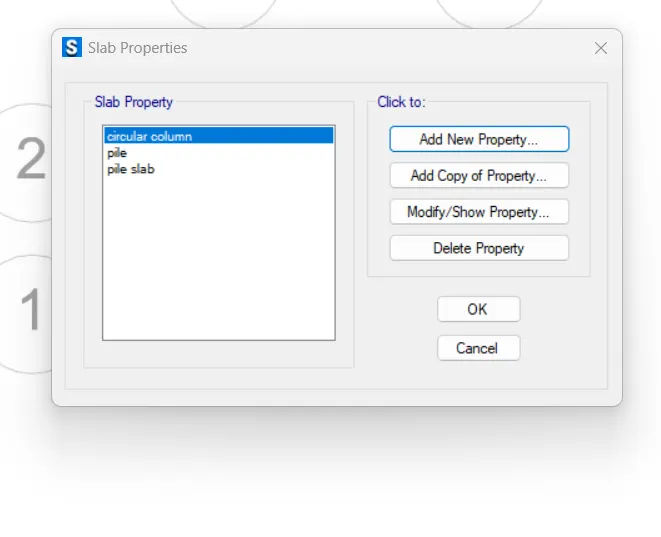

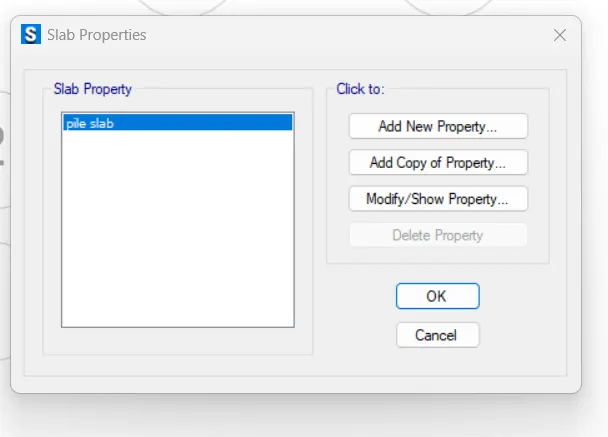

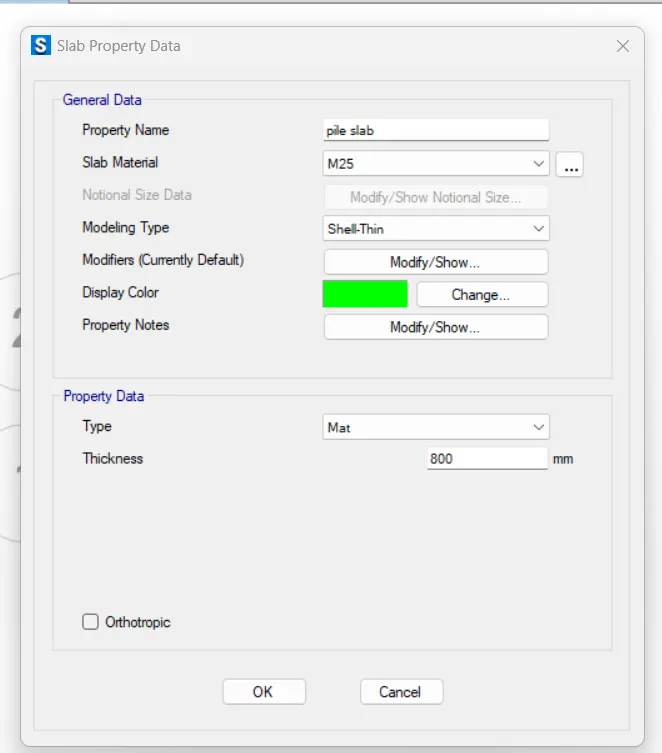

slab section





draw slab
draw the slab quick draw tool bar

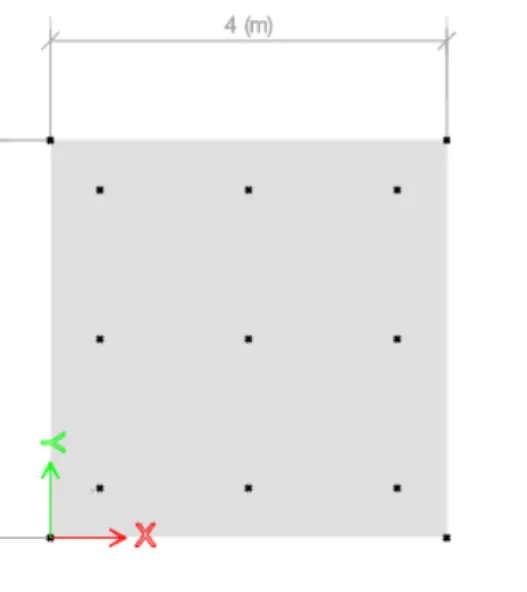

draw refrence point
where we loacate the pile by the help of draw refrence point and replicate option from edit

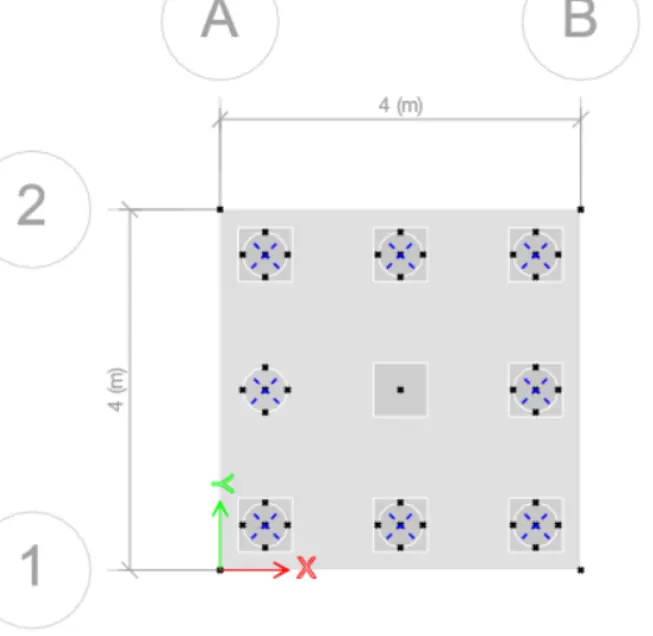

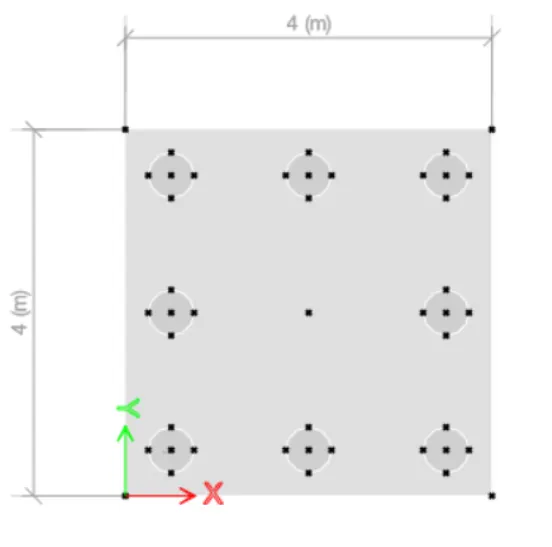

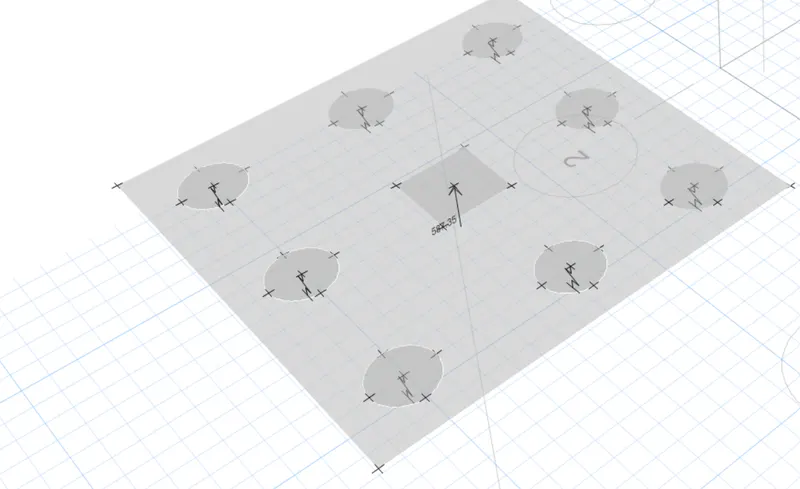

add the pile

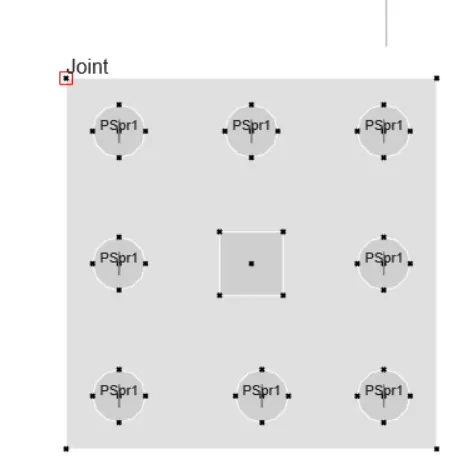

add the piles at the point
draw the pile by using quick draw area around pint
set dia as 500mm
and draw by cursor


now go to draw

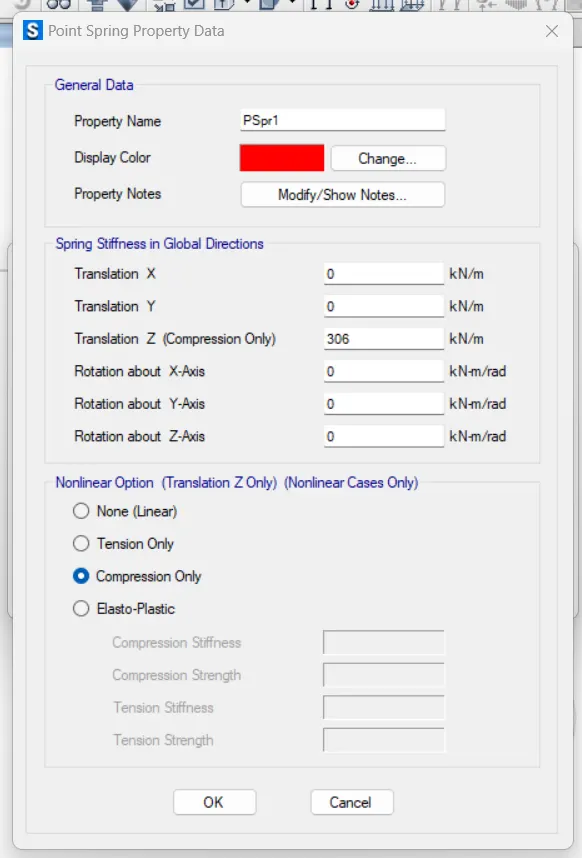

then support data and point spring


add load
assign load to column
simply select the column point
go to assign
go to joint load
and then select garvity dead and live load are 587.5 kn

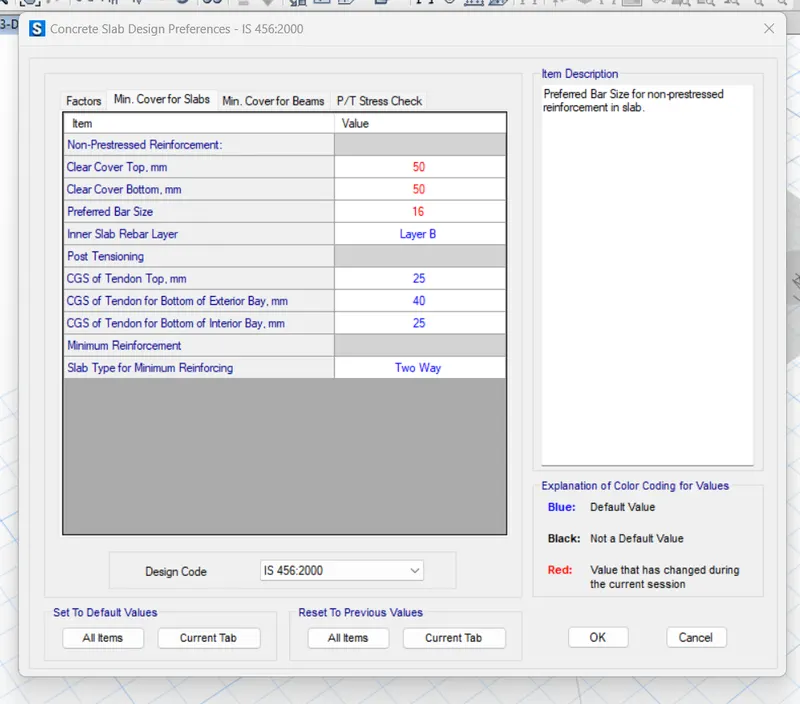

check design preferences

run the analysis

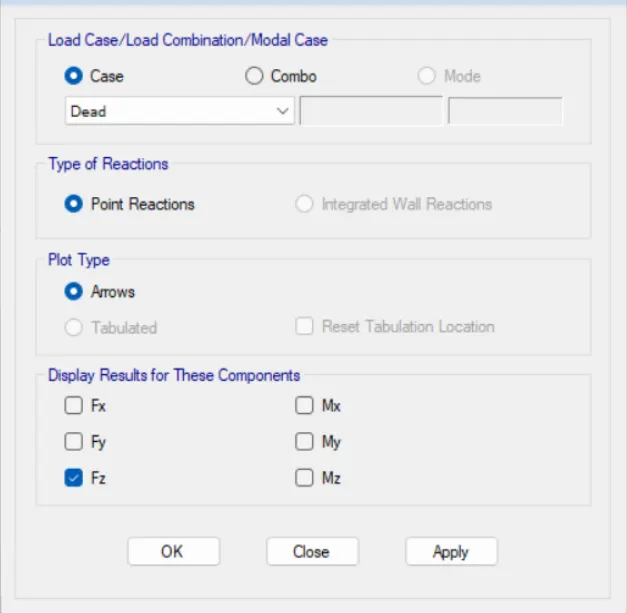

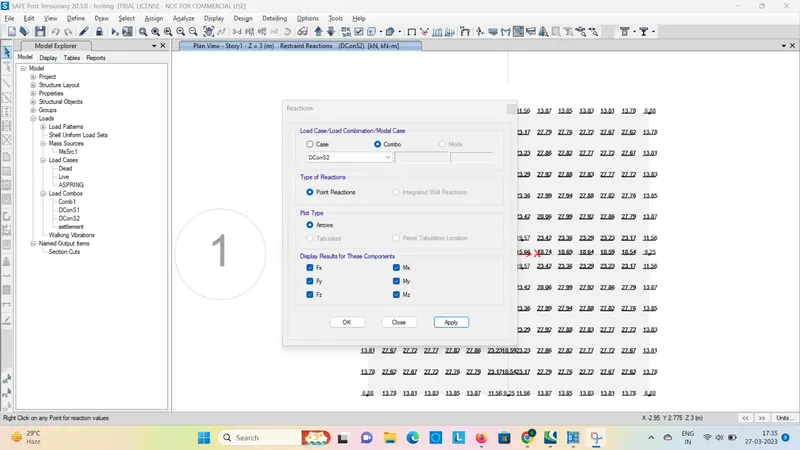

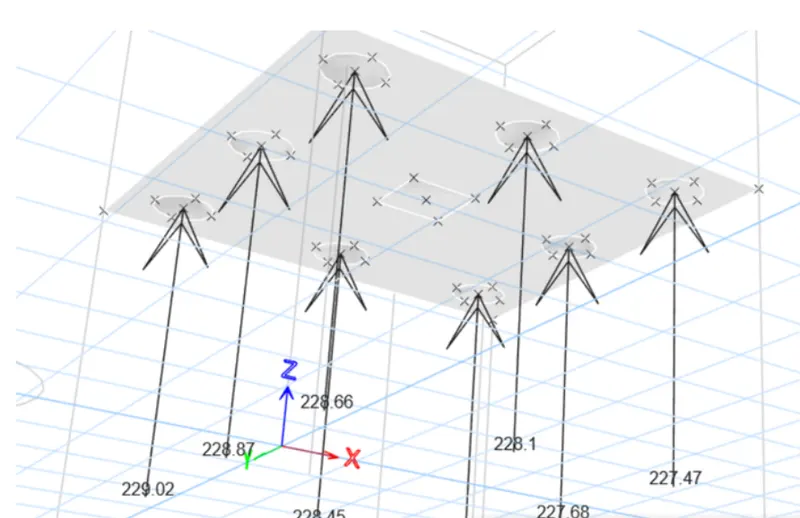

check for rection
check base rection for unfactored load
when we design for steel we need to check for factored load

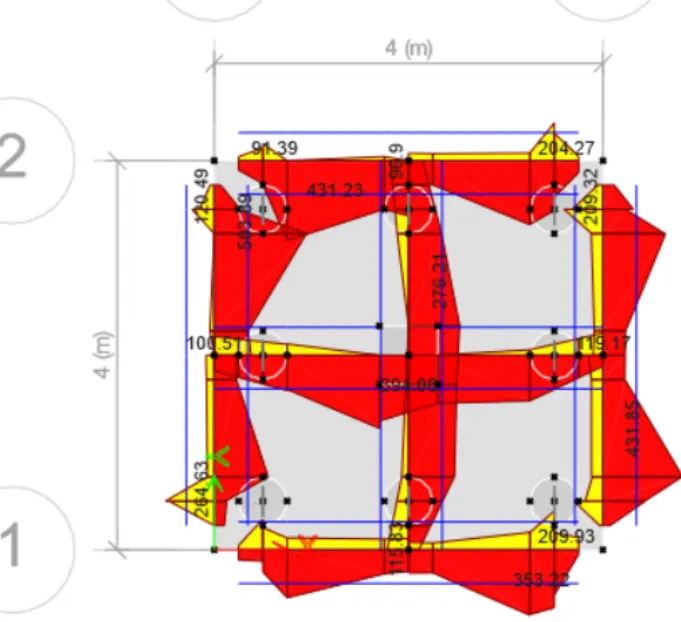

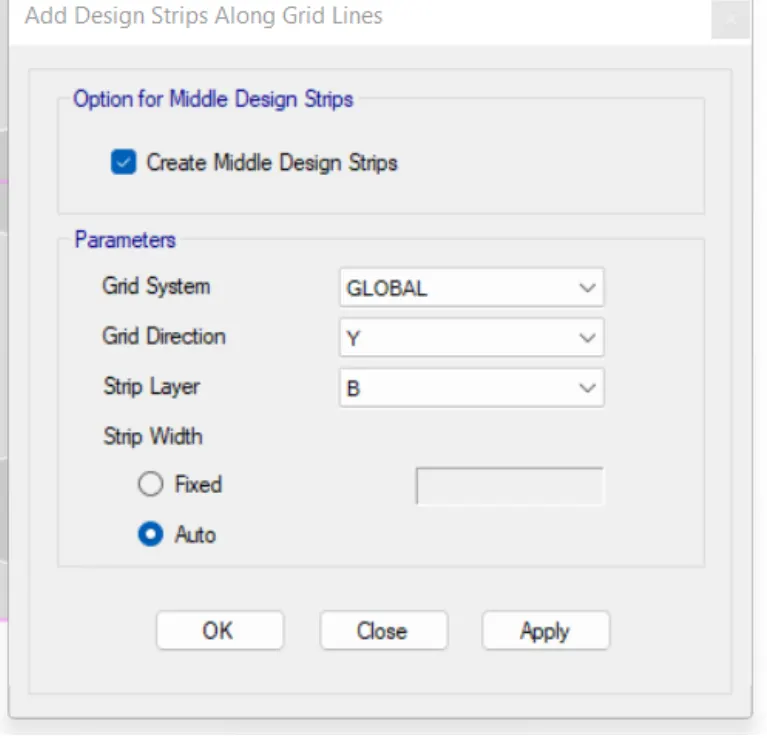

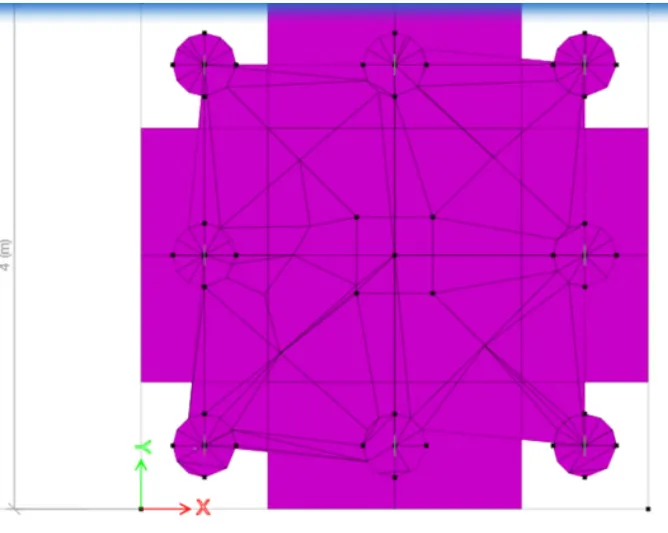

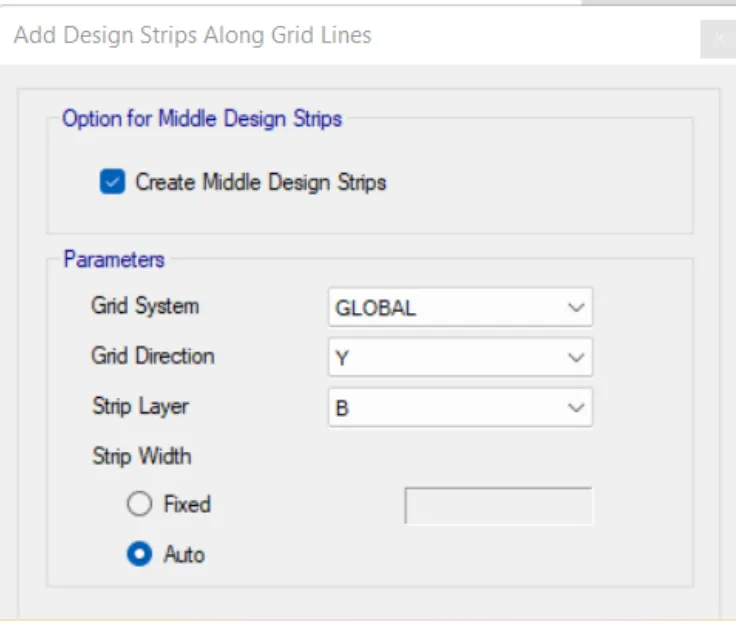

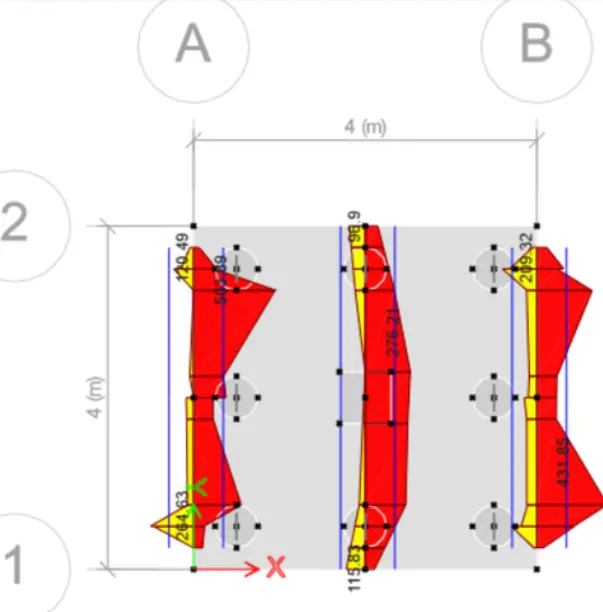

design strip
to know the area of steel required
go to edit option
and click on add design strip

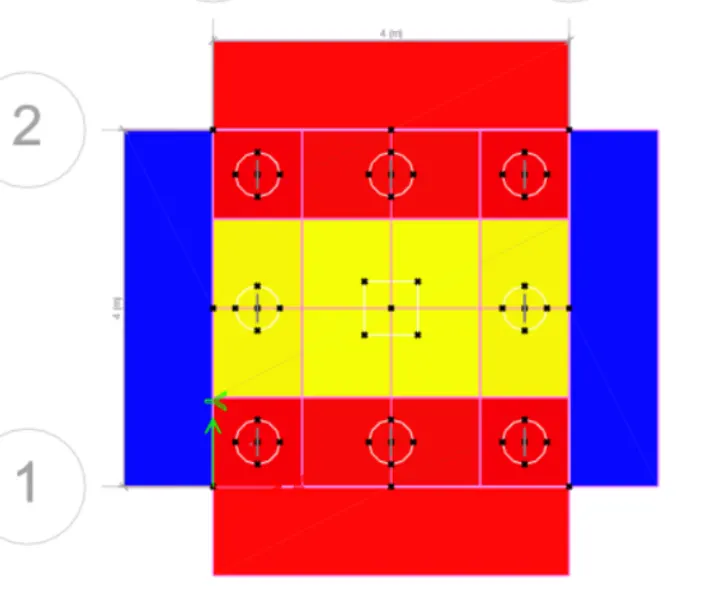

so strip is assign for X and Y direction
check width of strip
from display option

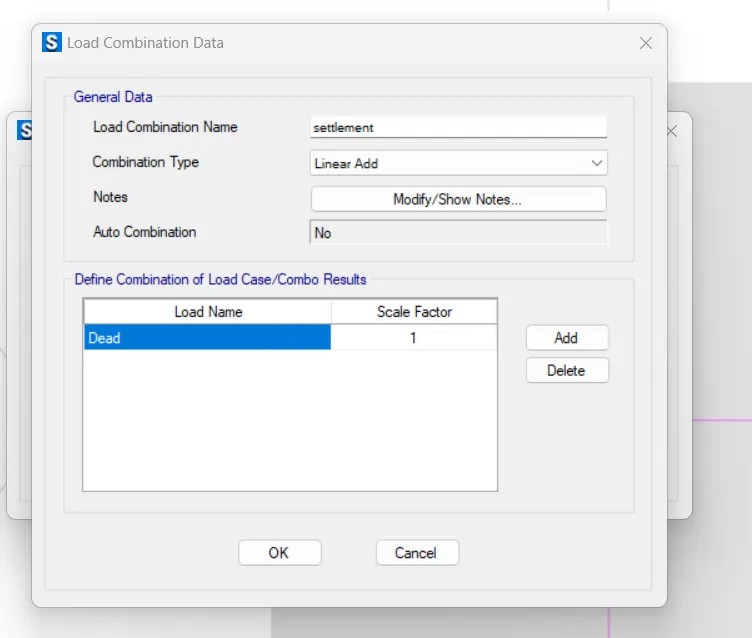

define load combination

again run the analysis
and check the r/f required
go to display option then slab design

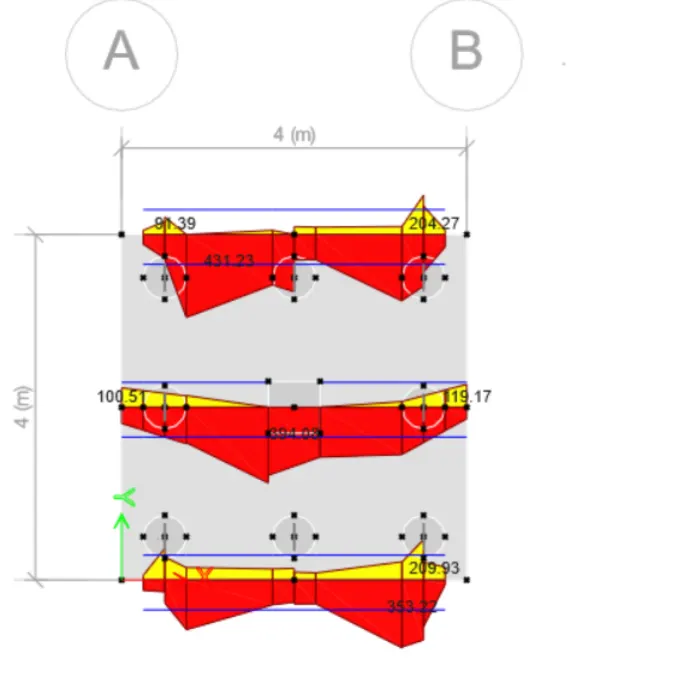

and strip A press apply

and for strip B for y direction steel

and also done all check satisfy
and get quantity of steel required
