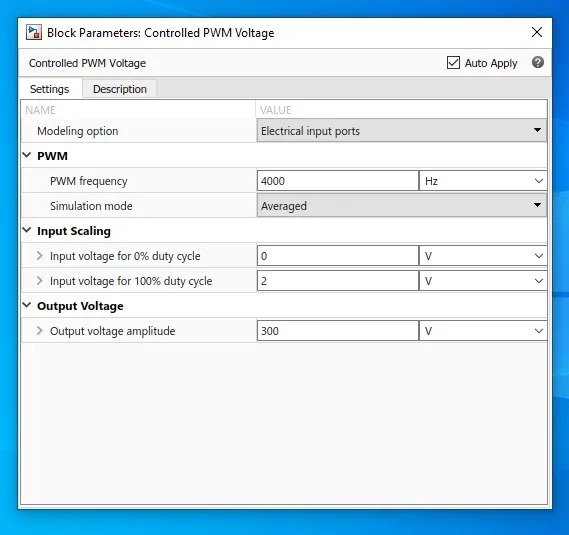

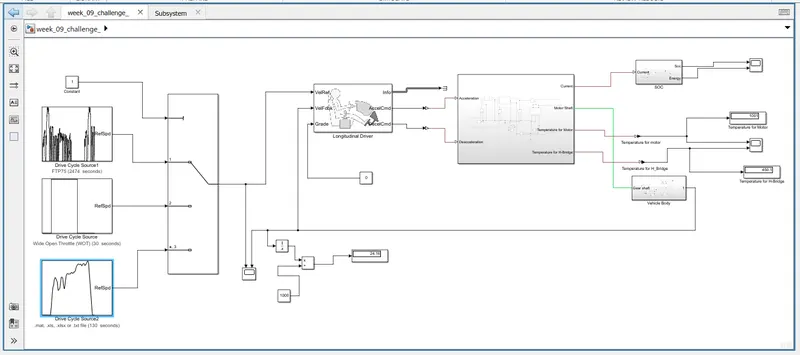

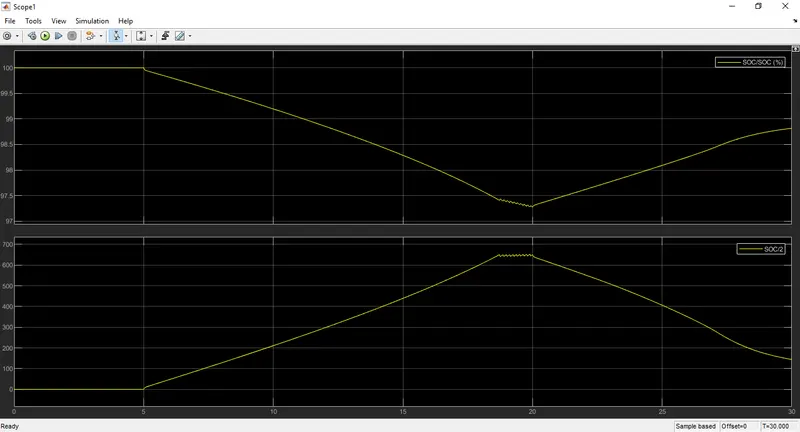

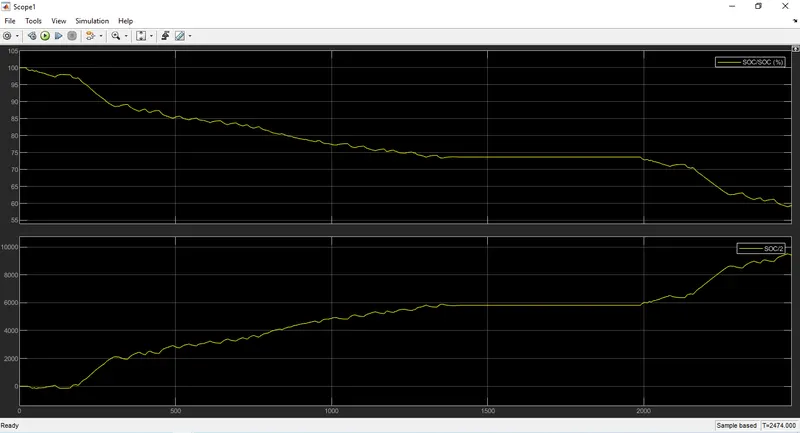

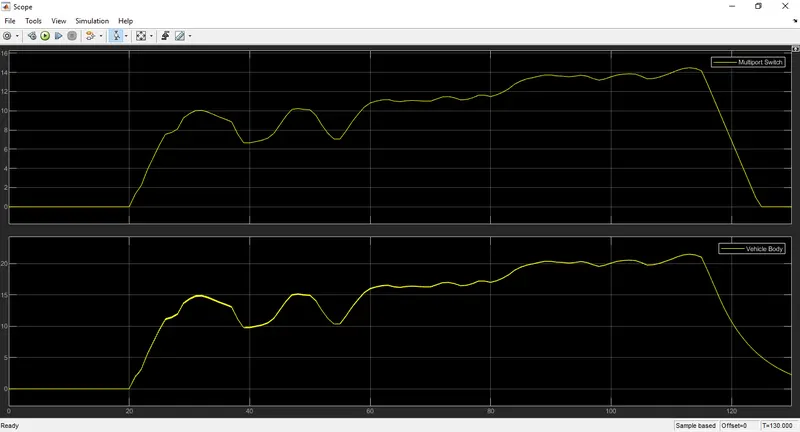

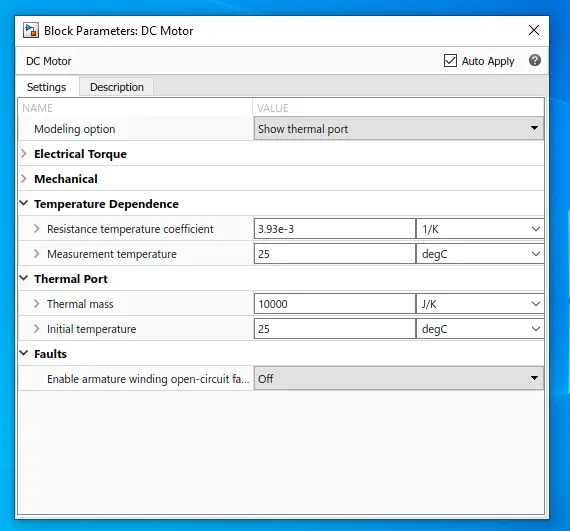

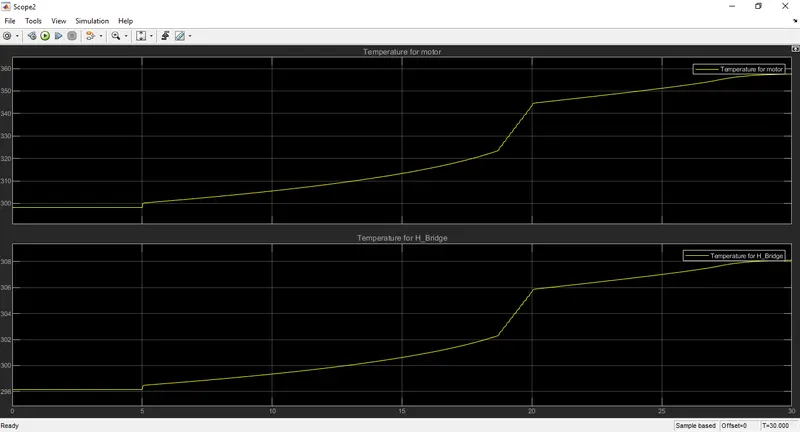

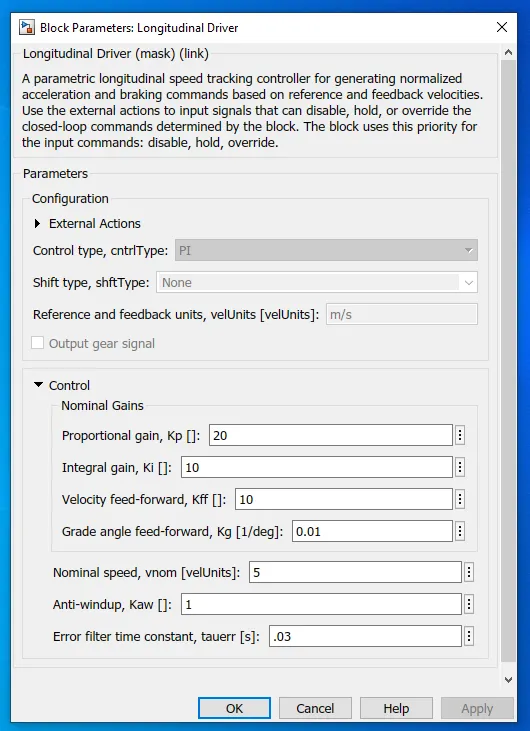

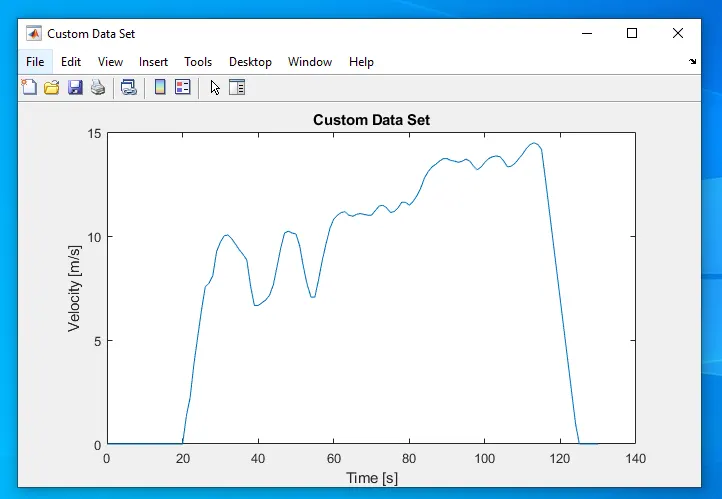

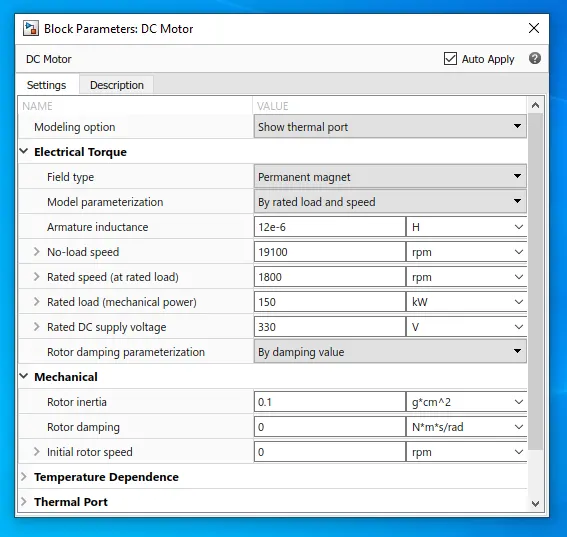

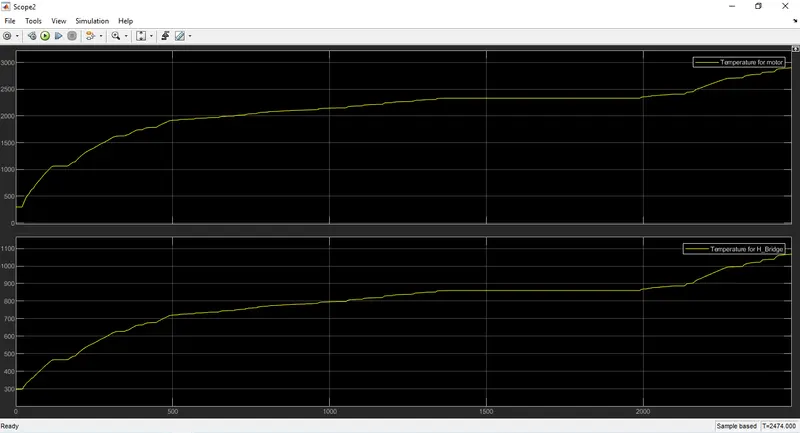

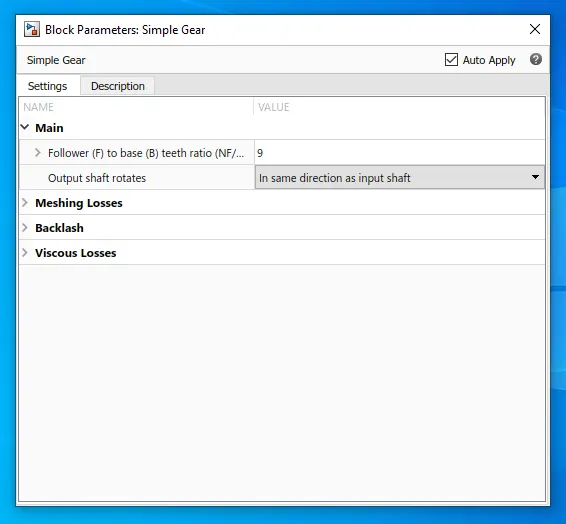

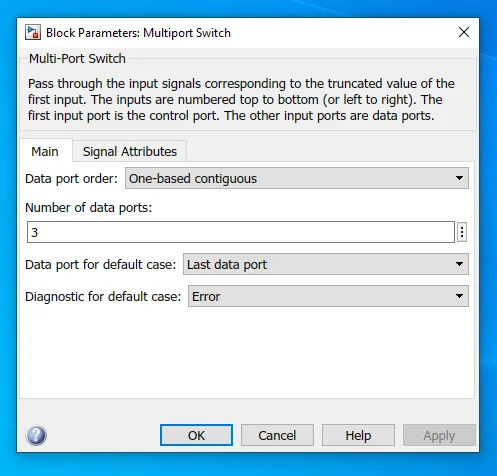

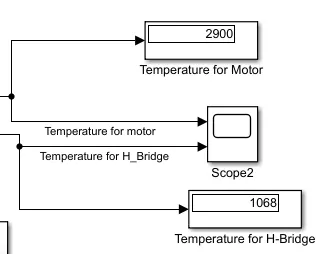

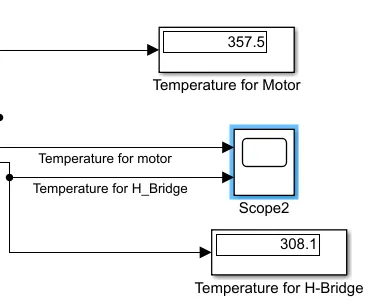

Final Project: Electric Rickshaw modelling

Design of boost converter, and calculating the loss of different components including power switching device and deriving efficiency of boost converter. This is applicable in power supply industry, electric vehicles etc where DC-DC converter is required to boost the voltage from DC source. All the aspects of this project…

Run simulations, change the threshold, create plots and measure current and hydrogen consumption. Specify the outputs. How to run the model.  (Note- The simulink model file should be compulsorily attached)   Objective:- To create complete model of FC(Fuel cell) vehicle system with secondary storage of Ultracapacitor…

Complete the energy management strategy model with battery, UC and fuel cell for the positive power and distribute the power demand among these components. Set simulation stop time to 598 sec. The output of the model should be the power request from UC, fuel cell and battery. Let us assume some conditions for the UC, Battery,…

Load the UC parameter file. Complete the Ultracapacitor model. Set simulation stop time to 598 sec. The model output should give, current, SOC, and Voltage as output Ultracapacitor:-              An Ultracapacitor also known as a supercapacitor or electrochemical capacitor is a device…

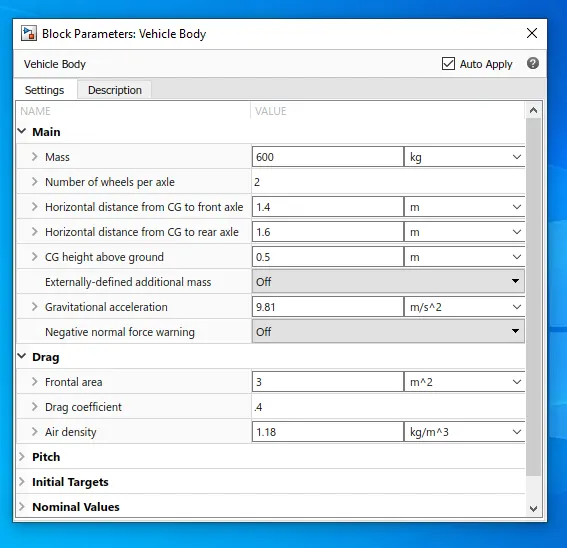

Load the vehicle parameters. Complete the vehicle model by modelling the remaining equations. Set simulation stop time to 598 sec. The output should be the vehicle velocity. Aim: Construct simulink model for vehicle body.    Objective:  Load the vehicle parameters. We have to construct model using driver block,traction…

Create a Stateflow or Simulink model for the following flowchart. Load the .mat file into the workspace. The input to the model would be the power demand. The output should be: Fuel cell power Battery power FC Operating state (running, standby) Create plot of these outputs against time. (Note- The Simulink model file should…

Question 1: Consider a scenario where an aggressive driver is accelerating very rapidly and braking harshly in a city driving. Is battery better a choice to supply power than UC in this scenario? True False Why? In the case of aggressive driving in the city, it is FALSE that a battery is a better choice to supply…

Question 1:Compare four different types of fuel cells and state their applications. Fuel cells are classified primarily classified by the kind of electrolyte they employ. This classification determines, The kind of electrochemistry reactions that take over in the cells. The kind of catalyst required. The fuel required…

Using MATLAB/simulink and the drive cycle from the attached excel sheet, find- The max heat generation of the battery  The SOC of the battery at 2 *104second of the battery operation Battery resistance 2 milli ohm Consider the battery resistance is 0.5 mOhm, delta time is 0.1 and entropic factor is 2     1. The max heat…

Using MATLAB/simulink and the drive cycle from the attached excel sheet, find- The max heat generation of the battery  The SOC of the battery at 2 *104second of the battery operation Battery resistance 2 milli ohm Consider the battery resistance is 0.5 mOhm, delta time is 0.1 and entropic factor is 2    …

1. Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.        a. Design the battery pack configuration.         b. Draw the BMS topology for this battery pack. Rated Voltage rating:120v maximum voltage rating:120v minimum…

# ABSTRACT   In this project, we work to create the MATLAB model of the Electric car by using a PM brushed type DC motor and a suitable Lithium-Ion battery for the motor. Before this, we will remember what is , how it's functioning and the privileges of the Electric car. Then we make an actual EV car model in…

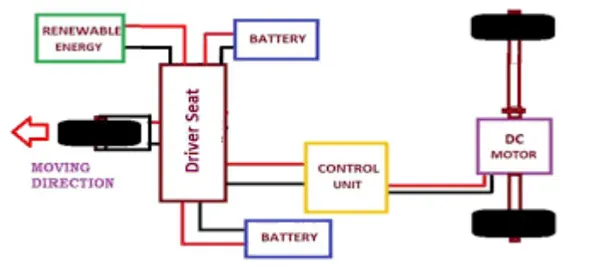

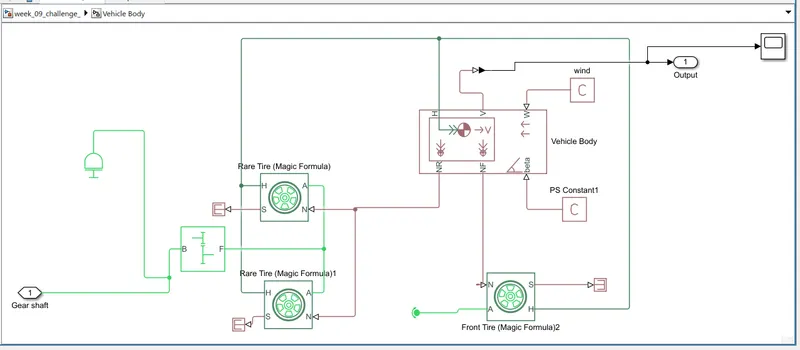

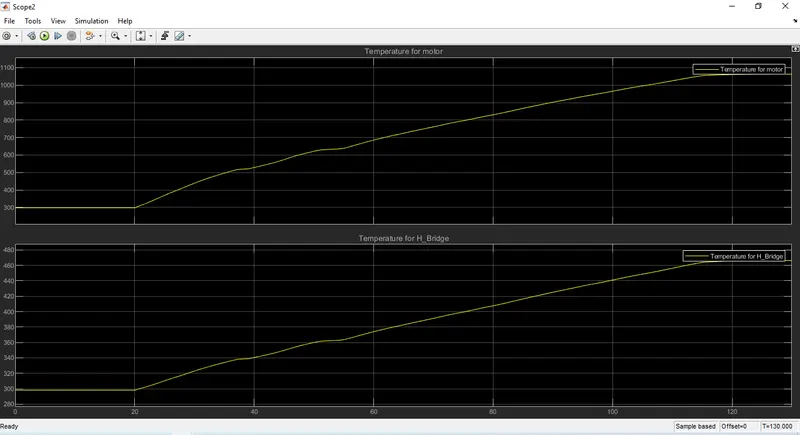

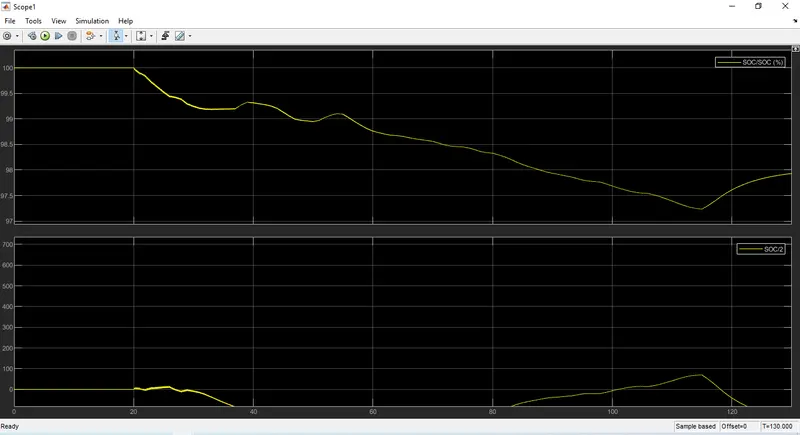

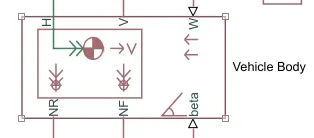

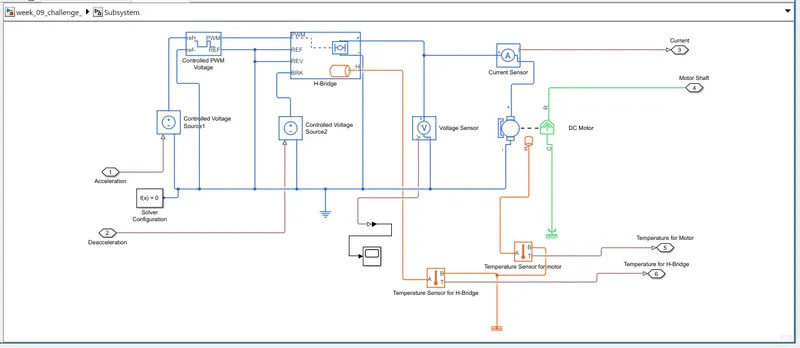

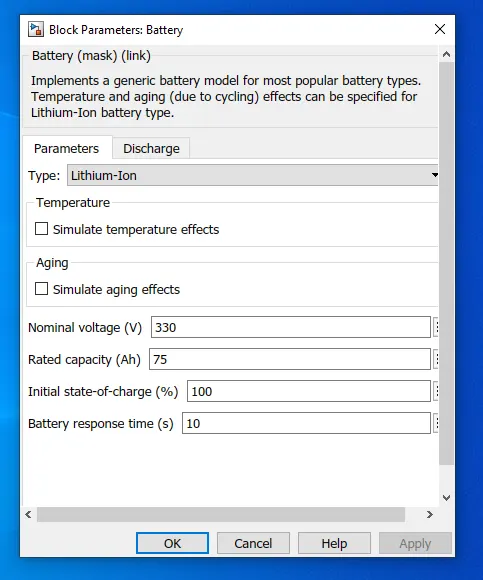

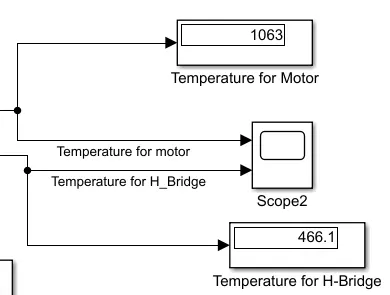

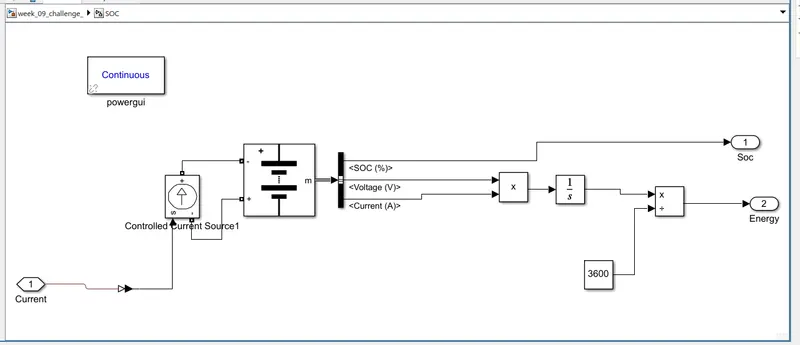

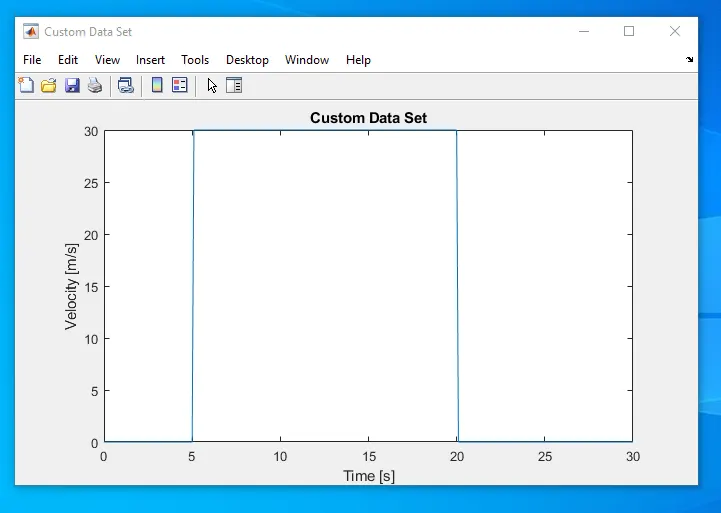

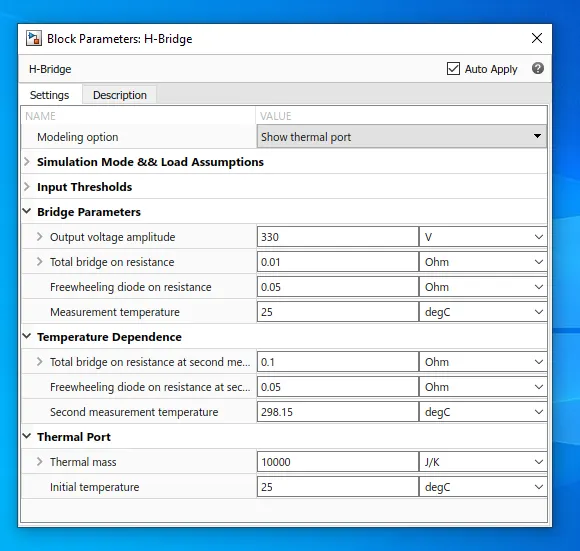

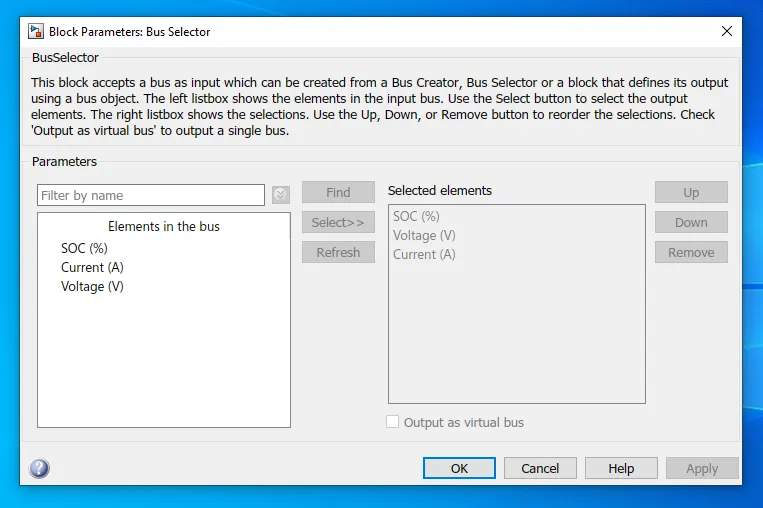

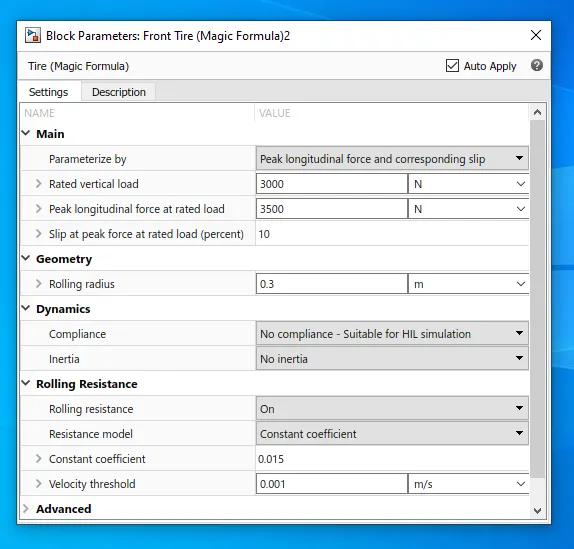

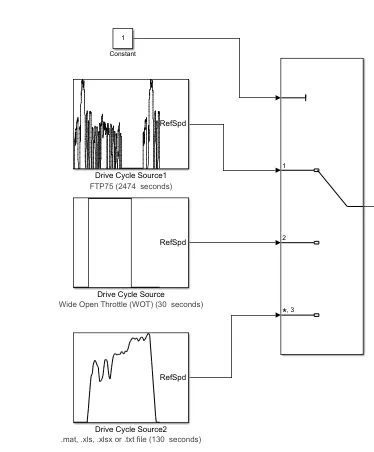

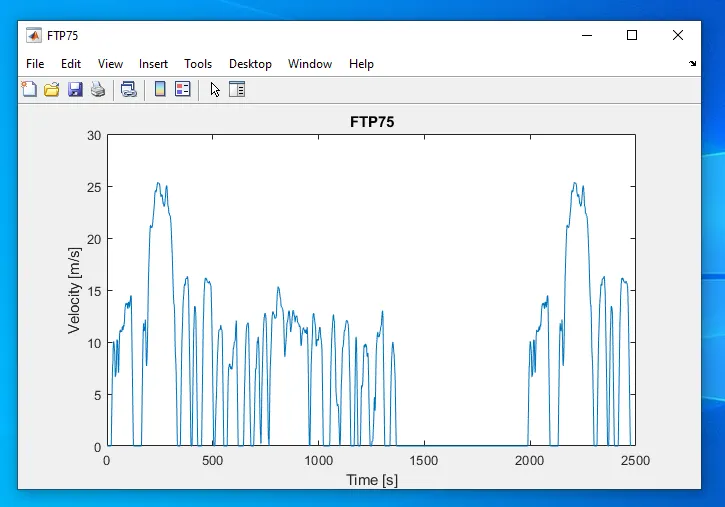

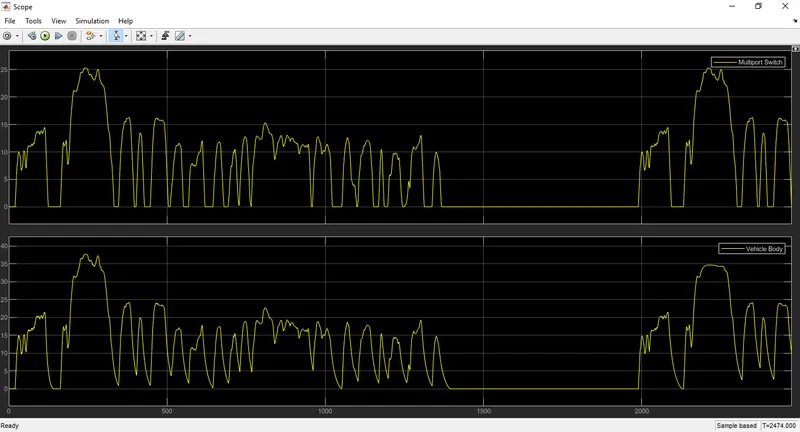

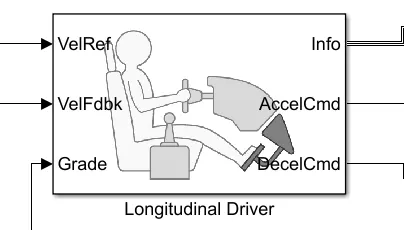

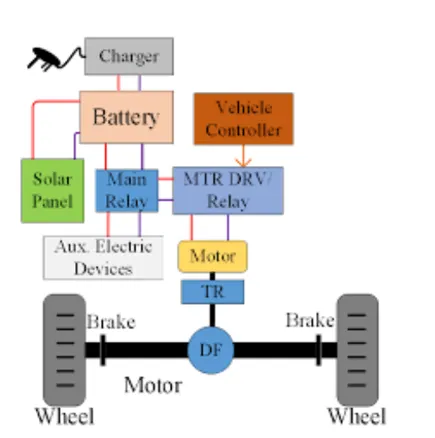

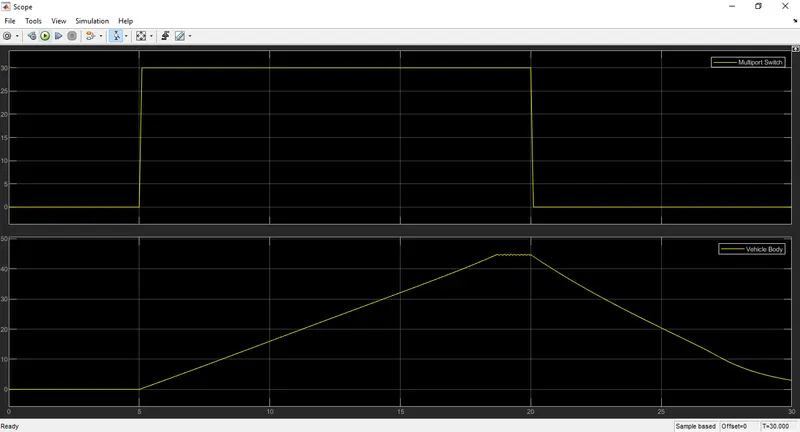

AIM: Design of an Electric Rickshaw using MATLAB Simulink ABSTRACT: In this project, we work to create the MATLAB model of the ELECTRIC RICKHAEW by doing a PM brushed type DC motor and a suitable Lithium-Ion battery for the motor. Before this, we will remember what is Electric RICKHAEW, how it's functioning, and the privileges…

AIM: Design of an Electric Rickshaw using MATLAB Simulink ABSTRACT: In this project, we work to create the MATLAB model of the ELECTRIC RICKHAEW by doing a PM brushed type DC motor and a suitable Lithium-Ion battery for the motor. Before this, we will remember what is Electric RICKHAEW, how it's functioning, and the privileges…

AIM: Design of an Electric Rickshaw using MATLAB Simulink ABSTRACT: In this project, we work to create the MATLAB model of the ELECTRIC RICKHAEW by doing a PM brushed type DC motor and a suitable Lithium-Ion battery for the motor. Before this, we will remember what is Electric RICKHAEW, how it's functioning, and the…

Create a MATLAB model of electric car which uses a battery and a DC motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following: Objectives:         1. System level configurations        2. Model parameters      …

1.Search and list out the total weight of various types of aircrafts.   Weight is a force that exists due to the force of gravity of the earth that acts on a body with a mass. Airplanes are designed with numerous components of different sizes and weights such as the wings, the engine the fuselage the tail, etc. Since every…

1. For a defined driving cycle, calculate the energy required for braking. The driving cycle taken into consideration is the UDDS cycle which stands for Urban Dynamometer Driving Schedule. Although the data is taken for a total driving time for the 1370s, for simplicity's sake 150s of driving time is considered. The speed…

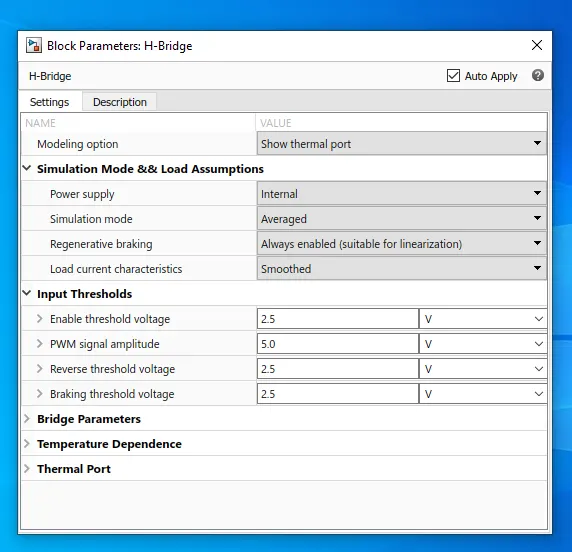

1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge’. WORKING:  In the above circuit, the input voltage is generated from the pulse generator where the amount of supply and duty cycle is assigned in the pulse generator.  Then the switch block is connected to…

1.Which types of power converter circuits are employed in electric and hybrid electric vehicle? The switching technique is adopted from power Electronic to control voltage and current for the electric motor. The avoids a high volume of losses by replacing the resistor with a power switch. These motor modules are operated…

Introduction The powertrain block set provides fully assembled reference application models of automotive powertrains, including gasoline diesel, hybrid, and electric systems. it includes a components library for simulating engine subsystems, transmission assemblies, traction motors, battery packs, and controller models.…

1.  ADVISOR (NREL'S Advanced Vehicle Simulator) is a set of model, data, and script text files for use with Matlab and Simulink. It is designed for rapid analysis of the performance and fuel economy of conventional, electric, and hybrid vehicles. ADVISOR also provides a backbone for the detailed simulation and analysis…

1. A common actuator in the control system is the DC motor. it directly provides rotary motion and coupled with wheels or drums and cables can provide translational motion.   J = 0.01;  a moment of inertia of the rotor in Kg-m^2 B = 0.1;  motor viscous friction constant in N-m-s Km = 0.01;  Back EMF…

The key Matlab function to help with interpolation are:interp1   data = xlsread('VI.xlsx'); % read excel filecurrent = data(:,2); % Data from Xlsx filevoltage = data(:,1); % Data from Xlsx fileVV =[-17.2 -17.1 -13.8 -13.5 -13.0 -12.5 -11 -9 -5.76 -6 -1 0.11 0.25 0.5 0.61]; % Missing Data range = [-17.3:0.1:0.9];xq1…
