Fender Design - Wheel Arch Challenge

AIM :

To Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

ABOUT FENDER WHEEL ARCH:

Wheel Arch is the semi-circular part of the fender positioned above the wheel of the vehicle. The design of the wheel arch of the fender should be such that it must shield wheels and protect both passengers compartment and pedestarians from the projection of water, mud and stones.

EUROPEAN WHEEL ARCH STANDARDS:

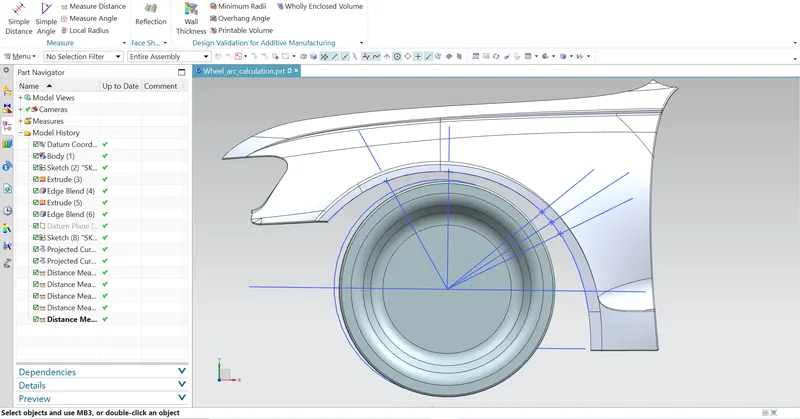

WHEEL ARCH DESIGN :

MEASURE OF SECTION SB:

MEASURE OF SECTION SA:

MEASURE OF SECTION SC:

MEASURE OF SECTION SD:

MEASURE OF SECTION SE :

TABLE :

SECTIONS	REQUIRED (mm)	OBTAINED (mm)

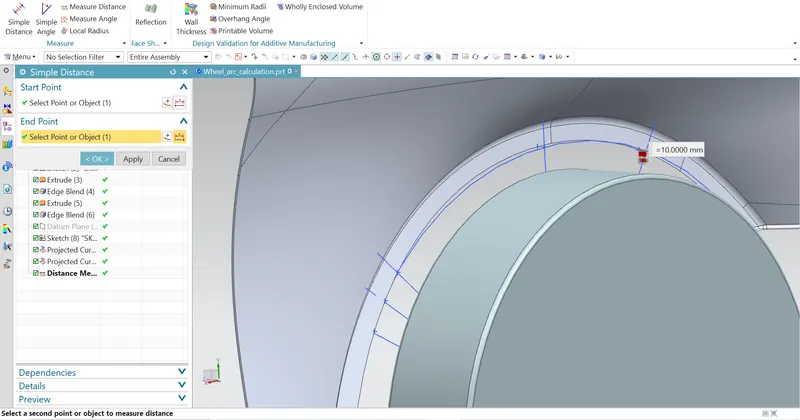

SB	10	10.000

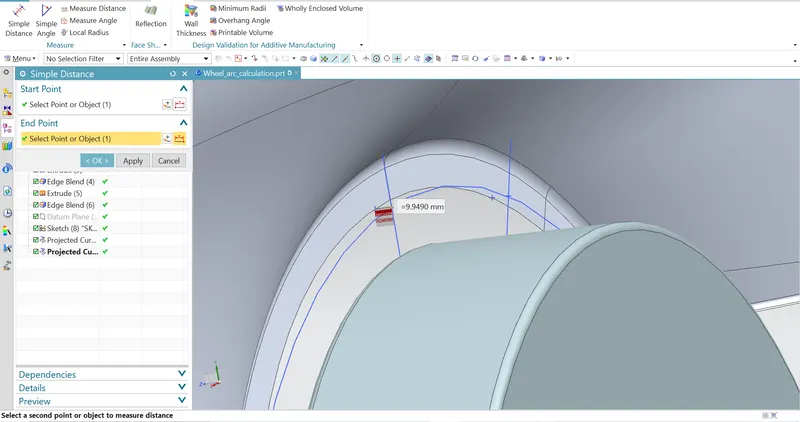

SA	10	9.9490

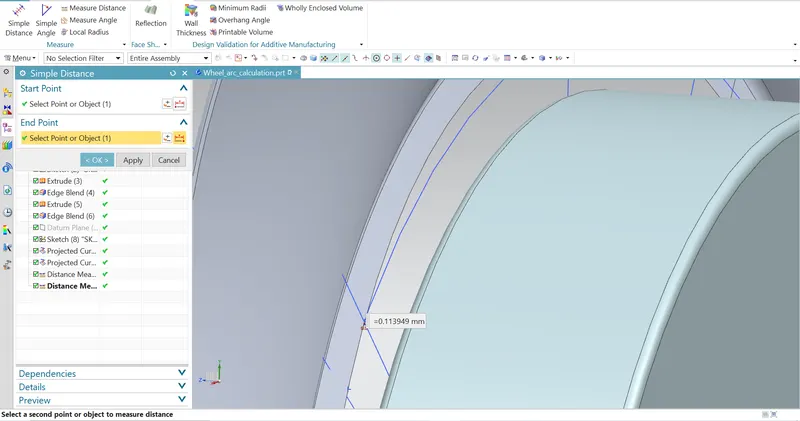

SC	10	0.1139

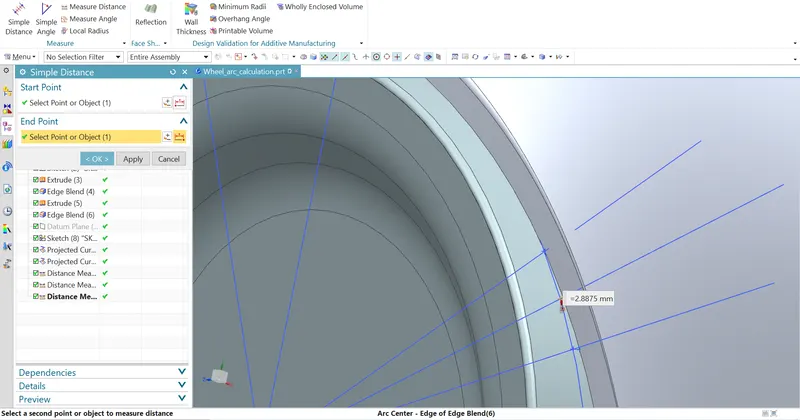

SD	10	2.8875

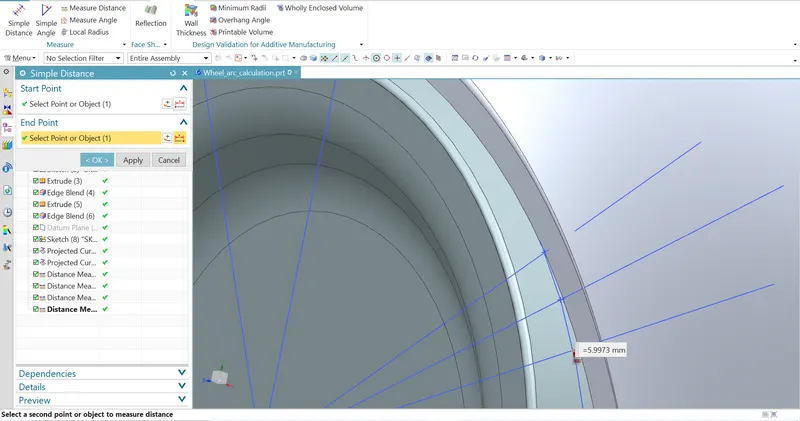

SE	10	5.9973

RESULT:

The given wheel arch does not attain the required standards.

So,the given wheel arch fails respectively.
