Fender Design - Wheel Arch Challenge
Fender

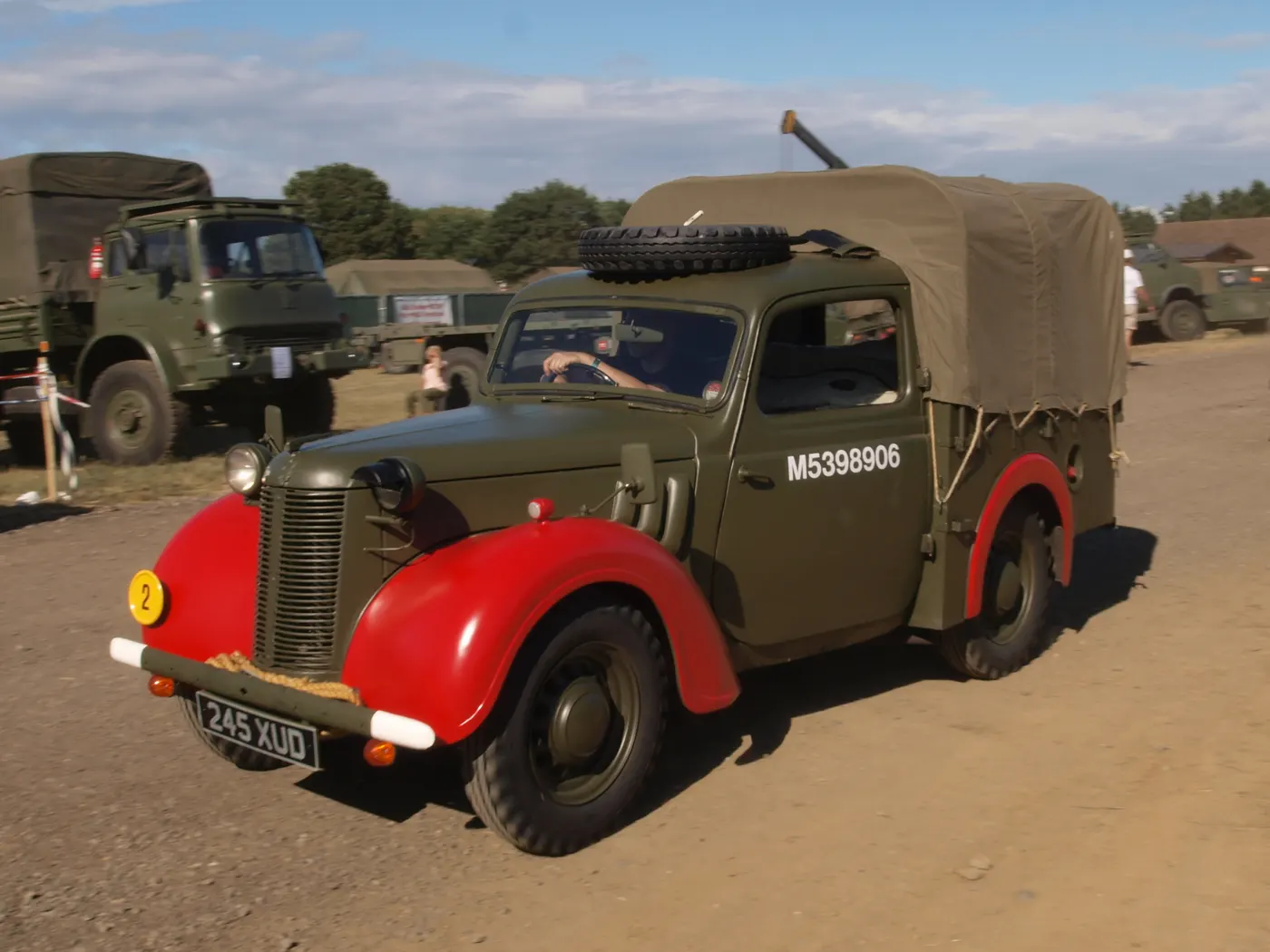

Fender is the american word term for the part of automotive, motor or other vehical body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.
Fender wheel arch regulation

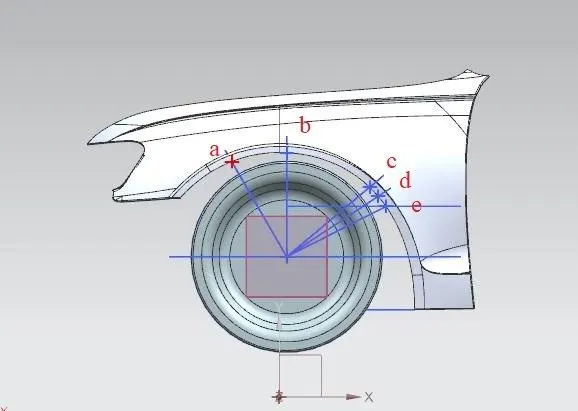

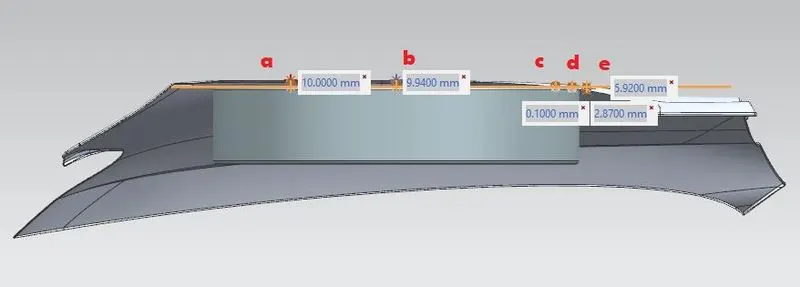

European standard
| Measured points | a | b | c | d | e |
| Required length | 10 | 10 | 10 | 10 | 10 |
| Actual length | 10 | 9.94 | 0.1 | -2.8 | -5.9 |
| Remarks | Pass | Fail | Fail | Fail | FAil |
conclusion
As per the table mentioned at point a the clearance is 10mm but other points below 5mm.

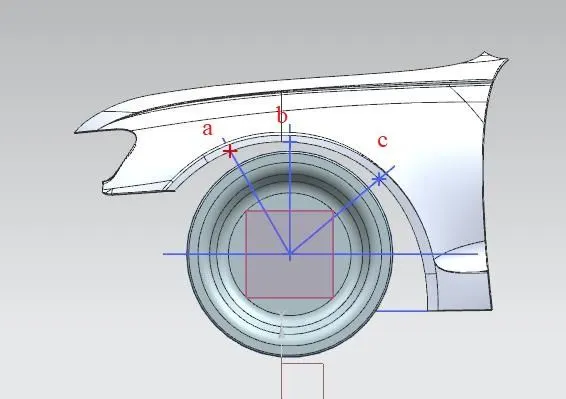

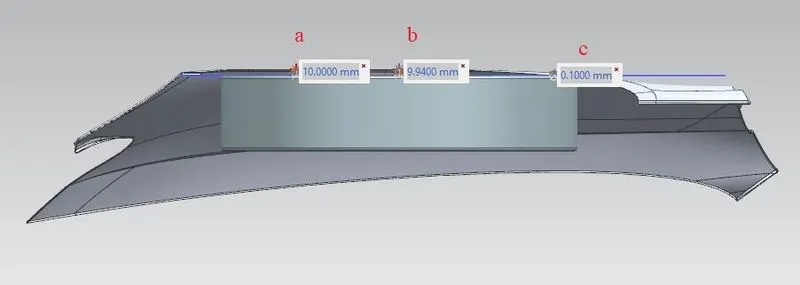

Japan standard
| Measured points | a | b | c |
| Required length | 5 | 5 | 5 |
| Actual length | 10 | 9.92 | 0.1 |
| Remarks | Pass | Pass | Fail |
conclusion
As per the table mentioned at points a and b clearance is more than 5mm but other points below 5mm.

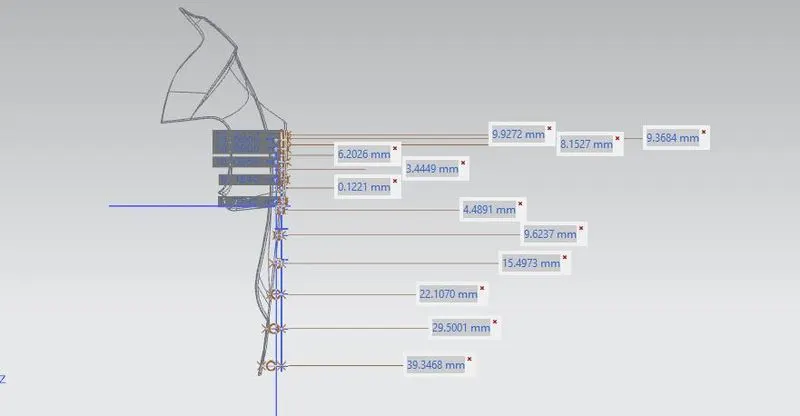

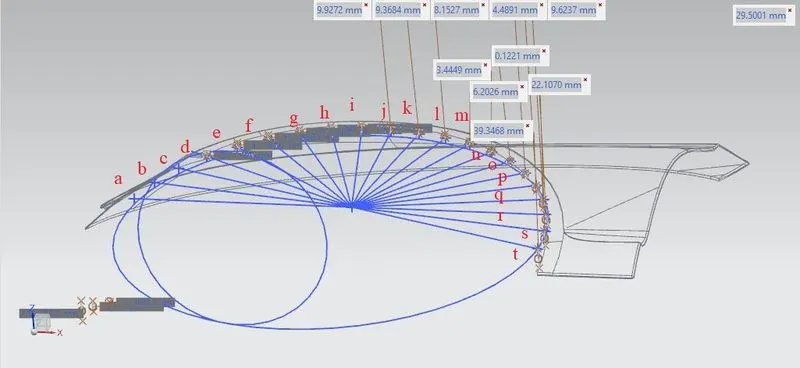

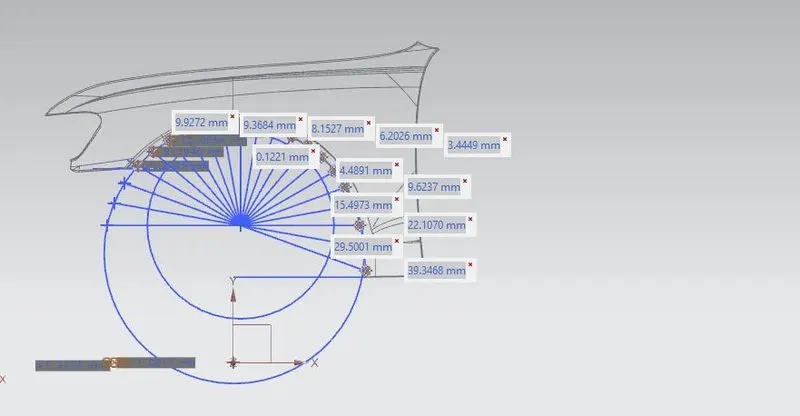

American standard
| Measured points | a | b | c | d | e | f | g | h | i | j | k | l | m | n | o | p | q | r | s | t | u |
| Required length | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Actual length | -41.27 | -27.03 | -1.01 | 5.77 | 9.16 | 10 | 10 | 10 | 10 | 9.92 | 9.36 | 8.15 | 6.2 | 3.4 | 0.12 | -4.48 | -9.62 | -15.49 | -22.10 | -29.50 | -39.34 |
| Remarks | Fail | Fail | FAil | Pass | Pass | Pass | PAss | Pass | Pass | Pass | PAss | PAss | PAss | FAil | Fail | Fail | FAil | FAil | FAil | FAil | FAil |
conclusion
As per the table mentioned at points between d to m the clearance is more than 5mm but other points below 5mm.
