Fender Design - Wheel Arch Challenge

Fender wheel arch

there are some of regulations to follow for the fender design to satisfy the various region costomers which are UK based costomer, Japan based costomer and europe based costomer. in this regions the government regulations are following different which we are following the standards are 10 mm gap regulations as common.

from the given design we are attaining the 1st angle at

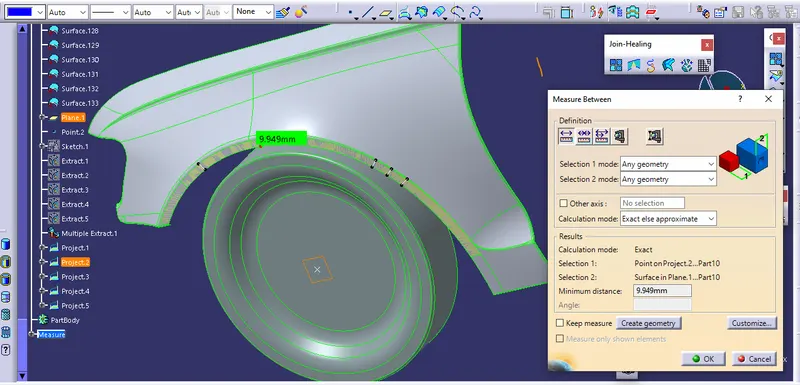

section a is 9.95

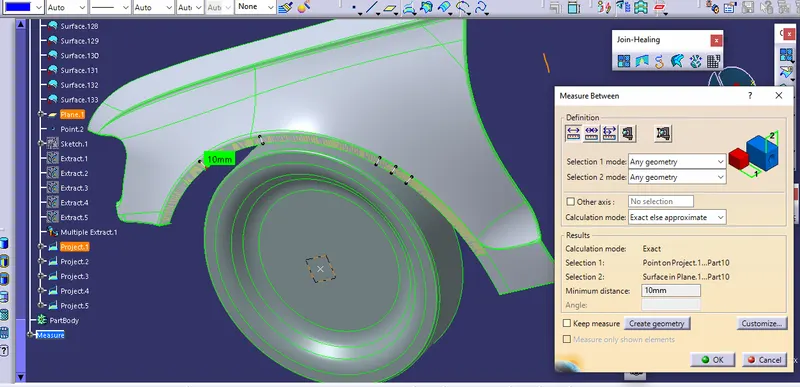

section B is 10

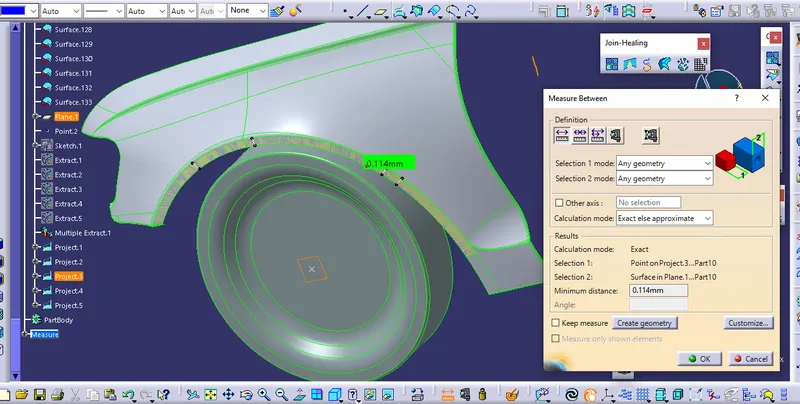

section c is 0.114

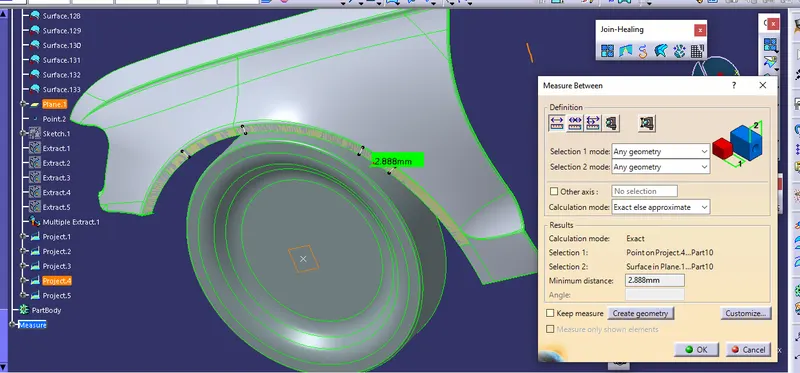

section D is -2.888

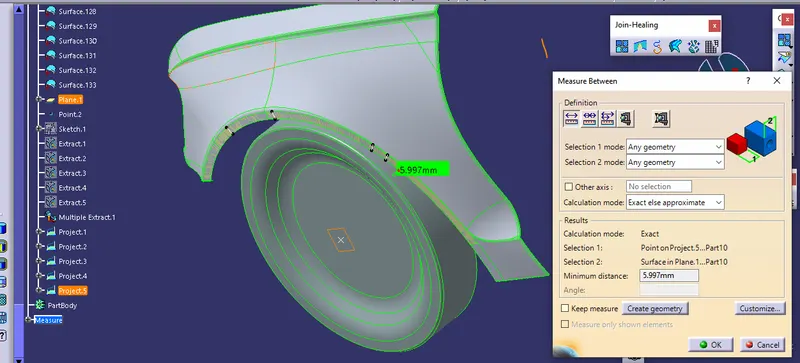

section E is -5.666

thus the given design is not satisfy the UK based costomer, Japan based costomer and europe based costomer.
