Fender Design - Wheel Arch Challenge

AIM:      Design of the front roof rail, rear roof rail, and bow roof for the roof of the vehicles with the help of the given skin data of the roof according to snow load condition and hear distortion criteria. OBJECTIVE: Study different types of Roof Available in the Market. Study About the heat Distortion…

  Objective: To study the section modulus of the Hood assembly using NX section interface tools and to optimize the results from the output data of the sectional modulus. Sectional Modulus Definition: Section Modulus is a geometric property used to calculate the bending stresses in a structural member. Mathematically,…

OBJECTIVE:     To Estimate the section modules of the mid section of hood and optimise section to a better value, with the help Nx Software.   SECTION MODULUS:  Section Modulus is a geometric property for a given Cross-section used in the Design of beams or flexural Members. Other Geometric properties…

BACK DOOR DESIGN USING NX SOFTWARE: OBJECTIVE:    The main objective of this project is to learn the Basics of the BIW (Body in white) by designing the Back Door “also referred to as Tail Gate” of a car by considering all the Protocols and Standards of BIW Design. What is BIW?…

  WHAT IS FENDER: Fender is the American English term for the part of an automobile,Motorcycle or other vehicle body that frames a wheel. Its primary purpose is to prevent Sand,Mud,rocks,liquid,and other road spray from being thrown into the air by the rotating tire. Fender are typically rigid & can be Damaged…

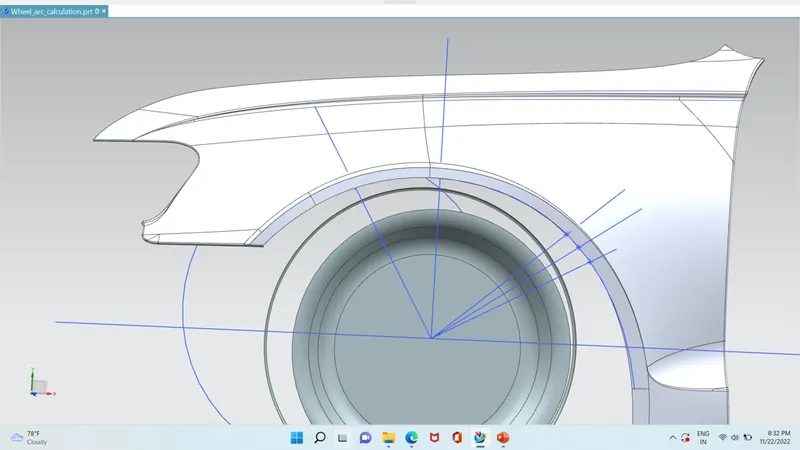

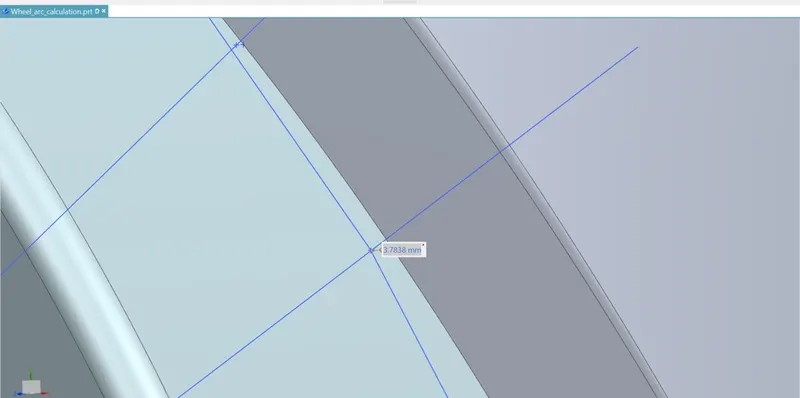

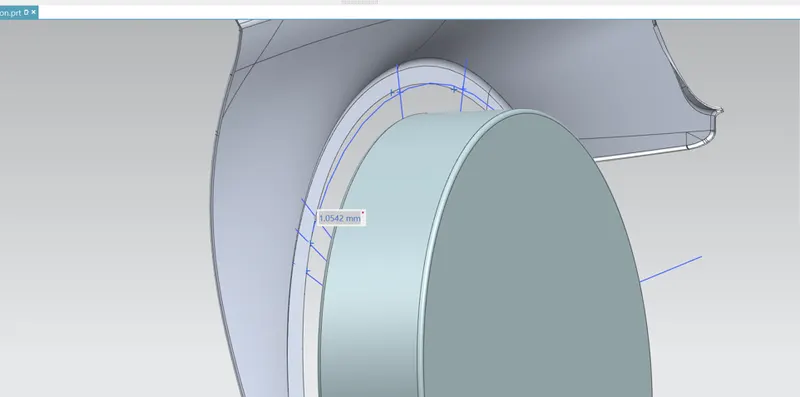

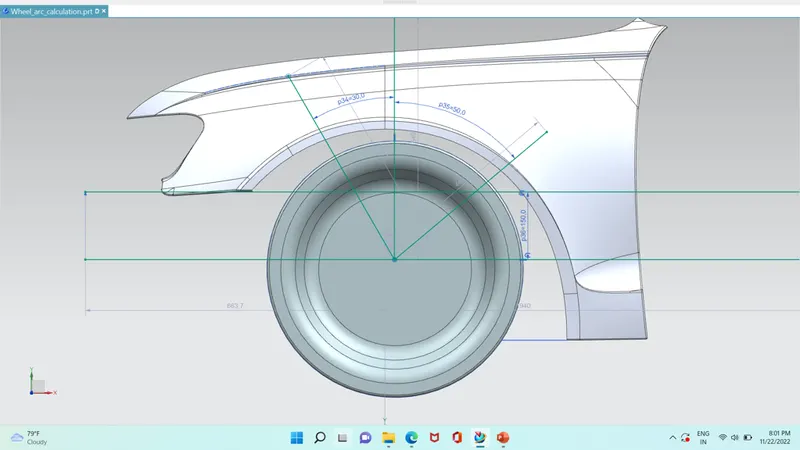

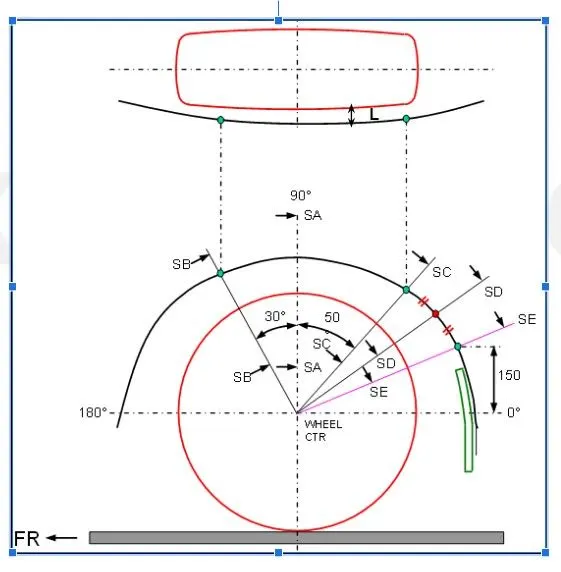

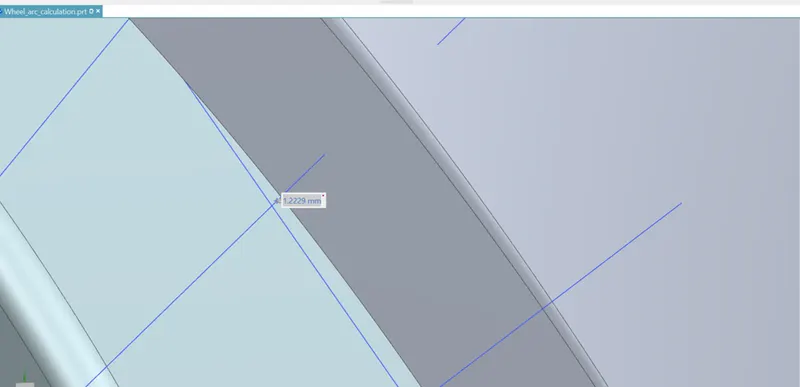

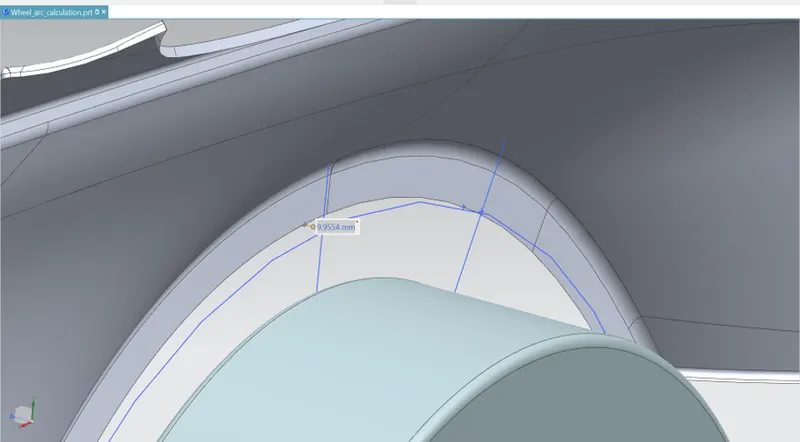

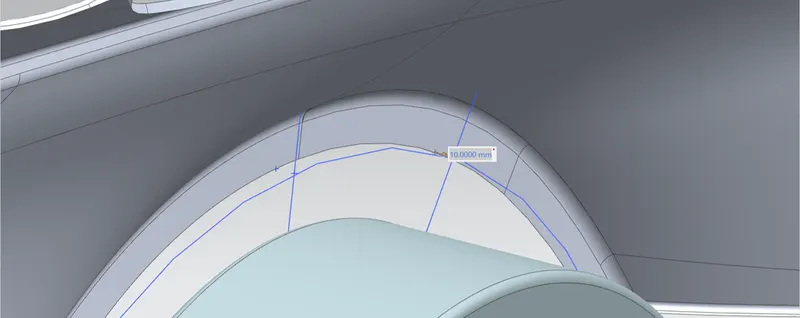

FENDER WHEEL ARCH CALCULATION AIM:        To Calculate the Wheel Arch Gap At required Points And check the car passes the European standard. WHEEL ARCH: It is Semicircular profile above Wheels designed for enclosing tire within the fender. The Wheel Arch Is designed Considering All possible motions …

AIM : Design Hood Outer Panel, Inner Panel and the necessary reinforcements by following the Master Section mentioned with the Design parameters. Data to be used: Hood Thickness Information  Outer Panel Thickness = 0.75mm Inner Panel Thickness = 0.75mm Reinforcement Thickness = 1.5mm  Master Section:…

Under coating purpose. Underbody provide an additional layer of protection. It's a corrosion resistance (Rust proof)and to avoid damage. It also reduce the wear and tear. Undercoating your vehicle reduce the noise emanating from either engine or the road. Types of under body coating  Spray underCoating Rubberized…

I have benchmarked with  four car from 8 to 10 lakhs budget. 1. Maruti suzuki Ertiga-9.66lakh 2.Honda Jazz-9.37lakh 3.Tata Altroz-10.7lakh 4.Honda Amaze-9.83lakh In Honda jazz,Tata Altroz and Honda Amaze is available in one type fuel option(petrol). This cars have 5 seater. In Maruti Suzuki ertiga is available in…
