Fender Design - Wheel Arch Challenge

AIM     To make a full solid model from the provided master section and class A surface. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design 3D models with different workbenches.    CLASS A SURFACE:…

MODELING OF SUNSEEKER YACHT BY SOLID WORK AIM & OBJECTIVE Our ultimate aim is creating the modeling and getting the photo realistic rendering of Yacht by Solid work. This modeling is used to determine dimensions of parts and appearances for manufacturing. We have to create accurate model for giving manufacturing. INTRODUCTION…

MODELING AND RENDERING OF AMERICN CHOPPER BY SOLID WORK AIM & OBJECTIVE Our ultimate aim is creating the modeling and the photo realistic rendering of American chopper by using the solid work. It is used to determine the different parts dimension and appearance for manufacturing. We have to create best and accurate…

Aim       To create and assemble the inner and outer panel of hood and fixed reinforcement of hood by following design rules and master section. Introduction:  Hood:       Hood is also called as bonnet. It is one of the BIW part of car. It consists of inner and outer panel. Hinge system and striker. Inner panel gives strength…

Aim:              Electrically defined the given connecters with the help of geometry, routing between connecters and apply corrugated tubes on the wires by the electrical wiring harness workbench. Then flattening the assembly and create the drawing by CATIA V5. Introduction:     Wiring harness:                Systematic…

AIM:     Create tail light assembly (lens, reflector, housing and slandered parts) from given class A surface. Then crate single part and assembly drawing for this light and check the regulation requirement for tail lamp. INTRODUCTION: LIGHTING:             Lighting…

    AIM:     Create Tooling axis and class B surface and create a solid from the provided class A surface. Then do drafting analysis and create the parting line. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which…

Aim:       Electrically defined the given connecters with the help of geometry, routing between connecters and apply corrugated tubes on the wires by the electrical wiring harness workbench. Then flattening the assembly and create the drawing by CATIA V5. Introduction:    Wiring harness:                Systematic bound…

Aim:       Electrically defined the given connecters with the help of geometry, routing between connecters and apply corrugated tubes on the wires by the electrical wiring harness workbench Introduction:    Wiring harness:               …

Aim:        Electrically defined the given connecters with the help of geometry, routing between connecters and apply corrugated tubes on the wires by the electrical wiring harness workbench Introduction:    Wiring harness:               …

Aim:       Electrically defined the given back shell and clamp with the help of geometry and create corrugated tubes and save in catalogue by the electrical wiring harness part workbench. Introduction:    Wiring harness:               …

Aim:       Electrically defined the given connecters and connecter clip with the help of geometry and assemble by the electrical wiring harness workbench. Introduction:    Wiring harness:                Systematic bound…

OBJECTIVES:           The objective of this project is that design the all parts of butterfly valve separately and assemble and create the butterfly valve by the help of multiple comments by the siemens NX.  INTRODUCTION:            Butterfly valve:                                  Butterfly valves are a family of quarter…

OBJECTIVE:             To design the back door of car by creating inner panel and outer panel with designing consideration and fix the reinforcements. INTRODUCTION:   Back Door:             The trunk or boot is main storage of the car which is often a hatch at the rear of the vehicle. It also called tail gate. These doors…

OBJECTIVE:             Design and develop the essential flanges and reinforcement such as front roof rail, rear roof rail and bow roof from given aesthetic surface. And do the curvature study and calculate heat distortion and snow load creation to determine and justify…

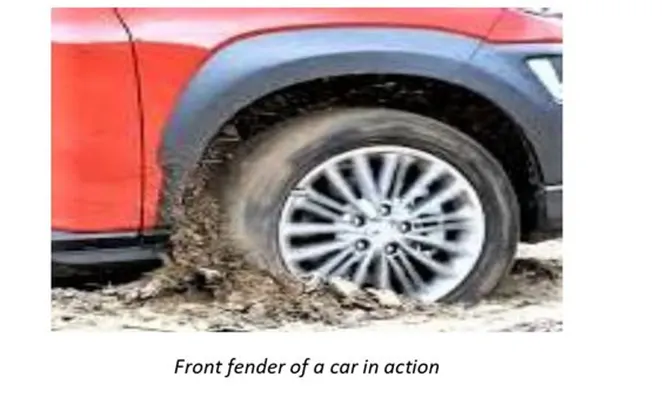

OBJECTIVES:               Our main objective is that create a fender from given class A surface and create mounding flanges. INTRODUCTION:        Fender: Fender is one of the automobile parts which is in all types of vehicles which products the vehicle. The fender products the vehicle from sand, mud, rocks, liquids and…

Section modulus calculation and optimization   AIM:         Determine the movement of inertia of the created hood and optimized hood and compare both. INTRODUCTION:  Section modules: Section modulus is the ratio of bending to the farthest fiber from neutral axis. It is used…

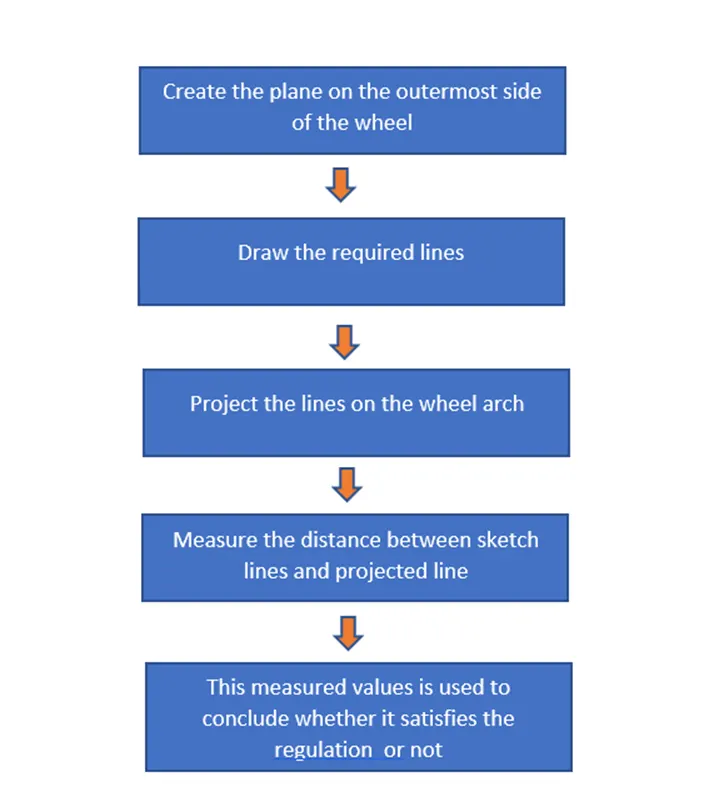

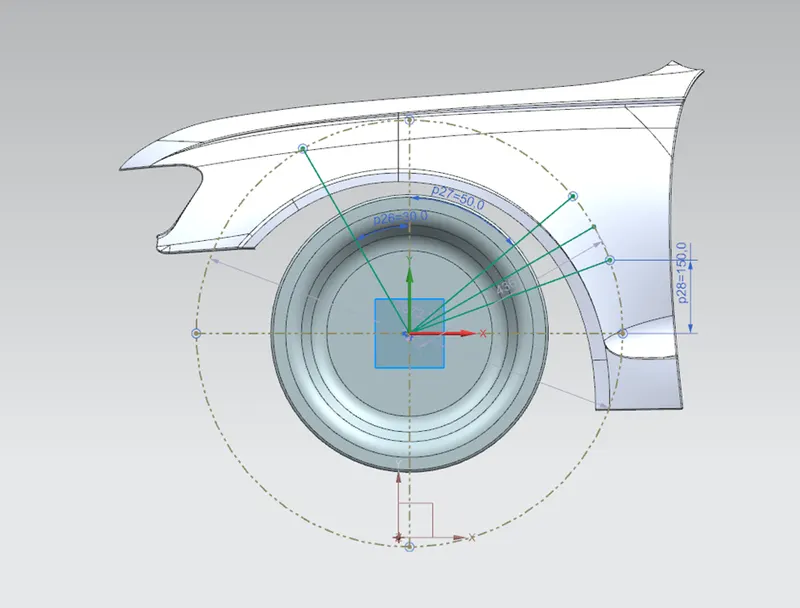

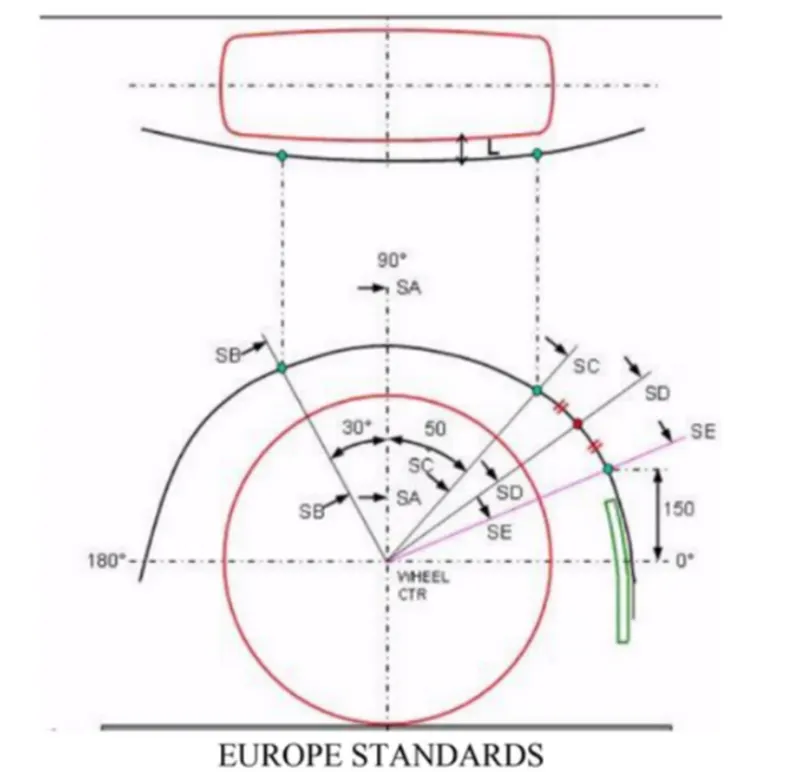

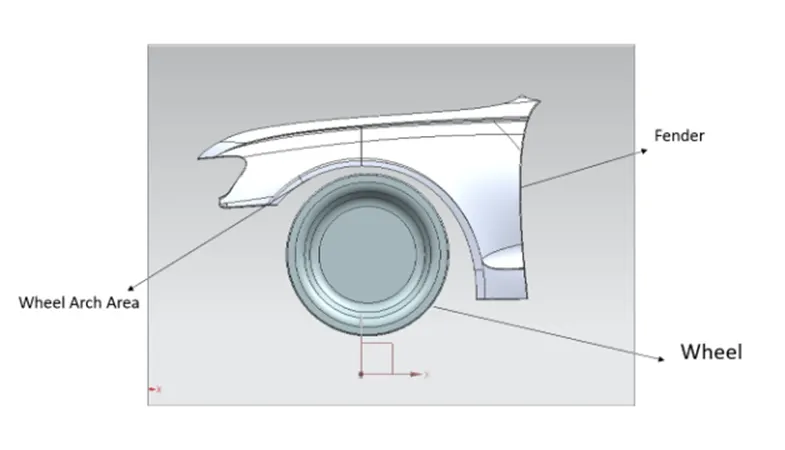

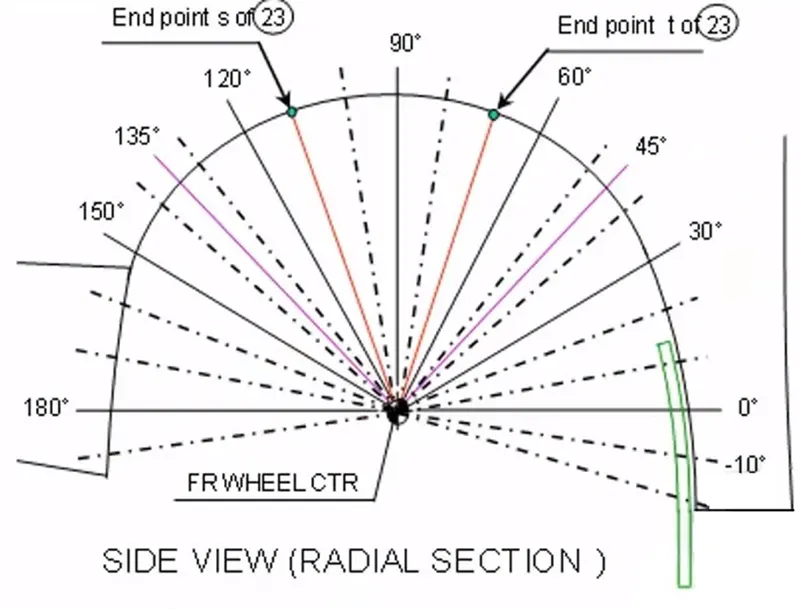

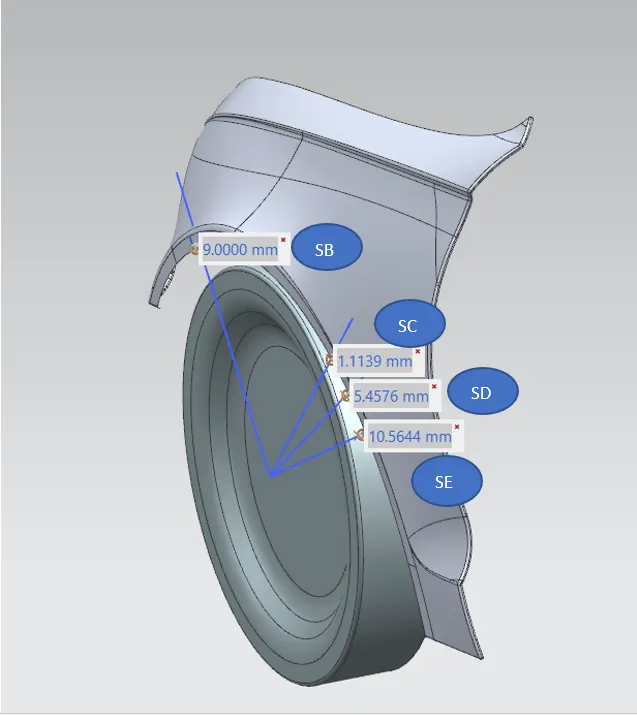

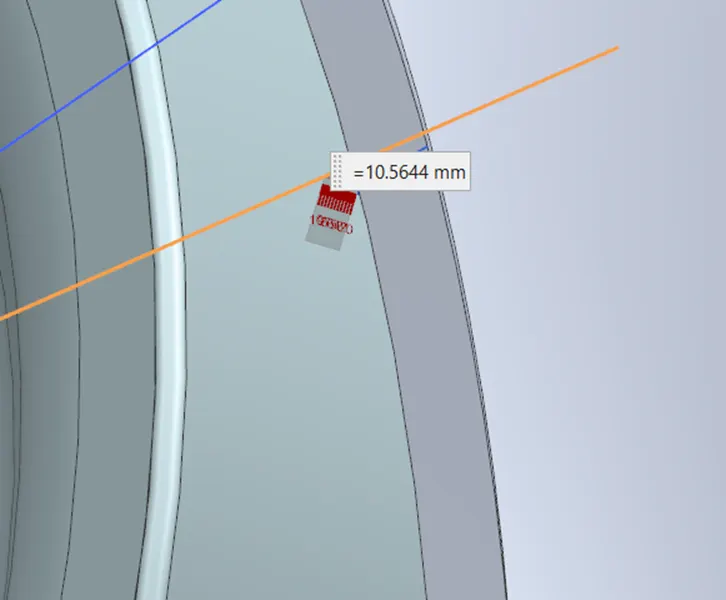

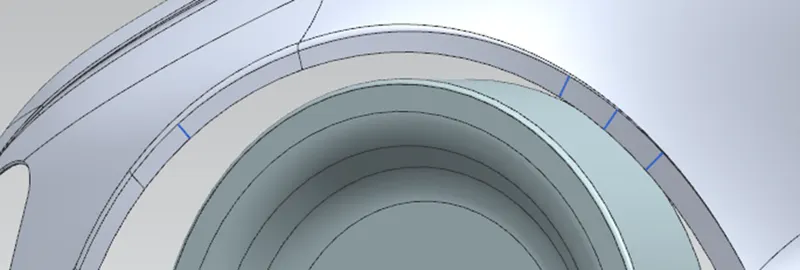

           DETERMINATION OF THE REGULATION TO THE GIVEN MODEL Objective:     Our aim is that maesure the clearance between fender edge and tyre. NX CAD software used to measure distance between them from given model and also conclude whether it is European standards or not.…

UNDER BODY COATING:              Underbody coating is one of the coatings which is coated on the under bodies of cars. This coating is done while BIW coating. Different layer of coating is done in this process.                …

He searches a good car in 8 to 10 lakhs. So, I recommended this three cars for him. Hyundai i20 sportz 1.2 IVT Tata Nexon Maruti Brezza      1. Hyundai i20 sportz 1.2 IVT Its price is 8.99 lakhs It gives mileage 19.6 kmpl It runs in petrol Safety 3 star It is modern and sharp look        …

AIM:     Create the parts and assemble the created parts by the use of given drawing. METHODOLOGY: PROCEDURE: Part creation:          First created given parts separately in part and surface workbench by the help of given drawing. First draw 2D sketch then convert…

AIM     To make a full solid model from the provided lower door trim A surface and create locator and heat stacks. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is…

AIM     To make a full solid model from the provided part A surface of door trim and create dog houses. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software…

AIM     To make a full solid model from the provided master section and class A surface. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to…

AIM     To make a full solid model from the provided drill handle A surface and create ribs and bosses. INTRODUCTION: BCATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software…

AIM     To make a core and cavity any analysis drafting given switch bezel. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design 3D models…

AIM     To make a full solid model from the provided bumper A surface. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design 3D models…

AIM     To make a full solid model from the provided class A surface of coin holder. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design…

AIM     To make a full solid model of switch bezel from the provided surface. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design 3D…

AIM     To make a full solid model from the provided surface. INTRODUCTION: CATIA:          It means Computer-Aided Three-Dimensional Interactive Application.  It is computer aided designing software. This is software which is used to design 3D models with different…
