Fender Design - Wheel Arch Challenge

Challenge 5:

Fender Design - Wheel Arch Area Calculation

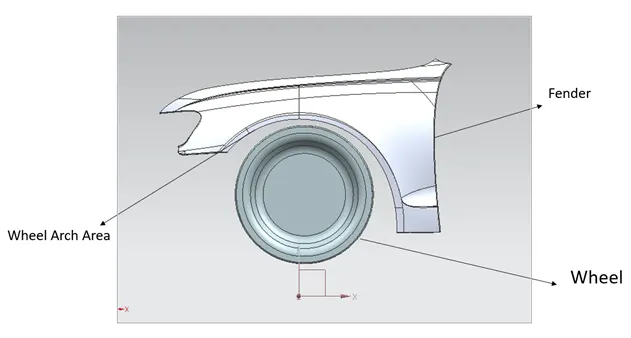

WHEEL ARC AREA DEFINITION

The Wheel Arc is a curved part of the fender positioned right above the wheel that is designed to enclose the wheel within the fender and protect both the pedestrian and car cabin from mud, water rocks and other road spray.

Wheel Arc should have a sufficient clearance between the outer surface of the fender and outer surface of the wheel to reduce the chipping of the wheel with outer particles and as a result to increase pedestrian safety. That minimum clearance is determined depending on specific regulations for each region.

FENDER WHEEL ARC AREA REGULATIONS

Wheel Arc Area has some standard specifications. If you see the car from the front, and the wheel is outside of the fender, it will make more chipping. As a result, it can produce damage to pedestrians and other cars. To keep pedestrian safety, we will have to position the tire wheel inside the fender as shown in top view.

For every region in the globe, there will be different regulations for the wheel arc requirement. The reason why these requirements change from region to region is because these are fixed with respect to each region road conditions. So, once you get the fender styling data (data produced from wheel data), take the wheel center, and build and mark 0 to 180°. The next steps of this study depend on specific region requirement.

Japan Regulation Requirement

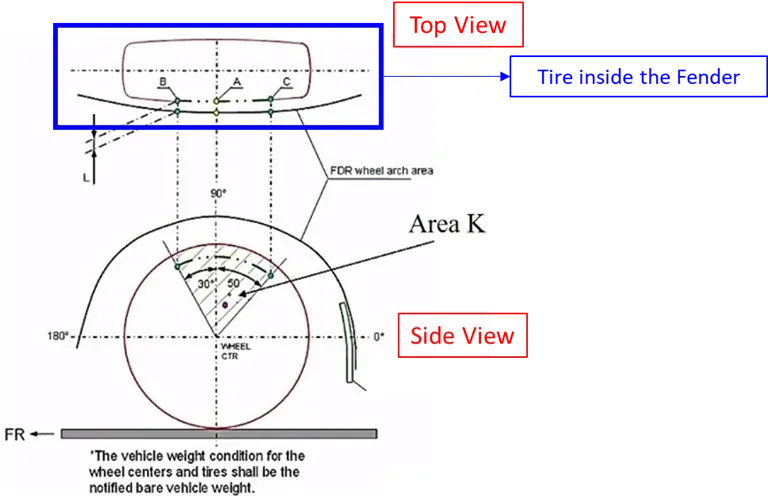

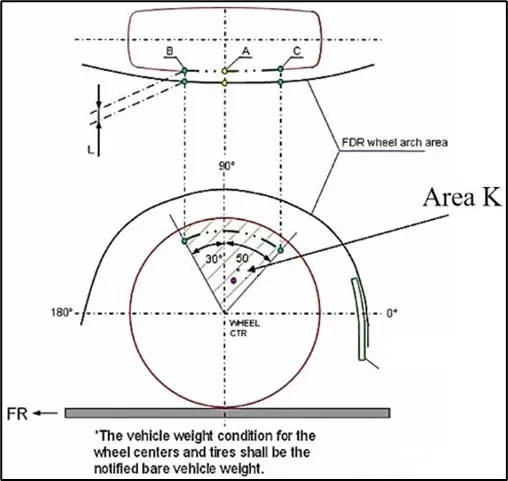

The study for Japan regulations consists of the following steps:

• Define the wheel center.
• Create a perpendicular line. The point projected from side view to top view will be A.
• Take the 50° right and 30° left of the car and project the points from side view to top view (B and C).
• When the region created is projected from the side view to the top view, you allow to have a gap of minimum 5 mm. The Japan’s government through its regulation team is who determines that 5 mm value.

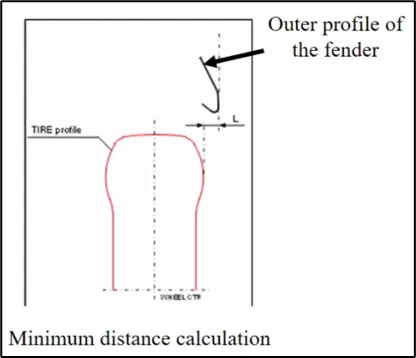

• Measure clearance L of tire, hub, cap, and fender in 3 different positions within area K and produce clearance check chart to validate.
• All these points should have minimum clearance of 5 mm. Clearance must be greater than 5 mm in all the 3 positions.
• Wheel Guard Requirement: The value of ‘a’ shall be more than 5 mm at a line 30° forward and 50° rearward from the central vertical axis of wheel’s axis.

We will have to do this study and see if the fender is matching. If this is not matching, we should go with the styling team and ask them again to change the curvature of the fender. This procedure should be followed up to we get the 5 mm gap requirement.

European Regulation Requirement

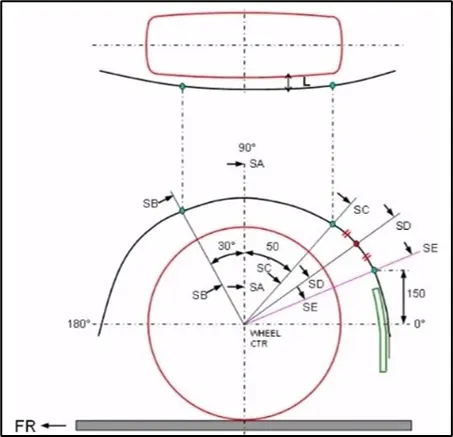

The study for European regulations consists of the following steps:

• Take the Wheel Center.
• Mark the 30° line (SB) and the 50° line (SC). Same way it was done for Japan.
• But additionally, we have to take additional points:

• Take a point at 150 mm from the zero and mark the line (SE).
• Mark the midpoint between the points SC (50°) and SE (150 mm). → SD

• At the end, confirm that under all these 5 sections, the Clearance Length should be 10 mm or greater to satisfy the European regulations.

• Measure Clearance Length value at sections (SA-SA, SB-SB, SC-SC, SD-SD, and SE-SE).
• Produce a Clearance Check Chart to validate.

• Wheel Guard Requirement: The value of ‘a’ shall be more than 5 mm at a line 30° forward and 50° rearward from the central vertical axis of wheel’s axis.

US Regulation Requirement

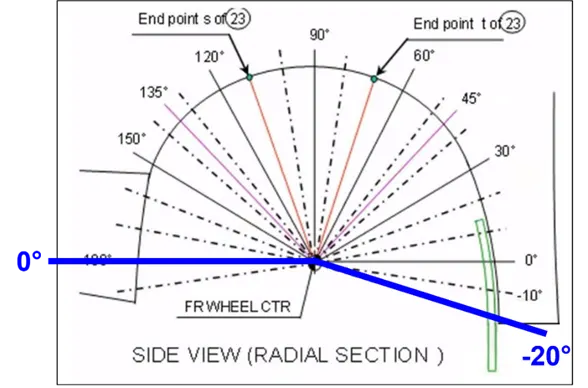

Similarly, US also have a regulation which says do the same concept for every 10° from -20° to 0°. When this is done, we should have 5 mm clearance from the length.

So, if the car is being prepared for different markets (for example, Japan, US, and Europe), we basically keep 10 mm clearance for all regions, so that all the requirements are satisfied.

The study for US regulations consists of the following steps:

• Make clearance check details on all positions from -100° to 100° and make the clearance check table.
• All values should be greater than 5 mm to satisfy the regulations.
• Wheel Guard Requirement: The value of ‘a’ shall be more than 5 mm at a line 30° forward and 50° rearward from the central vertical axis of wheel’s axis.

For a car that is addressed to various markets (for example, Japan, Europe, and also US), it is needed to take one major requirement that is the maximum clearance value for all these cases. The reason is because it is not allowed to prepare variations in the fender (we cannot have two different fenders for one model car). We have to take the maximum deviation value and use the same for all the cars.

WHEEL ARC GAP CALULATION AT THE REQUIRED 5 POINTS

To assess Wheel Arch Area, it is needed to calculate the gap at required points and check whether the car passes the European Standard.

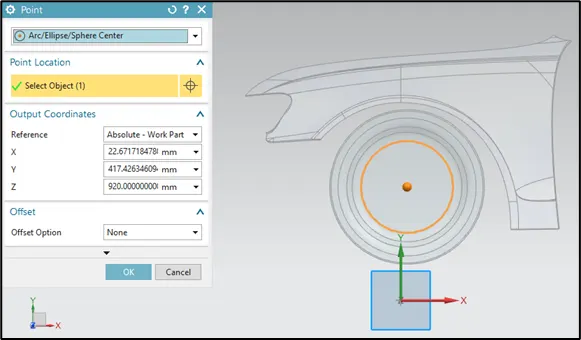

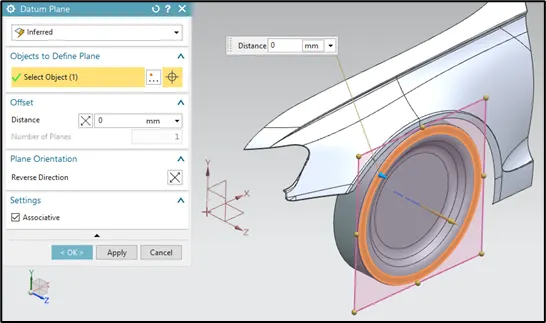

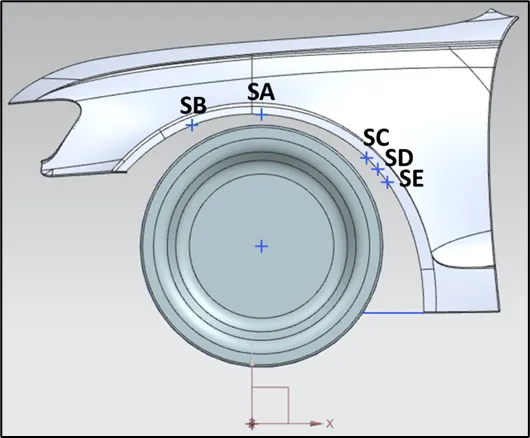

1. Create a datum plane on the wheel outer section. Take the Wheel Center.

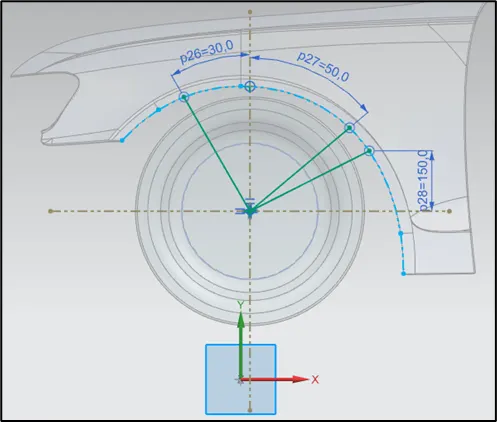

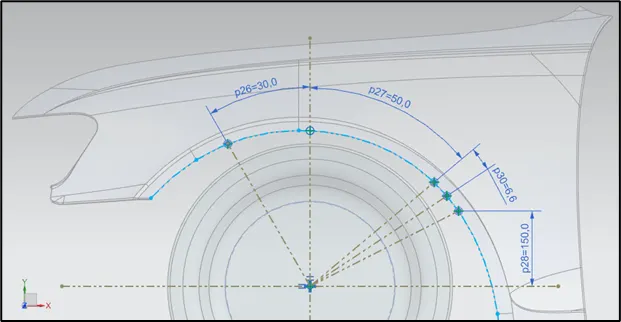

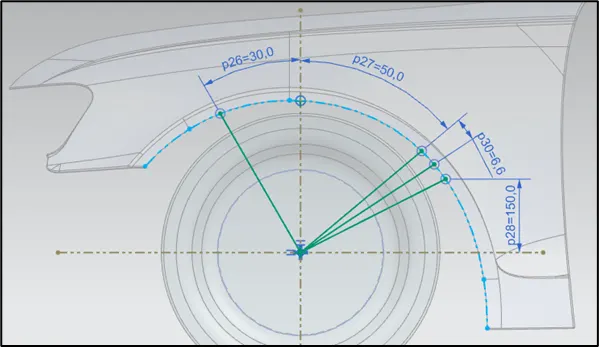

2. Mark a line from the wheel center to the constructed datum plane, and then follow the specified angles for SB and SC (Mark the 30° line for SB and the 50° line for SC), and distance for SE (point at 150 mm from the zero). Mark the intersection points between lines and projected curve.

3. The SD line is drawn in the middle of SC and SE line.

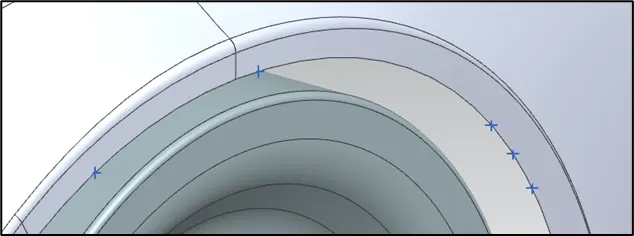

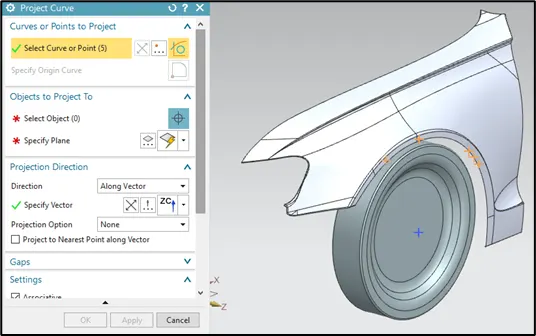

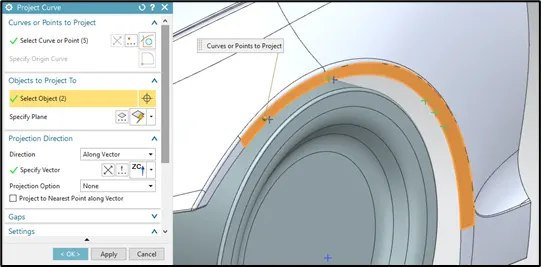

4. Mark the intersection points and project points on the fender surface.

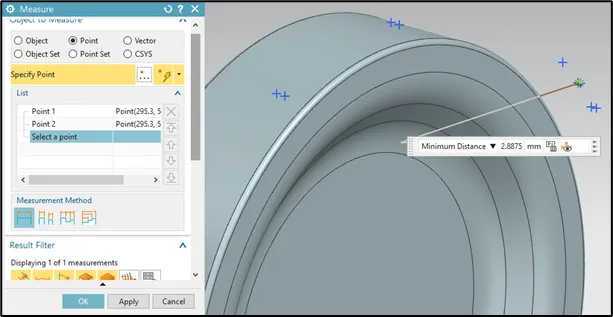

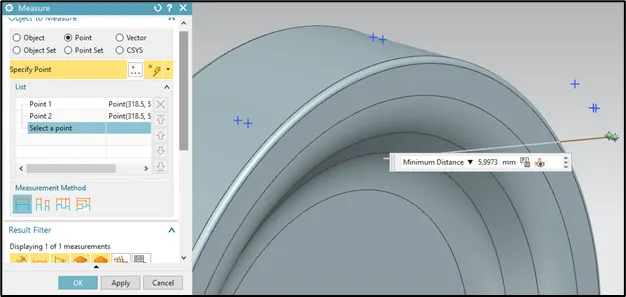

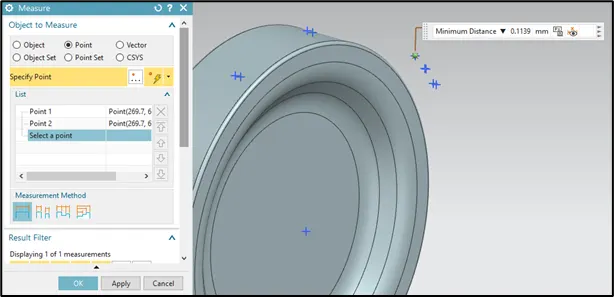

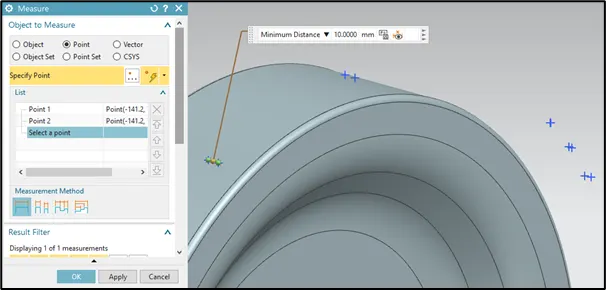

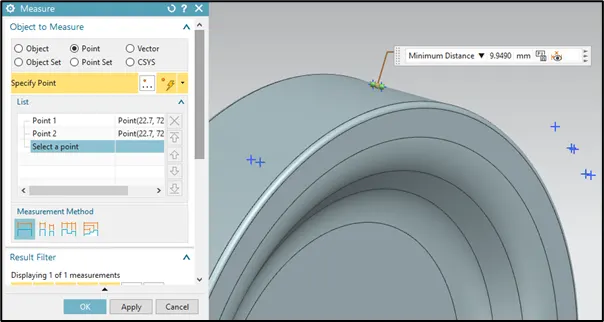

5. Measure the distance (Clearance Length) between two points for all sections.

Wheel Guard Requirement:

The value of ‘a’ need to be more than 5 mm at a line 30° forward (SB) and 50° rearward (SC) from the central vertical axis of wheel’s axis.

CLEARANCE CHECK CHART

At the end, it was checked all the 5 sections and the results were summarized in chart shown below. The Clearance Length requirement is 10 mm or greater to satisfy the European regulations.

Section	Clearance Length (L) [mm]	Result
SA	9.9490	FAIL
SB	10	PASS
SC	0.1139	FAIL
SD	2.8875	FAIL
SE	5.9973	FAIL

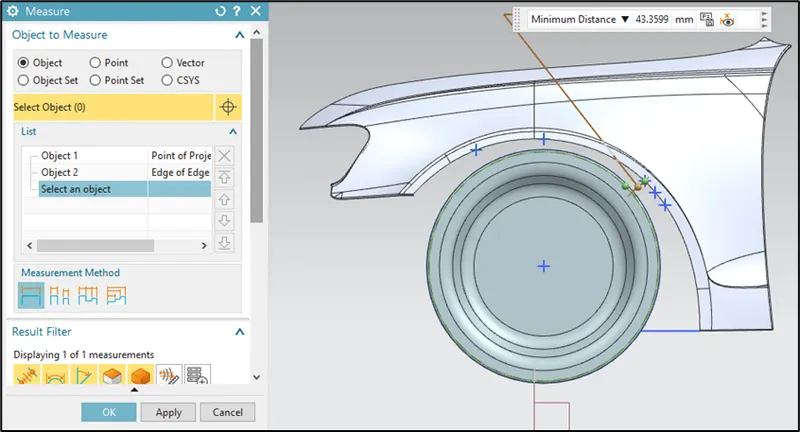

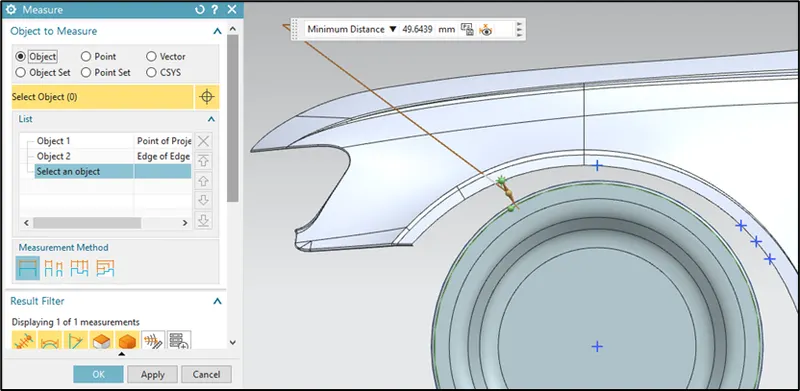

For Wheel Guard Clearance, ‘a’, the requirement specifies to be more than 5 mm at a line 30° forward (SB) and 50° rearward (SC) from the central vertical axis of wheel’s axis.

Section	Wheel Guard Clearance (a) [mm]	Result
SB	49.64	PASS
SC	43.36	PASS

CONCLUSIONS

Based on the results it is concluded that this fender design does not meet with the European Regulations requirements because of the minimum clearance L between the Fender Wheel Arch and Wheel should have a value of 10 mm or greater for all the 5 sections. Additionally, it is needed to send feedback to the styling team to get further modifications.
