Fender Design - Wheel Arch Challenge
Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

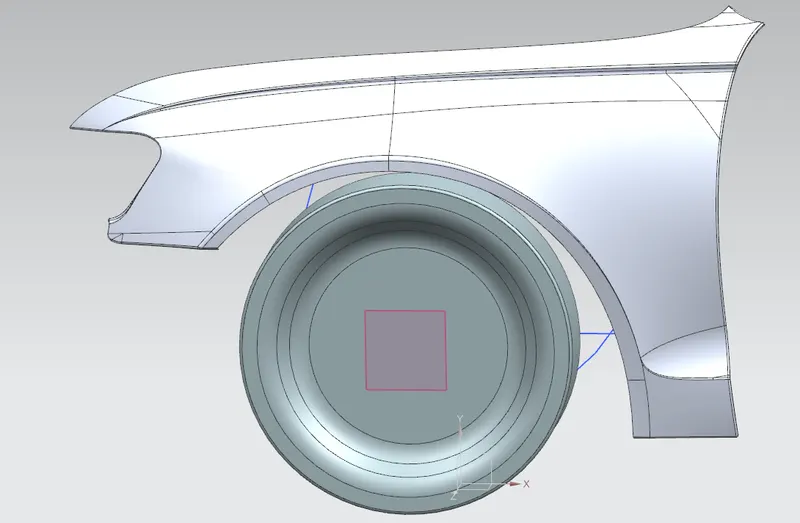

From the downloded fender design we need to draw a datum plane by the referenence of wheel circle.

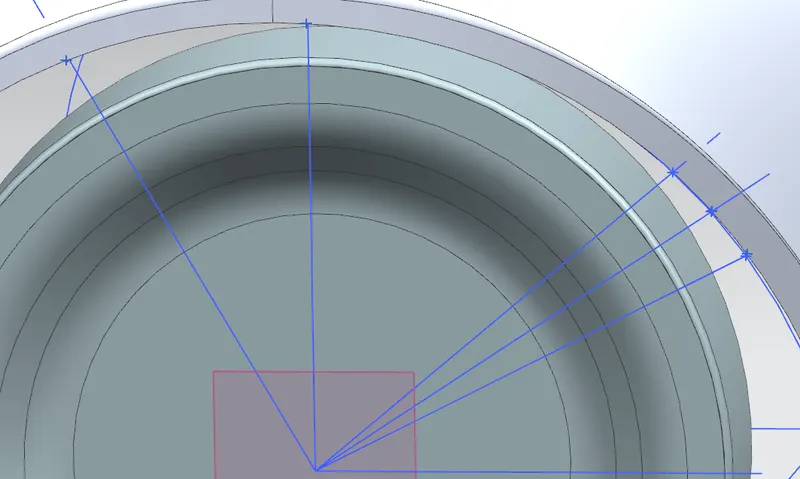

After creating the datum plane. we need to draw the lines in datum plane
line SA in horizontal to wheel and line 2 is vertical to wheel
line SB is drawn from center of datum plane & angle between SA &SB is 30 degree
line SC is drawn from center of datum plane angle between SA&SC is 50degree
draw a line SE which is center of datum plane and give the measurement of vertical line to SE 150mm
Between the SE&SC line add the derived line as name as SD.
after these find the intersection points. along SA-SE

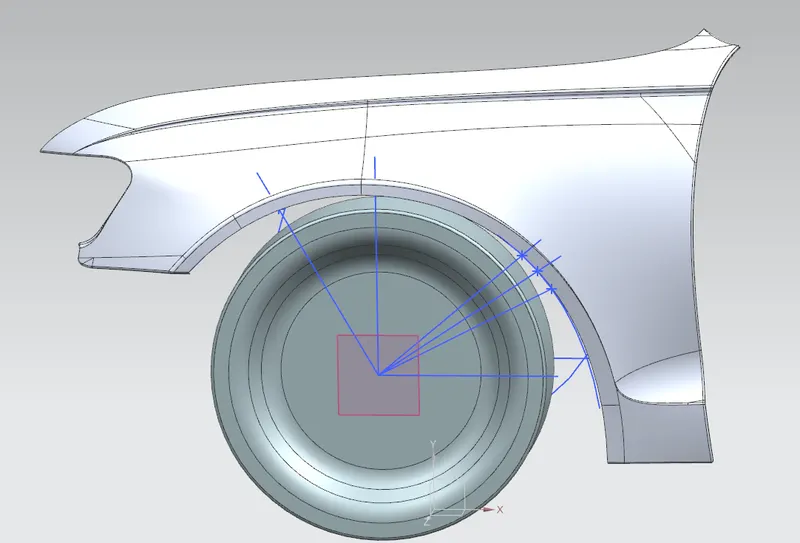

project the curves in the fender design
two points will appear.
again project the curves in fender design

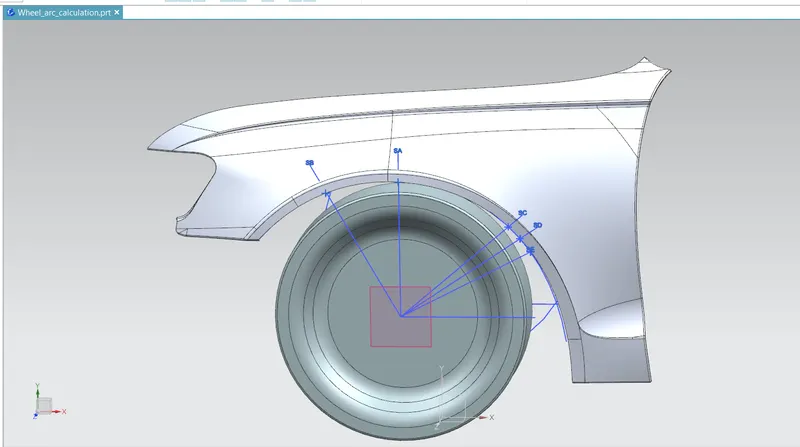

after all points appear in fender.
we need to measure the distance between wheel point to fender point.
The distance which is equal to 10, the the car passes in europe standard .
The values and the screenshot of the values

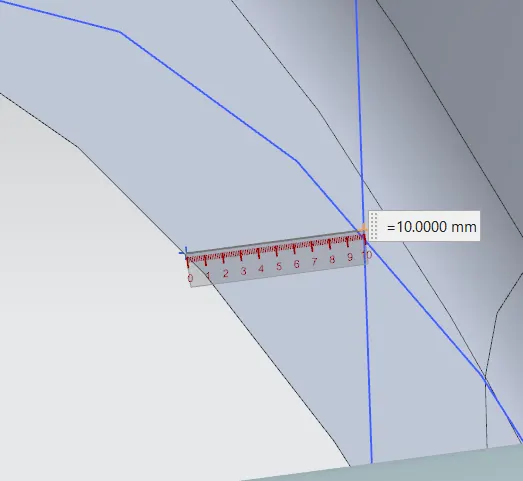

SA SB
SC SD
SE
| S/NO | Name | Europe Standard | Values | Result |

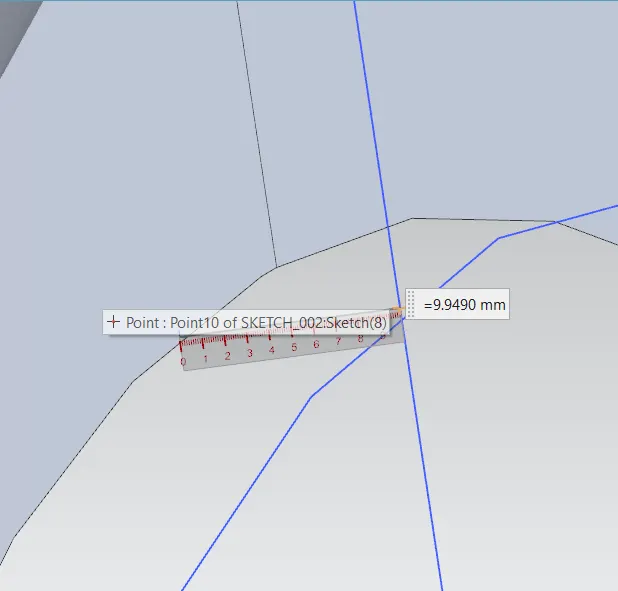

| 1 | SA | 10mm | 9.9490 mm | Not satisfied |
| 2 | SB | 10mm | 10mm | Satisfied |

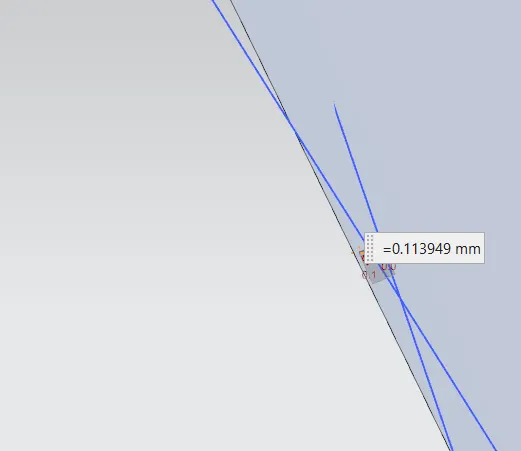

| 3 | SC | 10mm | 0.1139mm | Not satisfied |

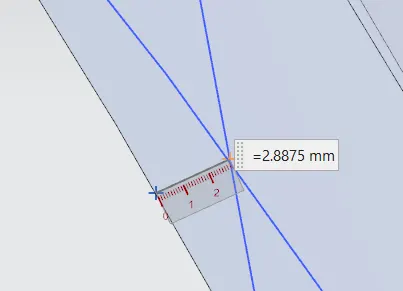

| 4 | SD | 10mm | 2.887mm | Not satisfied |

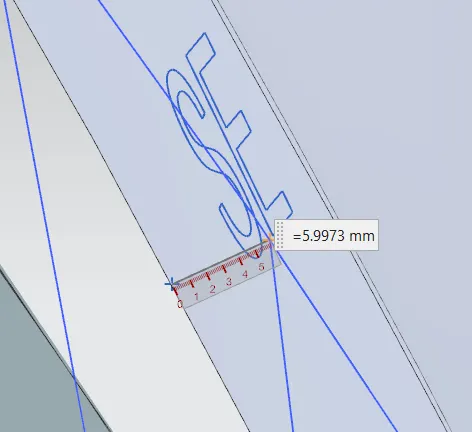

| 5 | SE | 10mm | 5.997mm | Not satisfied |
The above fender is satisfied at one certian area which is SB.
remaning all is not satisfied , Then the frnder is not in Eurpoe standard.
