Fender Design - Wheel Arch Challenge

 EUROPEAN REGULATION REQIUREMENTS;

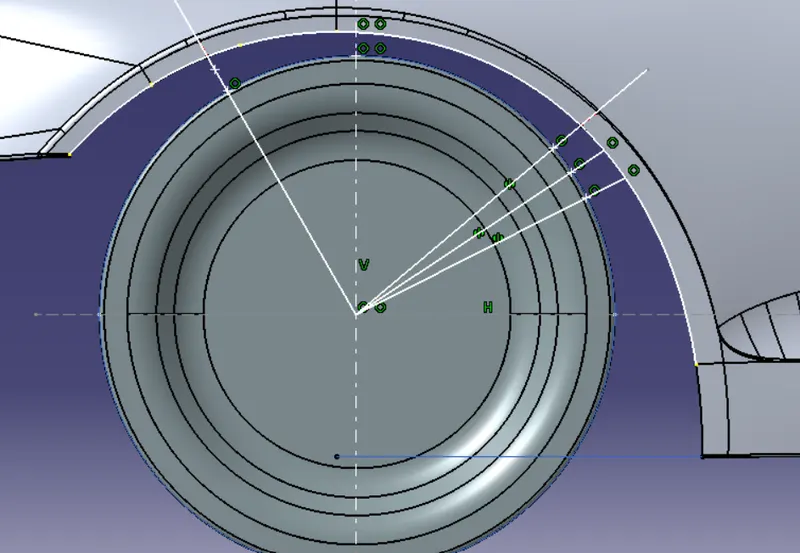

• Take the outline of the wheel and the fender.
• Make the centre of the wheel circle.
• Draw horizontal and vertical perpendicular axes from the centre of the wheel circle.
• Draw lines at 30 degrees and 50 degrees from the centre.
• Make a point on the fender line at 150mm from the horizontal.
• Extend a line to this point from the centre.
• Then make a line that is exactly between the 50 degree line and the line made on the 150mm point.
• Measure the distances between the points on the wheel circle and fender curve. All of these should be greater than 10mm to satisfy the European regs.
• Secondly, the horizontal distances from SA, SB, and SC points to the fender curve should be at least 5mm. Check whether the design passes these conditions and conclude whether it can pass the European Regulations Requirement.

 CHALLENGES;

LENGHT REQUIREMENTS;

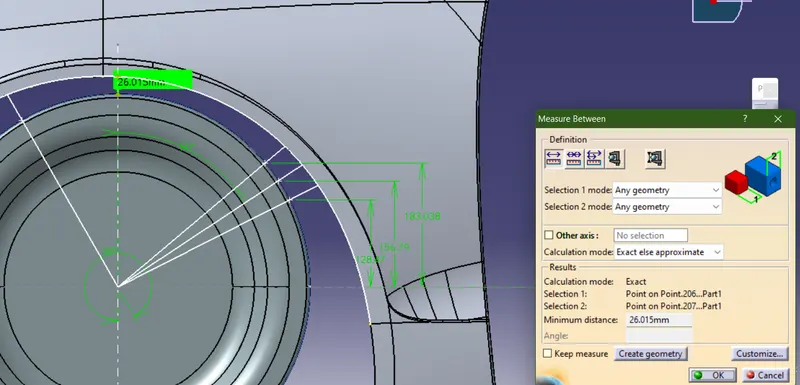

SA-SA=26.015mm

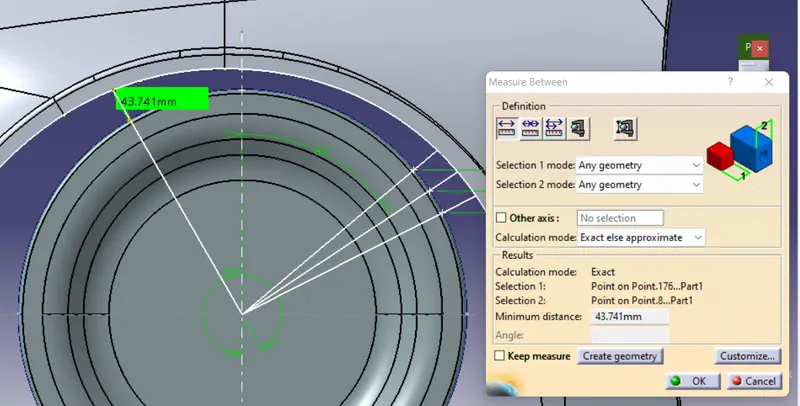

SB-SB=43.741mm

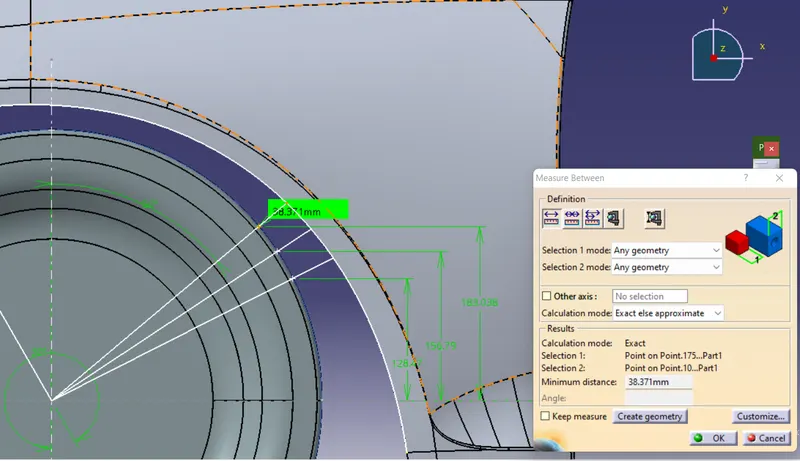

SC-SC=38.371mm

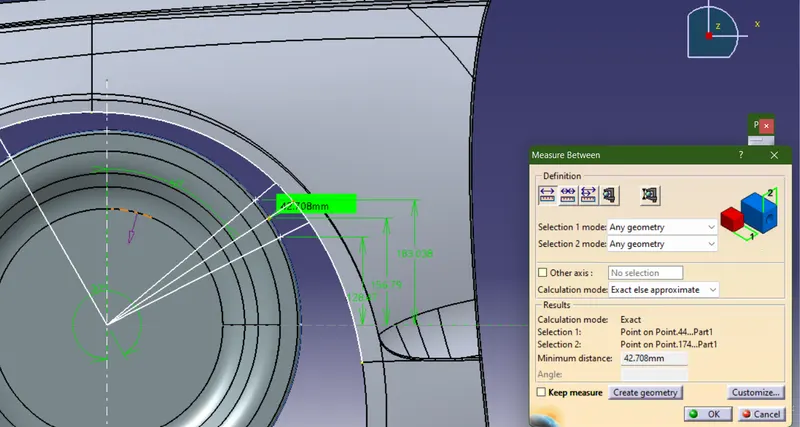

SD-SD=42.708mm

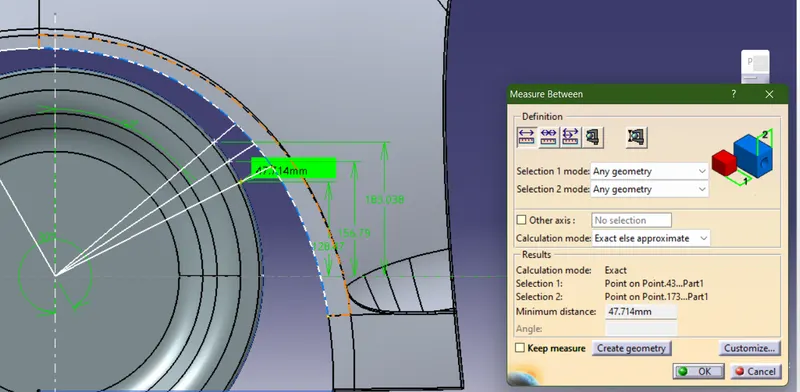

SE-SE=47.714mm

HEIGHT FOR REQIUREMENTS;

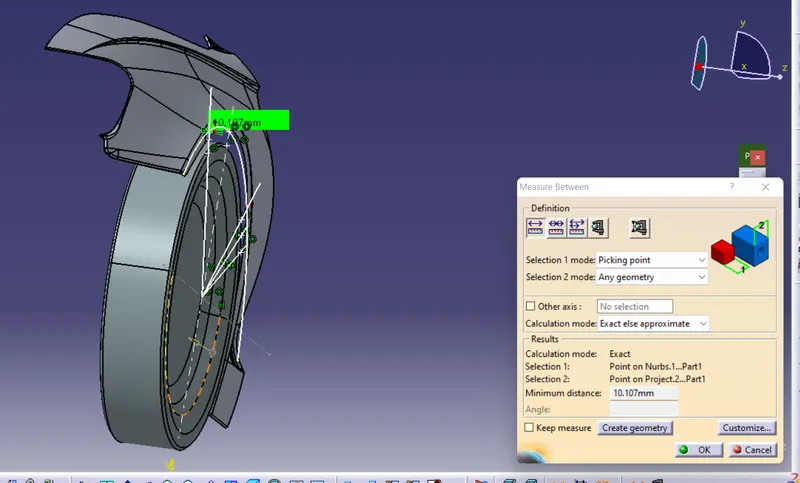

SA-SA=10.107mm

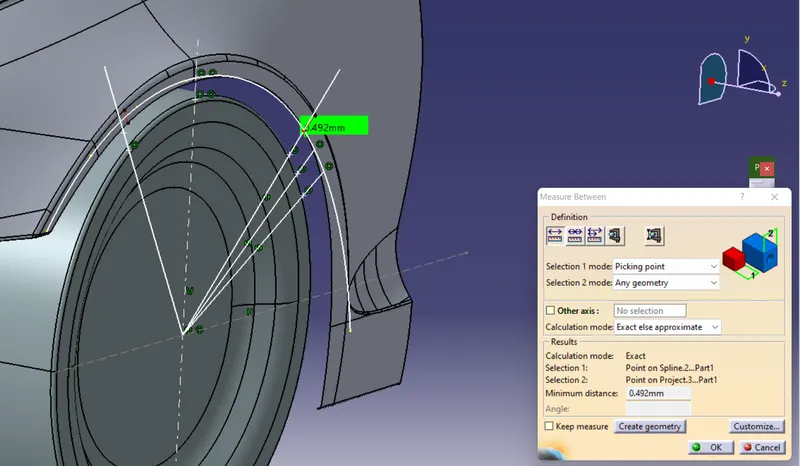

SC-SC=0.492mm

 LENGTH;

SA	26mm>10	PASS
SB	43mm>10	PASS
SC	38mm>10	PASS
SD	42mm>10	PASS
SE	47mm>10	PASS

 HEIGHT;

SA	10.107MM>10	PASS
SB	0.49MM<10	FAIL

Conclusion:

The given design satisfies all European standards but one, i.e. the distance from SC point to the fender curve (which is just 0.114 mm), which is way below the recommended 5 mm minimum distance. Therefore, this fender cannot pass the European standards. The design should be reverted back to the class A designer telling him to modify the design and increase the gap there.
