Fender Design - Wheel Arch Challenge

FENDER WHEEL ARCH:-

THE FENDER IS ONE OF THE IMPORTANT COMPONENTS IN THE AUTOMOTIVE CARS. IT ACTS AS THE SIDE CLOSURE TO THE ENGINE.

AT THAT FENDER THERE IS ONE IMPORTANT PARAMETER THAT NEEDS TO CONSIDER WHICH IS THE FENDER WHEEL ARCH. IT AVOIDS THE ABRASIVE PARTICLES THROWN INTO THE VEHICLE AND ONTO THE PEDESTRIANS.

FOR THAT, A STANDARD HAS BEEN FOLLOWED BY THE COUNTRIES LIKE EUROPE, THE USA, AND JAPAN.

EACH OF THEM HAS THE DIFFERENT STANDARDS BASED ON THEIR ROAD CONDITIONS.

I AM GOING TO DO IN THIS CHALLENGE WHETHER MY MODEL PASSES THE EUROPEAN STANDARD.

I HAVE DONE THIS BY USING EUROPEAN STANDARDS.

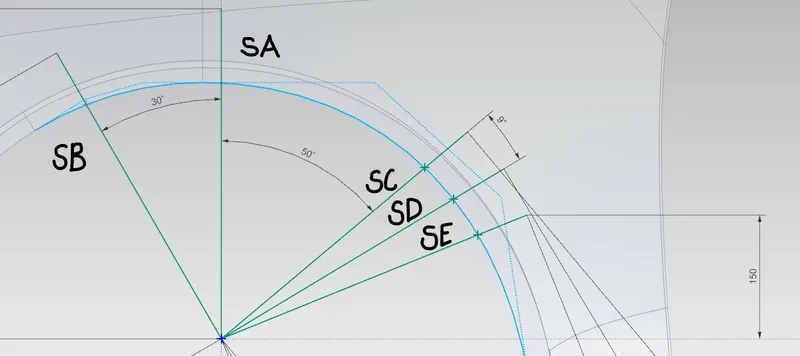

S.NO	PARAMETERS	WHEEL ARCH DISTANCE	PASS WITH EU STD OR NOT
1	SA	+9.94	PASS
2	SB	+10	PASS
3	SC	-0.1139	FAIL
4	SD	-4	FAIL
5	SE	-8.5	FAIL
