Fender Design Challenge
Fender design challenge
- Objective
-Design defender with necessary mountain areas given below
- Drip area
- A pillar mounting
- sill Mount
- Bumper mount
- Baffle and splash Mount
- Introduction

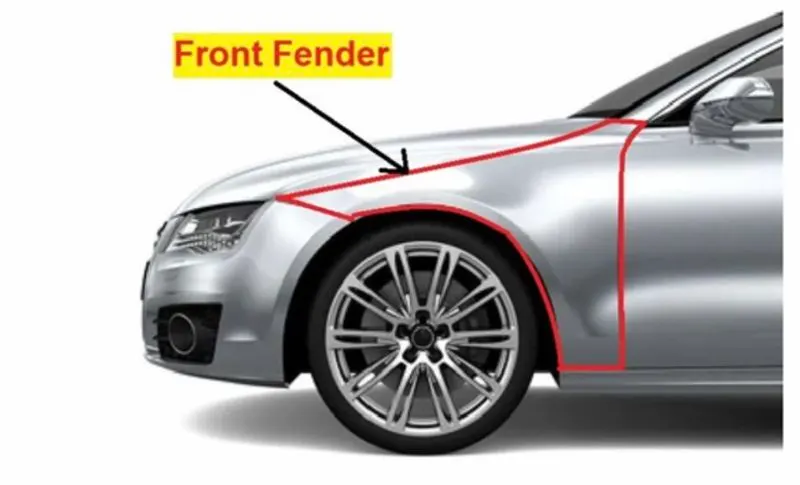

A fender is the part of an automobile that can be of a car, motorcycle, or any other vehicle body which frames the wheel.
The primary purpose of this part is to prevent mud rocks sand or other Road sprays from being thrown away to wards The pedestrian by the rotating wheel

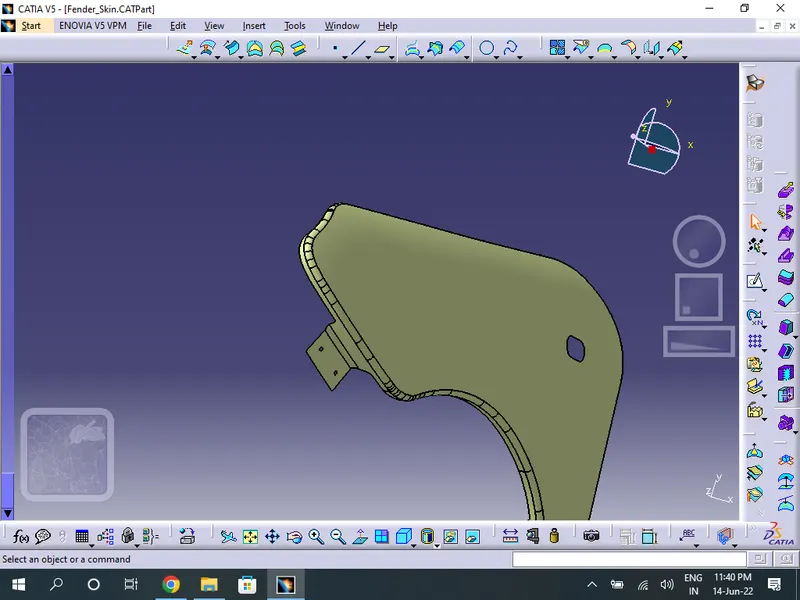

- Drip mounting
A drip area is mounted below the hood to connect it with the fender it is designed like when the hood is closed condition the reason needs to be flushed out and there will be fewer gaps so the inner area of the engine comes but it is not visible through the gap.

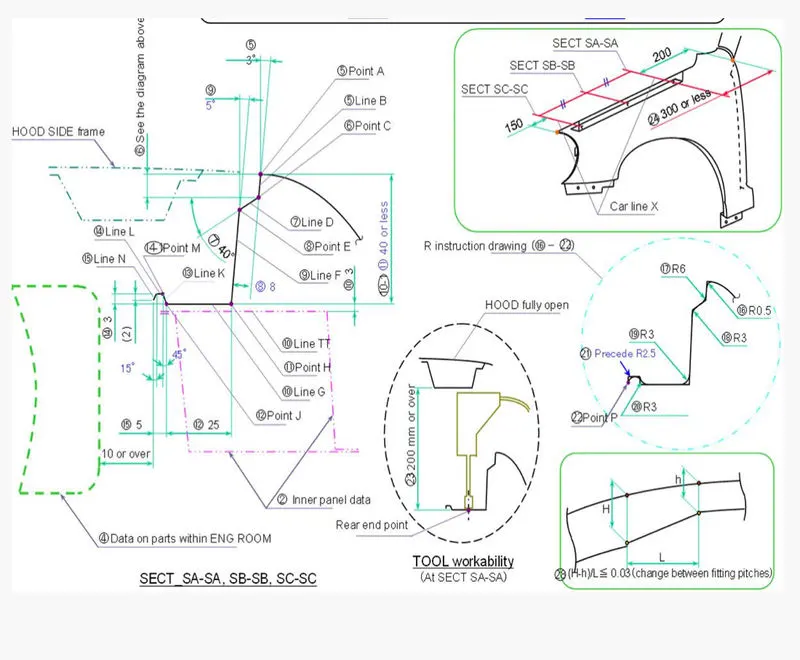

A drip area is bolted down by self-tapping screw and sometimes it is also spots welded the given master section shows the criteria as a design parameter for designing the drip mount

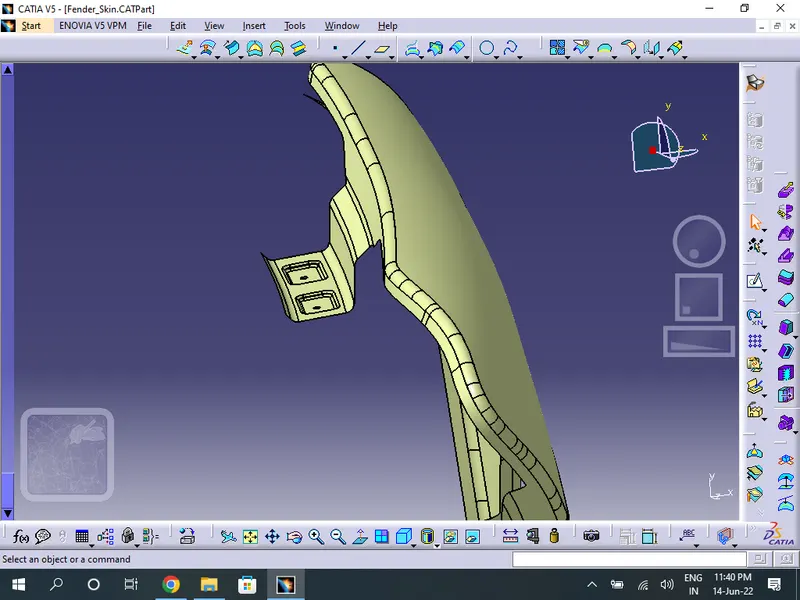

- A-pillar mounting
A pillar mounting is created to join the vendor to the A-pillar mounting.

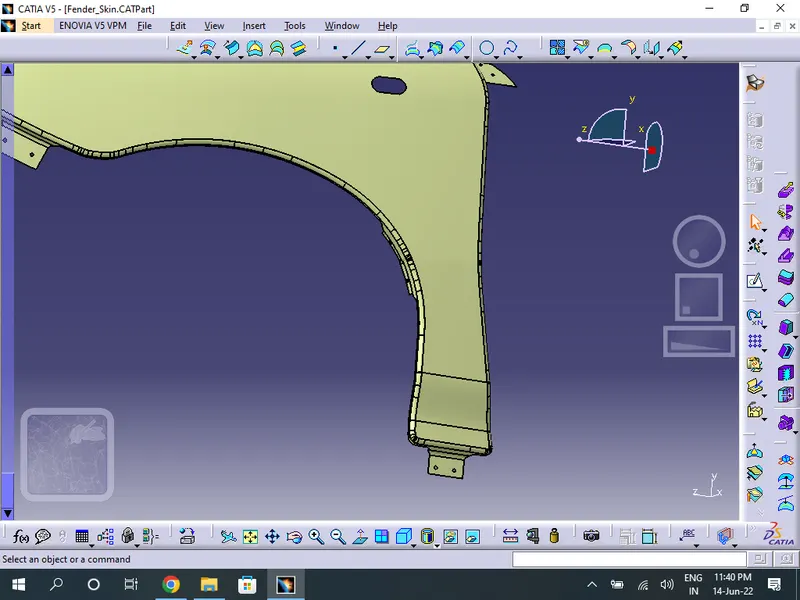

- sill mounting
Sill mounting is the bottom side of the BIW and it is joining to the fender.

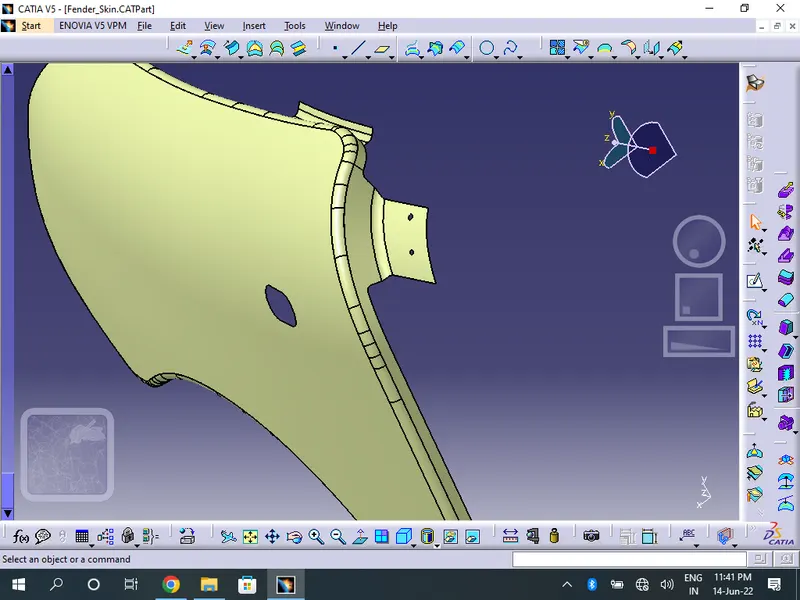

- Bumper mounting
The bumper is attached to the front fender as it absorbs the impact force during the crash and it always should be separated from the vendor so it can be easily replaced

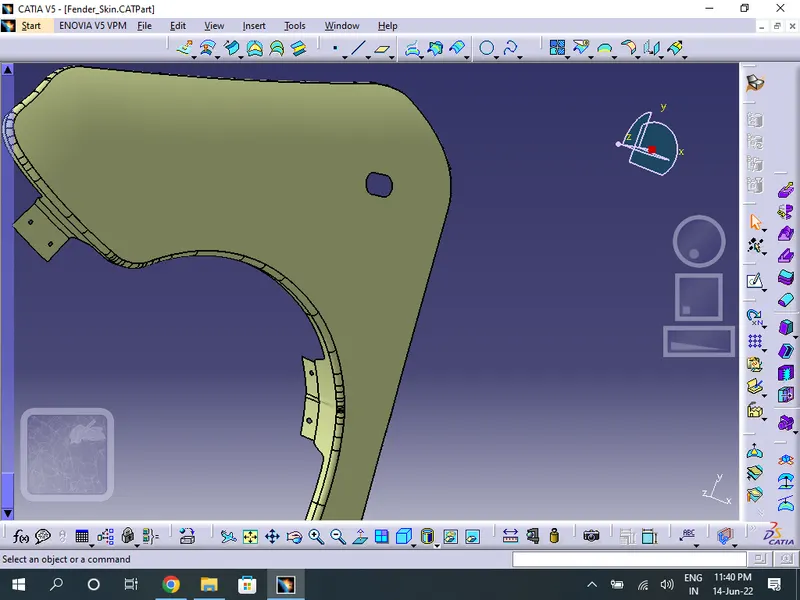

- Baffle mounting
It is an important mountain for safety requirements to the pedestrian as well as the internal Indian copper tent from chipping of stone mud etc.

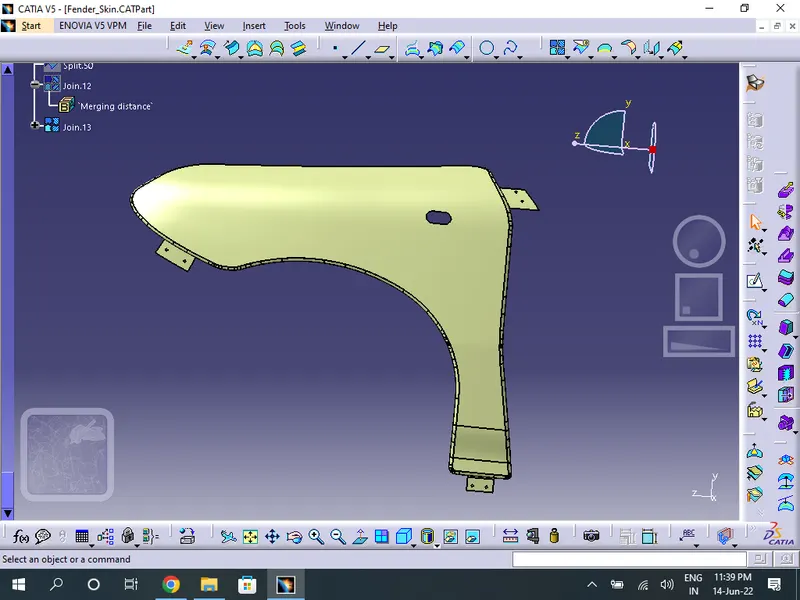

- Conclusion
A fender design is created with the drip area a pillar mounting cell mounting bumper mounting and baffle mounting assembled to the main BMW body of the car.
