Fender Design Challenge

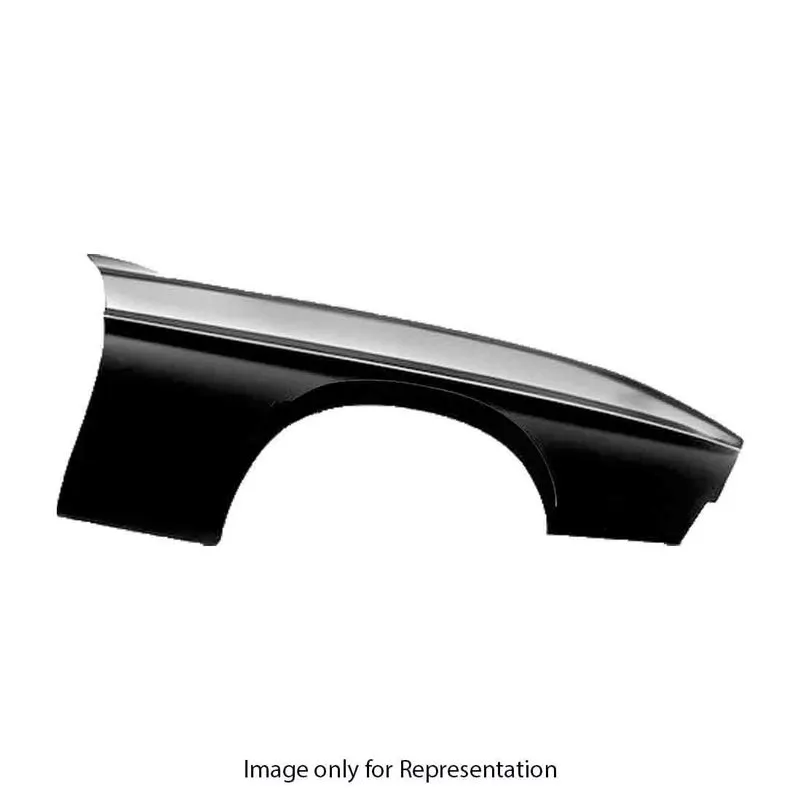

FENDER

A fender is different than a bumper because it's a metal structure that frames the wheel well of your car, instead of the front or back. The fender extends between the front door to the front bumper covering the front wheels of the vehicle.

For vehicles with a narrow car body that exposes the tire, the fender is an exposed curve over the top of the tire. For wide body vehicles that cover the tire, the fender forms the wheel well surrounding the tire, and is not directly visible from above the car body.

TYPES OF FENDER:

There are two types of fender

MANUFACTURING PROCESS OF FENDER:

1. a manufacturing process for automobile fender, comprises the following steps:

The 1st step: open straight snips plate

The 2nd step: oil pressure, punch press

The 3rd step: the smallclothes of processing lappet

The 4th step: panel beating assembly welding

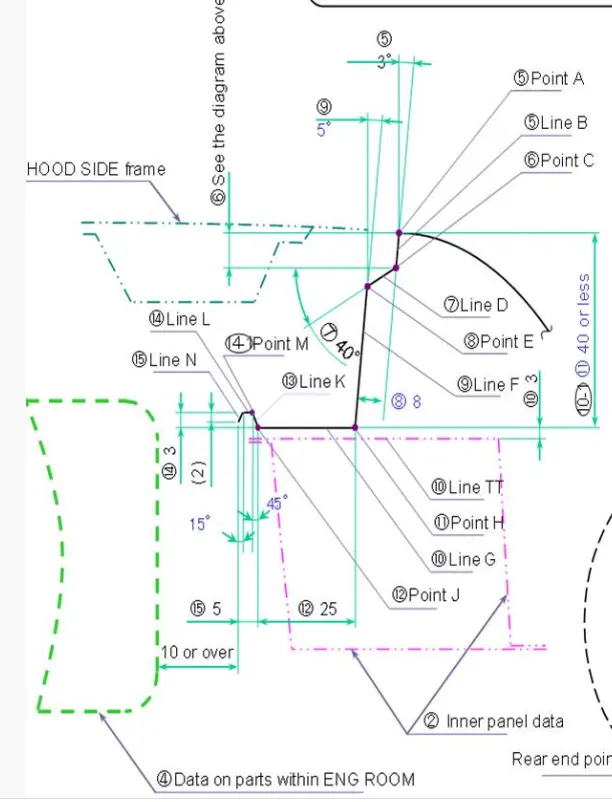

MOUNTINGS FOR FENDER

There are total 5 mountings in the FENDER

1. DRIP AREA

2.SILL

3.A PILLAR

4.BUMPER

5.BAFFLE AREA

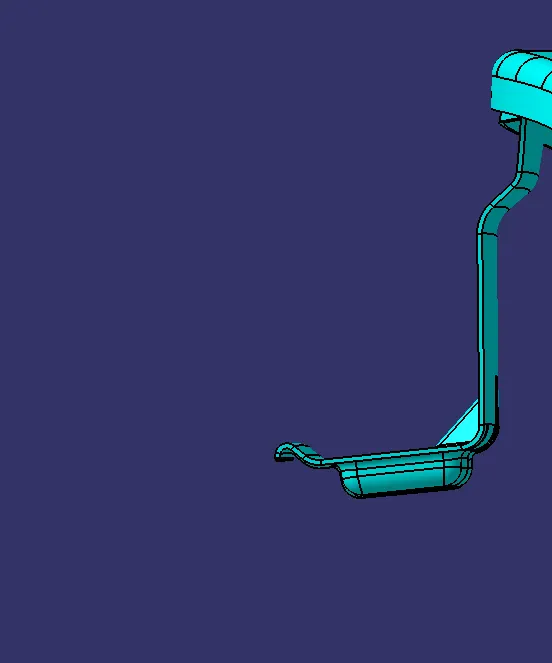

DRIP AREA

These are the drip area of the fender

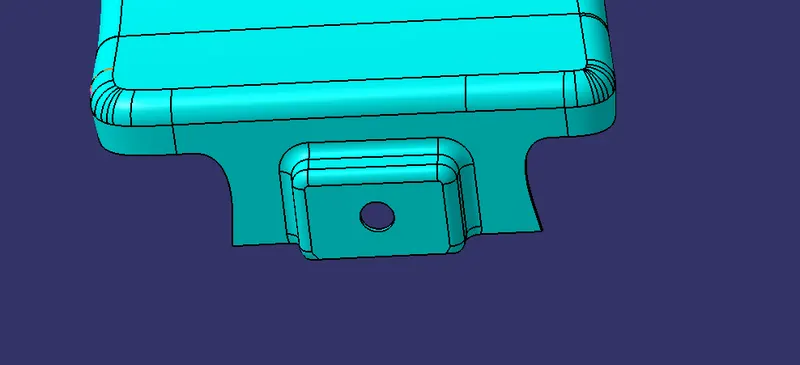

SILL MOUNTING

BAFFLE MOUNTING

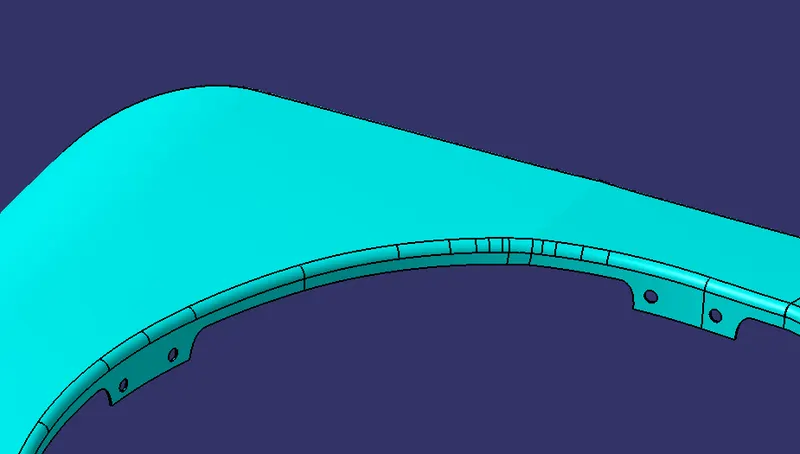

these mountings will be attached to the baffle of the car.

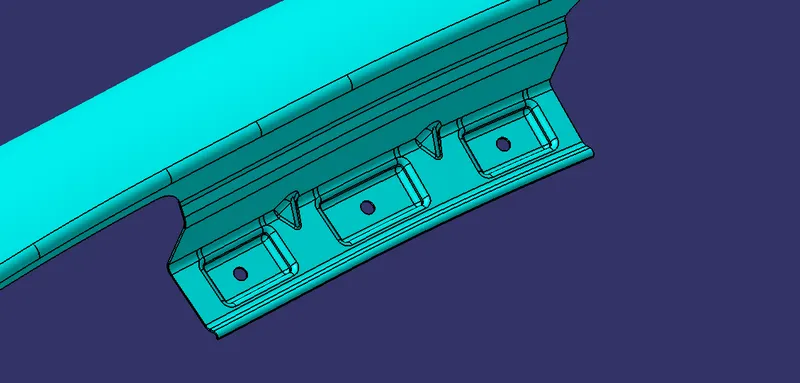

A PILLAR MOUNTING

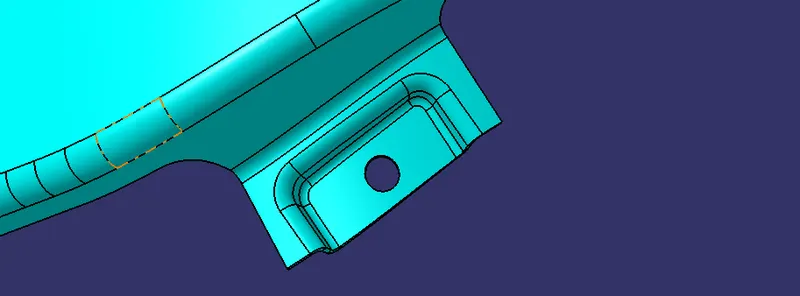

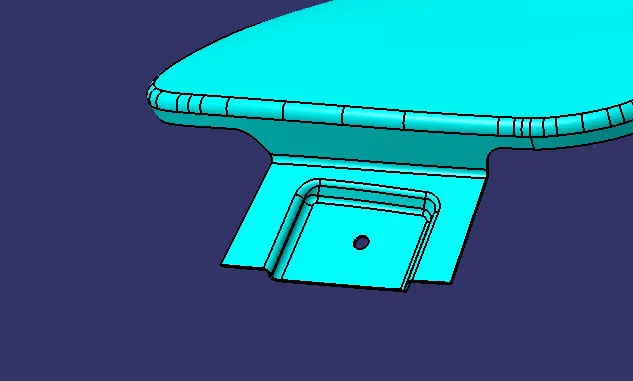

BUMPER MOUNTING

This is the bumper mounting which is fixed with the bumper of the car

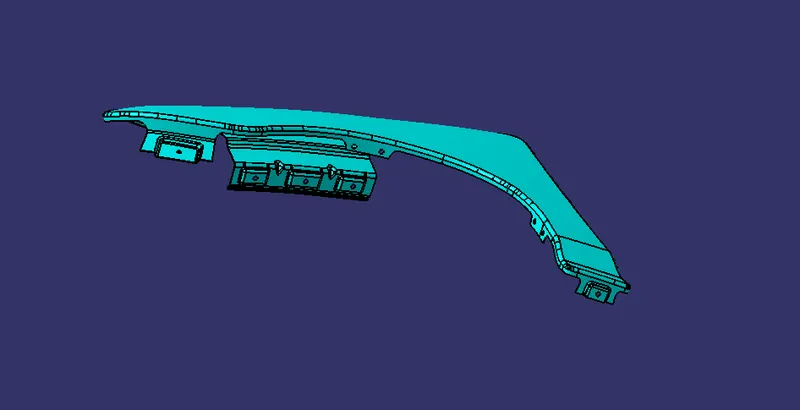

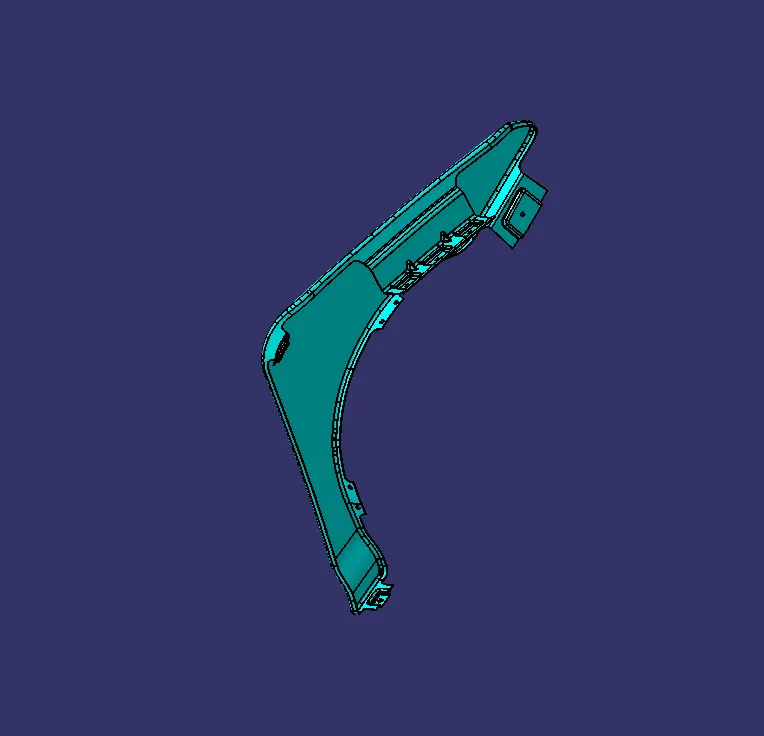

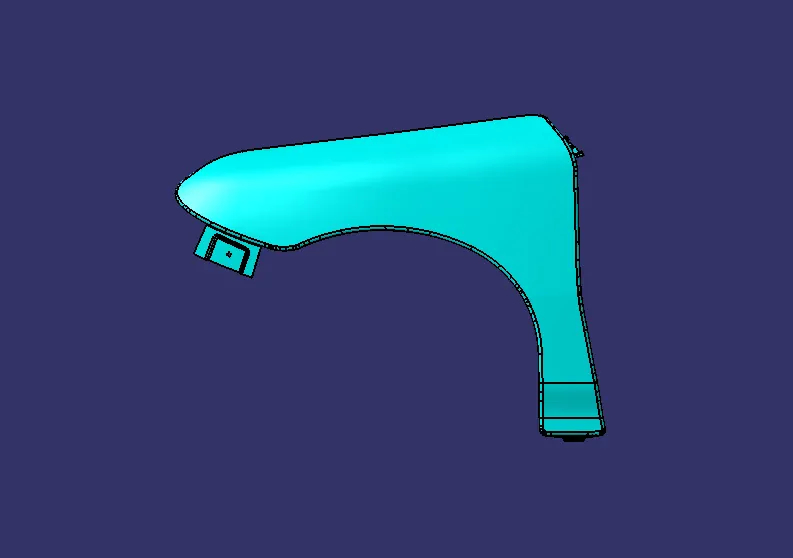

TOTAL PART

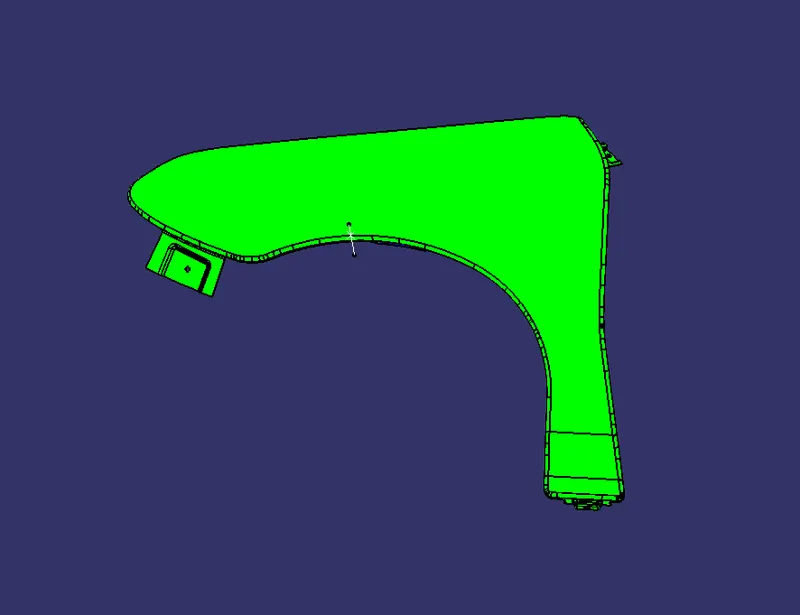

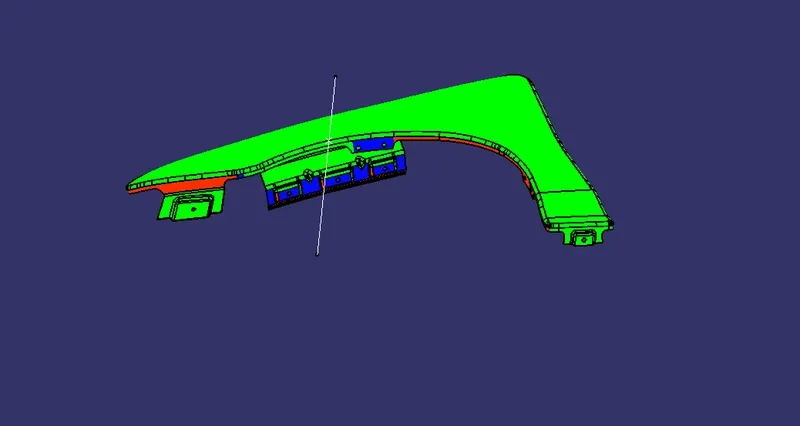

DRAFT ANALYSIS:
