Fender Design Challenge

FRONT FENDER

Fender is an automobile part, Its primary purpose is to prevent the pedestrians from sand, mud, rocks, liquids, and other road spray by the rotating tire.

Importance :

Car Fenders are an important component in the body of your car. Car fenders are the complex sheet of metal covering the front and the rear wheels of your car. Fenders on a car are panels that extend from the front bumper to the car’s doors. Car fenders not just add style to your car but also act as a protective shield for the body of the car.The metal surgeon helps you in getting your car accessorized with the best metallic car fenders in town. We offer a variety of fender flares for cars, trucks, and SUVs which are designed to give a specific look.

Types of Fenders

They are two types of Fenders

1.Half Bumper Type

2.Full Bumper type

Mostly Automotive industries prefer Half bumper only why because

Half Bumper type Fenders needs very less material to build, However full bumper is not used as the blank for the full bumper type is huge and involves lots of wastage. On the other side if we slightly increase the blank size for the half bumper type, two fenders can be produced at a same time. Also plastic can be in cooperated into this type thus reducing the steel material, making it lighter and increasing the performance of the car.

USES OF FENDER

· Car fenders limit the exposure of your car’s body and engine to external elements that are harmful.

· Fenders flares are attached to ensure that both the body and engine have minimal contact with corrosive elements.

· Car fenders provide safety to the driver and the passengers at the time of accidents or collisions. They are manufactured in a way to provide bend during front and side collisions.

· Car fenders are designed to avoid wind resistance and make your car more aerodynamic.

· Car fenders enhance the overall look of your car. Fender flares are available in distinctive designs in the market. Mostly you find universal fender flares, but you can get customized cars fenders to fit your car wheels.

MATERIAL USED IN FENDER DESIGN

You can find modern fenders made from steel, aluminum, thermoplastic, and fiberglass. Steel is the most rigid and abrasion-resistant material used in making fenders. They offer the best protection from large debris and are less likely to dent. Aluminum offers the strength of metal without the heaviness of steel.

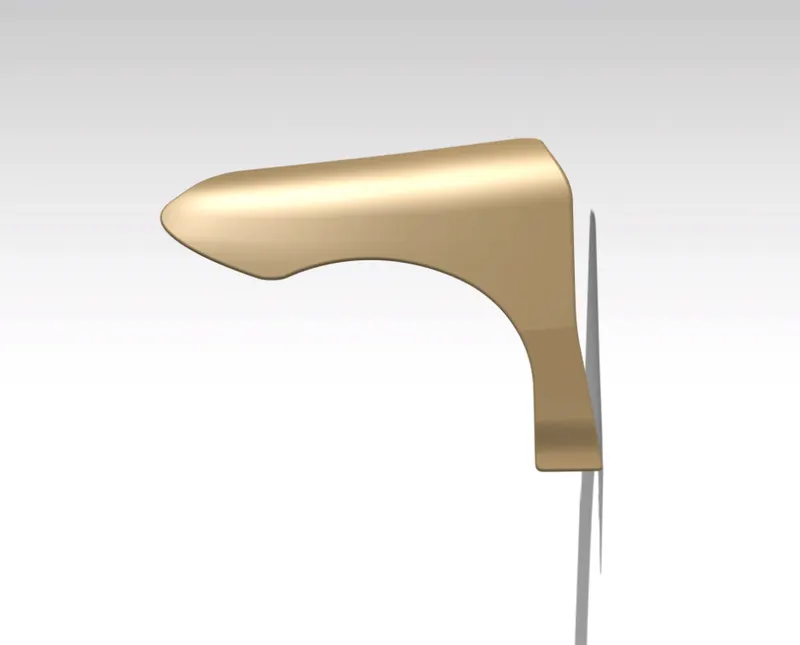

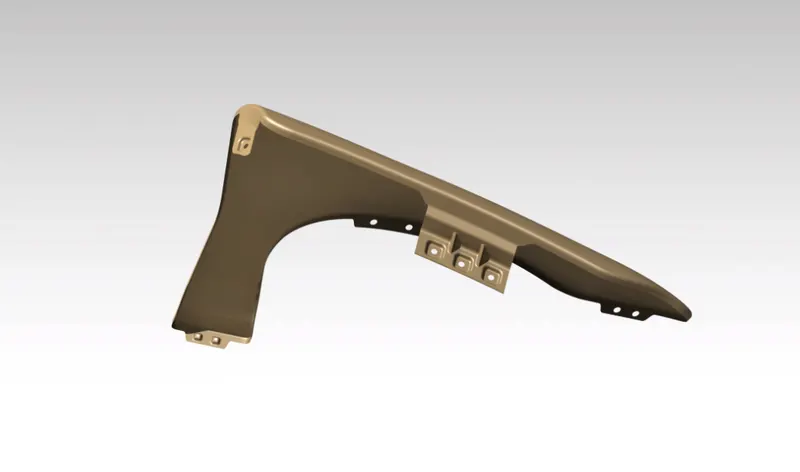

FRONT FENDER DESIGN

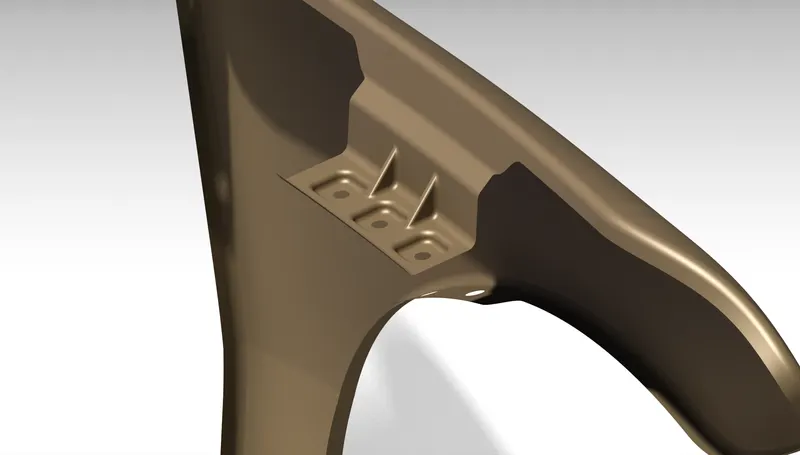

The given Master section to create the Drip Area and For the Sill mount, Bumper Mount and A-Pillar mount create your own design according to the Engineering standard.

1.Drip Area

2.Sill mount

3.Bumper mount

4.A pillar mount

5.Cowl mount

Design Criteria

• Embosses are provided to increase the strength.
• Smooth curves are designed for easy manufacturing of panel.
• Ribs are provided to drip area mount to give structural support and extra strength.
• Maintain extra 10 mm from the flat surface for the fastner holes.
• All fillets should maintain 3 mm radius.
• Thickness of fender is 0.75 mm.
