Fender Design Challenge
Aim:
To create a Drip Area,Sill mount, Bumper mount and A-pillar mount to the fender provided.
Theory:

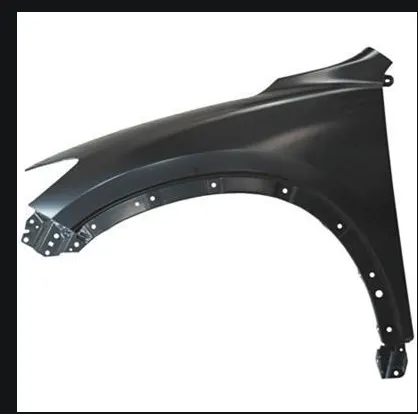

Fender is the American English term for the part of an automoile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.
Purposes:
Sticky materials, such as mud, may adhere to the smooth outer tire surface, while smooth loose objects, such as stones, can become temporarily embedded in the tread grooves as the tire rolls over the ground. These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tire is rotating upward and forward, and can throw objects into the air at other vehicles or pedestrians in front of the vehicle.
There are 5 mounting points in a Fender.
- Body
- A pillar
- Sill
- Crowl
- Drip
Procedure:
Drip Area:
- Use Parallel Curve, offset the curve to 5mm on the respective surface.
- Place the points on different locations to create a drip area.
- Spilt the line with the points.
- Use the Connect Curve to connect points and split it with the surface.

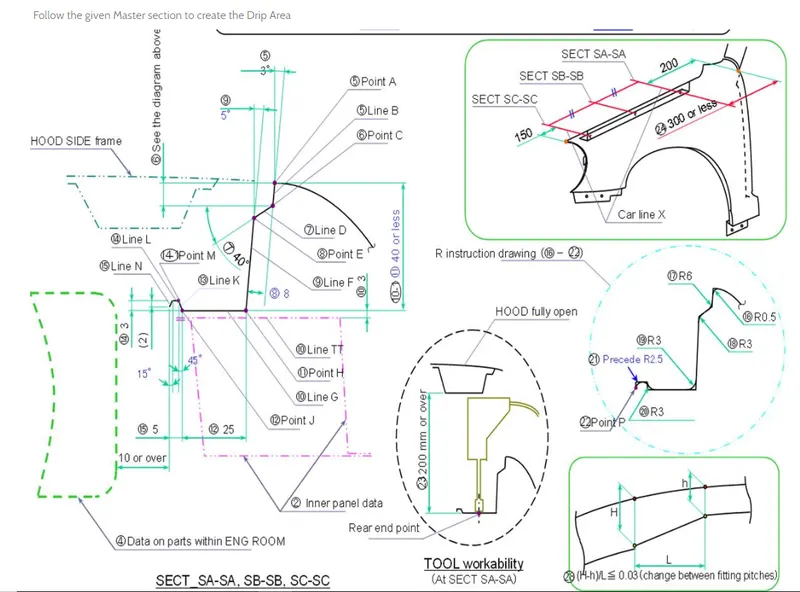

- Construct the flanges according to Master Sections.

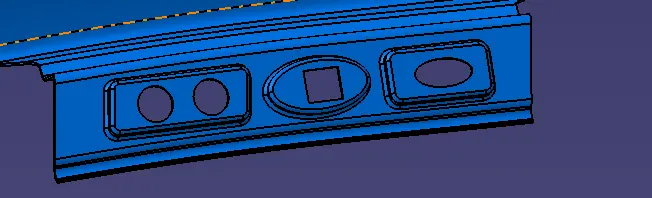

Embossments:

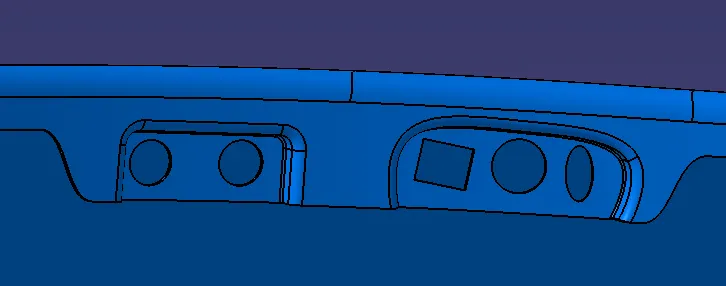

Drip Area:

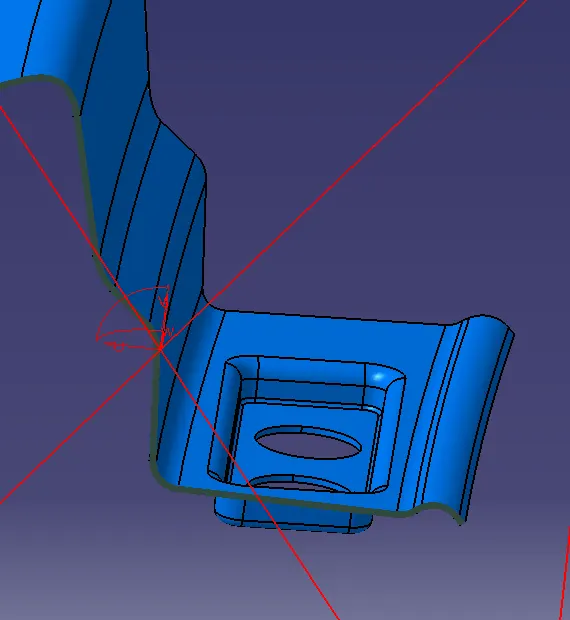

Sill mount:

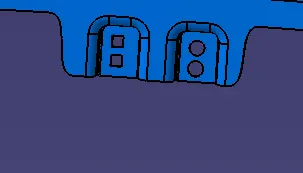

Crowl:

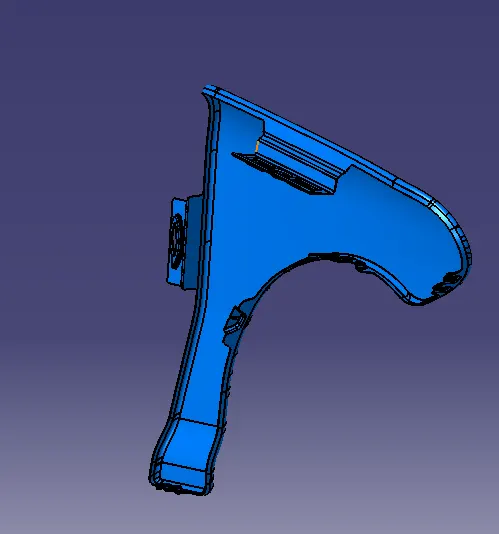

Result:
The mounting parts are created to fender with respective parameters given.
