Fender Design
AIM:
TO CREATE FENDER FROM GIVEN DATA AND PROVIDE MOUNTINGS FOR DRIM AREA, BUMPER, SILL AREA, A PILLAR AREA, BUFFLE AREA.
INTRODUCTION:
FENDER IS A CAR BODY PART THAT COVERS ALL THE FOUR WHEELS, IT'S PURPOSE IS TO PROTACT ENGINE COMPARTMENT FROM HITING SAND, CLAY, STONE AND OTHER ROAD SPRAY BEING THROWN BY ROTATING WHEELS, IT IS ALSO RESPONCIBLE TO PROTACT PADESTRIANS FROM BEING HITED BY ROCKS BEING THROWN BY THE WHEELS BY CONSTRAINING THE MOTION OF PARTICLES. FENDERS CAN BE FOUND ON ALL THE FOUR WHEELS.
FRONT FENDERS ARE MANUFECTURED SEPERATELY WHILE THE REAR FENDERS ARE PART OF MAIN BODY.
TYPES OF FRONT FENDER:
- FULL BUMPER TYPE
- HALF BUMPER TYPE
FENDER LOCATION IN CAR:

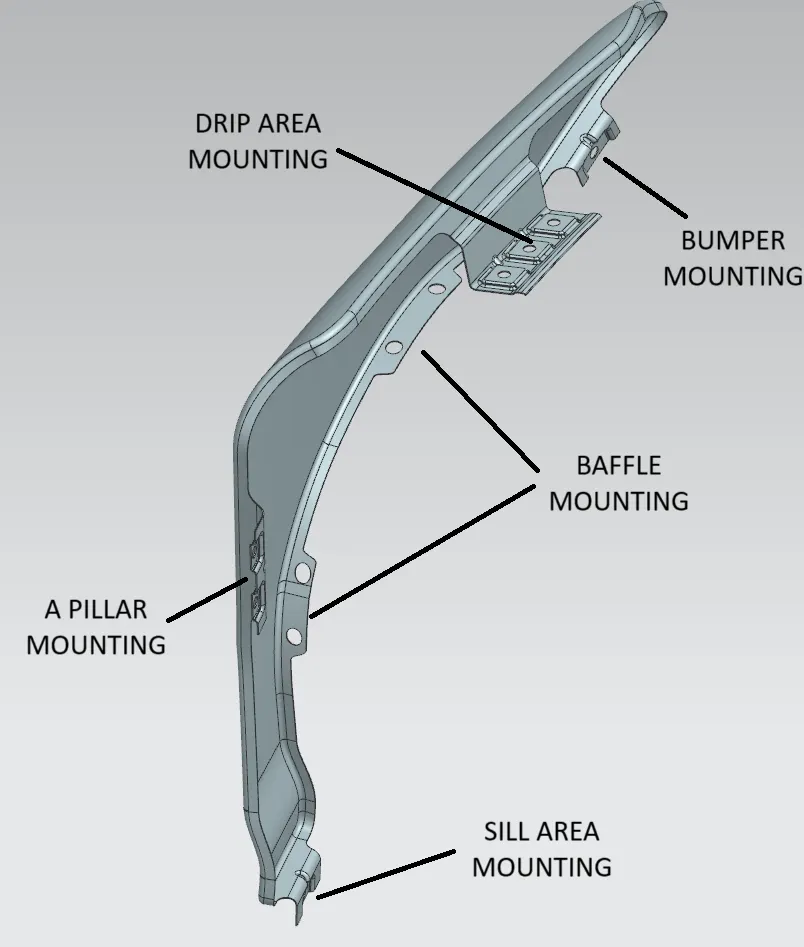

MOUNTING POINTS OF FENDER:
- DRIP AREA
- BUMPER
- A PILLAR
- SILL AREA
- BAFFEL MOUNTING
DESIGNING OF FENDER:
DESIGN OF DRIP AREA:
FOLLOWING MASTER SECTION IS FOLLOWED TO DESIGN THE DRIP AREA MOUNTING. USED LAW EXTENSION COMMAND FOR DRIP AREA.
PROVIDED EMBOSES AT FASTENER MOUNTING AREA.
ENGINEERING STANDERDS FOLLOWED WHILE DESIGNING FENDER:
- WHILE DESIGNING FENDER GAP BETWEEN HOOD AND FENDER MINIMUM 3 DEGREE GAP IS CONSIDERED
- ALL THE MOUNTING AREA ARE DESIGNED SUCH WAY SO THAT IT CAN BE FASTENED EASILY AND CAN BE HIDDEN BY OTHER BODY PARTS
- EMBOSES ARE PROVIDED AT ALL THE MOUNTING PARTS TO PROVIDE STRENGTH TO PART
- CREATED RIBS TO ALL THE BENDED PART TO PROVIDE STRENGTH USING DART COMMAND.

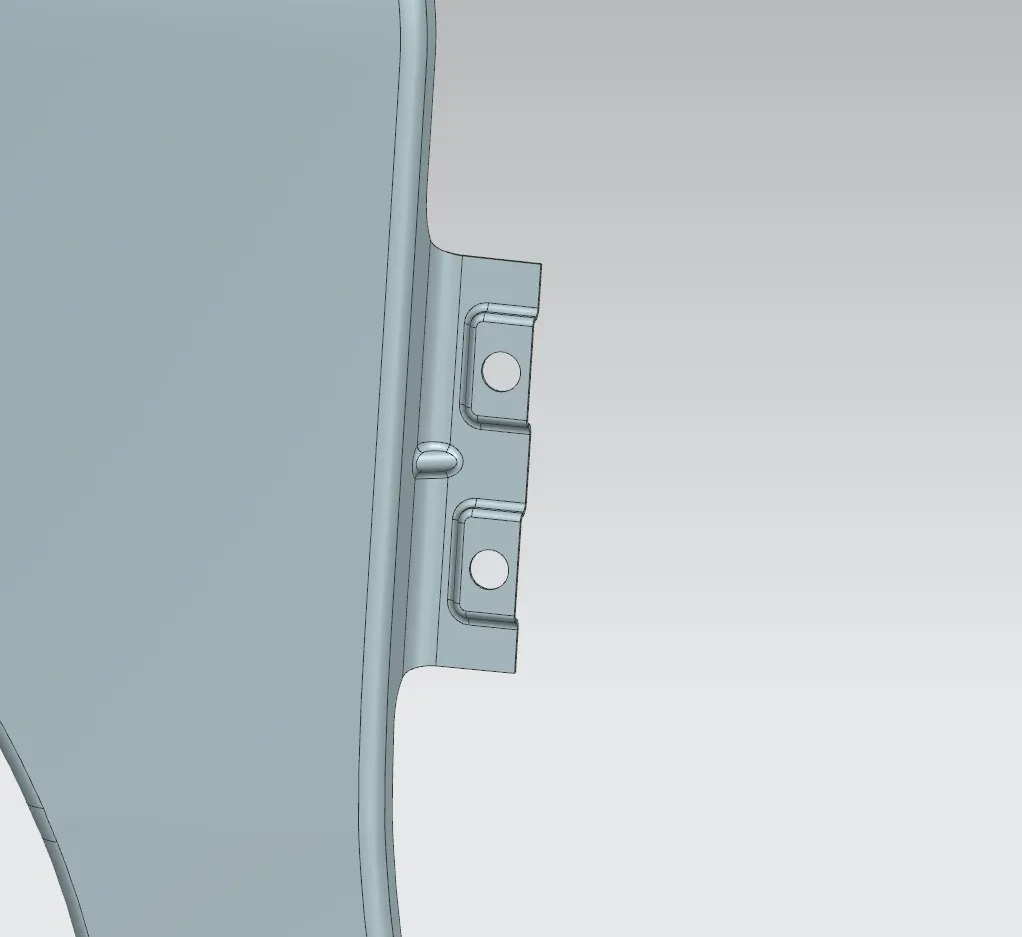

MOUNTING DESIGN IN FENDER:

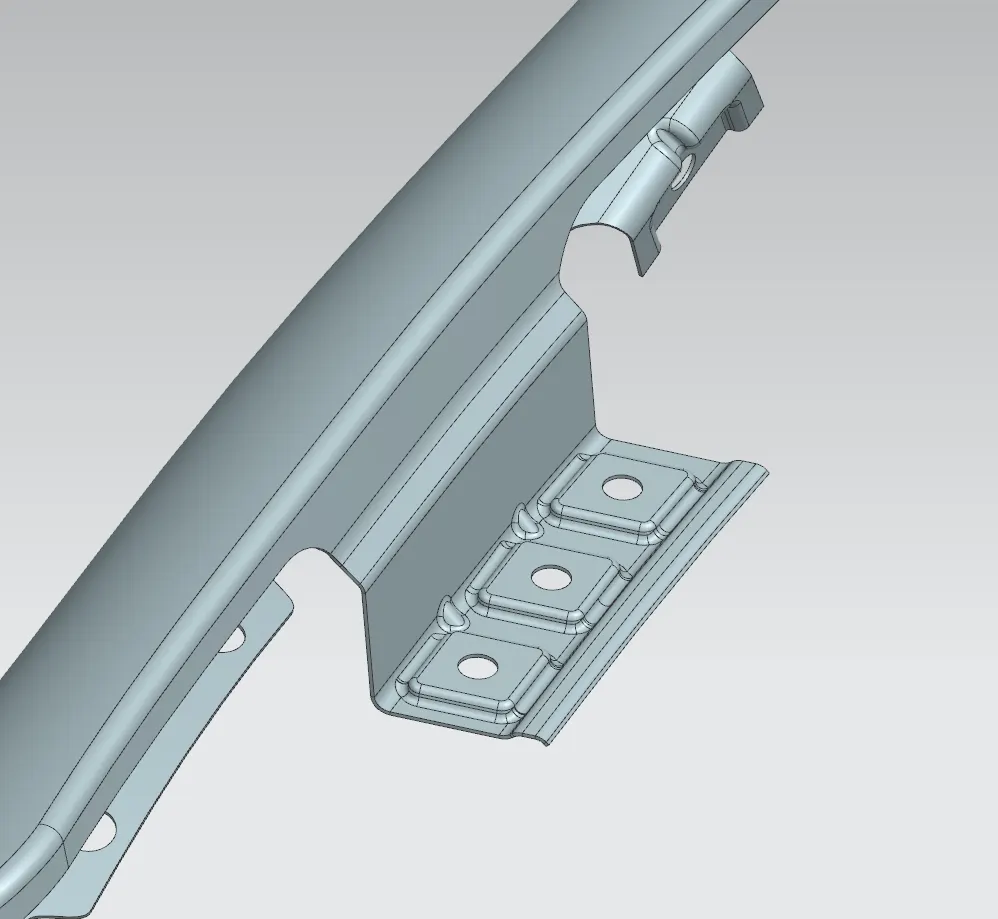

DRIP AREA MOUNT:

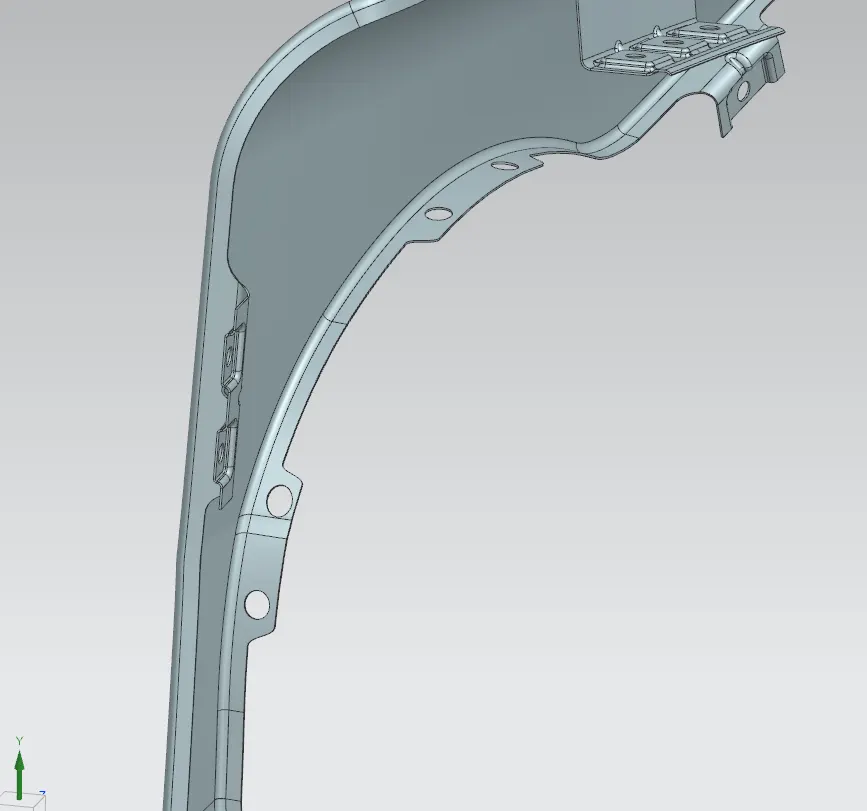

A PILLAR MOUNT:

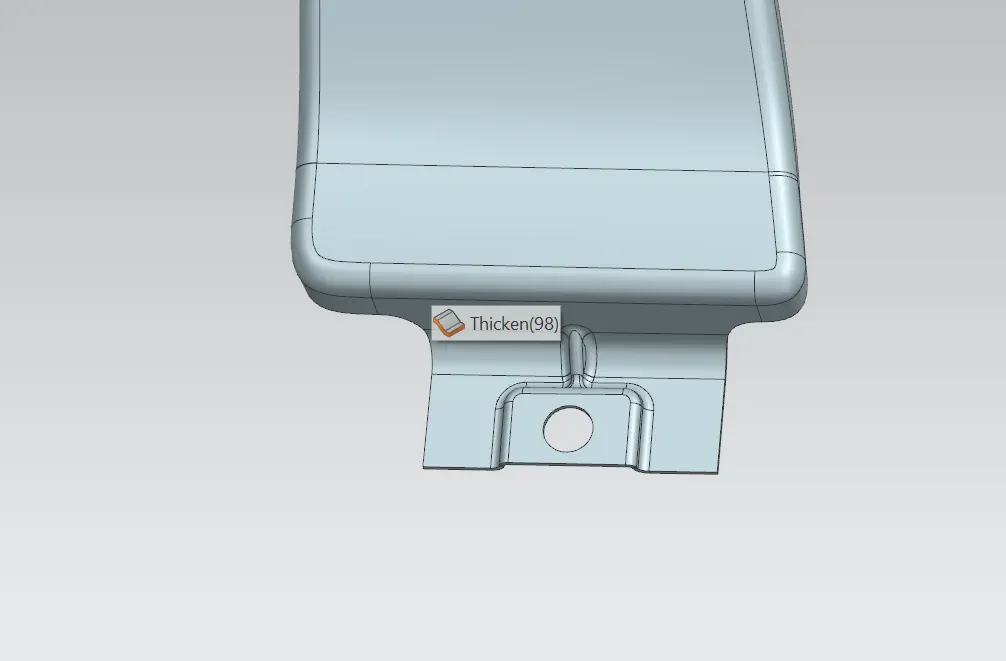

SILL MOUNT:

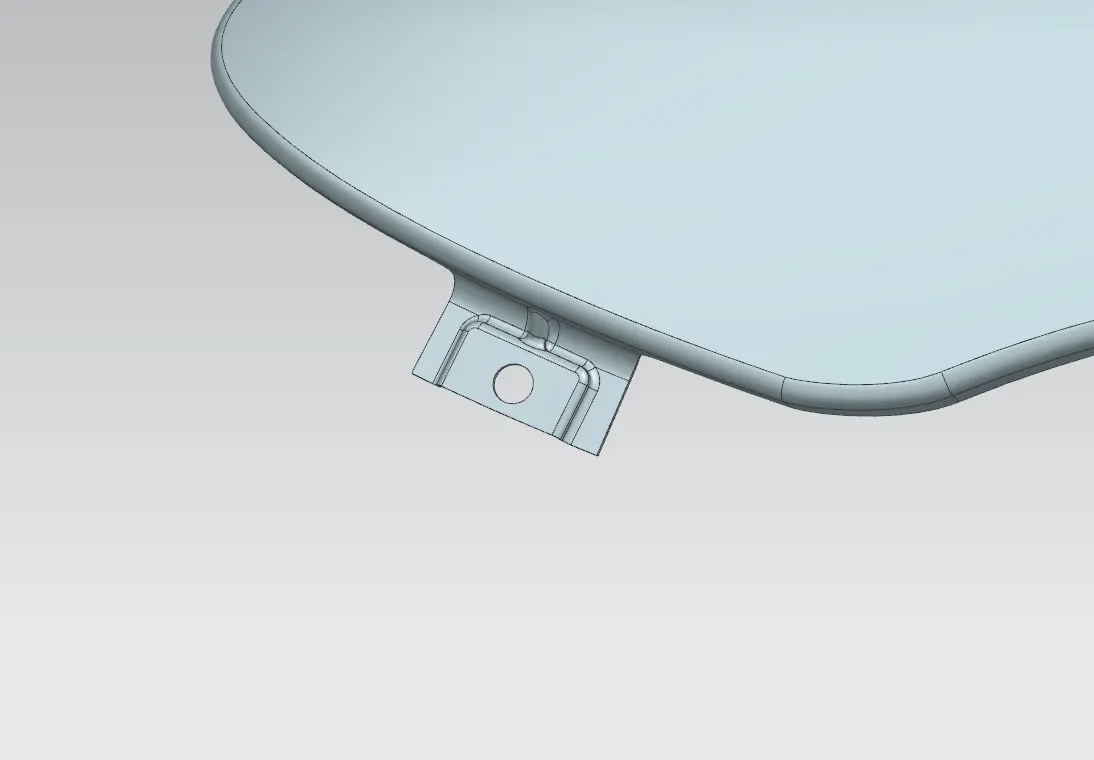

BUMPER MOUNT:
BAFFLE MOUNTING:

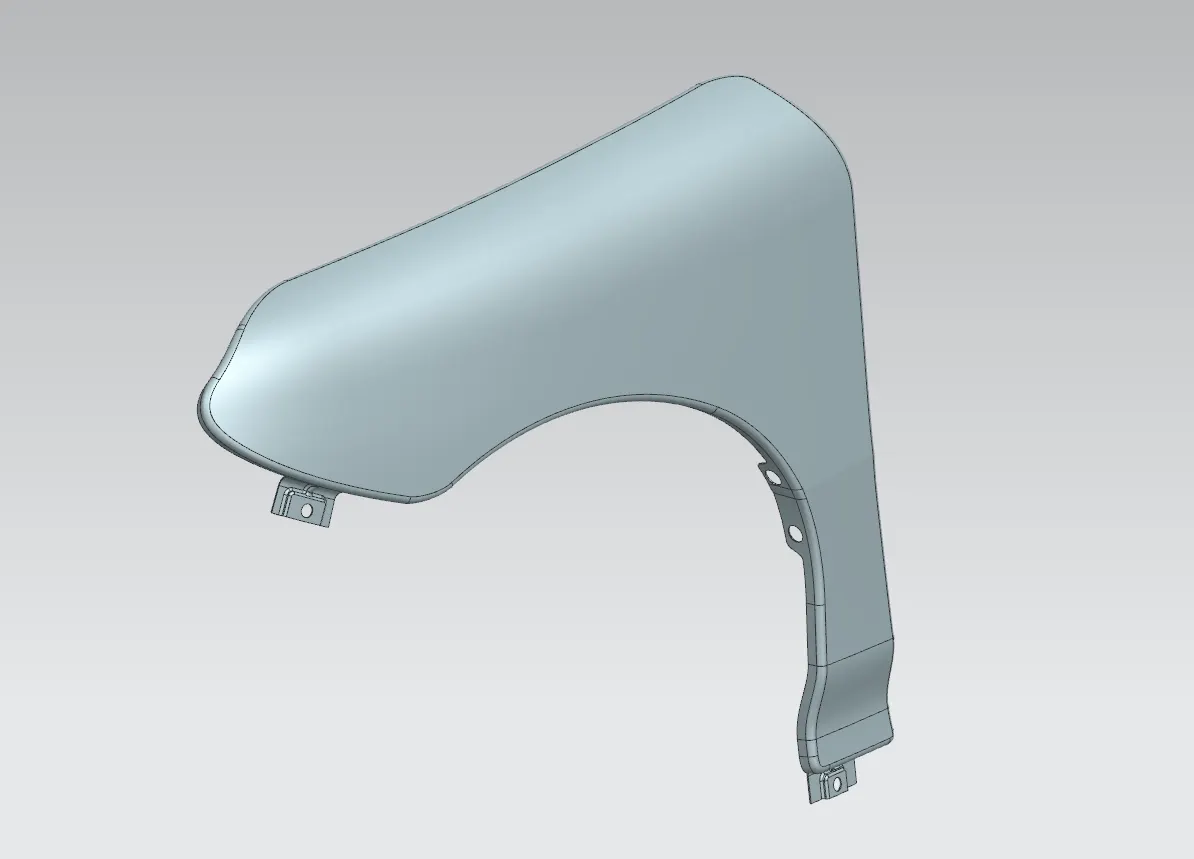

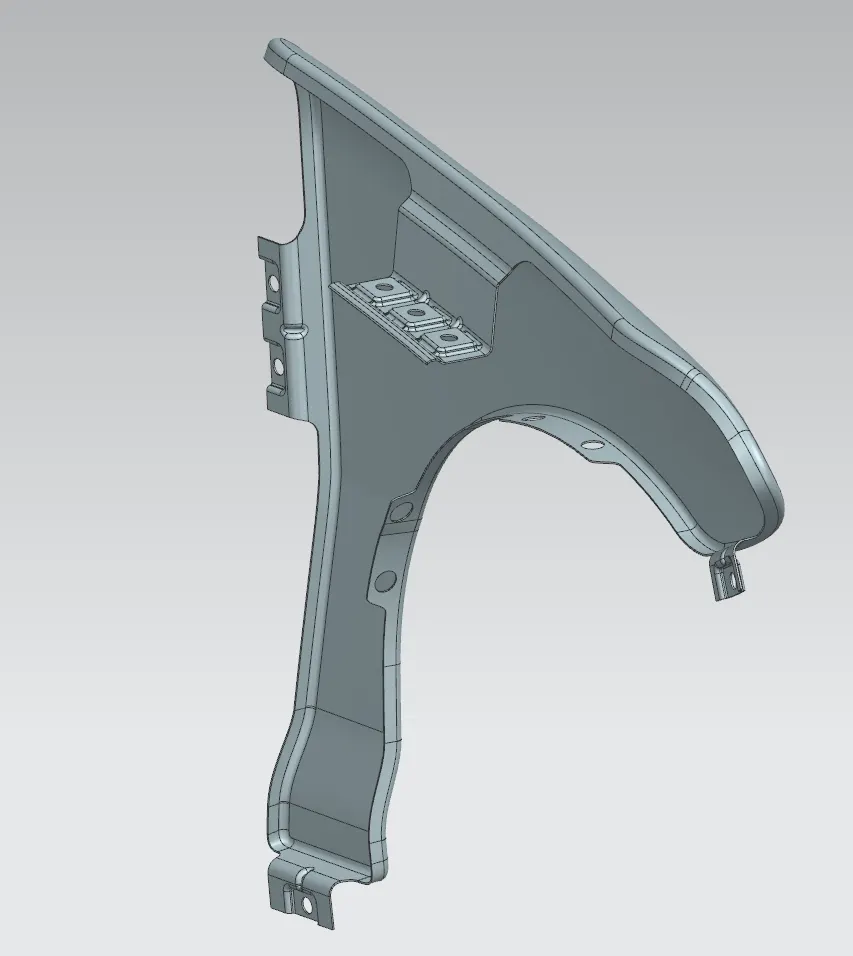

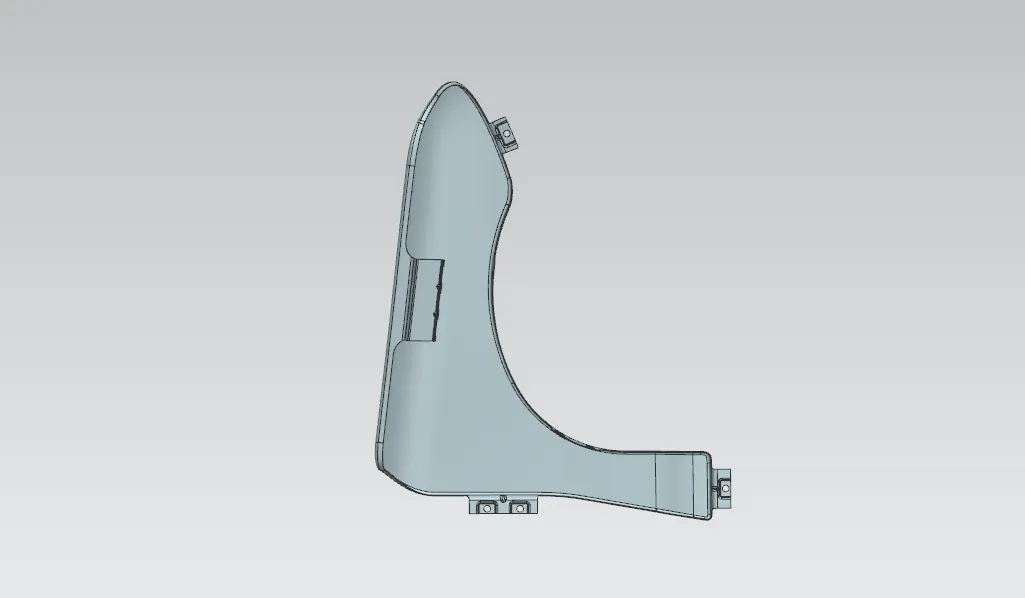

FINAL PART:
