Fender Design

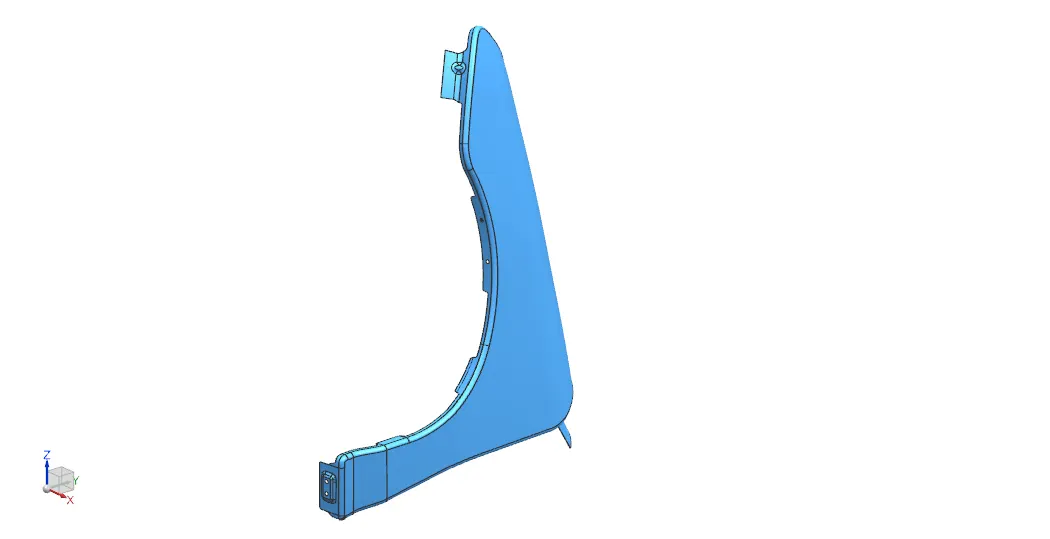

1. ISOMETRIC VIEW:

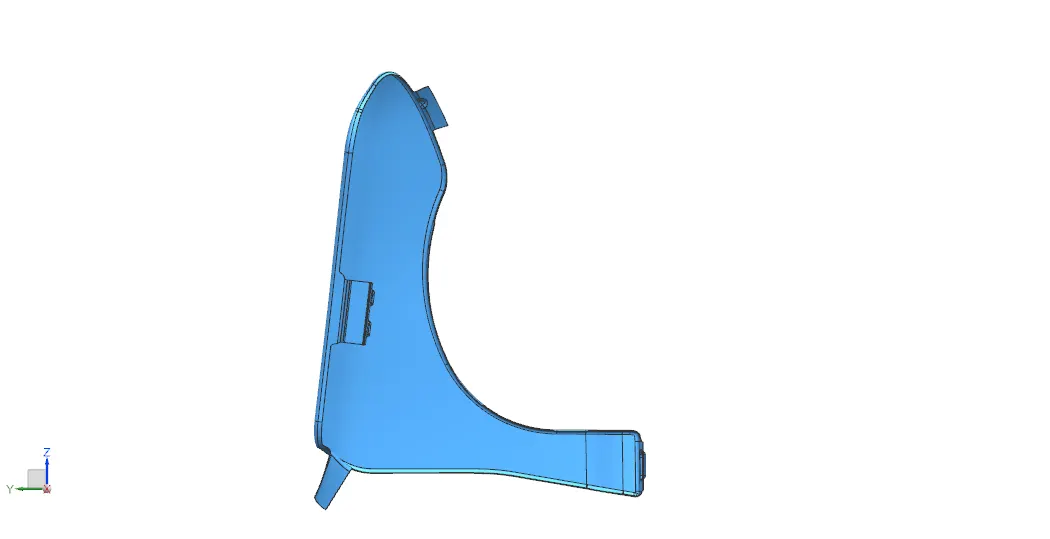

2. TOP VIEW:

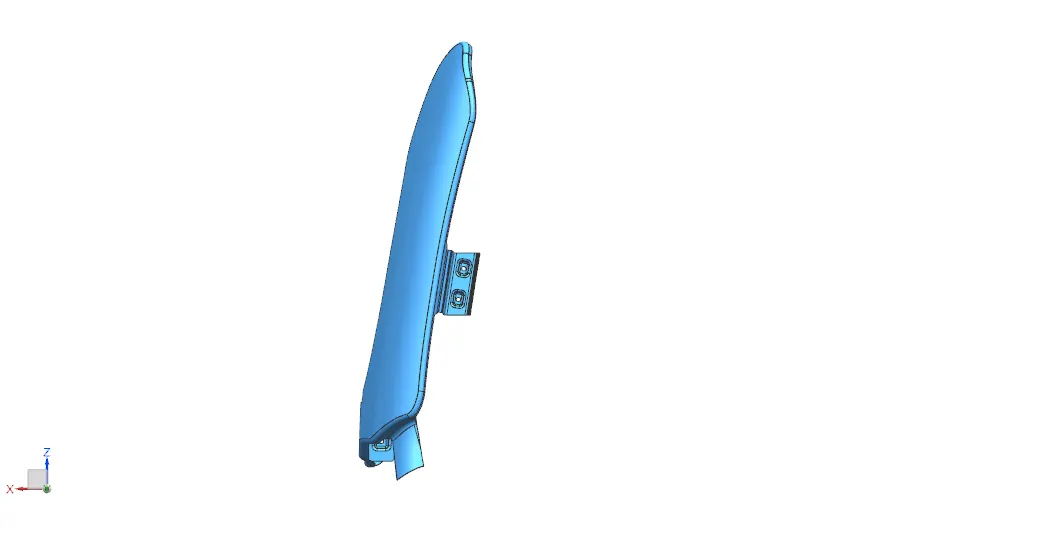

3. FRONT VIEW:

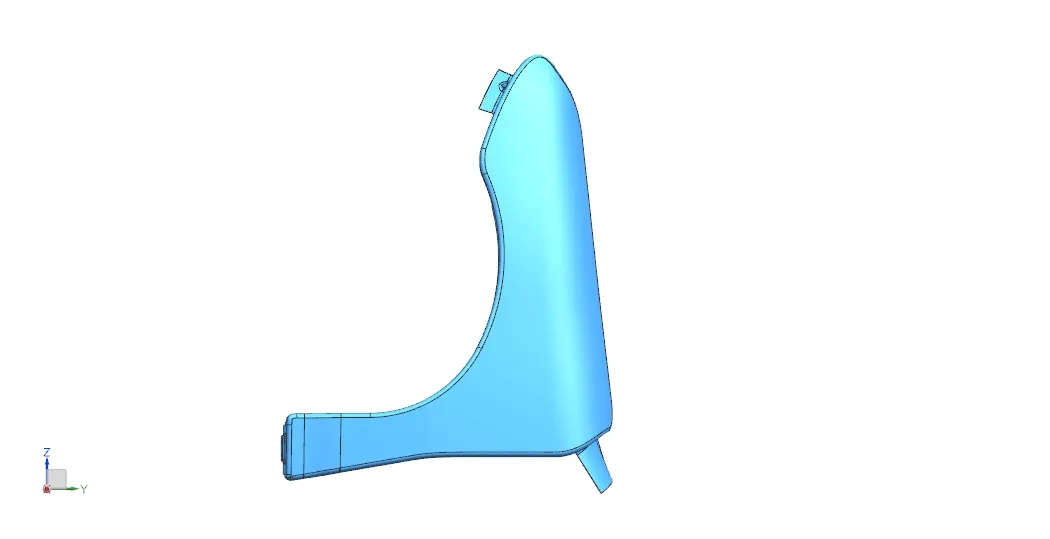

4. BACK VIEW:

A car fender is a rigid part of a vehicle that frames the wheel to prevent the road spray from thrown into the car body.

Mounting in fender:

1. Body

2. A pillar

3. Sill

4. Cowl

5. Drip

Design consideration for the fender:

Drips (dart) are given to increase the strength of the fender.
Drips are the connection between the fender and the engine compartment.
the cowl top part is for carrying the wiper motor and the instruments.
keep the space empty for the wiper motor of around 200 mm and minium 150 mm fro the head lamp w.r.t. the length of the fender.
