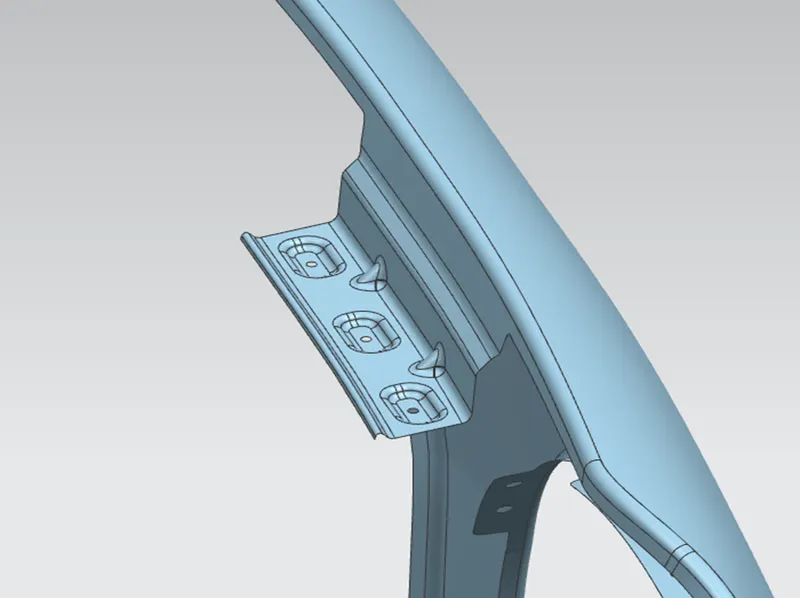

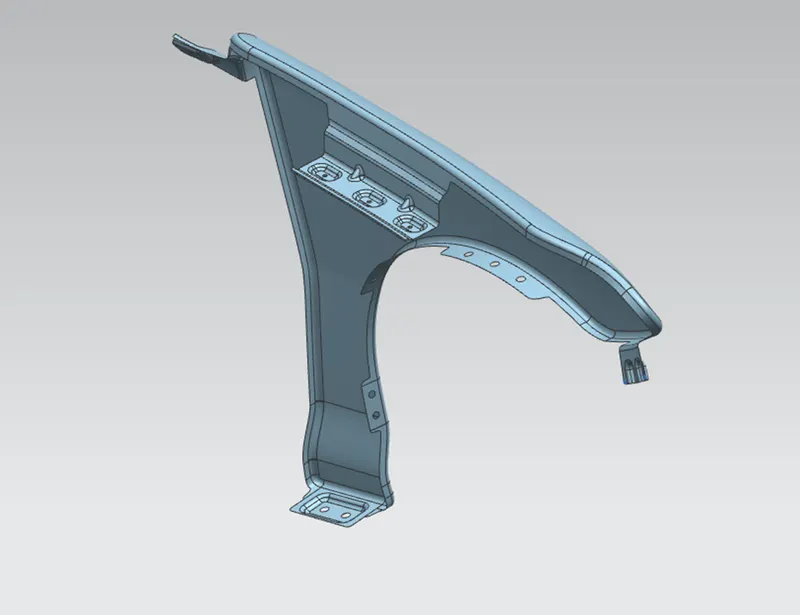

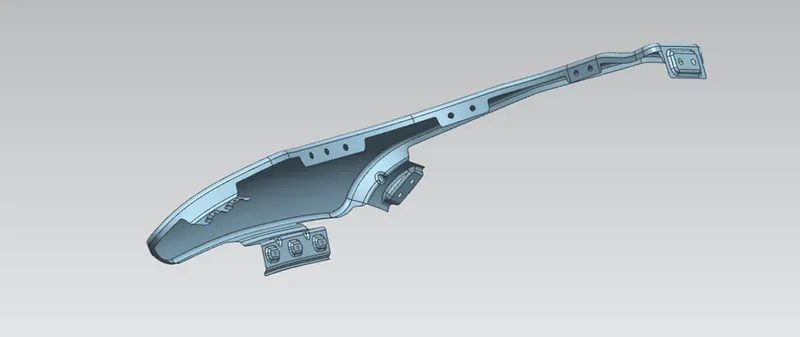

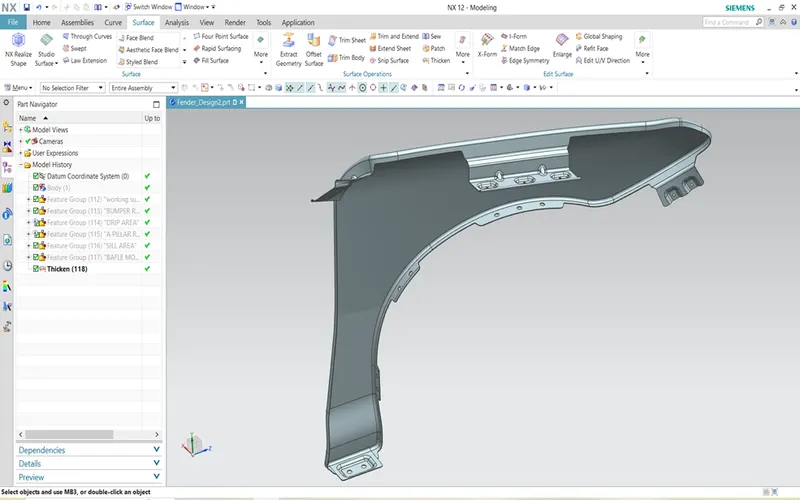

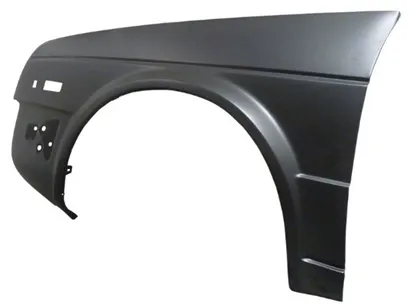

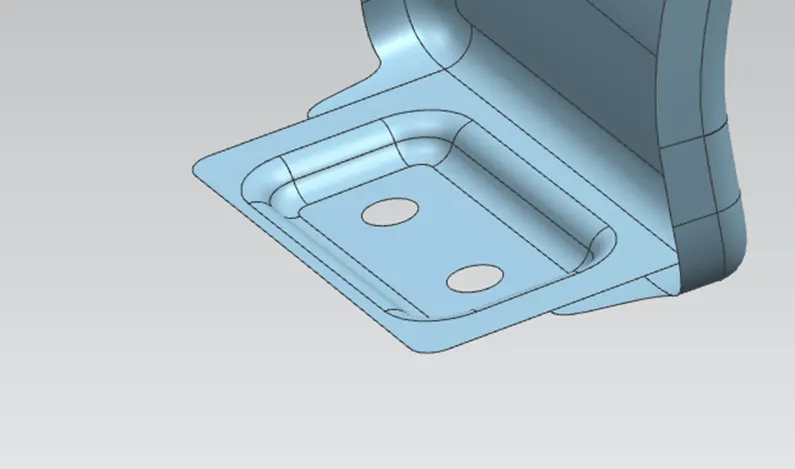

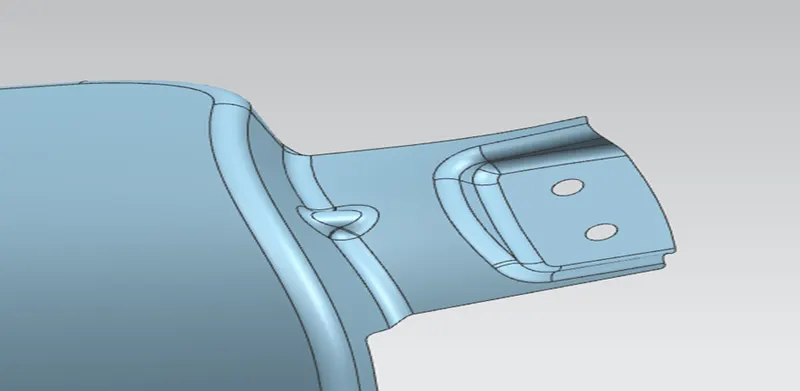

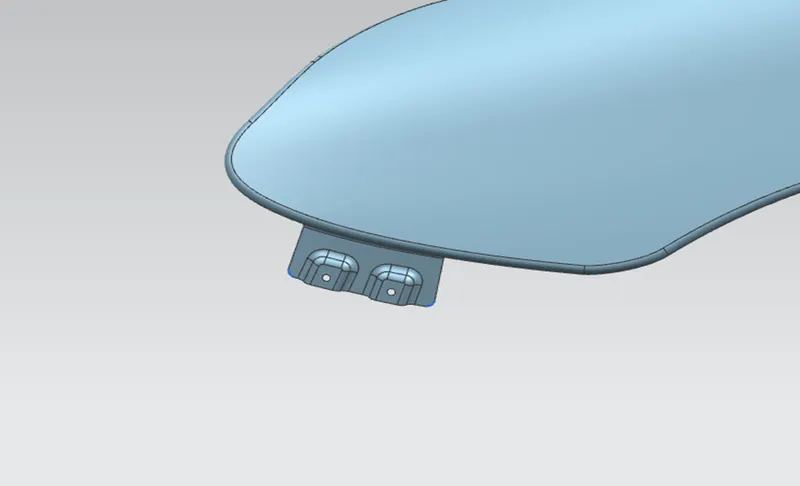

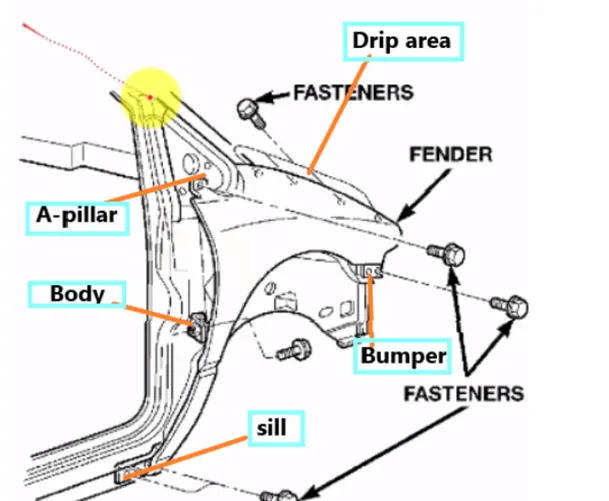

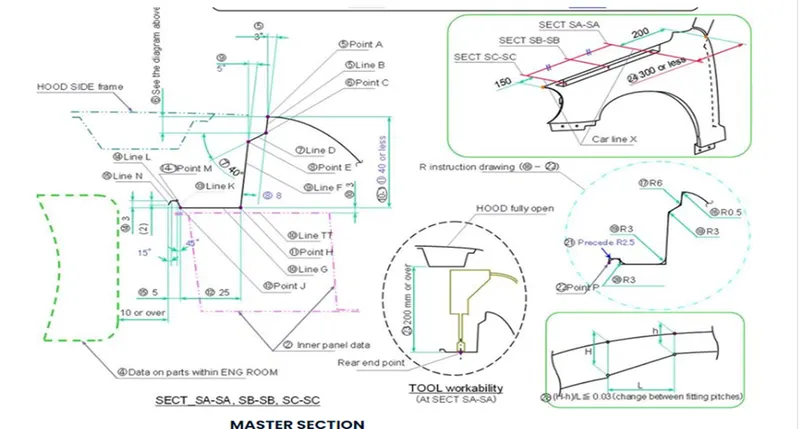

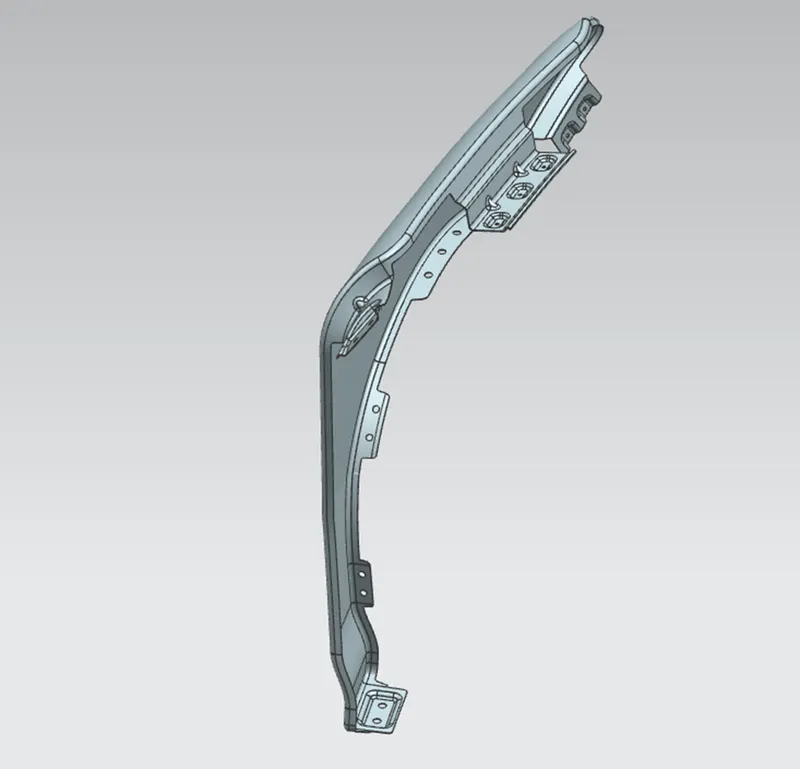

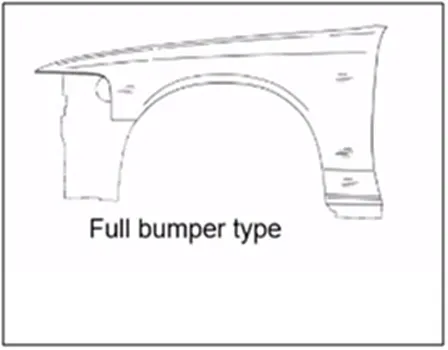

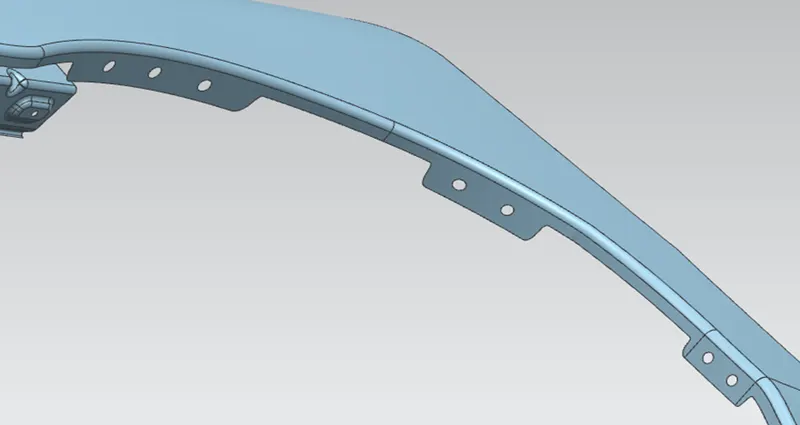

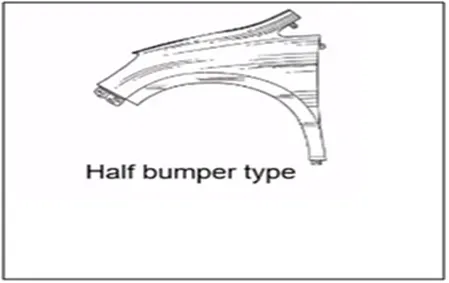

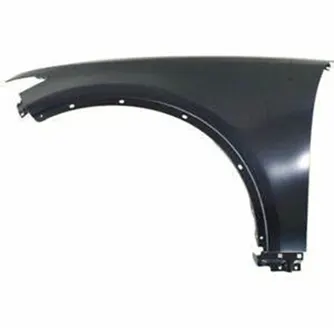

FENDER DESIGN AIM: To design a front fender of a car by following the given master section as per the design considerations of OEM. INTRODUCTION: Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well. Its primary propose is to prevent sand, rocks, mud,…

Aim  To calculate the section modulus of the hood for analysing its strength and also optimizing the design to see the difference in the bending strength of the hood. Higher the section modulus of a structure, the more the resistive it becomes to bending. Section modulus Section modulus is a geometric property…

AIM : To design the hood of a car with the given input Outer panel and its dimensions. Hood Introduction : A car hood also referred to as a bonnet in some other countries is the hinged cover that rests over the engine of a front-engine vehicle. Its purpose is to provide access to the engine for repair and maintenance.…

AIM:- To write a report on what is underbody coating, it’s type and pros and cons. INTRODUCTION: WHAT IS UNDERBODY COATING? Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted…

AIM: DETAILED REPORT ON BENCHMARKING To prepare a report explaining what is Bench-marking, compare at least 4 Vehicles and Provide a Proper conclusion for the report, suggesting a suitable vehicle among the comparison made. WHAT IS BENCHMARKING ? It is the process of comparing one's business process and performance metrics…

                                                                Development of a Door Trim panel AIM :- To create a CAD model for door trim panel's parts by considering the given inputs of class A surface along with master section by following the design rules followed in OEM and tier1 companies. OBJECTIVES: Analysing…

AIM ; To design A -PILLAR , from the given input mastersection and CLASS A surface. OBJECTIVE: The main objective of the project is to create a solid body from the given class A surface and the master sections, and performs draft analysis in the various stage of design. GIVEN CLASS A SURFACE: TOOLING AXIS CREATION:  For…

AIM To create assemblies based on the given model drawings. 1. Quick return motion mechanism Based on the drawings given before creating an assembly, we need to create the parts seperately So first we open a new part file and start creating the different parts seperately in different part files. BODY 1:   BODY 2: BODY…

GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: Check the connectivity of the surface and ensure there will be no gap between the surfaces and then define the tooling axis.While creating a tooling axis please ensure to give the tooling axis on a flat length surface. DRAFT ANALYSIS: Now perform the…

Create the component through the given Class-A surface.  the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Create the rib and screw boss as by considering the design rules CLASS A SURFACE: CREATING TOOLING…

Create the component through the given Class-A surface.  the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Create the rib and screw boss as by considering the design rules  CLASS A SURFACE:…

GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: Check the connectivity of the surface and ensure there will be no gap between the surfaces and then define the tooling axis.While creating a tooling axis please ensure to give the tooling axis on a flat length surface or the surface which have a hole…

GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: Check the connectivity of the surface and ensure there will be no gap between the surfaces and then define the tooling axis.While creating a tooling axis please ensure to give the tooling axis on a flat length surface. DRAFT ANALYSIS: Now perform the Draft…

GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: Check the connectivity of the surface and ensure there will be no gap between the surfaces and then define the tooling axis.While creating a tooling axis please ensure to give the tooling axis on a flat length surface  DRAFT ANALYSIS: Now perform…

Report: draft analysis and the tooling axis creation, creating the tooling axis, & the Bisecting method.   GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: At first we identify the proper location for the tooling axis to pass through. In this model we find the base of the switch besel to be the ideal surface…

Report: draft analysis and the tooling axis creation, creating the tooling axis, & the Bisecting method.   GIVEN CLASS A SURFACE: TO Find the tooling axis of the component: 1.Check visaully which is the best possible tooling axis,Along x  axis it is possible but expensive and y axis is not…
