Automotive fenders are a vital component in the vehicle. It is a metal covering provided to the front and rear wheels of the vehicle. The fenders are panels that extend from the front bumper to the vehicle’s doors.
The major role of Automotive fenders
1 - Automotive fenders play a major role in the safety of the vehicle as it shields the vehicle from unwanted body damage and provides safety to the driver and the passengers at the time of accidents.
2 - It protects the body of the vehicle from scratches and damages. Also, it prevents sand, mud, rocks, and liquids from being thrown into the air by the rotating tire, fenders provide protection against liquid spills.
3 - Additionally, fenders ensure that the body and engine have minimal contact with corrosive elements.
4 - Also increase the overall beauty of the car.
5 - And avoid wind resistance and enhance the aerodynamics of the car.
Types Of Fenders

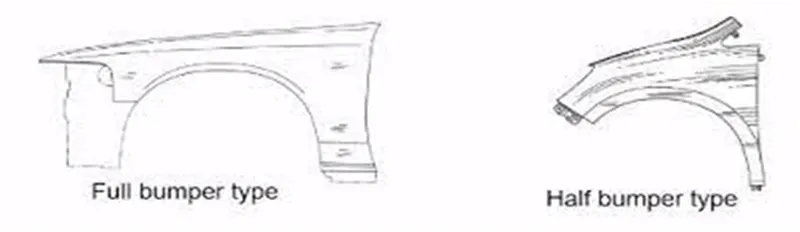

1 - Full Bumper Type 2 - Half Bumper type
“Presently conventional methodology why we are using half bumper type.”
Reason - Because for full bumper type the blank, we are using is really big and a lot of waste. But in the case of half bumper type, we have a high possibility to reduce the scrap. which means slightly increasing the blank we can produce two fenders at the same time so we also reduce the production cost and also production time this is called scrap management.
Also, allow using a lot of plastic on the bumper which means reducing weight and also increasing the performance of the vehicle.
Mounting Reason
The manufacturing process includes the following steps

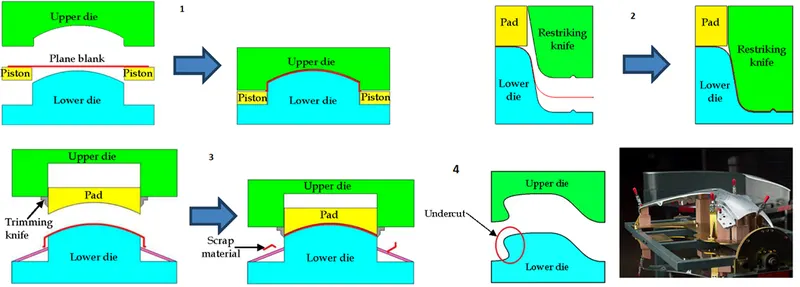

1 - Firstly, unfolding and shearing are carried out on a plate, wherein a proper cold roll specification is selected at first, a cold roll is unfolded, and then the unfolded cold roll is sheared to an iron plate of the corresponding size according to production material specifications.
2 - Secondly, oil pressing and punching are carried out, wherein the iron plate is extended at first, then side shearing and punching are conducted on the iron plate, folding and shaping are carried out on the iron plate, and finally reshaping is carried out on the iron plate.
3 -Thirdly, the small first parts of the fender are machined, first of all, the iron plate is punched to a needed outer contour blank, then the iron plate completing the outer contour blank is further shaped, and the iron plate is punched at last.
4- Fourthly, installation and welding of a metal plate are conducted.
(Embossing, Bending, Cutting, and Blanking)
Today materials use for manufacturing automobile fenders are Steel, Fiberglass, Carbon Fiber,
Design Of Fender By NX-CAD

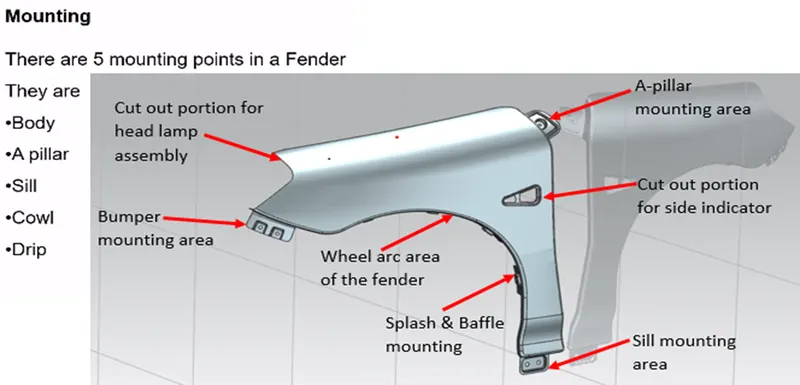

Design Fender Mounting areas by following the Master Section mentioned with the Design parameters. and Sill, Bumper, Baffle (Splash), and A-Pillar mount create your own design according to the Engineering standard.
Data to be used:

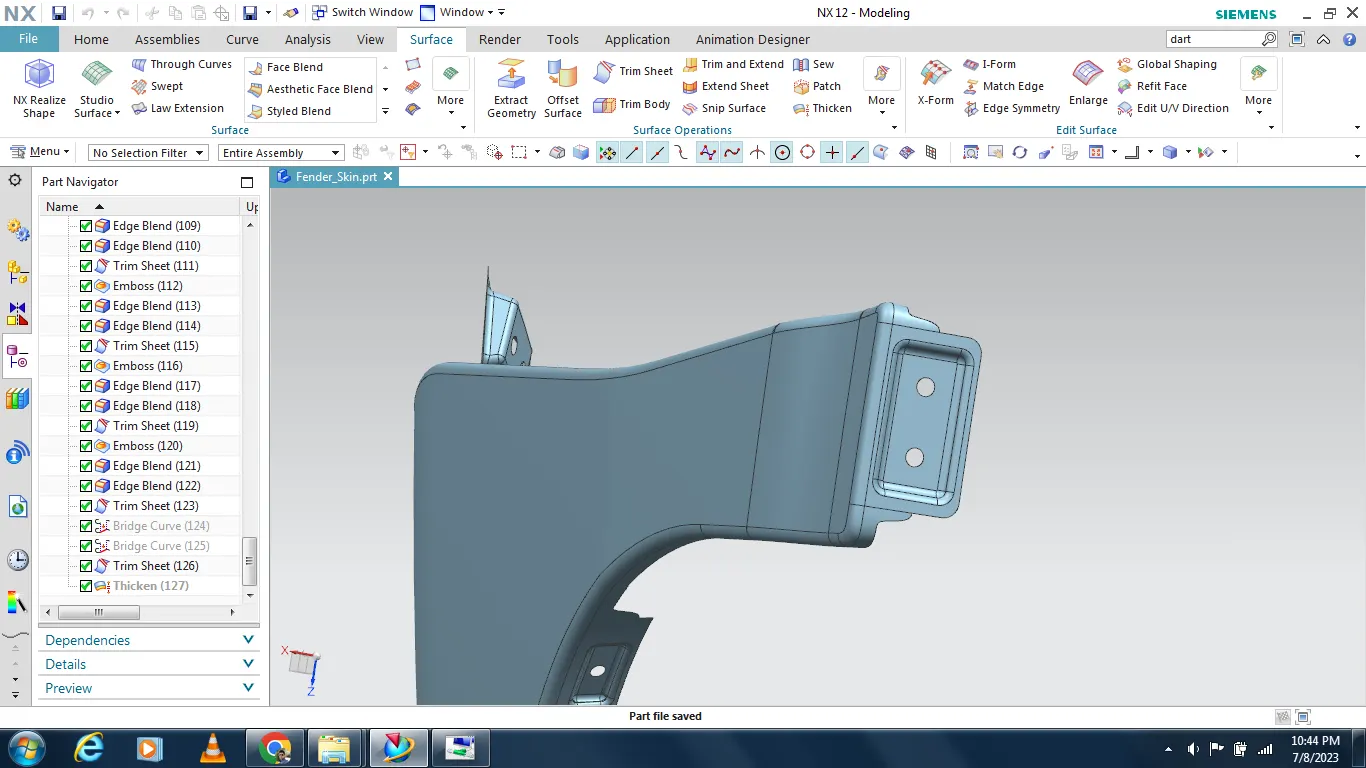

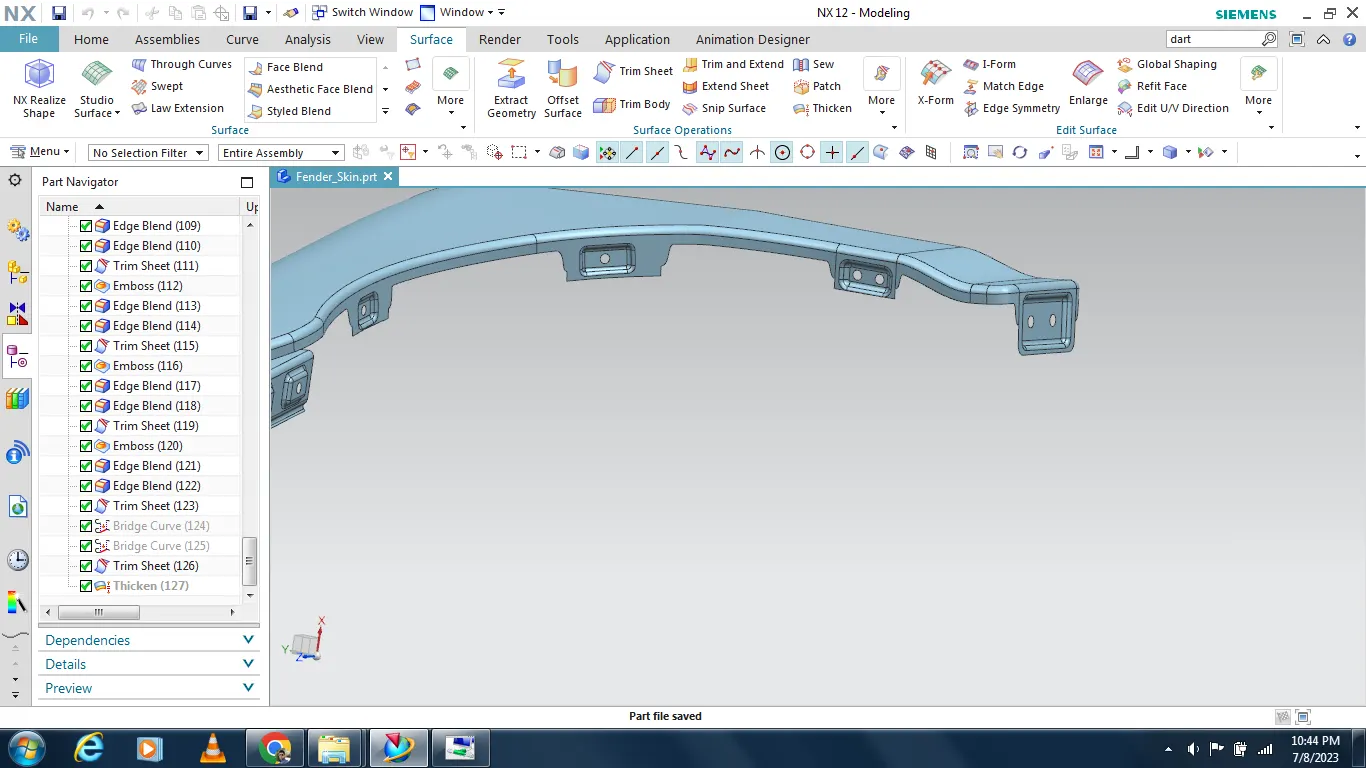

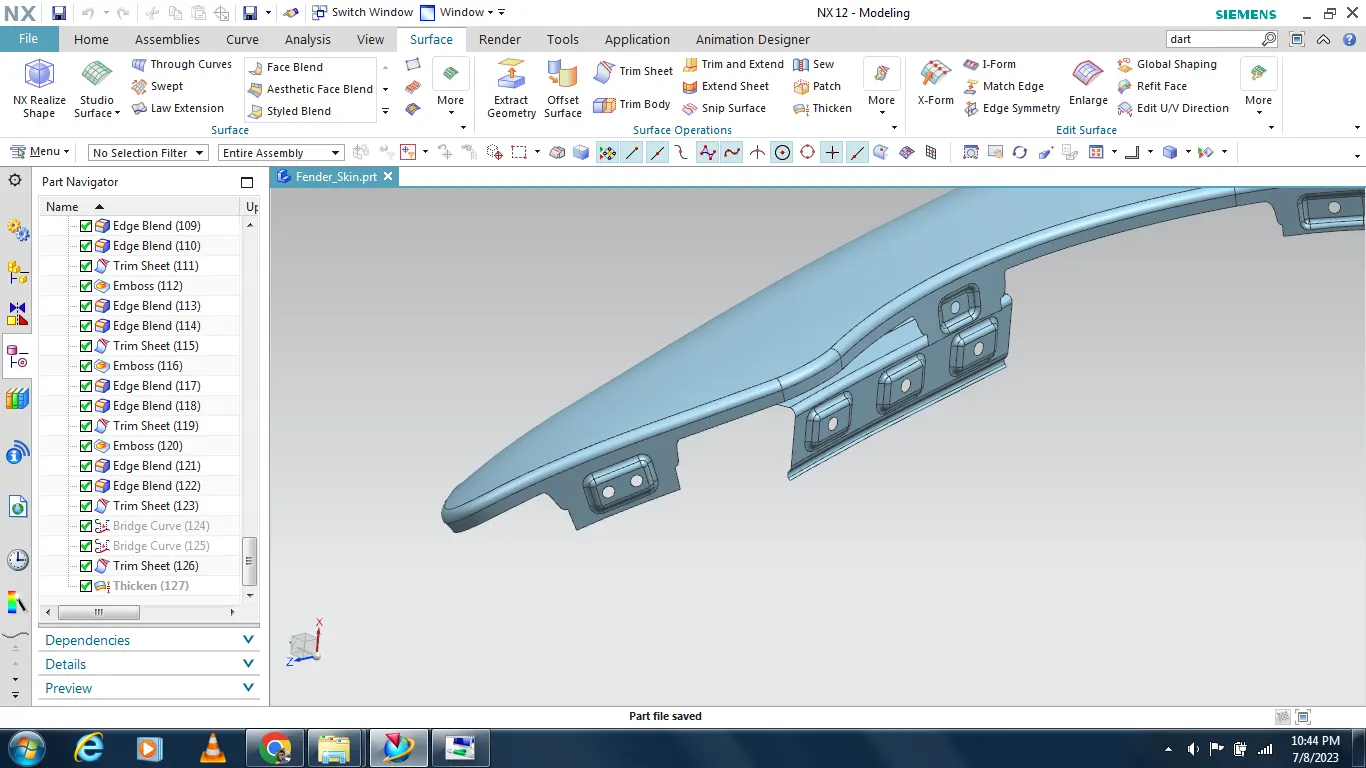

Bumper Mounting
A mounting area of the fender to bumper. Bumpers are usually made of plastic which covers the front of the car, Emboss & holes are given to attach the fender to Bumper.
Baffle Mounting
Baffle mounting is a clip-fit type of mounting on the inner side of the fender arch over the Tire. it protects the car engine compartment and pedestrians from causing injuries from chip-out debris on the road when the car is in motion. they are mounted on the fender using a special type of locking clip which is made up of plastics.
A-Pillar Mounting

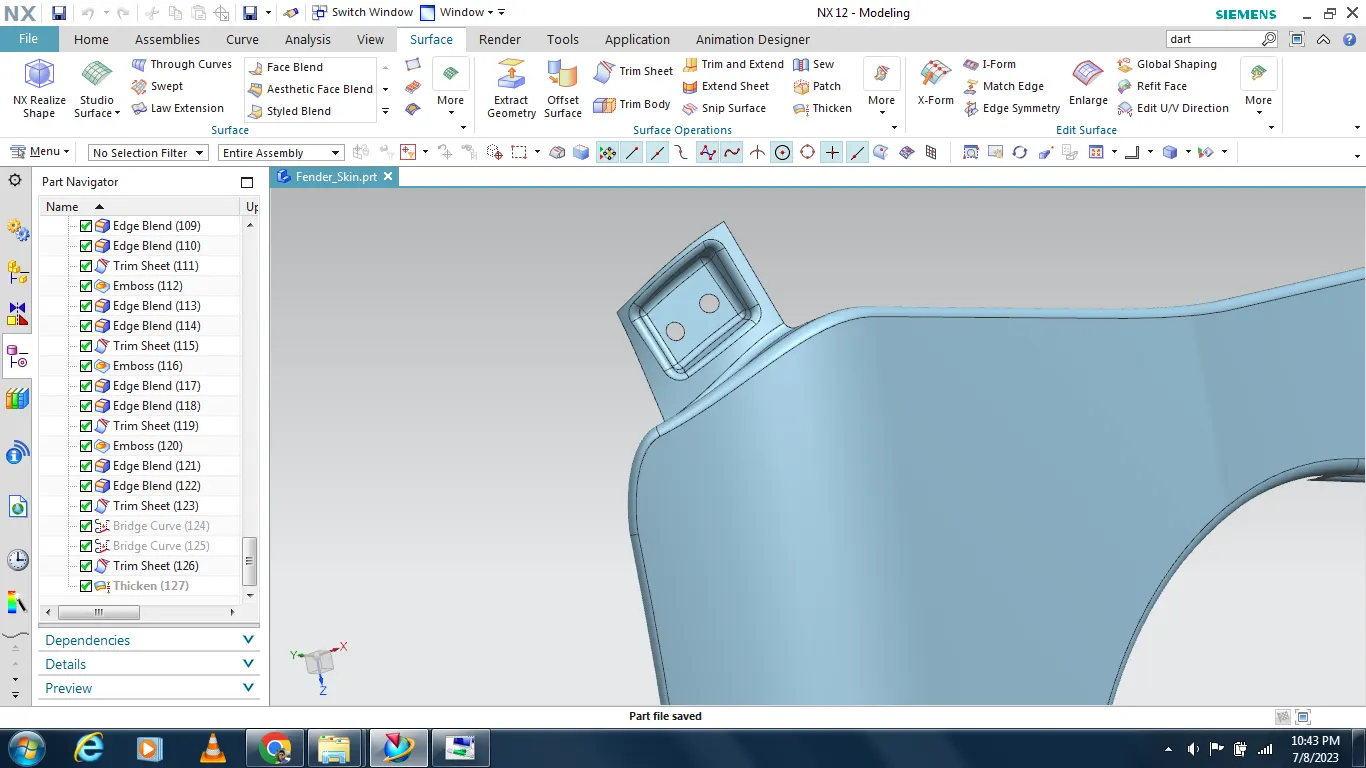

This mounting position is created for attaching the fender to A Pillar of the vehicle.
The mounting has to be created by taking the reference from the A-pillar of the vehicle.
Sill Mounting

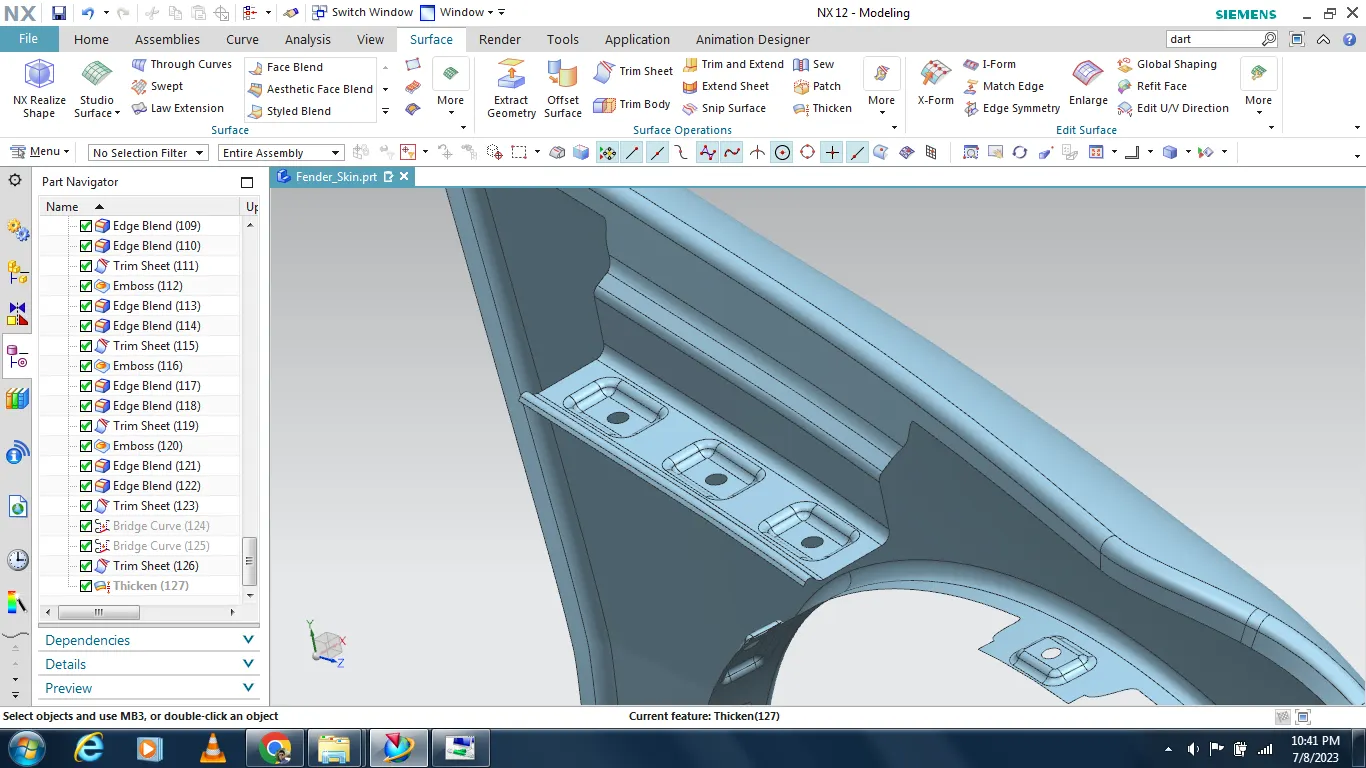

The sill mounting is used to attach the fender to the sill of the car. Emboss & holes are given to attach the fender to the sill.
.

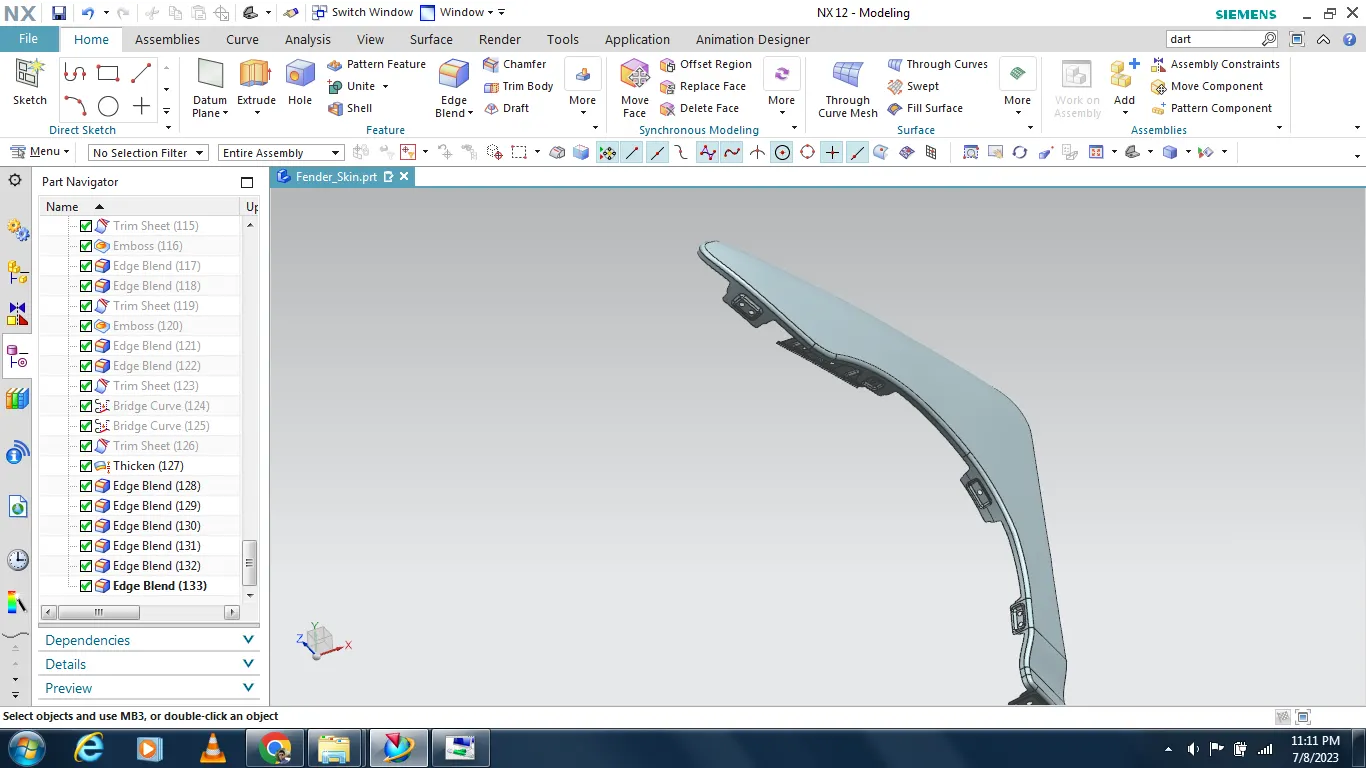

Thicken
After completing the sheet metal work next use thicken command for adding thickness up to .75mm.
