Fender Design

Front Fender Design:

• The design was made with the given MASTER SECTION.
• Especially DRIP was designed with master sections.
• The total fender was designed with 0.75mm thickness.
• Also, a solid part was generated.

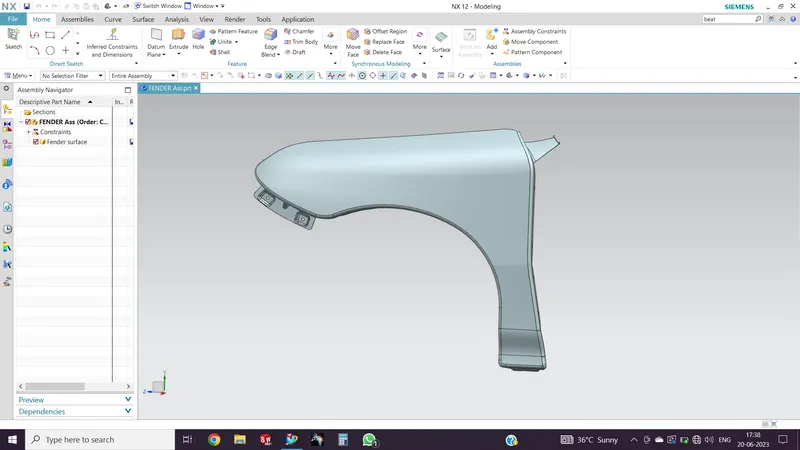

• The above image was a surface design executed using a master section.
• Then relief and the smoothening surface is generated.

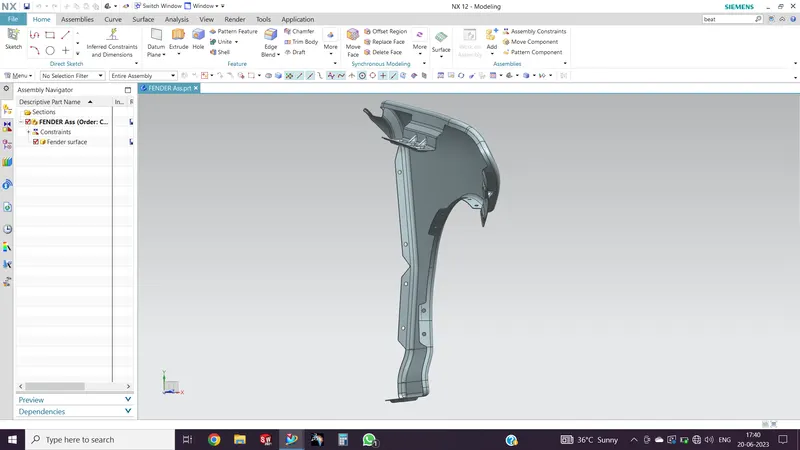

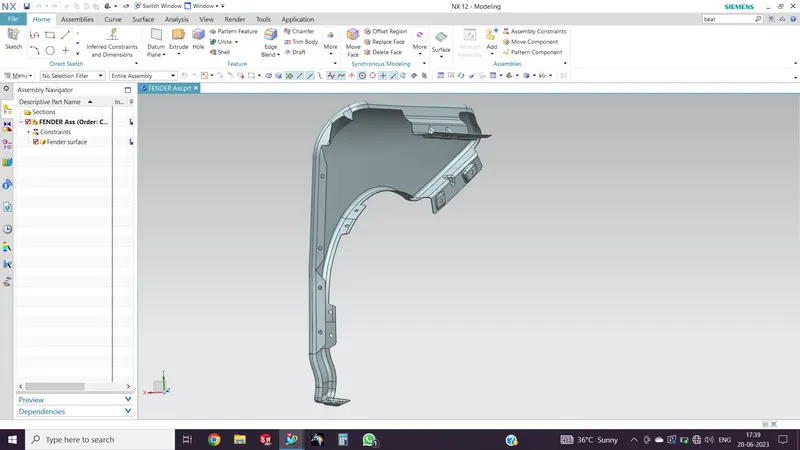

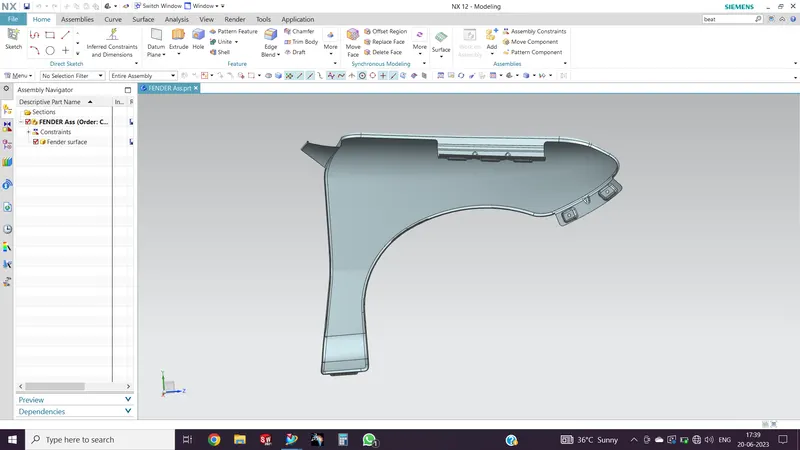

• These images were solid part FENDER with 0.75mm thickness.

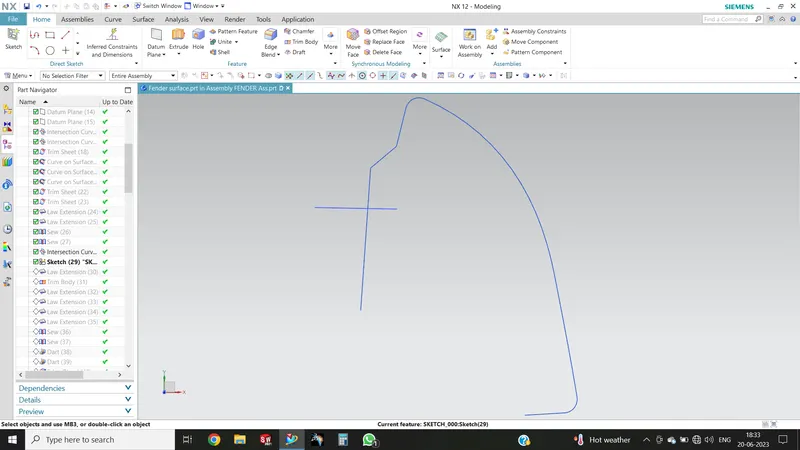

• Also, some trace, that the design was made using master section reference.

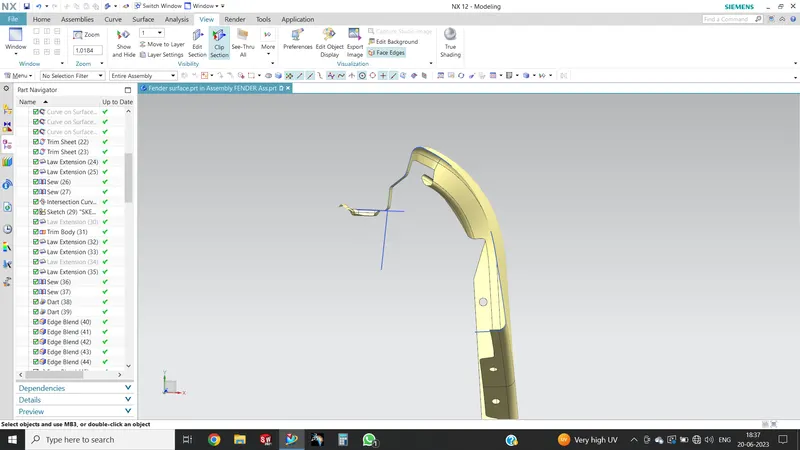

• Here the DRIP is shown with reference to my design.

• Finally, the FENDER design was created using the skin and master section given.

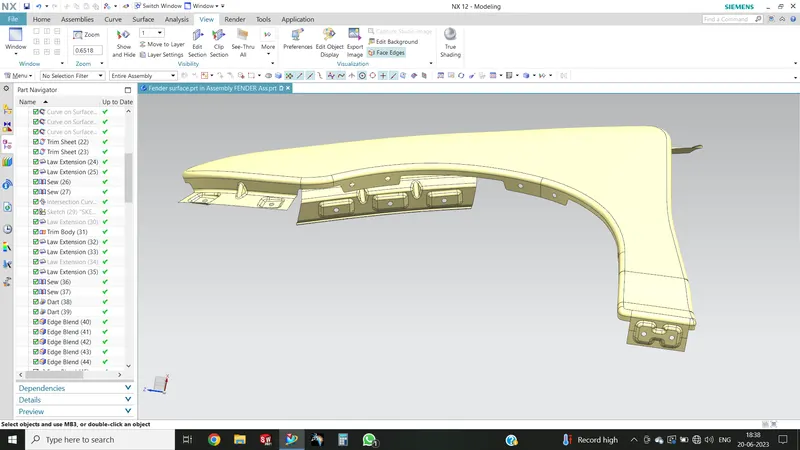

• The design also included with Sill, Bumper, Baffle(Splash), and A-Pillar mountings.
• Also, DART is given where it is in need.
