Fender Design

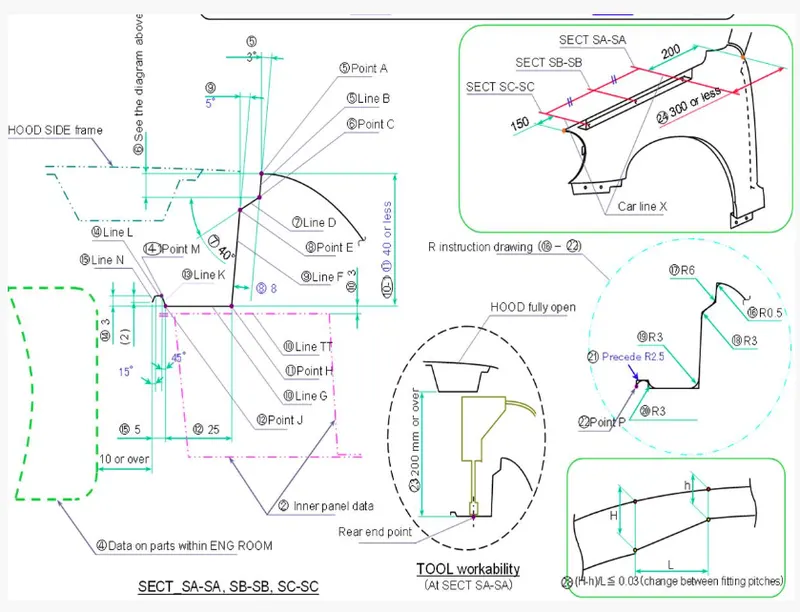

Follow the given Master section to create the Drip Area

For the Sill, Bumper, Baffle(Splash), and A-Pillar mount create your own design according to the Engineering standard that you learned.

Prepare a report with all the relevant images included for the mounting points created.

Solution:

Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.

Fender is the part of an automobile, motor cycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.

A fender is a curved panel that sits above the wheels of a car and runs from the bumper to its doors. It protects the car by picking up all the dirt and other things on the road, which would otherwise damage the car.

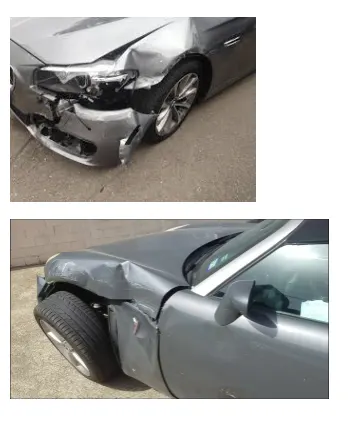

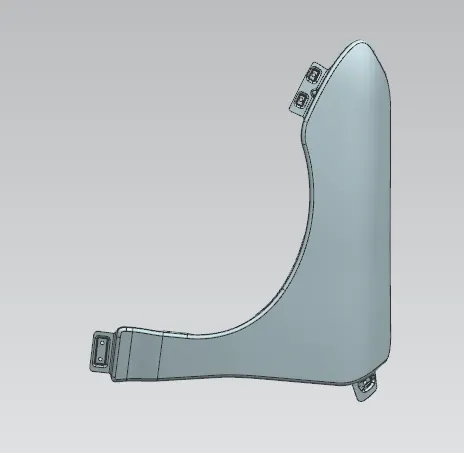

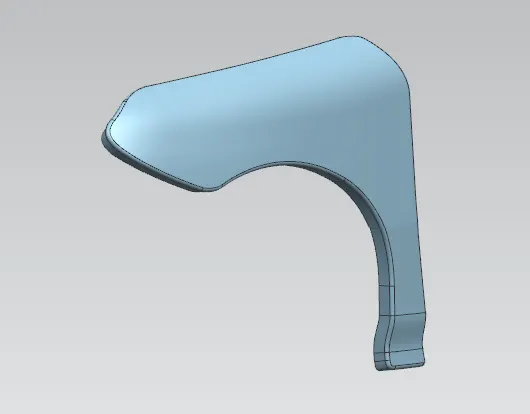

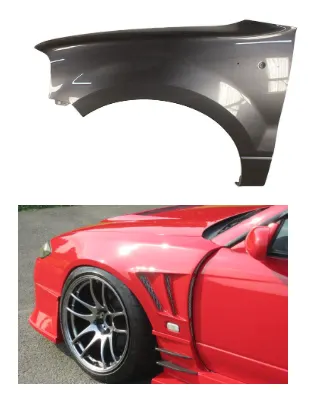

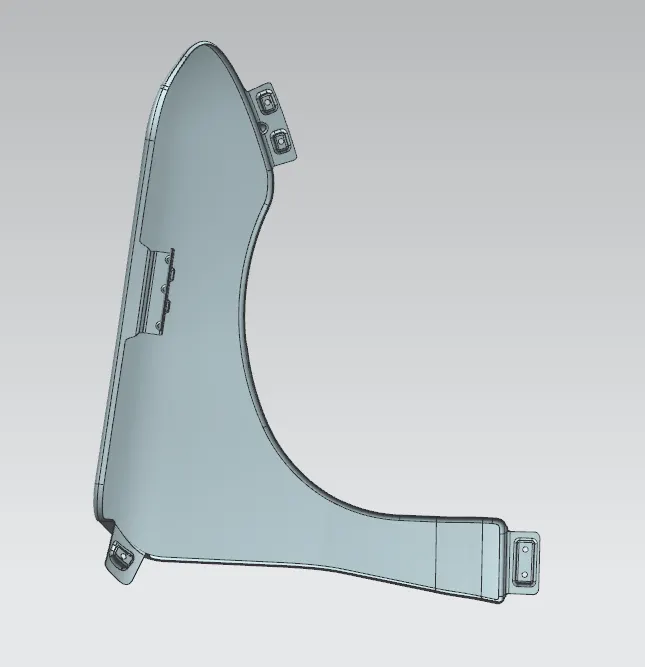

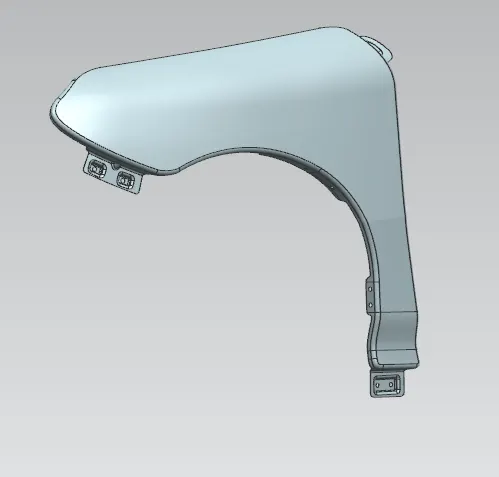

We have below fender available

Following steps are to be followed

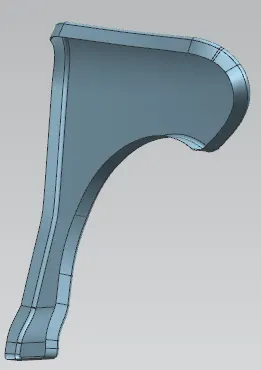

1. Creation of Drip Area

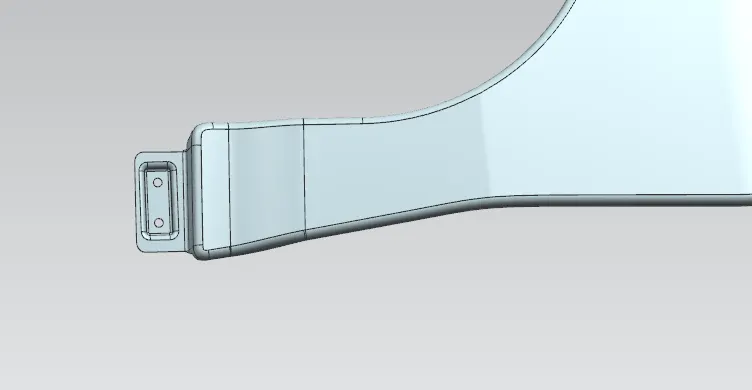

2. Design of Sill Mount Area

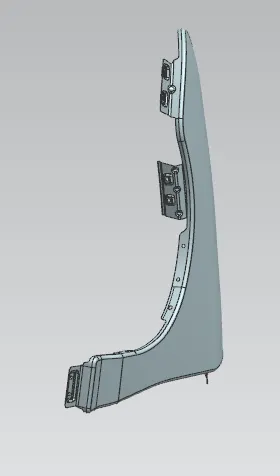

3. Design of Body Mount Area

4. Design of Bumper Mount Area

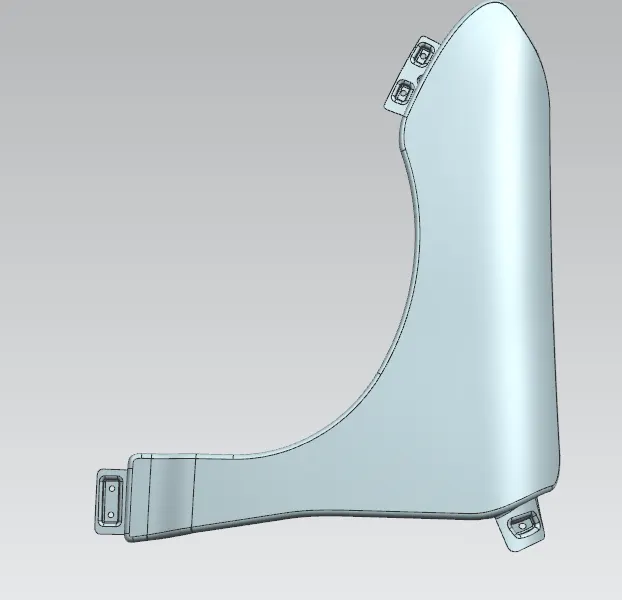

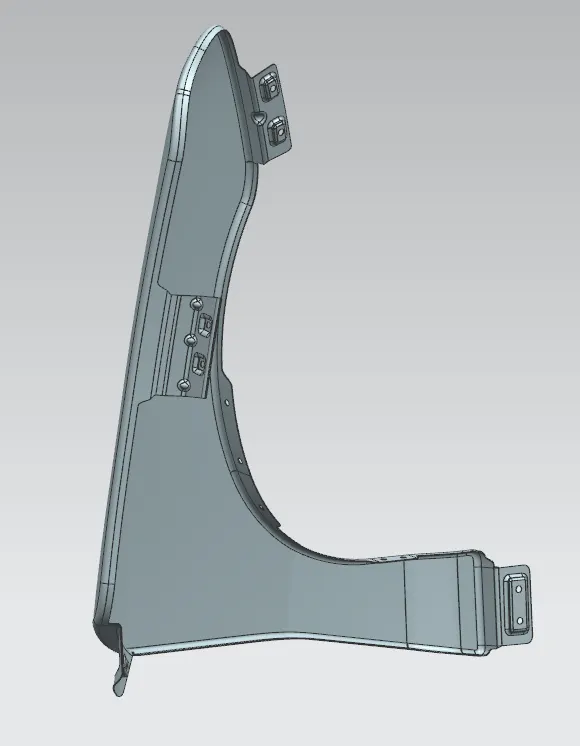

5. Fender Final Design

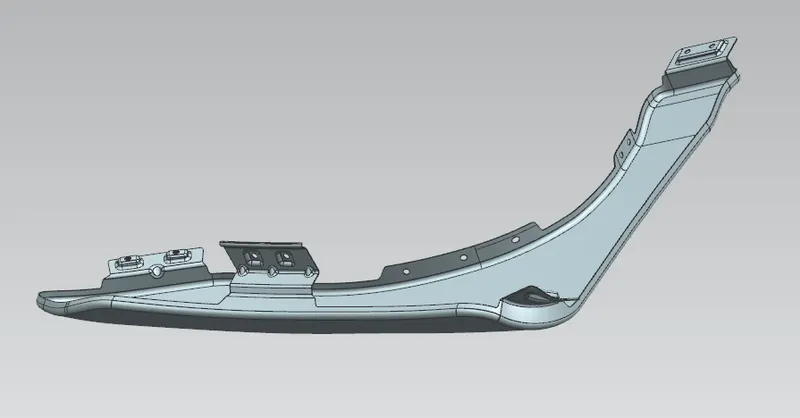

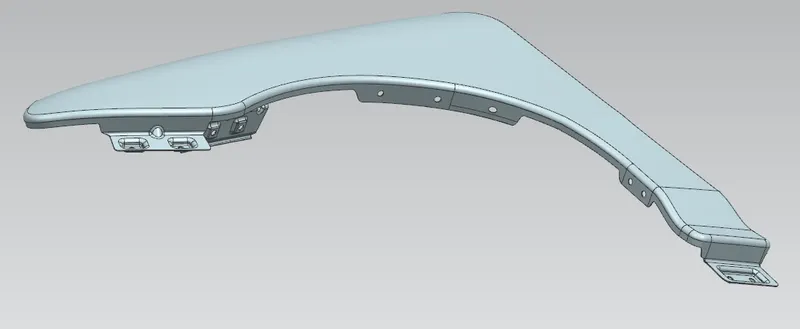

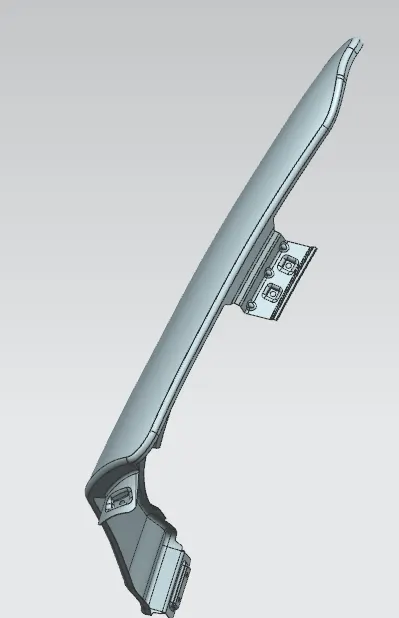

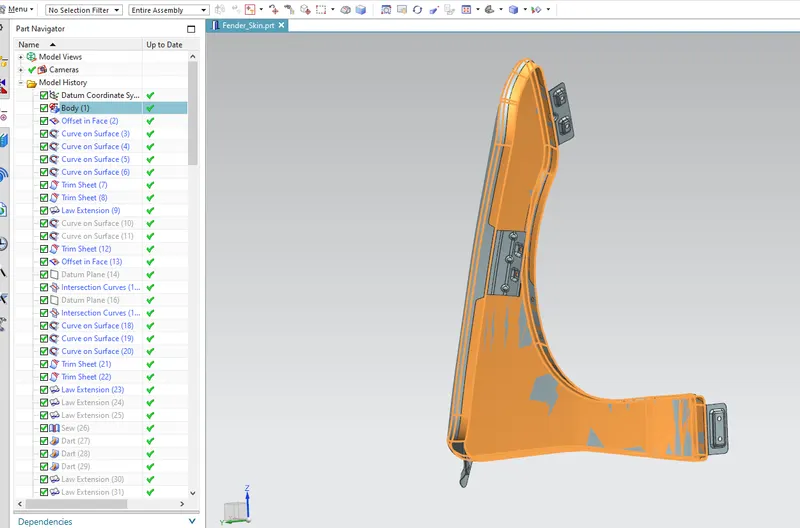

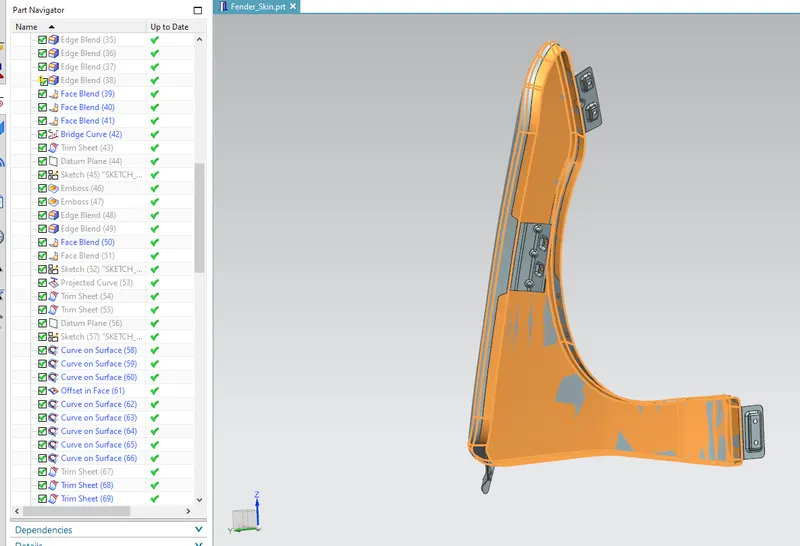

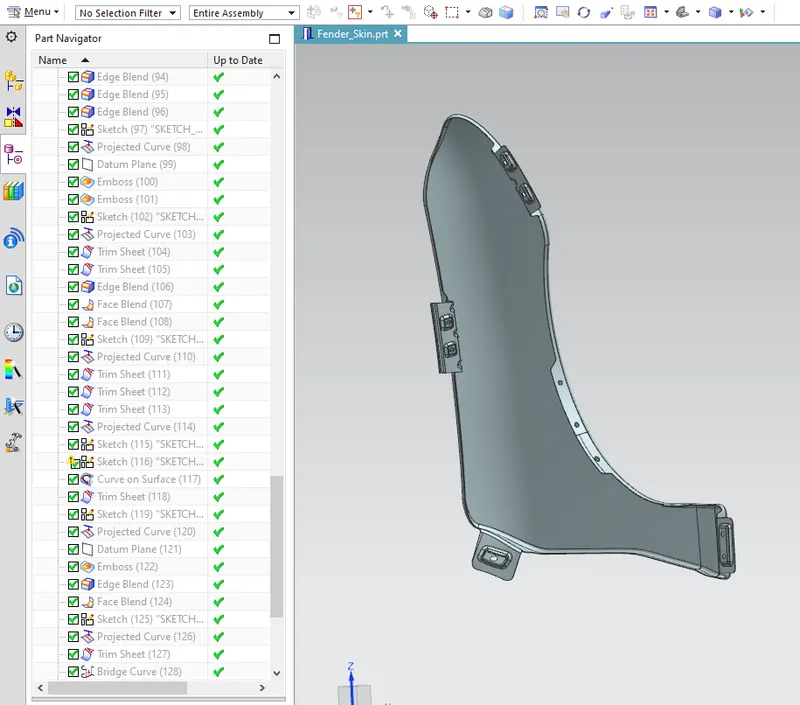

NX Tree window

Please find attached file for your references.
